| Product type | Ceiling-mounted air conditioner (4-way cassette) |
| Brand | LG |
| Model | UV18FH |
| Refrigerant | R32 |
| System type | Heat pump (cooling and heating) |
| Temperature range (cooling) | 18 °C to 30 °C |
| Temperature range (heating) | 16 °C to 30 °C |
| Fan speeds | Low, Medium, High, Chaos |
| Air filter | Cleaning recommended every 2 weeks |
| Remote control | Wireless, range up to 7 meters |
| Power supply | Mains, dedicated circuit (220-240 V, 50 Hz) |
| Main functions | Cooling, Heating, Dehumidification, Ventilation, Auto mode, Jet Cool |
| Additional functions | Plasma (depending on model), Timer, Sleep, Louver angle control |
| Safety | Grounding required, overload protection, automatic shutdown in case of anomaly |
| Maintenance | Clean the filter regularly, do not use water inside, cut power before cleaning |
| Installation | Must be carried out by a certified technician |
| Repairability | Entrust to certified technical service; do not disassemble yourself |
| Remote control batteries | AAA batteries, do not mix old and new batteries |
| Warranty | Keep the receipt as proof of purchase |
| Disposal | HFC refrigerant to be collected according to regulations |
Frequently Asked Questions - UV18FH LG
User questions about UV18FH LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual UV18FH - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UV18FH by LG.
USER MANUAL UV18FH LG
Please read this manual carefully before operating your set and retain it for future reference.
CEILING SUSPENDED AIR CONDITIONER
Original instruction
[Representative] LG Electronics Inc. EU Representative : LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands
[Manufacturer] LG Electronics Tianjin Appliances Co., Ltd. No.09, Jinwei Road, Beichen District, Tianjin, China

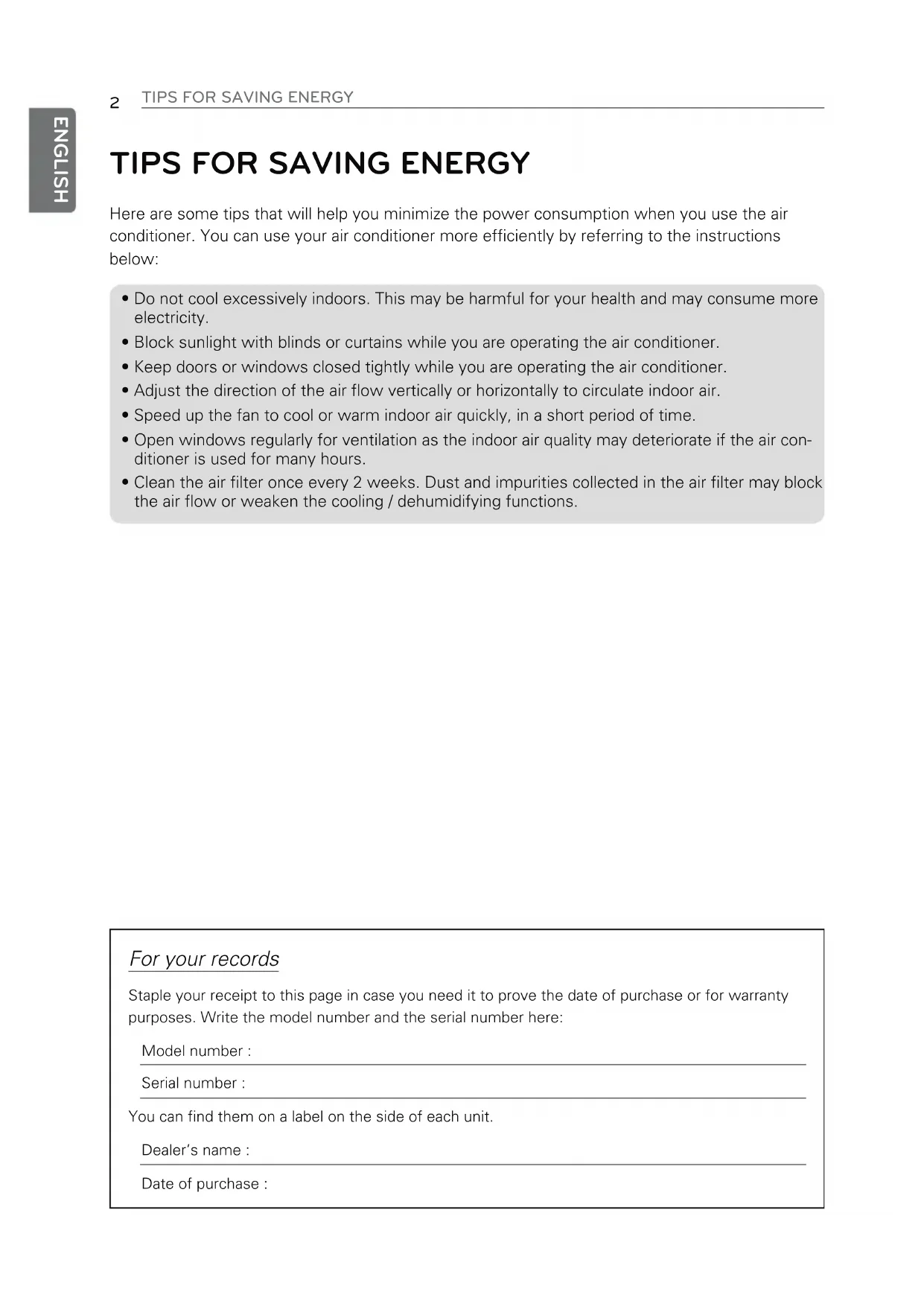

TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:
- Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.
- Block sunlight with blinds or curtains while you are operating the air conditioner.
- Keep doors or windows closed tightly while you are operating the air conditioner.
- Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
- Speed up the fan to cool or warm indoor air quickly, in a short period of time.
- Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
- Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer's name :
Date of purchase :
IMPORTANT SAFETY INSTRUCTIONS
 | Read the precautions in this manual carefully before operating the unit. |  | This appliance is filled with flammable refrigerant (R32) |
 | This symbol indicates that the Operation Manual should be read carefully. |  | This symbol indicates that a service personnel should be handling this equipment with reference to the Installation Manual. |
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored. This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
WARNING
• Always ground the product. There is a risk of electric shock.
- Do not use a defective or underrated circuit breaker. Use the correctly rated breaker and fuse. There is risk of fire or electric shock.
- Do not use a multi consent. Always use this appliance on a dedicated circuit and breaker. Otherwise it can cause electric shock or fire.
- For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center. Do not disassemble or repair the product by yourself. There is risk of fire or electric shock.
• Always ground the product as per the wiring diagram. Do not connect the ground wire to gas or water pipes lightening rod or telephone ground wire. There is risk of fire or electric shock.
• Install the panel and the cover of control box securely. There is risk of fire or electric shock due to dust, water etc.
- Use the correctly rated breaker or fuse. There is risk of fire or electric shock.
- Do not modify or extend the power cable. If the power cable or cord has scrathes or skin peeled off or deteriorated then it must be replaced. There is risk of fire or electric shock.
- For installation, removal or reinstall, always contact the dealer or an Authorized Service Center. There is risk of fire, electric shock, explosion, or injury.
- Do not install the product on a defective installation stand. Be sure that the installation area does not deteriorate with age. It may cause product to fall.
- Never install the outdoor unit on a moving base or a place from where it can fall down.
The falling outdoor unit can cause damage or injury or even death of a person.
- When the product is soaked (flooded or submerged) in water, contact an Authorized Service Center for repair before using it again. There is risk of fire or eletric shock.
- Be sure to check the refrigerant to the used. Please read the label on the product. Incorrect refrigerant used can prevent the normal operation of the unit.
- Don't use a power cord, a plug or a loose socket which is damaged. Otherwise it may cause a fire or electrical shock.
- Do not touch, operate, or repair the product with wet hands. Hold the plug by hand when taking out. There is risk of electric shock or fire.
- Do not place a heater or other heating appliances near the power cable. There is risk of fire and electric shock.
- Do not allow water to run into electric parts. Install the unit away from water sources. There is risk of fire, failure of the product, or electric shock.
- Do not store or use or even allow flammable gas or combustibles near the product. There is risk of fire.
- Indoor/outdoor wiring connections must be secured tightly and the cable should be routed properly so that there is no force pulling the cable from the connection terminals. Improper or loose connections can cause heat generation or fire.
- Safely dispose off the packing materials. Like screws, nails, batteries, broken things etc after installation or svc and then tear away and throw away the plastic packaging bags. Children may play with them and cause injury.
- Make sure to check that the power cable plug is not dirty, loose or broken and then only insert the plug completely. Dirty, loose or broken power plug can cause electric shock or fire.
- In outdoor unit the step-up capacitor supplies high voltage electricity to the electrical components. Be sure to discharge the capacitor completely before conducting the repair work. An charged capacitor can cause electrical shock.
- When installing the unit, use the installation kit provided with the product. Otherwise the unit may fall and cause severe injury.
- Be sure to use only those parts which are listed in the svc parts list. Never attempt to modify the equipment. The use of inappropriate parts can cause an electrical shock, excessive heat generation or fire.
- Do not use the product in a tightly closed space for a long time. Perform ventilation regularly. Oxygen deficiency could occur and hence harm your health.
- Do not open the front grille of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.) There is risk of physical injury, electric shock, or product failure.
- If strange sounds, smell or smoke comes from product. Immediately turn the breaker off or disconnect the power supply cable. There is risk of electric shock or fire.
- Ventilate the product room from time to time when operating it together with a stove, or heating element etc. Oxygen deficiency can occur and hence harm your health.
- Turn the main power off and unplug the unit when cleaning or repairing the product. There is risk of electric shock.
- When the product is not to be used for a long time, disconnect the power supply plug or turn off the breaker. There is risk of
product damage or failure, or unintended operation.
• Take care to ensure that nobody especially kids could step on or fall onto the outdoor unit. This could result in personal injury and product damage.
• Take care to ensure that power cable could not be pulled out or damaged during operation. There is risk of fire or electric shock.
- Do not place ANYTHING on the power cable. There is risk of fire or electric shock.
- Do not plug or unplug the power supply plug to turn the unit ON/OFF. There is risk of fire or electric shock.
- When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on. Do not use the telephone or turn switches on or off. There is risk of explosion or fire.
- Do not turn on the breaker or power under condition that front panel, cabinet, top cover, control box cover are removed or opened. Otherwise, it may cause fire, electric shock, explosion or death.
- Use a vacuum pump or Inert (nitrogen) gas when doing leakage test or air purge. Do not compress air or Oxygen and Do not use Flammable gases. Otherwise, it may cause fire or explosion. There is the risk of death, injury, fire or explosion.
- The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.)
- Keep any required ventilation openings clear of obstruction.
- The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
- Ducts connected to an appliance shall not contain an ignition source.
CAUTION
- Two or more people must lift and transport the product. Avoid personal injury.
- Do not install the product where it will be exposed to sea wind (salt spray) directly. It may cause corrosion on the product.
• Install the drain hose to ensure that the condensed water is drained away properly. A bad connection may cause water leakage. - Keep level even when installing the product. To avoid vibration or noise.
- Do not install the product where the noise or hot air from the outdoor unit could damage or disturb the neighborhoods. It may cause a problem for your neighbors and hence dispute.
• Always check for gas (refrigerant) leakage after installation or repair of product. Low refrigerant levels may cause failure of product. - Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system. There is risk of damage or loss of property.
- Do not block the inlet or outlet of air flow. It may cause product failure.
- Use a soft cloth to clean. Do not use harsh detergents, solvents or splashing water etc. There is risk of fire, electric shock, or damage to the plastic parts of the product.
- Do not touch the metal parts of the product when removing the air filter. There is risk of personal injury.
- Do not step on or put anything on the product. (outdoor units) There is risk of personal injury and failure of product.
• Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary. A dirty filter reduces the efficiency. -
Do not insert hands or other objects through the air inlet or outlet while the product is operating. There are sharp and moving parts that could cause personal injury.
-
Be cautious when unpacking and installing the product. Sharp edges could cause injury.
- If the refrigerant gas leaks during the repair, do not touch the leakaing refrigerant gas. The refrigerat gas can cause frostbite (cold burn)
- Do not tilt the unit when removing or uninstalling it. The condensed water inside can spill.
- Do not mix air or gas other than the specified refrigerant used in the system. If air enters the refrigerant system, an excessively high pressure results, causing equipment damage or injury.
- If the refrigerant gas leaks during the installation, ventilate the area immediately. Otherwise it can be harmful for your health.
- Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in accordance with local and national standards.
- Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries. There is risk of fire or product failure.
- Do not recharge or disassemble the batteries. Do not dispose off batteries in a fire. They may burn or explode.
- If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked. The chemicals in batteries could cause burns or other health hazards.
- If you eat the liquid from the batteries, brush your teeth and see doctor.
Do not use the remote if the batteries have leaked. The chemicals in batteries could cause burns or other health hazard. - Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open. Moisture may condense and wet or damage furniture.
- Do not expose your skin or kids or plants to the cool or hot air draft. This could harm to your health.
-
Do not drink the water drained from the product. It is not sanitary and could cause serious health issues.
-
Use a firm stool or ladder when cleaning, maintaining or repairing the product at an height. Be careful and avoid personal injury.
- The air conditioner is not intended for use by young children or invalids without supervision.
- Young children should be supervised to ensure that they do not play with the air conditioner.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
- Wear adequate personal protection equipment (PPE) when installing, maintaining or servicing the product.
TABLE OF CONTENTS
2 TIPS FOR SAVING EN- ERGY
3 IMPORTANT SAFETY IN-STRUCTIONS
7 BEFORE USE
7 Preparing for operation
7 Usage
7 Cleaning and maintenance
7 Service
8 PRODUCT INTRODUC-TION
8 Name and function of parts
8 What to do before operation
8 Operation Indication Lamps
9 Wireless Remote Controller

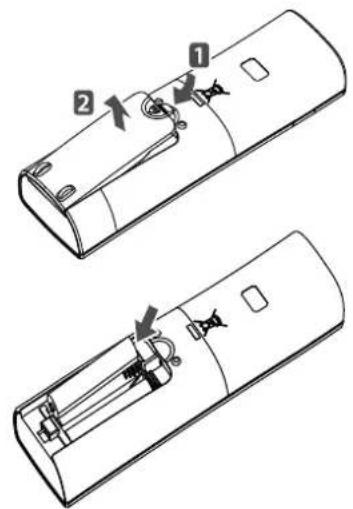

11 How to insert the Batteries
11 Wireless Remote Controller Maintenance
12 INSTALLATION IN- STRUCTIONS
12 Installer Setting -How to enter installer setting mode
13 Installer Setting - Installer Setting Code Table
14 Installer Setting - Setting Address of Central Control
14 Installer Setting - Checking Address of Central Control
15 OWNER'S INSTRUCTION

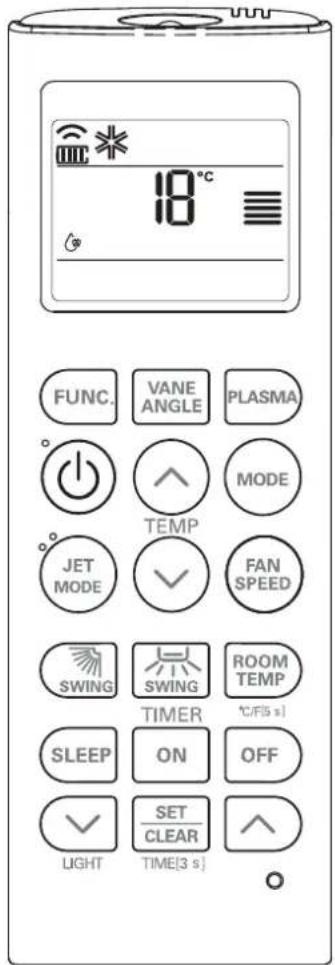

15 Cooling Mode - Standard Operation

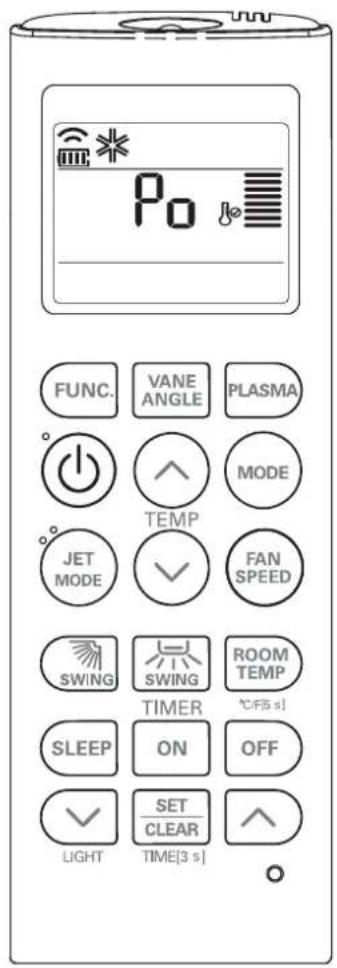

15 Cooling Mode - Power Cooling
16 Heating Mode
17 Auto Changeover Mode
17 Auto Changeover Mode - Setting the Mode Change Temperature

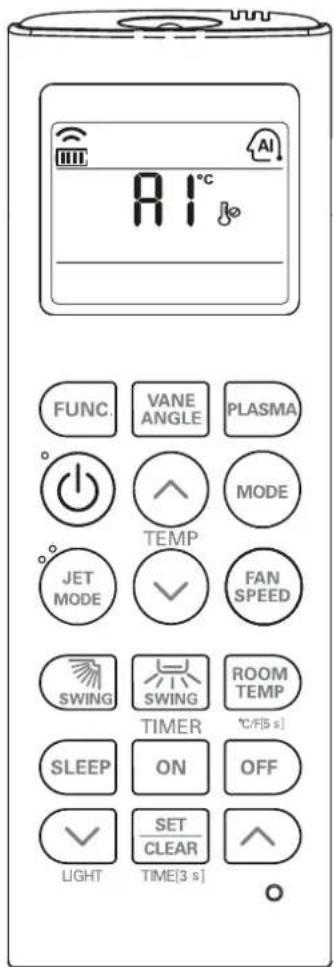

18 Auto Operation Mode

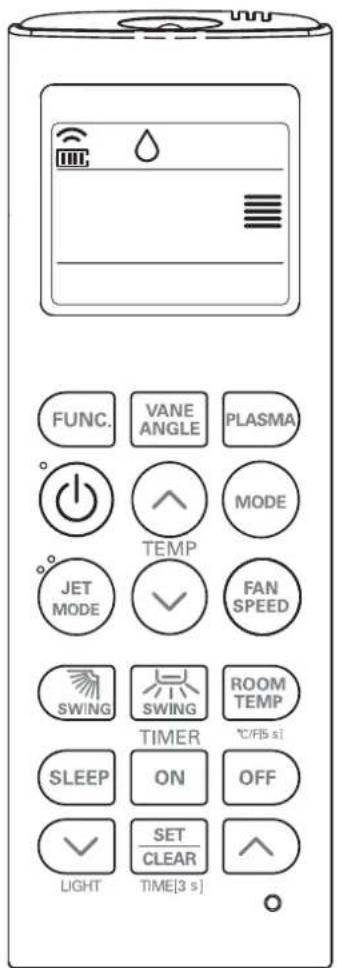

19 Dehumidification Mode
20 Fan Mode
21 Temperature Setting/Room Temperature checking
22 Airflow Setting
22 Celsius/Fahrenheit Switching
23 Timer
24 MAINTENANCE AND SERVICE
25 Operation Tips!
25 When the air conditioner is not going....
26 Troubleshooting Tips! Save time and money!
26 Call the service immediately in the following situations
BEFORE USE
About the system
This system of air conditioner can be used for heating/cooling applications.
Preparing for operation
- Contact an installation specialist for installation.
- Use a dedicated circuit.
Usage
- Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
- Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or other heating devices.
- Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices, food, pets, plants, and art objects). Such usage could damage the items.
Cleaning and maintenance
- Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
- Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
- When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is accidentally triggered on while cleaning inner parts of the unit.
Service
For repair and maintenance, contact your authorized service dealer.
Disposal
The unit uses hydrofluorocarbon. Contact your dealer when discarding this unit. It is required by law to collect, transport and discard the refrigerant in accordance with the "hydrofluorocarbon collection and destruction" regulations.
PRODUCT INTRODUCTION

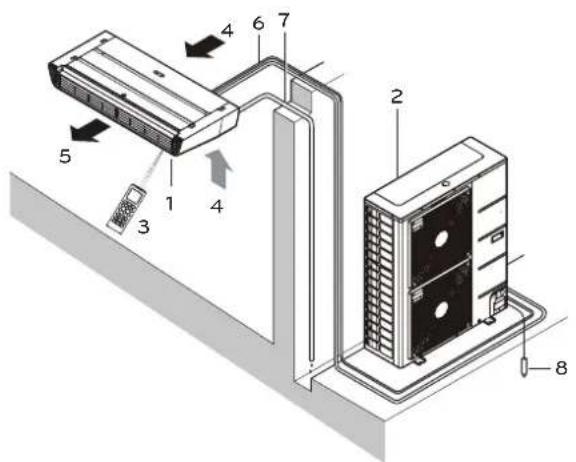

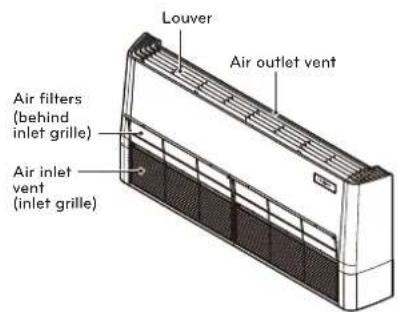

Name and function of parts
2 Outdoor unit
3 Remote controller
4 Inlet air
5 Discharge air
6 Refrigerant piping, connection electric wire
7 Drain pipe
8 Ground wire
Wire to ground outdoor unit to prevent electrical shocks.
Operation Indication Lamps
On/Off : Lights up during the system operation.
Filter Sign : Lights up after 2400 hours from the time of first operating unit.
Timer: Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot Start operation. (Heat pump type)
- Forced operation: To operate the unit when the remote control can't be used for any reason.

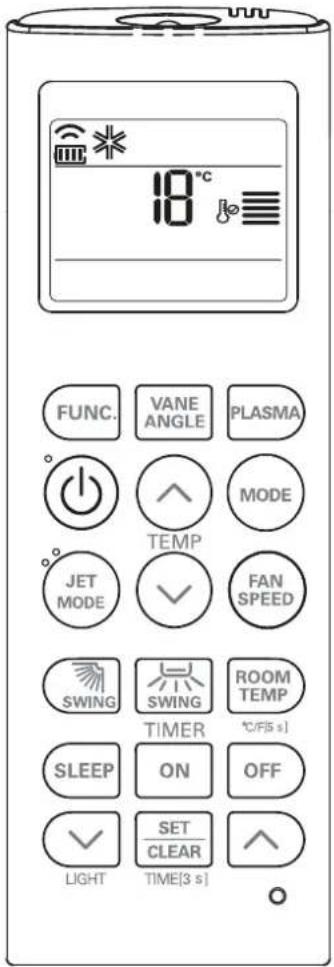

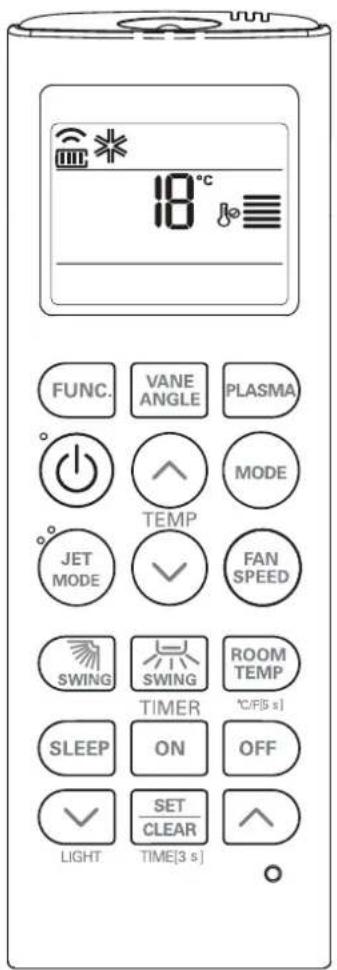

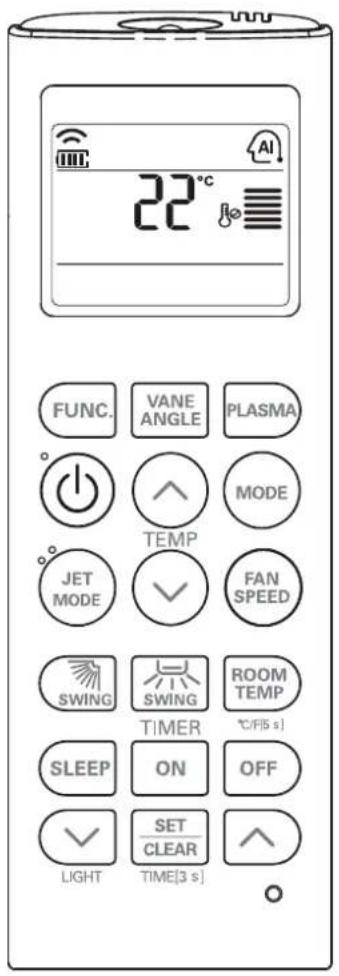

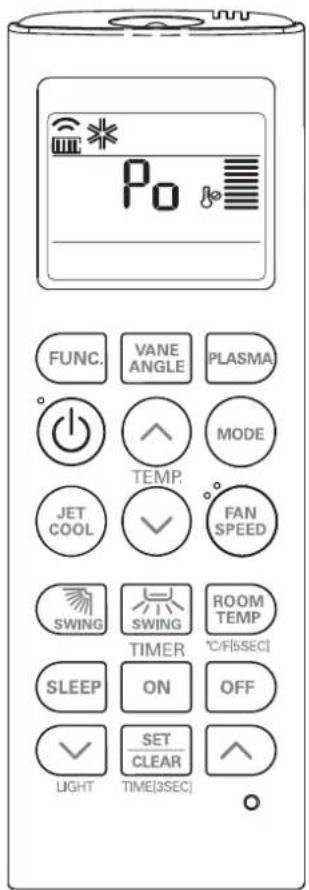

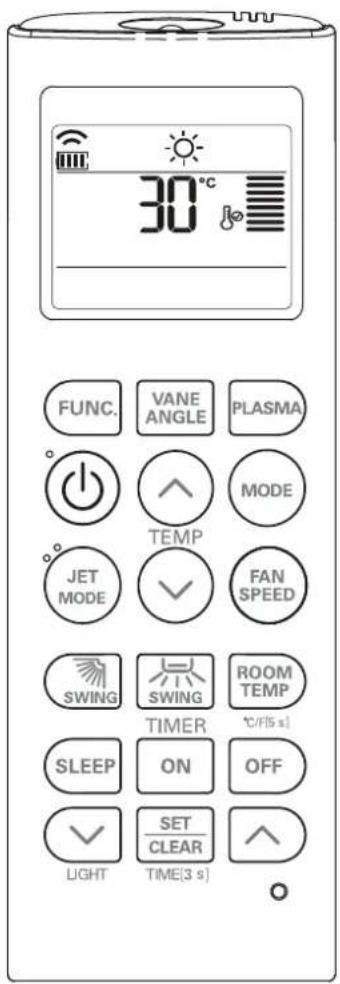

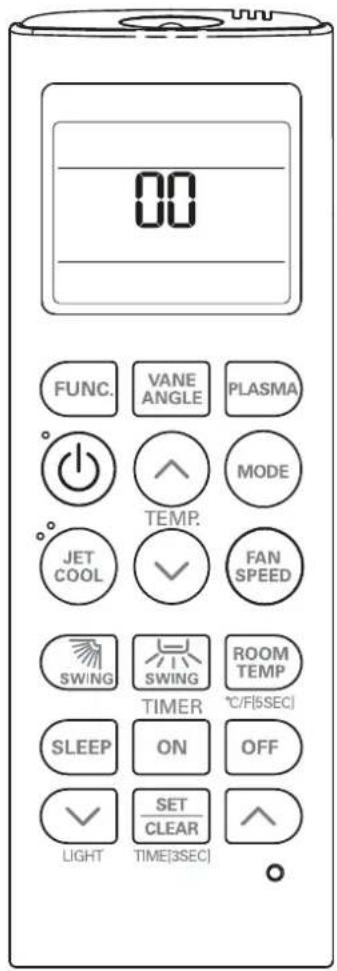

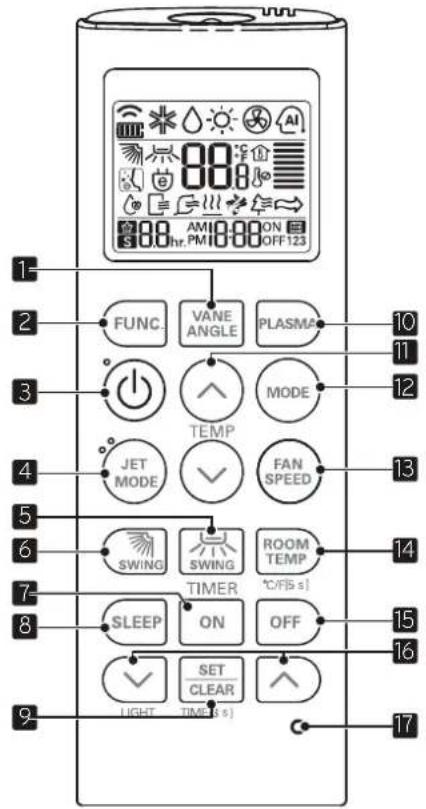

Wireless Remote Controller


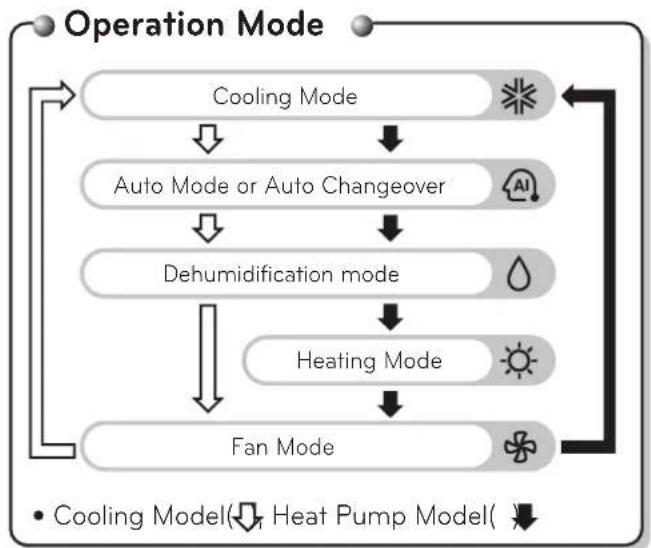

1 VANE ANGLE Button
Used to set each vane angle.
2 FUNCTION SETTING Button
Used to set or clear Auto Clean, Smart Clean,
Electric heater or Individual vane angle control.
3 ON/OFF Button
Used to turn on/off the unit.
4 JET COOL Button
Speed cooling operates super high fan speed.
5 LEFT/RIGHT AIRFLOW Button (OPTIONAL) Used to set the desired left/right(horizontal) airflow direction.
6 UP/DOWN AIRFLOW Button
Used to stop or start louver movement and set the desired up/down airflow direction.
7 ON TIMER Button
Used to set the time of starting operation.
8 SLEEP TIMER Button
Used to set the time of sleeping operation.
9 SET / CLEAR Button
Used to set/clear the timer.
Used to set the current time(if it input for 3sec.)
10 PLASMA Button (OPTIONAL)
Used to start or stop the plasma-purification function.
11 ROOM TEMPERATURE SETTING Button Used to select the room temperature.
12 OPERATION MODE SELECTION Button Used to select the operation mode.
13 INDOOR FAN SPEED SELECTION Button Used to select fan speed in four steps low, medium, high and chaos.
14 ROOM TEMPERATURE CHECKING Button Used to check the room temperature.
15 OFF TIMER Button
Used to set the time of stopping operation.
16 TIMER SETTING(Up/Down)/LIGHT Button
Used to set the timer.
Used to adjust the brightness.(if it is not time adjust mode)
17 RESET Button
Used to reset the remote controller.
! CAUTION
- Aim at the signal receiver on the wired remote controller so as to operate.
- The remote control signal can be received at a distance of up to about 7m.
- Be sure that there are no obstructions between the remote controller and the signal receptor.
- Do not drop or throw the remote controller.
- Do not place the remote controller in a location exposed to direct sunlight, or near the heating unit, or any other heat source.
- Block a strong light over the signal receptor with a curtain or etc. so as to prevent the abnormal operation. (ex:electronic quick start, ELBA, inverter type fluorescent lamp)
NOTE
- For more details refer to the Wireless Remote Control Accessory manual.
- The actual product can be different from above contents depending upon model type.
How to insert the Batteries
Remove the battery cover by pulling it according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
Reattach the cover by sliding it back into position.
NOTE
• Always use/replace both batteries of same type.
- If the system is not to be used for a long time, remove the batteries to save their working life.
- If the display screen of remote controller starts, fading replace both of the batteries.

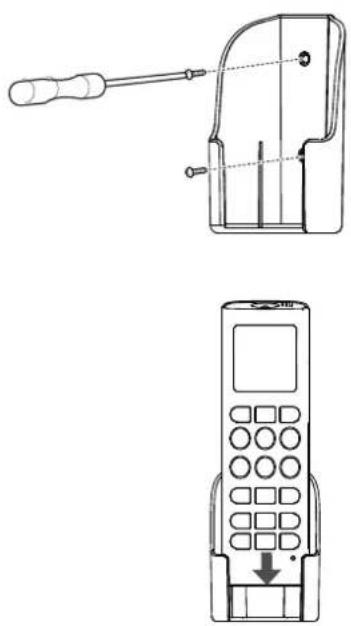

Wireless Remote Controller Maintenance
Choose a suitable place where its safe & easy to reach.
Fix the holder to wall etc with the supplied screws firmly.
Slide the remote controller inside the holder.
NOTE
- Remote controller should never be exposed to direct sunlight.
- Signal transmitter & receiver should always be clean for proper communication. Use a soft cloth to clean them.
- In case some other appliances also get operated with remote control, change their position or consult your service-man.
INSTALLATION INSTRUCTIONS
Installer Setting -How to enter installer setting mode
CAUTION
Installer setting mode is to set the detail function of the remote controller. If the installer setting mode is not set correctly, it can cause problems to the product, user injury or property damage. This must be set by an certificated installer, and any installation or change that is carried out by a non-certificated person should be responsible for the results. In this case, free service cannot be provided.
2 By using the TEMPERATURE SETTING button, set function code and setting value. (Please refer the Installer Setting Code Table.)
3 Press the ON/OFF button toward the indoor unit 1 time.
4 Reset the remote controller to use the general operation mode.
Refer to the Installer Setting Code Table on the next page.
OWNER'S INSTRUCTION
Cooling Mode
- Standard Operation
Cooling Mode - Power Cooling
The unit will respond with beep sound.
2 Press MODE button to select Cooling Mode.
3 Set the desired temperature by pressing TEMP button.
Press ROOM TEMPERATURE CHECKING button to check the room temperature. When setting the desired temperature is higher than room temperature, cooling wind isn't blow out.
- Setting Temp. Range : 18\~30°C(64\~86°F)
The unit will respond with beep sound.
2 Press MODE button to select Cooling Mode.
3 Press the JET COOL button. The unit will operate in super high fan speed in cooling mode.
• Wall mounted models operate power cooling mode for 30 minutes.
4 To cancel the Power cooling Mode press the Jet Cool button or the fan button or the room temperature setting button again and the unit will operate in high fan speed in cooling mode.
Cooling mode - Comfort Cooling
This function is automatically control the cooling strength to maintain the pleasant feeling without turning off the product after the indoor temperature reached the desired temperature.
The unit will respond with beep sound.
2 Press MODE button to select cooling mode.
3 Press FUNC. button repeatedly until Comfort cooling icon displayed.
4 Press SET/CLEAR button for setting.
5 To cancel the comfort cooling mode, repeat above.
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Heating Mode.
3 Set the desired temperature by pressing TEMP button.
Press ROOM TEMPERATURE CHECKING button to check the room temperature. When setting the desired temperature is lower than room temperature, heating wind isn't blow out.
- Setting Temp. Range in Heating Mode: 16\~30°C (60°F\~86°F)
4 Set the fan speed again. You can select the fan speed in four steps – low, medium, high, or chaos. Each time the button is pressed the fan speed mode is shifted.
Auto Changeover Mode
This Function is only available on some products.
2 Press MODE button to select Auto Changeover Mode.
3 Set the desired room temperature.
- Setting Temp. Range in Auto Changeover Mode: 18\~30°C (64\~86°F)
4 You can select the fan speed in four steps – low, medium, high and chaos. Each time the button is pressed, the fan speed mode is shifted.
During Auto changeover Mode
- The air conditioner changes the operation mode automatically to keep indoor temperature. When room temperature vary over ± 2^(4^) with respect to setting temperature, air conditioner keeps the room temperature within ± 2^(4^) with respect to setting temperature by auto changeover mode
Auto Changeover Mode - Setting the Mode Change Temperature
This Function is to set the operating mode of the Auto Changeover Mode.
1 In Auto Changeover Mode, Press the ROOM TEMPERATURE CHECKING button for 3 seconds. The mode change temperature set before will be displayed.
2 Press the TEMPERATURE SETTING button to set desired Mode Change Temperature. (Default value is 2^ C(4°F).)
The Mode Change Temperature is the difference of temperature when from cooling mode to heating mode or from heating mode to cooling mode.
Ex) When setting temperature is 25^(76^) and room temperature is 20^(68^) , then operating mode is heating. If you set the mode change temperature to 2^(4^) , when the room temperature up to 27^(25^ + 2^)(80^(76^ + 4^)) , the unit start cooling operation.
Auto Operation Mode
The unit will respond with beep sound.
2 Press MODE button to select Auto Operation Mode.
3 Set the desired temperature.
The temperature and fan speed are automatically set by the electronic controls based on the actual room temperature. If you feel hot or cold, press TEMPERATURE SETTING buttons for more cooling or heating effect.
You cannot switch the indoor fan speed. It has already been set by the Auto Operation Mode rule.


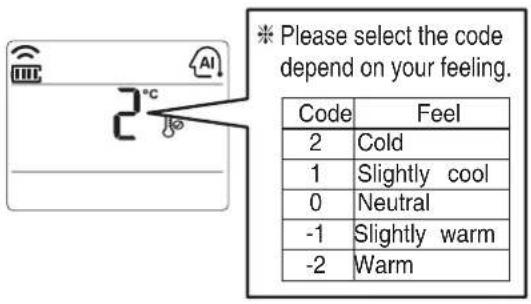

* Please select the code depend on your feeling. 2 Cold 1 Slightly cool 0 Neutral -1 Slightly warm -2 WarmYou can set desired temperature and indoor fan speed.
Setting Temp. Range : 18\~30°C(64\~86°F)
- If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating to cooling, then you must set the mode and the desired temperature again.
Dehumidification Mode
- If you select the dehumidification mode on the operation selection button, the indoor unit starts to run the dehumidification function, automatically setting the room temp. and air volume to the best condition for dehumidification based on the sensed room temp. In this case, the setting temp. is not displayed in the Remote Controller and you are not able to control the room temp. either.
- During the healthy dehumidification function, the air volume is automatically set according to the algorithm responding to the current room temp. and makes the room condition healthy and comfortable even in the high humidity season.
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Dehumidification Mode.
3 Set the fan speed. You can select the fan speed in four steps - low, medium, high, or chaos. Each time the button is pressed, the fan speed mode is shifted.
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Dehumidification Mode.
3 Set the fan speed. You can select the fan speed in four steps - low, medium, high, or chaos. Each time the button is pressed, the fan speed mode is shifted.
Fan Mode
- For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to chaos mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the chaos logic.
During Fan Mode
- The outdoor compressor doesn't work. Have a function to circulate the indoor as it sends out the air that doesn't have much temperature difference with indoor.
1 Press the ON/OFF button.
The unit will respond with beep sound.
2 Press MODE button to select Fan Mode.
3 Set the fan speed again. You can select the fan speed in four steps—low, medium, high, or chaos. Each time the button is pressed, the fan speed mode is shifted.
Temperature Setting/Room Temperature checking
- Press the buttons to adjust the desired temperature
: Increase 1°C or 1°F per one time pressing
: Decrease 1°C or 1°F per one time pressing
Room temp: Indicate the current room temperature
Set temp: Indicate the temperature that user want to set
The cooling mode doesn't work if desired temperature is higher than room temperature Please lower the desired temperature
The heating mode doesn't work if desired temperature is lower than room temperature. Please increase the desired temperature
Whenever press button, the room temperature will be displayed within 5 seconds.
After 5 seconds, it turns to display the desired temperature.
Because of location of remote controller, the real room temperature and the this displayed value can be different.
Airflow Setting
Up/Down Airflow Direction Control (Optional)
The up/down airflow (Vertical Airflow) can be adjusted by using the remote controller.
1 Press the ON/OFF button to start the unit.
2 Press up/down airflow button and the louvers will swing up and down.
Press the up/down airflow button again to set the vertical louver at the desired airflow direction.
NOTE
- If you press the UP/DOWN AIRFLOW button, the horizontal airflow direction is changed automatically based on the Auto Swing algorithm to distribute the air in the room evenly and at the same time to make the human body feel more comfortable, as if enjoying a natural breeze.
- Always use the remote controller to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.
- When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.
Press the °C/°F SWITCH button to change from Celsius to Fahrenheit or from Fahrenheit to Celsius.
Whenever press TEMPERATURE SETTING button in Fahrenheit mode, the temperature will increase/drop 1°F.
Timer
Setting the Current Time
1 Press the SET/CLEAR button for 3 seconds.
2 Press TIME SETTING buttons until the desired time is set.
3 Press the SET / CLEAR button.
NOTE
Check the indicator for A.M. and P.M.
Timer Setting
1 Press the TIMER button to turn timer on or off.
2 Press TIME SETTING buttons until the desired time is set.
3 Press the SET / CLEAR button.
NOTE
Select one of the following 3 types of operation.
To cancel the Timer Setting
- If you wish to cancel all timer setting, press the SET/CLEAR button.
- If you wish to cancel each timer setting, press the TIMER button to turn timer sleep or on or off as you want.
And then press the SET/CLEAR button aiming the remote controller at the signal receptor.
(The timer lamp on the air conditioner and the display will go off.)
MAINTENANCE AND SERVICE
Grille, Case and Remote Control
- Turn the system off before cleaning, To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.
NOTE
Supply power must be disconnected before cleaning the indoor unit.
Air Filters
The air filters behind the front grille should be checked and cleaned once every 2 weeks or more often if necessary.
- Never use any of the followings:
Water hotter than 40°C.
Could cause deformation and or discoloration.
Volatile substances.
Could damage the surfaces of the air conditioner.
Take hold of the tab and pull slightly forward to remove the filter.
CAUTION
When the air filter is to be removed, do not touch the metal parts of the indoor unit.
It may cause an injury.
- Clean dirt from the air filter using a vacuum cleaner or washing with water.
If dirt is conspicuous, wash with a neutral detergent in lukewarm water.
If hot water (40°C or more) is used, it may be deformed.
- After washing with water, dry well in the shade.
Do not expose the air filter to direct sunlight or heat from a fire when drying it.
- Install the air filter.
| Do not overcool the room.This is not good for the health and wastes electricity. | Keep blinds or curtains closed.Do not let direct sunshine enter the room when the air conditioner is in operation. | Keep the room temperature uniform.Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room. |
| Make sure that the doors and windows are shut tight.Avoid opening doors and windows as much as possible to keep the cool air in the room. | Clean the air filter regularly.Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks. | Ventilate the room occasionally.Since windows are kept closed, it is a good idea to open them and ventilate the room now and then. |
When the air conditioner is not going....
When air conditioner is not going to be used for a long time.
- Operate the air conditioner at the following settings for 2 to 3 hours.
Type of operation: Fan operation mode. (Refer to page "Fan Mode".)
This will dry out the internal mechanisms.
- Turn off the breaker.
CAUTION
Turn off the breaker when the air conditioner is not going to be used for a long time.
Dirt may collect and may cause a fire.
- Remove the batteries from the Remote Controller.
Helpful information
The air filters and your electric bill.
If the air filters become clogged with dust, the cooling capacity will drop, and 6% of the electricity used to operate the air conditioner will be wasted.
When the air conditioner is to be used again.
- Clean the air filter and install it in the indoor unit. (Refer to page "MAINTENANCE AND SERVICE".)
- Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.
- Check that the ground wire is connected correctly. It may be connect to the indoor unit side.
Troubleshooting Tips! Save time and money!
Check the following points before requesting repairs or service.... If the malfunction persist, please contact your dealer.
| The air conditioner does not operate.- Have you made a mistake in timer operation?- Has the fuse blown or has the circuit breaker been tripped? | The room has a peculiar odor.- Check that this is not a damp smell ex-uded by the walls, carpet, furniture or cloth items in the room. | It seems that condensation is leaking from the air conditioner.- Condensation occurs when the airflow from the air conditioner cools the warm room air. | Air conditioner does not operate for about 3 minutes when restart.- This is the protector of the mechanism.- Wait about three minutes and operation will begin. |
| Does not cool or heat effectively.- Is the air filter dirty? See air filter cleaning instructions.- The room may have been very hot when the room air conditioner was first turned on. Allow time for it to cool down.- Has the temperature been set incorrectly?- Are the indoor unit's air inlet or outlet vents obstructed? | The air conditioner operation is noisy.- For a noise that sounds like water flowing.* This is the sound of freon flowing inside the air conditioner unit.- For a noise that sounds like the compressed air releasing into atmosphere.- This is the sound of the dehumidifying water being processed inside the air conditioning unit. | Crack sound is heard.- This sound is generated by the expansion/ constriction of the front panel, etc. due to changes of temperature. | Remote control display is faint, or no display at all.- Are the batteries depleted?- Are the batteries inserted in the opposite (+) and (-) directions? |
| Filter sign lamp (LED) is ON.- Cleaning the filter, press the Timer button and ◀button of wired remote controller at the same time for 3 sec. |
Call the service immediately in the following situations
- Anything abnormal such as burning smell, loud noise etc. happen. Stop the unit and turn the breaker off. Never try to repair by yourself or restart the system in such cases.
- Main power cord is too hot or damaged.
- Error code is generated by self diagnosis.
- Water leaks from indoor unit even if the humidity is low.
- Any switch, breaker (safety, earth) or fuse fails to work properly
User must carry routine checkup & cleaning to avoid unit's poor performance. In case of special situation, the job must be carried out by service person only.
MANUALE DEL'UTENTE
Technical diagram showing two views of a remote control device with labeled parts 1 and 2
NOTA
NOTA
23 FUNC. VANE ANGLE PLASMA ↑ 功 动 ↑ MODE TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
8°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]
30°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF LIGHT SET CLEARtext_image
AI 81°C FUNC. VANE ANGLE PLASMA ° 功 功 功 TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
Please select the code depend on your feeling. Code Feel 2 Cold 1 Slightly cool 0 Neutral -1 Slightly warm -2 Warmtext_image
FUNC. VANE ANGLE PLASMA TEMP. MODE JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF LIGHT SET CLEARtext_image
FUNC. VANE ANGLE PLASMA TEMP. MODE JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]text_image
18°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]text_image
Technical diagram of an air conditioner unit with numbered components and directional arrows indicating airflow or movement.text_image
Technical diagram showing two views of a remote control device with labeled components and directional arrows indicating movement or assembly.
NOTA
NOTA
18°C FUNC. VANE ANGLE PLASMA ° 功 功 TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC] ○text_image
Po FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
30°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
22°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
81°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/[3SEC] SLEEP ON OFF LIGHT SET CLEARtext_image
* Please select the code depend on your feeling. Code Feel 2 Cold 1 Slightly cool 0 Neutral -1 Slightly warm -2 Warmtext_image
FUNC. VANE ANGLE PLASMA TEMP. MODE JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF LIGHT SET CLEAR TIME[3SEC]text_image
FUNC. VANE ANGLE PLASMA TEMP. MODE JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]text_image
18°C FUNC. VANE ANGLE PLASMA TEMP. MODE JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]Simplemente podemos ajustar la temperatura deseada
INTRODUCTION AU PRODUIT
Technical diagram showing two views of a remote control device with labeled components and directional arrows indicating movement or assembly.
REMARQUE
REMARQUE
23 FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
Po FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
30°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]text_image
22°C FUNC. VANE ANGLE PLASMA TEMP MODE JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5]SEC SLEEP ON OFF SET CLEAR LIGHT TIME[3]SECtext_image
A1°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]
FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF SET CLEAR LIGHT TIME[3SEC]text_image
FUNC. VANE ANGLE PLASMA TEMP. JET COOL ✓ FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF ✓ SET CLEAR LIGHT TIME[3SEC]text_image
18°C FUNC. VANE ANGLE PLASMA TEMP. JET COOL FAN SPEED SWING SWING ROOM TEMP TIMER °C/F[5SEC] SLEEP ON OFF LIGHT SET CLEARtext_image
Diagram of an air conditioner system with numbered components and directional arrows indicating airflow or ventilation paths.text_image
Technical diagram showing two views of a remote control device with labeled parts and directional arrows indicating movement or assembly.
HINWEIS
