Product type	Combined refrigerator-freezer
Brand	Samsung
Model	RB38A7B5ECE
Total net capacity	380 L (estimate)
Refrigerator capacity	270 L (estimate)
Freezer capacity	110 L (estimate)
Dimensions (H x W x D)	1790 x 750 x 720 mm (estimate)
Net weight	75 kg (estimate)
Power supply	220-240 V, 50 Hz
Energy class	A (estimate)
Main functions	No Frost, rapid cooling, rapid freezing, digital display
Defrosting	Automatic (No Frost)
Interior lighting	LED
Temperature control	Electronic with touch screen
Maintenance and cleaning	Clean the seals and interior with a soft cloth and soapy water. Dust the rear grille.
Safety	Automatic door closing, door open alarm
Spare parts and repairability	Handles, seals, drawers and hinges replaceable by user. Other parts: contact an authorized Samsung service.
General information	User manual available in multiple languages. Batteries not included.

Frequently Asked Questions - RB38A7B5ECE SAMSUNG

How to reverse the doors of the Samsung RB38A7B5ECE refrigerator?

Reversing the doors requires at least two people. Unplug the appliance, remove the handles, then the covers and hinges. Follow the steps in reverse order to reassemble. Use an 8 mm socket wrench and a Phillips screwdriver. Be careful with cables when moving the top cover.

How to replace the handle?

First remove the screw covers with a flathead screwdriver, then unscrew the screws with a Phillips screwdriver. To reassemble, firmly press the new handle onto the brackets and tighten the screws. Make sure there is no gap between the handle and the door.

How to change the door seal?

Open the door and remove the old seal. Attach a new seal making sure it is properly fitted without gaps. A poorly fitted seal can cause cold air leaks.

How to remove and reinstall the drawers?

Gently lift the front of the drawer and slide it out to remove it. To reinstall, insert the drawer onto the rails and push until it clicks into place. Check that it is properly aligned.

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature is 4 °C for the refrigerator and -18 °C for the freezer. Use the control panel to adjust the settings.

What to do if the screen shows nothing?

Check that the appliance is plugged in and the circuit breaker has not tripped. If the screen remains off, contact Samsung after-sales service.

How to clean the interior of the refrigerator?

Unplug the appliance, remove food and shelves. Clean with a soft cloth soaked in warm water and mild detergent. Rinse and dry thoroughly. Do not use abrasive products.

The door open alarm sounds, what should I do?

Close the door completely. If the alarm persists, check that nothing is blocking the closure (food, seal). If the problem continues, contact Samsung.

Which parts are replaceable by the user?

User-replaceable parts are limited to handles (some models), seals, drawers and hinges. Other repairs must be carried out by a Samsung authorized professional.

Where to find spare parts?

Visit the samsung.com website and enter the model code (RB38A7B5ECE) to check available parts. Make sure the part name matches the illustration in the manual.

USER MANUAL RB38A7B5ECE SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

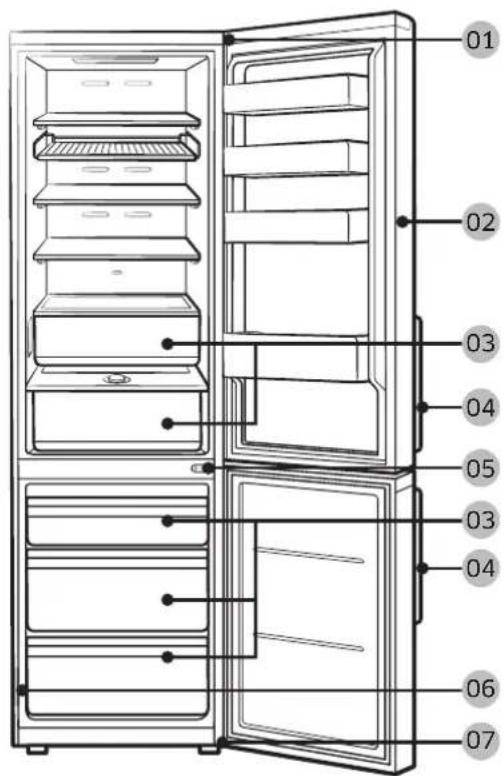

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Top hinge 02 Gasket
03 Drawer 04 Handles (Applicable models only)
05 Middle hinge 06 Barcode label
07 Bottom hinge

English

Handle replacement

Model name looks like this: RB38**6****, RB38**2****, RL38**6****, RB3L**2****, RB36**6****, RB36**2****, RL36**6****, RL36**2****, RB34**6****, RB34**2****, RL34**6****, RL34**2****

What replaces the asterisks may differ depending the model.

Asterisk(s) in the model code indicate a variant model and may replace (0-9) or (A-Z) in the model code.

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.
• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.
• Tightly fasten the screws when attaching the handle.
• Check that the handle is firmly attached before using the product.

Tools required (not provided)

Two identical illustrations of a screwdriver with a flat blade, shown in two different angles (no text or symbols)

Phillips screwdriver Flat-head
screwdriver

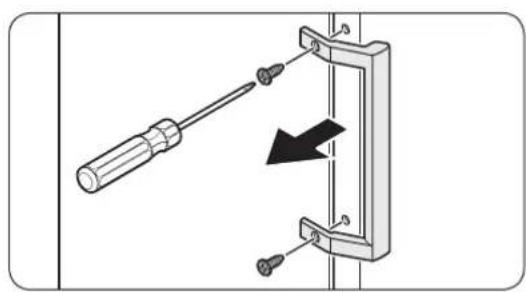

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

Diagram of a screwdriver inserted into a mechanical bracket with a black arrow indicating direction (no text or symbols present)

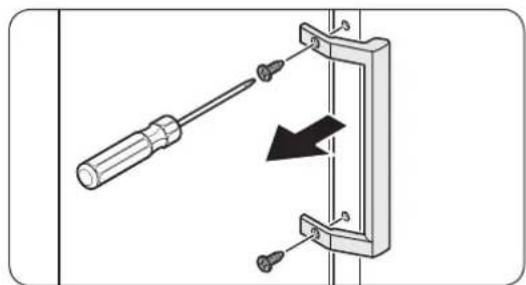

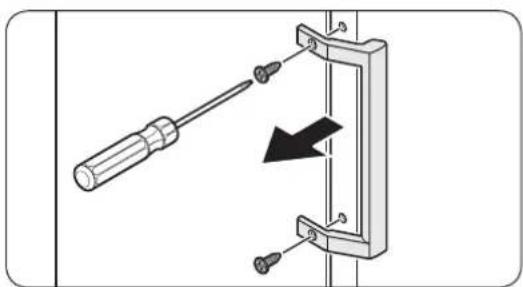

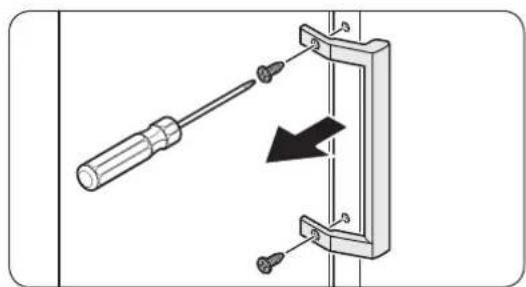

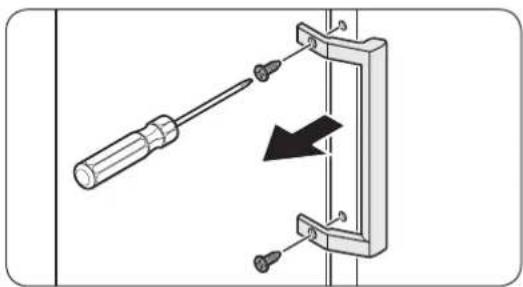

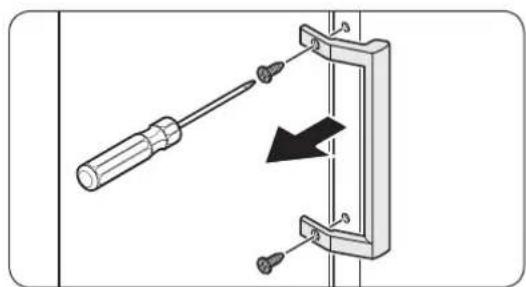

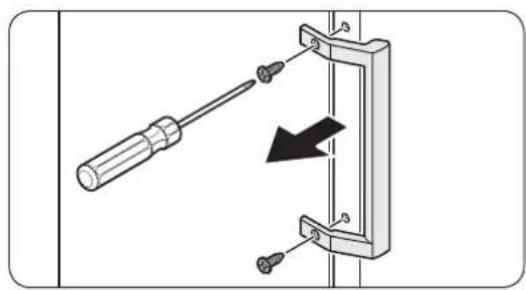

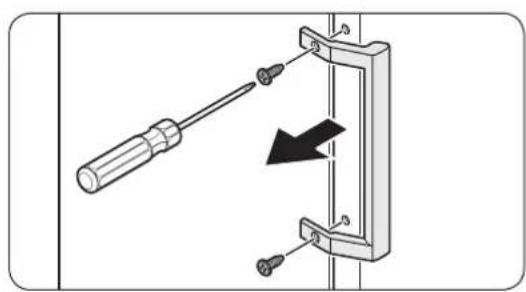

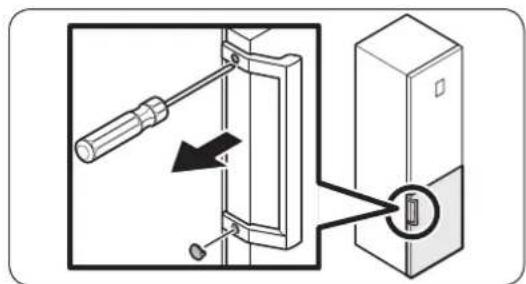

1. Use a flat-head screwdriver to remove the screw covers.
2. After detaching the handle, attach the screw covers back on the screw holes.
3. Use a Phillips screwdriver to remove the screws and detach the handle.

NOTE

Use these screws to fasten the handle on the opposite side.

1. Assemble the new handle in the reverse order of disassembly.

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

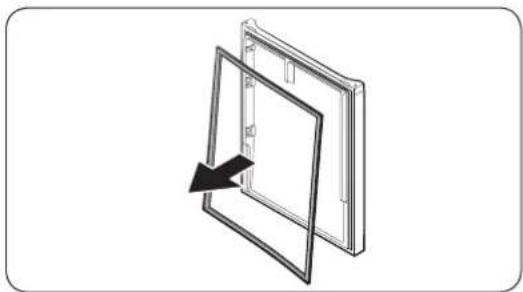

To remove the gasket

Diagram of a door frame with an arrow indicating direction (no text or symbols)

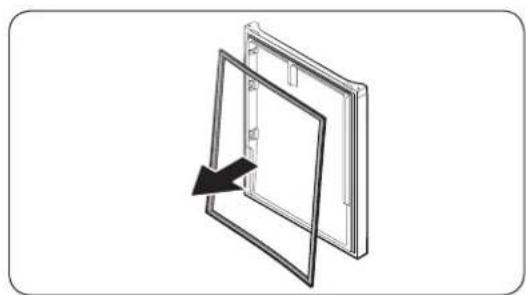

Open the door and remove the gasket from the door.

To replace the gasket

Diagram of a door frame with an arrow pointing to the front panel (no text or symbols)

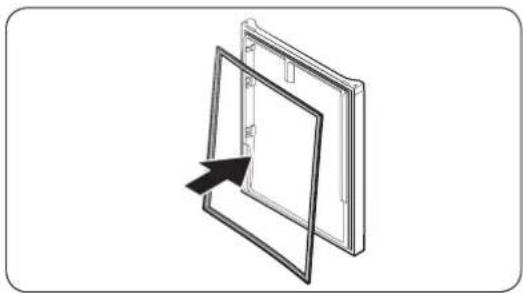

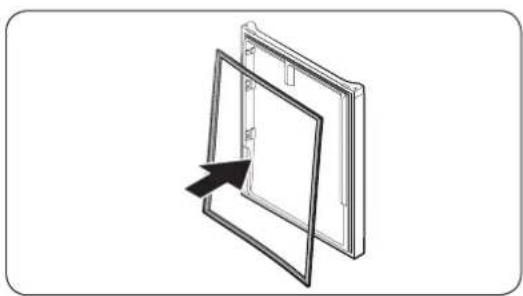

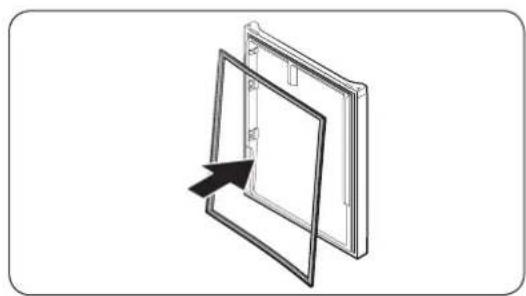

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

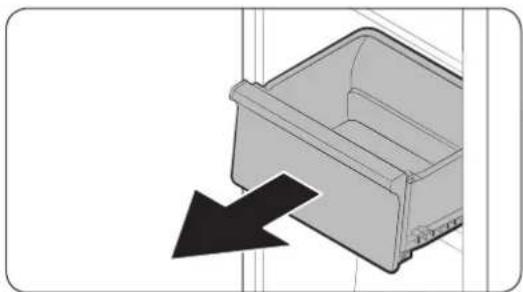

To remove the drawer

Diagram of a plastic drawer with a black arrow pointing to it, no text or symbols present

Gently lift up the front of the drawer and slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

- When removing the doors, take extreme caution because the doors are heavy. - Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down. - As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

- If you remove the hinge without holding the door, the door may fall and cause injury. - Ensure that the shaft is firmly tightened on the hinge. - Check that the hinge is firmly attached to the cabinet. - Make sure the wire connectors are connected properly. - Be careful not to damage the wires when fastening the top cover.

WARNING

- Tilting/laying the refrigerator requires a minimum of 2 people. - Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

English

Reversing the door

NOTE

For the models with handles, reverse the handles first. (For detailed information, see the "Handle replacement (For models with bar handles)" section.)

Diagram of a battery or switch assembly with screw holes and a labeled component (no text or symbols present)

Technical diagram of an electronic device showing internal components and wiring (no text or labels)

Technical diagram showing mechanical assembly with arrows indicating direction (no text or symbols)

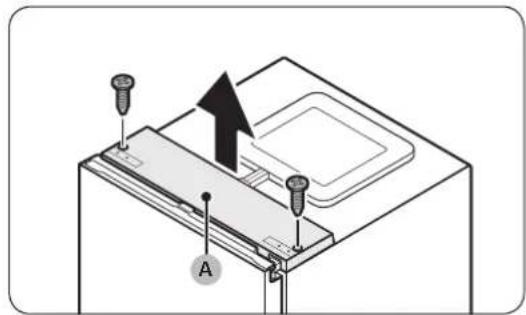

1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).

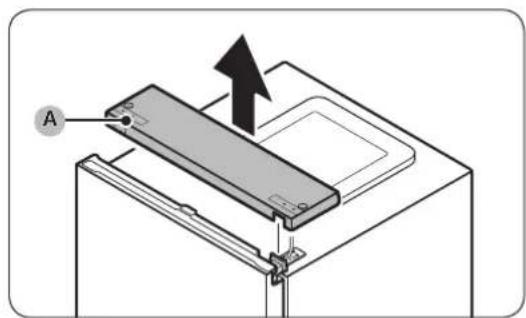

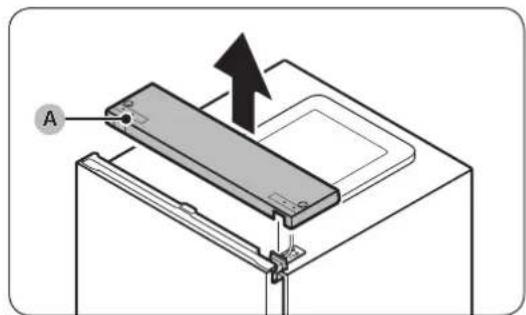

2. Gently lift the top cover (A) and place it on top of the refrigerator.

- Be careful when you lift the top cover (A). There is a wire connected underneath it.

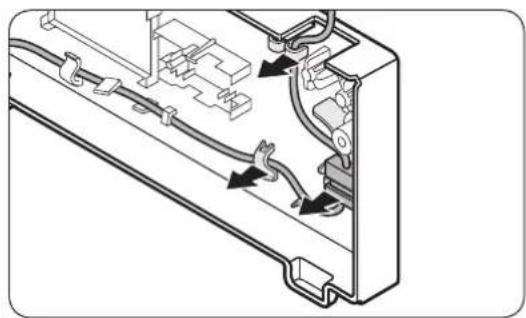

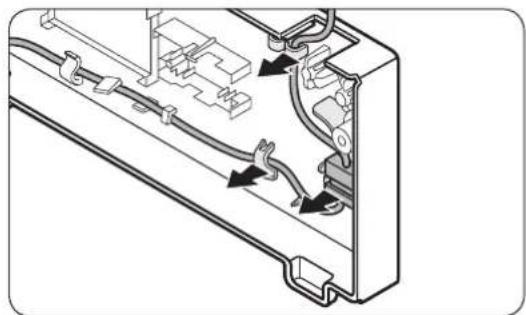

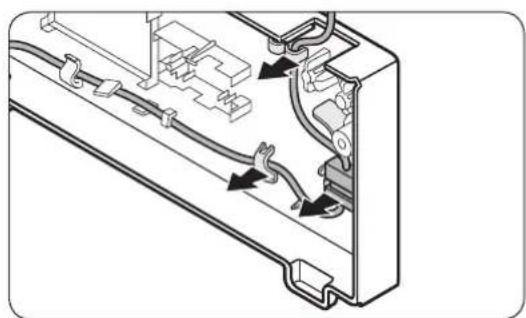

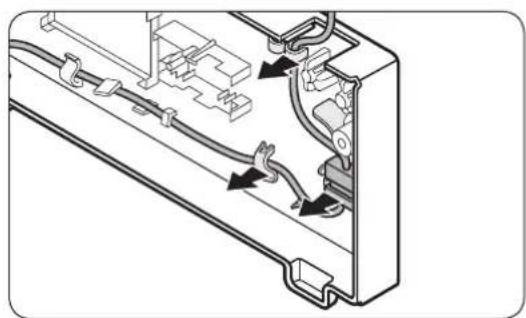

1. Remove the wire and the wire connector placed on the holder underneath the top cover.

- This step may not apply to some models.

CAUTION

Do not pull the connectors too hard.

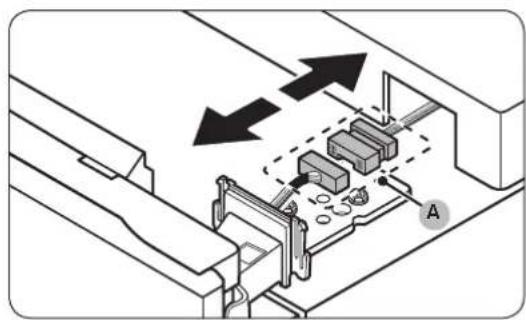

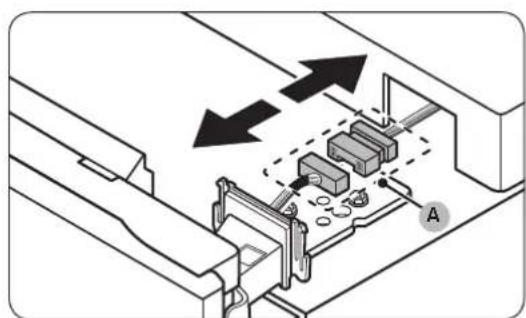

1. Disconnect the wire connector (A).
2. This step may not apply to some models.

English

Diagram of a refrigerator interior showing the door and shelf, with an arrow indicating upward movement (no text or symbols present)

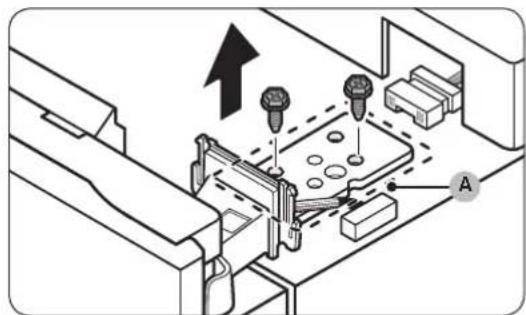

1. Use a socket wrench (8 mm) to remove the screws fastening the top hinge (A).

CAUTION

To prevent the fridge door from falling, make sure to hold it tight while removing the screws.

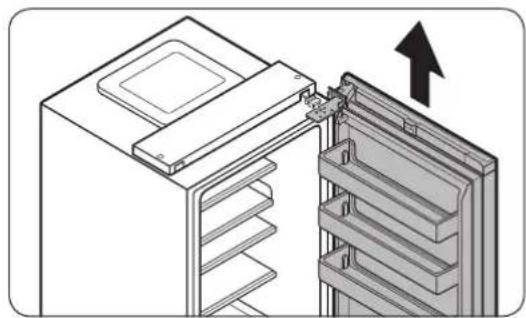

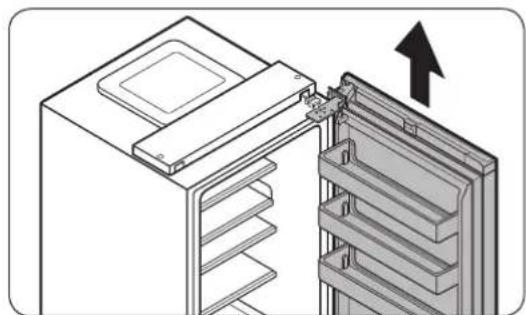

1. Open the fridge door, and then lift the door to remove it from the middle hinge. Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or injury, use caution while removing the door.

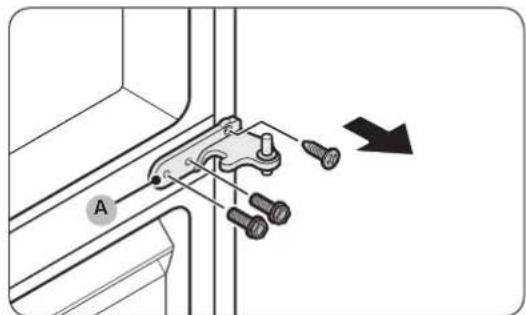

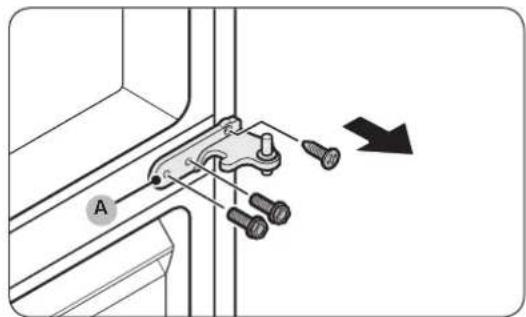

1. Open the freezer door, and then use a socket wrench (8 mm) to remove the screws fastening the bottom hinge (A).

English

Technical diagram showing a mechanical clamp or bracket with screws and a directional arrow (no text or symbols)

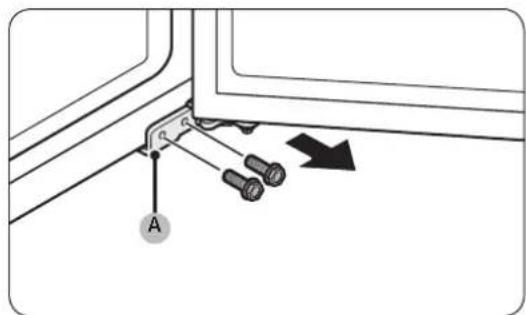

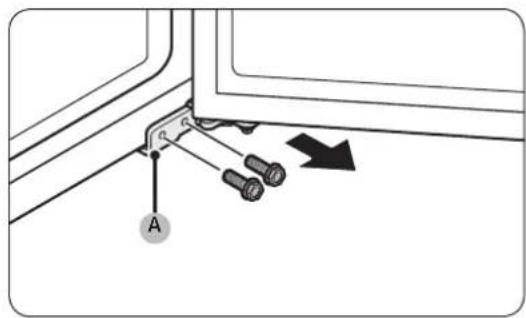

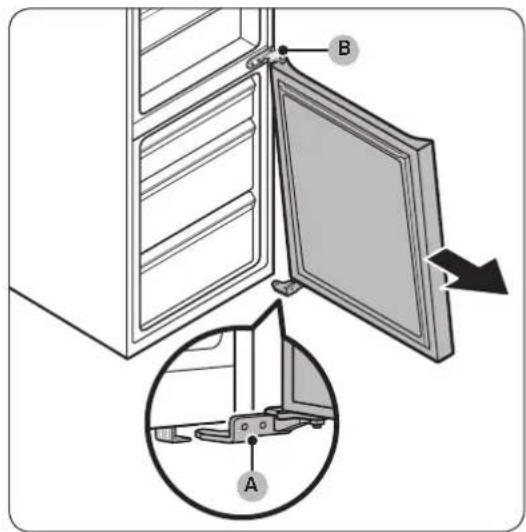

1. With the freezer door sitting on the bottom hinge (A), slowly pull the bottom hinge (A) to remove it from the holder on the bottom of the refrigerator. Once the bottom hinge (A) is removed from the holder, remove it from the freezer door, and then pull the freezer door down to remove it from the middle hinge (B).

CAUTION

To prevent the freezer door from falling, make sure to hold the freezer door tight until it is safely removed from the middle hinge (B).

1. Use a Phillips screwdriver and socket wrench (10 mm) to remove the screws fastening the middle hinge (A).

2. Reassemble in the opposite order of disassembly after replacing the top, middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are connected properly.

- Be careful not to damage the wires when fastening the top cover

English
