56350 - Saw HYUNDAI - Free user manual and instructions
Find the device manual for free 56350 HYUNDAI in PDF.
| Product type | Reciprocating saw |
| Brand | Hyundai |
| Model | 56350 |
| Supply voltage | 230-240 V~ |
| Mains frequency | 50 Hz |
| Power | 1050 W |
| Saw speed (no load) | 0-3000 min⁻¹ |
| Stroke length | 28 mm |
| Max. cutting depth | 150 mm |
| Weight | 3.3 kg |
| Sound pressure level (LpA) | 88.3 dB(A) |
| Sound power level (Lwa) | 99.3 dB(A) |
| Vibration (Ah,B) | 17.845 m/s² |
| Vibration (Ah,WB) | 15.154 m/s² |
| Package contents | Reciprocating saw, metal blade (1), wood blade (1), hex key, carrying case, instruction manual, safety instructions, warranty |
| Main features | Cutting of metals and non-metals, adjustable sole plate, rubberized handle, on/off button |
| Safety equipment | Safety goggles, ear protection, dust mask, work gloves recommended |
| Maintenance and cleaning | Clean ventilation openings with dry compressed air; check mounting screws; replace carbon brushes regularly |
| Spare parts and repairability | Use only identical replacement parts; maintenance by authorized personnel |
| Warranty | Refer to the warranty conditions provided |
| General information | Subject to modifications; do not dispose of with household waste (WEEE compliant) |
Frequently Asked Questions - 56350 HYUNDAI
User questions about 56350 HYUNDAI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual 56350 - HYUNDAI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 56350 by HYUNDAI.
USER MANUAL 56350 HYUNDAI
Nederlands 5
English 8
Français 11
Deutsch 14
Svenska 17
Dansk 20
• Verklaring van overeenstemming 23
- Declaration of conformity
- Certificat de conformité
- Konformitätserklärung
- Förklaring om överensstämmelse
• Overensstemmelseserklæring
HYUNDAI
HYUNDAI
HYUNDAI
WAARSCHUWING
VEILIGHEIDSWAARSCHUWINGEN
BESCHRIJVING (AFB. A)

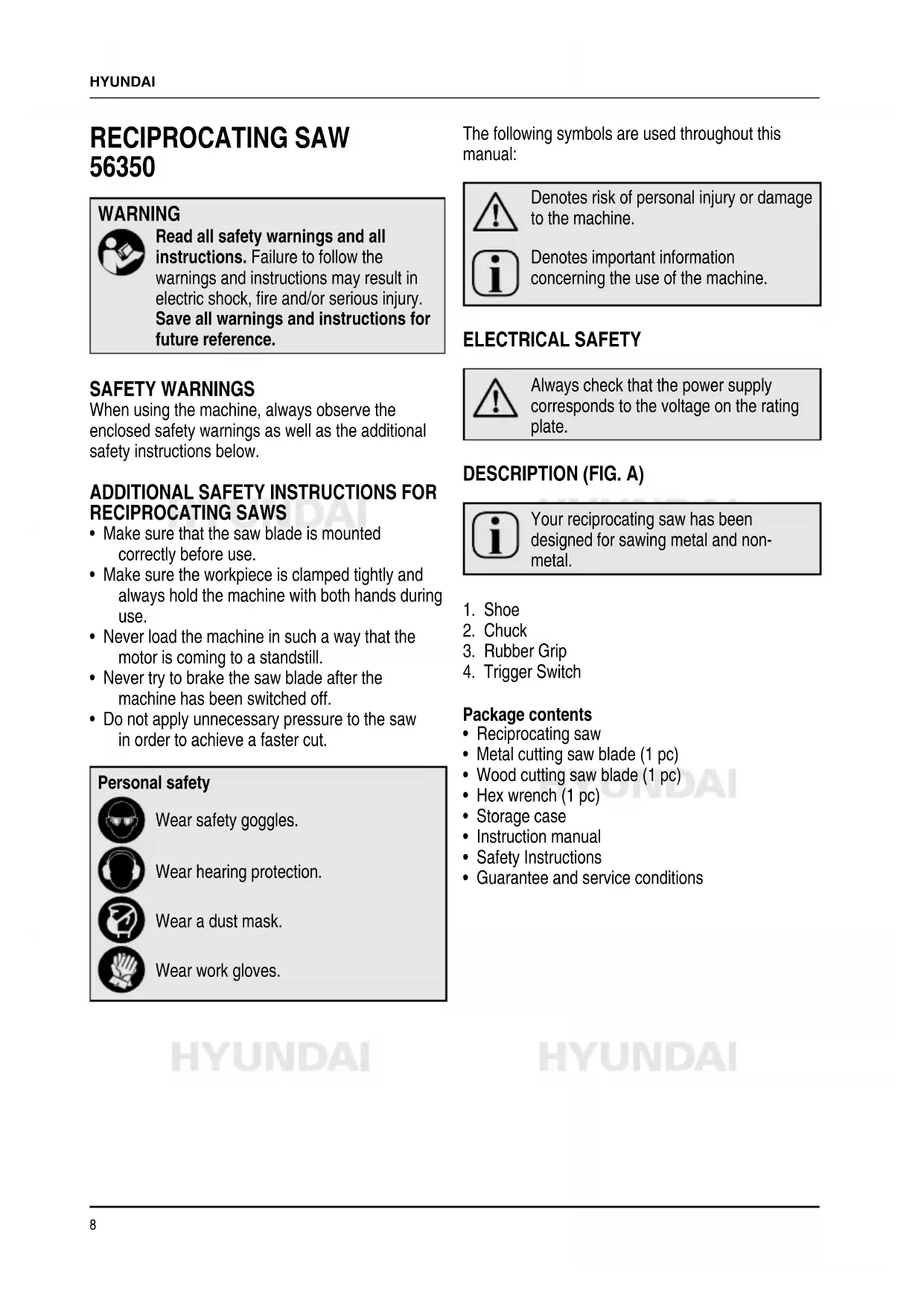

RECIPROCATING SAW 56350
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
SAFETY WARNINGS
When using the machine, always observe the enclosed safety warnings as well as the additional safety instructions below.
ADDITIONAL SAFETY INSTRUCTIONS FOR RECIPROCATING SAWS
- Make sure that the saw blade is mounted correctly before use.
- Make sure the workpiece is clamped tightly and always hold the machine with both hands during use.
- Never load the machine in such a way that the motor is coming to a standstill.
- Never try to brake the saw blade after the machine has been switched off.
- Do not apply unnecessary pressure to the saw in order to achieve a faster cut.
Personal safety
Wear safety goggles.
Wear hearing protection.
Wear a dust mask.
Wear work gloves.
The following symbols are used throughout this manual:
Denotes risk of personal injury or damage to the machine.
Denotes important information concerning the use of the machine.
ELECTRICAL SAFETY
Always check that the power supply corresponds to the voltage on the rating plate.

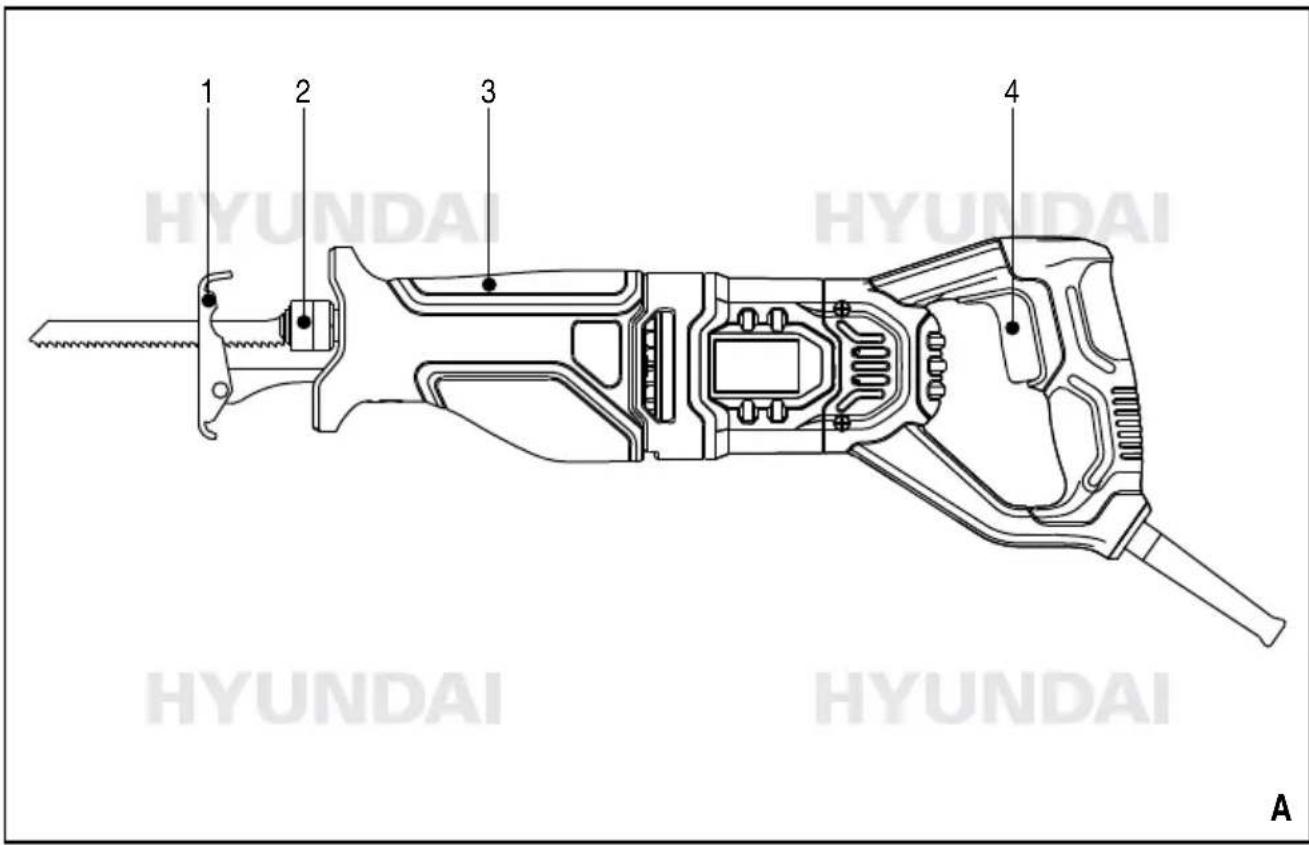

DESCRIPTION (FIG. A)
Your reciprocating saw has been designed for sawing metal and non-metal.
- Shoe
- Chuck
- Rubber Grip
- Trigger Switch
- Reciprocating saw
• Metal cutting saw blade (1 pc)
• Wood cutting saw blade (1 pc) - Hex wrench (1 pc)
- Storage case
- Instruction manual
- Safety Instructions
• Guarantee and service conditions
Package contents
BEFORE USE
Mounting saw blades
Always switch off and unplug the tool before mounting.
Make sure to use the correct saw blade for sawing metal or non-metal.
- Open the blade clamp by turning it counterclockwise. This will retract the pin and allow the saw blade to be inserted.
- Insert the saw blade into the clamp to the deepest position and release the clamp to lock the blade in position.
- Check if the blade is securely fastened, by pulling it.
Adjusting the shoe
Move the shoe when the blade loses its cutting efficiency in one place along the cutting edge. You will then again use a sharp, unused portion of the cutting edge. This also extends the life of the blade.
- Loosen the two screws on the bottom of the rubber grip and pull or push them to the desired position.
- Retighten the screws. Do not overtighten them!
USE
Instructions for use
- Remove all nails and other metal objects from the workpiece.
- Make sure the power cord is not in the path of the blade.
- Securely clamp the workpiece.
- Place the shoe against the workpiece with the saw blade in front of the feed.
- Switch on the machine, wait until the saw has reached its full speed and feed the saw blade through the workpiece holding the machine with both hands.
- Make sure the shoe is continuously contacting the workpiece during use.
- Switch off the machine and wait for the saw blade to come to a standstill before putting the machine down.
Do not use excessive pressure. The blade can bend or twist and break.
When sawing metal, always use a coolant (for example oil or water) to prevent the machine and work piece from overheating.
Switching on and off
Plug in the cord and slowly press the trigger switch. The tool will turn on and run from slow to fast. Releasing the switch will turn off the tool.
Shut down the power supply when: - the blades get stuck; - there is unusual noise or abnormal shaking; - the machine gets abnormal hot; - heavy sparks occur.
CLEANING AND MAINTENANCE
Cleaning
- Regularly clean the ventilation slots.
Only clean the air vents with compressed dry air. Certain cleaning agents and solvents such as gasoline, ammonia and household detergents may damage plastic parts.
Maintenance
- Regularly inspect all mounting screws and ensure that they are properly tightened.
- Remove and check the carbon brushes regularly.
- Use only identical replacement parts, when servicing a tool.
Maintenance should be performed by authorized personnel in order to prevent serious hazard.
Always switch off and unplug the tool before maintenance.
TECHNICAL DATA
Mains voltage V\~ 230-240
Mains frequency Hz 50
Power input W 1,050
No load speed min -1 0-3,000
Stroke length mm 28
Max. depth of cut mm 150
Weight kg 3.3
Noise and vibrations
L_nA (sound pressure)* dB(A) 88.3
L_wa^prn (acoustic power)** dB(A) 99.3
Vibrations***
A_h,B m/s ^2 17.845
A_h.WB^MB m / s^2 15.154
*Uncertainty K= dB(A) 3
**Uncertainty K= dB(A) 3
***Uncertainty K= m/s 2 1.5
Wear hearing protection.
GUARANTEE
Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.
ENVIRONMENT
Your product, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
Subject to change; specifications can be changed without further notice.
SCIE ALTERNATIVE 56350
MISE EN GARDE
Reciprozaag Reciprocating saw Scie alternative
Dvize bv declares under its sole responsibility that this product is in conformity with the following standards or standardization documents:
TÜV SÜD Product Service GmbH, Munich, Germany
De technische documentatie is onder beheer van: Keeper of the technical documentation: Détenteur de la documentation technique :
Halter der technischen Dokumentation Bevakare av den tekniska dokumentationen: Beholder af den tekniske dokumentation:
A.N.P van Oort
Directeur
01-01-2021
Dvize bv
Imported/Distributed by Dvize bv, The Netherlands
Licensed by Hyundai Corporation, Korea
