Product Type	Ventilation device (fan) for air circulation, drying, cooling, and ventilation
Brand	Ridgid
Model	AM2288RT
Power Supply	115 V, 60 Hz, single-phase, with grounding conductor
Maximum Current	8 A (integrated convenience outlets limited to 8 A)
Speeds	3 speeds (ON/OFF switch)
Motor Protection	Automatic thermal protection (shuts off on overheating, automatically restarts after cooling)
Built-in Circuit Breaker	8 A, with reset button (models with convenience outlets)
Convenience Outlets	Yes (models AM22870 and AM22880, probably on AM2288RT)
Protection Rating	Indoor use only, do not expose to rain or water
Housing Material	Polypropylene
Stackable	Yes, up to 2 devices maximum
Handles	Carry handle and pull handle (depending on model)
Wheels	Yes (models AM25600 and AM22880, maybe on AM2288RT)
Cord Wrap Area	Yes, for cord storage
Inlet and Outlet Grille	Removable protective grilles for maintenance
Maintenance	Clean housing with damp cloth; clean grilles and fan wheel; lubricate wheels if necessary
Warranty	Full lifetime warranty (tool life) against material or workmanship defects
Serial and Model Numbers	Located on the back of the unit
Customer Service	1-800-4-RIDGID (USA and Canada), 01-800-701-9811 (Mexico)

Frequently Asked Questions - AM2288RT RIDGID

How to reset the built-in circuit breaker?

If the circuit breaker trips due to overload, set the switch to OFF and unplug all devices. Press the reset button on the circuit breaker, then reconnect the devices.

Can I use an extension cord with this fan?

No, using an extension cord is prohibited per safety instructions. Plug directly into a GFCI-protected outlet.

How to clean the unit?

Unplug the unit before cleaning. Wipe the polypropylene housing with a damp cloth. Make sure the inlet and outlet air grilles and the fan wheel are free of dust and dirt.

What to do if the fan makes a scraping noise?

A scraping noise may indicate the fan wheel is rubbing against the housing. Unplug the unit and inspect the wheel. If damaged or deformed, replace it. Consult a qualified technician for repairs.

Can I stack multiple units?

Yes, you can stack up to two units maximum. Position the four rubber feet on the recessed stacking pads. Do not operate the fans when stacked.

How to lubricate the wheels?

If the wheels become noisy, apply a drop of oil to the roller axle. This will reduce noise.

What to do if the unit shuts off after a few moments?

This may be due to overheating. Check that the air inlet and outlet grilles are not blocked. If the problem persists, the motor may be defective; contact a qualified technician.

Where to find replacement parts?

RIDGID replacement parts are available at store.ridgid.com/air-movers. Always order by part number.

What is the warranty on this product?

This product comes with a full lifetime warranty against defects in material or workmanship. It covers the tool's lifespan. For details, contact customer service.

Can I use the fan outdoors?

No, this unit is designed for indoor use only. Do not expose it to rain or standing water. Plug it only into a GFCI-protected outlet.

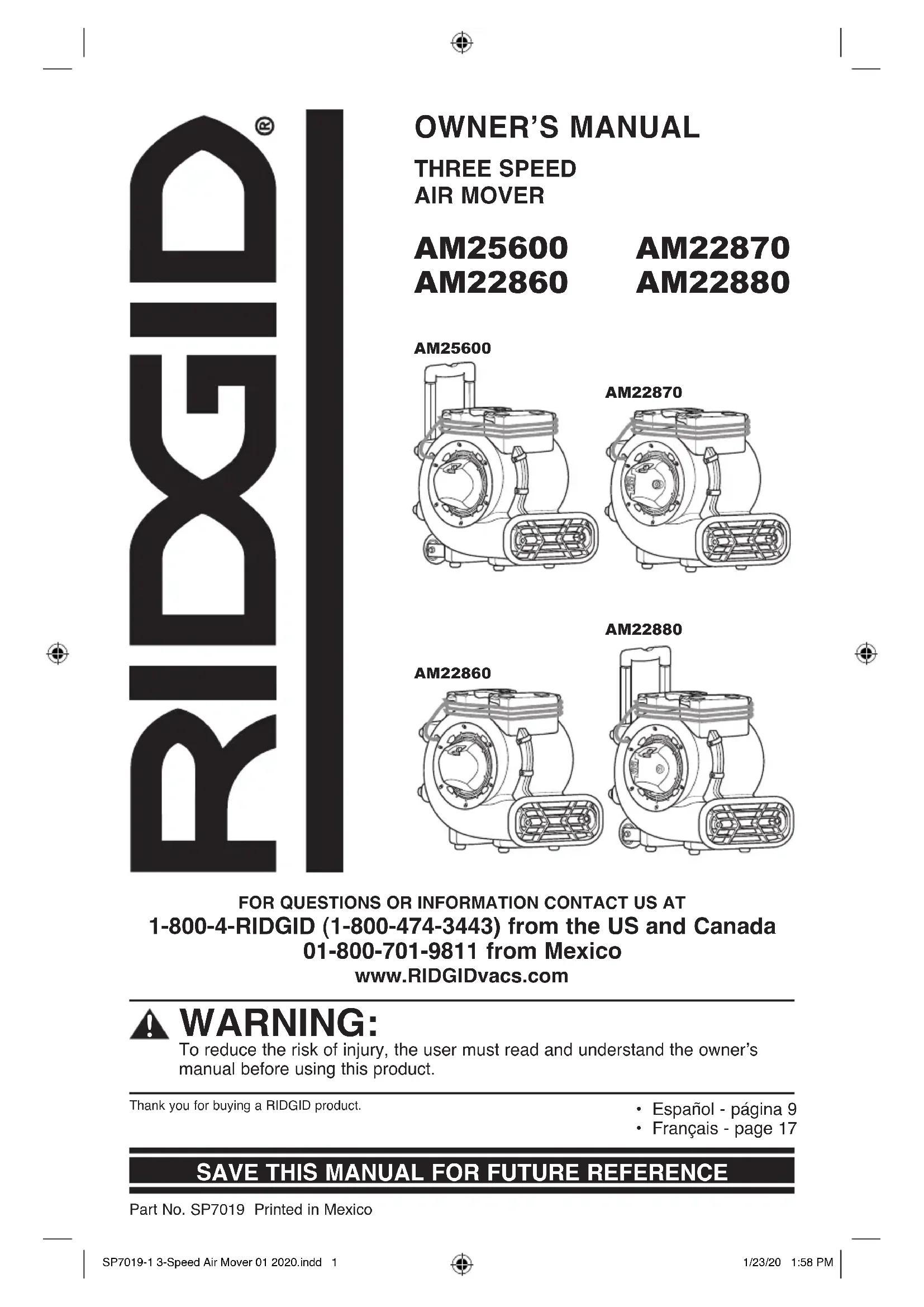

USER MANUAL AM2288RT RIDGID

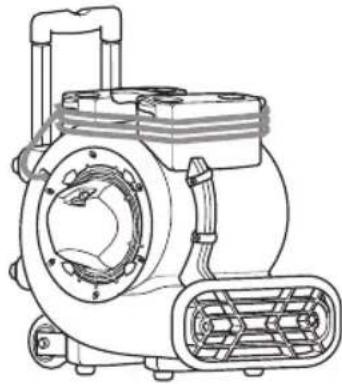

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

AM22870

Technical line drawing of an electric motor with cooling fins and housing (no text or symbols)

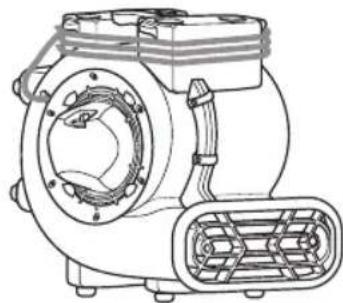

AM22860

Technical line drawing of a mechanical device with no visible text or symbols

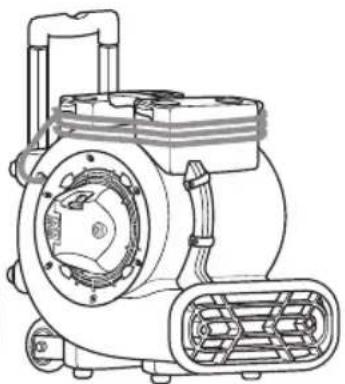

AM22880

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

FOR QUESTIONS OR INFORMATION CONTACT US AT

1-800-4-RIDGID (1-800-474-3443) from the US and Canada 01-800-701-9811 from Mexico

www.RIDGIDvacs.com

WARNING:

To reduce the risk of injury, the user must read and understand the owner's manual before using this product.

Thank you for buying a RIDGID product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Part No. SP7019 Printed in Mexico

Table of Contents

Section Page

Important Safety Instructions ..... 2-3

Motor Specifications and Electrical Requirements 3

Introduction 4

Unpacking and Checking Carton Contents 4

Operation 5

Section Page

Storage 6

Maintenance 6

User Servicing/Troubleshooting Instructions 7

Repair Parts 8

Warranty 8

Spanish 9

French 17

IMPORTANT SAFETY INSTRUCTIONS

Safety is a combination of using common sense, staying alert, and knowing how your Air Mover works.

Safety Signal Words

DANGER: Indicates a

hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates

a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a

hazardous situation which, if not avoided, could result in minor or moderate injury or property damage.

When using your Air Mover, always follow basic safety precautions including the following:

WARNING:

- To reduce the risk of fire, electric shock, or injury:

• Read and understand this manual and all labels on the Air Mover before operating.
• Use only as described in this manual.
• To reduce the risk of electric shock, do not expose to rain, or immerse in or use in standing water. Store and use indoors only.
• Use only with GFCI-protected outlets.
• When storing, do not stack Air Movers more than 2 units high.

• Do not use an extension cord with this Air Mover.

• Electrical appliances can ignite flammable vapors or dust. Do not use near combustible liquids, gases, or dusts.

• Do not leave plugged into outlet when not in use or when servicing. Turn off before unplugging.
• To reduce the risk of stirring up and inhaling toxic vapors, do not use near toxic or hazardous materials.
• Never operate with safety grills removed.
• This unit's motor has an automatically-operated thermal protective device which may shut down the unit during operation and can restart at any moment. Unplug before servicing or cleaning.
• Do not use with solid state speed control device.
• This Air Mover is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts.
• If your Air Mover is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

• Do not handle plug, switch, or the Air Mover with wet hands.
• Observe the 8 Amp maximum on-board convenience outlet rating when interconnecting units together (AM22870 & AM22880).
• Do not put any object into air intake openings.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Direct air discharge only at work area. Do not direct air at bystanders.
• All disassembly and repairs should be performed by qualified personnel.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

CAUTION:

• For dusty operations, wear dust mask.
• Do not move or carry Air Mover when it is operating.
• Only operate on a level and stable surface to prevent the Air Mover from falling and possibly causing injury or damage to unit.

Observe the following warnings that appear on the motor housing of your Air Mover:

WARNING:

To reduce the risk of electric shock, connect only to a GFCI protected outlet. Do not expose to water or rain. Indoor use only.

CAUTION:

• This Air Mover has an automatic motor shutoff device; it may restart without notice. To reduce the risk of injury, unplug before servicing.
• Do not use an extension cord with this fan.

WARNING:

TO REDUCE THE RISK OF TIP-OVER DURING STORAGE, STACK 2-HIGH ONLY.

WARNING:

Do not exceed 8 Amps through the on-board convenience outlets (AM22870 & AM22880).

SAVE THIS MANUAL

Motor Specifications and Electrical Requirements

This Air Mover is provided with a 3-speed, 115 volt, 60 Hz induction motor with a grounding conductor. It is thermally protected and will automatically shut down if over-heated. Once it cools, the motor will restart automatically if not unplugged.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

This Air Mover is equipped with an electric cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Introduction

Air Movers are designed to move large volumes of air. They are used for air circulation, area drying, cooling and ventilation.

Unpacking and Checking Carton Contents

Carefully unpack and inspect your Air Mover. Call 1-800-4-RIDGID (1-800-474-3443) or E-mail us at [e-mail] if any parts are damaged or missing.

Owner's Manual Pull Handle (AM2560 Only) AM22880 Circuit Breaker Reset Button 3-Speed ON/OFF Switch Inlet Grill with Convenience Outlets (AM2287 & Only) AM22880 Wheels (AM2560 & Only) AM22880 Foot Bumpers (4 on the bottom) Cord Wrap Area Carrying Handle Recessed Stacking Pads (4) Air Outlet

Operation

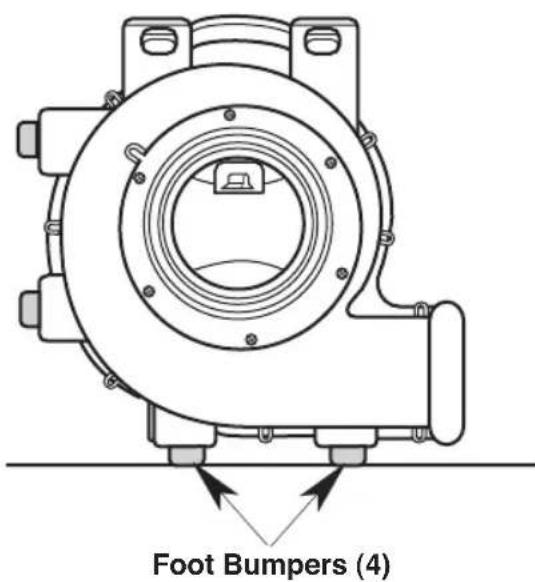

Place Air Mover in desired operating position (Your Unit May Not Be As Illustrated):

Foot Bumpers (4)

Floor & Carpet

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

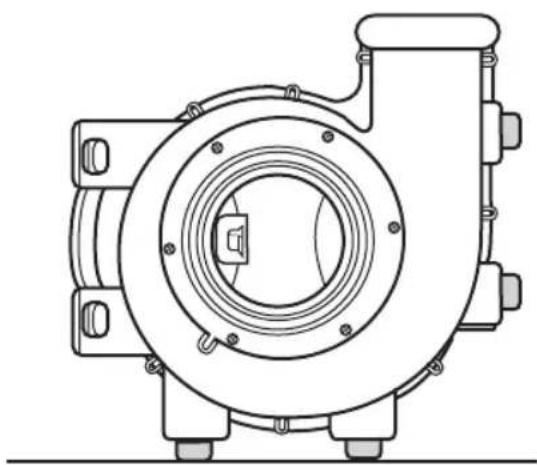

90° Ceilings & Ventilation

Technical line drawing of a mechanical component with mounting flanges and central bore (no text or symbols)

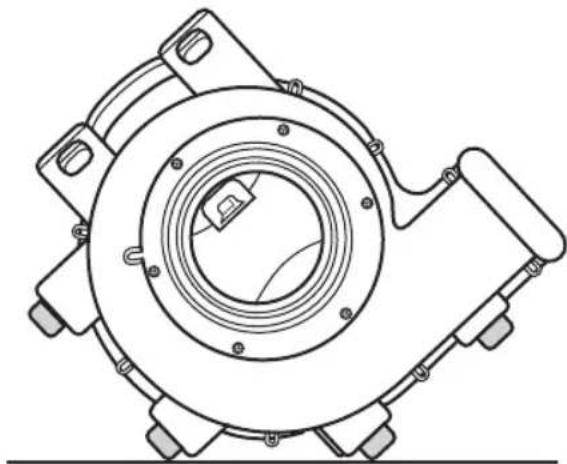

45° Walls & Ventilation

Air Mover Interconnection

RIDGID Air Movers can be interconnected in series using the convenience outlets. Applicable Models include AM22870 and AM22880. If utilizing the series interconnection feature, only use Air Movers that total less than the recommended 7.9 Amp maximum convenience outlet rating. The 8 Amp on-board circuit breaker will allow up to two (2) additional RIDGID Air Movers to run on the first Air Mover at the same time. NOTE: Air Mover Models AM22870 and AM22880 are equipped with convenience outlets with an on-board 8 Amp circuit breaker. If the convenience outlet overloads, the circuit breaker will trip. If the circuit breaker does trip, turn the switch to the off position and unplug all units then press the circuit breaker reset button. Plug the units back into the power source. The on-board convenience outlets on the Air Mover will be actively powered when the Air Mover is plugged in and the circuit breaker is properly reset.

Storage

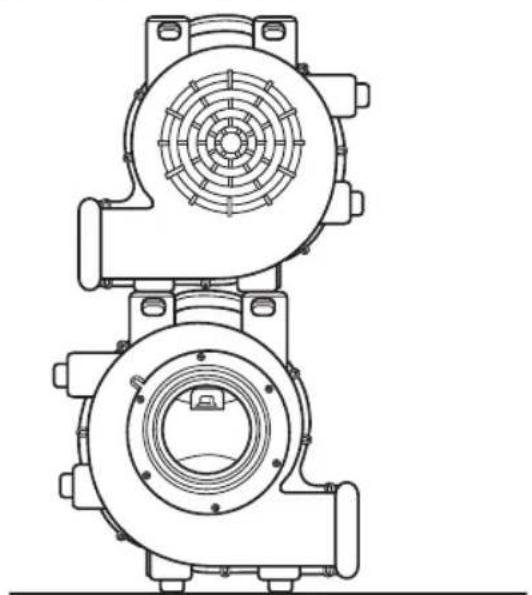

When stacking units, position the four foot bumpers on the recessed stacking pads.

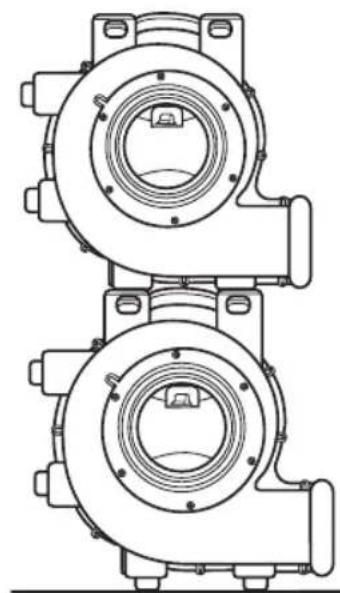

The units conveniently “stack” for storage, as shown, no more than two (2) units high.

CAUTION:

Do not operate Air Mover when stacked on top of each other. Do not stack more than 2 high.

PREFERRED POSITION

Technical line drawing of two mechanical components with circular and rectangular features (no text or symbols)

ALTERNATE POSITION

Technical line drawing of two mechanical components with mounting holes and housing (no text or symbols)

(Your Unit May Not Be As Illustrated)

Maintenance

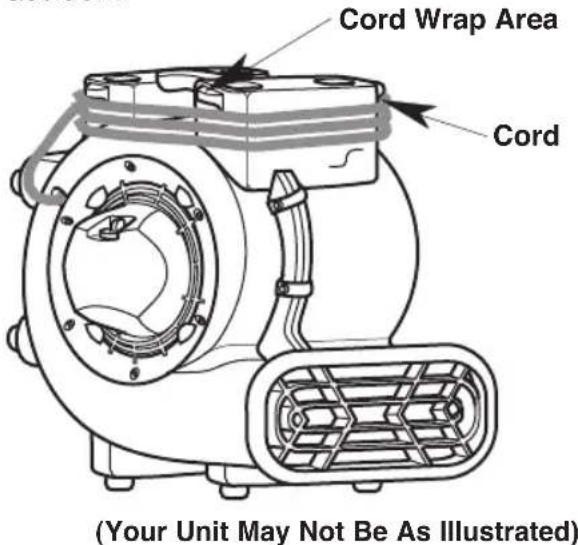

Cord Maintenance

When use is complete, unplug the cord and wrap it around the cord wrap area as shown. If the power cord is damaged, it must be replaced by the manufacture or their service agent or by qualified personnel in order to reduce the risk of accident.

Cord Wrap Area Cord (Your Unit May Not Be As Illustrated)

Storage

Before storing your Air Mover, the cord should be wrapped around the unit. The Air Mover should be stored indoors.

Cleaning Your Air Mover

If the polypropylene housing becomes soiled it may be wiped off with a damp cloth.

Make sure inlet grills, exhaust grille and blower wheel surfaces remain clean of dust and dirt build-up.

Wheels (AM25600 & AM22880)

If your wheels are noisy, you may put a drop of oil on the roller shaft to make them quieter.

User Servicing / Troubleshooting Instructions

WARNING:

Unplug before any disassembly or servicing.

WARNING:

All disassembly and repairs should be performed

by qualified personnel.

WARNING:

After servicing, any safety device (includes

grilles, impeller, etc.) should be reinstalled or remounted.

PROBLEM	CAUSE SOLUTION
Unit will not run.2. Switch not on.3. Switch is faulty.4. Faulty/broken motor wire.	1. No power to unit. 1. Plug unit in. 2. Place in “ON” position.3. Replace switch.4. Perform continuity check, volt/amp meter.	Check circuit breaker.using
Unit runs but air mover makes loud scraping noise.causing housing	1. Unit has been severely jolted 1. Remove motor and replace causing blower wheel to rub damaged against housing.2. Unit has been severely jolted 2. Replace blower wheel.
Unit runs but vibrates excessively.2. Blower wheel 3. Dirt build up on one side of Air Mover blower wheel.	1. Severe jolt has bent motor shaft causing unit to be out of balance.2. Replace blower wheel if necessary.3. Clean blower wheel blades.
Unit runs but blower wheel does not turn.2. Capacitor wire come loose, capacitor has failed.3. Housing has been damaged such that it presses on blower wheel.	1. Blower wheel is jammed against housing.has broken/ 2. Repair/replace motor has been damaged if necessary.3. Replace unit as necessary.	1. Adjust and replace blower wheel if necessary.
Unit runs briefly, then shuts off on overload.2. Intake grille and/or exhaust grille is obstructed.	1. Motor bearings are failing or motor has developed an internal electrical fault.2. Remove obstruction.	1. Replace motor.
Convenience outlet not working.(if equipped)	1. No power to unit.2. Convenience outlet circuit breaker not reset.	1. Plug unit in.2. Reset circuit breaker.

Repair Parts

Three Speed Air Mover Model Numbers AM22860, AM22870, AM25600 or AM22880

RIDGID parts are available on-line at store.ridgid.com/air-movers

Always order by Part Number - Not by Key Number

RIDGID®

Symbol of Quality, Durability and Dependability

What is covered

RIDGID ^® tools are warranted to be free of defects in workmanship and material.

How long coverage lasts

This warranty lasts for the lifetime of the RIDGID® tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material.

How can you get service

To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGID® INDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.

What we will do to correct problems

Warranted products will be repaired or replaced, at RIDGE TOOL's option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.

What is not covered

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages.

How local law relates to the warranty

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to country.

No other express warranty applies

This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID® products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.

Stock No. AM2286, AM2287, AM2560, AM2288

Model No. AM22860, AM22870, AM25600, AM22880

Model and serial number may be found on the back of the unit.

You should record both model and serial numbers in a safe place for future use.

FOR QUESTIONS OR INFORMATION CONTACT US AT

1-800-4-RIDGID (1-800-474-3443) from the US and Canada

01-800-701-9811 from Mexico

www.RIDGIDvacs.com

Please have your Model Number and Serial Number on hand when calling.

EMERSON™

www.RIDGID.com

© 2020 Emerson

Part No. SP7019 Form No. SP7019-1 Printed in Mexico 01/20

ID ® ID R

MANUAL DEL USUARIO

DESPLAZADOR DE AIRE

DE TRES VELOCIDADES

AM25600

AM22860

AM22870

AM22880

AM25600

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

AM22870

Technical line drawing of an electric motor with cooling fins and housing (no text or symbols)

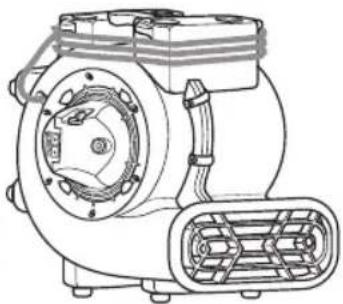

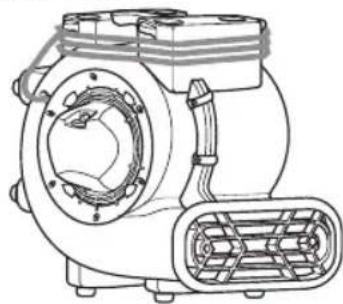

AM22860

Technical line drawing of a mechanical device with mounting flanges and internal components (no text or symbols)

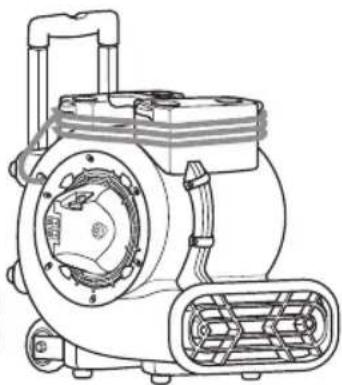

AM22880

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting flanges (no text or symbols)

Technical line drawing of two mechanical components with circular and rectangular features (no text or symbols)

POSICIÓN ALTERNA

Technical line drawing of two mechanical components with mounting flanges and housing (no text or symbols)

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

AM22870

Technical line drawing of an electric motor with cooling fins and housing (no text or symbols)

AM22860

Technical line drawing of a mechanical device with mounting flanges and housing (no text or symbols)

AM22880

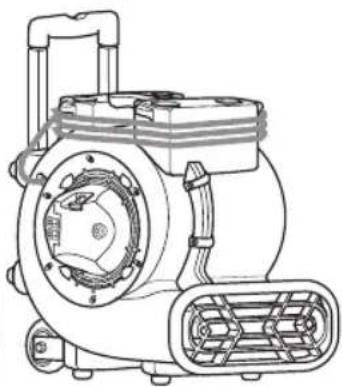

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

EN CAS DE QUESTIONS OU POUR OBTENIR DES INFORMATIONS, VEUILLEZ NOUS CONTACTER AU :

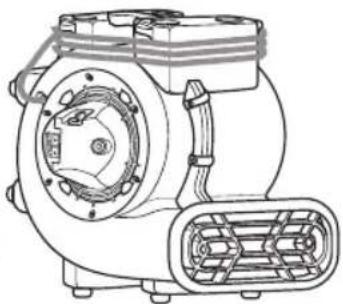

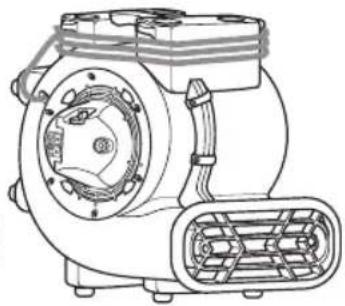

Technical line drawing of a mechanical pump or motor assembly (no text or symbols)

Technical line drawing of a mechanical component with mounting flanges and central bore (no text or symbols)

Technical line drawing of two mechanical components with circular and rectangular features (no text or symbols)

MISE EN GARDE :

Technical line drawing of two mechanical components with mounting flanges and central bore (no text or symbols)
