Product type	Industrial fan (air mover)
Brand	RIDGID
Model	AM22650
Stock number	AM2265
Power supply	120 V, 60 Hz
Rated current (fan only)	2.1 A
Total rated current (fan + outlets)	11.1 A
Maximum outlet current	8.9 A
Speeds	3 speeds
Motor	Induction motor with thermal protection
Outlets	2 grounded outlets, protected by ground fault circuit interrupter
Built-in circuit breaker	9 A, resettable
Maximum number of daisy-chained units	4 additional units (total 5)
Air discharge orientation	Adjustable air discharge
Operating positions	Horizontal (floor), 45° vertical (wall), 90° vertical (ceiling)
Non-slip pads	6 rubber pads
Stacking for storage	Up to 3 units, outlets facing down
Cord length	Not specified (integrated cord wrap)
Housing material	Polyethylene
Cleaning	Wipe with a damp cloth
Warranty	Full lifetime warranty (material or workmanship defects)
Customer service	1-800-4-RIDGID (United States and Canada), 01-800-701-9811 (Mexico)
Website	www.RIDGIDvacs.com

Frequently Asked Questions - AM22650 RIDGID

Can I use an extension cord with this fan?

No, it is prohibited to use an extension cord with this fan. Plug it directly into a GFCI-protected outlet.

How many units can I daisy-chain?

You can connect up to four additional units (total of five) in a daisy chain, provided the total current does not exceed 8.9 A on a single outlet.

What to do if the built-in circuit breaker trips?

Set the switch to the off position, unplug all units, then press the reset button on the circuit breaker. Then plug the units back in one by one.

The fan stops by itself after a few minutes. Why?

This may be due to an obstruction of the air intake or discharge grilles, triggering the motor's thermal protection. Clean the grilles and allow the unit to cool before restarting.

Can I stack multiple fans for storage?

Yes, you can stack up to three units by positioning them with the outlets facing down and slightly offsetting the vents for stability. Do not operate them stacked.

How to clean the fan?

Unplug the unit, then wipe the polyethylene housing with a damp cloth. Do not use solvents or water inside the motor.

What to do if the power cord is damaged?

Do not use the unit. Have the cord replaced by the manufacturer, an authorized service center, or a qualified technician to avoid any risk.

The fan makes a scraping sound. What should I do?

A scraping sound indicates that the fan wheel is rubbing against the housing after an impact. Contact customer service for repair.

Can I use this fan outdoors?

No, this fan is designed for indoor use only. Do not expose to rain or liquids. Plug it into a GFCI-protected outlet.

How to get replacement parts?

Replacement parts are available at www.RIDGIDparts.com. Order by part number (e.g., 841135 for intake vent).

USER MANUAL AM22650 RIDGID

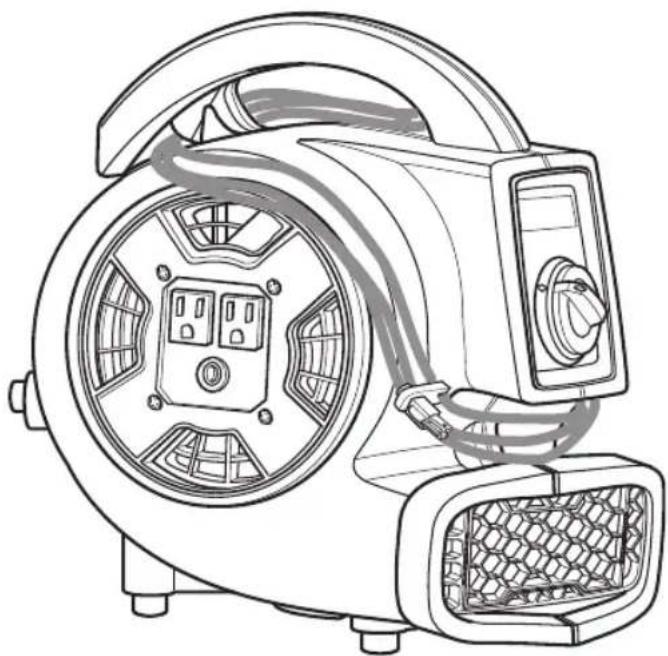

Line drawing of a portable air conditioner unit with internal circuitry and ventilation slots (no text or symbols)

FOR QUESTIONS OR INFORMATION CONTACT US AT 1-800-4-RIDGID (1-800-474-3443) from the US and Canada 01-800-701-9811 from Mexico

www.RIDGIDvacs.com

WARNING:

To reduce the risk of injury, the user must read and understand the owner's manual before using this product.

Thank you for buying a RIDGID product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Table of Contents

Section Page

Important Safety Instructions ..... 2

Motor Specifications and Electrical Requirements .... 3

Introduction 4

Unpacking and Checking Carton Contents 4

Operation 5-6

Section Page

Storage 7

Maintenance 8

User Servicing/Troubleshooting Instructions 9

Repair Parts 10-11

Warranty 12

IMPORTANT SAFETY INSTRUCTIONS

Safety is a combination of using common sense, staying alert, and knowing how your Air Mover works.

Safety Signal Words

⚠️ DANGER: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

When using your Air Mover, always follow basic safety precautions including the following:

▲ WARNING

- To reduce the risk of fire, electric shock, or injury:

- Read and understand this manual and all labels on the Air Mover before operating.

- Use only as described in this manual.

• To reduce the risk of electric shock, do not expose to rain, or immerse in or use in standing water. Store indoors only.

- Use only with GFCI-protected outlets.

- When storing, do not stack Air Movers more than 3 units high.

- Do not use an extension cord with this Air Mover.

- Electrical appliances can ignite flammable vapors or dust. Do not use near combustible liquids, gases, or dusts.

- Do not leave plugged into outlet when not in use or when servicing. Turn off before unplugging.

- To reduce the risk of stirring up and inhaling toxic vapors, do not use near toxic or hazardous materials.

- Never operate with safety grills removed.

- This unit has an automatically-operated protective device which may shut down the unit during operation. Unplug before servicing or cleaning.

- Do not use with solid state speed control device.

- This fan is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not use with damaged cord, plug, or other parts.

- If your Air Mover is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service.

- Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Do not handle plug, switch, or the Air Mover with wet hands.
• Observe the 8.9 Amp maximum outlet rating when daisy-chaining units together.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Direct air discharge only at work area. Do not direct air at bystanders.
• All disassembly and repairs should be performed by qualified personnel.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

CAUTION:

• For dusty operations, wear dust mask.
• Do not move or carry Air Mover when it is operating.
• Only operate on a level and stable surface to prevent it from falling and possibly causing injury or damage to unit.

Observe the following warnings that appear on the motor housing of your Air Mover:

WARNING

• To reduce the risk of electric shock, connect only to a GFCI-protected outlet.
• Do not expose to water or rain.
• This motor has an automatic temperature shutoff device; it may restart without notice. To reduce the risk of injury, unplug before servicing.
• Do not use an extension cord with this blower.
• To reduce the risk of tip-over during storage, do not stack more than 3 high.
• Do not exceed 8.9 Amps through receptacles.

SAVE THIS MANUAL

Motor Specifications and Electrical Requirements

This Air Mover is provided with a 3-speed, 120 volt, 60 Hz induction motor with a grounding conductor. It is thermally protected and will automatically shut down if over-heated. Once it cools, the motor will restart automatically if not unplugged.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This Air Mover is equipped with an electric cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Introduction

Air Movers are designed to move large volumes of air. They are used to dry wet carpets, floors and furniture. They may also be used for ventilation.

Unpacking and Checking Carton Contents—

Carefully unpack and inspect your Air Mover. Call 1-800-4-RIDGID (1-800-474-3443) or E-mail us at [e-mail] if any parts are damaged or missing.

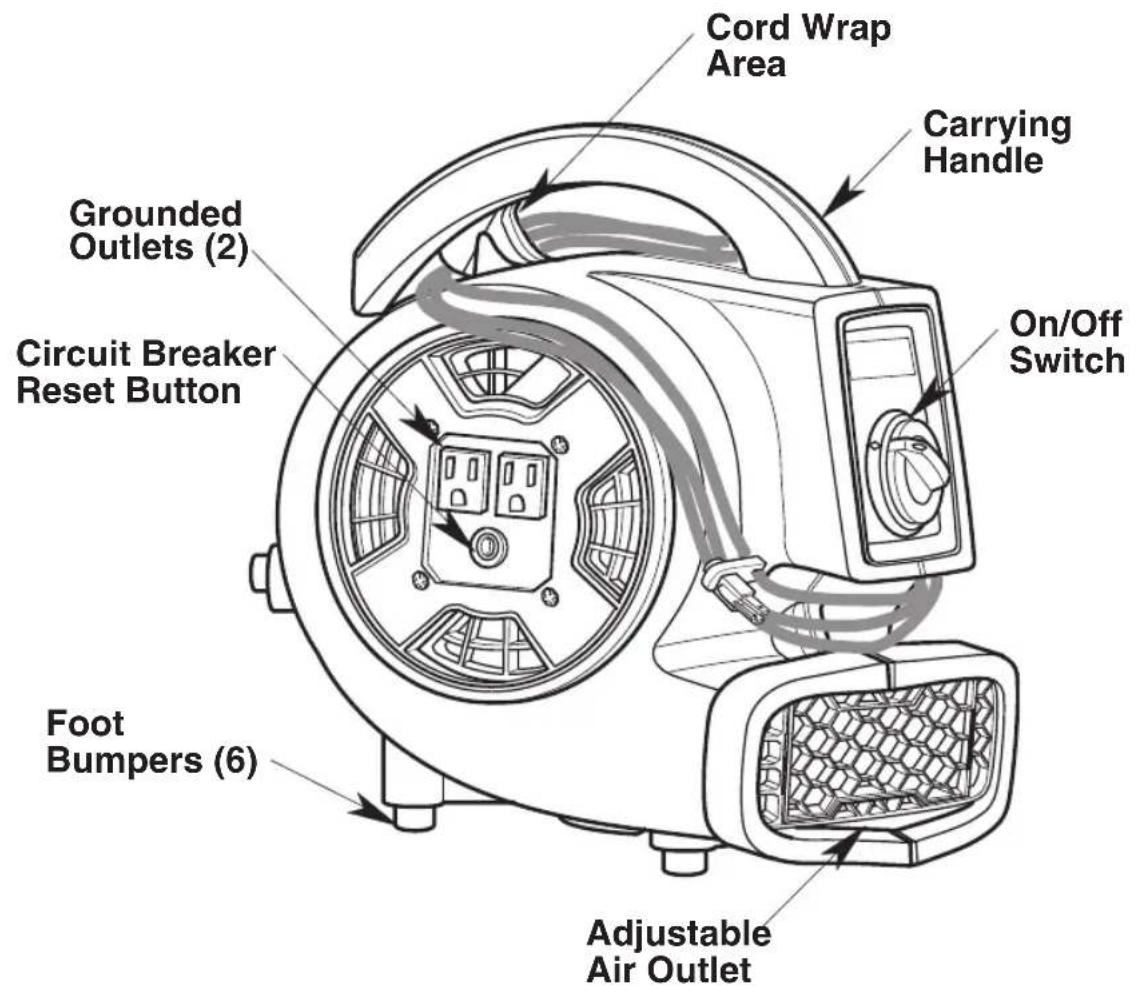

Cord Wrap Area Carrying Handle Grounded Outlets (2) Circuit Breaker Reset Button On/Off Switch Foot Bumpers (6) Adjustable Air Outlet

Operation

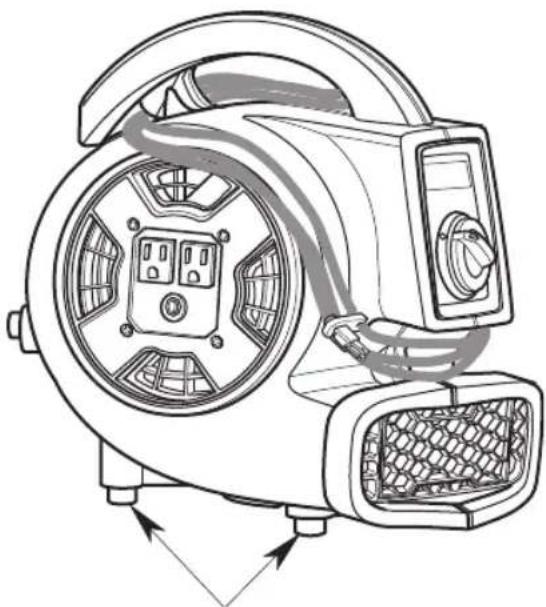

Place Air Mover in desired operating position:

Technical line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Foot Bumpers (4 bumpers on bottom of unit)

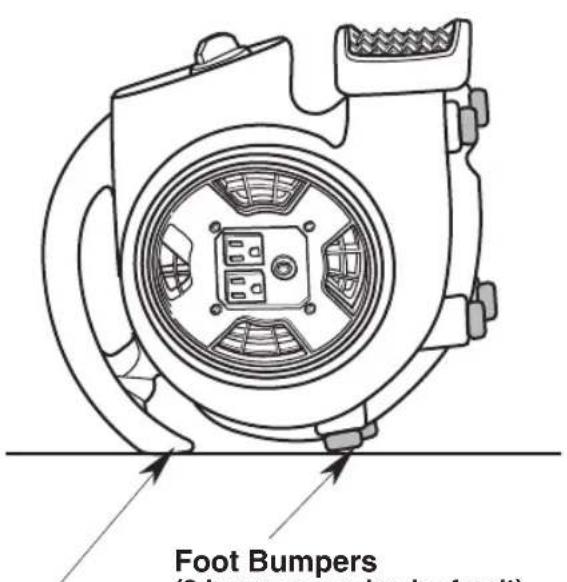

Floor & Carpet

Foot Bumpers (Shade, shade part)

Carry Handle
(2 bumpers on back of unit)
90° Ceilings & Ventilation

Technical line drawing of a mechanical component with internal gear and mounting bracket (no text or symbols)

Foot Bumpers (2 bumpers on bottom back of unit & 2 bumpers on back of unit)

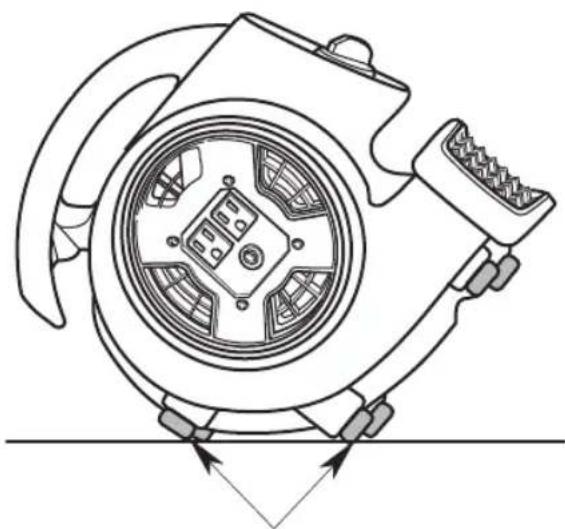

45° Walls & Ventilation

Operation (continued)

Daisy-Chain

This RIDGID Air Mover (AM2265) can be daisy-chained. If utilizing the Daisy-Chain feature, only use devices that total less than the recommended 8.9 Amp maximum outlet rating. The 9 Amp on-board circuit breaker will allow up to four (4) additional AM2265 Air Movers to run on one circuit at the same time.

NOTE: This Air Mover has an on-board 9 Amp circuit breaker. If the auxiliary outlet overloads, the circuit breaker will trip. If the circuit breaker does trip, turn the switch to the off position and unplug all units then press the circuit breaker reset button. Plug the units back into the power source. The outlets on the Air Mover will be actively powered when the Air Mover is plugged in and the circuit breaker is properly reset.

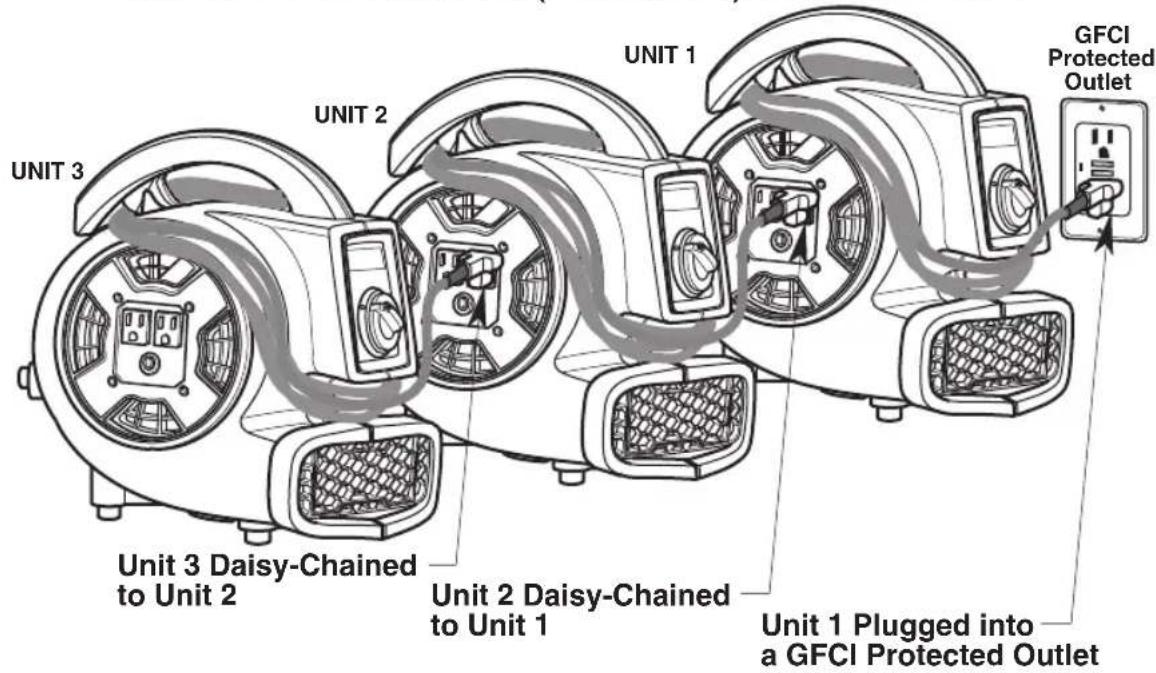

EACH UNIT DAISY-CHAINED (PLUGGED IN) TO THE NEXT UNIT

UNIT 1 UNIT 2 UNIT 3 Unit 3 Daisy-Chained to Unit 2 Unit 2 Daisy-Chained to Unit 1 Unit 1 Plugged into a GFCI Protected Outlet GFCI Protected Outlet

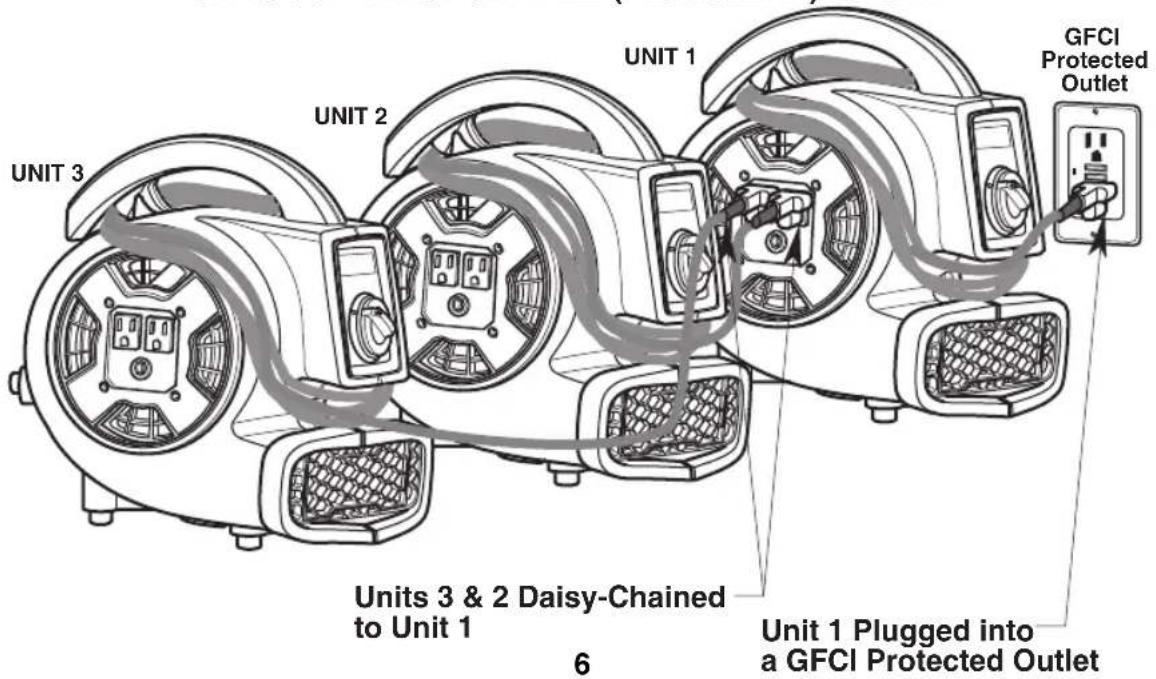

UNITS 3 & 2 DAISY-CHAINED (PLUGGED IN) TO UNIT 1

UNIT 1 UNIT 2 UNIT 3 GFCI Protected Outlet Units 3 & 2 Daisy-Chained to Unit 1 6 Unit 1 Plugged into a GFCI Protected Outlet

Storage

When stacking units, position the Air Mover on its side as shown, with the electrical outlets facing down. For convenience purposes for storage, the circular recessed area around the intake will nest into the next Air Mover stacked. The exhaust vents must be slightly staggered as shown, to ensure stability.

CAUTION: Do not operate

Air Mover when stacked on top of each other.

WARNING: To reduce the risk of over during storage, do not stack re than 3-high.

Line drawing of a portable air conditioner unit with internal components and airflow direction arrow (no text or symbols)

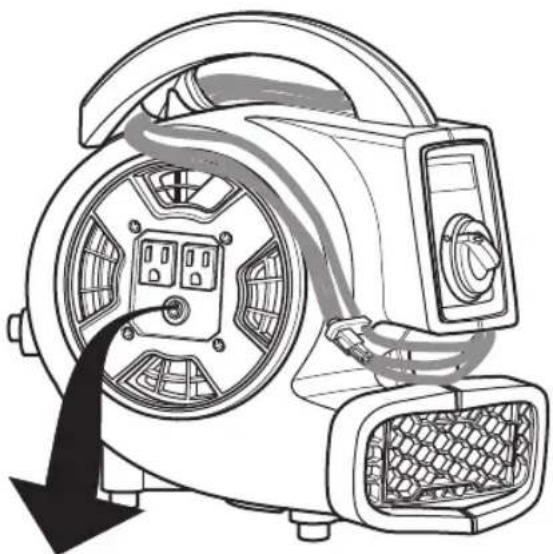

Rotate Unplugged Unit, Outlet Down

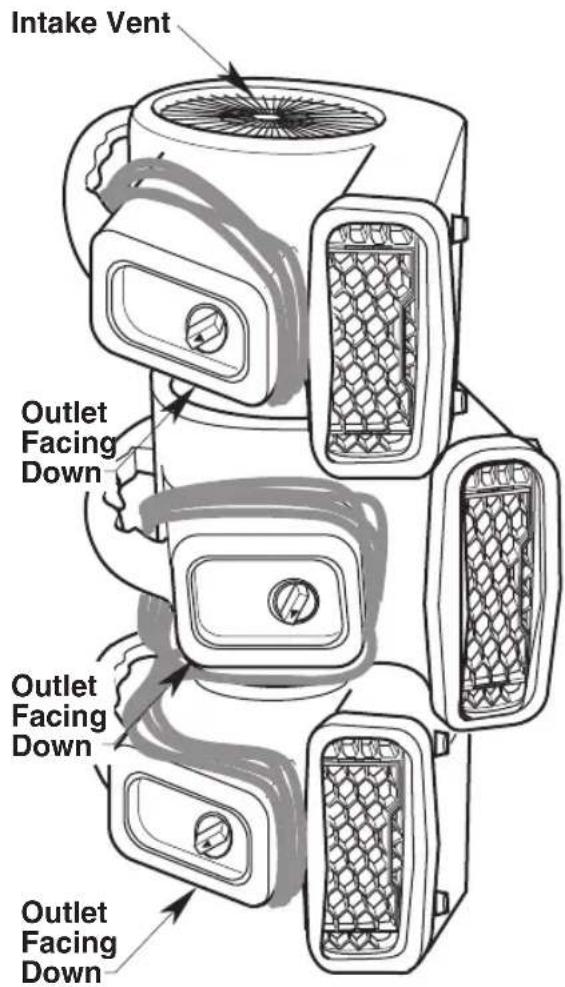

Stack 3 High Only, Outlet Facing Down on Each Unit and Slightly Staggered

Intake Vent Outlet Facing Down Outlet Facing Down Outlet Facing Down

Maintenance

Cord Maintenance

When use is complete, unplug the cord and wrap it around the cord wrap area as shown. If the power cord is damaged, it must be replaced by the manufacturer or their service agent or by qualified personnel in order to reduce the risk of accident.

Storage

Before storing your Air Mover, the cord should be wrapped around the unit. The Air Mover should be stored indoors.

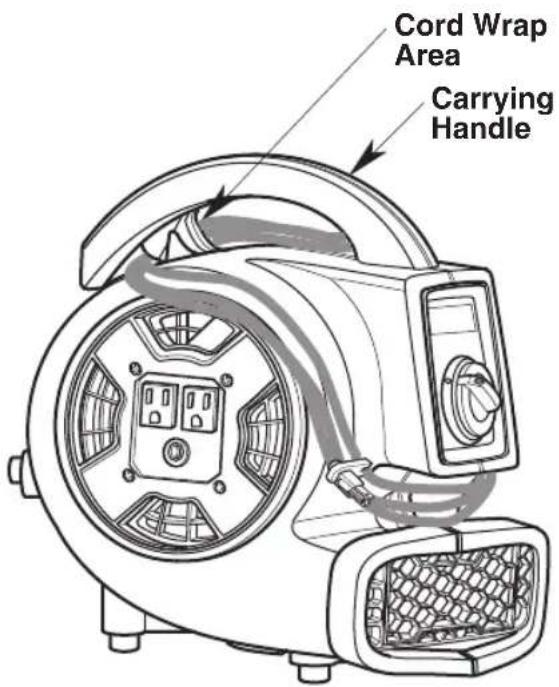

Cleaning Your Air Mover

If the polypropylene housing becomes soiled it may be wiped off with a damp cloth.

Cord Wrap Area Carrying Handle

⚠ WARNING: After servicing, any safety device (includes grilles, impeller, etc.) must be reinstalled or remounted.

User Servicing / Troubleshooting Instructions

WARNING: Unplug before any disassembly or servicing.
WARNING: All disassembly and repairs should be performed by qualified personnel.

PROBLEM	CAUSE	SOLUTION
Unit will not run.	1. No power to unit.2. Switch not on.3. Circuit breaker tripped.	1. Plug unit in. Check circuit breaker.2. Place in “ON” position.3. Reset circuit breaker.
Unit runs but Air Mover makes loud scraping noise.	1. Unit has been severely jolted causing blower wheel to rub against housing or housing to deform.	1. Contact customer service.
Unit runs but vibrates excessively.	1. Dirt build up on one side of Air Mover blower wheel.2. Severe jolt has bent motor shaft.	1. Clean blower wheel blades.2. Contact customer service.
Unit runs but blower wheel does not turn.	1. Blower wheel is jammed against housing.	1. Contact customer service.
Unit runs briefly, then shuts off on overload.	1. Intake grille and /or exhaust grille is obstructed.2. Motor bearings are failing or motor has developed an internal electrical fault.	1. Remove obstruction.2. Contact customer service.

Repair Parts

RIDGID Three Speed Air Mover

Model Number AM22650

RIDGID parts are available on-line at www.RIDGIDparts.com

Always order by Part Number - Not by Key Number

Electrical Ratings:

AM22650 120 V, 2.1 A, 60 Hz. (Blower Only)

120 V, 11.1 A, 60 Hz. (Total Blower and Receptacles)

Key No.	Part No.	Description
1	841135	Intake Vent with Hardware
2	840803	Switch Knob
3	840804	Adjustable Air Outlet Vent
4	841134	Rubber Feet with Hardware (6 Pack)
5	SP7007	Owner's Manual (Not Illustrated)

Repair Parts (continued)

RIDGID Three Speed Air Mover

Model Number AM22650

RIDGID parts are available on-line at www.RIDGIDparts.com

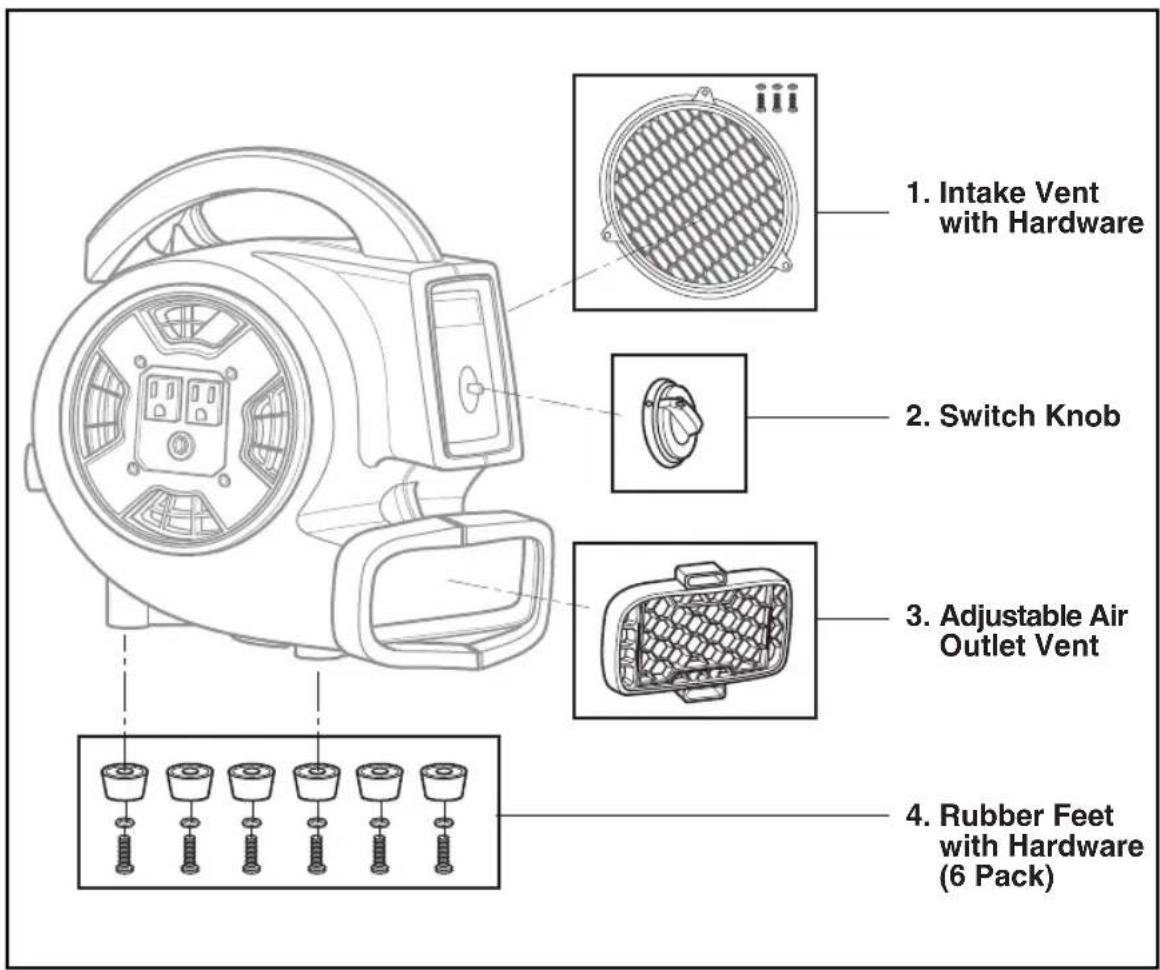

1. Intake Vent with Hardware 2. Switch Knob 3. Adjustable Air Outlet Vent 4. Rubber Feet with Hardware (6 Pack)

RIDGID®

Symbol of Quality, Durability and Dependability

What is covered

RIDGID ^® tools are warranted to be free of defects in workmanship and material.

How long coverage lasts

This warranty lasts for the lifetime of the RIDGID ^® tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material.

How can you get service

To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGIDINDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.

What we will do to correct problems

Warranted products will be repaired or replaced, at RIDGE TOOL's option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.

What is not covered

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages.

How local law relates to the warranty

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to country.

No other express warranty applies

This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID® products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.

Stock No. AM2265

Model No. AM22650

Model and serial number may be found on a label on back of the housing. You should record both model and serial numbers in a safe place for future use.

QUESTIONS OR COMMENTS? CALL

1-800-4-RIDGID (1-800-474-3443)

www.RIDGIDvacs.com

2017 Emerson

EMERSON™

Part No. SP7007

Form No. SP7007-1

Printed in China 01/17

RID ^
