USER MANUAL HBL 102N HOOVER

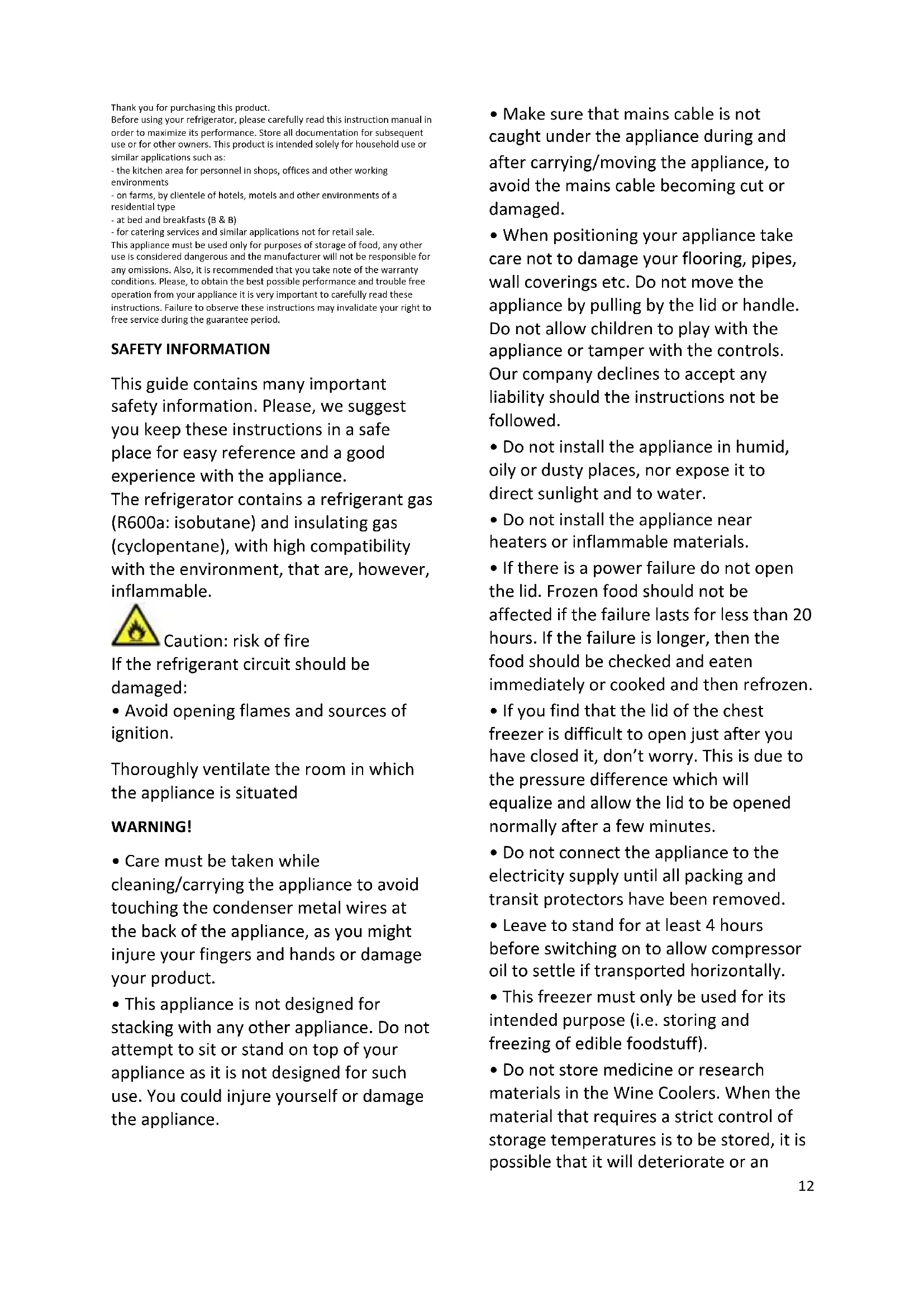

• Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

• This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

• When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inflammable materials.

• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the lid of the chest freezer is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

• This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).

• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an13 uncontrolled reaction may occur that can cause risks.

• Before performing any operation, unplug the power cord from the power socket.

• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.

• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

• Do not place objects and/or containers filled with water on the top of the appliance.

• We do not recommend the use of extension leads and multi-way adapters.

• Do not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the14 like in order to speed up the defrosting phase.

• Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

• The product is designed and built for domestic household use only.

• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.

• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.

• The guarantee is applicable only to new products and is not transferable if the product is resold.

• Our company disclaims any liability for incidental or consequential damages.

• The guarantee does not in any way diminish your statutory or legal rights.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel. SAFETY CHILDREN!

• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.15

REFRIGERATOR DIAGRAM—PREPARATION

1.Shelves 2.Vegetable and fruit tray 3.Temperature Controller 4.Egg tray 5.Bottle racks This diagram may vary slightly with the layout of the refrigerator you have just purchased due to technical improvements. The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures PREPARATION Unpacking Remove all packing materials. Check attachments and materials Checking should be conducted with reference to the Packing List. Contact the local distributor if discrepancies are found. Ensure proper location of the refrigerator. *Make sure the refrigerator is kept upright during handling. If an inclination is required, it should not exceed 45 degrees. Otherwise the appliance may get damaged resulting not only in compromised refrigeration performance. *To avoid product damage or personal injury, the refrigerator should be unpacked by two persons after it is located in a previously selected position. *Before installation, make sure the refrigerator has no visible exterior damage. *When handling the refrigerator, do not lift it by holding the worktop, to prevent any damage to the refrigerator. *Do not start up a refrigerator that is damaged. Clean the refrigerator before use. (See the following section “Cleaning”) Idle time After the refrigerator has been sited and cleaned, let it stand for more than 30 minutes before connecting the power source OPERATION Starting the refrigerator T After connecting to the power supply, turn the temperature controller clockwise from position 0 to any position between 1 and 7 to start the refrigerator. The refrigerator compressor will stop when the temperature controller is at position 0. Adjusting the temperature: The temperature inside the refrigerator is adjusted by turning the temperature controller. Positions 1 to 7 represent different temperatures from the lowest to the highest. Position Conditions 1-2 Summer or ambient temperature between25-35℃ 3-4 Spring, autumn or ambient temperature between15-25℃ 4-5 Winter, or ambient temperature between5-15℃ Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made. The length of this period is determined by difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed and the amount of food in storage. Loading the refrigerator with food When the refrigerator is switched on, do not load food until 1~2 hours have passed. Usually, food for cold storage or deep freezing can be loaded when the temperature inside the compartment reaches the set point. INSTRUCTIONS Cold storage is for short-term food storage or for daily consumption. Although the temperature in most parts of the cold storage compartment can be regulated between 0 and 10 degrees Centigrade, extended periods of food storage is not recommended. Cold storage should only be used for short-term storage. Cold storage compartment

2. Pickled food and seasonings

3. Beverages and bottled food

4. Cookies, cooked food and milk

5. Meat and sausages

6. Fruits, vegetables and salads

Cautions for cold storage

• Hot food must be cooled to room temperature before storing in the refrigerator Dry any water droplets on the food before placing it in the refrigerator. It is recommended that food be sealed in suitable storage bags before being placed in the refrigerator; this will prevent moisture in the food from evaporating and prevent vegetables and fruit from withering or altering in flavor.16

• Do not store excess quantities or weights of food; food should be stored with spaces in between for better storage results. Never overload shelves, as they may collapse under excessive loads.

• Food to be stored should be sorted according to consumer requirements. Food consumed daily should be placed in the most convenient area, this will minimize opening periods for the door. Do not place food too close to the internal walls. Food holder cleaning

• Food holders can be taken out for cleaning

*Lamp: 240V, 1W If the lamp is damaged, it must be replaced by a supplied lamp or assembly available from the manufacturer or it's service agent. Instructions for food storage *Storage period will be extended if vegetables are placed with their roots towards the cold source. *Leaves of carrots or turnips should be removed before storage. *Put a wad of tissue on the bottle holder before placing bottles on it so that later cleaning is easier *Onions, garlic, ginger, water chestnuts and other root vegetables should not be stored in the refrigerator, as these foods are suitable for long-term storage at normal temperatures. *Ripe squash, melon, papaw, bananas and pineapples should not be stored in the refrigerator. Freezing will accelerate the ripening process. DEFROSTING-CLEANING -DE-COMMISSIONING Defrosting the cold storage compartment The cold storage compartment is designed for automatic defrosting. Frost formed on the back wall will melt and flow via the drainpipe to the vaporating container over the compressor on the back of the refrigerator, where the heat generated by the compressor will evaporate the water.

Caution: Always keep the drain over the vegetable and fruit tray clear to ensure the normal flow of defrosted water. Use the rod provided to clear any blockages. Cleaning The refrigerator should be cleaned regularly to prevent the formation of bad odors.

• Disconnect the power before cleaning the refrigerator.

• Do not use a hard brush, steel brush, detergent, gasoline or other solvents, hot water, acid or alkali for cleaning.

• Wipe water drops on the surface of the refrigerator with a soft cloth. (1) Do not use excessive amounts of water for cleaning the refrigerator (2) Use a dry cloth to clean the switch, the lamp and the temperature controller

• Always keep the rubber door seal clean

• Clean the back and sides of the refrigerator regularly. Cessation of Operation If the power failure lasts for an extended period, unplug the refrigerator and clean the refrigerator as previously described. Keep the door of refrigerator open when the power is turned off to prevent any food remaining in the compartment from producing bad odors. Caution: It is recommended that the refrigerator is not turned off Power failure Even in summer, food can be stored in the refrigerator for a few hours after a power failure.

• Don’t put additional food into the refrigerator during a power failure.

• Avoid opening the door during power failures *If prior notice of a power failure is given, make some ice and put it in a container in the top of the cold storage compartment. Caution: temperature in the refrigerator will rise during a power failure or in the event of technical problems, and the storage period will be reduced. During Vacations

• Remove any food from refrigerator is the vacation is short. Turn the temperature selection knob to the proper position, and make sure that the door of the refrigerator is properly closed.

• If the vacation is long, take out the food from the refrigerator and disconnect the power. When the frost inside melts, clean and dry the compartment. Discarding

• Remove the door of the refrigerator when you get rid of it, in case children may get trapped in. Moving the refrigerator

• Tigh0ten the shelf and vegetable tray with tapes *Tightly close the door with tape

QUESTIONS AND ANSWERS

Events below are not problems:

• The temperature of the refrigerator and the compressor will rise and the compressor will run for comparatively longer periods when the refrigerator is first started.

• Wipe water drops on the external surface of the refrigerator with a soft cloth.

• When the refrigerator is opened frequently or stay open too long in humid seasons, the cavity will be dampened.

• A slight sound will be heard when the liquid refrigerant circulates or when the compressor switches on and off.

• A slight sound will be heard when defrosted water drops into the evaporating dish.

• The compressor will operate for comparatively longer periods if excessive quantities of food are stored or the ambient temperature is high.

• The evaporator will produce odors if the compartment is not cleaned. Caution: The refrigerator should never be restarted until a period of at least five minutes has elapsed. Please determine the cause of the problem before making any repairs. Phenomena Causes Refrigerator will not start.

• Bad connection to power source (plug, socket and fuse)

• The temperature knob is at the 0 position

• Low voltage The lamp does not blink.

• Power supply not connected

• The temperature knob is at the 0 position Excessive noise.

• Contact between the refrigerator and a wall or other article17 Compressor operates for a long period or temperature does not reach set point.

• First time of operation

• Excessive food stored

• Frequent opening of the refrigerator door due to hot weather

• The temperature controller is not set properly

• Refrigerator is in direct sunlight, or close to a heat source

• Poor ventilation, or dirt on the condenser Food dry

• Food not properly covered or sealed Strange odor

• Failure to seal food properly

• Rotting food inside refrigerator

• Refrigerator should be cleaned. See "Cleaning"18

1. Once the appliance has been unpacked, check the main voltage is the same

as that indicated on the rating plate.

2. If the door opening direction is as required, go to Point 3. Otherwise,

reverse the position of the hinges. To do this, carefully place the on its back, user spacers to prevent crushing the condenser pipes and damaging the compressor unit. 2a Remove the lower hinge pin P. 2b Remove the lower hinge A and free the door. 2c Remove upper hinge B, and fit the hinge A to the opposite side. 2d Remove the bottom support L. 2e Refit the door and the hinge B one the left side. 2f Refit the bottom support L to the opposite side. When installing the appliance, remember the following: A Do not install it near to sources of heat such as heaters, radiators, cookers, etc. or in direct sunlight. B Make sure that during the automatic defrost, any water on the back wall of the compartment runs into the drain channel. C After the appliance has been placed in its final position, leave it for about at least an hour before connecting it to the power supply. D Make sure that the appliance is working properly before placing any food in it.

WARNING: DO NOT INSTALL THE APPLIANCE NEAR TO ANY HEAT SOURCES

AND LEAVE A GAP OF AT LEAST 5 CM ABOVE IT.

INSTALLATION IN THE TALL UNIT HOUSING

The dimensions of the tall unit housing must be corresponded to those reported in the figure. 3 insert the appliance in the housing against the side panel adjacent to the opening. 3a adjust the foot until the top panel is not in contact with the unit, and anchor the upper part of the appliance, using the screws supplied, in the pre- drilled panel over the front fascia. 3b Anchor the bottom of the appliance to the wall of the unit using the special brackets. 3c Fix the two bottom feet in the holes in the base of the unit. 3d where provided, apply the plastic joint gasket. 3e Anchor the part X with screws on the appliance door. 3f Fit the sliding part Y with screws, after adjusting the housing door.19

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: WEEE should not be treated as household waste. WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

• Foods with natural preservatives, such as jams, juices, drinks, condiments.

• Do not store perishable foods Crisper drawers (salad drawer)

• Fruits, herbs and vegetables should be placed separately in the crisper bin

• Do not store bananas, onions, potatoes, garlic in the refrigerator Fridge shelf – middle

• Dairy products, eggs Fridge shelf – top

• Foods that do no need coocking, such as ready-to-eat foods, deli meats, leftovers. Freezer drawer(s)/tray

• Foods for long-term storage

• Bottom drawer for raw meet, poultry, fish

• Middle drawer for frozen vegetables, chips.

• Top tray for ice cream, frozen fruit, frozen baked goods.

• It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.

• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18° POSITIONING Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: - Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’ - Temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’ - Subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’- Tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’

“Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market”.

GUARANTEE Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
