Product type	Clock radio
Brand	TFA
Model	Twist 60.2560.15
Housing dimensions	117 × 71 × 37 mm
Weight	116 g (unit only)
Power supply	2 AA 1.5V batteries (alkaline recommended, not included)
Radio-controlled reception	DCF-77 signal (75.5 kHz), range ~1500 km
Clock functions	24/12h display, manual setting, adjustable time zone (-9 to +9)
Alarm	Activate/deactivate by rotating the unit 180°, adjustable snooze repetition (5/10/15 min)
Illumination	Inverted display (bright digits on black background), automatic night light (light sensor), touch to temporarily light up
Status indicators	DCF reception symbol, low battery, alarm active, snooze, AUTO LIGHT
Housing material	Plastic
Cleaning and care	Soft damp cloth; do not use solvents or abrasives
Battery safety	Observe polarity; do not mix old and new batteries; remove if not used for a long time
Repairability	Do not repair, disassemble or modify yourself; contact the seller
Compliance	EU Directive 2014/53/EU (radio equipment), WEEE
Operating temperature	Avoid extreme temperatures (not specified, estimated 5°C to 35°C)
Time zone setting	Yes, in 1-hour steps from -9 to +9
Light sensor	Yes, for automatic activation of night illumination
Manual reception	Can be activated by pressing MIN - and HR - simultaneously for 3 seconds

Frequently Asked Questions - Twist 60.2560.15 TFA

How to manually set the time on the Twist 60.2560.15?

Press and hold the SET button for 3 seconds. The time flashes: use HR +/– buttons for hours and MIN +/– for minutes. Confirm with SET to move to the following settings (DCF reception, snooze interval, time zone, 12/24h format).

How to enable or disable the alarm?

Rotate the unit 180° to toggle between Alarm ON and Alarm OFF positions. In ON position, the alarm symbol and set time are displayed. In OFF position, they disappear.

How to set the alarm time?

In normal mode, when the alarm is activated (ON position), press HR +/– to set the hours and MIN +/– for the alarm minutes. The time flashes; it is confirmed automatically after a few seconds.

How to use the snooze function?

When the alarm sounds, press the touch button SNOOZE/LIGHT at the top. The alarm stops for the duration of the set snooze interval (5, 10, or 15 minutes). The snooze symbol flashes. To stop it completely, press any other key or disable the alarm.

How to change the snooze repetition interval?

Press and hold SET for 3 seconds, go through the settings until you see Sn followed by a digit (5, 10, or 15). Use HR +/– or MIN +/– to select the desired interval, then confirm with SET.

Why is my alarm not receiving the DCF signal?

Make sure DCF reception is activated (setting dcF ON). Move the device away from computer screens, TVs, or metal objects. Place it near a window. Reception is better at night. You can also start manual reception by pressing MIN – and HR – simultaneously for 3 seconds.

How to replace the batteries?

Open the battery compartment on the back. Insert two new 1.5V AA batteries observing polarity (+/–). Use alkaline batteries for longer life. Close the cover. The low battery symbol indicates it's time to replace.

What does the AUTO LIGHT symbol on the display mean?

The AUTO LIGHT symbol indicates that the automatic night light is activated. When the light sensor detects darkness, a dim backlight turns on to read the time. You can activate or deactivate it with the AUTO LIGHT ON/OFF switch on the side.

How to clean the clock?

Use a soft damp cloth (not wet). Do not use solvents, abrasive products, or harsh cleaners. Ensure no moisture enters the device.

How to set the time zone?

In setting mode (press and hold SET for 3 seconds), scroll through the options until you see Zo followed by a digit (default 0). Use HR +/– or MIN +/– to adjust the offset from -9 to +9 hours relative to DCF time. Confirm with SET.

USER MANUAL Twist 60.2560.15 TFA

Operating Instructions

Mode d'emploi

Thank you for choosing this instrument from TFA.

Before you use this product

• Please make sure you read the instruction manual carefully.
• The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/downloads/instruction-manuals
  This product should only be used as described within these instructions.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

TWIST - Radio-controlled alarm clock

1. Delivery contents

• Radio-controlled alarm clock
• Instruction manual

2. Range of application and all the benefits of your new Instrument at a glance

• Highest precision radio-controlled clock
• Turn the alarm clock by 180^ to activate and deactivate the alarm
• Alarm with snooze function, adjustable snooze interval
• Manual setting option and time zone correction
• Inverted display lighting (numbers light up on a black background)
  Gentle permanent night light can be activated via light sensor
  Bright lighting on keypress

3. Safety notices

This product is exclusively intended for the range of application described above.
- This product should only be used as described within these instructions.

TWIST - Radio-controlled alarm clock

WARNING

• Keep this device and the batteries out of reach of children.
• Small parts can be swallowed by children (under three years old).
• Batteries contain harmful acids and may be hazardous if swallowed. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

TWIST - Radio-controlled alarm clock

CAUTION

• Unauthorized repairs, alterations or changes to the product are prohibited.
• Do not expose the device to extreme temperatures, vibrations or shocks.
• Do not place any objects on the unit.
• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Protect it from moisture!

4. Elements

A:Display (Fig.1):
A1: DCF reception symbol
A2: AUTO LIGHT symbol activated
A3:Time
A4: Battery symbol

TWIST - Radio-controlled alarm clock

Only at position ON

A 5: Alarm symbol activated
A6: Snooze symbol
A7: Alarm time

B:Position (Fig.2+3):

Position alarm ON
Position alarm OFF

C: Buttons (Fig. 2-4):

C1:MIN+/-button
C 2: AUTO LIGHT ON/OFF switch
C3:SET button
C4:HR+/-button

33

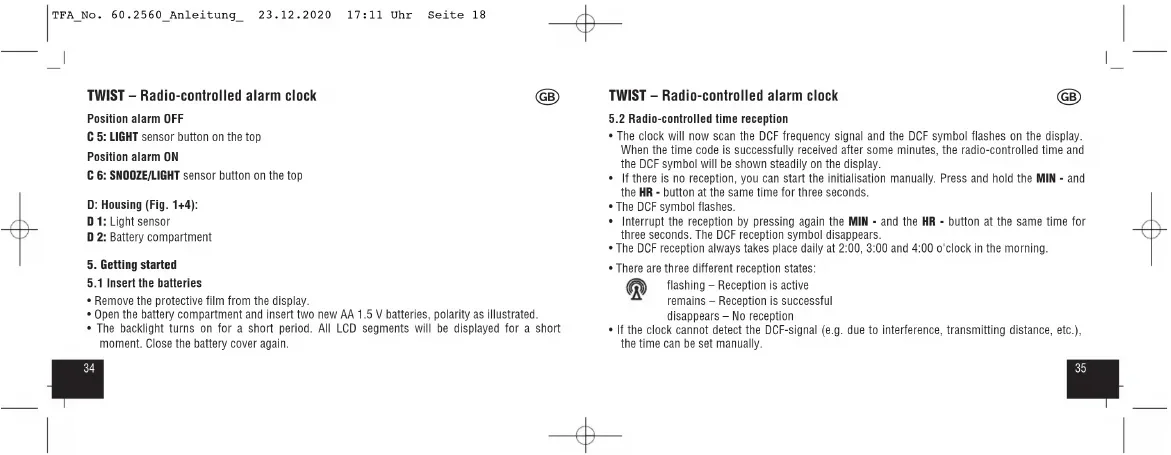

TWIST - Radio-controlled alarm clock

Position alarm OFF

C 5: LIGHT sensor button on the top
Position alarm ON
C 6: SNOOZE/LIGHT sensor button on the top

D:Housing (Fig.1+4)

D1: Light sensor
D 2: Battery compartment

1. Getting started

5.1 Insert the batteries

• Remove the protective film from the display.
• Open the battery compartment and insert two new AA 1.5 V batteries, polarity as illustrated.
• The backlight turns on for a short period. All LCD segments will be displayed for a short moment. Close the battery cover again.

TWIST - Radio-controlled alarm clock

5.2 Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after some minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display.
• If there is no reception, you can start the initialisation manually. Press and hold the MIN - and the HR - button at the same time for three seconds.
  The DCF symbol flashes.
• Interrupt the reception by pressing again the MIN - and the HR - button at the same time for three seconds. The DCF reception symbol disappears.
  The DCF reception always takes place daily at 2:00, 3:00 and 4:00 o'clock in the morning.
  There are three different reception states:

flashing-Reception is active

remains - Reception is successful

disappears - No reception

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

TWIST - Radio-controlled alarm clock

GB

5.3 Note on radio-controlled time

The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight Saving Time and Standard Time is also automatic.
- Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects. Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.
- During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second.

6. Operation

6.1 Manual settings

• Press and hold the SET button for three seconds to enter the setting mode.

TWIST - Radio-controlled alarm clock

GB

• The time starts flashing. Press HR +/− button to set the hours and MIN +/− button to set the minutes.
• Confirm the setting with the SET button.
  The next adjustable value flashes on the display.
• Use the HR +/- or MIN +/- button to make the desired setting.
• Confirm with the SET button and go to the next setting
  The sequence is shown as follows:

DCF reception on/off (default: dcF ON)
- Snooze interval 5/10/15 minutes (default: Sn 5)
Time zone-9/+9(default:Z00)
-24/12-hour format (default: 24Hr)

• Press and hold the HR + / - or MIN + / - button in the respective setting mode for quick setting. The device will automatically quit the setting mode if no button is pressed for 20 seconds.

TWIST - Radio-controlled alarm clock

GB

6.1.1 DCF reception

• By default, the DCF reception is activated (dcF on) and after successful reception of the DCF signal no manual adjustment is necessary.
• Once the DCF time reception is deactivated (dcF OFF) the clock must be manually set.
• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.

6.1.2 Time zone setting

In the setting mode you can make the time zone correction
The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

7. Alarm time setting

• Turn the alarm clock to the Alarm ON position. The coloured marking points upwards. The alarm symbol and the last adjusted alarm lime appear on the display (6:00 default). The alarm is activated.

TWIST - Radio-controlled alarm clock

GB

• Press the HR +/- button to set the hours and MIN +/- button to set the minutes.
• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The alarm symbol flashes.
• Press any button (except SNOOZE/LIGHT) and the alarm will stop. The alarm symbol remains on the display and the alarm will be reactivated at the same time.
• Press the SNOOZE/LIGHT button to activate the snooze function.
  The backlight turns on for a short period. The alarm will be interrupted for the set time.
  The snooze symbol flashes.
• Turn the alarm clock to the Alarm OFF position to deactivate the alarm. The marking oints upwards. The alarm symbol and the alarm time disappear.

8. Illumination

• The display automatically inverts and the numbers light up on a black background when illuminated.
• Pressing the sensor button on the top activates a bright illumination for 5 seconds.

TWIST - Radio-controlled alarm clock

• Move the AUTO LIGHT ON/OFF switch to the light symbol, a weak lighting turns on automatically as soon as the light sensor registers darkness. The AUTO LIGHT symbol appears on the display.

9. Battery replacement

• Change the batteries when the battery symbol appears on the display.
• Open the battery compartment and insert two new AA 1,5 V batteries.
  Make sure the polarities are correct.
• Close the battery compartment.

10. Troubleshooting

Problem Solution

No display Ensure the batteries' polarities are correct

Change the batteries

No DCF reception Activate DCF reception in setting mode (dcF ON)

Start the initialization manually

TWIST - Radio-controlled alarm clock

Wait for an attempt reception during the night
Choose another place for your device
Set the clock manually

Incorrect indication Change the batteries

If your device fails to work despite these measures, contact the retailer where you purchased the product.

11. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

TWIST - Radio-controlled alarm clock

The symbols for the contained heavy metals are:

Cd=cadmium, Hg=mercury, Pb=lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

12. Specifications

Power consumption 2 x AA 1,5 V batteries (not Included)

Use alkaline batteries

Housing dimension 117 x 71 x 37 mm

Weight 116 g (device only)

TWIST - Radio-controlled alarm clock

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Herby, TFA Doestmann declares that the radio equipment type 60.256D is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

www.tfa-dostmann.de
