USER MANUAL 60.1511.01 TFA

COMBO - Radio-controlled alarm clock

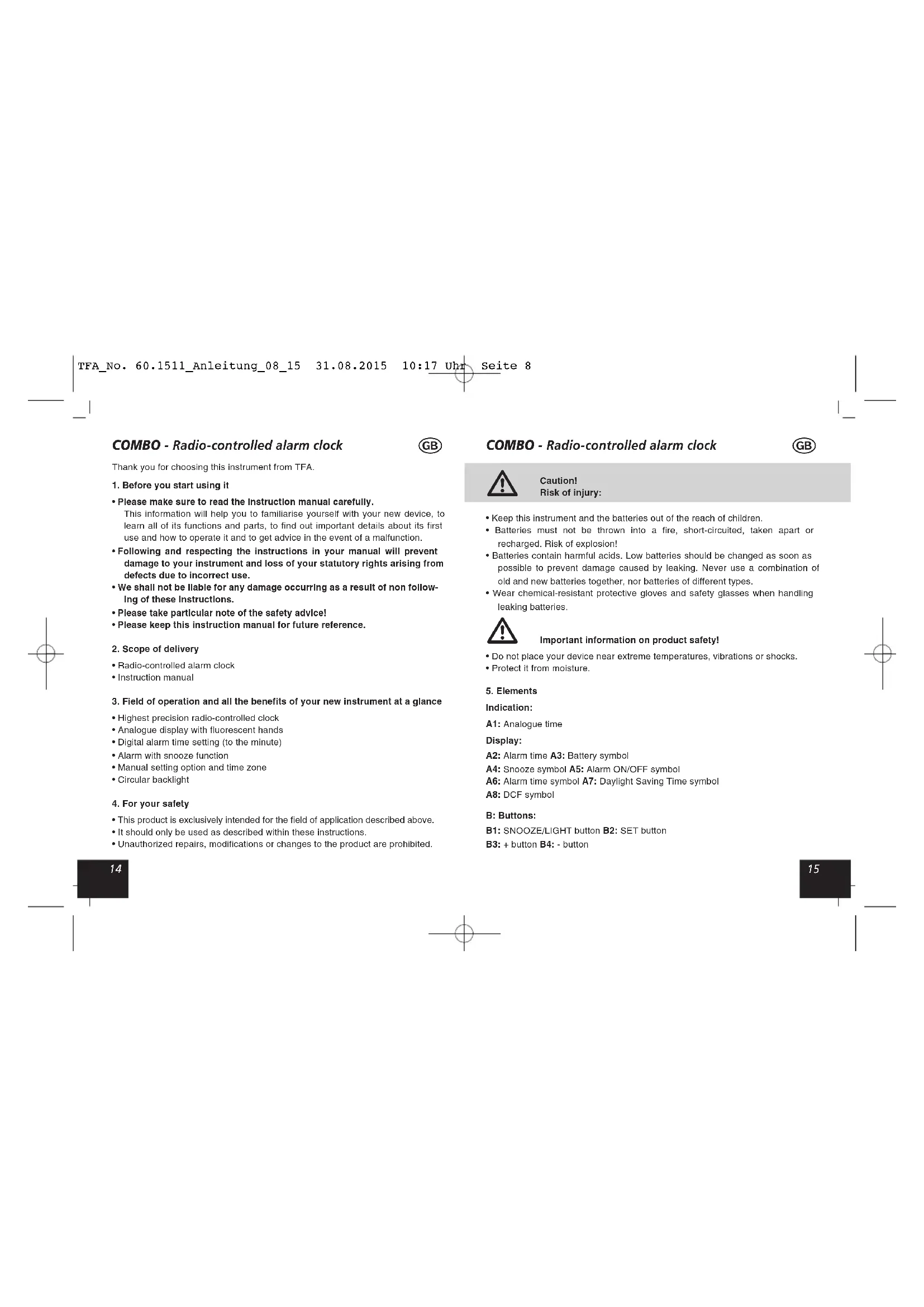

Thank you for choosing this instrument from TFA.

1. Before you start using It

• Please make sure to read the instruction manual carefully.
  This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your Instrument and loss of your statutory rights arising from defects due to Incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

2. Scope of delivery

• Radio-controlled alarm clock
• Instruction manual

3. Field of operation and all the benefits of your new Instrument at a glance

• Highest precision radio-controlled clock
• Analogue display with fluorescent hands
  Digital alarm time setting (to the minute)
• Alarm with snooze function
• Manual setting option and time zone
• Circular backlight

4. For your safety

• This product is exclusively intended for the field of application described above.
  It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

COMBO - Radio-controlled alarm clock

Caution! Risk of Injury:

• Keep this instrument and the batteries out of the reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important Information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.
• Protect it from moisture.

5. Elements

Indication:

A1: Analogue time

Display:

A2: Alarm time A3: Battery symbol
A4:Snoopze symbol A5:Alarm ON/OFF symbol
A6: Alarm time symbol A7: Daylight Saving Time symbol
A8: DCF symbol

B: Buttons:

B1: SNOOZE/LIGHT button B2: SET button
B3: + button B4: - button

COMBO - Radio-controlled alarm clock

B5: Alarm switch ON/OFF with color mark

B6:RESET button

C: Housing:

C1: Battery compartment

6. Getting started

• Open the battery compartment and insert three new batteries 1,5 V AA, polarity as illustrated. Close the battery compartment again.
  The device is ready for use.
  The device will alert you with a beep.
  The alarm time (default 6:00) and the alarm time symbol appear in the display.
  The hands move to 12.00 o'clock.
• The clock will now scan the DCF frequency signal. The DCF symbol is flashing on the display.
• When the time code is received successfully after 3-12 minutes, the digital time appears briefly on the display and the analogue clock updates to the radio-controlled time. The DCF symbol appears steadily on the display.

6.1 DCF reception

• The DCF reception always takes place at 1:00, 3:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.
• You can start the initialization manually.
• Press and hold + button for three seconds.
  The DCF symbol will be flashing.
• To deactivate the DCF reception, press and hold again the + button for three seconds.
  The DCF symbol disappears.

COMBO - Radio-controlled alarm clock

• There are three different reception symbols:
  flashing - reception is activestays - reception is very good
  no symbol - reception is deactivated
• If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

Note for radio-controlled time DCF

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time is shown on the display. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

COMBO - Radio-controlled alarm clock

7. Operation

• During the DCF reception is a button operation not possible.
• Press and hold the + or the - button for a few seconds in the setting mode for a fast running.
• The device will automatically quit the setting mode if no button is pressed for a long period of time.

7.1 Manual settings

• Press and hold the SET button for a few seconds to enter the setting mode.

7.1.1 Time zone correction

The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time.
- 0 (default) appears on the display.
- Press the - or + button to adjust the time zone correction (-9/+9, e.g.: +1=one hour later).

7.1.2 Manual setting of the clock

(if the radio-controlled clock cannot receive the DCF reception signal)

• Press the SET button to make the settings in the following sequence: Year, month, day, hour and minutes. Press the + or - button to adjust it.
• Confirm the setting with the SET button.
  The analogue clock shows automatically the manually set time.
• By a successful reception of the DCF signal, the manually set time will be overwritten.

7.2 Setting of the alarm time

• Press the SET button.
  The hour digits will be flashing.
• Press the + or - button to adjust hours.

COMBO - Radio-controlled alarm clock

• Confirm the setting with the SET button.
  The minute digit will be flashing. Press the - or + button to adjust the minutes.
• Confirm the setting with the SET button.
  The display shows the adjusted alarm time.
• Slide the ALARM switch ON/OFF upwards (ON) to activate the alarm function.
• At the same time, the color mark for the alarm changes.
  The alarm symbol appears on the display.
  The alarm time is activated.
• When the adjusted alarm time is reached, the alarm will ring.
  The alarm symbol will be flashing.
  The backlight will also be flashing and turns off after a few seconds.
• Press the SET button and the alarm will stop
• If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes.
• The alarm symbol rests on the display and the alarm time will be reactivated at the same time.
• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function will be activated.
• Once the snooze function is activated, will be flashing on the display.
  The alarm will be interrupted for 5 minutes.
• Slide the ALARM switch ON/OFF downwards (OFF) to deactivate the alarm function.
• At the same time, the color mark for the alarm changes again.
  The alarm symbol disappears.

7.3 Backlight

• Press the SNOOZE/LIGHT button.
  The backlight turns on for 5 seconds.

8. Care and maintenance

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.

COMBO - Radio-controlled alarm clock

• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
• Open the battery compartment and insert three new batteries 1,5 V AA, polarity as illustrated.
• Close the battery compartment again.

9. Troubleshooting

Problems Solution

No indication / Ensure that the batteries polarities are

no hand movement correct

Change the batteries

No DCF reception Press the ^+ button for three seconds and

start the reception manually

Choose another place for your device

Wait for attempted reception during the

night

Check if there is any source of inter

ference
Restart the device according to the manual
Set the clock manually

Incorrect indication Change the batteries

Use a pin to press the RESET button

If your device fails to work despite these measures contact the supplier from whom you purchased it.

COMBO - Radio-controlled alarm clock

10.Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb = lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

1. Specifications

Power consumption:	Batteries 3 x 1,5 V AA (not included)
Housing dimension:	91 x 41 x 115 mm
Weight:	172 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

COMBO - Radio-controlled alarm clock

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via [e-mail].

www.tfa-dostmann.de 08/2015

Alimentation Piles 3 x 1,5 V AA (non incluses)

Dimensions du boilier 91 x 41 x 115 mm

Poids 172 g (appareil seulment)
