60.2532.01 - Alarm clock radio TFA - Free user manual and instructions

Product type	Radio alarm clock
Brand	TFA
Model	60.2532.01
Power supply	2 AA 1.5V batteries (not included)
Dimensions (L x W x H)	138 x 70 x 70 mm
Weight (device only)	168 g
Display type	LCD with backlight
Temperature measurement range	-10 °C to +50 °C (14 °F to 122 °F)
Temperature unit	°C or °F (selectable)
Time reception	Radio-controlled DCF-77 (range ~1500 km)
Clock functions	12/24 h display, manual setting, DCF reception
Alarm function	Alarm with snooze repeat (5 min)
Nap timer	Adjustable by buttons 5, 15, 30 min (up to 360 min)
Backlight	Manual activation (SNOOZE/LIGHT button) for 10 seconds
Cleaning and maintenance	Soft damp cloth, no solvents or abrasives
Battery replacement	When the battery symbol appears, replace with 2 new AA batteries
Safety instructions	Keep out of reach of children, do not expose to moisture or shocks
Waste disposal	Compliant with WEEE, used batteries to be taken to recycling center

Frequently Asked Questions - 60.2532.01 TFA

How to manually set the time on the TFA 60.2532.01 alarm clock?

Move the switch to the TIME SET position. The time flashes. Use the HR button to set the hours (12 or 24 h) and the MIN button for minutes. Move the switch back to AL ON or AL OFF to confirm.

How to set the alarm?

Set the switch to AL SET. The alarm time flashes (default 07:00). Use HR for hours and MIN for minutes. Move the switch back to AL ON to activate the alarm. The alarm symbol appears.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button. The alarm stops for 5 minutes and the alarm and snooze symbols flash. Press any button to cancel snooze before the end.

How to set the nap timer (NAP)?

In normal mode, the upper display shows 00. Press the 5, 15, or 30 buttons to add minutes (up to 360). The timer starts immediately. To cancel, press CLEAR. At the end, the alarm sounds.

Why is my alarm clock not displaying the radio-controlled time?

Make sure the switch is on AL ON or AL OFF (not on TIME SET). Press and hold the HR button for 3 seconds to start a DCF search. The reception symbol flashes. Wait up to 7 minutes. If reception fails, check distance from interference sources (screens, etc.) or place the unit near a window at night.

How to change the temperature display between Celsius and Fahrenheit?

In normal mode (switch on AL ON or AL OFF), briefly press the HR button to toggle between °C and °F.

What to do if the screen shows nothing?

Check the battery polarity (+/-) and condition. Replace the batteries with two new AA 1.5V batteries. If the problem persists, a reset may be necessary by removing and reinserting the batteries.

How to clean the alarm clock?

Use a soft damp cloth. Never use solvents, abrasives, or chemical cleaners. Avoid moisture entering the device.

What batteries to use?

Use two AA 1.5V alkaline batteries. Observe polarity indicated in the compartment. Do not mix new and old batteries, nor different types of batteries.

What do the symbols on the screen mean?

The radio symbol indicates DCF reception. If it flashes, reception is in progress; steady, reception is successful; absent, reception is disabled. The alarm symbol appears when the alarm is active. The snooze symbol flashes during repeat. The battery symbol indicates low batteries.

USER MANUAL 60.2532.01 TFA

SIESTA - Radio-controlled alarm clock

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
  This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find
  out important details about its first use and how to operate it and to get advice in the event of a malfunction.
  • Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your
  statutory rights arising from defects due to incorrect use.
• Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
  • We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Scope of delivery

• Radio-controlled alarm clock
• Instruction manual

GB

18

m = 311

19

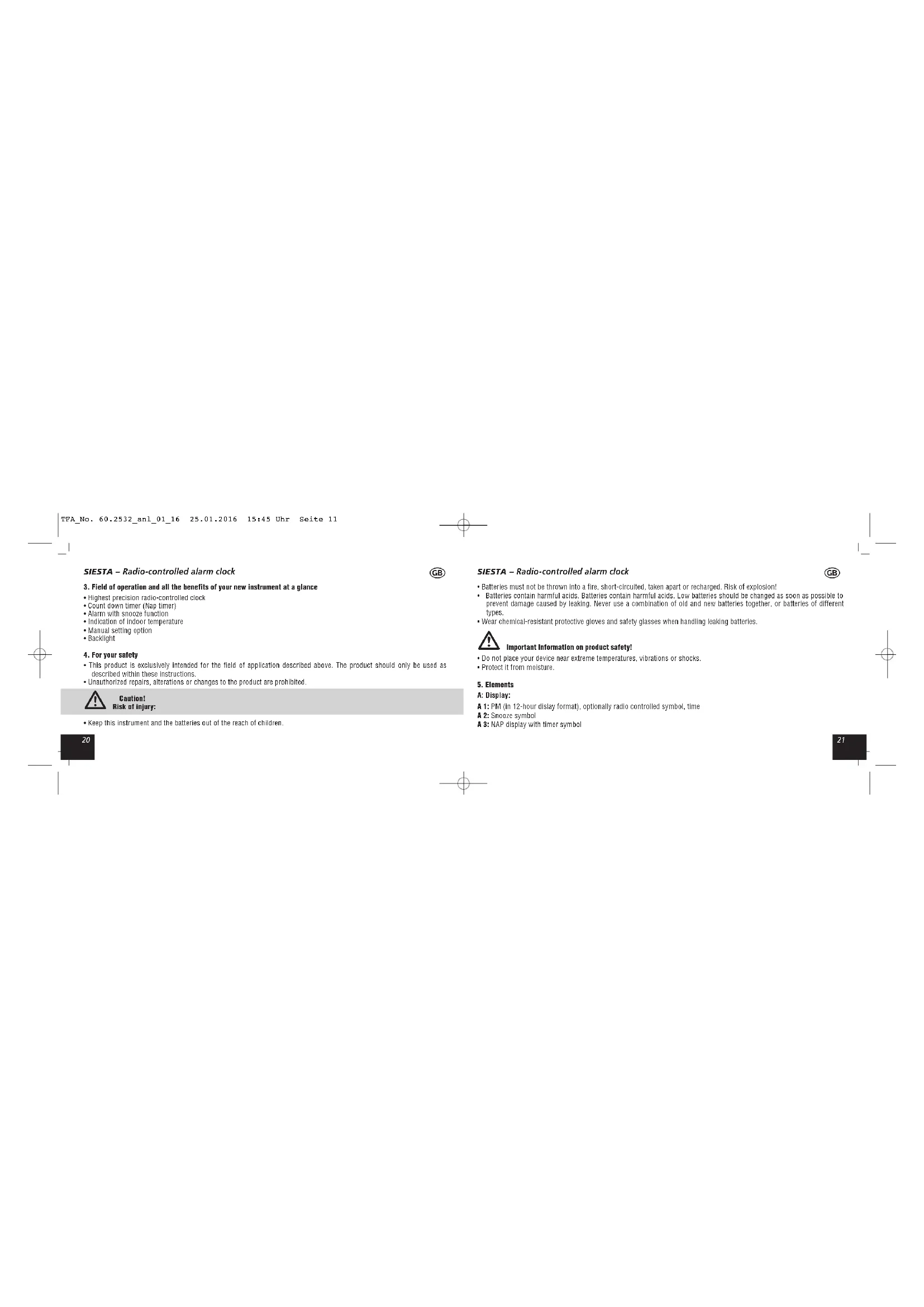

SIESTA - Radio-controlled alarm clock

1. Field of operation and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock
• Count down timer (Nap timer)
• Alarm with snooze function
• Indication of indoor temperature
- Manual setting option
- Backlight

1. For your safety

2. This product is exclusively intended for the field of application described above. The product should only be used as described within these instructions.

3. Unauthorized repairs, alterations or changes to the product are prohibited.

Caution! Ask of Injury:

- Keep this instrument and the batteries out of the reach of children.

SIESTA - Radio-controlled alarm clock

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, or batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important Information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.

• Protect it from moisture

• Elements

A: Display:

A 1: PM (in 12-hour display format), optionally radio controlled symbol, time
A 2: Snooze symbol
A 3: NAP display with timer symbol

SIESTA - Radio-controlled alarm clock

A 4: Alarm time display with alarm symbol
A 5: Temperature display with backlight symbol
B: Buttons:
B 1: Switch setting time and alarmtime, ALARM ON/OFF
B 2: CLEAR button
B 3: HR button
B 4: 5 and 15 and 30 button
B 5: MIN button
B 6: SNOOZE/LIGHT button

C: Housing:

C 1: Battery compartment

1. Gelting started
2. Open the battery compartment and insert two new batteries 1.5 V AA, polarity as illustrated
3. Close the battery compartment again.

22

GB

SIESTA - Radio-controlled alarm clock

GB

• The device will alert you with a beep and all segments will be displayed for a short moment.
- The Indoor temperature (default °C) appears on the display. It may take 3-8 minutes until the correct temperature is displayed.

6.1 Reception of the radio controlled time

• Attention: The radio reception only works in normal mode (switch to position AL ON / OFF)
• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is received successfully after 7 minutes, the radio-controlled time and the DCF symbol are displayed steadily on the display.
• The DCF reception always takes place daily at 1:00, 2:00, 3:00, 4:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.
• You can start the initialization manually.
• Press and hold HR button for three seconds.
  • The DCF reception symbol will be flashing.
  • To end the DCF reception attempt, press the HR button short. The DCF reception symbol disappears.

23

22

SIESTA - Radio-controlled alarm clock

• There are three different reception symbols:

flashing - reception is active

stays - reception is very good

no symbol - no reception/reception is shut down/set time manually

- If the clock can not detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (see: Manual setting of the clock).

Note for radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainlingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time DST is shown on the display. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

SIESTA - Radio-controlled alarm clock

Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

7. Operation

• Press and hold the HR or MIN button in the setting mode for fast running.
• The device will automatically quit the setting mode if no button is pressed for a long period of time.

7.1 Manual settings of the clock

• Slide the switch to TIME SET
• The time will be flashing on the large display.
- Press the HR button to adjust the hours.

SIESTA - Radio-controlled alarm clock

- With this setting, you also select, if the time will be displayed in the 12 or 24 hour system. First, the hours will appear in

24-hour system then the hours will appear in 12-hour system (PM appears from 12 to 24 o'clock on the display).

- Press the MIN button to adjust the minutes.

- Slide the switch to the position AL ON or AL OFF, to exit the setting mode.

- On the display appears the adjusted time.

- By a successful reception of the DCF signal, the manually set time will be overwritten.

7.2 Setting of the alarm time

• Slide the switch to the position AL SET.
  • The alarm time (default 7:00) will be flashing on the middle display.
• Press the HB button to adjust the hours.
• Press the MIN button to adjust the minutes.
• Slide the switch on the position AL ON, to activate the alarm function.
  • The alarm symbol appears on the display.
  2.3.10 1
  7.3 Alarm functions
• When the adjusted alarm time is reached, the alarm will ring
  • The alarm symbol will be flashing.

SIESTA - Radio-controlled alarm clock

• The backlight turns on for a short time.
• The increasing alarm will automatically turn off a few minutes.
- Press any button to turn off the alarm sound or press the SNOOZE/LIGHT button and the snooze function will be activated.
- The alarm symbol and the snooze symbol disappear on the display.
• The alarm sound will be interrupted for five minutes.
- Press any button to turn off the snooze function.
• The snooze symbol will disappear.
• The alarm symbol stays on the display and the alarm time will be reactivated at the same time.
- Slide the switch to the position AL OFF, to turn off the alarm function.
• The alarm symbol will disappear.

7.4 Setting of the NAP function

• On the upper display (default 00) appears the adjusted time for the NAP function.
• Select with the 5.15 or 30 button the time how long you want to sleep. With each further button operation the time will be
  added (until 360 minutes)
• With the setting of the minutes the MAP function will be activated
• With the CLEAR button you can delete the set time or stop the timer.
  • An alarm sounds when the set time has elapsed.

SIESTA - Radio-controlled alarm clock

• The symbols will be flashing.
• 00 appears on the display
• The backlight turns on for ten seconds.
- Press any button to stop the alarm sound - The NAP function is deactivated

7.5 Backlight
- Press the SNOOZE/LIGHT button.
• The backlight turns on for ten seconds.

7.6 Setting of the temperature unit

• On the lower display appears the indoor temperature (default °C).

• Press the HR button to toggle between Celsius (°C) or Fahrenheit (°F) as temperature unit.

• Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.

SIESTA - Radio-controlled alarm clock

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
• Open the battery compartment and insert two new batteries 1.5 V AA, polarity as illustrated.
• Close the battery compartment again.

9. Troubleshooting

Problems Solution

No display → Ensure that the batteries polarity are correct

→ Change the batteries

No DCF reception → Switch on the position AL ON/OFF

→ Press and hold the HR button for three seconds and start the reception manually
→ Wait for attempted reception during the night
→ Choose another place for your product
→ Set the clock manually
→ Check if there is any source of interference
→ Restart the instrument according to the manual

SIESTA - Radio-controlled alarm clock

Indication: LL.L / HH.H → Temperature is outside measuring range

Incorrect indication → Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. In order to ensure environmentally-compatible disposal.

SIESTA - Radio-controlled alarm clock

11. Specifications

Power consumption: Batteries 2 x 1.5 V AA (not included)

Temperature measuring range: -10°C ... 50°C (14°F... 122°F) °C/°F-reversible

Housing dimension: 136 x 70 x 70 mm

Weight: 168 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering your product number on our homepage.

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request via [e-mail]

www.ha-dosimann.de 01/2016
