Product type	Radio-controlled clock with date display
Brand	TFA
Model	60.4512.01
Dimensions (L x H x D)	258 x 212 x 30 mm (with fold-out stand: 120 mm)
Weight	540 g (unit only)
Power supply	4 x 1.5 V AA batteries (not included)
Battery type	Alkaline recommended
Radio reception	DCF 77 (77.5 kHz), range approx. 1500 km
Main functions	Dual alarm, snooze, date and weekday display (7 languages), 12/24h format, secondary time zone
Weekday languages	German, French, Spanish, Italian, Danish, Dutch, English
Number of alarms	2 independent alarms with snooze (6-7 minutes)
Display	Time, seconds, date, weekday, reception and alarm symbols
Accuracy	Radio-controlled via cesium atomic clock (deviation <1 second per million years)
Installation options	Place on flat surface (fold-out stand) or wall mount (suspension bracket)
Maintenance and cleaning	Soft, damp cloth; do not use solvents or abrasives
Battery replacement	When battery symbol appears, replace with 4 new AA batteries observing polarity
Safety	Keep out of reach of children; do not repair, disassemble or modify; follow battery instructions
Operating temperature	Not specified, but avoid extreme temperatures
Spare parts and repairability	User-replaceable batteries; no other spare parts available; repair by manufacturer or reseller
General information	Compliant with RED 2014/53/EU; do not dispose of in household waste (WEEE)

Frequently Asked Questions - 60.4512.01 TFA

How to manually set the time on the TFA 60.4512.01 clock?

Press and hold the SET button for two seconds in normal mode. The year flashes, set it with UP or DOWN. Press SET to go to month, day, hours, minutes and language. Confirm each setting with SET. Note that if DCF reception is active, the manual time will be overwritten by the radio time.

How to activate or deactivate the alarms?

Press the ALARM button in normal mode to cycle through options: alarm 1 only, alarm 2 only, both, or none. The corresponding symbols (1, 2 or none) appear on the display.

What to do if the clock does not receive the DCF signal?

Make sure the device is away from sources of interference (monitors, TVs) and place it near a window. You can manually activate reception by holding the WAVE button for 3 seconds. Automatic reception occurs between 1 am and 5 am. If it fails, set the time manually (the clock will work as a normal quartz clock).

How to set the second time (secondary time zone)?

Press and hold the DOWN button for two seconds in normal mode. The F icon appears. Hold down SET, then set the hours with UP or DOWN. Press DOWN again to return to normal mode. To display the secondary time, briefly press and hold DOWN.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button (located on top). The alarm stops for about 6 to 7 minutes and the Zz symbol flashes. You can stop snooze by pressing ALARM.

How to change the weekday language?

In manual setting mode (press and hold SET for two seconds), after setting the minutes, press SET to access the language. Use UP or DOWN to choose from: GERMAN, FRENCH, SPANISH, ITALIAN, DANISH, DUTCH, ENGLISH. Confirm with SET.

How to switch between 12h and 24h display?

In normal mode, press the UP button to switch between 24h and 12h display. In 12h mode, the AM or PM indicators appear.

When and how to replace the batteries?

Replace the batteries as soon as the battery symbol appears on the screen. Open the battery compartment on the back, insert 4 new AA batteries observing the indicated polarity (+/-). Close the compartment. Use branded alkaline batteries.

What are the safety instructions for batteries?

Never throw batteries into fire, do not short-circuit, disassemble or recharge them. Risk of explosion. Replace weak batteries promptly to avoid leakage. Do not mix old and new batteries or different types. In case of leakage, wear protective gloves and goggles.

How to clean the clock?

Use a soft, slightly damp cloth to clean the clock. Never use solvents or abrasive products. Remove the batteries if you do not use the device for a long period and store it in a dry place.

USER MANUAL 60.4512.01 TFA

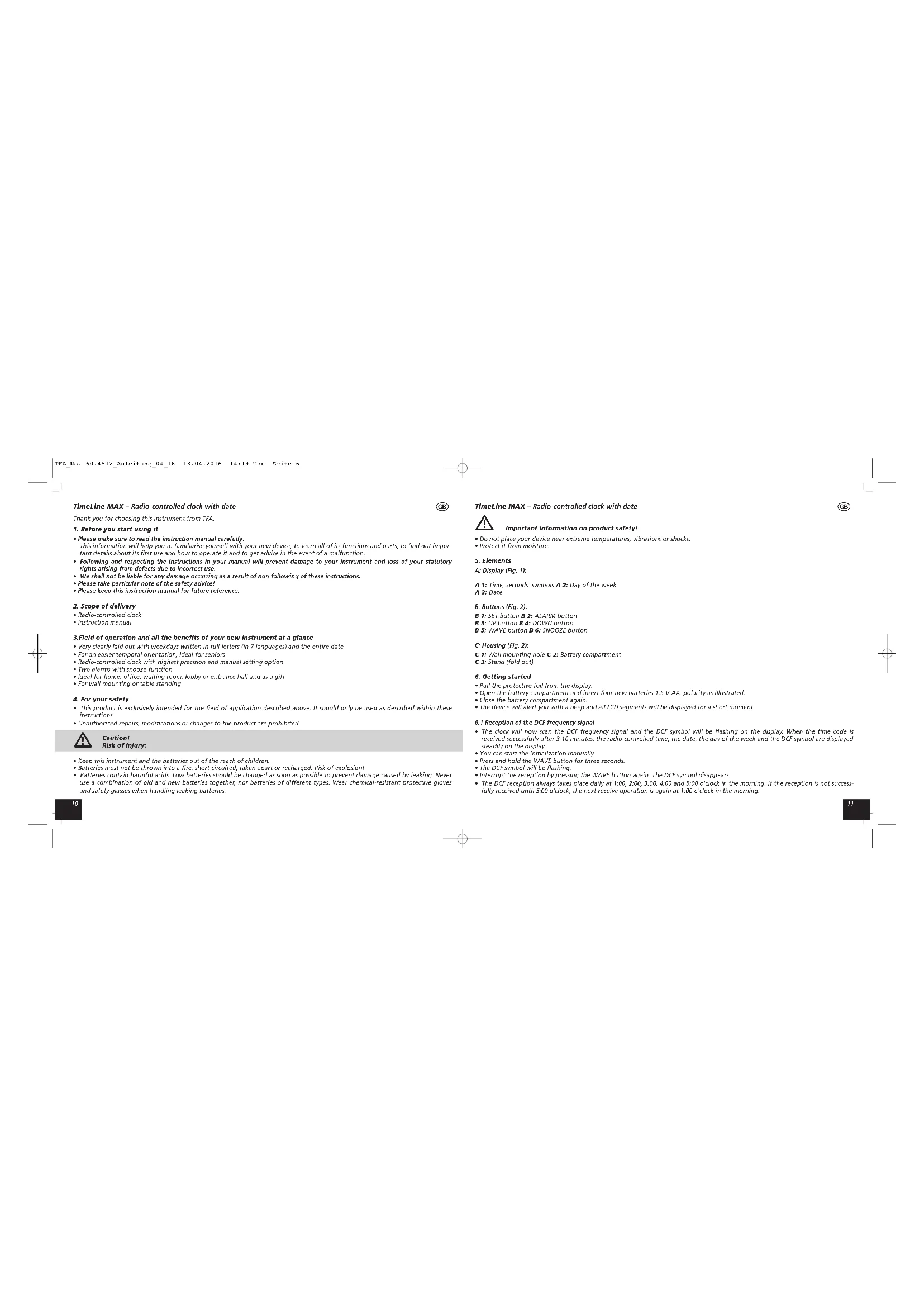

TimeLine MAX - Radio-controlled clock with date

Thank you for choosing this instrument from TFA.

1. Before you start using it

- Please make sure to read the instruction manual carefully.

This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

- Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non following of these instructions.

- Please take particular note of the safety advice!

- Please keep this instruction manual for future reference.

2. Scope of delivery

• Radio-controlled clock

• instruction manual

3. Field of operation and all the benefits of your new instrument at a glance

- Very clearly laid out with weekdays written in full letters (in 7 languages) and the entire date

• For an easier temporal orientation, Ideal for seniors

• Radio-controlled clock with highest precision and manual setting option

- Two alarms with snooze function

- Ideal for home, office, waiting room, lobby or entrance hall and as a gift

- For wall mounting or table standing

4. For your safety

- This product is exclusively intended for the field of application described above. It should only be used as described within these

instructions

- Unauthorized repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

- Keep this instrument and the batteries out of the reach of children.

- Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

- Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

GB

Timeline MAX - Radio-controlled clock with date

Important information on product safety!

- Do not place your device near extreme temperatures, vibrations or shocks.

- Protect it from moisture.

5. Elements

A: Display (Fig. 1):

A 1: Time, seconds, symbols A 2: Day of the week

A 3: Date

B: Buttons (Fig. 2):

B 1: SET button B 2: ALARM button

B 3: UP button B 4: DOWN button

B 5: WAVE button B 6: SNOOZE button

C Housing (Fig. 2):

C 1: Wall mounting hole C 2: Battery compartment

C 3: Stand (fold out)

6. Getting started

• Pull the protective foil from the display.

- Open the battery compartment and insert four new batteries 1.5 V AA, polarity as illustrated.

- Close the battery compartment again.

- The device will alert you with a beep and all LCD segments will be displayed for a short moment.

6.1 Reception of the DCF frequency signal

- The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is received successfully after 3-10 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol are displayed steadily on the display.

- You can start the initialization manually.

- Press and hold the WAVE button for three seconds.

- The DCF symbol will be flashing.

- Interrupt the reception by pressing the WAVE button again. The DCF symbol disappears.

- The DCF reception always takes place daily at 1:00, 2:00, 3:00, 4:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.

GB

10

TimeLine MAX - Radio-controlled clock with date

• There are three different reception symbols:

flashing - reception is active
stays - reception is very good
No symbol - no reception / set time manually

- if the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

7. Note for radio-controlled time DCF

The time base for the radio-controlled time is a caecium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changewear from summer time or winter time is automatic. In Daylight Saving Time S is shown on the display. The quality of the reception depends mainly on the geographic location. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

- The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters. - Inside femo-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception. - During night time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

8. Operation

- Press and hold the UP or DOWN button in the respective setting mode for fast running. - The device will automatically quit the setting mode if no button is pressed for a long period of time.

8.1 Manual settings

- Press and hold the SET button in normal made for two seconds. - The year indication (2011 - default) will be flashing and you can adjust the year with the UP or DOWN button. - Press the SET button again to make the settings in the following sequence: month, day, hour, minute and day-of-week language (GERMAN - default). Press the UP or DOWN button to adjust it. - Confirm the setting with the SET button. - By a successful reception of the DCF signal, the manually set time will be overwritten.

Timeline MAX - Radio-controlled clock with date

8.1.1 Setting of the day-of-week language

• In the setting mode you can make the setting of the day-of-the-week language: GERMAN, FRENCH, SPANISH, ITALIAN, DANISH, DUTCH, ENGLISH.

8.1.2 Setting of the 12 and 24 hours display

- Press the UP button in the normal mode to choose the 12 HR or 24 HR system - In the 12 HR system AM or PM (after 12 o'clock) appears on the display.

8.1.3 Setting of the second clock time

- Press and hold the DOWN button in normal mode for two seconds. - F appears on the display. - Press and hold the SET button. - The hour digits will be flashing. - Press the UP or DOWN button to adjust the hours. - Confirm the setting with the SET button. - The display shows the second clock time. - Press and hold the DOWN button again to return to normal mode. - Find the second clock time disappear on the display.

8.2 Setting of the alarm times

- Press the SET button in normal mode, to enter the alarm mode. - A1 and D00 (default) or the last adjusted first alarm time appear on the display. - Press and hold the SET button. - The hour digits will be flashing. - Press the UP or DOWN button to adjust the hours. - Confirm the setting with the SET button and set minutes in the same way. - Confirm the setting with the SET button. - The display shows the adjusted time. - Press the SET button again to adjust eventually the second alarm time in the same time. - Press the SET button again to return to the current time.

8.2.1 Activate and deactivate the alarm time

- To activate and deactivate the respective alarm function press the ALARM button in normal mode. - The corresponding symbol, and the no alarm symbol appears on the display. - When the adjusted alarm time is reached, the alarm will ring. - The corresponding alarm symbol will be flashing. - Press any button and the alarm will stop.

TimeLine MAX - Radio-controlled clock with date

• If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated at the same time.
  • The alarm symbol remains on the display.
• When the alarm rings, press the SNOOZE button and the snooze function will be activated.
• Once the snoaze function is activated, Zz will be flashing on the display.
• The alarm will be interrupted for 5.7 minutes
• The alarm will be interrupted for a 7-minute.
• Press the ALAKM duration to turn on the alarm and sboze function.
• The alarm verbal and the stop or verbal disappear on (the display

9. Positioning and fixing

- With the suspension device you can fix the device with a nail or a solid screw and dowel on a wall. With the foldable leg the device can be placed onto flat surfaces.

10. Care and maintenance

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.

10.1 Battery replacement

• Change the battery when the battery symbol appears on the display.
• Open the battery compartment and insert four new batteries 1.5 V AA, polarity as illustrated.
• Close the battery compartment again.

11. Troubleshooting

Problems Solutions

No indication on the device → Ensure that the batteries polarity are correct→ Change the batteries
No DCF reception	→ Press and hold the WAVE button for three seconds to activate the reception→ Wait for attempted reception during the night→ Choose another place for your product→ Manual setting of the clock→ Check if there is any source of interference→ Restart the device according to the manual

Incorrect indication → Change the batteries

Timeline MAX - Radio-controlled clock with date

GB

If your device fails to work despite these measures contact the supplier from whom you purchased it.

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

13. Specifications

Power consumption: Batteries 4 x 1,5 V AA (not included)

Housing dimension: 258 x 30 (120) x 212 mm

Weight: 540 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of RED Directive 2014/53/EU.

A copy of the signed and dated Declaration of Conformity is available on request via [e-mail].

www.rfa-dostmann.de 04/16
