USER MANUAL 18qt Turkey Roaster BELLA

3. To protect against electrical shock, do not immerse cord, plugs or appliance

in water or other liquid.

4. This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

5. Close supervision is necessary when any appliance is used by or

6. Unplug from outlet when not in use and before cleaning. Allow to cool

completely before putting on or taking off parts, and before cleaning.

7. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or mechanical adjustment.

8. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, or touch hot surfaces.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12. CAUTION: To protect against damage or electric shock, do not cook in the

base. Cook only in the pan provided.

13. Before cooking in the Turkey Roaster, always make sure the temperature

control is OFF. Plug Turkey Roaster cord into the wall outlet; then turn temperature control to the desired temperature.

14. To disconnect, turn the temperature control to OFF, then remove plug from

15. Extreme caution must be used when moving an appliance containing hot oil

or other hot liquids.

16. Do not use appliance for other than intended use.

17. Always place the Turkey Roaster on a nonammable, non-burnable,

heat-resistant surface when cooking. Never place it on carpet, furniture, or other combustible materials.

18. Operate Turkey Roaster in a well-ventilated area away from walls and other

ADDITIONAL IMPORTANT SAFEGUARDS CAUTION, HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, res or other injury to persons or damage to property. CAUTION: This appliance is hot during operation and retains heat for some time after turning OFF. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Do not place anything on top of the appliance while it is operating or while it is hot.

1. A person who has not read and understood all operating and safety

instructions is not qualied to operate this appliance. All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.

2. If this appliance falls or accidentally becomes immersed in water, unplug it

from the wall outlet immediately. Do not reach into the water!

3. When using this appliance, provide adequate air space above and on all sides

for air circulation. Do not operate this appliance while it is touching or near curtains, wall coverings, clothing, dishtowels or other ammable materials.

4. If this appliance begins to malfunction during use, immediately unplug the

cord. Do not use or attempt to repair a malfunctioning appliance!

5. The cord to this appliance should be plugged into a 120V AC electrical

6. Do not use this appliance in an unstable position.

7. Never use the base or pan on a gas or electric cooktop or on an

8. To avoid scalding, lift lid off the Turkey Roaster carefully. Point the lid away

from face and hands while opening and allow water to drip into the pan. CAUTION: When operating this appliance, always cook with the pan properly set into the base. To prevent damage or shock hazard, do not cook in the base without the pan.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will t in a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not modify the plug in any way.

The provided short power-supply cord should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Do not use an extension cord with this product. PLASTICIZER WARNING CAUTION: To prevent Plasticizers from migrating from the nish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the nish of the counter top or table top. Failure to do so may cause the nish to darken; permanent blemishes may occur or stains can appear. ELECTRIC POWER If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.6 Getting To Know Your 24 lb. / 18 QT. Turkey Roaster Oven Product may vary slightly from illustration Before Using for the First Time

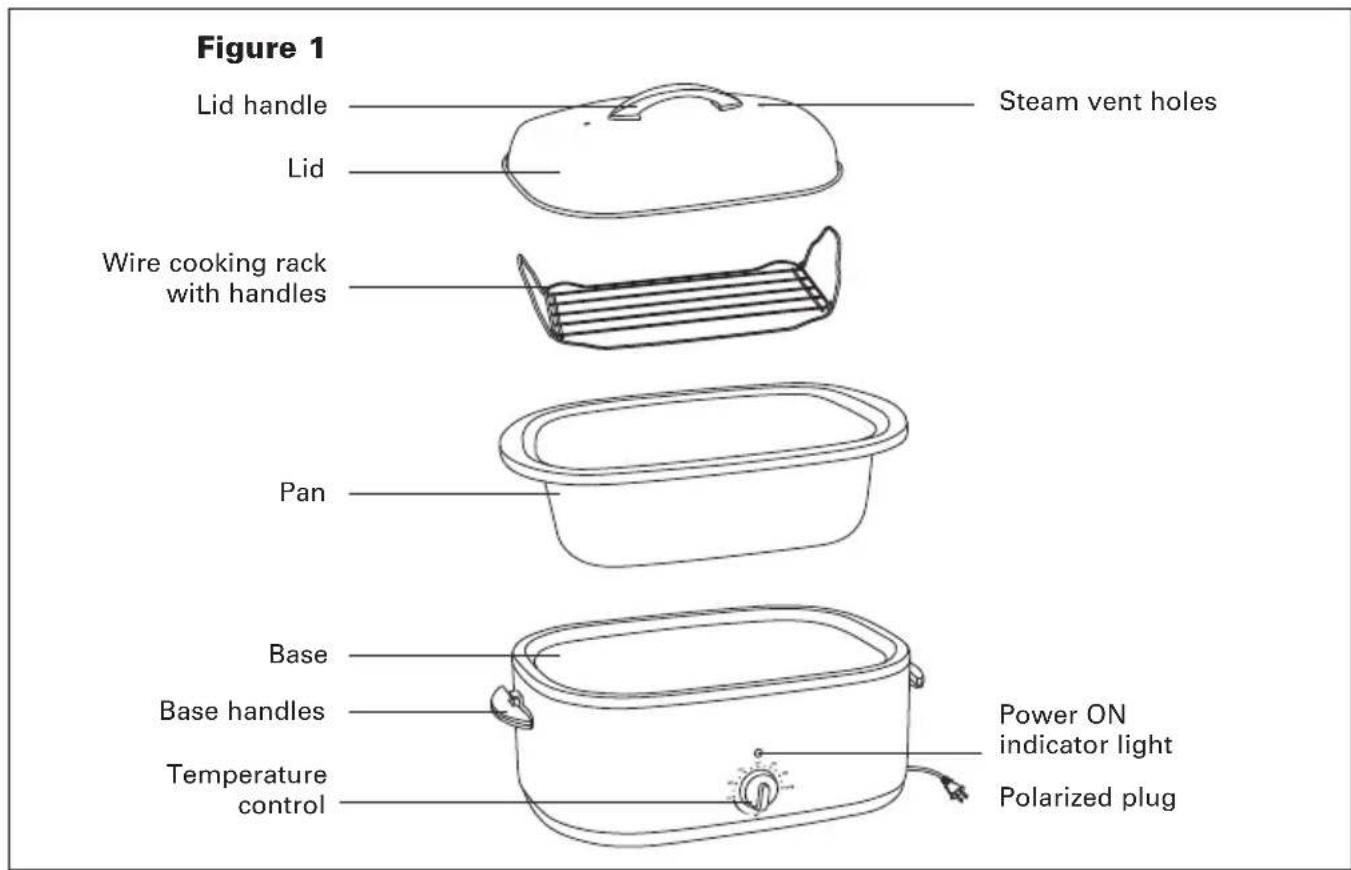

1. Carefully unpack the Turkey Roaster and remove all packaging materials.

2 Always place the Turkey Roaster on a nonammable, non-burnable, heat-resistant surface, such as a countertop or table, when cooking. Operate Turkey Roaster in a well ventilated area away from walls, cabinets and other combustible materials. 3 Wash the wire cooking rack with handles, lid and pan in warm soapy water. Rinse and dry thoroughly. 4 Wipe the Turkey Roaster base with a clean, damp cloth or sponge, then dry with another cloth. This will remove any dust that may have settled during packaging. 5 Reinsert the pan into the Turkey Roaster base. Add lid to store until ready for use. To save space the lid can be reversed and placed in the base. NOTE: Due to the manufacturing process, some smoke and odor may be noticed during the rst use. This should disappear after the rst heating of the Turkey Roaster. Operating Instructions

1. Turn the temperature control to OFF. Plug the Turkey Roaster into a 120 V AC electrical outlet.

IMPORTANT: Make sure pan is inside the Turkey Roaster base.

2. Preheat Turkey Roaster (without the wire rack) by turning the temperature control to the recipe

temperature. As the dial is turned, the power ON indicator light will illuminate. Allow Roaster Oven to preheat for 20 minutes before cooking.

3. Use the wire cooking rack for baking or fat free roasting. Other foods such as meats, soups and

stews, can be prepared without using the wire rack.

4. Prepare recipe according to instructions.

WARNING: Turkey Roaster is hot. Use cooking mitts to add food to the pan.

NOTE: If the wire cooking rack is to be used, use the handles to place the wire rack into the pan rst. Then place food to be cooked onto the wire rack. NOTE: When cooking a meat and vegetable combination without a rack, place the vegetables in the bottom of the pan rst. Then add the meat and other ingredients. IMPORTANT: DO NOT FILL THE PAN MORE THAN 3/4 FULL WITH FOOD.

5. Cover Turkey Roaster with the lid.

6. To ensure the efcient build up of heat, do not lift the lid during the rst 2 hours of cook time.

Frequent lifting of the lid during cooking delays the cooking time. Lid handle Wire cooking rack with handles Lid Power ON indicator light Polarized plug Steam vent holes Figure 1 Pan Base Base handles Temperature control7

7. Cook according to recipe instructions.

8. Depending on the food served, when the cooking time is complete, turn the temperature control to

93ºC/200ºF to keep food warm, or to the OFF position. Unplug the unit.

9. Using oven mitts, carefully lift the lid slightly away from you to allow the steam to escape for a few

seconds before completely removing the lid.

10. Using oven mitts and a long handle spoon, fork or tongs remove food from the pan onto a serving

11. Allow the Turkey Roaster to cool completely before cleaning, see CLEANING INSTRUCTIONS.

12. Clean and prepare the Turkey Roaster base and parts for storing.

CAUTION: Even when turned OFF and unplugged, the Turkey Roaster base and pan top surface may remain hot for some time after using; allow unit to cool completely before cleaning or storing. NOTE: This chart is intended as a general guide. Please check temperatures with a meat thermometer and follow USDA food safety guidelines listed below Cooking Table NOTE: This chart is intended as a general guide. Please check temperatures with a meat thermometer and follow USDA food safety guidelines listed on next page. Weight (kg/lb) Temperature (°C/°F) Time (min. kg /min. lbs) Internal Temperature (°C/°F) BEEF Rib Eye Roast Standing Rib Roast Tenderloin Pot Roast Corned Beef 2.7-3.6 6 -8 3.6-4.5 8-10 1.5-1.8 3.5-4 1.8-2.7 4-6 1.4-1.8 3-4 177˚ 350˚ 163˚ 325˚ 232˚ 450˚ 149˚ 300˚ 149˚ 300˚

1.1-2.3 2.5-5 204˚ 400˚ 177˚ 350˚ 67-68 30-35 66-78 30-35 68˚/155˚ 68˚-82˚/155˚-180˚8 USDA Cooking Guidelines PLEASE NOTE: The USDA recommends that meats such as beef and lamb, etc. should be cooked to an internal temperature of 145ºF/63ºC. Pork should be cooked to an internal temperature of 160ºF/71ºC and poultry products should be cooked to an internal temperature of 170ºF/77ºC - 180ºF/82ºC to be sure any harmful bacteria has been killed. When reheating meat/poultry products, they should also be cooked to an internal temperature of 165ºF/74ºC. Hints for Cooking in the Turkey Roaster

• Smaller turkeys, under 6.8 kg/15 lbs., cook more evenly than larger birds.

• Roast turkey for 40 minutes/kg or 18 minutes/lb. (including stufng weight)

• Foods cut into uniform pieces will cook faster and more evenly than foods left whole such as roast or poultry.

• Browning meats before roasting helps reduce the amount of fat and adds richness and avor. Turn temperature control to 232ºC/450ºF and add oil or butter. Sear for 10 to 15 minutes per side until golden brown.

• The higher the fat content, the less cooking liquid needed. When cooking meats with a high fat content, use thick onion slices under it so that the meat will not sit and cook in the fat. If necessary, use a slice of bread, a spoon, or a straining spoon to skim off excess fat from top of foods before serving.

• If a recipe results in too much liquid at the end of the cooking time, remove the lid and turn the temperature control to 232ºC/450ºF. After 10 to 20 minutes, the amount of liquid will be reduced. NOTE: To thicken quickly, drain excess liquid into in a small saucepan and simmer until it has reduced to half. Season to taste after the reduction.

• Simmering less tender cuts of meat will make them very tender. Add a glaze, gravy or a avorful sauce before serving.

• To assure overall browning for brined or self-basting turkeys or other poultry, air-dry turkey uncovered in the refrigerator for 8 to 24 hours. (See recipe included in this Instruction Manual.) Baking in the Turkey Roaster

• Turn the temperature control to the desired temperature. Allow Turkey Roaster to preheat for 20 minutes.

• Cover the wire rack with heavy duty aluminum foil to use as a baking sheet.

• Place the wire rack inside the preheated pan; add baking pans and casserole dishes to the top of the rack.

• The pan and rack will hold most 1 and 2-quart casserole dishes, most 9 x 13-inch baking pans, and 8 and 9-inch pie pans. Check dishes/pan(s) for t before lling. Hint: Fit 3 (1-1/2-quart) pans into the pan to prepare meat, vegetables and potatoes at the same time.

• Metal pans are recommended as they provide better heat transfer and promote browning.

• Cover with a loose layer of aluminum foil if the dish/pan does not have a lid.

• Cook according to recipe instructions.

• Convenience foods can be baked in the Turkey Roaster. Steaming in the Turkey Roaster

• Preheat the Turkey Roaster to 177ºC/350ºF.

• Add 2 inches water to the Turkey Roaster. Insert the rack into the pan.

• Place foods to be steamed in a metal colander or steaming basket.

• Steam according to recipe instructions. User Maintenance Instructions This appliance requires little maintenance. It contains no user serviceable parts. Do not attempt to repair it yourself. Any servicing requiring disassembly, other than cleaning, must be performed by a qualied appliance repair technician.9 Care & Cleaning Instructions CAUTION: To avoid accidental burns, allow your Turkey Roaster to cool thoroughly before cleaning. CAUTION: To avoid any sparks at the outlet, make sure the temperature control is in the OFF position.

1. Before cleaning, unplug the appliance from the wall outlet and allow to cool.

2. Remove the wire rack from the pan.

3. Remove any excess fat and food particles from the removable pan. Wash pan and wire rack with

hot, soapy water and dry thoroughly.

4. When dry, reinsert the pan into the Turkey Roaster base.

5. For stubborn build ups, soak pan in water with vinegar. Use a non metallic scrubbing pad to clean

6. Wipe the Turkey Roaster base with a warm, wet sponge and dry with a soft dry cloth.

7. Do not use steel wool, scouring pads or abrasive cleaners on any parts of the appliance.

8. DO NOT IMMERSE THE TURKEY ROASTER BASE IN WATER OR OTHER LIQUID.

Storing Instructions

1. Never store the Turkey Roaster while it is hot or wet.

2. Make sure all parts are clean and dry before storing.

3. To store, replace the clean pan into the Turkey Roaster base. Place the cleaned wire rack into

the pan. Add the lid, and store until use. To save space the lid can be reversed and placed in the base.

4. Store appliance in its box or in a clean, dry place.

5. Never wrap cord tightly around the Turkey Roaster; keep it loosely coiled.Recipes

Congratulations! Your new Turkey Roaster will accomodate up to a 24 lb. turkey A Note About Turkeys... Achieving a brown, crispy skin over a moist bird, is oftentimes a problem when it comes to roasting poultry, especially turkey, in the Turkey Roaster. To assure a juicy, soft texture, we suggest brining the turkey yourself (simple recipe follows) or purchasing a pre-basted bird. To ensure a crisp skin, the turkey should then be air-dried in the refrigerator for 8 to 24 hours and then cooked at a high temperature. Finally, brush the skin with melted butter to promote overall browning. Brined & Air-Dried Roasted Turkey with Crisp, Browned Skin Serves 10–12 Brine:

• 4 cups kosher salt or 2 cups table salt

• 1 (12 - 15 lbs.) turkey, fresh or thawed

• 2 oranges, quartered

• 3 medium onions, chopped

• 2 small carrots, diced

• 2 ribs celery, chopped

• 6 sprigs fresh thyme

• 6 tablespoons unsalted butter, melted

1. Brine turkey. Dissolve salt in 2 gallons cold water in a heavy brining bag.

2. Add turkey to the bag, seal, place into the pan and refrigerate for 4 to 12 hours.

3. Remove turkey from brining bag, rinse well under cool running water.

Pat dry inside and out with paper towels.

4. Air-dry turkey before roasting.

5. Spray wire rack with vegetable cooking spray and place into the pan.

6. Place bird breast-side up onto the rack and refrigerate, uncovered, 8 to 24 hours.

7. Preheat Turkey Roaster to 204ºC/400ºF.

8. Toss onions, carrots, and celery with 2 sprigs thyme and 1 tablespoon butter in

9. Fill the turkey cavity with oranges, lemons, and then as much of the vegetable mixture as

will t. Tuck wings behind the back to truss the turkey.

10. Scatter remaining vegetables and herbs in the pan; pour 1 cup water over vegetables.

NOTE: To save time on cleanup, cover the wire rack with heavy duty aluminum foil; then pierce 20 to 30 small holes in the foil with a paring knife.

11. Brush turkey breast with butter, then set turkey breast-side down on foil-lined wire rack.

Brush back of turkey with butter.

12. Add lid. Roast 45 minutes @ 204ºC/400ºF.

13. Brush turkey’s back with butter. Use 2 carving forks to re-position the bird. Insert 1 fork

into the neck cavity and the other in the chest cavity. Carefully lift the turkey up and out of the pan, rotate the turkey leg/wing--side up. NOTE: If liquid in bottom of pan has evaporated, add 1/2 cup water.

14. Roast 15 minutes @ 204ºC/400ºF.

15. Brush exposed surfaces with butter and, using 2 carving forks, rotate turkey second

leg/wing-side up. Roast 15 minutes @ 204ºC/400ºF.

16. Brush exposed surfaces with butter and, using the 2 carving forks, rotate turkey breast-side

up and continue roasting.

17. Roast turkey 30 to 45 additional minutes. Use a meat thermometer to test for doneness

until the thickest part of the breast registers 74ºC/165ºF; the thickest part of thigh registers 77 to 80ºC/170 to 175ºF on a meat thermometer, and the juices run clear.

18. Carefully transfer the cooked turkey from the wire rack to a carving board and loosely tent

with foil. Allow turkey to rest for 20 minutes before carving. Using a roasting bag to cook your turkey will ensure a moist and delicious bird, with no need for basting during cooking. Glaze the turkey before serving to add a fruity sweet note to the spicy cornbread stufng.Recipes

Cranberry Apple Maple Glazed Stuffed Turkey Serves 12-16

• 1 (12 - 15 lbs.) turkey, fresh or thawed

• 2 tablespoons vegetable oil

• 1 lb. chorizo (may substitute any sausage of your choice)

• 2 cheyote squash, seeded and chopped

• 4 stalks celery, diced

• 1 cup chicken broth (NOTE: Add 1/2 cup to side dish in oven)

• 1/2 stick unsalted butter, melted

• 1/4 teaspoon ground black pepper Cranberry Apple Maple Glaze

• 3/4 cup frozen cranberry juice concentrate, thawed

• 1 teaspoon freshly ground black pepper

1. Bake cornbread according to package directions. Cool and crumble cornbread into a

2. Heat oil in a large skillet over medium-high heat. Cook chorizo until brown and crumbly,

remove meat from the skillet but keep the oil in the pan. Add onions, chayote squash and celery; cook stirring occasionally until tender, about 5 minutes.

3. Toss the cooked mixture and the chorizo into the bowl with the crumbled cornbread.

Stir in 1/2 cup chicken broth. Season with herbs de Provence, salt and pepper.

4. Fill the turkey cavity with as much of the stufng mixture as will t. Tuck wings behind the

back to truss the turkey.

5. Place remaining stufng into a separate dish; drizzle 1 cup chicken broth over stufng and

nish baking in the oven @ 177ºC/350ºF.

6. Brush turkey breast with butter, then, following the instructions on the turkey roasting bag,

add our to the bag and distribute before placing the turkey in the bag (breast-side down).

7. Roast turkey for 40 minutes/kg or 18 minutes/lb., including stufng weight.

8. 1 hour before estimated completion, using a kitchen scissors, cut and remove the bag,

leaving the bird and cooked juices in the pan.

9. Brush turkey generously with glaze. Replace lid and cook for another 45 minutes, or until

meat thermometer reaches 82ºC/180°F when inserted into the deepest part of the thigh.

10. Brush with remaining glaze. Carefully transfer the cooked turkey from the wire rack to a

carving board and loosely tent with foil. Allow turkey to rest for 20 minutes before carving.Limited TWO-YEAR Warranty SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty. EXCLUSIONS: The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualied SENSIO Inc. personnel. Also, the warranty does not cover Acts of God such as re, oods, hurricanes, or tornadoes. SENSIO Inc. shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or tness for a particular purpose is limited in time to the duration of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specic legal rights which may vary by state, province and/or jurisdiction. HOW TO OBTAIN WARRANTY SERVICE: You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc. Attach a tag to the product that includes: your name, address, daytime contact telephone number, case number, and description of the problem. Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.’s address. SENSIO Inc. shall bear no responsibility or liability for the returned product while in transit to SENSIO Inc.’s Customer Service Center.
