RSII DI - Pump HAYWARD - Free user manual and instructions

Product type	Pool pump
Brand	Hayward
Model	RSII DI
Power supply	230 V single-phase or three-phase depending on version
Electrical protection	30 mA residual current device, mandatory earthing
Maximum water temperature	35 °C
Sound pressure	Less than 70 dB(A)
Minimum distance from pool	3.5 m (according to NF C 15-100 standard)
Main function	Pool water filtration
Routine maintenance	Regular cleaning of the pre-filter basket
Winterizing	Drain and store in a dry, ventilated place
Warranty	2 years against manufacturing defects
Spare parts	Use only genuine Hayward parts
Motor type	Single-phase with thermal protection or three-phase
Thermal protection	Automatic reset after cooling

Frequently Asked Questions - RSII DI HAYWARD

How to prime the RSII DI pump?

Fill the pre-filter housing with water up to the level of the suction pipe. Open all valves and the filter air bleed. Start the pump and wait up to 5 minutes for priming. Never run the pump without water.

What to do if the pump does not start?

Check the electrical connections, switches, fuses, and free rotation of the motor. Ensure that the thermal protection has not tripped. If the motor hums, check the capacitor (single-phase) or three-phase supply.

How to clean the pre-filter?

Disconnect the pump completely before opening the cover. Remove the pre-filter basket and clean it without hitting it. Check the cover gasket and replace it if necessary.

What electrical protection is required?

The pump must be grounded via an earthing conductor. Use a 30 mA residual current device (RCD) and short-circuit protection suitable for the motor rating. An outdoor switch with all-pole disconnection is mandatory.

How to winterize the pump?

Drain the pump by removing all drain plugs and keep them in the pre-filter basket. Disconnect the pump, remove the pipe connections, and store the unit in a dry, ventilated place. Protect the pump body by covering it.

What to do in case of abnormal noise?

Check for air at the suction (bubbles in the pre-filter), cavitation due to insufficient pipe diameter, mounting vibrations, foreign objects in the pump, and the condition of the motor bearings.

What is the warranty of the RSII DI pump?

Hayward products are warranted for 2 years against any manufacturing defect from the date of purchase. The warranty requires proof of purchase and does not cover damage due to freezing, chemicals, or incorrect use.

Can I use non-Hayward spare parts?

No, use only genuine Hayward spare parts. The use of non-compliant parts may void the warranty and present safety risks.

What distance should be maintained between the pump and the pool?

The NF C 15-100 standard requires a minimum distance of 3.5 meters between the pump and the pool for electrical safety reasons.

How to check the rotation direction of the three-phase motor?

Before final connection, check the rotation direction indicated on the motor label. If the direction is incorrect, swap two phases. This check is crucial for proper pump operation.

USER MANUAL RSII DI HAYWARD

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

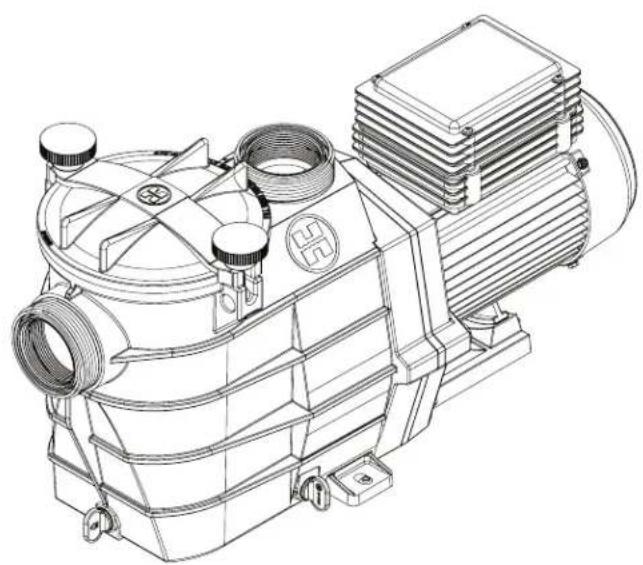

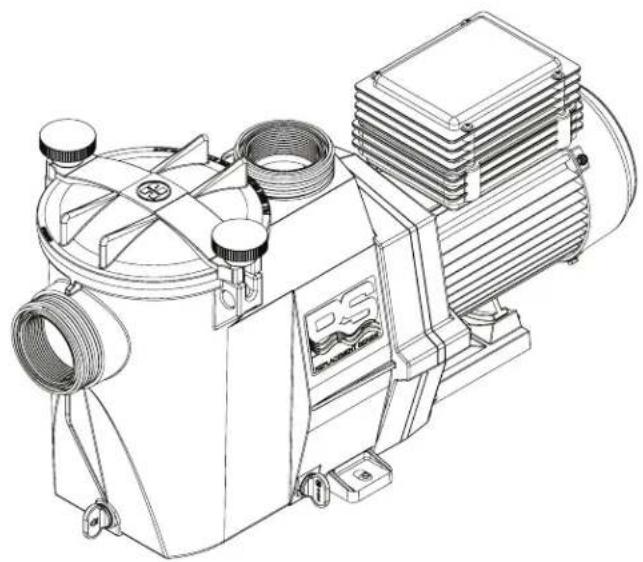

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

GUIDE DE L'UTILISATEUR

USER'S GUIDE

MANUAL DEL USUARIO

MANUAL DO UTILIZADOR

ANWENDERHANDBUCH

GEBRUIKERSHANDLEIDING

MANUALE D'USO

ANVÄNDARHANDBOK

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

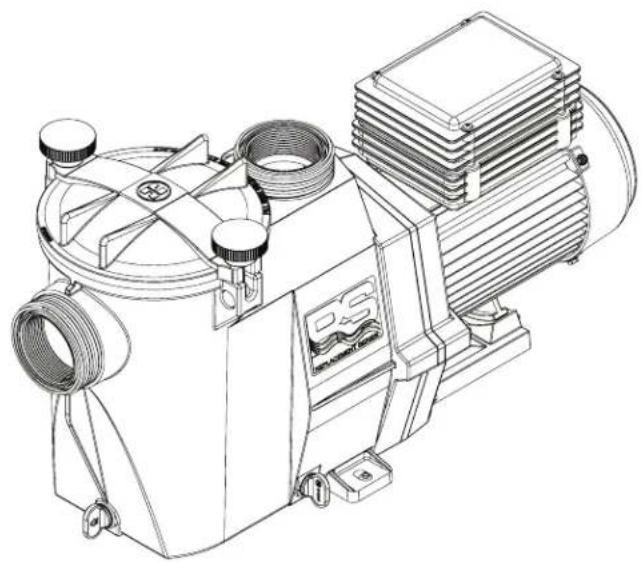

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

POMPE CENTRIFUGE

GUIDE DE L'UTILISATEUR

CONSERVEZ CE MANUEL POUR UNE CONSULTATION ULTÉRIEURE

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

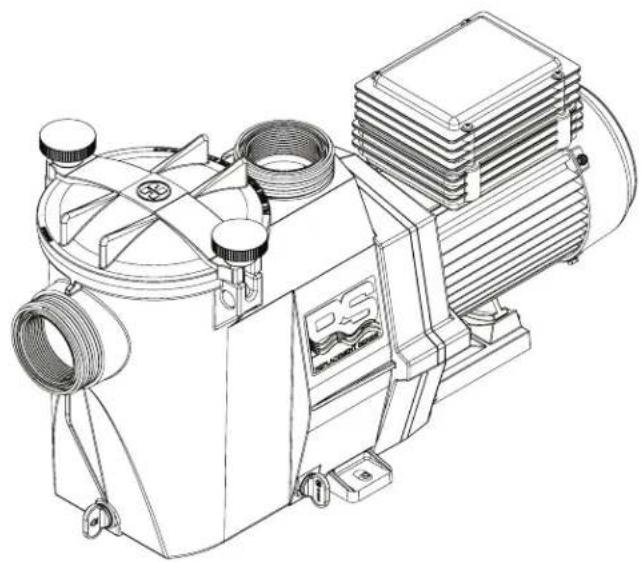

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

CENTRIFUGAL PUMP

USER GUIDE

KEEP THIS MANUAL FOR FUTURE REFERENCE

WARNING: Electrical Hazard. Failure to follow instructions can result in serious injury or death. FOR USE WITH SWIMMING POOLS

WARNING – Disconnect the pump from the main power supply completely before servicing the pump or filter.
WARNING – All electrical connections must be done by a qualified electrician according to local electrical standard.

F NF	C 15-100 GB BS7671:1992
D DIN	VDE 0100-702 EW EVHS-HD 384-7-702
A ÖVE	8001-4-702 H MSZ 2364-702:1994 / MSZ 10-533 1/1990
E	UNE 20460-7-702 1993, REBT ITC-BT-31 2002		M	MSA HD 384-7-702.S2
IRL	IS HD 384-7-702		PL	PN-IEC 60364-7-702:1999
I	CEI 64-8/7		CZ	CSN 33 2000 7-702
LUX	384-7.702 S2		SK	STN 33 2000-7-702
NL	NEN 1010-7-702		SLO	SIST HD 384-7-702.S2
P RSIUEE		TR TS		IEC 60364-7-702

⚠ WARNING – Be certain the machine is only plugged into a protected 230 V ^√ outlet that is protected from short-circuits. The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
⚠ WARNING – Children should be supervised to ensure that they do not play with the appliance. Keep fingers and foreign objects away from openings and moving parts.
⚠ WARNING – Motor must be suitably grounded. Connect ground wire to green grounding screw and for cord connected units use properly grounded outlet.
⚠ WARNING – Use a motor bonding lug to connect motor with other bonded parts using the appropriate size conductor as required by electrical codes.
WARNING – When making these electrical connections, refer to the diagram given under the lid of the motor terminal box. Be sure to check the electric connections are tight and sealed before powering up. Replace all covers before operation.
⚠ WARNING – Make sure that the power supply voltage required by the motor corresponds to that of the distribution network and that the power supply cables matches the power and current of the pump.
⚠ WARNING – Read and follow all instructions in this owner's manual and on the equipment. Failure to follow instructions can cause serious injury or death.

This document should be given to the owner of the swimming pool and must be kept by the owner in a safe place.

WARNING – The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
⚠ WARNING – Cleaning and user maintenance shall not be made by children without supervision.
WARNING – The pump is intended for continuous operation at Maximum Water temperature 35°C.
⚠ WARNING – Use Only Genuine Hayward Replacement Parts.
⚠ WARNING – If the supply cord is damaged it must be replaced by the manufacturer, service agent, or similarly qualified persons in order to avoid a hazard.
⚠ WARNING – For disconnection from main power supply an external switch having a contact separation in all poles that provide a full disconnection under overvoltage category III conditions must be incorporated in the fixed wiring in accordance with the wiring rules.
⚠ WARNING – Do not operate the swimming pool pump if the power cord or the housing of the motor connection box is damaged. This can cause an electric shock. A damaged power cord or motor connection box must be replaced by a service agent or a similarly qualified person immediately in order to avoid a hazard.
⚠ WARNING – This pool motor is NOT equipped with a Safety Vacuum Release System (SVRS). SVRS helps prevent drowning due to body entrapment on underwater drains. In some pool configuration, if a person's body covers the drain, the person can be trapped by suction. Depending on your pool configuration, a SVRS may be required to meet local requirements.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

REGISTRATION

Hayward thanks you for buying this product. This manual contains important information regarding the operation and maintenance of your product. Keep it carefully for future reference.

TO REGISTER YOUR PRODUCT, GO TO:

http://www.hayward.fr/en/services/register-your-product

For your information

Record the following information future reference, if necessary:

1) Date of purchase
2) Name
3) Address ____
4) Post Code ____
5) Email
6) Part number ____ Serial number ____
7) Dealer
8) Address
9) Post code ____ Country ____

Note

GENERAL POINTS

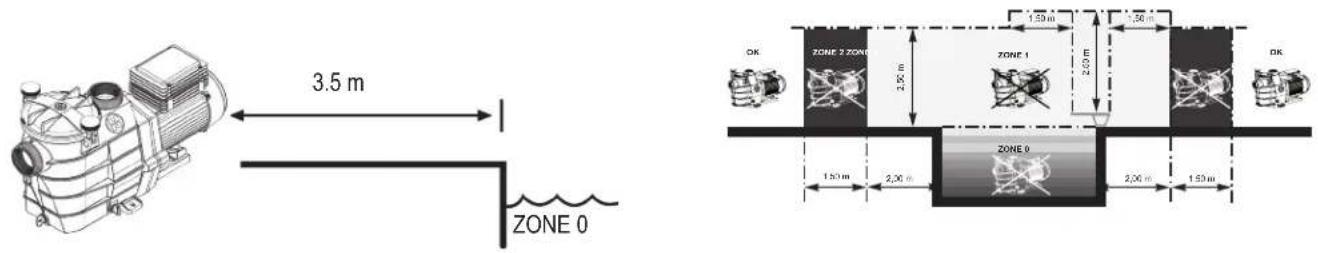

Install the pump at a suitable distance from the pool to reduce the distance between the suction point and the pump as much as possible to avoid pointless excessive pressure drops on the hydraulic circuit.

However, it is essential to comply with the safety distance required by the current installation standard (3.5 metres minimum). Install and use the product at an altitude less than 2000m

Install the pump in a dry, well-ventilated place. The motor requires the air to circulate freely around it to allow natural ventilation. Check regularly that no objects, leaves or other debris are blocking the motor cooling system.

The pump must be installed to ensure that the external disconnection switch incorporated into the fixed unit is visible and easily accessible. The switch must be located near to the pump.

The pump must be permanently installed on a concrete base using 8mm lag screws suitable for concrete, screwed into drilled implantation holes. Lock washers must be used to prevent the installation lag screws working loose over time. If the pump has to be mounted on a wooden board, ∅ 8mm hexagonal wood screws must be used combined with lock washers to prevent the screws working loose over time.

The acoustic pressure of Hayward pumps is less than 70dB (A).

Necessary measures:

- Connect the pump to the earth: Never operate the pump unless it is connected to the earth.

- Connect the pump with a H07RN-F 3G1mm² type cable (D max 7,8mm)

- Include a 30mA differential protection to protect people against electric shocks which may be caused by a breach of the equipment's electrical insulation.

- Include short-circuit protection (the rating is determined according to the value given on the nameplate on the motor).

- Include a means of disconnection from the power supply having an opening distance on the contacts of all the poles ensuring the power supply is completely cut off under the conditions of a category III overvoltage.

Single phase electric motor:

The single phase motors fitted to our pumps are provided with thermal protection. This protection operates on an overload or in the event of abnormal heating of the motor coil and is reset automatically when the winding temperature drops.

Three phase electric motor:

On three phased motors the internal heat protection (screw terminal blocks [ ] is to be connected serially in the pump's power contactor command line.

Check the running direction of the pump motor (a label is provided on the motor housing to indicate the motor running direction).

If so required by regulations and whatever the motor type, in addition to the devices mentioned above, it is also necessary to install a thereto-magnetic protective device calibrated in accordance with the indications on the motor name-plate.

The table on page 108 indicates the various characteristics of the motors fitted to our pumps.

Electrical connection: Make sure that the power supply voltage required by the motor corresponds to that of the distribution network and that the power supply cables matches the power and current of the pump.

All the electric connections of the pump and the possible change of power supply cable must be hand-led by a qualified professional so as to avoid all possible danger.

When making these electrical connections, refer to the diagram given under the lid of the motor terminal box.

Be sure to check the electric connections are tight and sealed before powering up.

The pre-wiring that might be included on some of the pumps must be removed for final connection of the pump to the electric power supply. This pre-equipment is only used for works testing during the manufacturing phases.

INSTALLATION

Install the pool pump so as to reduce pressure drops to a minimum whilst complying with the distances specified in the installation standard, namely 3.5m minimum between the pump and the pool. The suction pipe must be installed with a slight uphill incline towards the pump axis. Ensure that the connections are correctly tightened and watertight. However, avoid excessively tightening the pipes. For plastic materials, use Teflon only to ensure watertightness. The diameter of the suction pipe shall depend on that of the discharge pipe. Avoid damp or non-ventilated locations. The motor requires the cooling air to circulate freely.

IMPORTANT: Check the direction of rotation before permanently connecting the motor.

INSTRUCTIONS FOR START-UP AND PRIMING: Fill the body of the strainer with water up to the level of the suction pipe. Never run the pump without water, as the water is necessary for cooling and lubrication of the mechanical shutter. Open all the suction and discharge pipe valves, and the filter air purge valve if there is one. (Any air in the suction pipes must be eliminated). Start up the generator and wait a reasonable time for priming. Five minutes is not excessive for priming (this time depends on the suction head and the length of the suction pipe). If the pump does not start or does not prime, please refer to the troubleshooting guide.

MAINTENANCE

1. Completely disconnect the pump from the mains power supply before opening the cover and cleaning the strainer. Clean the strainer basket regularly. Do not bang on the basket to clean it. Check the seal on the cover of the strainer and replace it if necessary.
2. The motor shaft is mounted on self-lubricating bearings which do not require any subsequent lubrication.
3. Keep the motor clean and dry and ensure the ventilation openings are not blocked.
4. The mechanical shutter occasionally starts to leak and must then be changed.
5. Apart from cleaning the pool, all repairs, servicing and maintenance must be carried out by a Hayward-approved agent or a qualified person.

WINTERING

1. Empty the pump by removing all the drain plugs and store them in the strainer basket.

2. Disconnect the pump, remove the pipe connectors and store the entire unit in a dry, well-ventilated place or at least take the following precaution: disconnect the pump, remove the 4 bolts attaching the pump housing to the motor bracket and store the unit in a dry, well-ventilated place. Then cover the pump housing and strainer to protect them.

N.B.: Before recommissioning the pump, clean all the internal parts to remove dust, lime scale etc.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

TROUBLESHOOTING

A) The motor does not start

1. Check the electrical connections, switches or relays, and the circuit breaker or fuses.
2. Ensure that the motor turns freely by hand.

B) The motor stops, check

1. The cables, connections, relays etc.
2. Voltage drop on motor (frequently caused by cables that are too small).
3. That there is no seizing or overheating (by reading the absorbed current).

N.B.: The motor on your pump is fitted with a thermal protection which, in the case of overload, will automatically cut the circuit and avoid the motor being damaged. This triggering is caused by abnormal usage conditions which need to be checked and corrected. The motor will restart without any intervention as soon as normal operating conditions are restored.

C) The motor growls but does not start, check that a phase is not cut, the capacitor is not damaged.

D) The pump does not prime

1. Ensure the strainer housing is filled with water, that the cover seal is clean and correctly positioned and that no air can enter. If necessary, tighten the cover lock screws.
2. Ensure that all the suction and discharge valves are open and not blocked and that the suction outlets in the pool are fully submerged.
3. Check that the pump draws by freeing the suction as close as possible to the pump:
   a) if the pump does not draw despite being sufficiently full of priming water
4. Tighten the bolts and pipe accessories on the suction side.
5. Check the voltage to ensure that the pump is rotating at the correct speed.
6. Open the pump and check that nothing is blocking it inside,
7. Replace the mechanical shutter.
   b) If the pump is drawing normally, check the suction pipe and strainer which may be blocked or be allowing air to enter.

E) Low flow - Generally, Check for :

1. Clogged or restricted strainer or suction line; undersized pool piping.
2. Plugged or restricted discharge line of filter (high discharge gauge reading).
3. Air leak in suction (bubbles issuing from return fittings).
4. Pump operating under speed (low voltage).
5. Plugged or restricted impeller.

1. That no air is entering the suction side and causing dull crackling in the pump.
2. That there is no cavitation caused by insufficient diameter or a restriction in the suction tube. An over-sized discharge pipe can also cause cavitation. Use pipes of the correct size or purge the pipes if necessary.
3. That no vibration is occurring due to incorrect fitting.
4. That there are no foreign bodies in the pump housing.
5. That the motor bearings have not seized due to excessive clearance, rust or prolonged overheating.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

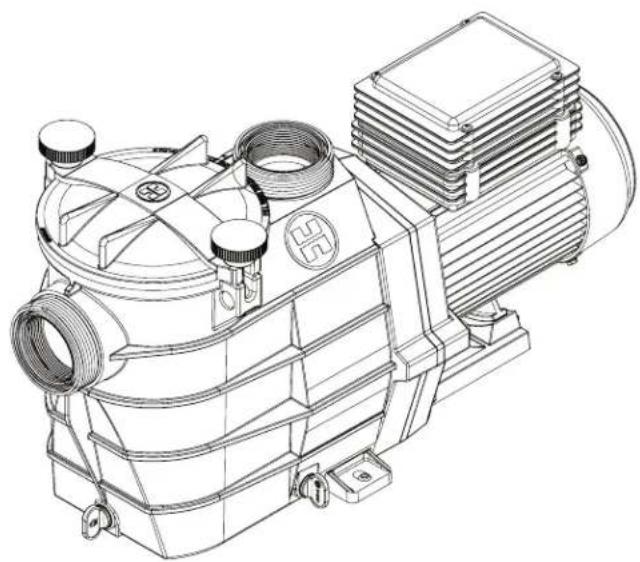

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

BOMBA CENTRÍFUGA

MANUAL DEL USUARIO

CONSERVE ESTE MANUAL PARA CONSULTARLO POSTERIORMENTE

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

BOMBA CENTRÍFUGA

MANUAL DO UTILIZADOR

CONSERVE ESTE MANUAL PARA REFERÊNCIA FUTURA

http://www.hayward.fr/en/services/register-your-product

Para sua informação

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

ZENTRIFUGALPUMPE

ANWENDER - HANDBUCH

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

CENTRIFUGAALPOMP

GEBRUIKERSHANDBOEK

DIT HANDBOEK BEWAREN VOOR TOEKOMSTIG GEBRUIK

http://www.hayward.fr/en/services/register-your-product

Voor uw informatie

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

CE i

POMPA CENTRIFUGA

MANUALE PER L'USO

http://www.hayward.fr/en/services/register-your-product

Dati da conservare

Abstract geometric logo with stylized letter H inside a circular frame (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

CE

Simple line icon of an open book with an information symbol inside (no text or numbers)

Simple line drawing of an open book with no text or symbols visible

CENTRIFUGALPUMP

ANVÄNDARHANDBOK

SPARA DENNA HANDBOK FÖR SENARE REFERENS

WARNING: Elrisk.

http://www.hayward.fr/en/services/register-your-product

För eget bruk

Abstract geometric logo with stylized letter 'H' inside a circular gradient (no text or symbols)

HAYWARD®

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

Technical line drawing of a mechanical device with coiled components and mounting brackets (no text or symbols)

CE

Simple line icon of an open book with an information symbol inside (no text or labels)

Simple line icon of an open book (no text or symbols)

ЦЕНТРОБЕЖНЫЙ НАСОС

www.hayward.fr/en/services/register-your-product

Для записей

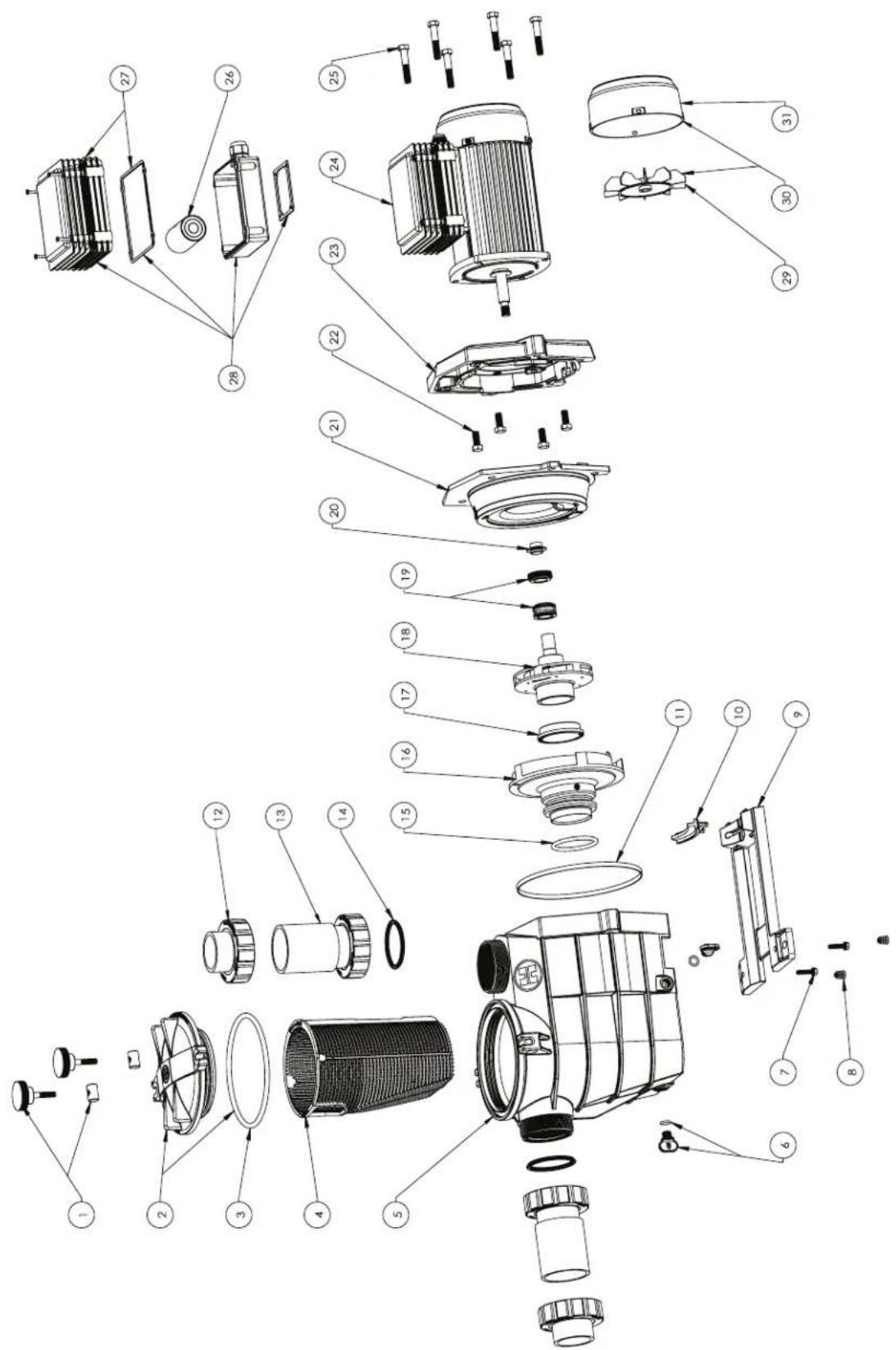

Exploded view diagram of a mechanical device with numbered parts for identification

N° RS3008EV1 RS3011EV1		RS3016EV1 RS3020EV1 RS3016EV3 RS3020EV3 RS3025EV3 RS3030EV3
1 SPX1600PN SPX1600PN		SPX1600PN SPX1600PN SPX1600PN SPX1600PN SPX1600PN SPX1600PN
2 SPX3000DS SPX3000DS		SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX3000DS SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPx4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4500EPAKDI (50 mm)
5	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI	RSX750A2EDI
6 SPX4000PO SPX4000PO		SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX 4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4 4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX4000PO SPX 5000EPAKDI (50 mm)
7	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5
8	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490
9	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI
10	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1
11	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T
12	RSX750EPAKDI (50 mm)	RSX750EPAKDI (50 mm)	/	/	/	/	/	/
13	/	/	RSX750EPAK (63 mm)	RSX750EPAK (63 mm)	RSX750EPAK (63 mm)	RSX750EPAK (63 mm)	RSX750EPAK (63 mm)	RSX750EPAK (63 mm)
14	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N
15	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI
16	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3201BDI	SPX3021BDI
17	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R
18	SPX3008CDIE	SPX3011CDIE	SPX3012CDIE	SPX3015CDIE	SPX3012CDIE	SPX3015CDIE	SPX3020CDIE	SXP3030CDIE
19	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2
20	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI
21	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI
22	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4
23	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI
24	SPX3007Z1CAE	SPX3010Z1CAE	SPX3012Z1CAE	SPX3015Z1CAE	SPX3015Z1CAE	SPX3020Z1CAE	SPX3025Z1CAE	SPX3030Z1CAE
25	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4
26	SPX3000Z1CCA1	SPX3000Z1CCA1	SPX3000Z1CCA2	SPX3000Z1CCA2	/	/	/	/
27	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG
28	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG
29	SPX3000Z1CF1	SPX3000Z1CF1	SPX3000Z1CF1	SPX3000Z1CF1	SPX3000Z1CF2	SPX3000Z1CF2	SPX3000Z1CF2	SPX3000Z1CF2
30	SPX3000Z1CECF1	SPX3000Z1CECF1	SPX3000Z1CECF1	SPX3000Z1CECF1	SPX3000Z1CECF2	SPX3000Z1CECF2	SPX3000Z1CECF2	SPX3000Z1CECF2
31	SPX3000Z1CEC1	SPX3000Z1CEC1	SPX3000Z1CEC1	SPX3000Z1CEC1	SPX3000Z1CEC2	SPX3000Z1CEC2	SPX3000Z1CEC2	SPX3000Z1CEC2

Exploded view diagram of a mechanical assembly with numbered parts for identification

N° SP3008EV1 SP3011EV1	SP3016EV1 SP3020EV1	SP3016EV3 SP3020EV3	SP3025EV3 SP3030EV3
1 SPX1600PN SPX1600PN	SPX1600PN SPX1600PN	SPX1600PN SPX1600PN	SPX1600PN SPX1600PN
2 SPX3000DS SPX3000DS	SPX3000DS SPX3000DS	SPX3000DS SPX3000DS	SPX3000DS SPX3000DS
3 SPX3000S SPX3000S SPX3000S	SPX3000S SPX3000S	SPX3000S SPX3000S	SPX3000S SPX3000S
4 SPX3000MDI SPX3000MDI	SPX3000MDI SPX3000MDI	SPX3000MDI SPX3000MDI	SPX3000MDI SPX3000MDI
5	SPX3020AEDI	SPX3020AEDI	SPX3020AEDI	SPX3020AEDI	SPX3020AEDI	SPX3020AEDI
6 SPX4000PO SPX4000PO	SPX4000PO SPX4000PO	SPX4000PO SPX4000PO	SPX4000PO SPX4000PO
7	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5	SPX1600Z5
8	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490	RSX111490
9	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI	SPX3000GDI
10	SPX3000QDI1	SPX3000QDI1	SPX3000QDI1	SPX3000QDI2	SPX3000QDI2	SPX3000QDI2
11	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T	SPX3000T
12	RSX750EPAKDI(50 mm)	RSX750EPAKDI(50 mm)	/	/	/	/
13	/	/	RSX750EPAK(63 mm)	RSX750EPAK(63 mm)	RSX750EPAK(63 mm)	RSX750EPAK(63 mm)
14	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N	RSX750N
15	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI	SPX4000Z1DI
16	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3200B3DI	SPX3021BDI
17	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R	SPX3021R
18	SPX3008CDIE	SPX3011CDIE	SPX3012CDI	SPX3015CDI	SPX3015CDI	SPX3020CDI
19	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2	SPX1600Z2
20	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI	SPX1500Q6DI
21	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI	SPX3020EDI
22	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4	SPX0125Z4
23	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI	SPX3000FDI
24	SPX3007Z1CAE	SPX3010Z1CAE	SPX3012Z1CAE	SPX3015Z1CAET	SPX3020Z1CAET	SPX3025Z1CAET
25	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4	SPX1600Z4
26	SPX3000Z1CCA1	SPX3000Z1CCA1	SPX3000Z1CCA2	/	/	/
27	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG	SPX3000Z1CCG
28	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG	SPX3000Z1CWBG
29	SPX3000Z1CF1	SPX3000Z1CF1	SPX3000Z1CF1	SPX3000Z1CF2	SPX3000Z1CF2	SPX3000Z1CF2
30	SPX3000Z1CECF1	SPX3000Z1CECF1	SPX3000Z1CECF1	SPX3000Z1CECF2	SPX3000Z1CECF2	SPX3000Z1CECF2
31	SPX3000Z1CEC1	SPX3000Z1CEC1	SPX3000Z1CEC1	SPX3000Z1CEC2	SPX3000Z1CEC2	SPX3000Z1CEC2

GARANTIE LIMITÉE

All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would therefore advise you to keep your invoice.

The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD, of the faulty products, provided that they have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components. The warranty does not cover damage due to frost and to chemicals. Any other costs (transport, labour, etc.) are excluded from the warranty.

HAYWARD may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection, or incorrect operation of a product.

In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer.

No equipment returned to our factory will be accepted without our prior written approval.

Wearing parts are not covered by the warranty.

GARANTÍA LIMITADA

BESCHRÄNKTE GARANTIE
