RBC30 - Battery charger RIDGID - Free user manual and instructions

Product type	Battery charger
Brand	RIDGID
Model	RBC30
Input voltage	120 V / 230 V (depending on model)
Output voltage	18 V
Charging current	2 A (estimated)
Charging time	Approximately 1 hour for 2 Ah
Compatible battery types	18 V RIDGID lithium-ion battery packs
LED indicators	Charging, full battery and fault indicators
Protections	Overcharge, short circuit, overheating
Operating temperature	0 °C to 50 °C
Storage temperature	-20 °C to 60 °C
Weight	Approximately 0.5 kg
Dimensions (L x W x H)	160 x 80 x 50 mm (estimated)
Maintenance	Clean with a dry cloth; do not immerse
Safety	Use only with RIDGID battery packs; do not expose to moisture

Frequently Asked Questions - RBC30 RIDGID

What types of batteries can I charge with the RBC30?

The RBC30 charger is designed for 18 V RIDGID lithium-ion battery packs, especially the 2 Ah and 4 Ah models.

How long does it take to charge a battery?

The charging time is approximately 1 hour for a 2 Ah battery and up to 2 hours for a 4 Ah battery.

What do the LED indicators on the charger mean?

A steady red light indicates charging is in progress; a steady green light indicates the battery is fully charged; a flashing light may indicate an error (defective battery or abnormal temperature).

Can I leave the battery on the charger after charging?

Yes, the charger switches to maintenance mode once the battery is full; there is no risk of overcharging. However, it is recommended to unplug the charger after use.

Is the charger compatible with older RIDGID batteries?

The RBC30 is designed for RIDGID lithium-ion batteries. It is not compatible with older Ni-Cd or Ni-MH batteries.

What should I do if the charger does not work?

First check the power outlet and the power cord. If the light does not come on, try another battery or contact RIDGID customer service.

Can I use the charger outdoors?

Yes, but only in a dry place sheltered from rain. Do not expose it to moisture or extreme temperatures.

Does the charger have surge protection?

Yes, the RBC30 incorporates protection against overcharges, short circuits, and overheating to ensure safe charging.

How do I clean the charger?

Unplug the charger and clean the exterior with a soft, dry cloth. Do not use liquids or abrasive products.

Where can I find spare parts or get my charger repaired?

Contact an authorized RIDGID repair center or visit RIDGID.com to find a service center. Use only original parts.

USER MANUAL RBC30 RIDGID

Recording Form For Machine Serial Number ....1

Safety Symbols....2

General Power Tool Safety Warnings

Work Area Safety....2

Electrical Safety 2

Personal Safety ....3

Power Tool Use And Care ....3

Battery Tool Use And Care ....3

Service 4

Specific Safety Information

Electrical Tool Safety 4

RIDGID Contact Information 4

Description

Tool Status Lights 6

Specifications

Standard Equipment 6

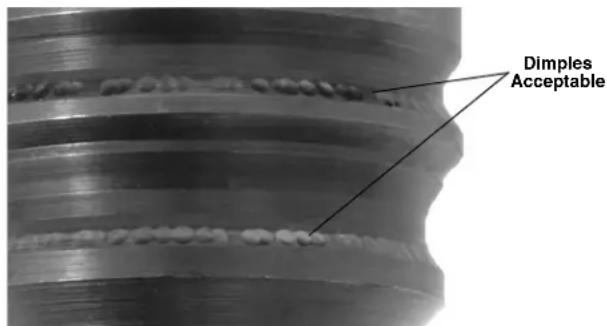

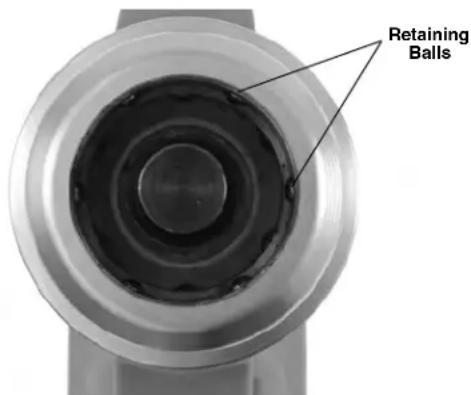

Pre-Operation Inspection 7

Set-Up And Operating Instructions 7

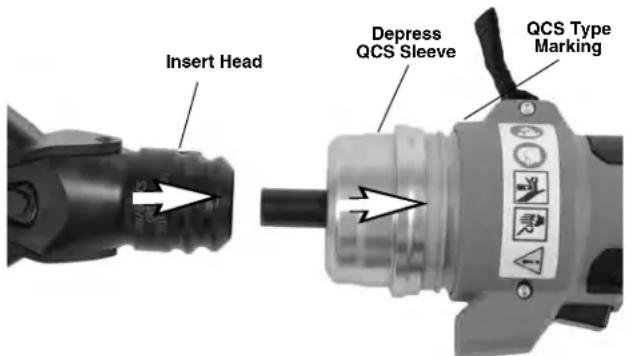

Changing Heads With QCS Coupling (RE 6/RE 60 only) ....8

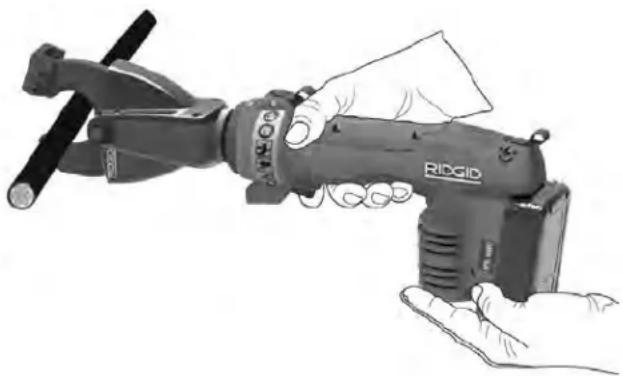

Operation 8

Storage 8

Maintenance Instructions

Cleaning Tool....9

Cleaning QCS Coupling....9

Troubleshooting....9

Required Maintenance By RIDGID Independent Service Center 9

Service And Repair 9

Optional Equipment 10

Disposal 10

Electromagnetic Compatibility (EMC) 10

EC Declaration of Conformity ......Inside Back Cover

Lifetime Warranty ....Back Cover

*Original Instructions - English

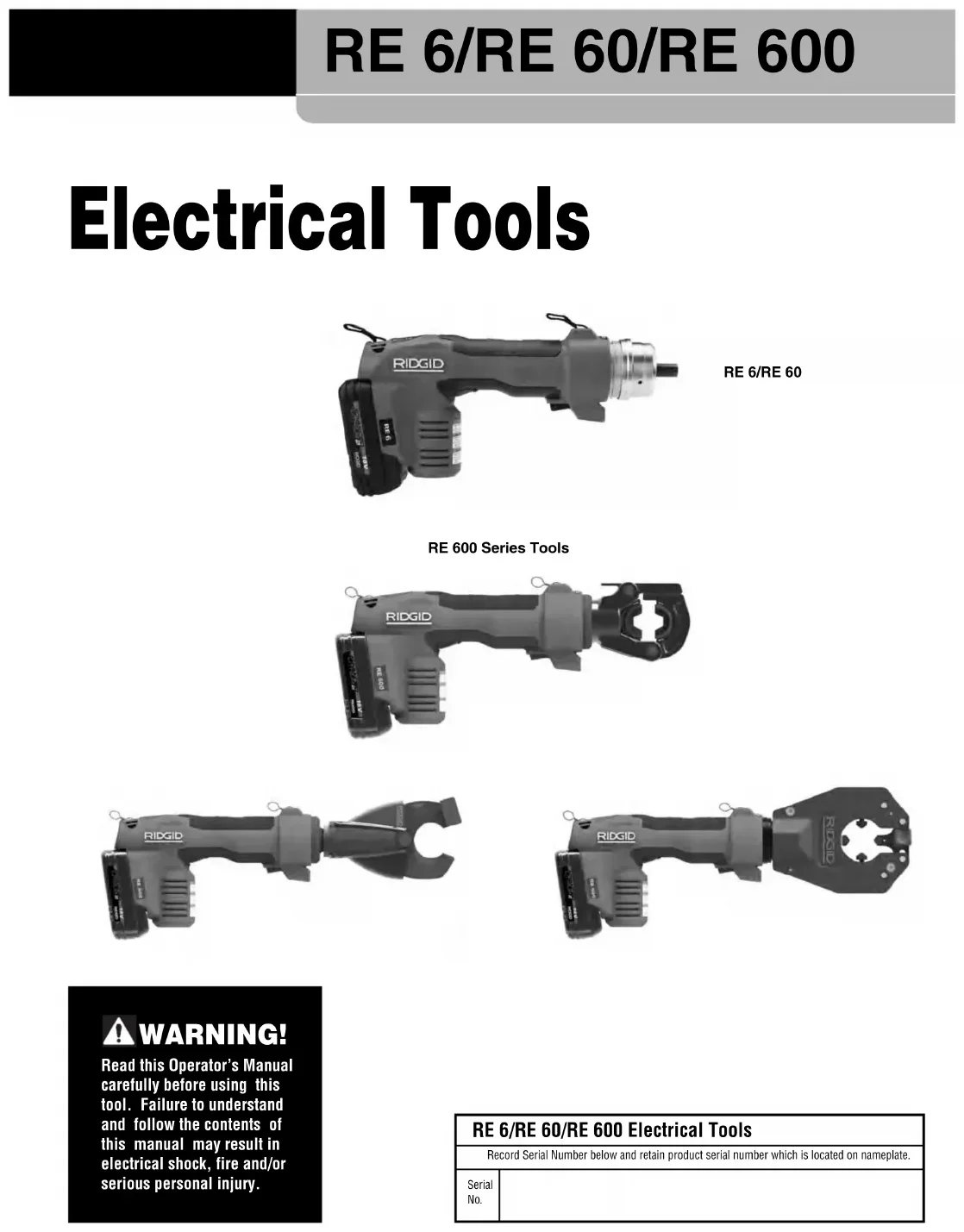

RE 6/RE 60/RE 600

Electrical Tools

Ridgid electric drill put tool with visible branding and external components (no text or symbols on body)

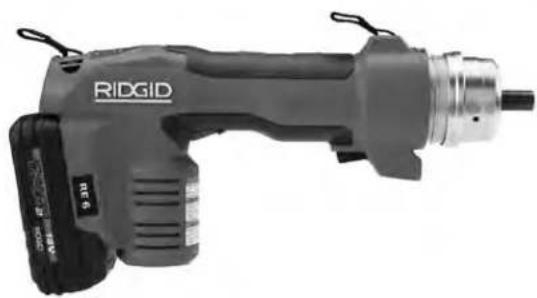

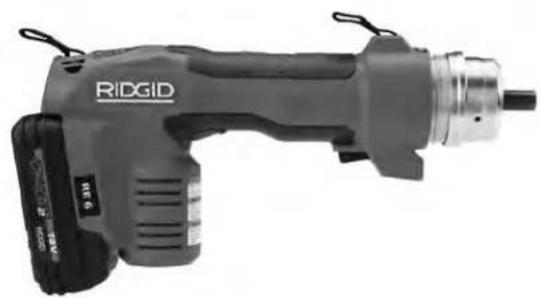

RE 6/RE 60

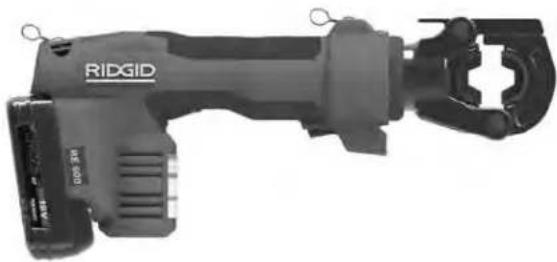

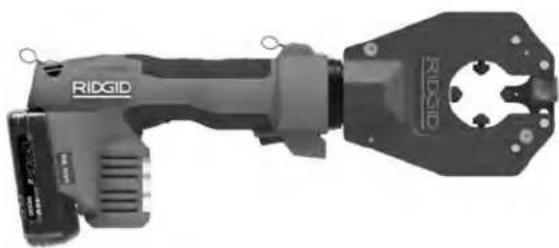

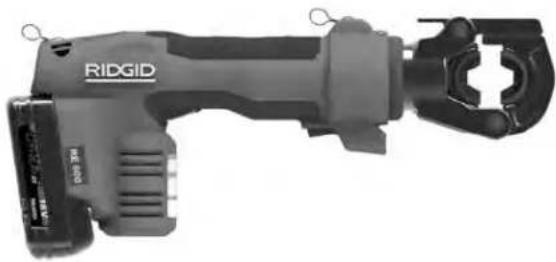

RE 600 Series Tools

Rigid tool with attached clamp and connector (no visible text or symbols)

Ridge ID tool with attached clamp and connector (no visible text or symbols)

Ridgid electrical tool with handle and mounting bracket (no visible text or symbols)

WARNING!

Read this Operator's Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury.

RE 6/RE 60/RE 600 Electrical Tools

Record Serial Number below and retain product serial number which is located on nameplate.
Serial No.

Safety Symbols

In this operator's manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE indicates information that relates to the protection of property.

This symbol means read the operator's manual carefully before using the equipment. The operator's manual contains important information on the safe and proper operation of the equipment.

This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce the risk of eye injury.

This symbol indicates the risk of hands, fingers or other body parts being crushed.

This symbol indicates the risk of electrical shock.

General Power Tool Safety Warnings\*

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flam mable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and by-standers away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un modified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electrical shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electrical shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter

(GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch ON invites accidents.
• Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewel ry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use And Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use And Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging im - properly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts.
  This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Specific Safety Information

WARNING

This section contains important safety information that is specific to this tool.

Read these precautions carefully before using the electrical tool to reduce the risk of electrical shock or serious personal injury.

SAVE THESE INSTRUCTIONS!

A compartment in the tool carrying case is included to keep this manual with the machine for use by the operator.

Electrical Tool Safety

• Keep your fingers and hands away from the tool head during the operating cycle. Your fingers or hands can be crushed, fractured or amputated if they become caught in the head or between the head and other objects.
• Do not use on energized electrical lines to reduce the risk of electrical shock, severe injury and death. Tool is not insulated for use on energized electrical lines. Use appropriate work procedures and personal protective equipment when working near energized electrical lines.
• Large forces are generated during use that can break or throw parts and cause injury. Keep all unnecessary personnel away from work area. Stand

clear during use and wear appropriate protective equipment, including eye protection

- Do not modify tool. Modifying the tool in any manner may result in personal injury.

- Never repair a damaged head. A head that has been welded, ground, drilled or modified in any manner can break during use. Never replace individual components. Discard damaged heads to reduce the risk of injury.

- Use proper tool, head, die, connector and cable combinations. Improper combinations can result in an incomplete or improper crimp which increases the risk of fire, severe injury or death.

- One person must control work process and machine operation. Only the operator should be in the area when the tool is running. This helps reduce the risk of injury.

- Before operating a RIDGID Electrical Tool, read and understand:

• This operator's manual,
  – The specific head instructions,
  – The battery/charger manual,
• The connector and die/insert manufacturer's installation instructions,
• The instructions for any other equipment used with this tool.

Failure to follow all instructions and warnings may result in property damage and/or serious injury.

RIDGID Contact Information

If you have any question concerning this RIDGProduct:

• Contact your local RIDGID distributor.
• Visit RIDGID.com to find your local RIDGID contact point.
• Contact Ridge Tool Technical Service De part ment at rttechservices@emer son.com, or in the U.S. and Canada call [phone].

Description

The RIDGID ^® Models RE 6/RE 60/RE 600 family of Electrical Tools are used to perform a variety of functions, such as crimping electrical compression connections, cutting electrical cables and hole punching operations, depending on the head used with the tool.

The RE 6 and RE 60 Electrical Tools are equipped with

the RIDGID® QuickChange System™ (QCS™) Coupling that allows the installation and use of a variety of interchangeable heads.

The RE 600 series of Electrical Tools have dedicated (non-interchangeable) heads.

All heads (both interchangeable and dedicated) can be rotated 360 degrees for better access in tight spaces.

When operated, an internal electric motor powers a hydraulic pump which supplies fluid to the cylinder of the tool, moving the ram forward and applying force to specially designed tool heads.

The tools come with two (2) fabric loops that can be used with appropriate attachments such as shoulder straps or tie off lanyards.

The tools are equipped with a bright work light that turns on when the run switch is depressed. This allows the user to easily illuminate the work area.

The tool status lights indicate the tool's status (tool ON/OFF, temperature out of range, service required, etc.).

See specific head instructions for specifications and other information.

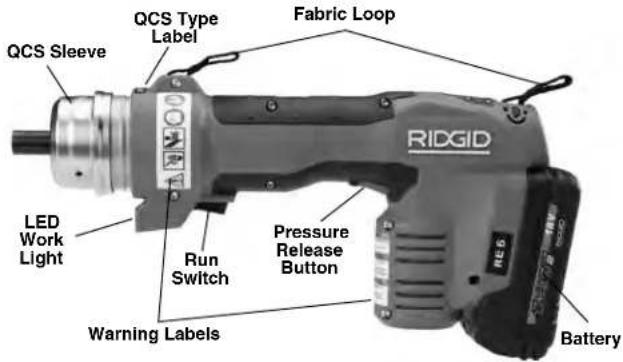

QCS Sleeve QCS Type Label Fabric Loop LED Work Light Run Switch Pressure Release Button Warning Labels RIGID RE5 Battery

Figure 1 - RE 6/RE 60 - Use QCS Coupling for head attachment

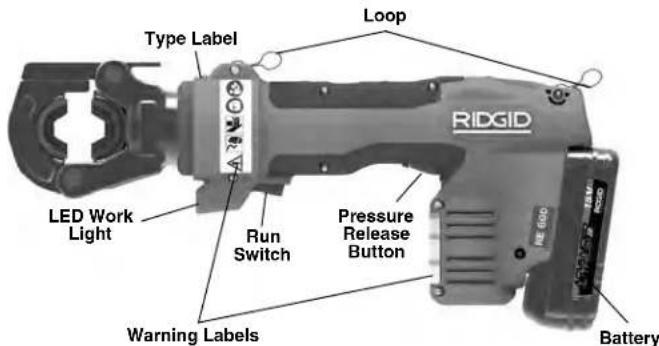

Type Label Loop LED Work Light Run Switch Pressure Release Button Warning Labels Battery

Figure 2 – RE 600 Series Dedicated Head Tools

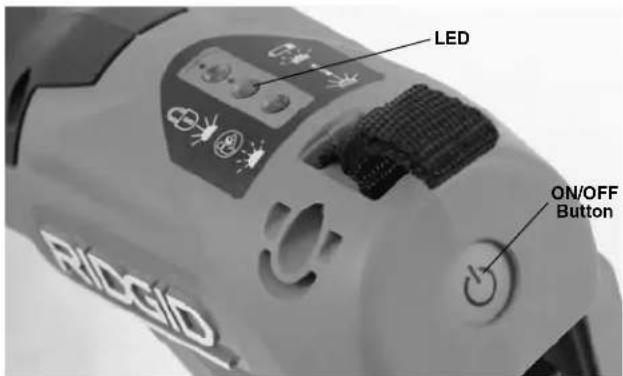

LED ON/OFF Button RICGIO

Figure 3 – Tool Status Lights

RIDDIGID Model No: PD-34-8000 Serial No: 218 29.00 900 AS HDG 156.4 -905.99 Pledge Tool Company Equity, SPDS / USA Equity, Cable Tool

Figure 4 – Machine Serial Number - The first 4 digits (circled) indicate the year and month of manufacture. (12 = year, 06 = month).

Control Marking Description
On/Off Button	I/O Main	tool power switch (I = On, O = Off).
Run Switch —	Depress to advance tool ram. In most cases, hold until ram automatically retracts.
Pressure Release Button If used with a crimp head, crimp is NOT complete and must be repeated.	—	Allows tool ram retracted prior to automatic retraction. Primarily used with Punch Heads.
QCS Sleeve —	Used to retract QCS balls and change heads.

Figure 5 – Controls Chart

Green Red Yellow

Icon	Solid Light Blinking Light		Meaning
	Green Tool ON, ready to use.
		Green Battery	low. Tool will not operate. Recharge battery/Insert fully charged battery.
	Red		Tool out of Specification temperature range. Bring tool and battery to correct operating temperature range.
		Yellow	Indicates service interval approaching. Starts 2,000 cycles prior to service interval (see Figure 7). Tool is usable, but tool will lock after service interval.
	Yellow		Tool is locked. Tool has completed service interval (see Figure 7) and requires service.
			Tool has malfunctioned. Have serviced.

Figure 6 – Tool Status Lights

Specifications

		Model	Description	Weight		DimensionsL x H x W (mm)L x H x W (inch)	Piston Travel		Service Interval Cycles
				g	Ibs		mm	inch
		RE 6	6T Tool For Use w/Interchangeable Heads	3000	6.6	318 x 154 x 7312.5 x 6.1 x 2.9	32	1.3	32,000
		RE 60	60 kN Tool For Use w/Interchangeable Heads	3000	6.6	318 x 154 x 7312.5 x 6.1 x 2.9	32	1.3	32,000
		RE 600 RDH	Latching Round Die Head	4300^*1	9.5	395 x 165 x 7315.6 x 6.5 x 2.9	17	0.7 32,000
		RE 600 SC	Scissor Cut Head^*2	4800	10.5	473 x 174 x 7318.6 x 6.9 x 2.9	24	0.9	32,000
		RE 600 4PI	4 PIN Indenter Head	5300	11.7	474 x 192 x 7318.7 x 7.6 x 2.9	32	1.3	32,000

*With 2 Ah Battery
^1 Includes dies
^2 Versions for Cu/Al wire and ACSR available - See blade markings.

Figure 7 – Specification Chart

Piston Force ....60 kN (6-ton) (13,500 lbs.)

QCS Coupling Type ...RE 6 6T QCS

RE 60 60 kN QCS

RE 600 Series - N/A

Duty Cycle....③ Cycles per minute

Motor

Voltage .....18V DC

Amperage .....18 Amp

Power 324 Watts

Battery....18V Li-Ion, Rechargeable Batter y (see Optional Equipment)

Ingress Protection .....IP32

Allowable Humidity.....0-80%

Operating Temperature

Range 15^ F to 122^ F ( -10^ C to 50^ C)

Storage Temperature

Range ....32° F to 113° F (0° C to 45° C)

Sound Pressure ( L_A )* ...65 dB(A), K=3

Sound Power ( I_WA )*......76 dB(A), K=3

Vibration ^* ....<2.5 m/s ^2 , K=1.5

* Sound and Vibration measurements are measured in accordance with a standardized test per Standard EN 62481-1.

- Vibration levels may be used for comparison with other tools and for preliminary assessment of exposure.

- Sound and vibration emissions may vary due to your location and specific use of these tools.

- Daily exposure levels for sound and vibration need to be evaluated for each application and appropriate safety measures taken when needed. Evaluation of exposure levels should consider the time a tool is switched off and not in use. This may significantly reduce the exposure level over the total working period.

Go to RIDGID.com/CrimpDies for the RIDGID Crimp

Die/Electrical Connector Compatibility Charts for these tools with various heads.

Standard Equipment

Refer to the RIDGID catalog for details on equipment supplied with specific tool catalog numbers.

NOTICE Selection of appropriate materials and joining methods is the responsibility of the system designer and/or installer. Before any installation is attempted, careful evaluation of the specific service environment requirements should be completed. Consult connector manufacturer for selection information.

Pre-Operation Inspection

WARNING

Daily before use, inspect your electrical tool and correct any problems to reduce the risk of serious in jury from electric shock, crushing injures, equipment failure and other causes, and prevent tool damage.

1. Remove battery from tool.
2. Clean any oil, grease or dirt from the tool and head, including handles and controls. This aids inspection and helps prevent the tool or control from slipping from your grip.

3. Inspect the electrical tool for:

4. Proper assembly, maintenance and completeness (See Figures 1-3).

5. Any broken, worn, missing, misaligned or binding parts.
6. Presence and readability of the tool and battery warning labels.
7. Any other condition which may prevent safe and normal operation.

If equipped with the QCS Coupling, inspect for:

• Foreign material in the QCS coupling (see Main - tenance section).
• Confirm that all retaining balls are present in all openings and that there is no damage. Figure 8 shows the inside of a complete and clean QCS coupling.
• When inspecting the mating QCS coupling on interchangeable heads, dimples in the grooves of the QCS coupling are normal with use and are not considered damage (Figure 9).

Retaining Balls

Figure 8 – Inside of QCS Coupling

Dimples Acceptable

Figure 9 – Dimples in QCS Coupling Grooves

If any problems are found, do not use the tool until the problems have been repaired.

1. Inspect and maintain any other equipment being used per its instructions to make sure it is functioning properly. Inspect the heads for wear, deformation or other issues.

Set-Up And Operating Instructions

WARNING

Keep your fingers and hands away from the tool head during the operating cycle. Your fingers or hands can be crushed fractured or amputated in the head or tool or be tween the tool head, work piece and other objects.

Do not use on energized electrical lines to reduce the risk of electrical shock, severe injury and death. Tool is not insulated. Use appropriate work procedures and personal protective equipment when working near energized electrical lines.

Large forces are generated during use that can break or throw parts and cause injury. Keep all unnecessary personnel away from work area. Stand clear during use and wear appropriate protective equipment, including eye protection.

Do not operate the electrical tool without inserts in the tool head. This can damage the electrical tool and/or cause serious personal injury.

Follow set up and operating instructions to reduce the risk of injury from crushing, electrical shock and other causes and to prevent tool damage.

1. Confirm have appropriate work area (See General Safety Rules). Operate in clear, level, stable, dry location. Do not use tool while standing in water.
2. Inspect the work to be done and determine the correct RIDGID tool for the application. Using an incorrect tool for an application can cause injury, damage the tool and make incomplete connections.
3. Confirm that the electrical tool and head have been inspected and set up as directed in their instructions. If needed, confirm that proper dies have been installed in the head.

Changing Heads With QCS Coupling (RE 6/RE 60 only)

Remove the battery from the tool. Retract QCS sleeve and remove/insert the appropriate interchangeable head. Release QCS sleeve to retain the head (Figure 10). Confirm that the head is fully inserted and locked into the tool. Do not operate without an interchangeable head or head inserts installed - this can damage the electrical tool. If interchangeable head will not lock into QCS coupling, ensure ram is fully retracted by pressing the pressure release button.

There are different QCS coupling types. Make sure that the tool and interchangeable head QCS coupling types are compatible (as marked).

Insert Head Depress QCS Sleeve QCS Type Marking

Figure 10 – Installing Interchangeable Head in the QCS Coupling

Operation

1. With dry hands, install a fully charged battery into the electrical tool. Press the ON/OFF button (Figure 3) to power on the electrical tool. All three tool status will blink once. Then, the green light should solidly illuminate indicating the tool is ready to operate (See Figure 6 for Tool Status Lights). The electrical tool will automatically turn OFF if left unused for 600 seconds.

Illustration of a hand holding a RIDGID robotic device (no text or symbols visible)

Figure 11 – Tool in operation

1. Refer to the instructions for the head in use for specific operating instructions. With hands clear of the head and other moving parts, depress the Run Switch to advance the tool ram and activate the head. The advancement of the ram can be stopped at any point by releasing the Run Switch. This allows final positioning of the head for cutting, punching or gripping and positioning of connectors.

Unless otherwise stated in the specific head instructions, continue to press the Run Switch until the ram automatically retracts. Automatic ram retraction indicates that the electrical tool has reached the appropriate force and the cycle is complete. This is required to ensure the complete crimping of electrical connections.

If the ram does not fully retract, press the pressure release button. If the pressure release button is pressed while crimping an electrical connection, the crimp is NOT complete and needs to be repeated.

1. When operation is complete, press the ON/OFF button to turn OFF and remove the battery.

Storage

Remove battery from tool. Store electrical tool and battery in case. Avoid storing in extreme heat or cold. The electrical tool will not turn ON if the tool or battery temperature is outside of the specification range. This will be indicated by a tool status light. (See Figure 6)

⚠ WARNING Store in a dry, secured area that is out of reach of children and people unfamiliar with the Electric Tool. The electrical tool is dangerous in the hands of untrained users.

Maintenance Instructions

WARNING

Remove battery from tool before performing maintenance or making any adjustment.

Cleaning Tool

Wipe exterior of the electrical tool clean daily with a clean, dry cloth.

Cleaning QCS Coupling

Point the QCS opening down and gently shake any debris out. Visually inspect the QCS opening for any debris. Cotton swabs can be used to wipe out debris. Do not let material build up into the retaining ball pockets (Figure 8). The QCS coupling is lubricated for life at the factory. Do not add any lubricant to the QCS coupling,

Required Maintenance By RIDGID Independent Service Center

The Electrical tool must be serviced at set intervals by a RIDGID Independent Service Center to ensure proper operation. This will be indicated by a tool status light (See Figure 6). See Specifications for service interval.

Service And Repair

WARNING

Improper service or repair can make machine unsafe to operate.

Service and repair on these Electrical Tools must be performed by an RIDGID Independent Crimp Tool Service Center. Use only RIDGID service parts.

For information on your nearest RIDGID Independent Service Center or any service or repair questions see Contact Information section in this manual.

Troubleshooting

SYMPTOM POSSIBLE REASONS SOLUTION
Tool will not turn ON when ON/OFF button is pressed.	Battery is completely discharged or battery has failed.	Insert fully charged battery/recharge battery.
	Battery not properly inserted into handle of tool.	Check to assure battery is fully inserted.
The connections produced are not complete.	Used wrong tool/insert for the cable size or material.	Install the correct tool/insert.
	The tool was not square to the connector.	Make sure that the tool is square to the connector.
	Tool is in need of repair.	See Contact Information for nearest RIDGID Independent Service center.
Oil leaks from tool.	Seal or mechanical problems.
Motor runs but tool will not complete a cycle.	Oil level low.	See Contact Information for nearest RIDGID Independent Service center.
Dies stop during operation.	Oil level low.
Cutting tool stops during operation.	Oil Level low.	See Contact Information for nearest RIDGID Independent Service center.
	Cutting edges are dull or broken.	Replace dull or broken blades with appropriate replacements.
	Material not within blade specification.	Change to blade specified for material to be cut.

See Figure 6 – Tool Status Lights

Optional Equipment

WARNING

To reduce the risk of serious injury, only use equipment specifically designed and recommended for use with the RIDGID Electrical Tools, such as listed below.

RE 6/RE 60/RE 600 Series

Catalog No.	Description
44693 18V 2.0Ah Battery (North & Latin America, Australia)
44698 18V 4.0Ah Battery (North & Latin America, Australia)
43458 120V Advanced Lithium Battery Charger
43333 230V Advanced Lithium Battery Charger
43323 18V 2.0Ah Battery (Europe & China)
43328 18V 4.0Ah Battery (Europe & China)

RE 6/RE 60 Series

CatalogNo. Description

52283 4P-6 4PINTM Dieless Crimp Head

52078 Swiv-L-Punch Knockout Punch Head

47918 SC-60C Cutter Head for Copper/Aluminum Wire

49408 SC-60C Cutter Head for ACSR

52083 RE 6 Carrying Case (Plastic)

47773 RE 60 Carrying Case (Plastic)

47753 LR-60B Latching Round Head

For a complete listing of RIDGID equipment available for these tools, see the Ridge Tool Catalog online at RIDGID.com or see Contact Information.

Disposal

Parts of the Electrical Tool contain valuable materials and can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.

For EC Countries: Do not dispose of electrical equipment with household waste!

According to the European Guideline 2012/ - 19/ EU for Waste Electrical and Electronic Equipment and its implementation into national legislation, electrical equipment that is no

longer usable must be collected separately and disposed of in an environmentally correct manner.

Electromagnetic Compatibility (EMC)

The term electromagnetic compatibility is taken to mean the capability of the product to function smoothly in an environment where electromagnetic radiation and electrostatic discharges are present and without causing electromagnet interference to other equipment.

The RIDGID RE 6/RE 60/RE 600 Family of Electrical Tools conform to IEC61000-6-5 (Ed. 1.0) Electromagnetic Compatibility (EMC) Part 6-5: Generic Standards – Im - munity for Equipment Used in Power Station and Sub - station Environment.

NOTICE These tools conform to all applicable EMC standards. However, the possibility of them causing interference in other devices cannot be precluded. All EMC related standards that have been tested are called out in the tool's technical document.

RE 6/RE 60/RE 600

Pinces électriques

Ridgid electric drill putter with visible model and control buttons (no text or symbols on body)

RE 6, RE 60

Pinces série RE 600

Ridgid handheld tool with black handle and metallic contacts (no visible text or symbols)

Ridgid handheld tool with handle and clamped grip (no visible text or symbols)

Ridgid handheld industrial tool with handle and mounting bracket (no visible text or symbols)

AVERTISSEMENT !

Cycles ....③ cycles/minute

Moteur

Tension....18 V (cc)

Ampérage .....18 A

Puissance ....324 Watts

Bloc-piles......Bloc-piles Li-ion 18 V

(voir Accessoires)

Hand holding a RIDGID robotic tool, no visible text or symbols on the device itself

Ridgid electric drill putter with visible branding and external plunger (no text or symbols on body)

RE 6/RE 60

Ridgid handheld tool with attached clamp and connector (no visible text or symbols)

Ridgid handheld tool with attached clamp and connector (no visible text or symbols)

Ridgid handheld electrical tool with handle and mounting bracket (no visible text or symbols)

ADVERTENCIA

Illustration of a hand holding a RIDGID robotic tool (no text or symbols visible)

Ridgid electric drill with visible branding and external components (no text or symbols on the device itself)

RE 6/RE 60

RE 600 Serisi Aletler

RidgizD tool with handle and grip, no visible text or symbols on body

Ridgid handheld tool with handle and clamped grip (no visible text or symbols)

Ridgid mechanical tool with handle and mounting bracket (no visible text or symbols)

UYARI

Illustration of a hand holding a RIGID handheld tool, no text or symbols visible

Ridgid electric drill putter with visible model number RE-6 and control buttons (no text or symbols on body)

RE 6/RE 60

Ridgid handheld tool with attached cylindrical connector (no visible text or symbols)

Ridgid handheld tool with handle and clamped grip (no visible text or symbols)

Ridgid welding torch component (no visible text or symbols on body)

ВНИМАНИЕ!

Hand holding a RIGID robotic tool, no visible text or symbols on the device itself

Ridgid electric drill with visible branding and external components (no text or symbols on the device itself)

RE 6/RE 60

Ferramentas da Série RE 600

Ridgid handheld tool with attached black connector (no visible text or symbols)

Ridgid handheld tool with handle and clamped grip (no visible text or symbols)

Ridgid handheld electrical tool with handle and mounting bracket (no visible text or symbols)

AVISO!

Three black-and-white safety icons: a circular eye with glasses, a hand with lightning bolts, and a hand holding a downward arrow (no text or symbols)

Hand holding a white RIOGID tool, no visible text or symbols on the device itself

Ridgid electric drill with visible branding and external components (no text or symbols on the device itself)

RE 6/RE 60

RidgizD tool with handle and clamped grip (no visible text or symbols)

Ridgid handheld tool with handle and clamped grip (no visible text or symbols)

Ridgid mechanical tool with handle and mounting bracket (no visible text or symbols)

! WARNING!

Hand holding a RIGID handheld device, no visible text or symbols on the device itself

Elyria, Ohio 44035-6001

U.S.A.

Ridge Tool Europe NV (RIDGID)

Schurhovenveld 4820

3800 Sint-Truiden

Belgium

EC DECLARATION OF CONFORMITY

We declare that the machines listed above, when used in accordance with the operator's manual, meet the relevant requirements of the Directives and Standards listed below.

DÉCLARATION DE CONFORMITÉ CE

DEKLARACJA ZGODNOŚCI WE

© 2014, 2017 RIDGID, Inc.

Printed 12/17 999-999-463.08 The Emerson logo and RIDGID logo are registered trademarks of Emerson Electric Co. or RIDGID, Inc. in the U.S. and other countries.

EC43144 REV. H All other trademarks belong to their respective holders.

RIDGID

EMERSON
