BST721A - Vacuum Cleaner Maxxmee - Free user manual and instructions

Product Type	Anti-dust mite vacuum cleaner
Brand	Maxxmee
Model	BST721A
Power Supply	220-240 V ~ 50-60 Hz
Power	300 W
Protection Class	II
Rotation Speed	up to 12,800 rpm
Suction Pressure	10 kPa
Sterilization Technology	UV-C Lamp
Main Filter	EPA Filter (washable)
Pre-filter	Metal Filter (washable)
Dust Container Capacity	Approx. 0.5 L (estimated)
Vibrating Roller	Yes, removable and cleanable
Safety	Automatic UV-C lamp shut-off
Usage	Textile surfaces, mattresses, sofas
Box Contents	Main unit, dust container, filters, UV-C lamp, roller, instruction manual
Filter Cleaning	Rinse with cold water, dry completely
Cable Length	Approx. 4 m (estimated)
Dimensions (L x W x H)	Approx. 30 x 25 x 15 cm (estimated)
Weight	Approx. 2.5 kg (estimated)

Frequently Asked Questions - BST721A Maxxmee

How to use the Maxxmee BST721A anti-dust mite vacuum cleaner?

Plug in the device, place it on the surface to be cleaned, press the on/off switch. Guide slowly the device over the surface. After use, turn off and unplug.

How to clean the dust container and filters?

Remove the container, extract the filters. Empty the container. Rinse the filters with cold water, let dry completely before reassembling.

The UV-C lamp does not turn on, what to do?

Check that the safety switches (8 and 14) are pressed when the device is placed on a flat surface. If the lamp still does not turn on, contact customer service.

Suction is weak, how to fix?

Check if the dust container is full or if the filters are clogged. Empty the container and clean the filters. Also check that the suction inlet is not blocked.

Can the vacuum be used on wet surfaces?

No, the device is designed for dry cleaning only. Do not vacuum liquids.

How to replace the UV-C lamp?

Unscrew the lamp cover (7), remove the lamp by turning the holders, insert a new lamp without touching the glass with fingers. Close the cover.

The device emits an unusual smell, is it normal?

A new smell during the first uses is normal. It disappears after a few uses.

What are the safety devices?

The device has two safety switches that automatically cut off the UV-C lamp if the device is lifted from the surface.

How to clean the vibrating roller?

Unlock the roller cover with a coin, remove the roller, wipe it with a damp cloth, dry it and reassemble.

How to store the device?

Store the device in a cool and dry place, away from sunlight and out of reach of children and animals.

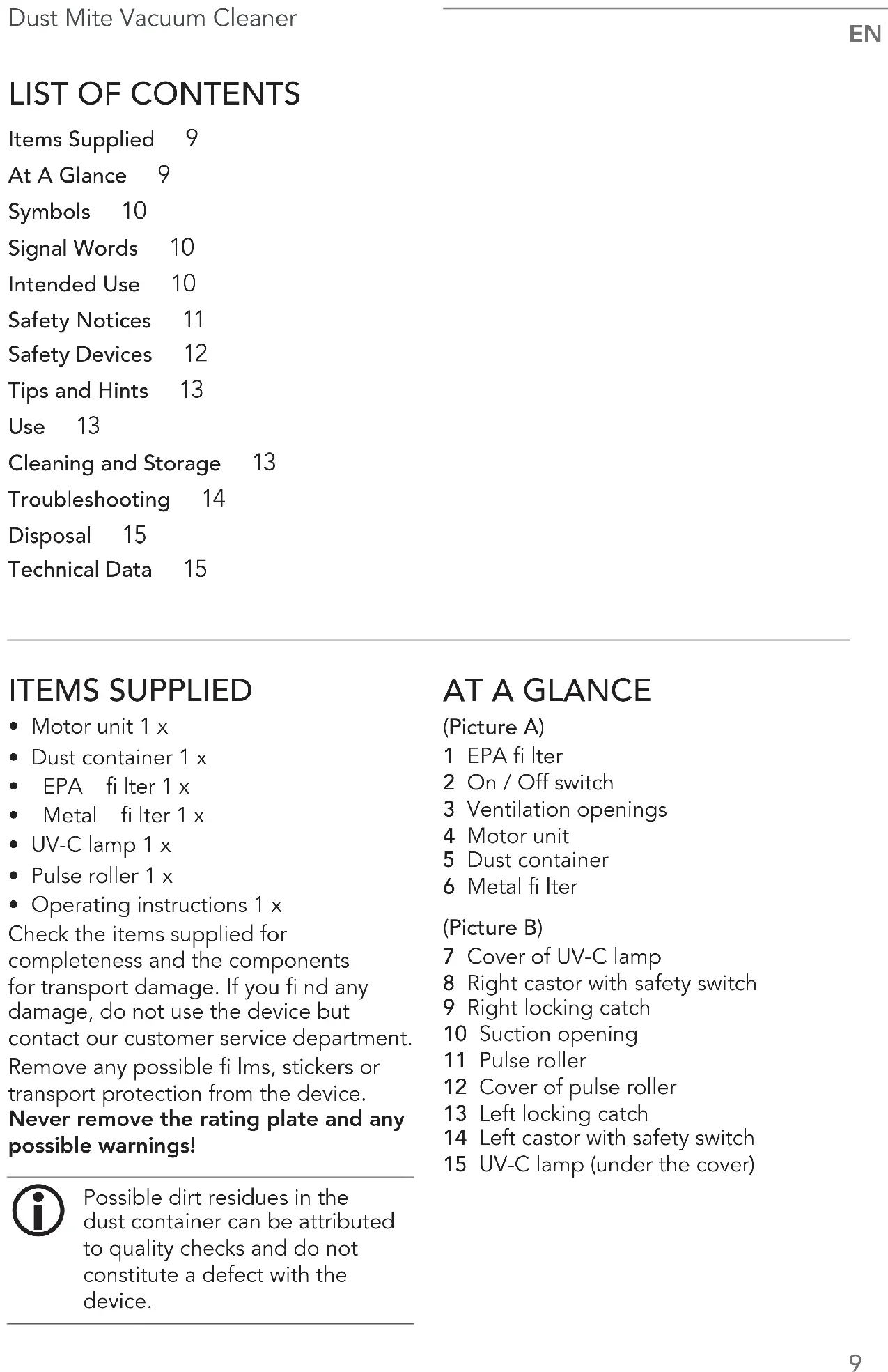

USER MANUAL BST721A Maxxmee

Cleaning and Storage 13

Troubleshooting 14

Disposal 15

Technical Data 15

ITEMS SUPPLIED

• Motor unit 1 x
• Dust container 1 x
  EPA fi Iter 1 x
  Metal filter 1x
  UV-C lamp 1 x
• Pulse roller 1 x
• Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department. Remove any possible fi Ims, stickers or transport protection from the device. Never remove the rating plate and any possible warnings!

Possible dirt residues in the dust container can be attributed to quality checks and do not constitute a defect with the device.

AT A GLANCE

(Picture A)

1 EPA filter
2 On / Off switch
3 Ventilation openings
4 Motor unit
5 Dust container
6 Metal filter

(Picture B)

7 Cover of UV-C lamp
8 Right castor with safety switch
9 Right locking catch
10 Suction opening
11 Pulse roller
12 Cover of pulse roller
13 Left locking catch
14 Left castor with safety switch
15 UV-C lamp (under the cover)

Dear Customer,

We are delighted that you have chosen the MAXXMEE dust mite vacuum cleaner. It removes dust and dirt from mattresses, pillows, covers and upholstered furniture quickly and easily. At the same time, the surfaces are also sterilised by UV-C light - without any chemicals!

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice

We hope you have a lot of fun with your MAXXMEE dust mite vacuum cleaner.

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read the operating instructions before use.

Alternating current

Warning: UV-C radiation

Protection class II

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER - high risk, results in serious injury or death

WARNING - medium risk, may result in serious injury or death

CAUTION - low risk, may result in minor or moderate injury

NOTICE - may result in risk of damage to material

INTENDED USE

This device is intended to be used to kill off bacteria and remove dust, germs and domestic dust mites. It is suitable for use on mattresses, bed sheets, bed covers, upholstered furniture and similar items.

On no account should the device be used to suck up the following:

liquids or wet substances (e.g. wet carpet shampoo)
glowing ash, cigarette ends, matches, etc.
infl ammable or explosive substances
very fine dust (e.g. concrete dust), ash or toner
pointed, hard objects such as large pieces of broken glass

The device is for personal use only and is not intended for commercial applications.

The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETYNOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

This device must not be used by children. The device and the connecting cable must be kept away from children.

This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions. Children must not play with the device.

The device must always be disconnected from the mains power when it is left unattended and before it is assembled, disassembled or cleaned.

In the interest of your own safety, inspect the device for damage each time before you use it. Only use the device if it is not damaged! If the device or the connecting cable of the device are damaged, they must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

DANGER - Danger of Electric Shock

Use and store the device only in closed rooms.
- Do not use or store the device in rooms with high humidity.
- Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.

If the device falls into water while it is connected to the mains power, pull the plug out of the plug socket immediately! Only after this should you retrieve the device from the water.
- Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.

WARNING - Risk of damage to the eyes and skin!

Germicidal ultraviolet rays are harmful to the eyes and skin. Never expose yourself or other people and animals to direct or reflected rays! If you come into contact with the rays, consult a doctor immediately.
Make sure that the safety switches of the UV-C lamp are not blocked!

WARNING - Danger of Injury

• Keep children and animals away from the packaging material. There is a danger of suffocation.
• Lay the connecting cable in such a way that it does not present a trip hazard.
• Keep animals, hair, jewellery, wide clothing, fingers and all other body parts away from the suction opening of the device. They could become stuck.

WARNING - Danger of Fire

• Do not cover the device during operation in order to prevent it from catching fire. Do not insert anything into the openings of the device and make sure that they and the ventilation slots do not become clogged or covered.

NOTICE - Risk of Damage to Material and Property

Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
Only use suitable extension cables whose technical data is the same as that of the device.

Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
The device must be switched off when inserting or removing the mains plug.
Pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
Always pull the mains plug and never the mains cable to disconnect the device from the mains power. Never pull or carry the device by the connecting cable.
- Protect the device from heat, naked fl ames, sub-zero temperatures, persistent moisture and impacts.
- Do not try to lubricate the castors with lubricant or oil. This would cause dust and dirt to increasingly adhere to the castors.
Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
Do not place heavy objects on the device or the connecting cable.

SAFETY DEVICES

The device has two safety switches (8, 14). The UV-C lamp (15) only switches on if both safety switches are pressed into the motor unit (4) (automatic switch-off function of the UV-C lamp deactivated). This happens automatically when the device is placed on a fl at surface. If the safety switches lose contact with the surface below, the automatic switch-off function is activated and the UV-C lamp stops being lit (automatic switch-off function of the UV-C lamp activated).

TIPS AND HINTS

Always clean mattresses on both sides.
- We recommend cleaning new mattresses once a month. Older mattresses should initially be cleaned every day for a week. We then recommend cleaning them once a month.

USE

Please Note!

The device should only be used if it has been fully and correctly assembled! The dust container and the fi liters must be inserted and must not be damaged! If the dirt were to get inside the motor unit, this could damage the motor.
Make sure that the safety switches of the UV-C lamp are not blocked!

1. Plug the mains plug into a plug socket.
2. Place the device down fl at on the surface which is to be cleaned.
3. Press the On / Off switch (2) to switch on the device. The device starts to vacuum and the UV-C lamp (15) and the pulse roller (11) switch on.

The rotation and vibration of the pulse roller shakes up the surface which is to be cleaned and the dust which is agitated is sucked in through the suction opening (10).

1. Guide the device very slowly and evenly over the surface which is to be cleaned.
2. After vacuuming, press the On / Off switch to switch off the device.
3. Pull the mains plug out of the plug socket.

CLEANING AND STORAGE

Please Note!

Empty the dust container each time after you use the device. The fi Iters must also be regularly cleaned in order to prevent overloading of the motor.
- Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surface.

• Make sure that the mains plug has been pulled out and the device is disconnected from the power.
• Wipe down the motor unit (4) if necessary with a damp soft cloth. Then dry with a soft cloth.
• Wipe out the recess for the dust container (5) with a duster.

Cleaning the Dust Container and Filters

1. Grab the dust container (5) and pull it up and out of the motor unit (4).
2. Pull the filters (1, 6) out of the dust container.
3. Empty the dust container.
4. Wipe out the dust container with a dry duster if necessary.
5. Unscrew the metal fi Iter from the EPA fi Iter clockwise. Tap out both fi Iters and clean them with a soft brush if necessary. Please Note: For thorough cleaning, the fi Iters can be rinsed under running, cold (!) water. NOTICE: Allow the fi Iters to dry completely before the device is reassembled.
6. Screw the metal fi Iter anticlockwise onto the EPA fi Iter and insert them both into the dust container.
7. Insert the dust container into the motor unit. It must engage audibly.

Cleaning the Pulse Roller

1. Release the two locking catches (9, 13) on the cover (12) with a coin or another fl at object (note the lock symbols).
2. Take off the cover.
3. Take out the pulse roller (11).
4. Wipe down the pulse roller and the compartment with a damp soft cloth if necessary. Then dry with a soft cloth. NOTICE: Allow the pulse roller to dry completely before the device is reassembled.
5. Place the pulse roller on the motor shaft and press into the compartment.
6. Place the cover back on. When you do this, make sure that all four locking lugs sit in the respective recesses at the front.
7. Close the locking catches again with a coin or similar object (note the lock symbols).

Cleaning the UV-C Lamp

Please Note!

The UV-C lamp will become hot during use. Allow the UV-C lamp to cool sufficiently after using the device. There is a danger of burns!

1. Undo the screw on the cover (7) of the UV-C lamp (15) and take off the cover.
2. Wipe down the UV-C lamp with a dry duster. NOTICE: Make sure that you do not touch the UV-C lamp with your fingers!
3. Place the cover back on and fix it with the screw.

Removing the UV-C Lamp

1. Carefully twist the holders on the sides of the UV-C lamp (15) until the slot is pointing upwards and the contacts are visible.

2. Carefully lift up the UV-C lamp and pull it out of the holders.

3. Carefully insert a new UV-C lamp and twist the holders a little so that the UV-C lamp is fixed in place.

NOTICE: Make sure that you do not touch the UV-C lamp with your fingers!

Storage

Store the device in a cool, dry place which is protected from direct sunlight and is out of the reach of children and animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device generates no suction.

The mains plug is not inserted in the plug socket correctly.

Correct the fit.

The plug socket is defective.

Try another plug socket.

There is no mains voltage.

Check the fuse of the electrical distributor (fuse box).

The device is not switched on.

Press the On/Off switch (2).

Low suction force.

The dust container (5) is too full.

Empty the dust container.

The fi Iters (1, 6) are dirty.

Clean the filters.

The suction opening (10) is blocked.

• Switch off the device, pull the mains DISPOSAL plug out of the plug socket and remove the blockage. Please Note!

The UV-C lamp (15) does not light up.

The automatic switch-off function of the UV-C lamp has been activated.

Check the safety switches (8, 14) (see the "Safety Devices" chapter).

Unusual odour

The device is being used for the first time.

A new odour is normal when the device is used for the first time; it disappears after a while.

Please Note!

The UV-C lamp should be removed prior to disposal of the device and disposed of separately from the device. Notes on how to remove the UV-C lamp can be found in the "Cleaning and Storage" chapter - "Removing the UV-C Lamp".

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

TECHNICAL DATA

Article number: 01935

Model number: BST-721A

Power supply: 220 - 240V 50 - 60Hz

Power: 300 W

Protection class: II

Rotational speed: up to 12800 rpm

Suction force: 10kPa

ID of operating instructions: Z 01935 M DS V1 0321 uh

All rights reserved.
