Product Type	Range Hood
Brand	Jenn-Air
Model	JXW9048HP
Width	121.9 cm (48 in)
Height	47.8 cm (18 13/16 in)
Depth	45.7 cm (18 in)
Electrical Rating	120 V AC, 60 Hz, 15 A
Halogen Lamp Rating	50 W max (GU10 base)
Infrared Lamp Rating	175 W max (E-26 base, PAR38)
Number of Fan Speeds	4 (Low, Medium, Medium-High, High)
Duct Type	Round 10 in (25.4 cm) metal recommended
Grease Filters	4 dishwasher-safe metal filters
Drip Tray	Removable and washable
Safety Device	Thermal overload protection
Surface Material	Stainless steel
Optional Accessories	Full-width duct cover, backsplash kit with shelves
Customer Service (Canada)	1-800-JENNAIR (1-800-536-6247)
Installation	Wall mount, external exhaust required
Country of Origin	Not specified

Frequently Asked Questions - JXW9048HP JENN-AIR

How to install the JXW9048HP hood?

Installation requires two people. First, attach the wood support to the wall at a height of 30 to 36 in (76.2-91.4 cm) above the cooking surface. Install the 10 in (25.4 cm) metal duct and connect the 120 V power supply. Follow the steps in the manual to mount the hood and connect the fan motor.

How to clean the grease filters?

The metal filters are removed by pulling the handles forward. Wash them in the dishwasher or by hand with warm detergent. The drip trays are cleaned the same way. Dry thoroughly before reinstalling.

What type of bulb to use for halogen lamps?

Use 120 V, 50 W max halogen bulbs with GU10 base. Replace them by pushing the glass plate upward and turning counterclockwise. Avoid touching the bulb with bare fingers.

How to replace the infrared lamps?

Use 120 V, 175 W max PAR38 IR lamps with E-26 base. Unscrew the old lamp counterclockwise, replace, and screw clockwise. Wait for cooling before handling.

What to do if the hood shuts off during use?

This is due to the thermal protection device. Set the fan switch to Off, wait about 60 minutes, then set to position 1 (Low) to restart. If the problem persists, check the circuit breaker or contact service.

What is the duct diameter?

A 10 in (25.4 cm) round duct is required. Use rigid metal only. The maximum equivalent length is 60 ft (18.3 m) with a maximum of three 90° elbows.

Can I use flexible duct?

No, the manual advises against flexible duct as it reduces performance by creating turbulence. Use rigid metal duct for efficient and quiet operation.

How to maintain stainless steel surfaces?

Do not use steel wool pads. Rub in the direction of the grain with a stainless steel cleaner or mild liquid detergent, rinse with clean water, and wipe with a soft cloth.

Where to find replacement parts?

Order factory specified parts from Jenn-Air. In Canada, call 1-800-JENNAIR (1-800-536-6247) or visit www.jennair.ca. Accessories such as the duct cover (W10272081 for 48 in) or backsplash (W10285449) are available.

What is the minimum height between the hood and the cooking surface?

The minimum distance X is 30 in (76.2 cm); the suggested maximum distance is 36 in (91.4 cm). Follow these measurements for optimal ventilation and safety.

USER MANUAL JXW9048HP JENN-AIR

JENNAIR® 30", 36", AND 48" (76.2 CM, 91.4 CM, AND 121.9 CM) COMMERCIAL STYLE WALL-MOUNT CANOPY RANGE HOOD

HOTTE DE CUISINIÈRE JENNAIR® DE STYLE COMMERCIAL POUR POUR MONTAGE MURAL DE 30", 36" ET 48" (76,2 CM, 91,4 CM ET 121,9 CM)

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

JENNAIR

LI3UND/W11280191B

TABLE OF CONTENTS

RANGE HOOD SAFETY....3

INSTALLATION REQUIREMENTS....5

Tools and Parts....5

Location Requirements....5

Venting Requirements....7

Electrical Requirements 8

INSTALLATION INSTRUCTIONS....8

Prepare Location....8

Install Range Hood....9

Install Range Hood Blower Motor....9

Make Electrical Connection....10

Complete Installation and Check Operation ....11

RANGE HOOD USE....12

Range Hood Controls 12

RANGE HOOD CARE....13

Range Hood Lamps....13

Cleaning 13

WIRING DIAGRAM....14

ASSISTANCE OR SERVICE....15

In the U.S.A. 15

In Canada....15

Accessories....15

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....16

EXIGENCES D'INSTALLATION ....18

INSTRUCTIONS D'INSTALLATION....21

ASSISTANCE OU SERVICE....29

Au Canada....29

Accessoires....29

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented to the outdoors.

CAUTION: For General Ventilating Use Only. Do To Exhaust Hazardous Or Explosive Materials And Vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside -Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING ^a :

■ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - You may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if: - You know you have a Class ABC extinguisher, and you already know how to operate it. - The fire is small and contained in the area where it started.

Not Use The fire department is being called.

- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
This appliance is not intended for use by people (including children) whose physical, sensory or mental capacities are different or impaired or who lack the necessary experience or knowledge/expertise to do so, unless such persons are supervised or are trained to operate the appliance by a person who accepts responsibility for their safety.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Level

Drill

■1¼" (3 cm) drill bit

■ 1/8" (3 mm) drill bit if installing into wood and a 5/16" (8 mm) drill bit if installing optional backsplash kit.

Pencil

■Wire stripper or utility knife

■Tape measure or ruler

■Pliers

■Caulking gun and weatherproof caulking compound

■Vent clamps

■Jigsaw or keyhole saw

■Flat-blade screwdriver

■Metal snips

■Phillips screwdriver

■Scissors

Parts needed

■Home power supply cable

■1 - 1/2" (12.7 mm) UL listed or CSA approved strain relief

■3 UL listed wire connectors

■1 wall or roof cap

■Metal vent system

Parts supplied

Remove parts from packages. Check that all parts are included.

■2 metal grease filters for 30" (76.2 cm) models

■3 metal grease filters for 36" (91.4 cm) models

■4 metal grease filters for 48" (121.9 cm) models

■Damper

■Hood canopy with blower and halogen lamps installed.

■1 - 10" (25.4 cm) square to 10" (25.4 cm) round duct transition.

■2 - 175 W infrared heat lamps

■Wood support

■Grease collectors

■4 - 6 x 80 mm mounting screws

■4 - 3.5 x 9.5 mm screws

■6 - 4.2 x 19 mm screws

■5 - M6 x 16 mm screws

■5 - D6.4 x 11 mm washers

■2 - D5.3 x 20 mm washers

■2 - 10 x 50 mm wall anchors

■T20 ^® TORX ^®† adapter

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located inside the range hood on the rear wall of the range hood.

Canopy range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

The canopy range hood is factory set for venting through the roof or through the wall.

All openings in ceiling and wall where canopy range hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

Product Dimensions

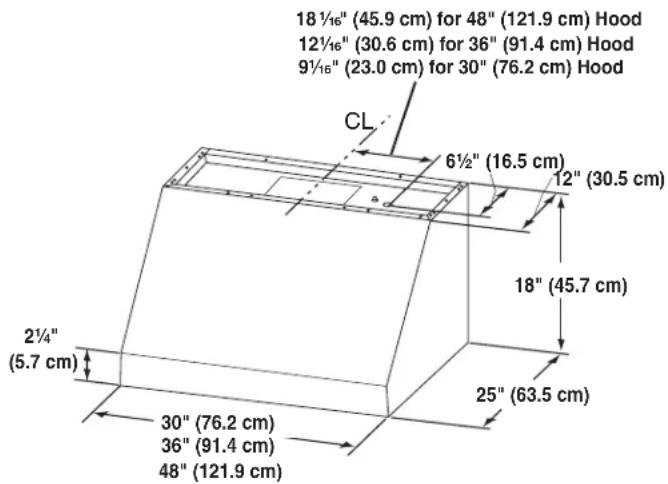

Front view

18 ½" (45.9 cm) for 48" (121.9 cm) Hood 12 ½" (30.6 cm) for 36" (91.4 cm) Hood 9 ½" (23.0 cm) for 30" (76.2 cm) Hood CL 6 ½" (16.5 cm) 12" (30.5 cm) 18" (45.7 cm) 2 ½" (5.7 cm) 25" (63.5 cm) 30" (76.2 cm) 36" (91.4 cm) 48" (121.9 cm)

†*TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC

Back view

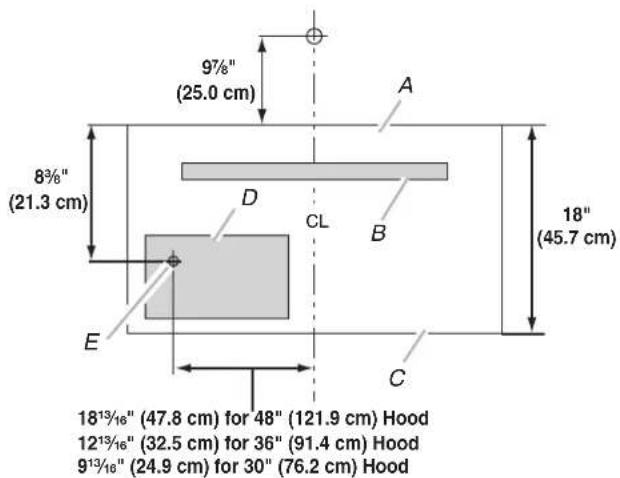

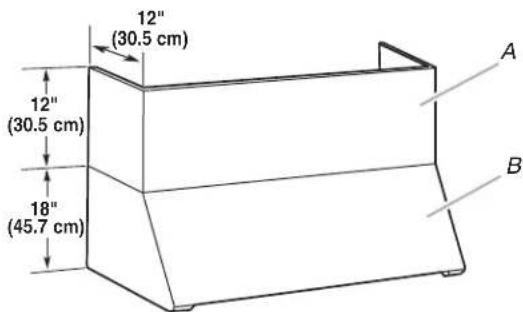

9½" (25.0 cm) 8¾" (21.3 cm) CL D B A 18" (45.7 cm) E C 18¹³/¹⁶" (47.8 cm) for 48" (121.9 cm) Hood 12¹³/¹⁶" (32.5 cm) for 36" (91.4 cm) Hood 9¹³/¹⁶" (24.9 cm) for 30" (76.2 cm) Hood

A. Top of hood
B. Wood support
C. Bottom of hood
D. Home wiring system
E. Knockout into terminal box

Optional Full-Width Duct Cover Installations

12" (30.5 cm) 12" (30.5 cm) 18" (45.7 cm) A B

A. Optional full-width duct cover
B. Range hood

Installation Dimensions

30" (76.2 cm), 36" (91.4 cm), or 48" (12cm) cabinet opening width (If installed between cabinets) Vent cover (if used) Min. cabinet opening width Canopy X Bottom of canopy to cooking surface 13" (33.0 cm) 18" (45.7 cm) min. clearance upper cabinet to countertop 36" (91.4 cm) countertop height A B

A. 84" (213.4 cm) minimum for installations with canopy only.
B. 96" (243.8 cm) minimum for installations with optional duct cover.

IMPORTANT:

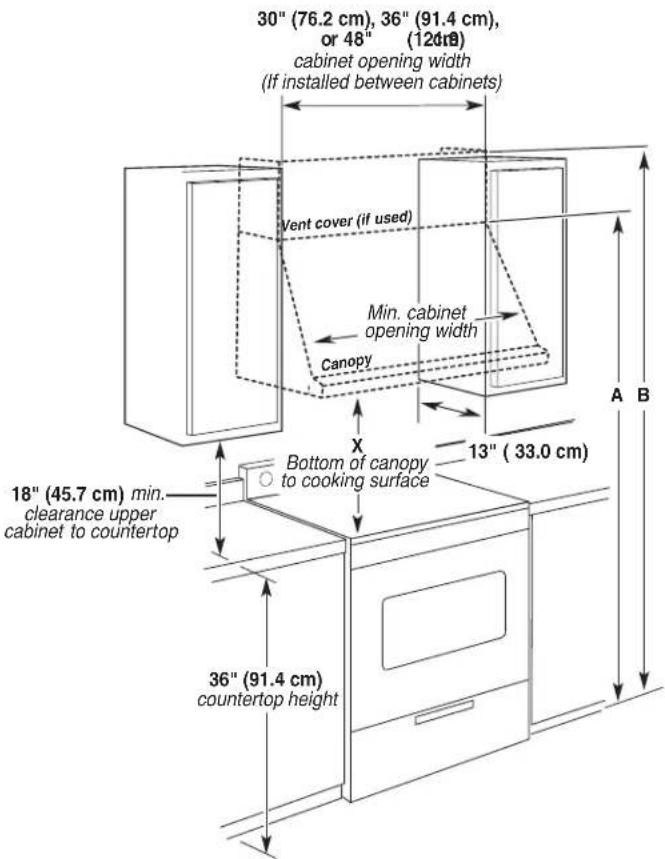

Minimum distance "X": 30" (76.2 cm)

Suggested maximum distance "X": 36" (91.4 cm)

Venting Requirements

■Vent system must terminate to the outdoors.
■Do not terminate the vent system in an attic or other enclosed area.
■Do not use 4" (10.2 cm) laundry-type wall caps.
■Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■Use no more than three 90° elbows.
■Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
■Do not install 2 elbows together.
■Use clamps to seal all joints in the vent system.
■The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
■Use caulking to seal exterior wall or roof opening around the cap.
■The size of the vent should be uniform.

Cold weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

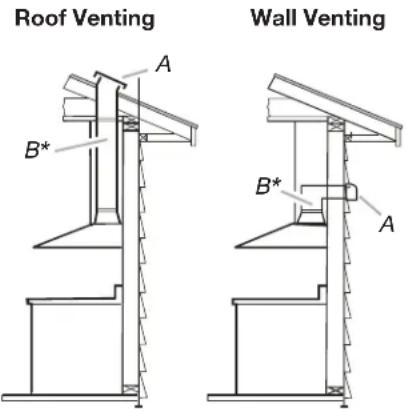

Venting Methods

A 10" (25.4 cm) round vent system is needed for installation (not included). The hood exhaust opening is 10" (25.4 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall.

A. Roof cap B. 10" (25.4 cm) round vent
A. Wall cap B. 10" (25.4 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece Equivalent Length

45° elbow 2.5 ft (0.8 m)

90° elbow 5.0 ft (1.5 m)

The maximum equivalent vent lengths are: 10" (25.4 cm) round vents - 60 ft (18.3 m)

Example vent system

90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum recommended vent length.

1 - 90° elbow	= 5.0 ft (1.5 m)
1 - wall cap	= 0.0 ft (0.0 m)
8 ft (2.4 m) straight	= 8.0 ft (2.4 m)

Length of system = 13.0 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■A 120 V, 60 Hz. AC only, 15 A, fused electrical circuit is required.

■If the house has aluminum wiring, follow the procedure below:

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the range hood.

■Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■It is recommended that the vent system be installed before hood is installed.
■If you are installing the optional backsplash with shelves for heat lamps, follow the instructions included with that product.
■Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
■Check that all installation parts have been removed from the shipping carton.

1. Disconnect power.
2. Determine which venting method to use: roof or wall exhaust.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.

Range Hood Mounting Screws Installation

The hood is attached to the wall with the wood support that is attached to the back of the hood.

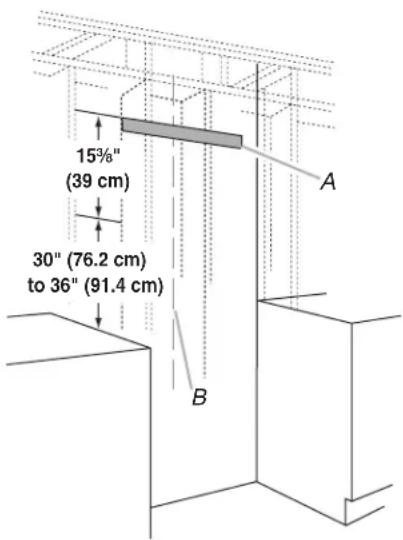

1. Determine and mark the centerline on the wall where the canopy range hood will be installed.

2. Select a mounting height between a minimum of 30" (76.2 cm) and a suggested maximum of 36" (91.4 cm) above the cooking surface and the bottom of the range hood, and mark a horizontal reference line on the wall.

3. Remove the wood support from the back of the range hood by loosening the 2 screws from the inside. Locate and level the top of the wood support 15^3/8 (39.1 cm) above the marked horizontal line and centered on the vertical centerline. Using 2 - 4 of the 6 x 80 mm screws, install wood support so that it is screwed into at least 2 vertical studs.

15% (39 cm) 30" (76.2 cm) to 36" (91.4 cm) A B

A. Wood support
B. Centerline

NOTE: The screws provided for mounting this hood must be fastened into solid wood. Do not fasten into sheet rock only.

Optional Duct Cover Installation

1. Attach the full-width duct cover to the top of the range hood with the screws provided with duct covers. The duct cover must be attached to the top of the range hood before mounting the range hood to the wall. For information on ordering the optional duct cover, see the "Accessories" section.

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the range hood. See the "Venting Requirements" section.
2. Determine the location where the power supply cable will be run through the wall.
3. Drill a 1¼" (3.2 cm) hole at this location.
4. Pull enough power supply cable through the wall to allow for easy connection to the terminal box.
5. Install the 10" (25.4 cm) square x 10" (25.4 cm) round vent transition with damper to top of the range hood using 4 - 3.5 x 9.5 mm screws.
6. Remove terminal box cover and set aside.
7. Remove knockout from the back of the vent hood and install a UL listed or CSA approved 1/2" strain relief. See "Make Electrical Connection" section.
8. Place the range hood near its mounting position and run the power supply cable through the strain relief into terminal box (enough to make connection).
9. Tighten the strain relief screws.

Install Range Hood

The hood attaches to the wall by the 2 mounting screws in the wood support mounted to the wall in "Range Hood Mounting Screws Installation" in the "Prepare Location" section.

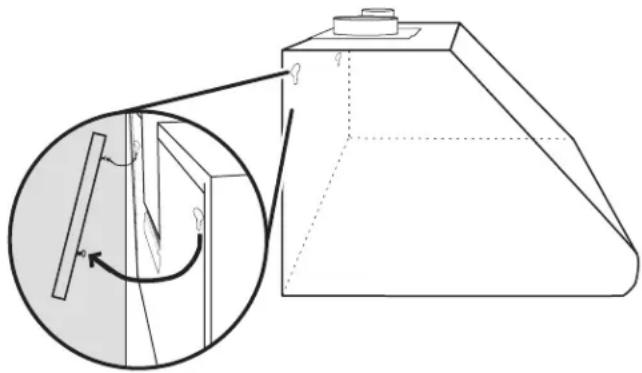

1. Using 2 or more people, hang the range hood on the wall by placing the slotted holes in the range hood back over the 2 screws mounted to the wood support mounted to the wall. NOTE: If your installation uses the optional duct cover, the vent system needs to be connected to the hood and the duct cover mounted to the top of the range hood before tightening the mounting screws. See steps 5 and 6.

Technical diagram of a mechanical component with an inset showing a rotating shaft and rotation arrow (no text or symbols)

1. Push the range hood up into the narrow slots, align the bottom of the hood to the horizontal line, level the hood, and tighten the 2 mounting screws.
2. Mark 2 lower mounting hole locations. Drill 1/8" pilot holes if the holes are located in wood. If holes are not located in wood, remove the hood and drill two 3/8" pilot holes and insert 10 x 50 mm wall anchors. Remount the hood, level, and tighten the upper screws. Install 2 - 6 x 80 mm screws into the lower mounting anchors and tighten.
3. Install 4 - 4.2 x 19 mm screws through the back of the hood into the wood support and tighten.
4. Connect vent system to hood. Seal all joints with clamps.
5. If your installation uses the optional duct cover, mount it to the top of the range hood following the instructions supplied with the duct cover.

Install Range Hood Blower Motor

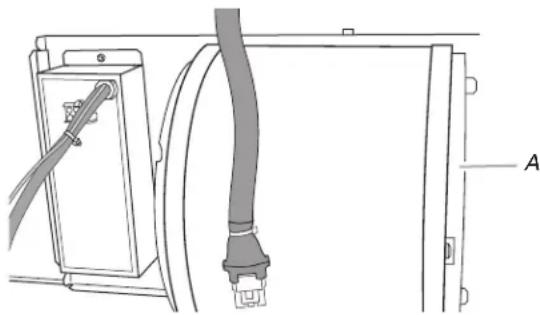

1. Install the range hood blower motor assembly inside the hood canopy with the wiring to the left.

Technical line drawing of a cable connector with labeled component A (no text or symbols beyond label)

A. Blower motor

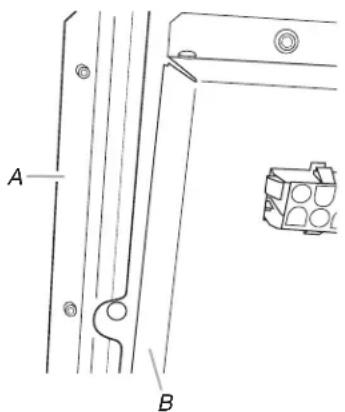

1. Slide the left mounting plate flange under the bracket.

A B

A. Bracket
B. Mounting plate flange

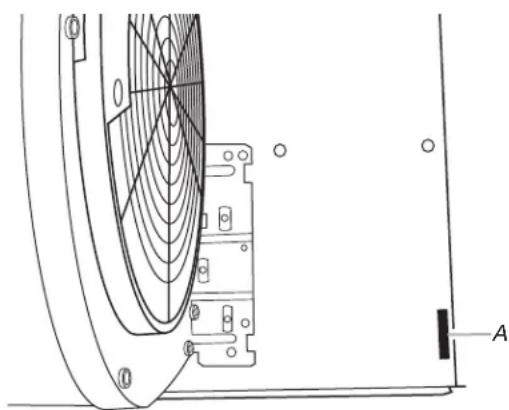

1. Push the right end of the mounting plate up and snap into spring tab.

NOTE: The spring tab should be outside of the slot in the mounting plate.

Technical line drawing of a mechanical component with curved internal structure and mounting points (no text or symbols)

A. Spring tab

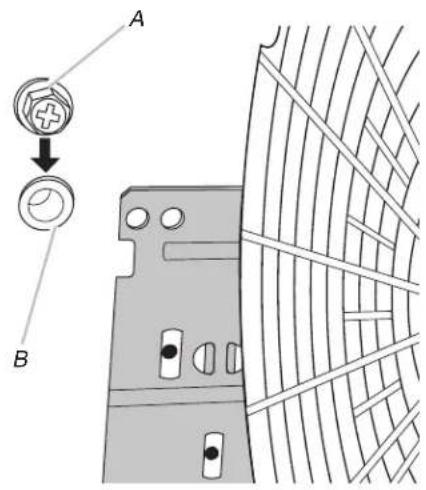

1. Align mounting holes and install 5 - 6 x 16 mm screws.

A B

A. Screw
B. Mounting hole

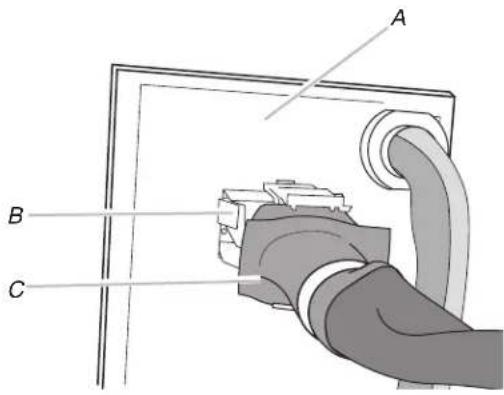

1. Attach power cord connector to connector on wire box on blower motor mounting plate.

A B C

A. Blower motor mounting plate
B. Wire box connector
C. Power cord

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Locate junction box inside of the range hood.

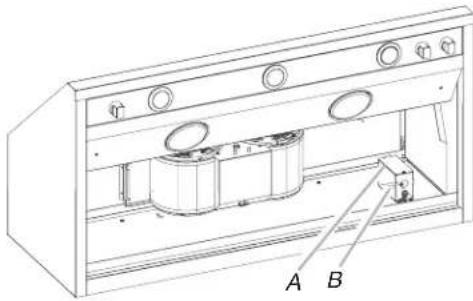

Technical line drawing of a laboratory apparatus with labeled components A and B (no text or symbols beyond labels)

A. Terminal box cover
B. Knockout in canopy back into terminal box

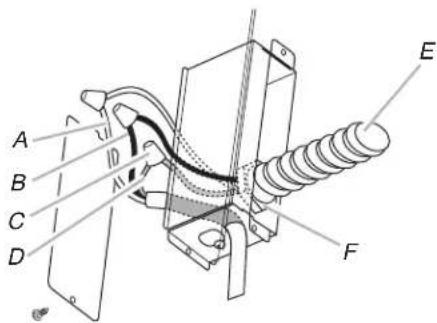

A B C D E F ID

A. White wires
B. Black wires
C. UL listed wire connectors
D. Green, bare or yellow/green wires
E. Home power supply
F. UL listed or CSA approved 1/2" strain relief

1. Use UL listed wire connectors and connect black wires (B) together.
2. Use UL listed wire connectors and connect white wires (A) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect green (or bare) ground wire from home power supply to the green/yellow ground wire (D) in terminal box using UL listed wire connectors.
2. Install terminal box cover.
3. Check that all light bulbs are secure in their sockets.
4. Reconnect power.

Complete Installation and Check Operation

1. Install grease filters. See the "Range Hood Care" section.
2. Install heat lamps into heat lamp sockets.
3. Check operation of the range hood blower and lights. See the "Range Hood Use" section.

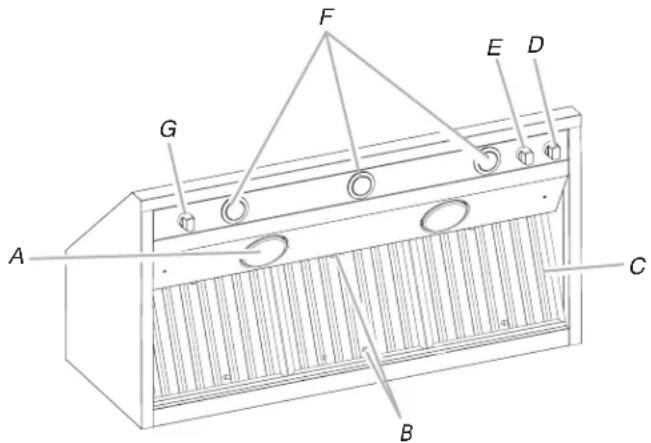

Technical diagram of a mechanical device with labeled components A through G, showing structural details and connections.

A. Infrared lamp
B. Grease filter handles
C. Grease filter
D. Blower control switch

E. Halogen light switch
F. Halogen lights
G. Infrared lamp controls

1. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power supply and check that the wiring is correct.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

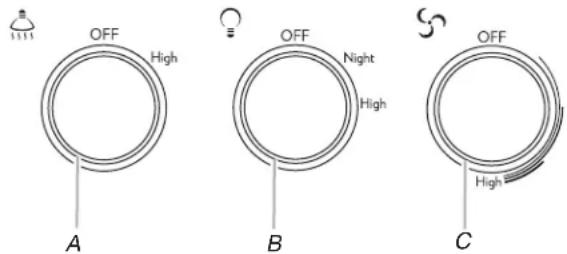

The hood controls are located on the right-hand underside of the range hood.

A. Infrared lamp switch

B. Halogen light switch

C. Blower control switch

Range Hood Controls

Operating the lights

1. Turn the light switch to the Night position to use the range hood lights as a night light.
2. Turn the light switch to the High position to turn the range hood lights On.
3. Turn the light switch to the Off position to turn the range hood lights Off.

Operating the blower

1. Turn the blower switch to the first position to turn the range hood on Low.
2. Turn the blower switch to the second position to turn the range hood on Medium.
3. Turn the blower switch to the third position to turn the range hood on Medium - High.
4. Turn the blower switch to the High position to turn the range hood on High.
5. Turn the blower switch to the Off position to turn the range hood blower Off.

Operating the heat lamp

NOTE: Heat lamp bulbs should be rated to a maximum of 175 W each.

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

1. Turn the heat lamp switch to the High position to turn the heat lamps On.
2. Turn the heat lamp switch to the Off position to turn the heat lamps Off.

RANGE HOOD CARE

Range Hood Lamps

Replacing a Halogen Lamp

Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new bulb, do not touch bulb with bare fingers. Replace bulb, using tissue or wearing cotton gloves to handle bulb.

If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.

2. Push up on the lens and turn it counterclockwise.

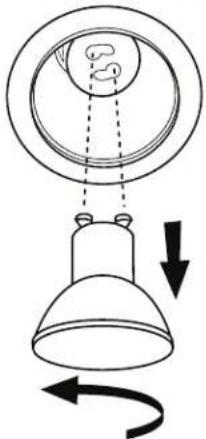

Diagram showing a hanging lamp with internal components and directional arrows indicating rotation or motion.

1. Remove the bulb and replace it with a 120 V, 50 W maximum halogen bulb with a GU10 base. Turn it clockwise to lock it into place.
2. Repeat steps 2 and 3 for the other bulb if needed.
3. Reconnect power.

Replacing the Infrared Heat Lamps

Turn off the range hood and allow the infrared heat lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch lamp with bare fingers. Replace lamp, using tissue or wearing cotton gloves to handle lamp.

If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.
2. Twist lamp counterclockwise to remove.

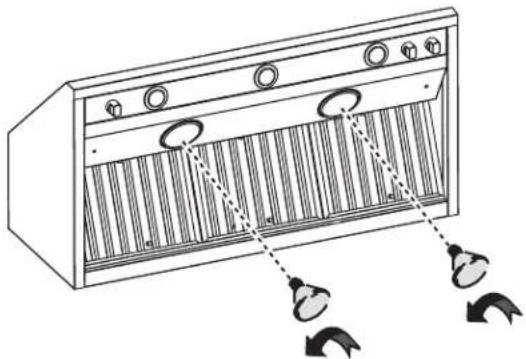

Line drawing of a kitchen appliance with ventilation grilles and hanging fixtures (no text or symbols)

1. Remove the lamp and replace it with a 120 V, 175 W maximum, PAR38 IR lamp made for E-26 base. Twist lamp clockwise to screw it into place.

2. Repeat steps 2 and 3 for the other lamp if needed.

3. Reconnect power.

Cleaning

Exterior surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads. Rub in direction of the grain line to avoid scratching the surface.

Always wipe dry to avoid water marks.

■Stainless Steel Cleaner and Polish.
■Mild liquid detergent and water.
■Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

Metal Filters and Drip Trays:

Use 2 hands to remove filters. Grasp filter handles, pull toward the front of range hood and pull down on the rear handle to remove. Repeat for each filter.

A

A. Grease filter

Remove grease drip tray.

Simple line drawing of a hand holding a rectangular object above two horizontal lines, with label 'A' pointing to the object (no text or symbols on the object itself)

A. Drip tray

Wash metal filters and grease trays as needed in dishwasher or hot detergent solution to clean.

Replace grease drip tray.

Reinstall filters, grasp filter handles and place front edge of filter into the hood. Push up on the back handle and set rear of filter into the drip tray to secure. Repeat for each filter.

A

A. Grease filter

Thermal Protector

The range hood is equipped with a thermal protector to avoid overheating conditions. If the range hood shuts off while in use, move the blower switch to the Off position. Wait approximately 60 minutes, then move the blower switch to the first position to restart the range hood.

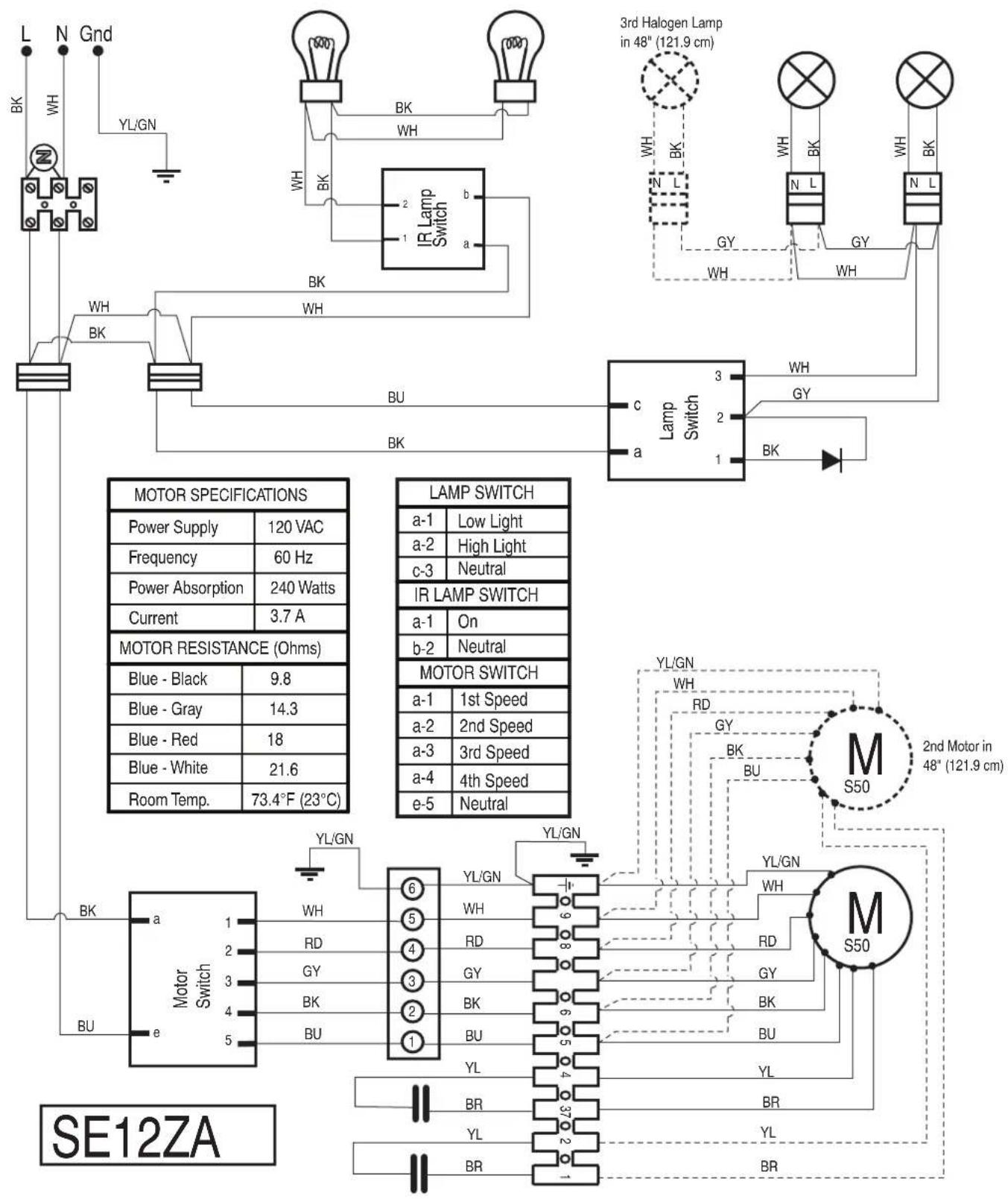

WIRING DIAGRAM

L N Gnd BK WH YL/GN N B W WK BH WL B WK WH IR Lamp Switch b a 2 1 3rd Halogen Lamp in 48" (121.9 cm) WH BK WH BK WH BK N L GY WH WH GY WH c a Lamp Switch 3 2 1 WH GY BK MOTOR SPECIFICATIONS Power Supply 120 VAC Frequency 60 Hz Power Absorption 240 Watts Current 3.7 A MOTOR RESISTANCE (Ohms) Blue - Black 9.8 Blue - Gray 14.3 Blue - Red 18 Blue - White 21.6 Room Temp. 73.4°F (23°C) LAMP SWITCH a-1 Low Light a-2 High Light c-3 Neutral IR LAMP SWITCH a-1 On b-2 Neutral MOTOR SWITCH a-1 1st Speed a-2 2nd Speed a-3 3rd Speed a-4 4th Speed e-5 Neutral YL/GN WH RD GY BK BU M S50 2nd Motor in 48" (121.9 cm) WL/GN WH YL/GN M S50 YL/GN RD GY BK BU M S50 YL/GN WH YL/GN M S50 YL/GN BR BR BR BR SE12ZA

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call JennAir Customer eXperience Center toll free:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Scheduling of service. JennAir ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local JennAir ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to JennAir®

Appliances with any questions or concerns at:

JennAir Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free at 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. JennAir ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local JennAir ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.

For further assistance

If you need further assistance, you can write to JennAir®

Appliances with any questions or concerns at:

JennAir Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Full-Width Duct Cover

Order Part Number W10272079 for 30" (76.2 cm) model

Order Part Number W10272080 for 36" (91.4 cm) model

Order Part Number W10272081 for 48" (121.9 cm) model

Backsplash Kit (with shelves)

Order Part Number W10285447 for 30" (76.2 cm) model

Order Part Number W10285448 for 36" (91.4 cm) model

Order Part Number W10285449 for 48" (121.9 cm) model

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

A B* B* A

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical line drawing of a mechanical component with an inset showing a rotating shaft and curved arrow (no text or symbols)

Technical line drawing of a cable connector with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with curved internal structure and mounting points (no text or symbols)

Technical line drawing of a laboratory apparatus with labeled components A and B (no text or symbols beyond labels)

Technical diagram of a mechanical device with labeled components A through G, showing structural details and connections.

Diagram of a lamp with a circular head and hanging lamp, showing rotational motion (no text or symbols)

Line drawing of a kitchen appliance with hanging lights and a rack, showing no text or symbols

Diagram showing a rectangular object with vertical lines and an arrow pointing upward, above parallel lines (no text or symbols)

A. Filtre à graisse

Hand holding a rectangular object above a horizontal line, labeled 'A' (no text or symbols on the object itself)

ASSISTANCE OU SERVICE
