| Product Type | Range |
| Brand | JENN-AIR |
| Model | JDS1750ML |
| Category | Gas Range with Oven |
| Height | 36 in (91.4 cm) |
| Width | 30 in (76.2 cm) |
| Depth | 25 in (63.5 cm) |
| Gas Supply | Natural gas (configurable to propane) |

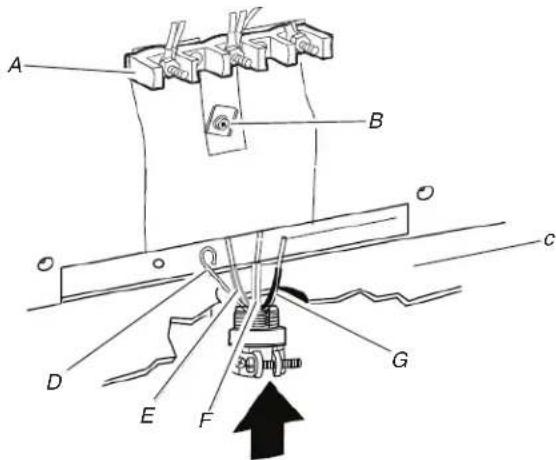

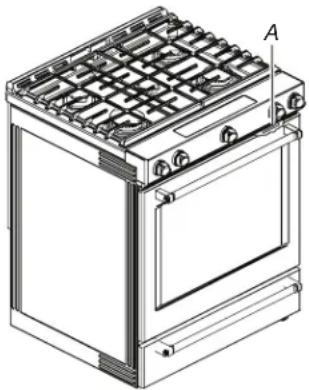

| Electrical Supply | 120/240 V, 40 A or 50 A |
| Surface Burners | 5 burners: very large (19,000 BTU), large, medium, small, auxiliary |
| Oven | Oven with AquaLift® Self-Cleaning Technology |

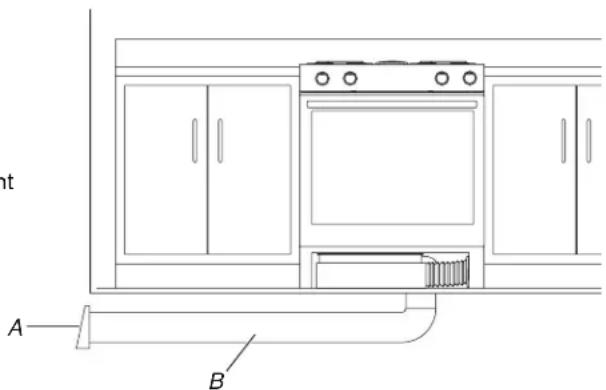

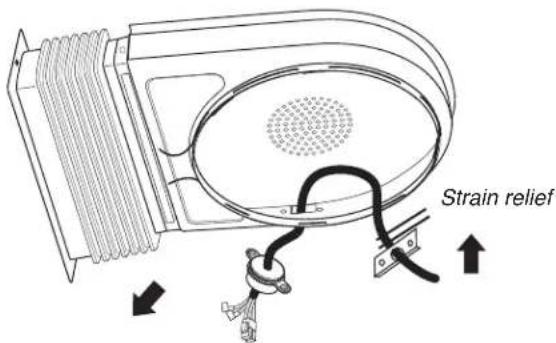

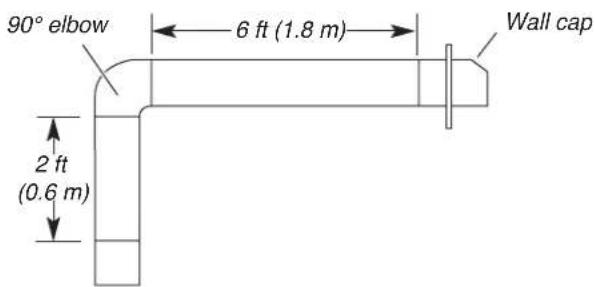

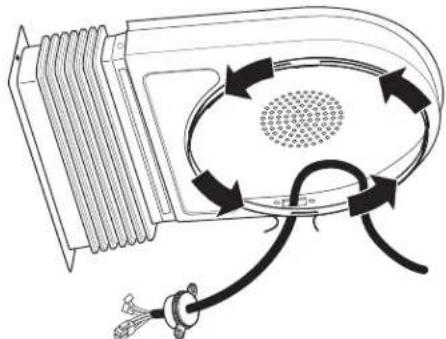

| Ventilation System | Downdraft (built-in blower) |
| Controls | Rotary knobs for burners, digital display for oven |
| Safety | Anti-tip bracket, manual shut-off valve, electronic ignition |
| Cleaning | AquaLift® (steam) cycle for oven; manual cleaning for burners and grates |
| Supplied Parts | Conversion kit, anti-tip bracket, wire connectors, conduit adapter |
| Repairability | Detailed instructions for moving, maintenance, and gas conversion |
| Installation Tools Required | Screwdriver, pipe wrench, level, drill, torque wrench |
| Country of Origin | Not specified |
Frequently Asked Questions - JDS1750ML JENN-AIR

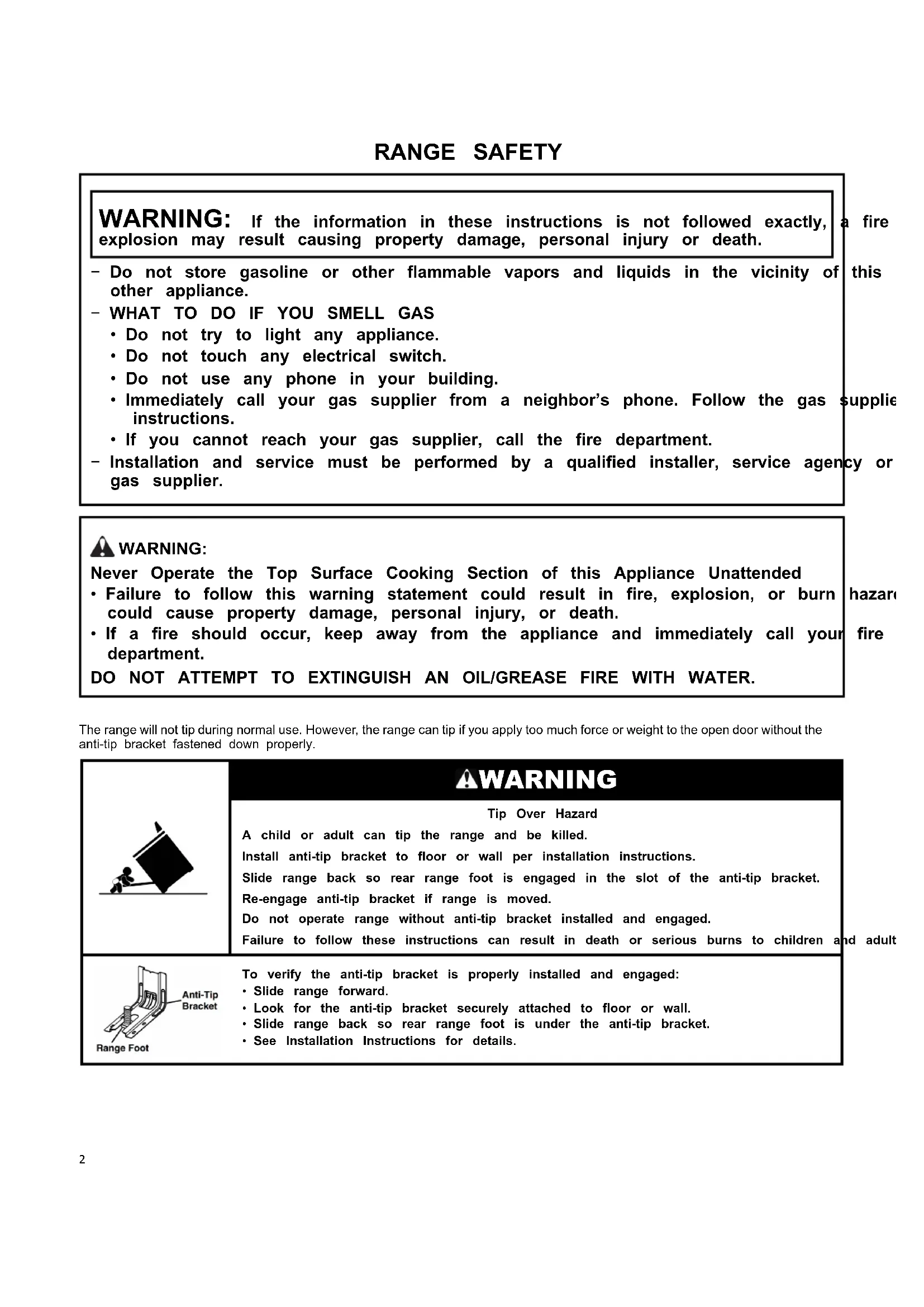

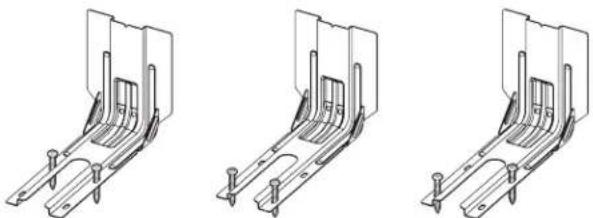

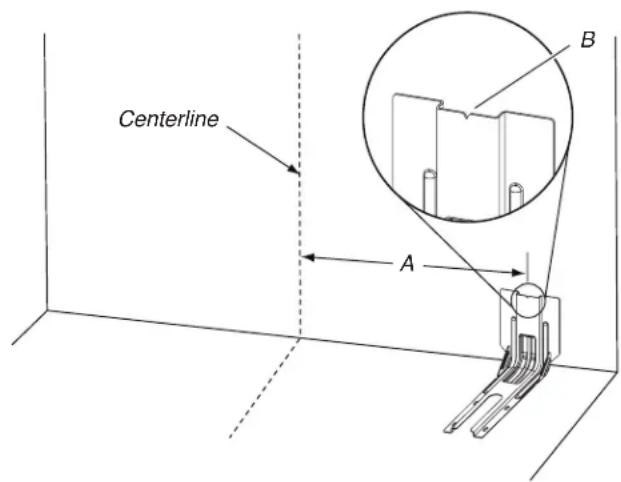

How to install the anti-tip bracket?

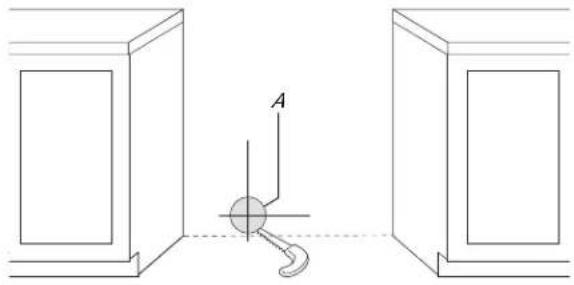

The anti-tip bracket must be fastened to the floor or wall using the two provided screws. Position the bracket so that the V-notch is 12.5 in (31.8 cm) from the center axis. Drill two 1/8 in (3 mm) pilot holes and screw firmly. Ensure the rear foot of the range engages in the bracket after installation.

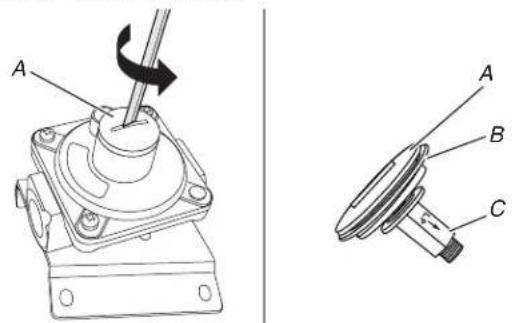

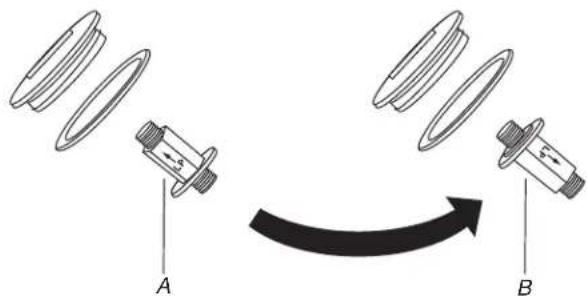

How to convert the range from natural gas to propane?

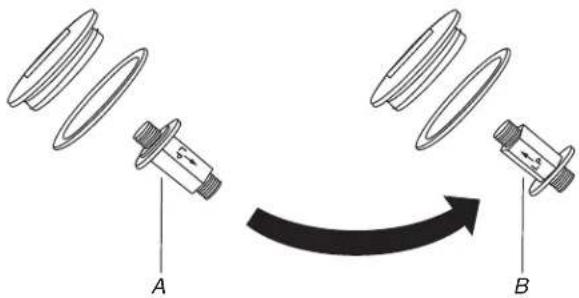

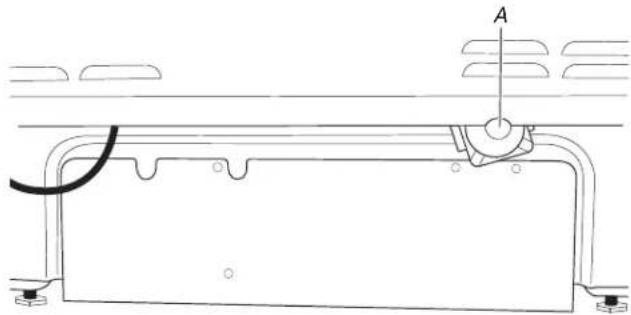

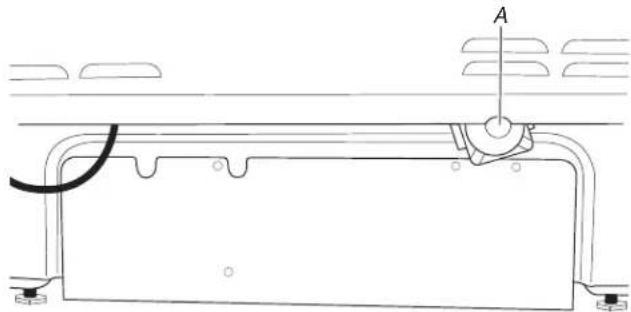

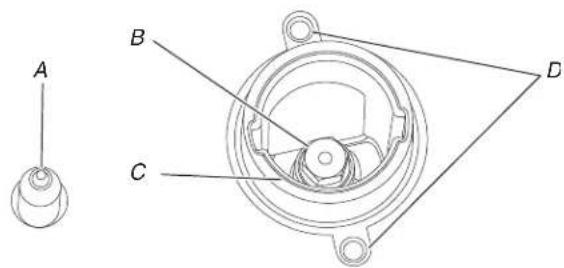

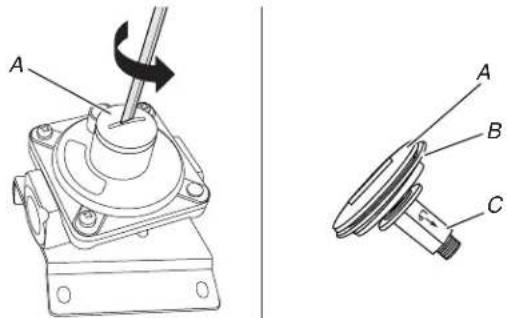

Close the shut-off valve and disconnect power. Flip the regulator cap to propane position. Replace burner nozzles with those from the conversion kit. Adjust the flame to minimum setting. Follow detailed instructions in the manual.

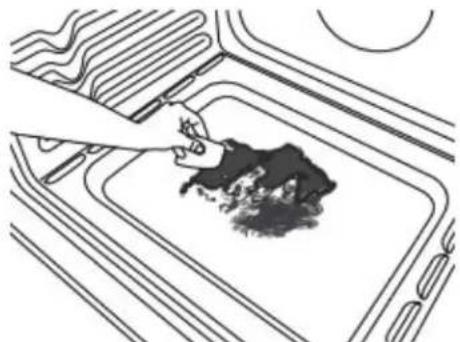

How to use the AquaLift self-cleaning cycle?

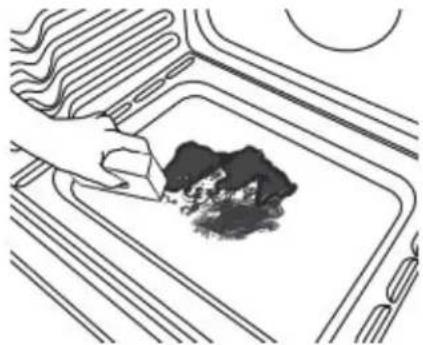

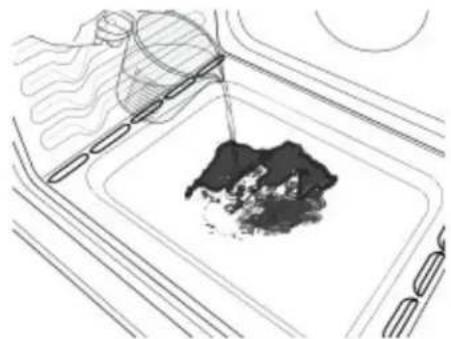

Remove all oven accessories. Pour 2 cups (500 mL) of distilled water on the oven floor. Close the door and press CLEAN/AQUALIFT SELF-CLEAN then START. The cycle lasts 40 minutes. After the beep, wipe off water and residues with a sponge. Do not use chemical cleaners.
What to do if you smell gas?
Do not try to light any appliance. Do not touch any electrical switch. Evacuate the area and call the gas supplier immediately from an outside phone. If the supplier is unreachable, call the fire department. Do not use a phone inside the building.
How to adjust the surface burner flame?
Remove the control knob. Use a small flat-head screwdriver to turn the screw in the center of the valve stem. Turn clockwise to increase the flame, counterclockwise to decrease. The minimum flame should be stable and blue, about 1/4 in (6 mm). Reinstall the knob and test.
How to remove and reinstall the oven door?
Open the door fully. Pinch the hinge latches forward. Close the door partially, then lift it off. To reinstall, insert the suspension arms into the slots, open the door fully, and return the latches to locked position.
What tools are needed for installation?
Phillips and flat-head screwdrivers, pipe wrench, level, drill with 1/8 in and 3/16 in bits, torque wrench, tape measure, marker, gas sealant. For gas conversion: 1/2 in wrench, 1/4 in and 9/32 in nut drivers.

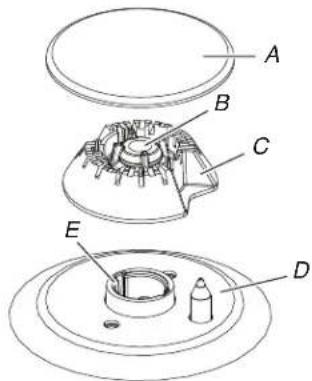

How to clean the burners and grates?
Allow to cool. Remove grates and caps. Use a non-abrasive plastic scrubbing pad with mild cleaner. Grates can go in the dishwasher (heavy-duty cycle). Never wash caps in dishwasher. Wipe burner bases with a damp cloth.
What if the range does not turn on?
Check that the circuit breaker is not tripped and the fuse is intact. Ensure the gas shut-off valve is open. Plug the range into a grounded outlet. If the display shows 'F9' or 'F9, E0', wiring may be defective: contact a qualified electrician.
How to safely move the range?
Close the gas shut-off valve and disconnect power. Slide the range onto cardboard to protect the floor. Disconnect the gas line. After moving, reconnect gas, open valve, and check for leaks. Re-engage anti-tip bracket and check leveling.
