Product Type	Evaporative Humidifier
Brand	AirCare
Model	Alliance H12400HB
Power Supply	120 V AC, 60 Hz
Tank Capacity	5.4 gallons (20.4 liters)
Fan Speeds	4 (F1 to F4)
Adjustable Humidity Range	25% to 65% RH
Wick Type	1045 Super Wick (included)
Optional Air Filter	1051 (sold separately)
Auto Shut-Off Function	Yes, by built-in hygrostat
Control Lock	Yes (long press 5 s)
Low Water Level Indicator	Code F
Wick Replacement Indicator	Code CF (after 720 h)
Housing Material	Plastic cabinet
Casters	4 removable casters
Recommended Cleaning	White vinegar or bleach (diluted)
Wick Replacement Frequency	Variable depending on water hardness (usually 1 to 3 months)
Warranty	2 years (parts), 30 days (wick)
Customer Service	800-547-3888 / [e-mail]
Country of Manufacture	Not specified

Frequently Asked Questions - Alliance H12400HB AirCare

How to install the AirCare Alliance humidifier?

Remove the unit from the packaging. Insert the 4 casters into the bottom of the cabinet. Place the float in the circular area at the bottom. Install the 1045 Super Wick with the BACK side facing the vent. Place the fan on the cabinet ensuring the float is connected to the switch. Fill the water bottle, screw on the cap, place it in the base with the cap down. Let the water drain twice, then put the bottle back. Close the lid, wait 20 minutes for the wick to saturate, then plug in and adjust.

How to adjust fan speed and humidity?

Turn the power knob to choose among 4 speeds (F1 slowest, F4 fastest). Turn the humidity control knob to set the desired level between 25% and 65%. The hygrostat on the cord stops the fan when the level is reached. Set to 65%, the unit runs continuously.

What do error codes F, CL and CF mean?

Code F: the unit is empty, fill the water bottle. Code CL: the controls are locked. Unlock by pressing and holding the power button for 5 seconds until CL appears again. Code CF: after 720 hours of use, indicates need to check the wick. If the wick is in good condition, unplug and replug to clear the code; otherwise, replace with a new one.

How to clean the humidifier?

Let the unit run until empty, then unplug. Remove all contents from the cabinet. Clean with a damp cloth. Empty remaining water. Fill the bottle halfway with water and add one cup of white vinegar, let sit for 20 minutes. To disinfect, use bleach instead of vinegar (do not mix). Rinse thoroughly and wipe with a dry microfiber cloth.

How often should I replace the wick?

The frequency depends on your water hardness. Typically, replace the wick every 1 to 3 months. Harder water requires more frequent changes. Using a bactericidal wick (ref. Enelk Air) can extend its life. Code CF appears after 720 hours (about 30 days of continuous use) to remind you to check the wick.

Can I use essential oils in the unit?

No, it is not recommended to use essential oils in the Alliance. They can damage components and promote microorganism growth. Use only tap or filtered water.

Where to place the humidifier for optimal efficiency?

Place the Alliance in the most central room of your home, on a flat surface against an interior wall. Ensure at least 2 inches (5 cm) of space behind the unit for the hygrostat to measure humidity correctly. Avoid placing under a shelf or in a corner.

What to do if the humidifier does not turn on?

Check that the unit is plugged into a working 120 V outlet and the power knob is pressed. Ensure the wick is saturated (wait 20 min after filling). If code F appears, fill the bottle. If the float is not correctly positioned, the unit may detect low water. Contact customer service if problem persists.

How to order spare parts?

Spare parts are listed on page 10 of the manual. You can order the 1045 Super Wick, 1051 air filter, float, float rod, casters, etc. Contact customer service at 800-547-3888 or visit aircareproducts.com. The warranty does not cover the wick beyond 30 days.

The humidifier is noisy, is that normal?

Yes, at high speeds (F3, F4), the Alliance produces louder fan noise. This is normal: it draws more air to increase humidification. Most customers understand it's an evaporative fan system. No operational issue.

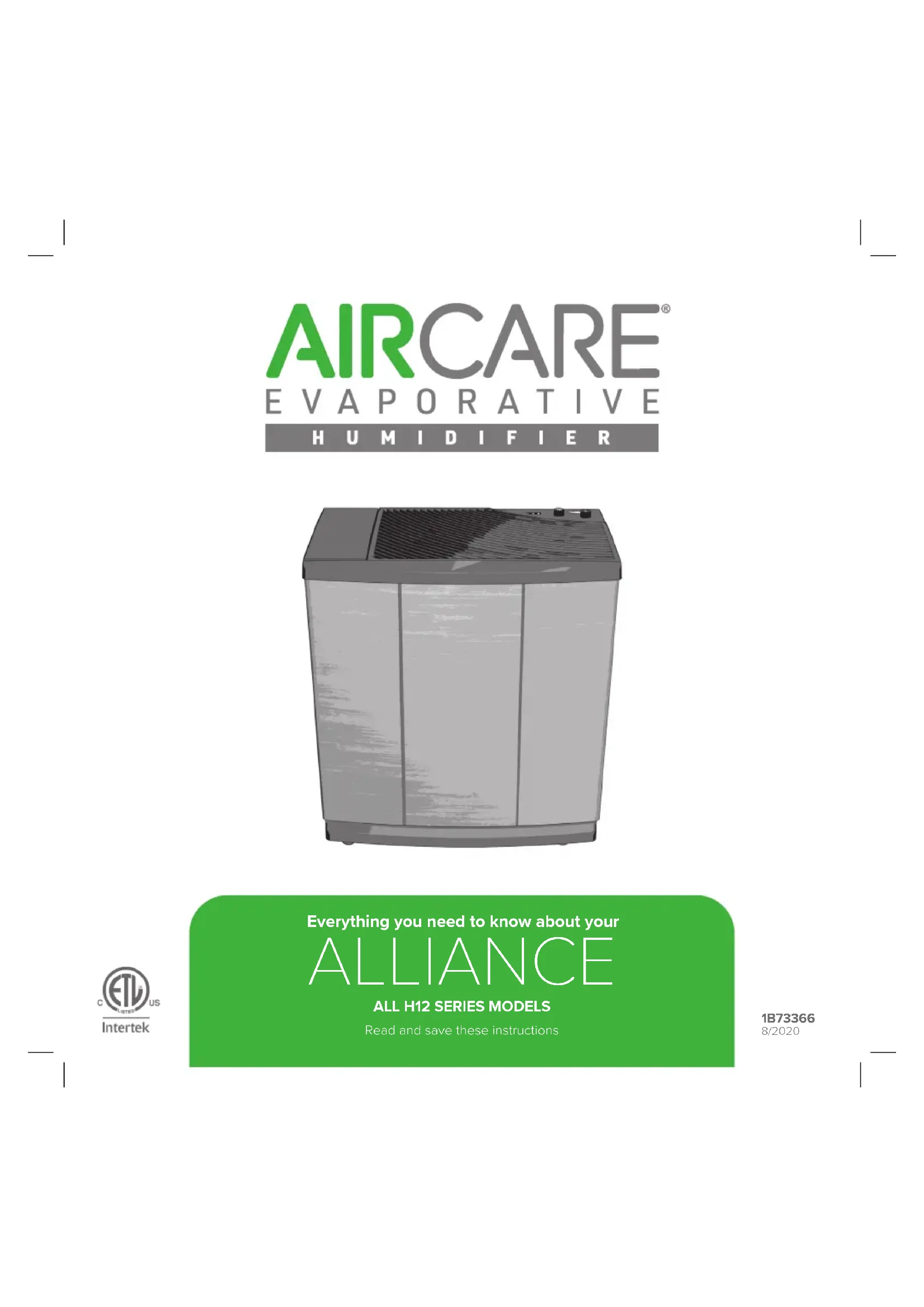

USER MANUAL Alliance H12400HB AirCare

Everything you need to know about your

ALLIANCE

ALL H12 SERIES MODELS

Read and save these instructions

1B73366

8/2020

IMPORTANT SAFETY INSTRUCTIONS - READ BEFORE USING YOUR HUMIDIFIER

WARNING: To reduce the risk of fire, electric shock, or injury, always unplug the unit before moving, filling, servicing, or cleaning. Do not pour or spill water onto the controls or motor area. If these get wet, let them dry completely and have unit checked by authorized service personnel before plugging in. Do not use the humidifier if any parts are damaged or missing. Contact us for replacement parts at 800.547.3888.

1. To reduce the risk of fire or shock hazard, this humidifier has a polarized plug (one blade is wider than the other). Plug humidifier directly into a 120V, A.C., electrical outlet. Do not use extension cords. If the plug does not fully fit into the outlet, reverse plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
2. Keep the electric cord out of traffic areas. To reduce the risk of fire hazard, never put the electric cord under rugs, near heat registers, radiators, stoves or heaters.
3. Always unplug the unit before moving, cleaning or removing the fan assembly section from the humidifier, or whenever it is not in service.
4. Keep the humidifier clean. To reduce the risk of injury, fire or damage to humidifier, use only cleaners specifically recommended for humidifiers. Never use flammable, combustible or poisonous materials to clean your humidifier 5. Do not put foreign objects inside the humidifier.
5. Do not allow unit to be used as a toy. Close attention is necessary when used by or near children.
6. To reduce the risk of electrical hazard or damage to humidifier, do not tilt, jolt or tip humidifier while unit is running.
7. To reduce the risk of accidental electrical shock, do not touch the cord or controls with wet hanes.
8. To reduce the risk of fire, do not use near an open flame such as a candle or other flame source.

HUMIDIFIER TWO-YEAR LIMITED WARRANTY POLICY

SALES RECEIPT REQUIRED AS PROOF OF PURCHASE FOR ALL WARRANTY CLAIMS

This warranty is extended only to the original purchaser of this humidifier when the unit is installed and used under normal conditions against defects in workmanship and materials as follows:
Two (2) years from date of sale on the unit and
- Thirty (30) days on wicks and filters, which are considered disposable components and should be replaced periodically. The manufacturer will replace the defective part/product, or its discretions, with return freight paid by the manufacturer. It is agreed that such replacement is the exclusive remedy available from the manufacturer and that TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGE OR LOSS OF PROFITS OR REVENUES. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Warranty Exclusions: We are not responsible for replacement of wicks and filters. We are not responsible for any incidental or consequential damage from any malfunction, accident, misuse, alterations, unauthorized repairs, abuse, including failure to perform reasonable maintenance, normal wear and tear, nor where the connected voltage is more than 5% above the nameplate voltage. We are not responsible for any damage from the use of water softeners or treatments, chemicals or descaling materials. We are not responsible for the cost of service calls to diagnose the cause of trouble, or labor charge to repair and/or replace parts. No employee, agent, dealer or other person is authorized to give any warranties or conditions on behalf of the manufacturer. The customer shall be responsible for all labor costs incurred. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
Obtaining Warranty Service: Within the limitations of this warranty, purchaser with inoperative units should contact customer service at 800.547.3888 for instructions on how to obtain service within warranty as listed above. This warranty gives the customer specific legal rights, and you may also have other rights which vary from province to province, or state to state. Register your product at www.aircareproducts.com.

LET'S GFT YOU UP AND RUNNING

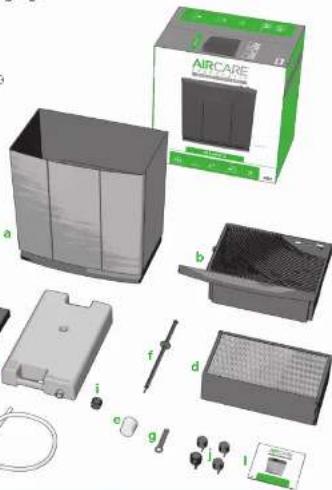

Remove the Alliance from its packaging. You should have:

a. Cabinet
12000134V5094200LER12300H4V5094200LER1260C#1872393
b. Fan assembly
1
C. Bottle cover (attached to the fan assembly)
d. 1045 Super Wick³ ALL 10's WECKS
e. Float
187675
f Float rod
44V50S82C13LKP
g. Float retainer (attached to your wick) 8173547
b. Water bottle

183

i. Bottle cap
Four casters
185460070
k. Fill hose
0
I. Owner's manual #187366

If you are missing any parts, or need replacement parts, call us at 800.547.3888 or visit our website aircareproducts.com.

We hope you love your Alliance.

Prefer to see a video?

Watch the Alliance setup at

elcareproducts.com/support

SCAN THE CODE TO THE RIGHT

WHTYHOP-008-5XMMFFA

Lift off the fan assembly and remove everything from the cabinet. Do not discard the cardboard box under the assembly. This box contains your float, float rod, bottle cover, and accessories bag.

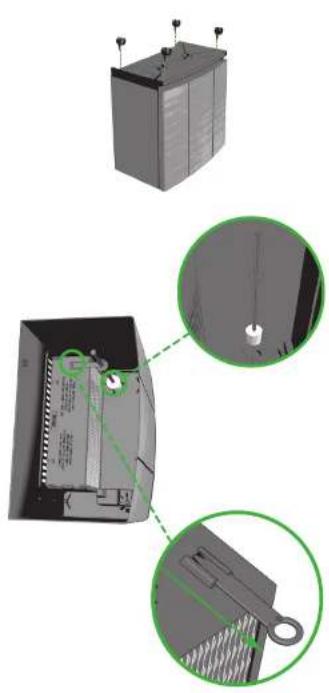

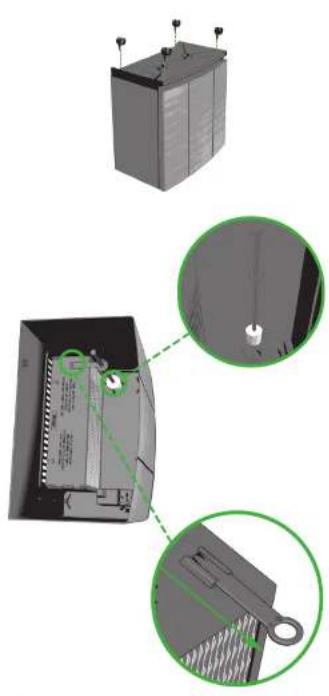

Turn the cabinet over and insert the casters snugly into the bottom. Just use your hands! Using tools can crack the cabinet.
Turn the cabinet upright and place the wide end of the float in the circular area in the bottom of the cabinet.
There is a retainer ring on top of your wick. Pull this to fully extend it.
6Locate the vent on the back of your Alliance. It has a narrow lip along the top. The top of your wick has raised lettering that says BACK. With the back of your wick facing the vent, slide the wick down onto the vent lip until it catches, slipping the float rod into the retainer ring as you go.

The AIRCARE 1051 air filter can be used with your Alliance for added air filtration. While your 1045 Super Wick is required for operation, the 1051 filter is optional. If you are using the 1051 filter, install it now. Install your 1051 air filter by clipping the filter's hooks into the slots on the back of your Alliance.
Put your Alliance in the most centrally located room of your home. It should be on a level surface against an interior wall. Make sure it's at least two inches from the wall so the humidistat (on the cord) can accurately read your humidity.

More about positioning:

to maximize humidity circulation, put your untnear a color air return
If you prefer to put your unit in the room where humidity is most needed, you can use the humidity won't calculate as well with this method.
- Don't put your humidifier under a window as condensation may occur
Put the unit on the pattern floor of a multi-story home.

Put the fan assembly on the cabinet. Make sure the float makes a solid connection with the fan switch inside the fan assembly. The fan switch looks like a small, silver diving board.
10 Fill your water bottle, then tighten the cap with your hands, making sure the cap is correctly threaded. Do not overfill the bottle.

11 Note the raised lettering on your bottle that says FRONT and REAR. Put the water bottle in the base with this lettering facing the fan, the front of the bottle facing the front of the Alliance, and the cap facing down.

12 Let the bottle drain completely into the cabinet, then remove the bottle and refill it. Put the bottle back into the cabinet. Filled twice like this, your Alliance holds 5.4 gallons of water.

About water additives:

Do not use essential oils in your Alliance.

Do not use wake-upers
We recommend our Essick Air Bacteriostat to help inhibit nodule growth.

Put the bottle cover on the fan assembly. Wait 20 minutes for the wick to become fully saturated, then proceed to step 14.

Plug in your unit and press the power knob (J). Set your desired fan speed by turning the power knob. Your Alliance has four fan speeds that are displayed by F1 (the lowest through F4 (the highest speed).

Note: On higher episodes, the Alliance puts out a tremendous amount of humility, as it's quest for on these levels. Most of our customer likes to the sound of a box fan. Res: assured there is nothing wrong with your unit. It's just working very hard to put out more needed humility.

Turn the humidity control knob to set your humidity level from 25% to 65% . The humidistat on your cord will read your home's humidity and turn your fan off when the is reached. When set to 65% , your unit will run continuously.

ABOUT THE CODES

F- The F code means your unit is empty and needs to be FILLED with water.

CL-Your CONTROLS ARE LOCKED on the current setting. Activate the control lock by holding the power button for five seconds, until CL appears. Your Alliance will lock on the current fan and humidity settings. Release the lock by pressing the power button again for five seconds until the display flashes CL three times, letting you know the lock is off.

CF - The CF code triggers effect 720 hours of use and means it's time to CHECK YOUR FILTER WICK. Unplugging your unit and check your wick. If your wick is still in good shape, simply clear the code by plugging your humidifier back in. If your wick needs replacing, install a new 1045 Super Wick.

HOW TO CLEAN YOUR ALLIANCE

Regular cleaning is important for preventing mold, mildew, and other bacterium growth. In your humidifier, it also keeps your Alliance working its best.

1. Let the unt run until it's empty, then turn it off and unplug it.
2. Remove everything from the cabinet. In your your snack away if it is time to replace it. Otherwise, put it in a sink while you finish cleaning your面容.
3. Four out any remaining water from the cabinet and water bottle.
4. Fill the cabinet with full water and 600 L cup of white vinegar. Let it for 20 minutes, to desorb, replace the vinegar with leucopan of bleach. Do not mix vinegar and bleach.
5. Fill the water bottle half full with water and hold it up to white vinegar. Put the cap back on, shake the bottle gently, then let it sit for 20 minutes. To disinfect, replace the vinegar with a suspension of biocide in each bottle.
6. After 20 minutes, empty the balloon and breathe
7. Dampen a sponge with white vinegar and wipe down the cabinet, bottle, and floor rod (this the Fitzpatrick tool with water only). Rinse everything thoroughly. To disinfect, replace the vinegar with bleach. Wipe down the bottle, floor rod, and cabinet interior only.
8. Wipe every thing dry and replace the wick if needed. Then reassemble.

When storing your Alliance, discard the used wick and disinfect the unit using the directions above. Dry the unit thoroughly, and store in a temperature-sequenced area. Do not insall it new wick until you are ready to use your humidifier again.

FOIRE AUX QUESTIONS

aircareproducts.com/support

ESCAREA DELDIDOCA LA DERECHA SOLLIL A COMRADE DE SLIDELE

Frequently Asked Questions

Where is my serial number?

Your serial number is on the sticker on the back of your fan assembly. You can write it here for future reference:

Why isn't my unit running?

Make sure your fan assembly is seated correctly. (SEE STEP 9)

• Your unit has reached your set humidity level.

The display is flashing "20," what does this mean?

Your humidity level is below 20% . Try increasing your fan speed and output level.

The display is flashing"--," what does this mean?

Your humidity level is over 90% . Try lowering your fan speed and output level.

Why isn't my humidity increasing?

• It can take 2-3 days for your new humidifier to bring your humidity up, especially if it is very dry in your home.

If your wick is old, replace it with a new one.

Why is my Alliance flashing "F" when it has water in it?

Try adjusting your float.(SEE STEP 6)

How often should I replace my wick?

Your water's mineral content dictates how often your wick needs replacing. Harder water means more frequent changes. Using our Bacteriostat (part #1970) can help keep your unit cleaner and lengthen the life of your wick. Always change your wick at the beginning of every season.

Can I order replacement parts?

Yes! Your Alliance's parts and their part numbers are listed on page 2.

For any other questions or issues, contact our humidifier experts!

They are ready by phone, email, or chat.

AIRCARE

800.547.3888

[e-mail]

aircareproducts.com
