USER MANUAL Executive 4DTS900 AirCare

Everything you need to know about your

EXECUTIVE

ALL 4DTS900 MODELS

Read and save these instructions

1B73369

8/2020

IMPORTANT SAFETY INSTRUCTIONS - READ BEFORE USING YOUR HUMIDIFIER

WARNING: To reduce the risk of fire, electric shock, or injury, always unplug the unit before moving, filling, servicing, or cleaning. Do not pour or spill water onto the controls or motor area. If these get wet, let them dry completely and have unit checked by authorized service personnel before plugging in. Do not use the humidifier if any parts are damaged or missing. Contact us for replacement parts at 800.547.3888.

1. To reduce the risk of fire or shock hazard, this humidifier has a polarized plug (one blade is wider than the other). Plug humidifier directly into a 120V, A.C. electrical outlet. Do not use extension cords. If the plug does not fully fit into the outlet, reverse plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
2. Keep the electric cord out of traffic areas. To reduce the risk of fire hazard, never put the electric cord under rugs, near heat registers, radiators, stoves or heaters.
3. Always unplug the unit before moving, cleaning or removing the fan assembly section from the humidifier, or whenever it is not in service.
4. Keep the humidifier clean. To reduce the risk of injury, fire or damage to humidifier, use only cleaners specifically recommended for humidifiers. Never use flammable, combustible or poisonous materials to clean your humidifier
5. Do not put foreign objects inside the humidifier.
6. Do not allow unit to be used as a toy. Close attention is necessary when used by or near children.
7. To reduce the risk of electrical hazard or damage to humidifier, do not tilt, jolt or tip humidifier while unit is running.
8. To reduce the risk of accidental electrical shock, do not touch the cord or controls with wet hands.
9. To reduce the risk of fire, do not use near an open flame such as a candle or other flame source.

HUMIDIFIER TWO-YEAR LIMITED WARRANTY POLICY

SALES RECEIPT REQUIRED AS PROOF OF PURCHASE FOR ALL WARRANTY CLAIMS

This warranty is extended only to the original purchaser of this humidifier when the unit is installed and used under normal conditions against defects in workmanship and materials as follows:

• Two (2) years from date of sale on the unit, and
• Thirty (30) days on wicks and filters, which are considered disposable components and should be replaced periodically.

The manufacturer will replace the defective part/product, at its discretion, with return freight paid by the manufacturer. It is agreed that such replacement is the exclusive remedy available from the manufacturer and that TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGE OR LOSS OF PROFITS OR REVENUES. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Warranty Exclusions: We are not responsible for replacement of wicks and filters. We are not responsible for any incidental or consequential damage from any malfunction, accident, misuse, alterations, unauthorized repairs, abuse, including failure to perform reasonable maintenance, normal wear and tear, nor where the connected voltage is more than 5% above the nameplate voltage. We are not responsible for any damage from the use of water softeners or treatments, chemicals or descaling materials. We are not responsible for the cost of service calls to diagnose the cause of trouble, or labor charge to repair and/or replace parts. No employee, agent, dealer or other person is authorized to give any warranties or conditions on behalf of the manufacturer. The customer shall be responsible for all labor costs incurred. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

Obtiing Warranty Service: Within the limitations of this warranty, purchaser with inoperative units should contact customer service at 800.547.3888 for instructions on how to obtain service within warranty as listed above. This warranty gives the customer specific legal rights, and you may also have other rights which vary from province to province, or state to state. Register your product at www.aircareproducts.com.

LET'S GET YOU UP AND RUNNING

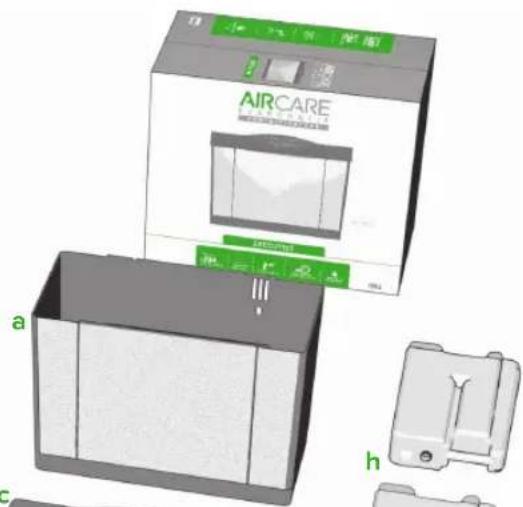

Remove the Executive from its packaging.

You should have:

a. Cabinet

4V3487020SLVR

b. Fan assembly

1B72341-R

C. Two end covers (attached to the fan assembly)

1B72336

d. 1041 Super Wick®

ALL 1041 WICKS

e. 1051 air filter

1051

f. Float

1B72087

g. Float support and two screws

SUPPORT #830496 I SCREWS #1B73125

h. Two water bottles

1B5060110

i. Two water bottle caps

1B5060000

i. Four casters

1B5460100

k. Fill hose

1B5060140

I. Owner's manual

1B73369

If you are missing any parts, or need replacement parts, call us at 800.547.3888 or visit our website aircareproducts.com.

We hope you love your Executive.

Prefer to see a video?

Watch the EXECUTIVE set-up at aircareproducts.com/support.

SCAN THE CODE TO THE RIGHT WITH YOUR PHONE'S CAMERA

2

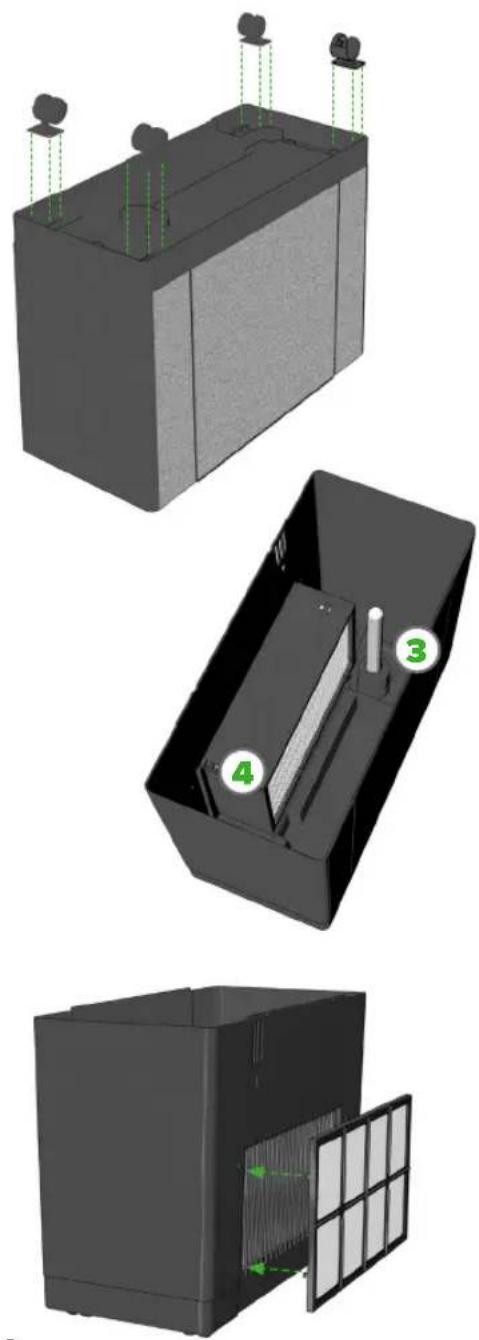

2 Remove everything from the cabinet. Turn the cabinet over and insert the casters snugly into the bottom. Just use your hands! Using tools can crack the cabinet.

Turn the cabinet upright and place the wide end of the float in the circular area in the bottom of the cabinet. Slide the float support down to the bottom and position the screw tabs over the holes in the cabinet base. Use a Phillips screwdriver to screw in the float support. Do not overtighten or use a drill.

4 Locate the vent on the back of your Executive. It has a narrow lip along the top. Your wick is labeled TOP and BACK. With the back of your wick facing the vent, and the top facing up, slide the wick down onto the vent lip until it catches.

Install your 1051 air filter by clipping the filter's hooks into the slots on the back of your Executive.

About water additives:

• Do not use essential oils in your Executive.
• Do not use water softeners.
  We recommend our Essick Air Bacteriostat to help inhibit mold growth.

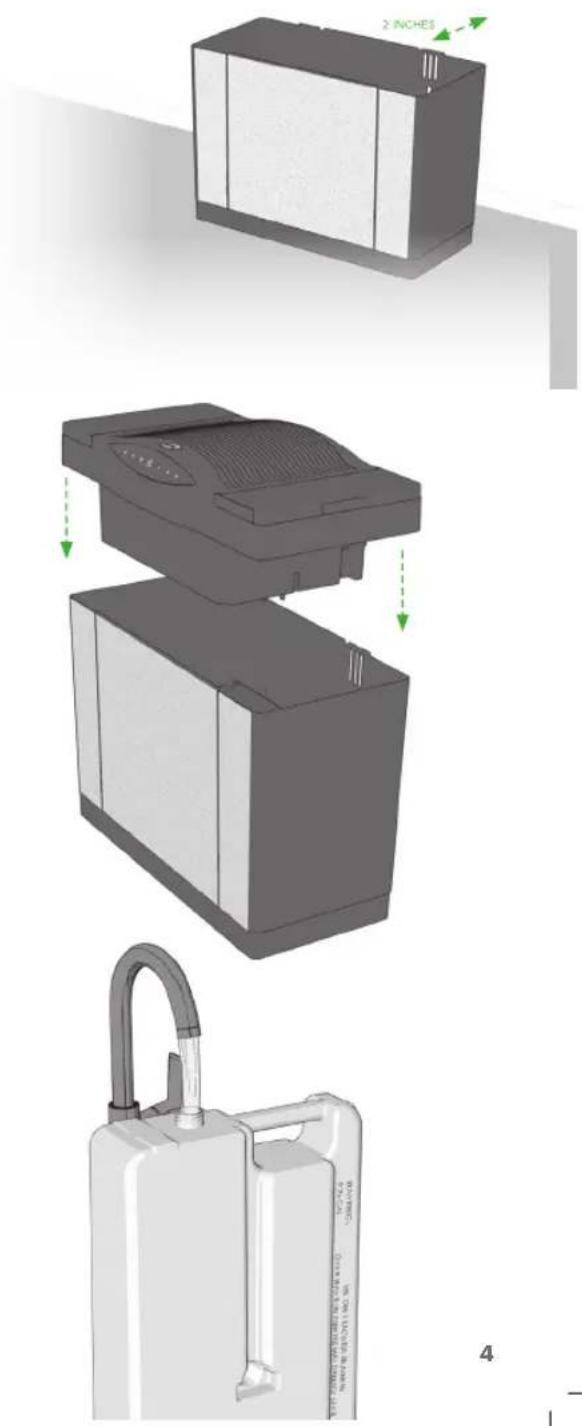

Put your Executive in the most centrally located room of your home. It should be

on a level surface against an interior wall. Make sure it's at least two inches from the wall so the humidistat (on the cord) can accurately read your humidity.

More about positioning:

To maximize humidity circulation, put your unit near a cold air return.
If you prefer to put your unit in the room where humidity is most needed, you can! But the humidity won't circulate as well with this method.
- Don't put your humidifier under a window, as condensation may occur.
- Put the unit on the bottom floor of a multi-story home.

Put the fan assembly on the cabinet.

Make sure the float makes a solid

connection with the fan switch inside the fan assembly. The fan switch looks like a small, silver diving board.

Fill your water bottles, then tighten the caps with your hands, making sure the

caps are correctly threaded. Do not overfill the bottles. Your Executive holds 5.7 gallons of water.

Note: Each bottle holds 2.75 gallons per bottle. The right bottle will empty first, putting .2 gallons of water into the cabinet. At that time, you can refill the right bottle to get the full 5.7-gallon capacity and maximum run time.

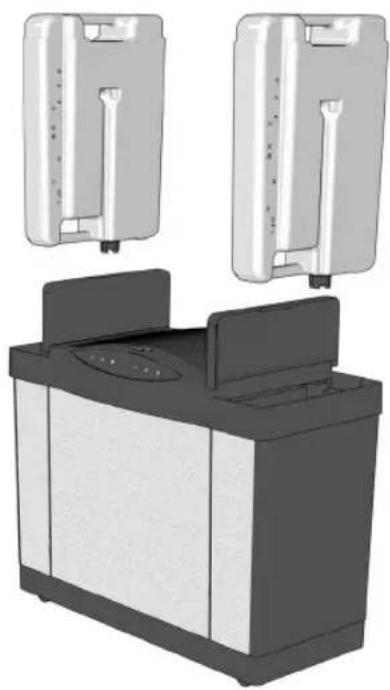

9 Lift the bottle end covers on each side of the fan assembly, and place the bottles in your Executive with the caps facing down.
Wait 20 minutes for the wick to become fully saturated, then proceed to step 11.

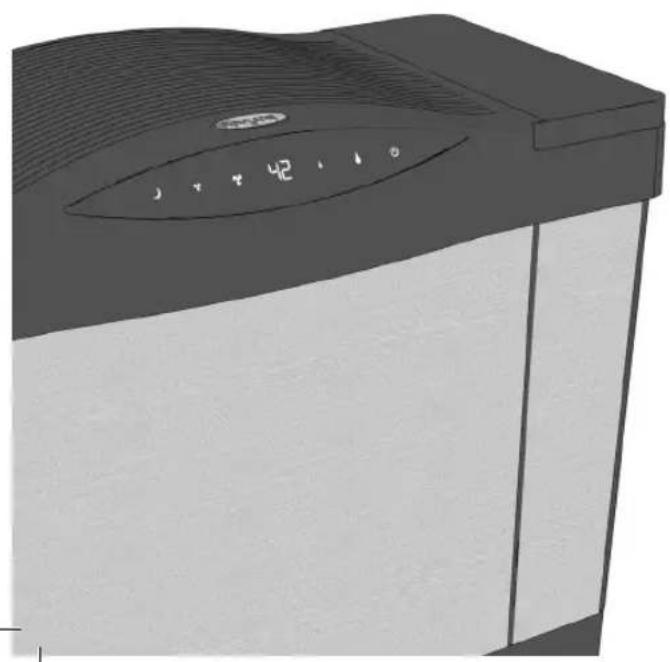

11 Plug in your unit and press the power button
12 Set your fan speed by pressing the large or small fan buttons to increase or decrease fan speed. Your Executive has nine fan speeds that are displayed by F1 (the lowest) through F9 (the highest).

Note: On higher speeds, the Executive puts out a tremendous amount of humidity, so it's louder on these levels. Most of our customers liken it to the sound of a box fan. Rest assured there is nothing wrong with your unit, it's just working very hard to put out much-needed humidity.
13 Set your humidity level from 25% to 65% . Press the large or small water drop buttons to increase or decrease the humidity setting. The humidistat on your cord will read your home's humidity and turn your fan off when the set humidity level is reached. When set to 65% , your unit will run continuously.
14 Press the crescent moon button to turn off the panel lights while you sleep (all of your settings will remain set). Press any button to turn the lights back on.

That's it! Your Executive is ready to use.

ABOUT THE CODES

F - The F code means your unit is empty and needs to be FILLED with water.

CL - Your CONTROLS ARE LOCKED on the current setting. Activate the control lock by holding the power button for five seconds, until CL appears. Your Executive will lock on the current fan and humidity settings. Release the lock by pressing the power button again for five seconds until the display flashes CL three times, letting you know the lock is off.

CF - The CF code triggers after 720 hours of use and means it's time to CHECK YOUR FILTER (wick). Unplug your unit and check your wick. If your wick is still in good shape, simply clear the code by plugging your humidifier back in. If your wick needs replacing, install a new 1041 Super Wick®.

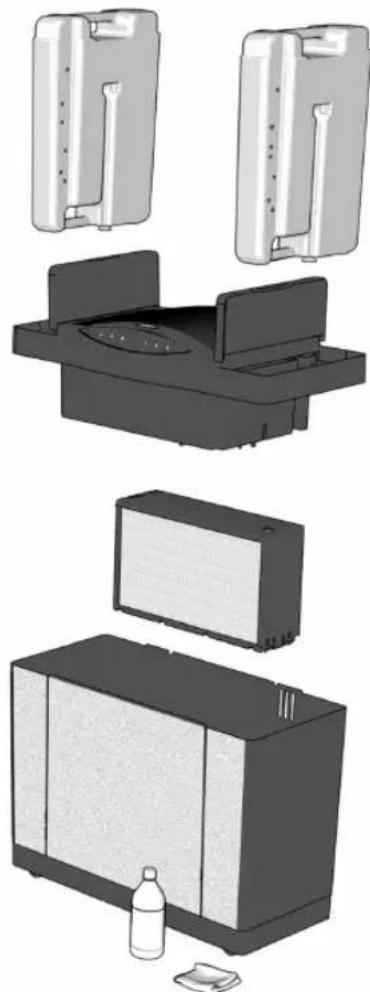

HOW TO CLEAN YOUR EXECUTIVE

Regular cleaning is important for preventing mold, mildew, and other bacterial growth in your humidifier. It also keeps your Executive working its best.

1. Let the unit run until it's empty, then turn it off and unplug it.
2. Remove the fan assembly, bottles, and the wick. Throw your wick away if it is time to replace it. Otherwise, put it in a sink while you finish cleaning your Executive.
3. Pour out any remaining water from the cabinet and water tanks.
4. Fill the cabinet half-full with water and add 1 cup of white vinegar. Let sit for 20 minutes. To disinfect, replace the vinegar with 1 teaspoon of bleach. Do not mix vinegar and bleach.
5. Fill the water bottles half-full with water and add 1 cup of white vinegar to each. Put the caps back on, shake the bottles gently, then let sit for 20 minutes. To disinfect, replace the vinegar with 1 teaspoon of bleach in each bottle.
6. After 20 minutes, empty the cabinet and bottles.
7. Dampen a sponge with white vinegar, wipe down the cabinet interior and bottles, then rinse everything thoroughly. To disinfect, replace the vinegar with bleach. Wipe down the bottles and cabinet interior only.
8. Wipe everything dry and replace the wick, if needed. Then reassemble.

FOIRE AUX QUESTIONS

ESCANEA EL CÓDIGO ALA

DERECHA CON LA CAMARA DE SU TELEFONO

10

Frequently Asked Questions

Where is my serial number?

Your serial number is on the sticker on the back of your fan assembly. You can write it here for future reference:

Why isn't my unit running?

Make sure your fan assembly is seated correctly.

• Your unit has reached your set humidity level.

The display is flashing "20," what does this mean?

Your humidity level is below 20% . Try increasing your fan speed and output level.

The display is flashing"--," what does this mean?

Your humidity level is over 90% . Try lowering your fan speed and output level.

Why isn't my humidity increasing?

• It can take 2-3 days for your new humidifier to bring your humidity up, especially if it is very dry in your home.

If your wick is old, replace it with a new one.

Why isn't the left water bottle emptying?

Your Executive will empty the right bottle first.

Why is my Executive flashing "F" when it has water in it?

Check your float position.(SEE STEP 7)

How often should I replace my wick?

Your water's mineral content dictates how often your wick needs replacing. Harder water means more frequent changes. Using our Bacteriostat (part #1970) can help keep your unit cleaner and lengthen the life of your wick. Always change your wick at the beginning of every season.

Can I order replacement parts?

Yes! Your Executive's parts and their part numbers are listed on page 2.

For any other questions or issues, contact our humidifier experts!

They are ready by phone, email, or chat.

AIRCARE

800.547.3888

[e-mail]

aircareproducts.com
