Product type	Element-based sauna
Brand	Harvia
Model	Variant View S2020SV (Large)
External dimensions (W x D x H)	Approx. 2060 x 2033 x 2020 mm
Material	Spruce wood, tempered glass, aluminum
Capacity	Up to 6 people (estimated)
Power supply	Electrical connection by a professional (230 V / 400 V depending on heater)
Lighting	Integrated LED (SAS21060T), RGBW options available
Ventilation	Ventilation register included
Door	Tempered glass door with handle and magnet
Benches	Upper and lower wooden benches, footrest
Assembly	Requires two people, basic tools (hammer, screwdriver, level)
Maintenance	Clean with hot water only, no detergent
Safety	Tempered glass, safety distance observed, electrical installation by a specialist
Spare parts	Available from Harvia dealer
Warranty	Check dealer's terms

Frequently Asked Questions - Variant View S2020SV HARVIA

What are the dimensions of the Harvia Variant View S2020SV sauna?

The Large S2020SV model measures approximately 2060 x 2033 x 2020 mm (W x D x H).

What tools are needed for assembly?

You need a hammer or rubber mallet, an electric screwdriver with Phillips and Torx bits, a tape measure, a 3 mm, 10 mm and 20-30 mm drill bit, a spirit level, a 1.5 mm Allen key, a utility knife and a ladder.

How to clean my sauna?

Clean the cabin with a damp cloth and hot water only. Do not use detergent.

Can I install the sauna myself?

The cabin assembly can be done by two people, but the electrical connection must be carried out by a qualified electrician.

How to maintain the sauna wood?

Spruce wood may have resin pockets. If resin leaks, remove it with a cloth soaked in acetone or scrape it off after hardening. Heat the cabin once a month if not used.

What safety distances must be observed?

Maintain a distance of at least 5 cm from surrounding walls. The heater must be installed according to the instructions provided with the mounting kit at the foot of the bench.

Is the sauna delivered with a heater?

No, the heater is not included. You must purchase it separately. A heater mounting kit for the foot of the bench is provided.

How to open the sauna door?

The glass door opens outward. Hinges and handle are included. Follow the instructions to properly align the fittings.

What optional accessories are available?

You can add an RGBW LED tube, a Xenio RGBW color light control, a DMX driver and a suitable power supply.

What to do if a part is missing from delivery?

Check the parts list upon receipt. If a part is missing, contact your dealer within 14 days of receipt.

USER MANUAL Variant View S2020SV HARVIA

Interior view of a simple room with a bed, shelf, and large windows (no visible text or symbols)

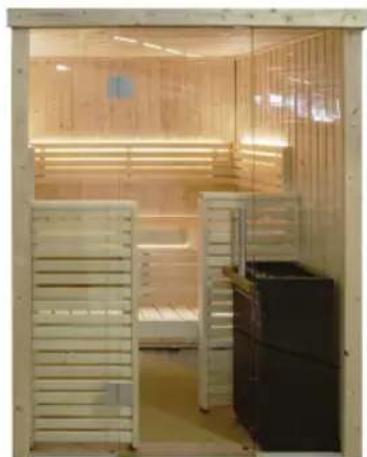

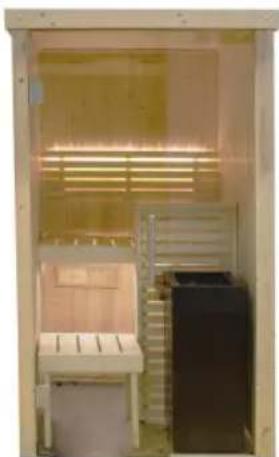

Small

1635 x 1608 x 2020 mm

Interior view of a modern indoor space with wooden furniture and storage units (no visible text or symbols)

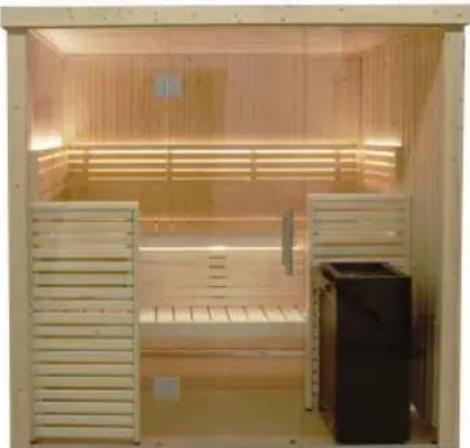

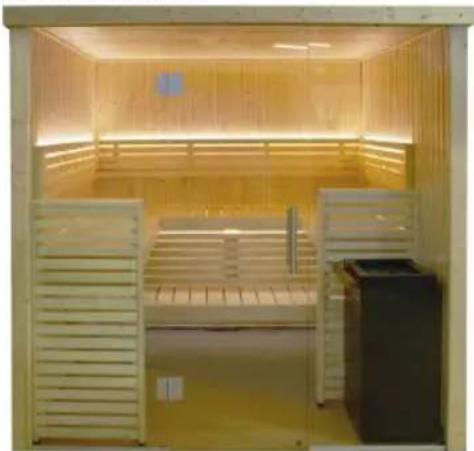

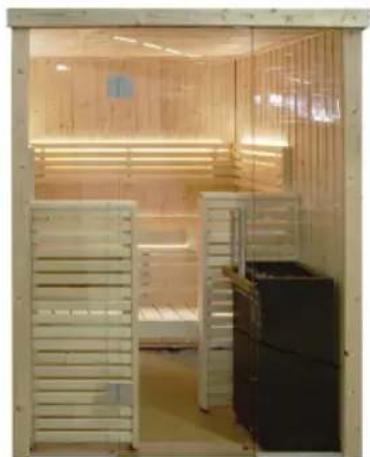

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden steamer cabin with slatted windows and a refrigerator (no visible text or symbols)

Interior view of a wooden steamer with slatted panels and a refrigerator (no visible text or symbols)

Sisällys

Two diagrams showing a rectangular object intersected by two lines, with no visible text or symbols.

Interior view of a simple indoor space with a small bench, a ladder, and a large wall-mounted shelf (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a wooden anxiety chamber with slatted panels and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden indoor space with slatted bamboo, no visible text or symbols

Interior view of a wooden steamer with slatted doors and a refrigerator (no visible text or symbols)

Two abstract geometric diagrams showing intersecting lines and shaded regions, no text or symbols present.

Interior view of a room with a small machine, a ladder, and a dark cabinet (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a modern indoor facility with wooden paneling and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060 × 1608 × 2020 mm 2060 × 2033 × 2020 mm

Interior view of a wooden anxiety chamber with slatted vent, no visible text or symbols

Interior view of a wooden steamer cabin with slatted doors and a refrigerator (no visible text or symbols)

Table of Contents

1. Preparing for installation 3

1.1. Tools required 4
1.2. Maintenance and cleaning 5
1.3. Disposal 5
1.4. Parts list for Mini S1212SV and Small S1616SV 6
1.5. Parts list for Medium S1620SV and Large S2020SV 8

2. Floor plan 10

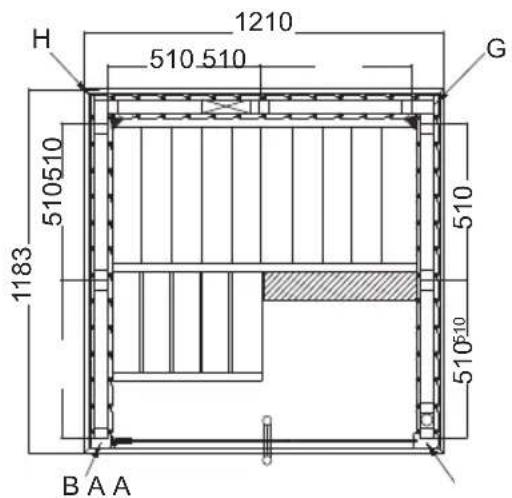

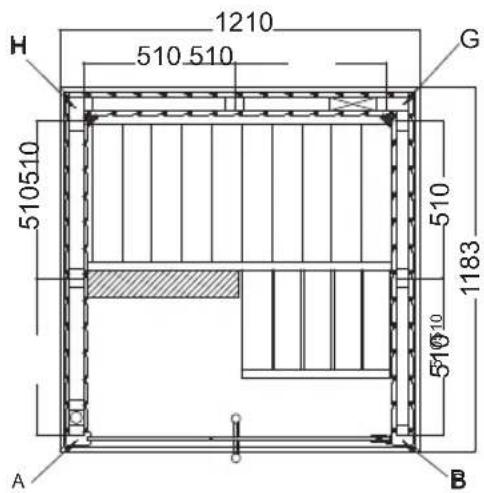

2.1. Variant View Mini S1212SV 10

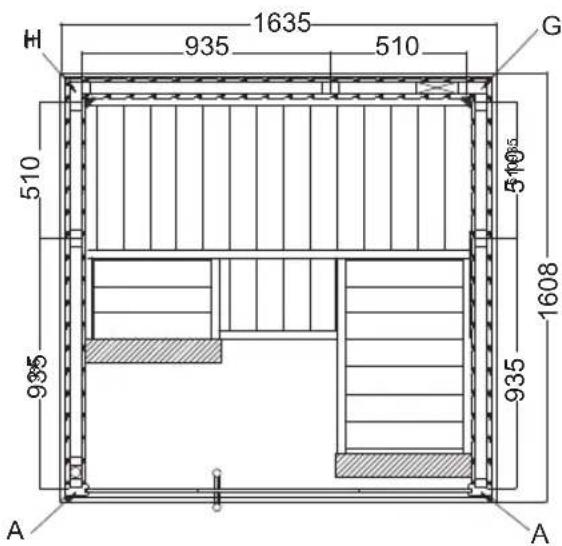

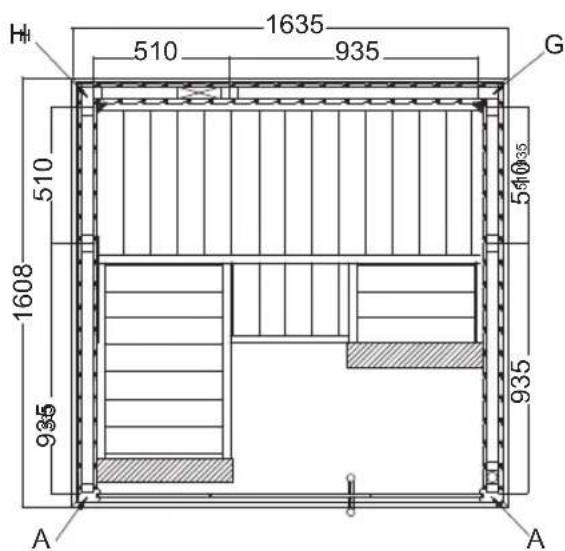

2.2. Variant View Small S1616SV 10

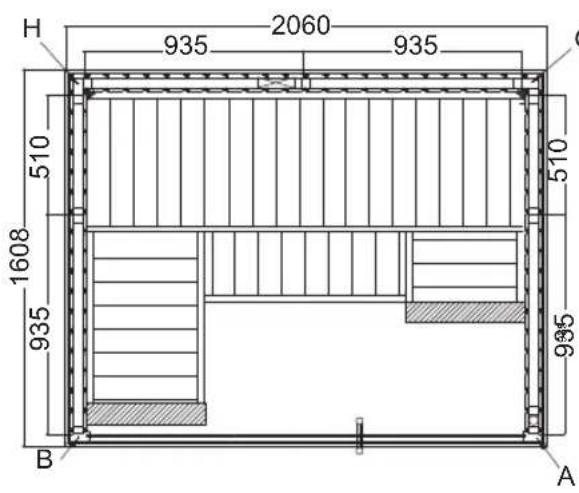

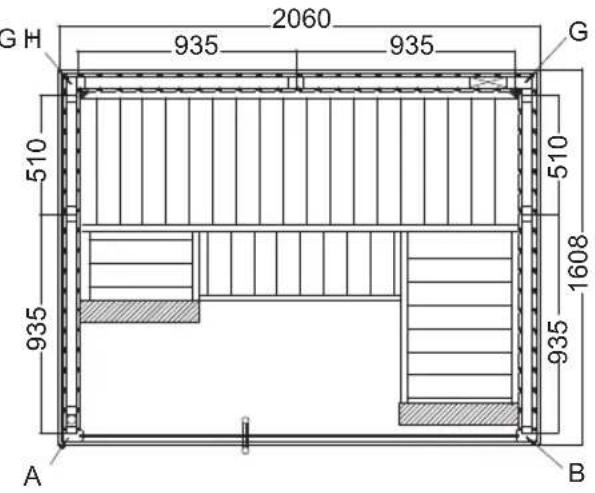

2.3. Variant View Medium S1620SV 11

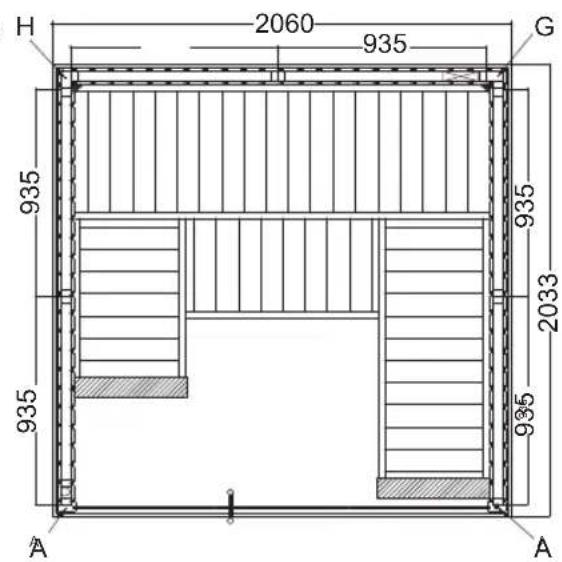

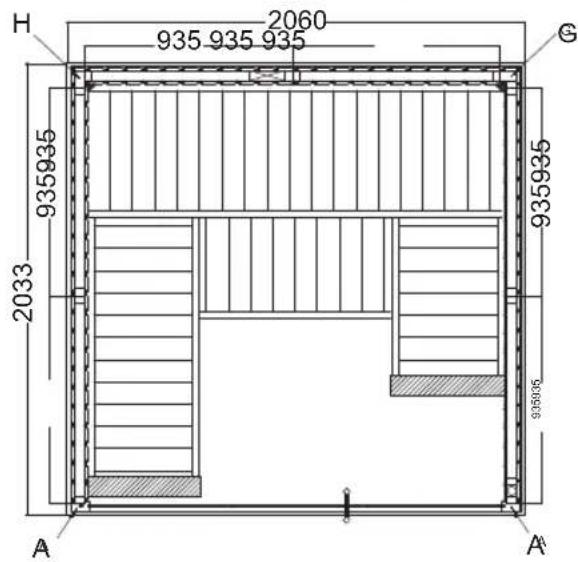

2.4. Variant View Large S2020SV 11

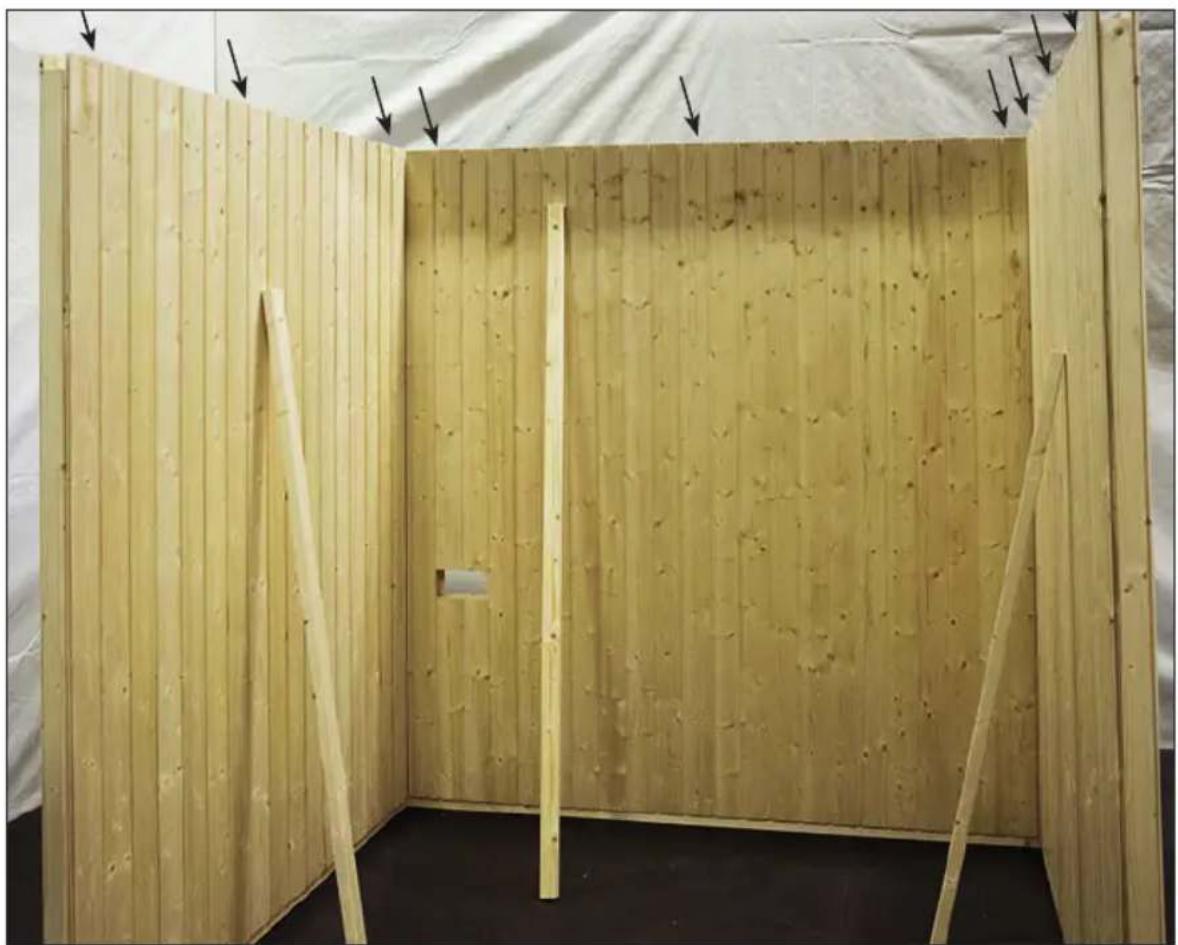

3. Assembling the cabin 12

3.1. Assembling the base frame 12

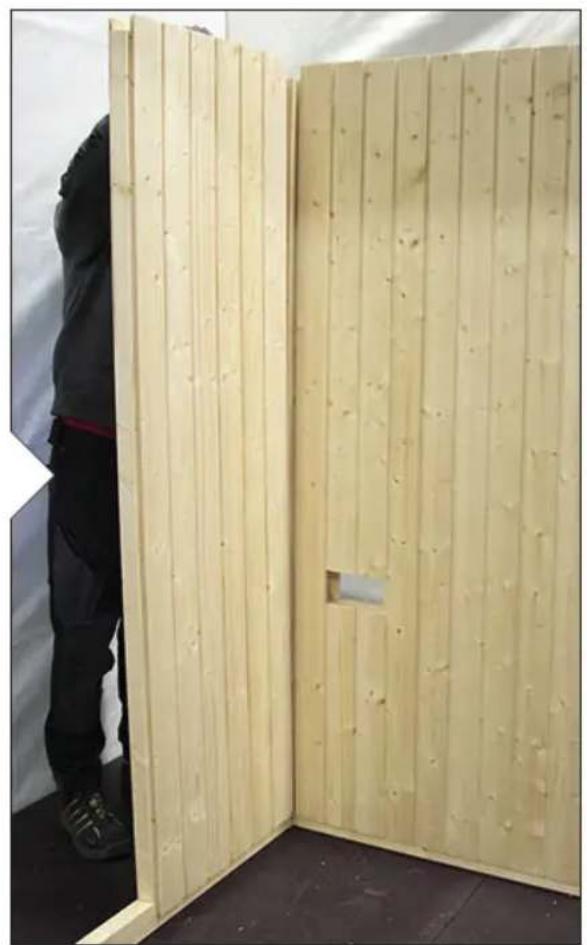

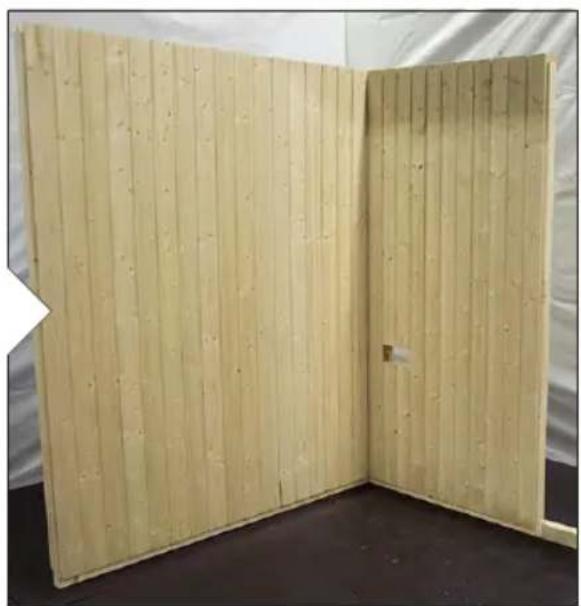

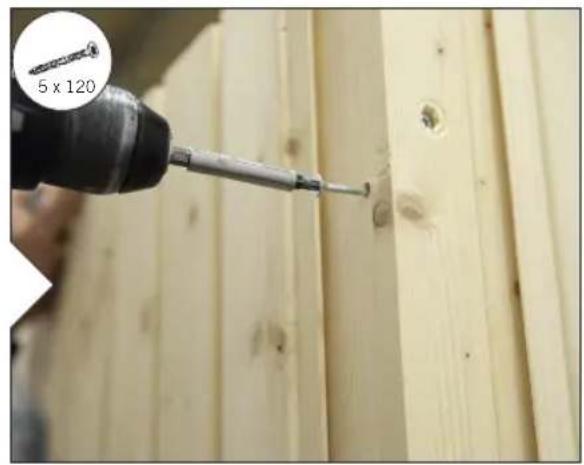

3.2. Assembling the cabin walls 12

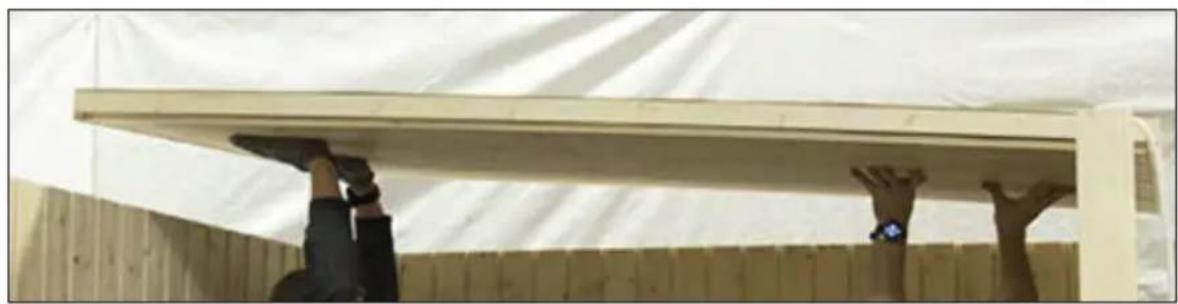

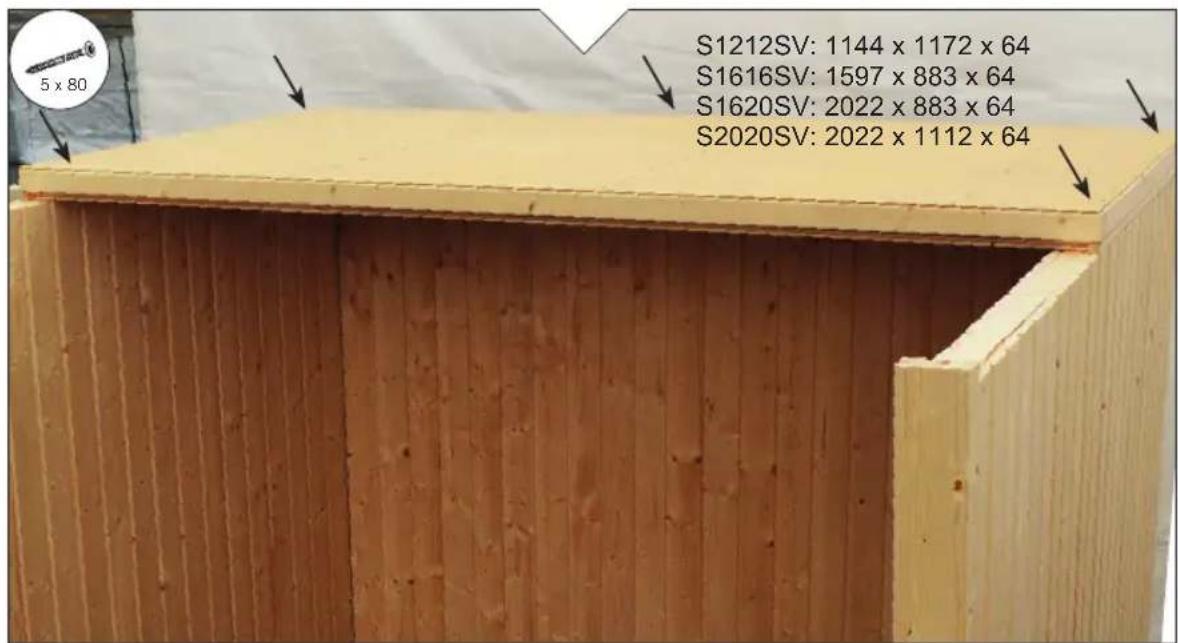

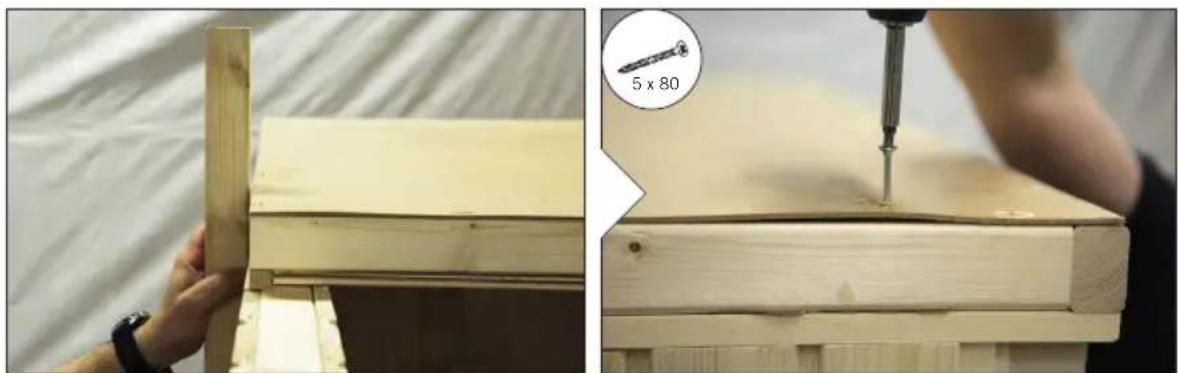

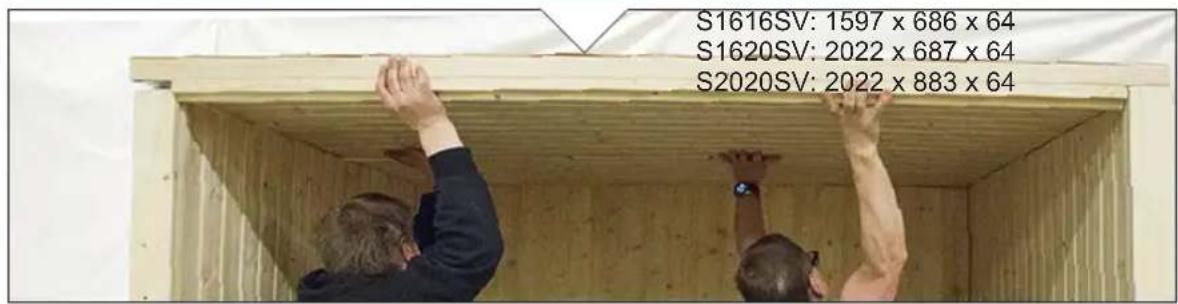

3.3. Assembling the roof elements 12

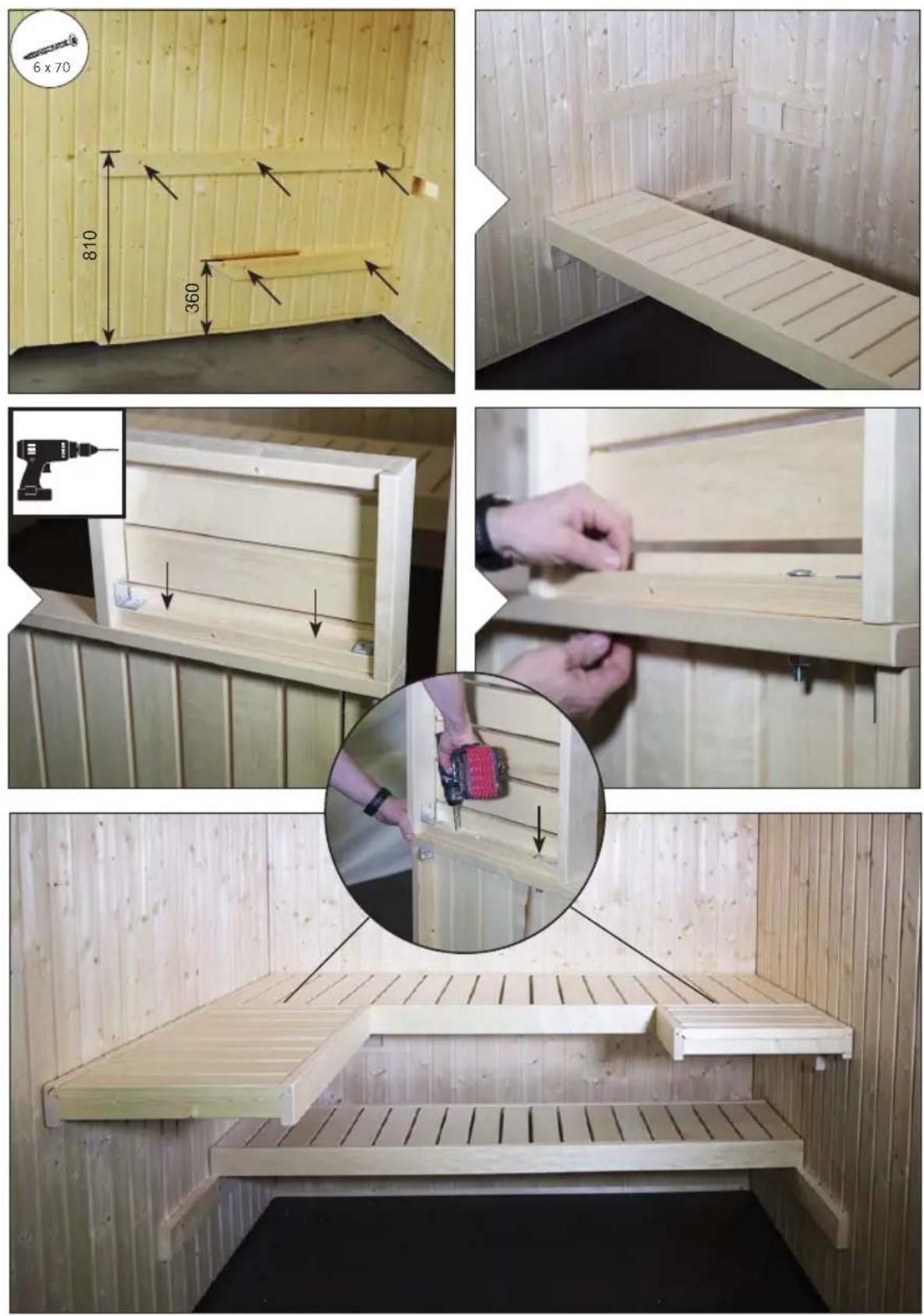

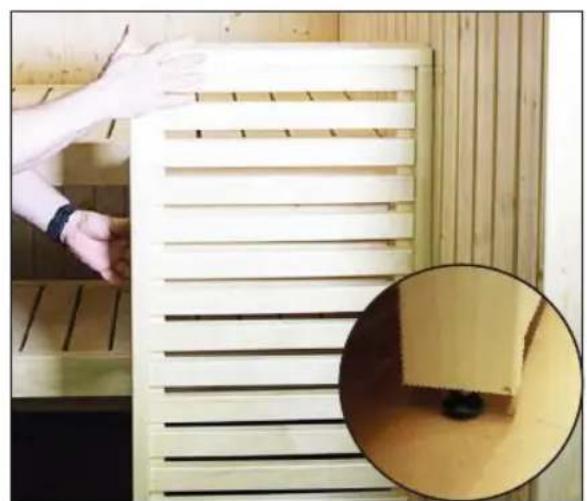

3.4. Assembling the benches 12

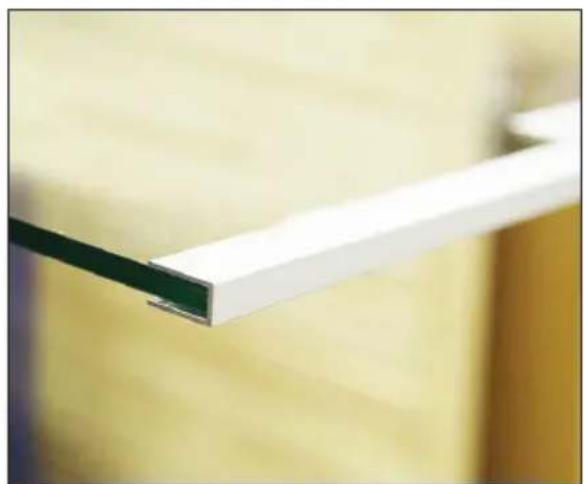

3.5. Assembling the glass elements 13
3.6. Installing roof trim 13

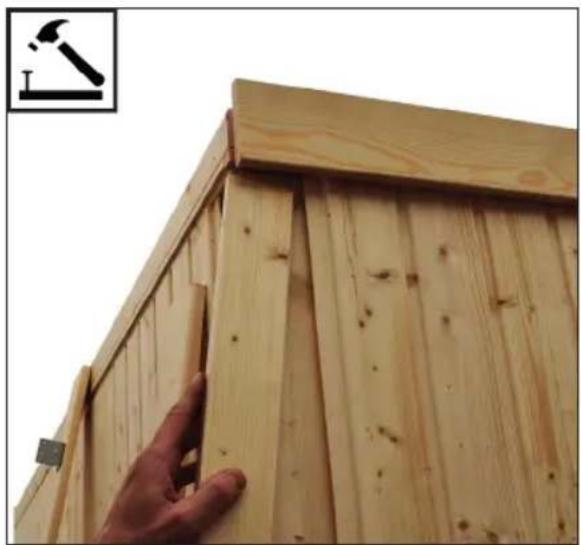

3.7. Mounting the cover slats 13

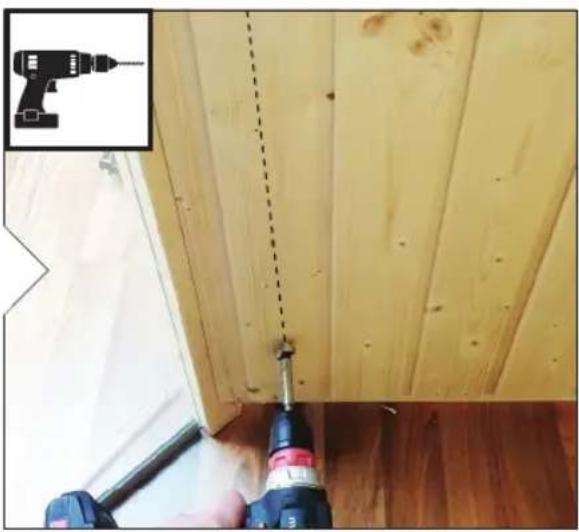

3.8. Drill hole for electrical cable 13

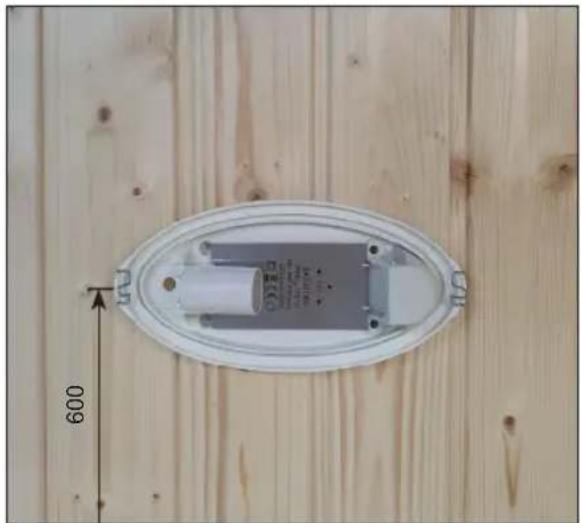

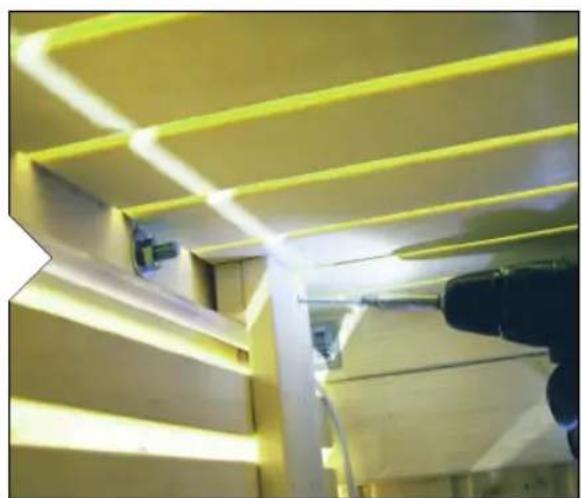

3.9. Mounting the light 13

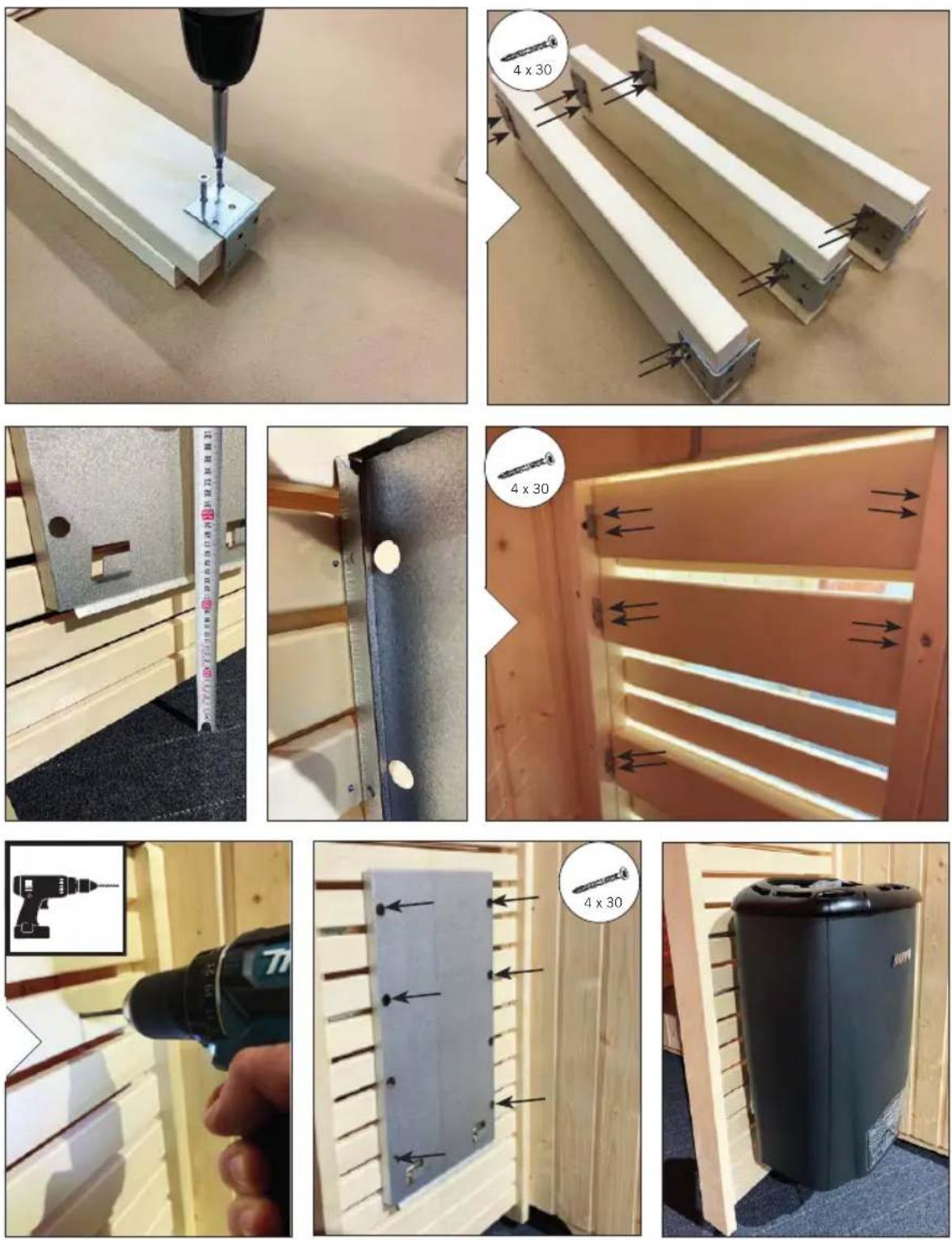

3.10. Installation KIT for heater installation at the bench foot....13

Illustrations for the parts list

(following the last language of the instructions)____15

Assembly illustrations

(following the last language of the instructions) 16

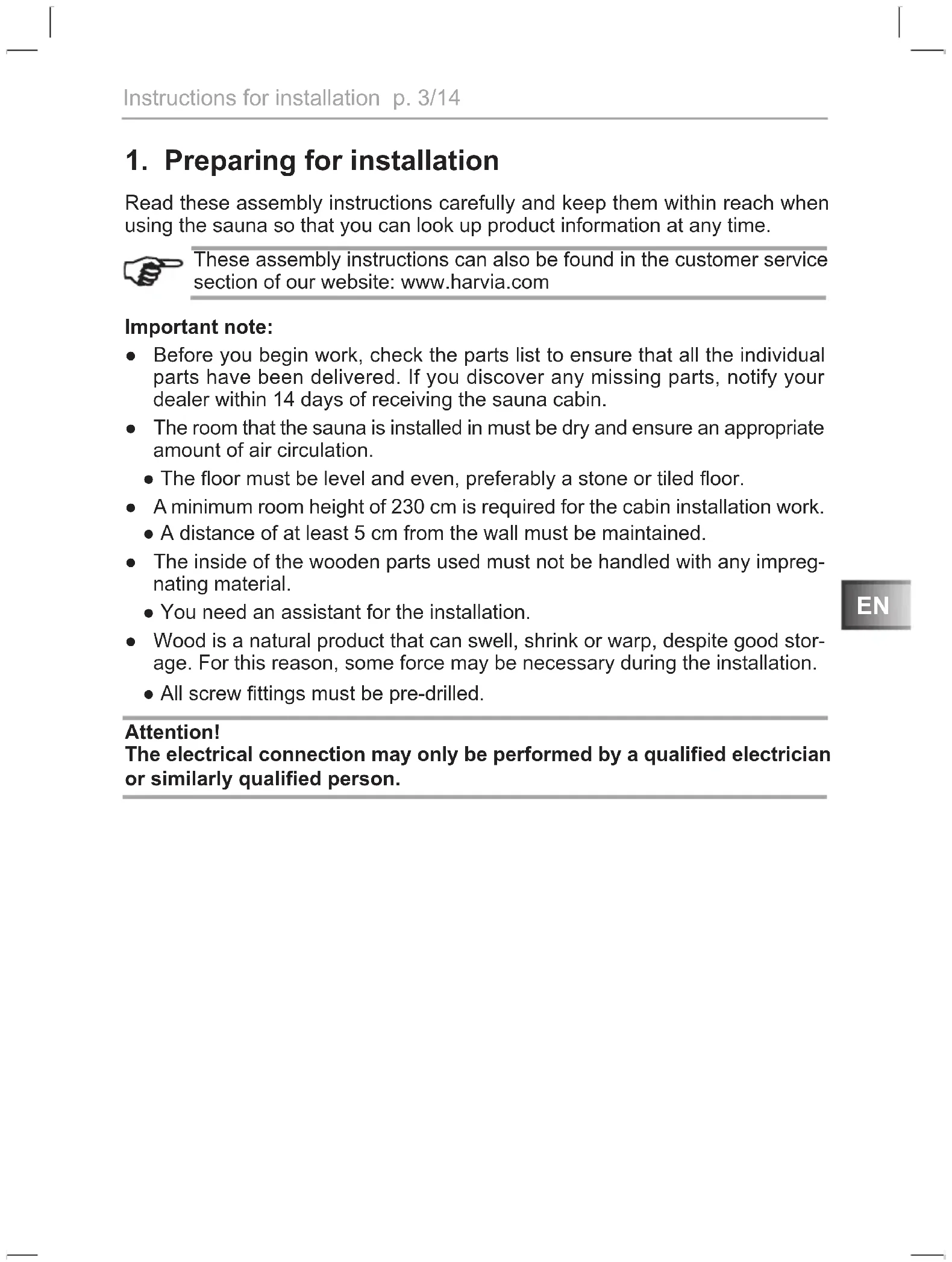

1. Preparing for installation

Read these assembly instructions carefully and keep them within reach when using the sauna so that you can look up product information at any time.

These assembly instructions can also be found in the customer service section of our website: www.harvia.com

Important note:

• Before you begin work, check the parts list to ensure that all the individual parts have been delivered. If you discover any missing parts, notify your dealer within 14 days of receiving the sauna cabin.
• The room that the sauna is installed in must be dry and ensure an appropriate amount of air circulation.

- The floor must be level and even, preferably a stone or tiled floor.

• A minimum room height of 230 cm is required for the cabin installation work.
• A distance of at least 5 cm from the wall must be maintained.
• The inside of the wooden parts used must not be handled with any impregnating material.
• You need an assistant for the installation.
• Wood is a natural product that can swell, shrink or warp, despite good storage. For this reason, some force may be necessary during the installation.
• All screw fittings must be pre-drilled.

Attention!

The electrical connection may only be performed by a qualified electrician or similarly qualified person.

1.1. Tools required

• Hammer with a wooden head or a mallet
• Cordless screwdriver with bits for cross-head screws and Torx
• Roller tape measure

• Drill bits with a diameter of 3 mm, 10 mm, 20 - 30 mm (for sauna heater power cable)

• Spirit level
  • 1.5 mm hexagonal socket wrench

• Utility knife
• Ladder

This symbol indicates tips and useful information

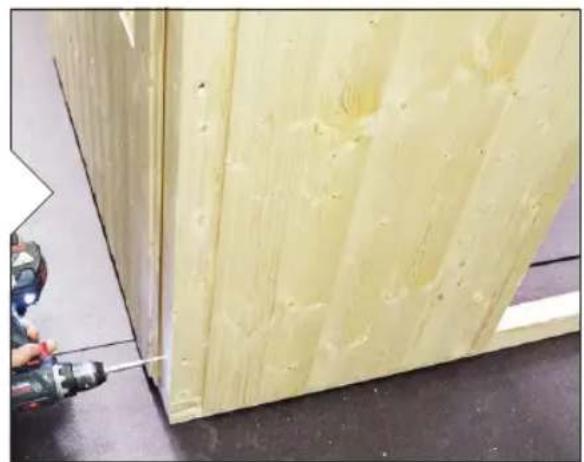

Pre-drill

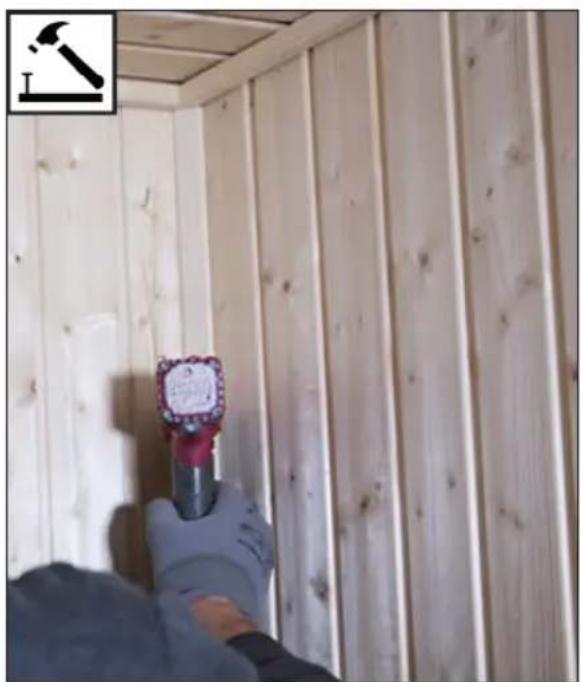

Nailing

Check the right angle:

80 cm 60 cm 100 cm

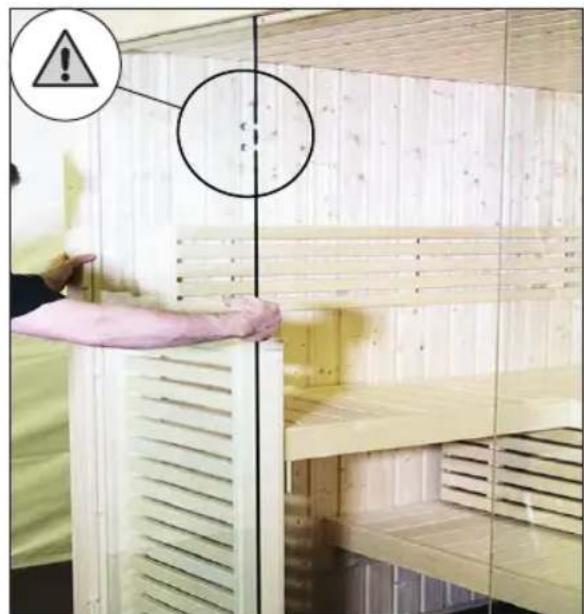

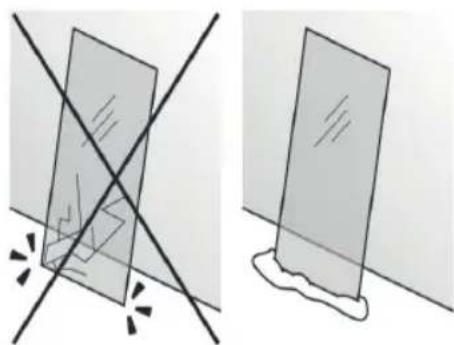

Handle glass with care: Special care must be taken with the edges of the glass – hardened glass can shatter into small pieces in the event of impact. Insert protective cushioning (e.g: cardboard box) under the edge of the glass.

Two diagrams showing a transparent rectangular object intersected by two diagonal lines, with no text or symbols present.

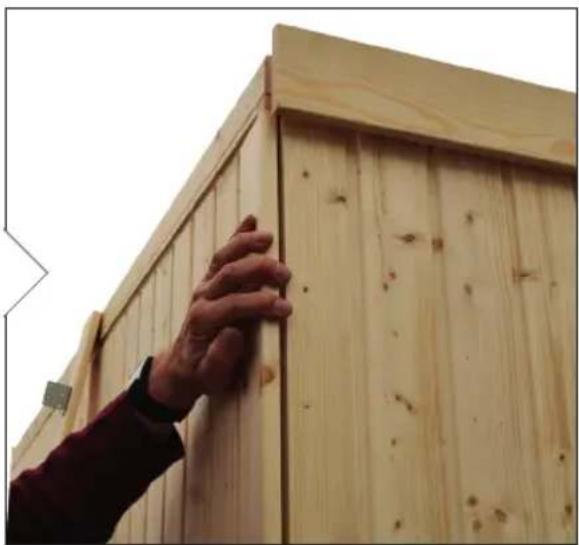

1.2. Maintenance and cleaning

• The sauna should be cleaned with a damp cloth. Only use warm water – no cleaning products.
• We recommend heating the cabin once a month if the sauna is not used for a long time.

Pitch pockets are not grounds for return, since they can always appear in spruce wood and the depth at which they lie cannot be detected during the sorting-out process.

If these are just under the surface, heat can cause them to soften and "bleed".

The leaking pitch can be removed with a rag soaked in acetone. If only droplets of pitch occur, allow these to harden and then carefully scrape them off with a knife.

1.3. Disposal

• Dispose of packaging materials in accordance with the applicable waste disposal regulations.
• Used devices contain reusable materials as well as hazardous substances. Therefore, do not dispose of your used device with household waste, but do so in accordance with the locally applicable regulations.

1.4. Parts list for Mini S1212SV and Small S1616SV

Illustrations for parts on page 11 (following the last language of the instructions)

No.	Name Pcs Dimensions(mm)			Pcs Dimensions(mm)
			S1212SV	S1616SV
Base frame
1	Base frame 1 1097x68x43 1 1522x68x43
2	Base frame 1 1142x68x43 1 1567x68x43
3	Base frame ventilation aperture 1 1097x68x43 1 1522x68x43
Wall elements
4	Wall elements 510 4	1900x510x75 2	1900x510x75
4	Wall elements 935			2	1900x935x75
5	Electrical element 510	1	1900x510x75
5	Electrical element 935			1	1900x935x75
6	Ventilation element 510	1	1900x510x75	1	1900x510x75
Corner posts
7	Corner post A	1	1949x85x45 2	1949x85x45
8	Corner post B	1	1949x73x45
9	Corner post G	1	1836x77x76 1	1836x77x76
10	Corner post H	1	1836x77x44 1	1836x77x44
Roof elements
11	Roof element	1	1144x1172x64	1	1597x883x64
12	Roof element			1	1597x686x64

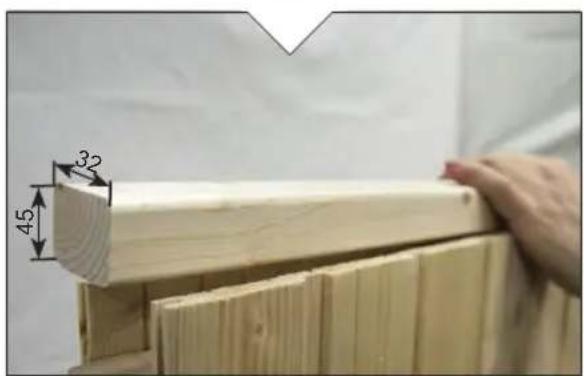

13	Roof frame	1	1142x45x32 2	1395x45x32
13	Roof frame	2	970x45x32	1	1567x45x32
13	Roof frame
14	Roof rim	2	1210x95x15 2	1605x95x15
14	Roof rim	2	1183x95x15 2	1633x95x15
Corner covers

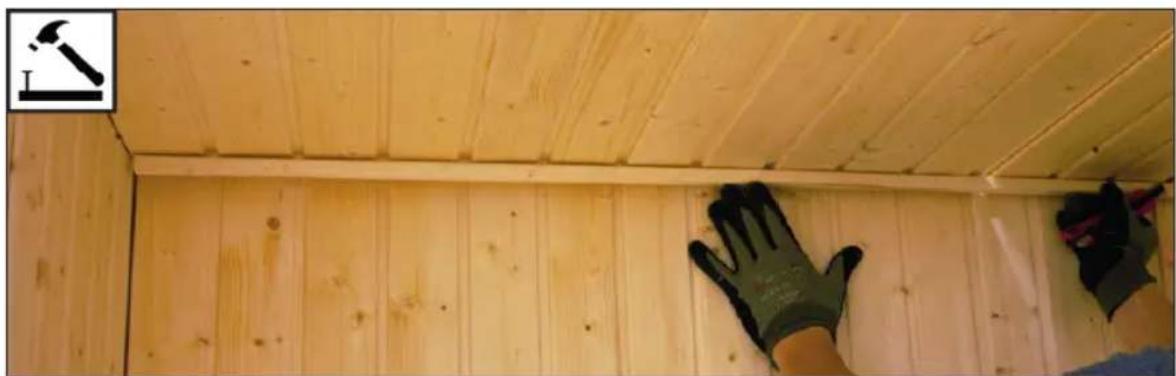

15	Inner roof corner trims	2	1005x18x15 2	1430x18x15
15	Inner roof corner trims	1	1022x18x15 1	1447x18x15
16	Inner corner trim	2	1025x20x20 2	1025x20x20
17	Outer corner covers	2	1900x77x15 2	1900x77x15
18	Outer corner covers	1	1900x64x15 1	1900x64x15
19	Outer corner covers	1	1900x64x15 1	1900x64x15
		S1212SV		S1616SV
Glass front
20	Aluminium U-profile 1 402x22x12 2 409x22x12
21	Glass 1 1939x411x8 2 1939x417x8
21	Glass door 1 1897x600x8 1 1897x600x8
22	Spacer strip above glass door 1	610x20x8 1	610x20x8

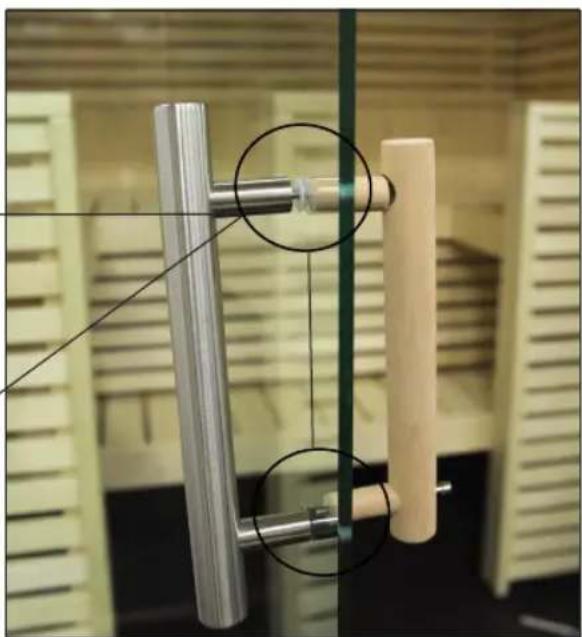

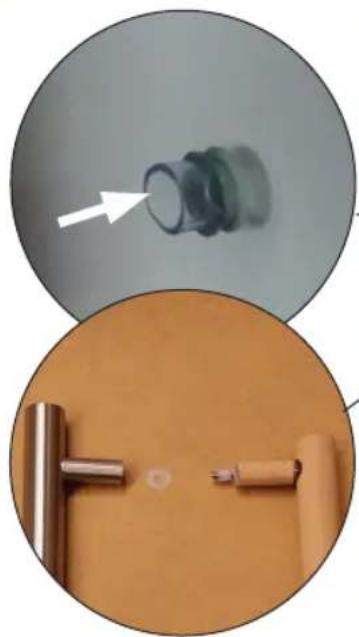

23	Door handle set	1 300x158x30 1 300x158x30

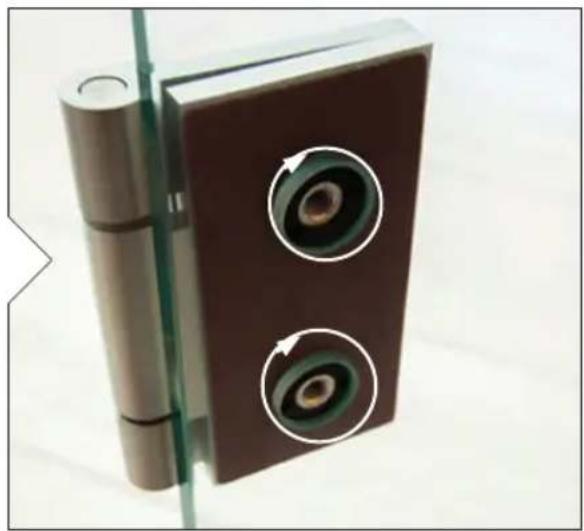

24	Door hinges	2		2
Interior fittings
25	Upper sauna bench 1	1015x500x90 1	1440x600x90
25	Upper sauna bench			1 680x500x90
25	Upper sauna bench			1 500x285x90
25	Lower sauna bench			1 1440x400x90
26	Bench foot	1	1143x510x90	2	1143x510x90
27	Foot step	1 475x400x90
28	Feet	4 431x90x28
29	Bench screen	1 525x402x42 1	1370x402x42
30	Backrests	1 978x270x36 1	1400x270x36
30	Backrests			1	1234x270x36
30	Backrests			1	840x270x36
31	Bench support slat	2 495x99x29 2 900x90x29
32	Bench support slat
33	Bench support slat	1 468x90x29 2 900x90x29
33	Bench support slat			2 700x90x29
Accessories
35	Ventilation slit	1 260x87x20 1 260x87x20
36	Light (SAS21060T)	1 200x100x65 1 200x100x65
37	Installation material	1		1
38	Kit for heater mounting on bench foot	1		1
39	Assembly instructions	1		1
Accessories (optional)
	RGBW LED Tube	2	LED-tube 900	1	LED-tube 700
	RGBW LED Tube			1	LED-tube 1200
	RGBW LED Tube			1	LED-tube 1300
	Xenio RGBW colour light control	1		1
	DMX-Driver (DMX-C)	1		1
	Power supply unit (LED-PWS-24-XX)	1	40 W	1	90 W

1.5. Parts list for Medium S1620SV and Large S2020SV

Illustrations for parts on page 11 (following the last language of the instructions)

No.	Name Pcs Dimensions(mm)		Pcs Dimensions(mm)
		S1620SV	S2020SV
Base frame
1	Base frame 1 1522x68x43 1 1947x68x43
2	Base frame 1 1992x68x43 1 1992x68x43
3	Base frame ventilation aperture 1 1522x68x43 1 1947x68x43
Wall elements
4	Wall elements 935 2 1900x935x75 4 1900x935x75
4	Wall elements 510 2 1900x510x75
5	Electrical element 935	1 1900x935x75 1 1900x935x75
6	Ventilation element 935	1 1900x935x75 1 1900x935x75
Corner posts
7	Corner post A	2 1949x85x45 2 1949x85x45
9	Corner post G	1 1836x77x76 1 1836x77x76
10	Corner post H	1 1836x77x44 1 1836x77x44
Roof elements
11	Roof element	1 2022x883x64	1 2022x1112x64
12	Roof element	1 2022x687x64 1 2022x883x64
13	Roof frame	1 1992x45x32 1 1992x45x32
13	Roof frame	2 1395x45x32 2 1819x45x32
14	Roof rim	2 2058x95x15 2 2058x95x15
14	Roof rim	2 1605x95x15 2 2033x95x15
Corner covers
15	Inner roof corner trims	1 1868x18x15	1 1868x18x15
15	Inner roof corner trims	2 1426x18x15	2 1850x18x15
16	Inner corner trim	2 1025x20x20 2 1025x20x20
17	Outer corner covers	2 1900x77x15 2 1900x77x15
18	Outer corner covers	1 1900x64x15 1 1900x64x15
19	Outer corner covers	1 1900x64x15 1 1900x64x15
Glass front
20	Aluminium U-profile 2 621x22x12 2 621x22x12
21	Glass 2 1939x629x8 2 1939x629x8
21	Glass door 1 1897x600x8 1 1897x600x8
22	Spacer strip above glass door 1 610x20x8 1 610x20x8
23	Door handle set 1 300x158x30 1 300x158x30

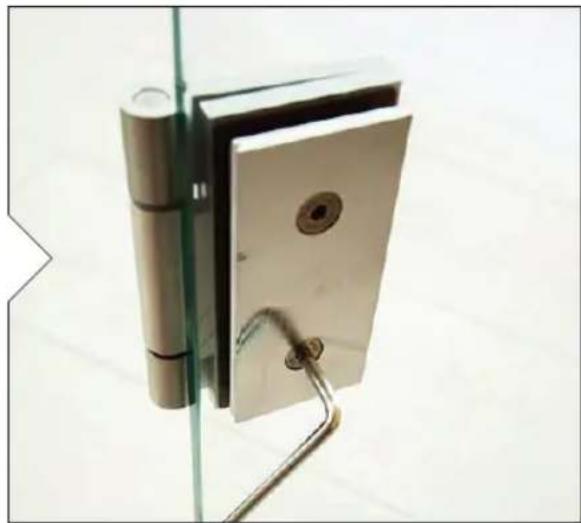

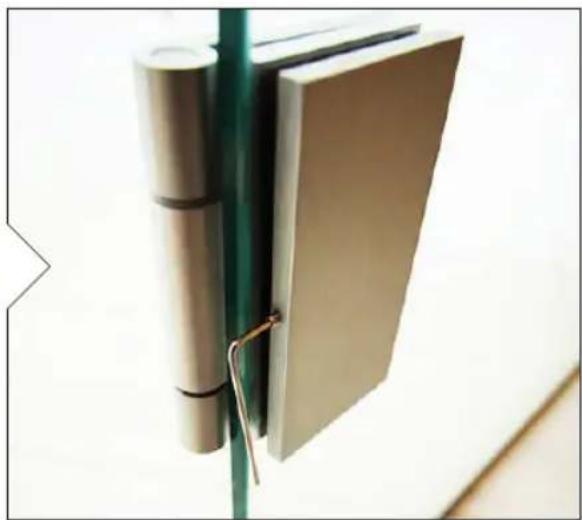

24	Door hinges 2 2
Interior fittings
25	Upper sauna bench 1 1865x600x90 1 1865x600x90
25	Upper sauna bench 1 680x500x90 1 1165x500x90
25	Upper sauna bench 1 500x285x90 1 582x500x90
25	Lower sauna bench 1 1865x400x90 1 1865x500x90
26	Bench foot	2 1143x510x90	2 1143x510x90
29	Bench screen	1 1795x402x42 1 1795x402x42

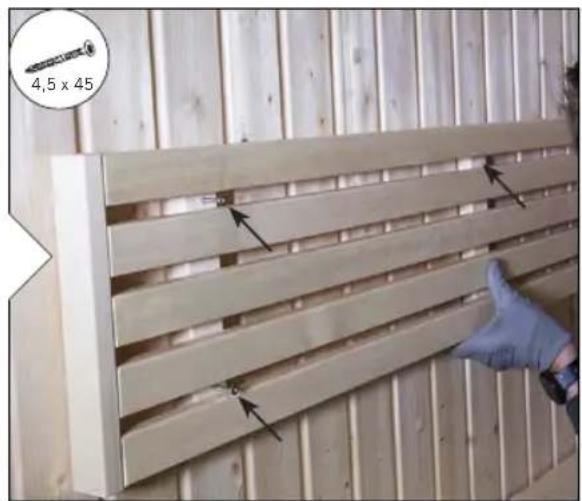

30	Backrests	1 1828x270x36 1 1828x270x36
30	Backrests	1 1234x270x36 1 1720x270x36
30	Backrests	1 839x270x36 1 136x270x36
32	Bench support slat	2 850x99x29 2 1050x90x29
33	Bench support slat	1 950x90x29 2 1050x90x29
33	Bench support slat	1 700x90x29
34	Bench support leg	1 845x68x44 1 845x68x44
34	Bench support leg	1 395x68x44 1 395x68x44
Accessories
35	Ventilation slit	1 260x87x20 1 260x87x20
36	Light (SAS21060T)	1 200x100x65 1 200x100x65
37	Installation material	1 1
38	Kit for heater mounting on bench foot	1 1
39	Assembly instructions	1	1
Accessories (optional)
	RGBW LED Tube	1 LED-tube 700	1 LED-tube 1200
	RGBW LED Tube	1 LED-tube 1200	1 LLED-tube 1600
	RGBW LED Tube	2 LED-tube 1300	2 LED-tube 1800
	Xenio RGBW colour light control	1 1
	DMX-Driver (DMX-C)	1 1
	Power supply unit (LED-PWS-24-XX)	1 160 W	1 160 W

2. Floor plan

2.1. Variant View Mini S1212SV

H 1210 510.510 G 510510 1183 510 510510 B A A

1210 510 510 H G 510510 510 1183 510Ø10 A B

2.2. Variant View Small S1616SV

H 510 1635 935 G 510 1608 935 A A 540 935

1635 935 510 H G 510 510.5 1608 935 935 A A

2.3. Variant View Medium S1620SV

H 935 2060 935 C 510 1608 935 B A 510 935

2060 935 935 G H 510 510 1608 935 935 A B

2.4. Variant View Large S2020SV

H 2060 935 935 935 G 935935 2033 935935 935935 A A'

H 2060 935 G 935 935 935 2033 935 A A

3. Assembling the cabin

ATTENTION!

Note the floor plans on pages 10 and 11 as well as the illustrations starting on page 16 (following the last language of the instructions).

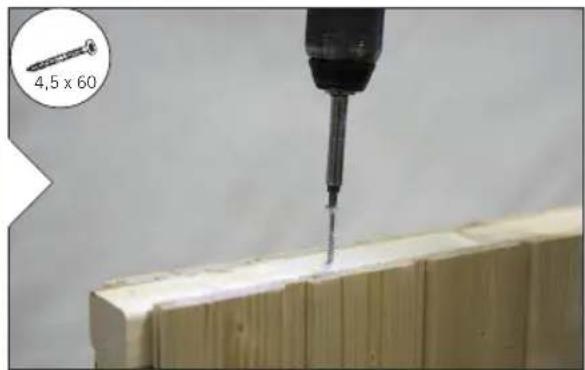

3.1. Assembling the base frame

Start with the base frame and screw it to the corners. Move the base frame to the final position of the sauna.

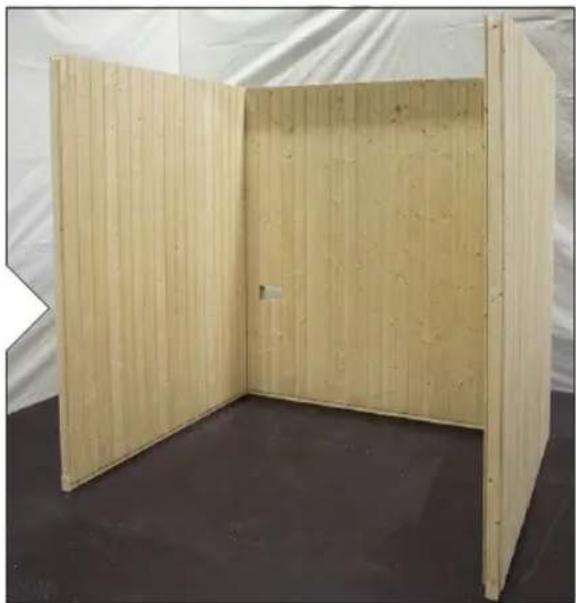

3.2. Assembling the cabin walls

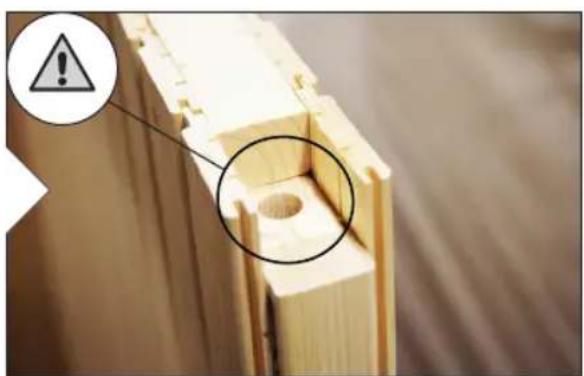

Note the outside/inside of the wall elements.

Make sure the ventilation element is correctly positioned. It must be placed diagonally opposite the heater.

Start assembling the wall elements with the ventilation element and screw it to the corner post (G, H). The other wall elements are connected by tongue and groove and are fixed by mounting the roof frame. Check the right angles (see tip on page 4).

Mount the multiclips to the front sides of the wall elements and to the corner posts (A, B). Make sure that the multiclips are correctly aligned – the corner posts are connected to the wall elements from top to bottom.

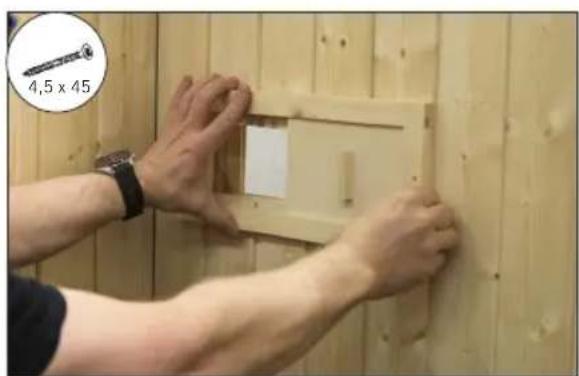

Fit the ventilation slider.

3.3. Assembling the roof elements

Insert the roof elements and screw them to the cabin walls. Note the cable outlet.

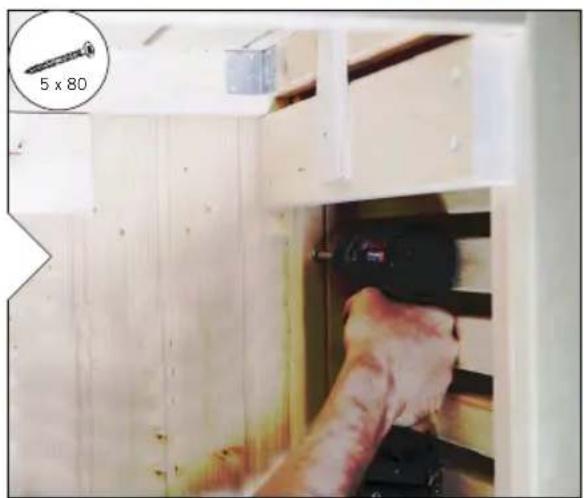

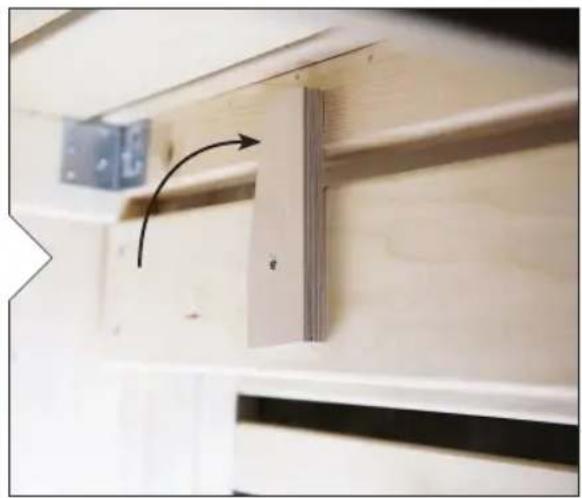

3.4. Assembling the benches

Mount the bench support slats on the side wall elements. Connect the angle bench to the sauna bench using M10 x 120 screws. Screw the adjustable feet into the bench foot. Fix the bench foot to the angled bench by tightening up the lock and screw the bench foot to the side wall.

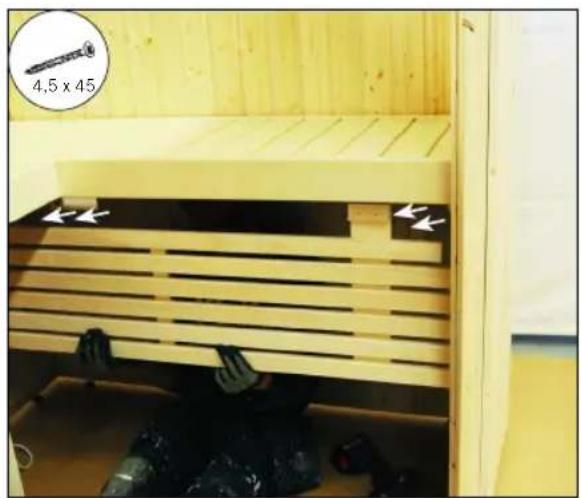

Assemble the bench screen and the backrest.

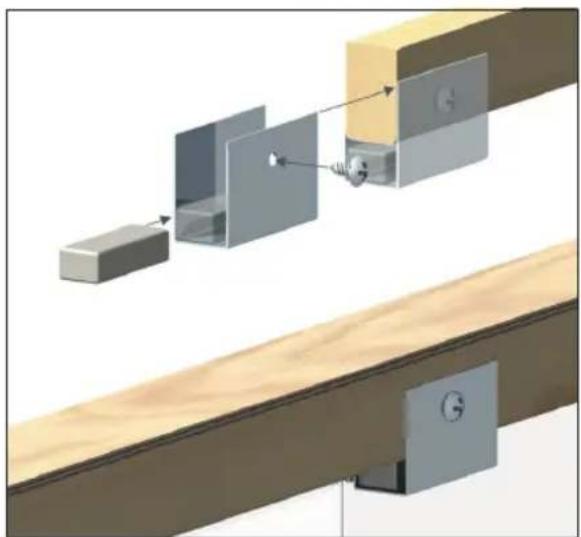

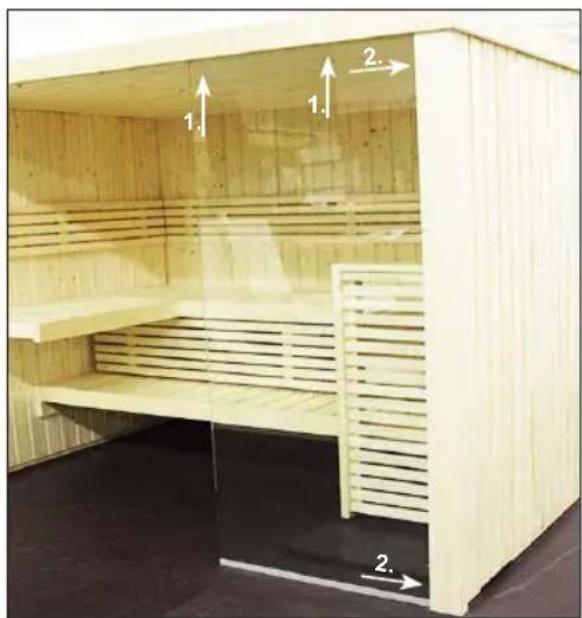

3.5. Assembling the glass elements

Fit the aluminium U-profiles on the glass elements and install the glass elements in the cabin.

Note when installing the glass element that the holes drilled for the door hinges determine which way the door opens.

Bond the aluminium U-profiles to the floor with silicone or assembly adhesive.

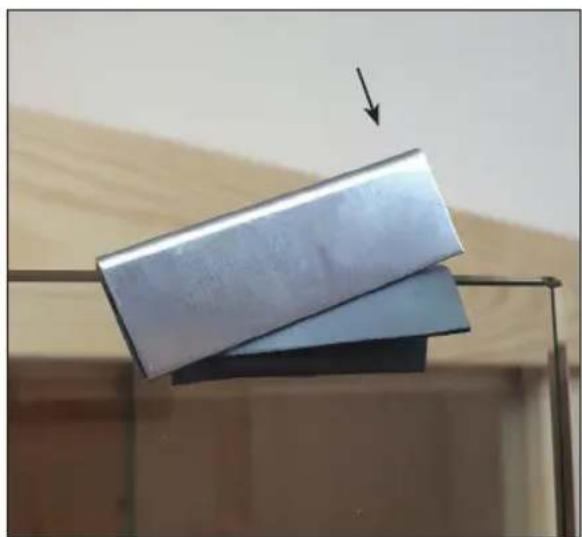

Mount the spacer strip above the glass door.

When installing the door fittings, make sure that the door opens to the outside.

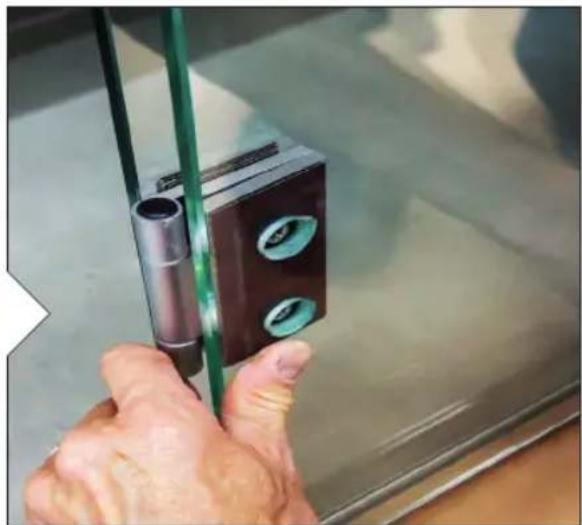

Screw the two door fittings to the glass element first, making sure that the fittings are aligned straight. Align the fittings by adjusting / turning the two plastic inserts.

The door handles are screwed together from the inside. Attach plastic washers on the stainless steel handle

Fit the door magnet and sleeve plate.

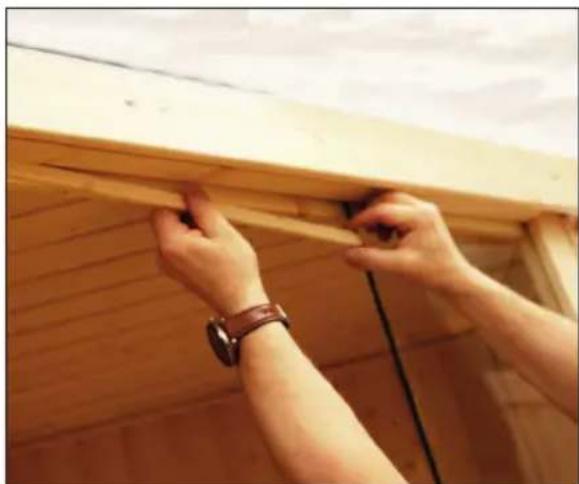

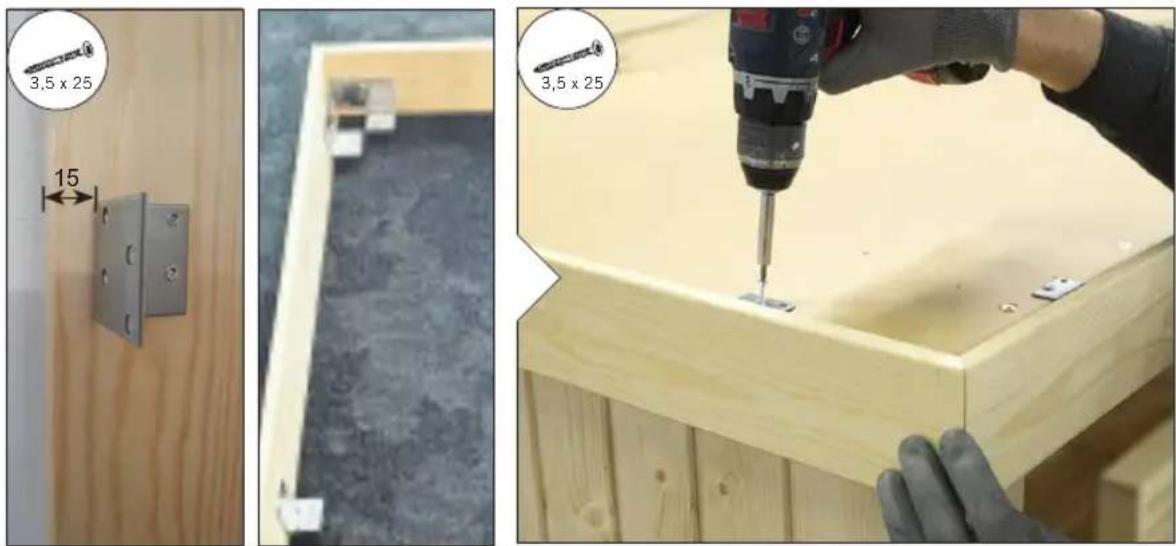

3.6. Installing roof trim

Mount the corner brackets to the roof trim strips. Then screw the roof trim strips to the roof element.

3.7. Mounting the cover slats

Fasten the inner roof corner trims, the inner corner trims and the outer corner covers using nails.

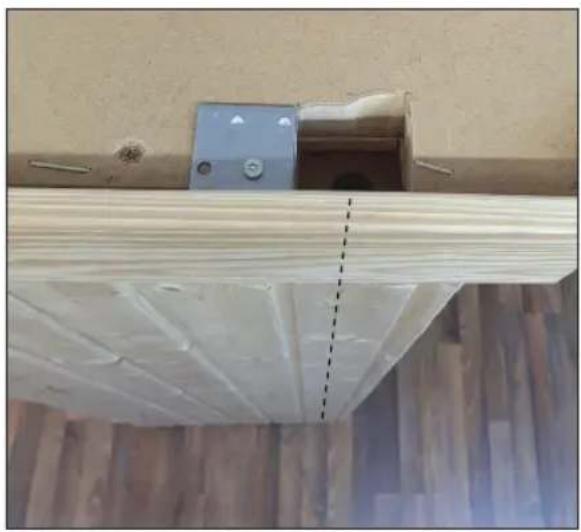

3.8. Drill hole for electrical cable

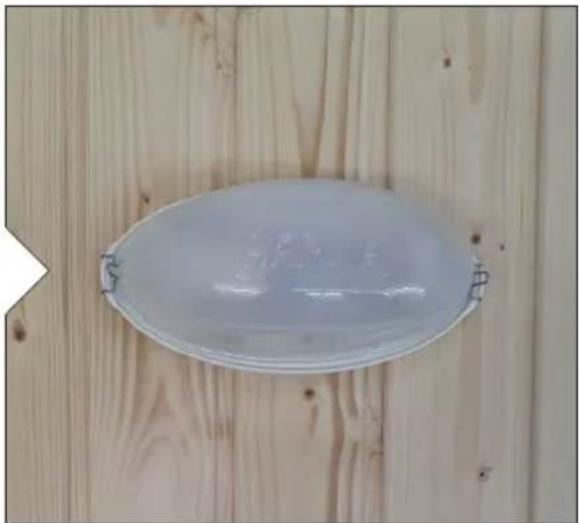

3.9. Mounting the light

3.10. Installation KIT for heater installation at the bench foot

Only required if the sauna heater is mounted on the bench foot in order to maintain the safety distances.

Instructions for installation p. 14/14

Elementsauna

VARIANT VIEW

MONTAGEANLEITUNG

Deutsch

Mini

S1212SV S1616SV

1210 x 1183 x 2020 mm

Interior view of a room with a small machine, a ladder, and a cabinet (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a modular room with wooden panels, a bed, and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden anxiety chamber with slatted windows and a small refrigerator (no visible text or symbols)

Interior view of a wooden steamer cabin with slatted backrest and open counter (no visible text or symbols)

Inhaltsverzeichnis

Two diagrams showing a transparent rectangular object intersected by two diagonal lines, with no visible text or symbols.

Interior view of a simple indoor space with a bench, ladder, and wall-mounted equipment (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a wooden anxiety chamber with white slatted compartments and a black refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden anxiety chamber with slatted back cover and side bays (no text or symbols visible)

Interior view of a wooden steamer cabin with slatted doors and a counter (no visible text or symbols)

Table des matières

Two diagrams showing a rectangular object intersected by two lines, one with diagonal lines and the other with a wavy line (no text or symbols)

Interior view of a room with a small bench, a ladder, and a dark cabinet (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a wooden anxiety chamber with slatted panels and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden anxiety chamber with slatted windows and a black refrigerator (no visible text or symbols)

Interior view of a wooden steamer cabin with slatted backrest and open storage unit (no visible text or symbols)

Inhoudsopgave

1. Montagevoorbereiding 3

Two diagrams showing a rectangular object intersected by two lines, one with diagonal lines and the other with a shaded base (no text or symbols)

Interior view of a room with a small bench, a ladder, and a dark cabinet (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a wooden anxiety chamber with slatted panels and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden anxiety chamber with slatted panels and a black equipment unit (no visible text or symbols)

Interior view of a wooden steamer with slatted backrest and side b Arya, no visible text or symbols

PL

SPIS TREŚCI

Two diagrams showing a rectangular object intersected by two lines, with no visible text or symbols.

Interior view of a room with a small bench, a ladder, and a wall-mounted shelf (no visible text or symbols)

Small

1635 x 1608 x 2020 mm

Interior view of a wooden heating room with slatted panels and a refrigerator (no visible text or symbols)

Medium Large

S1620SV S2020SV

2060×1608×2020mm 2060×2033×2020mm

Interior view of a wooden anxiety chamber with slatted panels and a black refrigerator (no visible text or symbols)

Interior view of a wooden steamer with slatted backrest and side b Arya, no visible text or symbols

RU

Содержание

Two diagrams showing a rectangular object intersected by two lines, with no visible text or symbols.

1.2. Уход и очистка

Three-panel photo showing a wooden panel being cut, with close-up details of the same panel and screwdriver (no text or symbols visible)

Person standing beside a wooden panel with vertical slats, viewed from the side (no text or symbols visible)

Close-up of a hand using a screwdriver to cut wood panels, no text or symbols visible

Close-up of a yellow wooden panel with visible paint and a hand using a power tool (no text or symbols)

Interior view of a room with vertical wooden panel panels and a small door, no visible text or symbols

Interior view of a simple wooden panel or enclosure with vertical slats, no text or symbols visible

Interior view of a wooden structure with vertical supports and a white ceiling, no visible text or symbols

45 32

Close-up of a screwdriver tiping a wooden block, with a magnified inset showing a 4.5 x 60 measurement (no text or symbols on the tool itself)

Close-up of wooden structural components with a warning symbol and magnified detail (no readable text or symbols)

Person installing or adjusting a wooden cabinet panel on a wall, with a magnified inset showing a 4.5 x 45-inch screw (no text or symbols on the main subject)

3.3.

Two hands installing or adjusting a wooden structure under a white canopy (no text or symbols visible)

S1212SV: 1144 x 1172 x 64 S1616SV: 1597 x 883 x 64 S1620SV: 2022 x 883 x 64 S2020SV: 2022 x 1112 x 64 5 x 80

S1616SV: 1597 x 686 x 64 S1620SV: 2022 x 687 x 64 S2020SV: 2022 x 883 x 64

Two-panel image showing a wooden post being cut with a screwdriver, and a close-up of the same post being finished (no text or symbols visible)

3.4.

Person installing or adjusting a white slatted cabinet with a close-up inset showing a small wooden floor detail (no text or symbols visible)

Interior view of a wooden shelf with a wall-mounted electrical outlet and an arrow indicating rotation (no text or symbols visible)

Close-up of a hand inserting a screw into a wooden cabinet (no text or symbols visible)

Hand pointing at a wooden panel with arrows indicating movement, against a wooden panel background (no text or symbols visible)

Interior view of a wooden cabin with a person climbing the back, no visible text or symbols

Close-up of a yellow ceiling structure with a hand holding a tool, showing light reflections (no text or symbols visible)

3.5.

Close-up of a white metal bracket with green and black segments, against a blurred yellow background (no text or symbols visible)

Interior view of a wooden steamer cabin with slatted windows and two directional arrows indicating movement (no text or symbols)

Photo of a person handling a wooden structure with warning symbols and a warning triangle pointing to the panel.

Close-up of hands installing or adjusting a wooden window frame on a wooden door (no text or symbols visible)

Diagram of a mechanical assembly with labeled components, showing a shaft and mounting bracket (no text or symbols present)

Two metallic sheets stacked vertically on a metal frame, with an arrow pointing downward (no text or symbols visible)

Close-up of a brown mechanical component with two circular eye holes and a cylindrical handle, mounted against a plain background (no text or symbols visible)

Close-up of a hand holding a small mechanical component with green wires, no visible text or symbols

Close-up of a metallic glass door hinge with metal clips and a handle, mounted on a stand (no text or symbols visible)

Close-up of a metallic cylindrical object mounted on a green vertical pole, with a metal bracket attached (no visible text or symbols)

Two circular images showing a cylindrical object with a white arrow pointing to it, and a close-up of a mechanical component with a tool (no text or symbols visible)

Close-up of a mechanical device with metallic rods and wooden components, no visible text or symbols

3.6.

3,5 x 25 15 3,5 x 25

3.7.

Interior view of a wooden ceiling with hand gloves, showing wood grain and a hammer symbol (no text or symbols on main subject)

Person holding a tool in front of wooden paneling, no visible text or symbols

Close-up of a wooden door frame with a hand touching the edge, showing wood grain and a hammer icon (no text or symbols)

Close-up of a person adjusting a wooden cabinet frame with visible grain and bolts (no text or symbols)

3.8.

Interior ceiling view showing wooden floor panels and a wall-mounted fixture (no text or symbols visible)

Close-up of a wooden floor with a screwdriver inserted, showing a dashed line and a small inset image of a drill (no text or symbols)

3.9.

Top-down view of an electronic device with a cylindrical component mounted on a wooden surface, showing measurement dimension (600 mm) and no visible text or symbols.

White oval-shaped object mounted on a wooden surface, no visible text or symbols

3.10.

NOTIZEN / APPUNTI / NOTES / NOTE / NOTITIES

NOTIZEN / APPUNTI / NOTES / NOTE / NOTITIES

Global:

www.harvia.fi

Tel. [phone]

HARVIA sante 65pa . [phone]

www.sentioica.com

Tel. [phone]

Central

Europ
