Product type	Thermo-hygrometer
Brand	TFA
Model	Klima Bee 30.5036.13
Dimensions (L x W x H)	52 x 35 x 165 mm
Weight	115 g (device only)
Power supply	9V battery
Battery life / Auto off	15 minutes
Temperature measuring range	-30 °C to +70 °C (-22 °F to +158 °F)
Temperature accuracy	±1.0 °C (-30 °C to -10 °C); ±0.5 °C (-10 °C to +70 °C)
Temperature resolution	0.1 °C (0.1 °F)
Humidity measuring range	0 % to 100 % RH
Functions	MAX/MIN/HOLD, backlight
Backlight	30 seconds
Tripod thread	1/4 inch
Package contents	Thermo-hygrometer, instruction manual, battery
Maintenance	Clean with a soft, damp cloth; no solvents
Battery replacement	Remove the battery if not used for a long time; replace as soon as the battery symbol appears
Safety	Keep out of reach of children; do not repair or modify yourself
Compliance	EU WEEE standards
Operating climate conditions	-20 °C to +60 °C, ≤ 90 % RH
Maximum altitude	Up to 2000 m

Frequently Asked Questions - Klima Bee 30.5036.13 TFA

How do I turn on the device?

Press and hold the ON/OFF button for about 3 seconds. All LCD segments light up and the current temperature and humidity are displayed.

How do I change the temperature unit?

Turn off the device by holding ON/OFF. Then, press and hold the MAX/MIN button while pressing ON/OFF. The device turns on and the unit changes to °F. Repeat the operation to switch back to °C.

How do I use the MAX/MIN function?

Press and hold the MAX/MIN button for 3 seconds. MAX appears with the maximum recorded values. Press again to display MIN and the minimum values. To exit, press and hold MAX/MIN again.

How do I activate the backlight?

Briefly press the ON/OFF button to turn on the backlight. It turns off automatically after 30 seconds. You can also turn it off manually by pressing the button again.

What should I do if the screen shows nothing?

Check that the device is on by pressing ON/OFF. If nothing is displayed, check the battery polarity (correct + and - terminals) or replace the battery with a new 9V battery.

Which battery should I use?

Use a 9V battery (block type). Insert it respecting the polarities indicated in the battery compartment.

How do I clean the device?

Use a soft, damp cloth to clean the housing. Do not use solvents or abrasive products. Avoid getting the openings wet.

The device turns off by itself, is this normal?

Yes, the device has an auto-off function after 15 minutes of inactivity. To wake it up, press the ON/OFF button.

What is the temperature measuring range?

The temperature measuring range is -30 °C to +70 °C (or -22 °F to +158 °F). Beyond this, the display shows 'LO' or 'OL'.

What should I do if the device still does not work?

Check the battery and its polarity. If the problem persists, contact the dealer where you purchased the device. Do not attempt to repair or disassemble the device yourself.

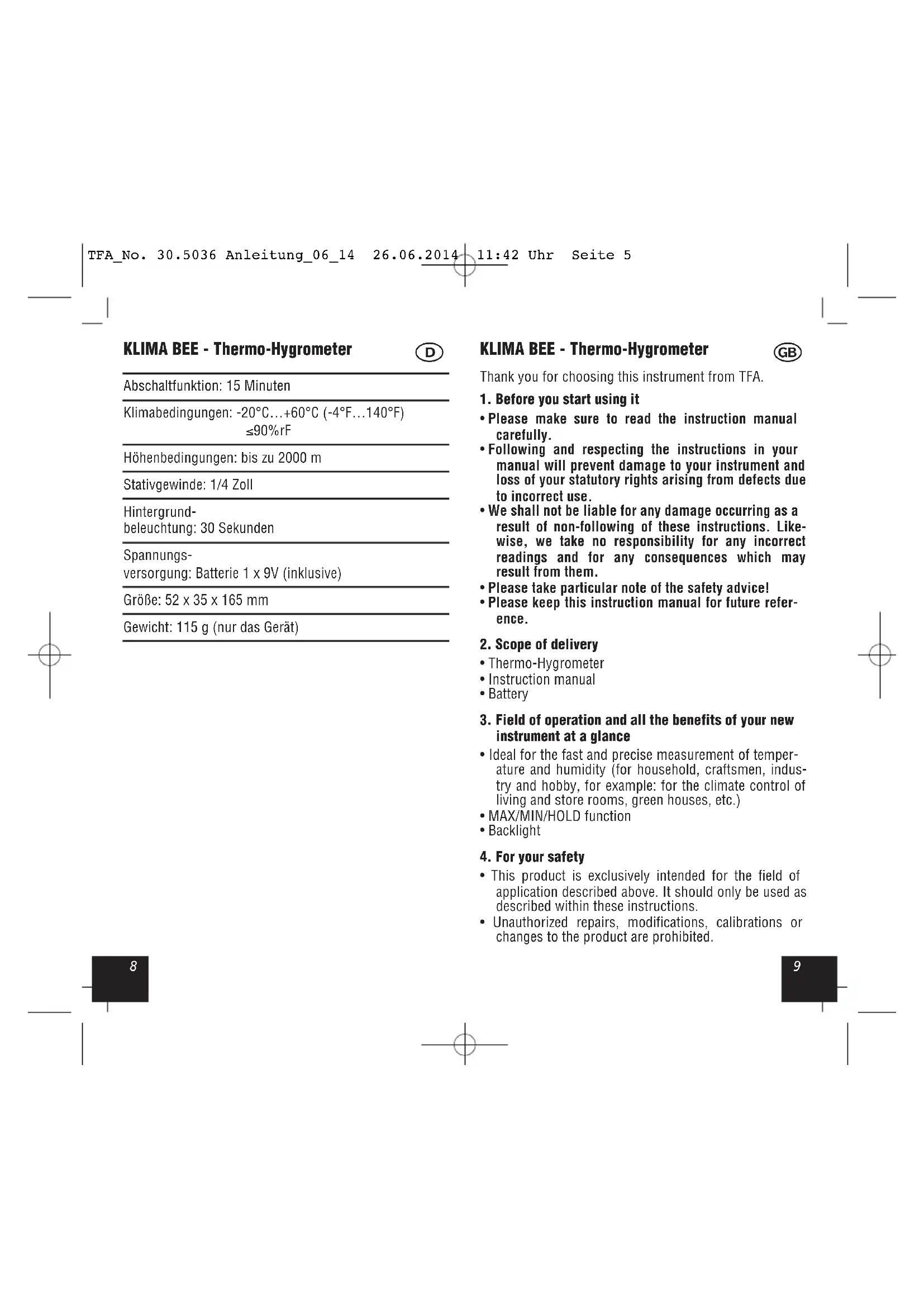

USER MANUAL Klima Bee 30.5036.13 TFA

Thank you for choosing this instrument from TFA.

1. Before you start using it

- Please make sure to read the instruction manual carefully.

- Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

- We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.

- Please take particular note of the safety advice!

- Please keep this instruction manual for future reference.

2. Scope of delivery

- Thermo-Hygrometer

- Instruction manual

- Battery

3. Field of operation and all the benefits of your new instrument at a glance

- Ideal for the fast and precise measurement of temperature and humidity (for household, craftsmen, industry and hobby, for example: for the climate control of living and store rooms, green houses, etc.)

• MAX/MIN/HOLD function

- Backlight

4. For your safety

- This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.

- Unauthorized repairs, modifications, calibrations or changes to the product are prohibited.

KLIMA BEE - Thermo-Hygrometer

Caution! Risk of injury:

• Keep this instrument and the battery out of the reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• To avoid damages of the sensor on the board, do not remove the black protective cover.
• Do not place your product near extreme temperatures, vibrations or shocks.
• Protect it from moisture, sand, dirt and dust.

5. Elements

Buttons

ON/OFF button (front)

MAX/MIN button (laterally)

Housing (back)

Tripod screw

Battery compartment (screwed)

6. Operation

6.1 Getting started

• Open the battery compartment and insert the new battery 9 V. Ensure that the battery polarity is correct.
• Please pay attention to the connection wires.

KLIMA BEE - Thermo-Hygrometer

• Close the battery compartment again.
• All LCD segments will be displayed for about a few seconds.
• On the display appear the battery symbol, the actual temperature (default: °C) and humidity.
• The unit is ready for use.
• The instrument will turn off automatically after 15 minutes, if no button is pressed.
• Press and hold the ON/OFF button for at least 3 seconds to turn off the instrument immediately.

6.2 Measuring of the temperature and humidity and HOLD function

• Press and hold the ON/OFF button.
• All LCD segments will be displayed for about a few seconds.
• On the display appear the battery symbol, the actual temperature (default: °C) and humidity.
• Press the MAX/MIN button to activate the HOLD function.
  • HOLD appears on the display.
• The actual temperature and humidity stay on the display.
• Press again the button, to deactivate the HOLD function.

6.3 Reading of the maximum and minimum values

• Press and hold the MAX/MIN button for at least 3 seconds to enter the maximum and minimum mode.
  • MAX appears on the display.
• The maximum temperature and the humidity since the last activation of the device are displayed.
• Press the button again.
  • MIN appears on the display.
• The lowest temperature and humidity since the last activation of the device are displayed.

KLIMA BEE - Thermo-Hygrometer

- Press and hold the MAX/MIN button for at least 3 seconds to leave the maximum and minimum mode.

6.4 Changing of the temperature unit

• The default setting is °C.
- To change the temperature unit, turn off the device by pressing and holding the ON / OFF button first.
- Press and hold the MAX/MIN button.
- Press and hold the ON/OFF button at the same time.
- The device switches on and the temperature unit appears in °F.
- To change the temperature unit again, turn off the device first.

6.5 Backlight

• Press the ON/OFF button to activate or deactivate the backlight.
• If the ON/OFF button is not pressed, the backlight switches off automatically after approximately 30 seconds.
• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the battery if you do not use the device for a long period of time.
• Keep the device in a dry place.

7. Care and maintenance

7.1 Battery replacement

• Change the battery when the battery symbol appears on the display.
• Confirm the device is powered off before changing battery.
• Open the battery compartment and insert a new battery 9 V.

KLIMA BEE - Thermo-Hygrometer

8. Troubleshooting

Problems Solution

No display → Press the ON/OFF

button to turn on the device

→ Ensure that the battery polarity is correct

→ Change the battery

Incorrect indication → Change the battery

If your device fails to work despite these measures contact the supplier from whom you purchased it.

9. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Pb=lead, Hg=mercury

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

KLIMA BEE - Thermo-Hygrometer

10. Specifications

Measuring range

Temperature: -30 °C... +70 °C (-22°F... +158°F)

Accuracy: ±1,0 °C (±1.8°F)

@ -30 °C...-10 °C (-22°F...+14°F)

±0,5 °C (±0,9°F)

@ -10 °C...+70 °C (+14°F...+158°F)

Resolution: 0,1°C (0,1°F)

Measuring range

Humidity: 0% ... 100 %rH

Accuracy: 0% ... 20% rH / ±3,5%

20% ... 40% rH / ±3,0%

40% ... 60% rH / ±2,5%

60% ... 80% rH / ±3,0%

80% ... 100%rH / ±3,5%

Resolution: 0,1 %rH

Indication LO/OL: Measurement is outside the measuring range

Off-function: 15 minutes

Operating conditions: -20^ +60^ ( -4^ 140^ ) ≤ 90% rH

Altitude conditions: up to 2000m

Tripod screw: 1/4 inch

Backlight: 30 seconds

Power consumption: Battery 1 x 9 V (included)

Dimensions: 52 x 35 x 165 mm

Weight: 115 g (instrument only)

Précision: 0% ... 20% rH / ±3,5%

20% ... 40%rH / ±3,0%

40% ... 60% rH / ±2,5%

60% ... 80% rH / ±3.0%

80% ... 100%rH / ±3,5%

Résolution: 0,1 %rH

Alimentation: Pile 1 x 9V (incluse)

Precisione: ±1,0 °C (±1.8°F)

@ -30 °C...-10 °C (-22°F...+14°F)

±0,5 °C (±0,9°F)

@ -10 °C...+70 °C (+14°F...+158°F)

20% ... 40% rH / ±3,0%

40% ... 60%rH / ±2,5%

60% ... 80% rH / ±3,0%

80% ... 100%rH / ±3,5%

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering your product number on our homepage.
