14.1509 - Food thermometer TFA - Free user manual and instructions

Product type	Digital cooking thermometer
Brand	TFA
Model	14.1509
Housing dimensions	76 x 25 x 76 mm
Weight	66,6 g (device only)
Power supply	2 piles 1,5 V AAA (not included)
Measuring range	-30 °C to 300 °C
Resolution	1 °C
Probe cable length	approx. 100 cm
Probe material	Stainless steel
Main functions	Core temperature control, audible alarm, color display, backlight, touch buttons
Included accessories	Probe with cable, magnet, foldable stand, protective cap
Recommended use	Oven, grill, low-temperature cooking
Care and cleaning	Soft damp cloth; do not immerse, do not use solvents
Safety	Do not use in microwave, sharp probe, protective gloves, keep out of reach of children
Maximum temperature probe/cable	300 °C (probe) / 250 °C (cable)
Low battery indicator	Yes (symbol on display)
Warranty	Consult the seller

Frequently Asked Questions - 14.1509 TFA

How to set the target temperature?

Use the + and - buttons to set the desired temperature. The default value is 77 °C.

How does the alarm work?

When the measured temperature reaches the target temperature, an audible signal sounds and the backlight turns on. The alarm stops when the temperature drops below the target or if you turn off the device.

What to do if the screen shows nothing?

Check that the device is turned on with the ON/OFF button. Check the battery polarity and replace them if necessary.

Can I use this thermometer in the microwave?

No, never use the device in a microwave oven. It is designed for conventional ovens and grills.

How to clean the probe and device?

Use a soft damp cloth. Do not use solvents or abrasive products. Never immerse the device, probe, or cable in water.

What batteries to use?

Two 1.5 V AAA batteries (not included). Observe polarity when inserting.

How to attach the thermometer near the oven?

Use the magnet on the back of the housing or unfold the stand to place it on a flat surface. The cable can pass through the oven door.

What does the display 'LLL' mean?

The 'LLL' display indicates a probe contact fault. Check that the connector is fully inserted into the jack.

What is the insertion depth of the probe?

Insert the probe at least 2.5 cm into the thickest part of the meat, without touching bones. For poultry, place it between the carcass and the thigh.

How to turn off the device?

Press and hold the ON/OFF button for 2 seconds. The device automatically turns off after a period of inactivity (backlight turns off after 10 seconds).

USER MANUAL 14.1509 TFA

Digital BBQ meal thermometer

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
  This information will help you to familiarize yourself with your raw device, to learn all of its functions and parts, to find out how to use it correctly, and to understand how to use it.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non following of these instructions.
  Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them. Please take particular note of the safety advised.
  Please keep this instruction manual sale for future reference.

2. Delivery contents

Digital BBQ meat thermometer
Stainless steel probe with approx. 100 cm cable

1. Range of application and all the benefits of your new instrument at a glance

With coloured display, backlight and sensor buttons
- For checking the internal temperature

Digital BBQ meat thermometer

For the optimal preparation of meat and poultry
- Can be used for the oven or grill, also ideal for cooking at low temperatures
Individual temperature requirements can be programmed
Alarm warning when the target temperature is below or above the target value with a power of 100 dB or less
- Stainless steel probe with approx. 100 cm cable - With magnet and table stand (fold out)

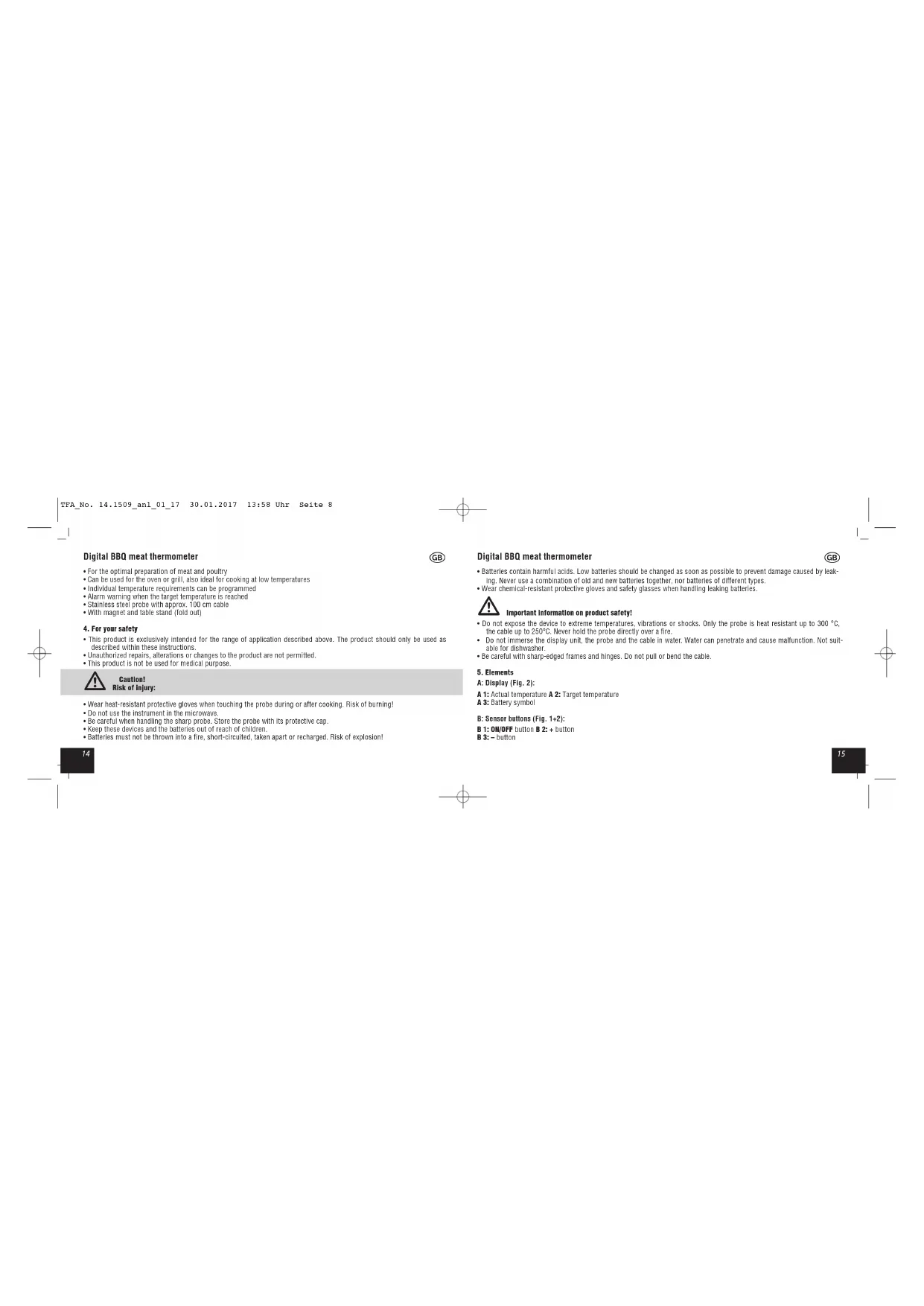

4. For your safety

This product is exclusively intended for the range of application described above. The product should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are not permitted.

This product is not be used for medical purpose.

Caution!

Risk of injury:

• Wear heat-resistant protective gloves when touching the probe during or after cooking. Risk of burning!
• Do not use the instrument in the microwave.
• Be careful when handling the sharp probe. Store the probe with its protective cap.

• keep these devices and the batteries out of reach of children.

• Ballees must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion

Digital BBQ meal thermometer

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leak
  Ing. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important Information on product safety!

Do not expose the device to extreme temperatures, vibrations or shocks. Only the probe is heat resistant up to 300 °C.
the cable up to 250^ Never hold the probe directly over a fire.
- Do not Immense the display unit, the probe and the cable in water. Water can penetrate and cause malfunction. Not suitable for dishwasher.
- Be careful with sharp-edged frames and hinges. Do not pull or bend the cable.

5. Elements

A:Display(Fig.2)

A 1:Actual temperature A 2:Target temperature
A3: Battery symbol

B: Sensor buttons (Fig. 1+2):

B1:ON/OFF button B2:+button
B3:-button

Digital BBQ meat thermometer

C: Housing (Fig. 3):
C1: Battery compartment C2: Stand (fold out)
C3:Magnet
D:Probe Fig.1
01:Probe 2:Caie
3:Probe connector
6. Getting started
- Remove the protective film from the display
- Pull the rubber protection from the stainless steel probe.
- Plug the connector for the sensor cable into the socket.
- Open the battery compartment and insert two new AAA 1,3 V batteries. Make sure the polarity is correct. All segments will be displayed briefly.
- Close the battery compartment again.
The current temperature and the target temperature (T^ default) appear on the display.
The device is ready for use.

1. Operation

2. Press the ON/OFF button to switch on the device.

3. If no button is pressed within 10 seconds, the backlight switches off automatically.

GB

Digital BBQ meal thermometer

GB

• Press the ON/OFF button briefly to activate the backlight again.
  Each button operation is acknowledged with a beep.
• Press and hold the + or - button for last mode.

7.1 Measuring procedure

• Plunge the probe at least 2.5 ~cm into the middle of the thickest part of the meat, for poultry between the torso and the thigh. It should not touch bones or cartilage and it should not protrude from the meat. Put the meat into the oven and set the relevant oven temperature.
• Simply run the cable to the outside. The cable adapts to the oven seal. Be careful with sharp-edged frames and hinges.
• Use the magnet to fasten the thermometer. In position near the oven (cable length 100cm ) or fold out the stand and place the device onto a flat surface.
• Press the + or - button to set the desired internal temperature.
• When the target temperature is reached, an alarm tone will sound.
  The backlight turns on.

• Remove the probe and turn off the instrument to stop the alarm
  The alarm tone continues sounding until the temperature drops below the selected alarm value.

• Care and maintenance

• Clean the instrument and the probe with a soft damp cloth. Do not use solvents or scouring agents. Protect it from moisture.

Digital BBQ meat thermometer

Should water or steam enter the device's jack, it could affect the contact with the probe. Dry the probe connector with a
cloth before you connect it to you .Turn off the instrument after use .
- Remove the batteries if the device will not be used for an extended period of time.
- Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
  Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.

9. Troubleshooting

Problem Solution

No display Switch on the device with the ON/OFF button

• Ensure the batteries' polarity are correct.
  Change the batteries

Incorrect indication Change the batteries
Check the contact of the plug to the socket, optionally dry

Digital BBQ meal thermometer

GB

Indication LLL Check the contact of the plug to the socket
Plug in the sensor cable
Temperature display is too high Check the position of the sensor in the meat

If your device fails to work despite these measures contact the retailer where you purchased the product.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.
Never disposa of empty balters and rechargeable balters with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the contained heavy metals are Cd = cadmium, Hg = mercury, Pb = lead.
This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

1

Digital BBQ meat thermometer

11. Specifications

Measuring range -30°C...300°C

Basalution 1^

HHH/LLL Temperature is outside measuring range

Power consumption 2 x AAA 1.5 V ballaries (not included)

Housing dimension 76 x 25 x 76 mm

Weight:66.6g (device only)

so part of this manual may be reproduced without written consent of TEK Desiman. The technical data are current at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering the product number on our homepage.

www.lfa-dostmann.de

TFA Bostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wortheim, Germany O1/17
