USER MANUAL 60.2540.53 TFA

MELODY – Radio-controlled alarm clock with various alarm sounds

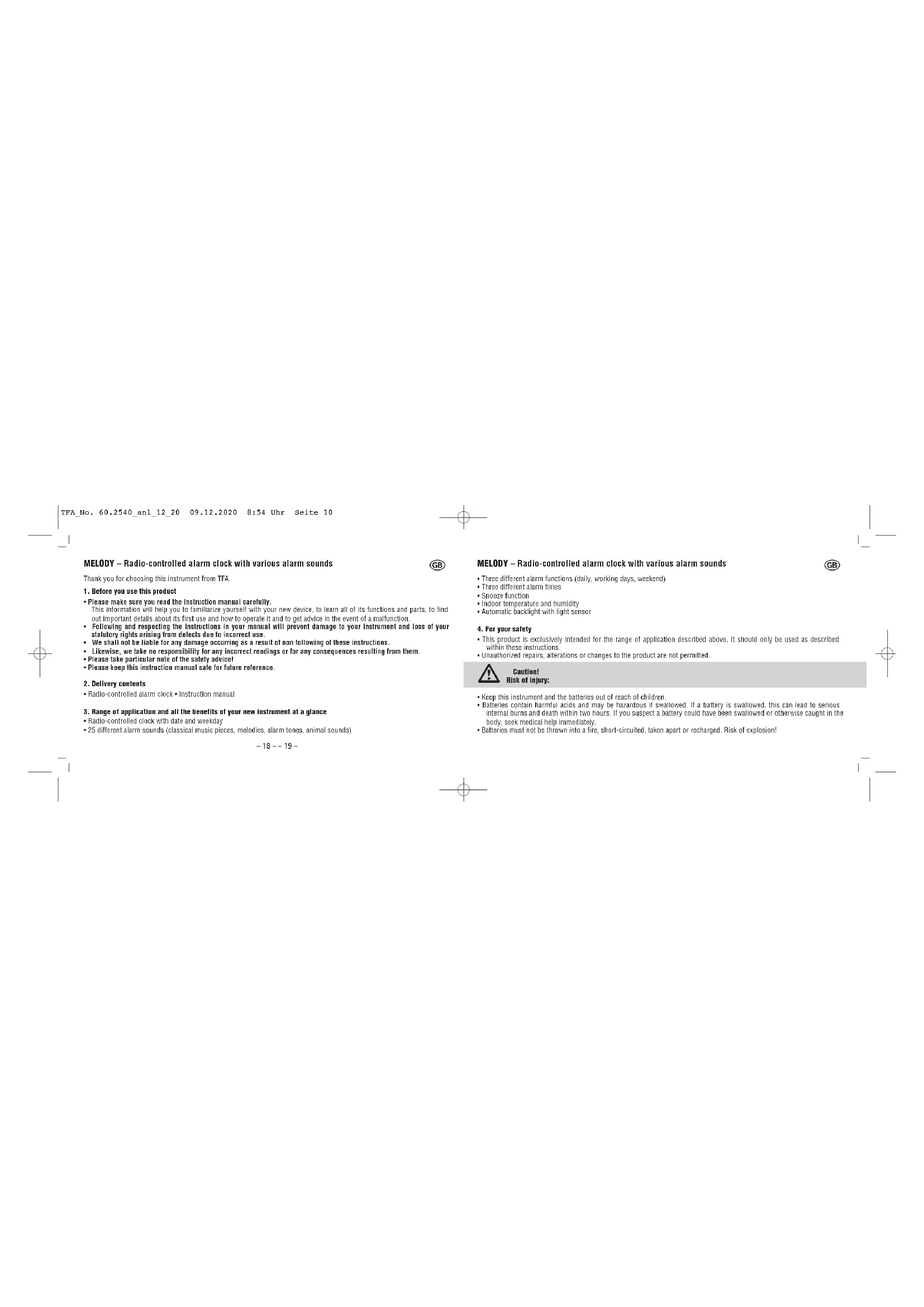

Thank you for choosing this instrument from TFA. 1. Before you use this product• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions.

• Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!• Please keep this instruction manual safe for future reference.2. Delivery contents• Radio-controlled alarm clock • Instruction manual3. Range of application and all the benefits of your new instrument at a glance• Radio-controlled clock with date and weekday• 25 different alarm sounds (classical music pieces, melodies, alarm tones, animal sounds) MELODY – Radio-controlled alarm clock with various alarm sounds

• Three different alarm functions (daily, working days, weekend)• Three different alarm times• Snooze function• Indoor temperature and humidity• Automatic backlight with light sensor4. For your safety• This product is exclusively intended for the range of application described above. It should only be used as describedwithin these instructions. • Unauthorized repairs, alterations or changes to the product are not permitted.Caution! Risk of injury:
• Keep this instrument and the batteries out of reach of children. • Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to seriousinternal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in thebody, seek medical help immediately.• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion! TFA_No. 60.2540_anl_12_20 09.12.2020 8:54 Uhr Seite 10– 20 – – 21 –

MELODY – Radio-controlled alarm clock with various alarm sounds

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safetyglasses when handling leaking batteries. Important information on product safety!
• Do not expose the device to extreme temperatures, vibrations or shocks. • Protect it from moisture.5. ElementsA: Display (Fig. 2):A 1: Time A 2: Radio-controlled time symbol with DCF reception symbol A 3: DCF ON/OFF A 4: Symbol Daylight Saving Time (DST)A 5: Alarm symbol A 6: Day of the weekA 7: Date A 8: Snooze symbolA 9: Alarm time mode 1-3 A 10: Alarm daysA 11: Alarm time A 12: Humidity A 13: Indoor temperature A 14: Battery symbol MELODY – Radio-controlled alarm clock with various alarm sounds

B: Buttons (Fig. 1-3): B 1: LIGHT/SNOOZE sensor button B 2: 1/2/3 Year button B 3: MIN/°C/°F Month button B 4: HOUR DAY/ button B 5: MUSIC button B 6: SET-MODE switch B 7: MODE weekdays switch B 8: switch B 9: ON/OFF switch B 10: ON/OFF switch C: Housing (Fig. 1+3):C 1: Light sensor C 2: Battery compartment C 3: Temperature probe C 4: Micro USB port C 5: Speakers6. Getting started

• Open the battery compartment and insert two new AA 1,5 V batteries. Make sure the polarity is correct. Close the battery compartment again.• Alternatively, connect the radio alarm clock with a micro-USB cable (not included).

MELODY – Radio-controlled alarm clock with various alarm sounds

6.1 Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is successfully received after 3-8 minutes, the radio-controlled time, the date and the DCF symbol will be shown steadily on the display.

• The DCF reception always takes place at 2:03 in the morning. If the reception is not successfully received, further attempts will be taken at 3:03, 4:03 and 5:03 o'clock.

• You can also start the initialization manually.

• Press and hold the HOUR DAY/ button for three seconds.

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing.

• There are four different reception states: Reception symbol (radio waves) are flashing - reception is active Radio waves stop flashing - reception is successful Radio waves disappear - set the clock manually, reception is still activated No radio-controlled time symbol - set the clock manually, reception is deactivated

• By default, the DCF reception is activated and after successful reception of the DCF signal no manual adjustment is neces- sary. MELODY – Radio-controlled alarm clock with various alarm sounds

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock. (see: Manual settings). Note: Radio-controlled time reception The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bunde- sanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time DST is shown on the display. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second. TFA_No. 60.2540_anl_12_20 09.12.2020 8:54 Uhr Seite 12– 24 – – 25 –

MELODY – Radio-controlled alarm clock with various alarm sounds

• Press and hold the respective button in the setting mode for fast mode.

• After setting slide the SET-MODE switch to the position LOCK.

7.1.1 Setting of the time and date

• Slide the SET-MODE switch to the position TIME. The time digits will be flashing.

• By default, the DCF reception is activated (ON). Press the 1/2/3 Year button for 3 seconds if you want to deactivate the DCF reception (OFF). Once the DCF time reception is deactivated the clock must be manually set.

• Press the HOUR DAY/ button to adjust the hours and the MIN/°C/°F Month button to adjust the minutes.

• Slide the SET-MODE switch to the position DATE. The year digits appear and the date flashes.

• Press the MIN/°C/°F Month button to adjust the month and the HOUR DAY/ button to adjust the day. Press the 1/2/3 Year button to adjust the year.

• Note: Once the DCF time signal is successfully received and the DCF reception is activated (ON), the manually set time is overwritten. MELODY – Radio-controlled alarm clock with various alarm sounds

• Slide the SET-MODE switch to ALARM. 1 and 7:00 (default) or the last adjusted alarm time appear on the display.

• Choose with the 1/2/3 Year button the alarm time 1, 2 or 3.

• Press the HOUR DAY/ button to adjust the hours and the MIN/°C/°F Month button to adjust the minutes.

• The MODE switch at the back allows you to choose between three different alarm functions (MO-SU, MO-FR, SA-SU).

7.4 Activate and deactivate the alarm time

• Choose with the 1/2/3 Year button the alarm time 1, 2 or 3.

• 1, 2 or 3 appears on the display.

• To activate/deactivate the alarm function, move the ON/OFF switch to ON or OFF.

• The alarm symbol appears/disappears on the display.

• When the adjusted alarm time is reached, the alarm rings.

• You can stop the alarm as follows:

• Press and hold the LIGHT/SNOOZE sensor button for 3 seconds.

• Press the 1/2/3 Year, MIN/°C/°F Month or HOUR DAY/ button.

• If the alarm is not stopped manually, the alarm tone automatically turns off after one minute and will be reactivated at the same set time in the following day. TFA_No. 60.2540_anl_12_20 09.12.2020 8:54 Uhr Seite 13– 26 – – 27 –

MELODY – Radio-controlled alarm clock with various alarm sounds

• The alarm symbol remains on the display.

• When the alarm rings, press the LIGHT/SNOOZE sensor button briefly and the snooze function is activated.

• Once the snooze function is activated, the snooze symbol will be flashing on the display.

• The alarm will be interrupted for 5 minutes.

7.5 Alarm clock - select melody

• In normal mode, press the MUSIC button to enter the selection function.

• 25 different alarm sounds are available (classical music pieces, melodies, alarm tones, animal sounds)

• Press the MUSIC button to select the alarm sound. Press the MUSIC button again to stop it.

• The last selected melody will be used as an alarm.

7.6 Alarm clock - adjust volume

• The switch at the back allows you to choose between three volume levels: silent (bottom), normal (middle), loud (top).

7.7 Temperature unit setting

• Press the MIN/°C/°F Month button in normal mode to change between °C (Celsius) or °F (Fahrenheit) as temperature units. MELODY – Radio-controlled alarm clock with various alarm sounds

• The backlight turns on for 5 seconds.

• The device is provided with a light sensor to turn on the light automatically when it is dark.

• Use the ON/OFF switch at the back to activate or deactivate the automatic backlight.

8. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if the device will not be used for an extended period of time.

• Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.

• Open the battery compartment and insert two new AA 1.5 V batteries, polarity as illustrated.

MELODY – Radio-controlled alarm clock with various alarm sounds

Problem Solution No display ➜ Ensure the batteries' polarity are correct ➜ Connect Micro USB cable ➜ Change the batteries No DCF reception ➜ Activate (ON) the DCF reception in the setting mode. ➜ Press the HOUR DAY/ button for 3 seconds in normal mode. ➜ Wait for an attempt reception during the night ➜ Change the location (interference!) ➜ Restart the device according to the manual ➜ Set the clock manually Incorrect indication ➜ Change the batteries If your device fails to work despite these measures contact the retailer where you purchased the product.

This product has been manufactured using high-grade materials and components which can be recycled and reused. MELODY – Radio-controlled alarm clock with various alarm sounds

Never dispose of empty batteries and rechargeable batteries in ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

MELODY – Radio-controlled alarm clock with various alarm sounds

Housing dimension 133 x 76 x 35 mm Weight 205 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.2540 is in compliance with Directive 2014/53/EU. The full text of the EU decla- ration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.deE-Mail: [e-mail] Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 12/20 MELODY – Réveil radio-piloté avec différentes tonalités d'alarme
