DABMAN OR 1 - Radio Imperial - Free user manual and instructions

Product Type	DAB+/DAB/FM digital radio with Bluetooth, solar charger, crank, flashlight and SOS emergency function
Brand	Imperial
Model	DABMAN OR 1
Dimensions (W x H x D)	55 x 174 x 79 mm
Weight	510 g
Power supply	Internal rechargeable battery via USB-C (5V 2A), solar panel, crank
Charging time	Approximately 3 hours via USB-C
Estimated battery life	1 minute of cranking = 3 minutes of listening; 1 hour of solar charging = 20 minutes of listening or 1 hour of flashlight
Frequency ranges	FM 87.5-108 MHz; DAB/DAB+ 174-240 MHz (band III)
Bluetooth	Version 5.0, range up to 10 m
Speaker power	2 x 7 W
Main functions	DAB+/FM radio, Bluetooth listening, alarm, 20 favorite stations, flashlight, reading lamp, SOS emergency function, weather station (thermometer)
Ports	USB-C charging input, USB output (power bank 5V 2A)
Protection rating	IPX5 (resistant to water splashes)
Operating temperature	-10°C to +55°C
Included accessories	USB-C to USB-A charging cable, carabiner, instruction manual
Care and cleaning	Clean with a dry, soft cloth. Do not use liquids, solvents or stain removers. Disconnect before cleaning.
Safety	Do not open the housing. Keep out of reach of children. Use only indoors or sheltered from weather (IPX5).
Spare parts and repairability	No user-serviceable parts. In case of malfunction, contact TELESTAR customer service.
General information	CE mark, compliant with RoHS, RE, ErP directives. Legal warranty. Manufactured in 2022.

Frequently Asked Questions - DABMAN OR 1 Imperial

How to turn the radio on and off completely?

To turn on the radio, briefly press the Power button. To switch to standby mode, press and hold the same button. To completely turn off the radio and save battery, press and hold the Power button while in standby mode.

How to perform a DAB+ station search?

When first switched on, the radio automatically performs a full DAB+ station search. To restart a search later, press and hold (2 seconds) the OK button.

How to save a station as a favorite?

In DAB+ or FM mode, press and hold (about 2 seconds) the Favorites button to save the current station. To recall a favorite, briefly press the same button.

How to use the SOS emergency function?

Press and hold the SOS button located at the bottom of the radio. A loud siren sounds and the emergency light flashes red and blue. Caution: the siren is very loud, keep the device away from your ears.

How to charge the radio without a power outlet?

You can recharge the battery via the solar panel by exposing it directly to sunlight, or by turning the crank at 120-150 rpm (2-2.5 turns per second). 1 minute of cranking gives about 3 minutes of listening.

What to do if the radio does not turn on?

Make sure the battery is charged. Connect the radio to a power source via the USB-C cable and charge it for at least 30 minutes. If the problem persists, use the reset button (under the charging cover) with a small object.

How to set the alarm?

From the Settings menu, select Alarm. You can set up to two separate alarms, repeat them daily, weekdays or weekends, and choose a sound or radio station as wake-up.

How to use the radio as a power bank?

Plug your mobile device (smartphone, tablet) into the USB output of the radio (5V 2A). The radio can then charge your devices using its internal battery.

Is the radio water resistant?

Yes, the protection rating IPX5 means it is resistant to water splashes. It can be used outdoors in light rain, but should not be submerged.

How to reset the radio to factory settings?

In the System Configuration menu, select Restore default settings. This action erases all your settings and favorites. You can also use the physical reset button (hole under the charging cover).

USER MANUAL DABMAN OR 1 Imperial

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

Anzahl Erklärung

2.1 Explanation of symbols 35
2.2.Intended Use 37
2.3. Safety instructions 38
2.4. Operational safety 39
2.5. Connecting the device. 40
2.6. Protecting the device against damages 40
2.7.Risk of injury 41
2.8.Notes on the radio interface. 41
2.9.Cleaning the device 42
2.10. Actions in case of malfunction 42

3.DELIVERY CONTENTS 43

4. OVERVIEW OF THE CONTROLS 44

5. OPERATION AND FUNCTIONS 47

5.1.First use 47
5.2. Standby mode 47
5.3.Mode selection 48
5.4.DAB+Digitalradio Mode. 48
5.4.1.DAB+station search. 48
5.4.2.Station list. 48
5.4.3. Saving / recalling a favourite stations 49
5.4.4.DAB settings 49
5.5.FM radio mode 49
5.5.1.FM station search 50
5.5.2.Setting the FM frequency manually 50

1. TABLE OF CONTENTS

5.5.3. Saving / recalling a favourite stations 50
5.5.4.FM menu 50
5.6.Wireless music streaming [Bluetooth] 51
5.7. System setup 51

5.7.1.Alarm 51
5.7.2.Backlight. 51
5.7.3.Time setup 51
5.7.4.Language 52
5.7.5.Factory reset. 52
5.7.6.Software Version 52
5.8. Outdoor battery charging. 52
5.8.1. Solar panel. 52
5.8.2. Hand crank 53
5.9.SOS emergency function 53
5.10.Torch 53

6.TROUBLESHOOTING 54

7.DISPOSAL INFORMATION. 55
7.1.Disposing of the packaging 55
7.2. Device disposal 55
8. TECHNICAL DATA. 56
9. SERVICE & SUPPORT 57
10. CE LABELLING 58

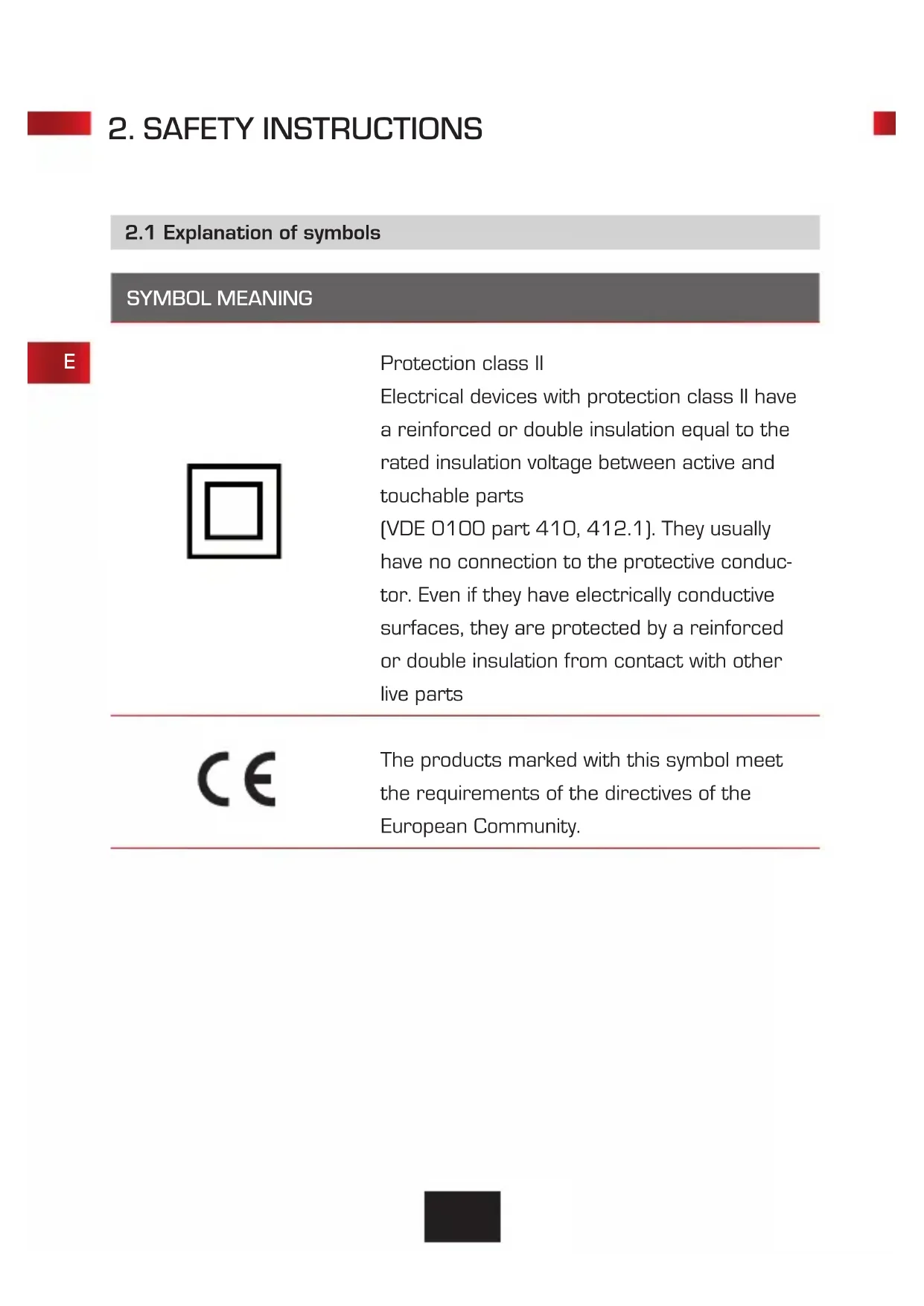

2. SAFETY INSTRUCTIONS

2.1 Explanation of symbols

SYMBOL MEANING

DANGER!

This signal word indicates a hazard with a high degree of risk, which, if ignored, results in death or serious injury.

WARNING!

This signal word indicates a hazard with a medium degree of risk, which, if ignored, may result in death or serious injury.

CAUTION!

This signal word indicates a hazard with a low degree of risk, which, if ignored, may result in minor or moderate injury.

NOTE!

This signal word warns of possible property damage.

This sign warns of danger.

2. SAFETY INSTRUCTIONS

2.1 Explanation of symbols

SYMBOL MEANING

E

Protection class II

Electrical devices with protection class II have a reinforced or double insulation equal to the rated insulation voltage between active and touchable parts

(VDE 0100 part 410, 412.1). They usually have no connection to the protective conductor. Even if they have electrically conductive surfaces, they are protected by a reinforced or double insulation from contact with other live parts

The products marked with this symbol meet the requirements of the directives of the European Community.

2. SAFETY INSTRUCTIONS

2.2. Intended Use

The device serves as a receiver for DAB+ FM radio signals, for charging mobile devices such as smartphones or tablets with a charging voltage of 5V and a maximum charging current of 2A, and as a flashlight. Any other operation or use of the device is considered improper and can lead to personal injury or damage to property

Do not use the device for any other purpose.

The device is only intended for private use and not for commercial use.

We assume that the person operating this device has general knowledge of how to use electronic entertainment devices.

There is no liability in the event of improper use.

Only use spare parts and accessories supplied or approved by us.
Do not modify the device and do not use any accessories or spare parts not explicitly approved or supplied by us.
Do not use the device in potentially explosive areas. These include e.g. fuel storage areas, tank facilities, or areas where solvents are stored or processed.
Do not operate the device in areas with particle-contaminated air (e.g. flour or wood dust)
Do not expose the device to extreme conditions, e.g. extremely high or low temperatures, open fire.

2. SAFETY INSTRUCTIONS

2.3. Safety instructions

NOTE!

E

Risk of injury!

Risk of injury to children and persons with reduced physical, sensory, or mental abilities (e.g. partially disabled, elderly persons with limited physical and mental abilities), or lack of experience and knowledge.

Please keep the device only in places that are inaccessible to children.
This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and/or knowledge, if they are supervised or have been instructed in the safe use of the device and have understood the resulting hazards.
Never let children use the device unattended.
Do not store the used packaging materials (bags, polystyrene pieces, etc.) within the reach of children.

Children are not allowed to play with the packaging.

2. SAFETY INSTRUCTIONS

2.4. Operational safety

DANGER!

Risk of injury!

Risk of injury due to electric shock from live parts.

There is a risk of electric shock or fire due to an unintentional short circuit.

Please check the device for damages before every use.
If you notice any visible damage or if the device has visible damages, please stop operating it.
If you notice a technical or mechanical problem, please contact TELESTAR Service.
Use only the supplied power supply unit!
Never open the casing of the device.
In the event of a malfunction, disconnect the radio from the power source.
If you move the device from a cold to a warm environment, moisture may develop inside the device.

In such a case, wait for approximately one hour before using it.

In case of prolonged periods of absence or thunder storm, unplug the device from the wall socket.
If foreign bodies or liquids enter the device, immediately disconnect the power supply unit from the wall socket. Have the device inspected by a qualified person before using it again.

Otherwise, you run the risk of an electric shock.

2. SAFETY INSTRUCTIONS

2.5. Connecting the device

Only connect the device to a professionally installed, earthed and electrically fused wall socket.
Make sure that the power source (wall socket) is easily accessible.
Do not bend or squeeze the cable connections.
Before operating the device, check that the voltage indicated on the device matches the local mains voltage.

2.6. Protecting the device against damages

NOTE!

Unfavorable environmental conditions such as humidity, excessive heat, or lack of ventilation can damage the device.

Use the device only in dry rooms.

Avoid the direct proximity of: heat sources, such as radiators, open flames, e.g. candles, devices with strong magnetic fields, e.g. speakers.

Ensure that there is sufficient distance to other objects and that the device is not covered to always guarantee sufficient ventilation.

Avoid direct sunlight and places with excessive dust.

Make sure that contact with moisture, water, and splashing water is avoided and that there are no liquid filled items - e.g. vases - placed near the device. Do not place any heavy objects on the device.

Make sure that there are no open sources of fire (e.g. lighted candles) near the device.

2. SAFETY INSTRUCTIONS

2.7. Risk of injury

WARNING!

Excessive sound pressure can cause hearing damage or loss. Listening in close proximity to the speakers at increased volume for a long period of time may cause harm to the user. Please check the volume from a sufficient distance from the device. Set the volume to a low level and only increase the volume to a level that is comfortable for you.

2.8. Notes on the radio interface

The device generates an electro-magnetic field.

Please pay attention to any indications in your surroundings that may prohibit or restrict the use of electronic devices.

This may be the case in hospitals, petrol stations and patrol depots or airports, for example. If there are such warning signs, promptly unplug the device from the power source. The components contained in the device generate electro-magnetic energy and magnetic fields. These may inhibit medical devices such as a cardiac pacemaker or defibrillator. Therefore, please maintain sufficient and safe distance between the radio and medical devices.

Should you have reason to believe that the radio has caused a disruption of a medical device, immediately switch off and unplug the radio from the power source.

2. SAFETY INSTRUCTIONS

2.9. Cleaning the device

Before cleaning, unplug the device from the wall socket.

Use a dry, soft cloth to clean the device. Please do not use liquids to clean the device.

Do not use solvents and cleaning agents as they may damage the surface and/or inscriptions of the device.

2.10. Actions in case of malfunction

If the device malfunctions, press Reset button and wait for a few seconds. Reconnect the device to the power supply.It may be necessary to reset to the factory settings. If this does not work, please contact your dealer or contact TELESTAR Digital GmbH directly.

3. DELIVERY CONTENTS

Please remove all parts from the packaging and completely remove all packaging materials. If one or more of the

specified parts are missing, please contact:

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

Anzahl Erklärung

1 DABMAN OR 1 Radio
1 User manual
1 USB charging cable
1 Carabiner hook

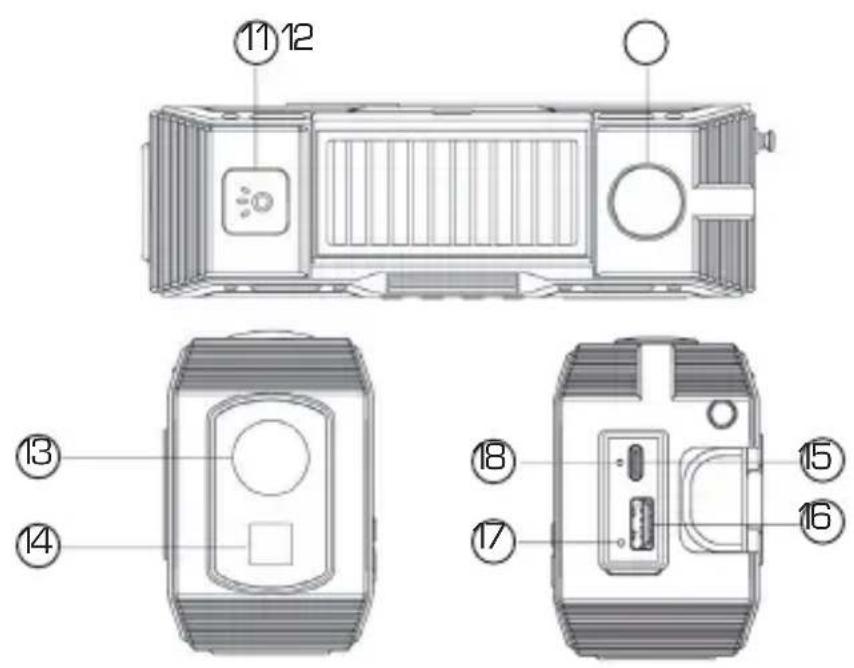

4. OVERVIEW OF THE CONTROLS

4. OVERVIEW OF THE CONTROLS

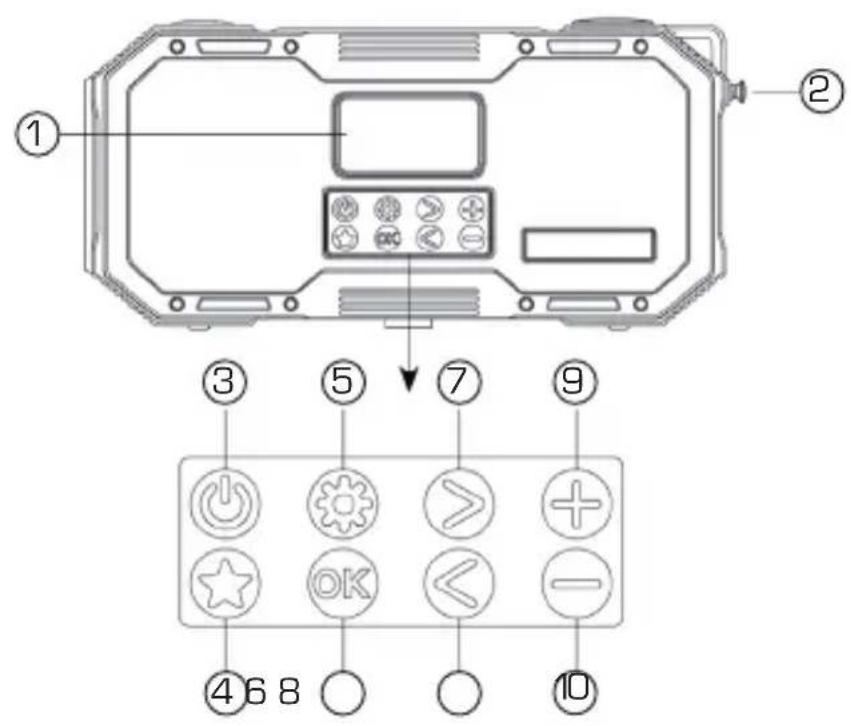

NO.	Description Function
1	Display Shows information about the current station/song/artist
2	Antenna Extend antenna to full length for best reception
3	On/Off/Standby	Short press: turn radio on / change mode (DAB / FM / Bluetooth)Long press: Standby mode / turn off completely when already in standby
4	Favourites Short press: open a favourite radio stationLong press: save current radio station to favourite
5	Menu Short press: toggle radio text informationLong press: enter menu
6	Confirm Short press: confirm any selection in menusLong press: start full scan in DAB/FM
7	Right DAB: next radio stationFM: short press +0.05 MHz / long press: search for next station
8	Left DAB: previous radio stationFM: short press -0.05 MHz / long press: search for previous station.
9	Volume Up Increase the volume of the radio.
10	Volume Down Decrease the volume of the radio.
11	Torch or Reading light on/off	Press to activate torch, press again to change torchIf solar panel is flipped up, the button activates the reading light.
12	Thermometer Shows the current temperature in degrees Celsius.
13	Torch Bright torch to use during night time.
14	Emergency Light	Emergency light flashes if SOS button is pushed.
15	USB-C charging socket	Use to recharge the integrated battery of the radioHEADphones can be connected via USB-C adapter.
16	USB Output Power bank function to charge any mobile device.
17	Reset button Hard reset the radio in case of software error.
18	Charging indicator	Blink red: Charging in process.Consistently red: Radio fully charged

4. OVERVIEW OF THE CONTROLS

4. OVERVIEW OF THE CONTROLS

NO.	Description Function

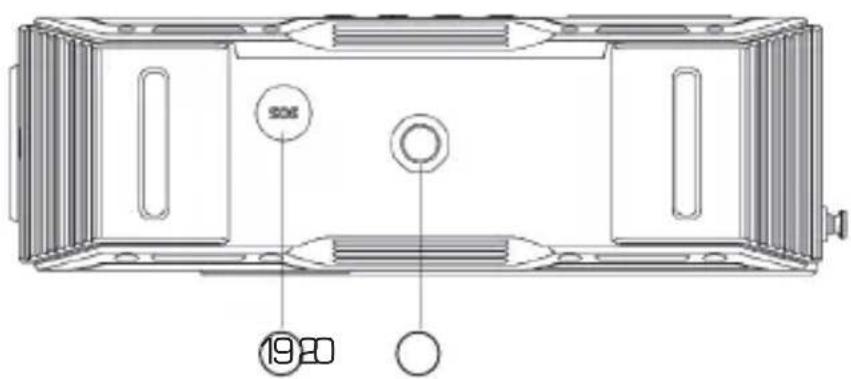

19	SOS button	Long press SOS button to play a loud siren sound and activate the emergency light
20	Tripod threat 1/4" tripod threat to mount the radio

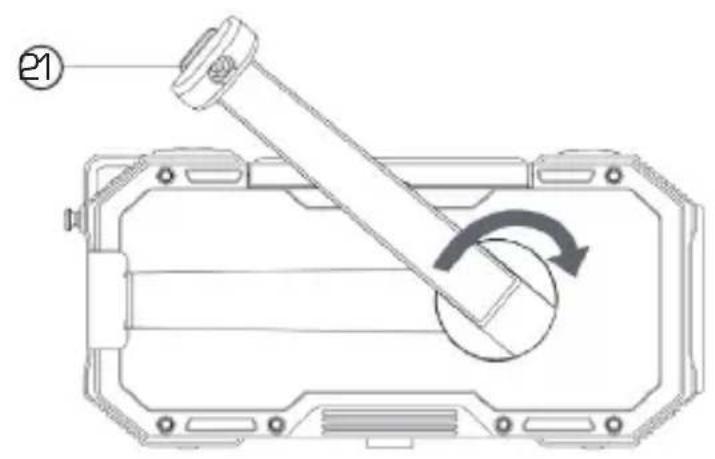

21	Hand crank	Twist hand crank to manually recharge the internal battery.

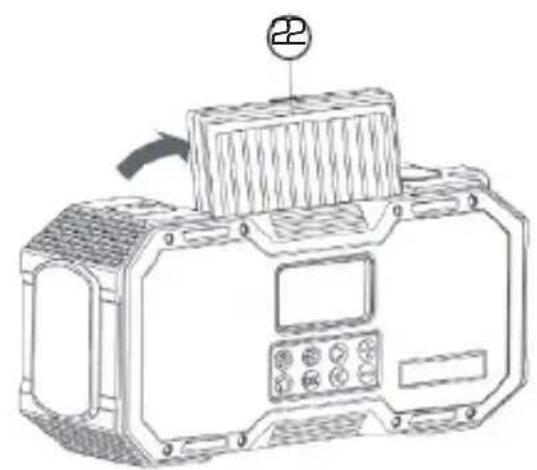

22	Solar panel Face the solar panel to the sun to recharge the radio.

5. OPERATION AND FUNCTIONS

5.1. First use

Fully extend the antenna. Long press the On/Off button until the radio powers on. Use the buttons to select the language and confirm with OK button. The radio performs a full scan of all available DAB+ stations.

5.2. Standby mode

To activate the standby mode, long press the On/Off button To reactivatethe radio, short press the On/Off button . To fully turn off the radio and preserve battery life, long press the On/Off button again in standby mode. No alarms are available, when the radio is turned off completely.

In standby mode, press the settings button to quickly view your currently set alarm settings, or press the OK button to quickly jump to the alarm settings wizard (chapter 5.7.1).

5. OPERATION AND FUNCTIONS

5.3. Mode selection

To select the desired audio mode, short press the mode button while the radio is turned on. The available audio modes are:

-DAB+ digital radio
-FM analogue radio
-Bluetooth wireless audio

5.4. DAB+ Digitalradio Mode

Use this mode to listen to digital radio broadcasts. You can cycle through available stations with the left and right buttons. To access more functions, open the menu by long pressing the settings button Navigate the menu with the left and right buttons, and use the OK button to confirm. To exit the menu use the settings button again.

5.4.1. DAB+ station search

The radio automatically performs a full station search when you turn it on for the first time.

If you would like to perform a full station scan again at a later time (e.g. after moving), press and hold down the OK button for approx. 2 seconds.

5.4.2.Station list

After the scan is complete, you can view all currently available stations in the station list, accessible in the menu. Navigate through the list with the left and right buttons and confirm your selection with OK.

5. OPERATION AND FUNCTIONS

5.4.3. Saving / recalling a favourite stations

If you want to save the current DAB+ station as a favourite, press the favourite button for about 2 seconds.

To recall a favourite later, short press the favourite button.

5.4.4. DAB settings

The DAB menu contains the following options:

Trim invalid stations:

Prune unavailable stations from station list.

Station order:

Sort stations in the station list by name or frequency.

DRC:

Adjust the level of the Dynamic Range Compression, reducing the volume differences between loud and quite passages.

Manual tune:

Manually tune a DAB frequency.

5.5. FM radio mode

Use this mode to listen to analogue radio broadcasts. You can cycle through available stations by long pressing the left and right buttons. To access more functions, open the menu by long pressing the settings button

Navigate the menu with the left 串 and right buttons, and use the OK button to confirm. To exit the menu use the settings button again.

5. OPERATION AND FUNCTIONS

5.5.1. FM station search

To perform a full station scan, press and hold down the OK button for approx. 2 seconds.

All found radio stations will be saved in the favourite station list.

5.5.2. Setting the FM frequency manually

Press the left and right buttons briefly to set an FM frequency manually. The frequency is adjusted in 0.05 MHz steps.

5.5.3. Saving / recalling a favourite stations

If you want to save the current FM station as a favourite, press the favourite button for about 2 seconds.

To recall a favourite later, short press the favourite button on the radio.

5.5.4. FM menu

Other menu items in the FM menu include:

Scan settings:

Restrict the full scan to strong stations only.

Audio settings:

Only allow mono stations to improve reception.

5. OPERATION AND FUNCTIONS

5.6. Wireless music streaming (Bluetooth)

A Bluetooth-enabled mobile phone can be used for wireless playback of any audio content. For this purpose, you need to activate the "Bluetooth" mode by pressing the mode button Once this is done, search for "DABMAN OR 1" on your mobile device. For more details about operation of your mobile phone, please refer to thedevice's manual.

5.7. System setup

You can find the system setup in the menu of every audio mode.

5.7.1. Alarm

Use this menu to configure the alarm function. Two separate alarms can be programmed. Each alarm can be repeated daily, on weekdays or on weekends. The alarms can play a standard alarm sound or the last set FM or DAB station.

5.7.2. Backlight

Use this entry to set the display backlight illumination level and timeout.

5.7.3. Time setup

Use this entry to set time/date, change the time or date format or configure automatic time setting via FM/DAB.

5. OPERATION AND FUNCTIONS

5.7.4. Language

Select one of the following menu languages:

English, German, French, Italian, Spanish, Danish, Finnish, Polish.

5.7.5. Factory reset

Reset the radio to factory settings.

Attention: All settings and favourites will be deleted by this procedure!

5.7.6. Software Version

The current software version of the radio is displayed here.

5.8. Outdoor battery charging

5.8.1. Solar panel

To recharge the radio, place the radio's solar panel directly into sunlight.

The panel can be tilted for optimal alignment. Be careful to not shade any part of the solar panel. Even small shadows can drastically decrease the panel's performance. Artificial light sources mostly do not provide enough energy to charge the radio.

5 hours of solar charging can power the radio for about 15 minutes or the integrated torch for about 1 hour.

5. OPERATION AND FUNCTIONS

5.8.2. Hand crank

To recharge the radio, extend the hand crank and turn it in either direction. For optimal charging, turn the crank at 120 - 150 rpm (2 - 2.5 times a second). 30 minutes of turning can power the radio for about 15 minutes.

5.9. SOS emergency function

Use this function in an emergency to alert people near your location. To activate, long press the SOS button on the bottom of the radio. The radio will play a loud siren and flash a red and blue signal light.

Attention: The siren is very loud. Prolonged close range exposure can cause hearing damage. Try to set up the radio some distance away, when using the emergency function. Use of the emergency function drains the battery at an excessive rate.

5.10.Torch

To turn on the torch, press the button on top of the radios. If you press the button a second time, the light flashes.

If the solar panel is folded upwards, the button does not activate the torch, but the reading light under the solar module instead. This can be operated in 3 different levels.

6. TROUBLESHOOTING

Problem Solution
The device does not switch on.	Make sure the radio is charged, by connecting it to a power source and charging for at least 30 minutes. If the radio is charged but still does not switch on, press the reset button under the charge cover with a small object.
No sound or low volume Is the radio muted? Use the volume up button to increase the volume.
No signal or hissing in DAB/FM mode.	Re-position the radio or change the antenna. Check that the antenna is fully extended.
Some buttons/functions can no longer be used	Reset the radio to factory settings (chapter 5.7.5).

7. DISPOSAL INFORMATION

7.1. Disposing of the packaging

The packaging consists exclusively of materials that may be recycled. Please dispose of this according to the 'Dual system'.

7.2. Device disposal

The symbol on the right of a crossed-out waste bin on wheels indicates that this device is subject to Directive 2012 / 19 / EU.

This directive specifies that this device may not be disposed of in normal household waste at the end of its service life but must be taken to specific collection centres, recycling centres or waste disposal companies.

This type of disposal is free of charge. Protect the environment and ensure a proper disposal.

Further information is available at your local waste collection company or your city or municipal office.

8. TECHNICAL DATA

Model number IMPERIAL	DABMAN OR 1
Description DAB+/DAB/	UKW/Bluetooth
Speaker power 2 x 7 W
FM 87,5 - 108 MHz
DAB/DAB+ 174 - 240 MHz (Band III)
Bluetooth Version 5.0 / Range ca. 10 m
Charging input USB-C 5 V 2 A
Charging output 5 V 2 A
Charging time	ca. 3 hours
Waterproof IPX 5
Operating temperature [-10 °C] - (+55 °C)
Dimensions 55 x 174 x 79 mm
Weight 510g

9. SERVICE & SUPPORT

Dear customer!

Thank you for choosing one of our products. Our product meets the legal requirements and has been manufactured under constant quality control. The technical data correspond to the current status at the time of printing. Subject to changes.

The warranty period for the DABMAN OR 1 corresponds to the statutory provisions at the time of purchase.

We also offer a HOTLINE telephone service with professional support. Professional specialists are ready to offer their assistance in our service area. Here you can ask any questions you may have about TELESTAR products and get suggestions on troubleshooting.

Our technicians are available Monday- Friday from 08:00 - 16:45 at the following phone number: 02676 / 95 20 101

or by email at: [e-mail]
If the Service Hotline cannot help you, please send your DABMAN OR 1 to the following address, preferably in its original packaging, but definitely packed safely for transport:

Your device is CE marked and complies with all necessary EU standards. TELESTAR DIGITAL GmbH hereby declares that the DABMAN OR 1 device complies with the essential requirements and other relevant provisions of RoHS Directive 2011/65/EU, RE Directive 2014/53/EU and ErP Directive 2009/125/EC.

The Declaration of Conformity for this product is available at: http://www.telestar.de/de_DE/Konformitaetserklaerung/352-529/?productID=24489

Distributor:

TELESTAR Service Center,

Am Weiher 14,

D-56766 Ulmen

Courriel:[e-mail]

Numero Explication

No Description Function

Chere clientele, cher client,

TELESTAR Service Center,

Am Weiher 14,

56766 Ulmen

e-mail: [e-mail]

Aantal Verklaring
