Product type	Incremental encoder
Model	RU6013
Brand	IFM
Supply voltage	5 V TTL or 10...30 V HTL
Outputs	A, B, zero index, inverted signals
Output protection	5 V version: short-circuit to 0 V; HTL version: short-circuit to 0 V and L+ (max. 1 min)
Max. cable length	100 m (5 V TTL) or 300 m (10...30 V HTL)
Electrical connection	Male connector ifm1000 (15-pin) or ifm1013 (5/13-wire cable)
Output phase shift	90° between A and B for rotation direction detection
Zero index	One pulse per mechanical revolution
Mounting	On mounting flange (ref. E60033); use a flexible coupling
Flange dimensions	Outer diameter 50 mm, bore 42 mm, 3 holes at 120°, M4 thread depth 5 mm
Min. distance to interference sources	20 cm
Shielding	Braid connected to housing
Functions	Measurement of linear displacements, angular movements and position determination
Maintenance	Avoid shocks to the shaft; do not use abrasive tools
Safety precautions	Disconnect power before any connection; insulate unused wires
Accessories	Available at www.ifm.com
Certificate	No. U8V 10 08 70596 006

Frequently Asked Questions - RU6013 IFM

How to connect the RU6013 encoder?

Follow the wiring diagram on the housing cover. Use the male connector ifm1000 (15-pin) or the ifm1013 cable. Respect the wire colors: L+ (brown), 0V (gray), A (green), B (white), index 0 (yellow). Insulate unused wires.

What is the required supply voltage?

The encoder is available in 5 V TTL or 10...30 V HTL version. Check the housing label to identify the version. The outputs are short-circuit protected.

What output signals does the encoder provide?

The encoder delivers digital signals on outputs A, B and index 0, as well as their inverted signals. Outputs A and B are phase-shifted by 90° to determine the direction of rotation. The zero index is emitted once per mechanical revolution.

What is the maximum cable length?

For the 5 V TTL version, the maximum length is 100 m. For the 10...30 V HTL version, it is 300 m. Use shielded cables and keep them away from interference sources (min. distance 20 cm).

How to mount the RU6013 encoder?

Screw the encoder onto a mounting flange (ref. E60033). Connect the shaft via a flexible coupling to compensate for misalignment. Avoid shocks to the shaft. Measuring wheels or rack-and-pinion can convert linear displacements.

What are the safety precautions?

Disconnect the installation from power before any connection. Insulate unused wires to avoid short circuits. Observe the voltage and current limits.

How to maintain the encoder?

Avoid mechanical shocks to the shaft. Do not use files or abrasive tools. Ensure the coupling is in good condition. No specific cleaning is required.

Where to find accessories and spare parts?

Visit www.ifm.com for the datasheet, accessories (mounting flange, cables) and certificates.

Can the encoder be repaired?

The encoder is a sealed device. In case of failure, it is recommended to replace it. Contact IFM customer service for more information.

What is the function of the zero index?

The zero index provides a single reference pulse per mechanical revolution. It allows establishing an absolute reference, useful after a power failure.

USER MANUAL RU6013 IFM

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting bracket and motor (no text or symbols)

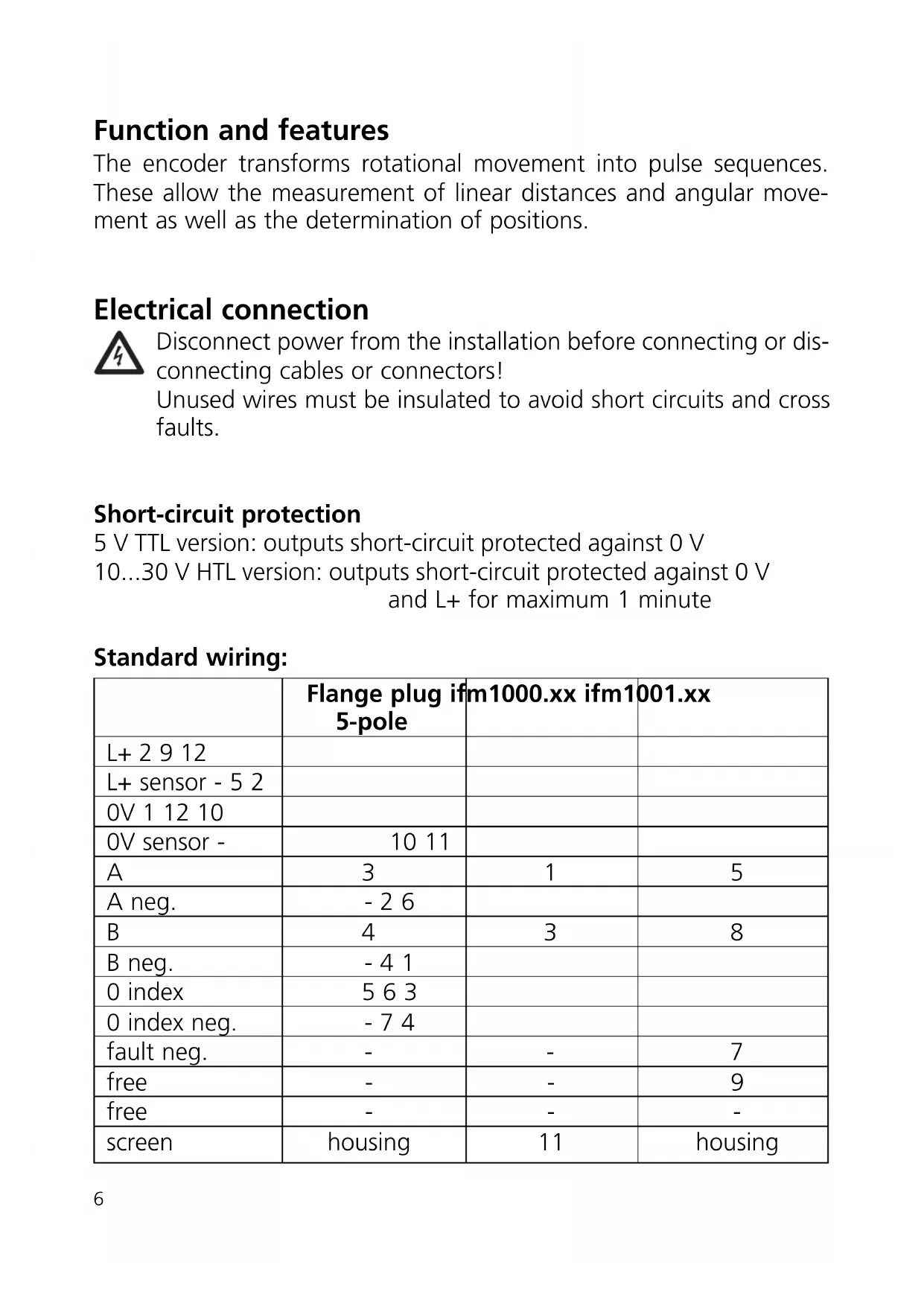

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V

and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green
L+ sensor - - blue
0V 6 grey white/green
0V sensor - - white
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20 cm.

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages.

The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

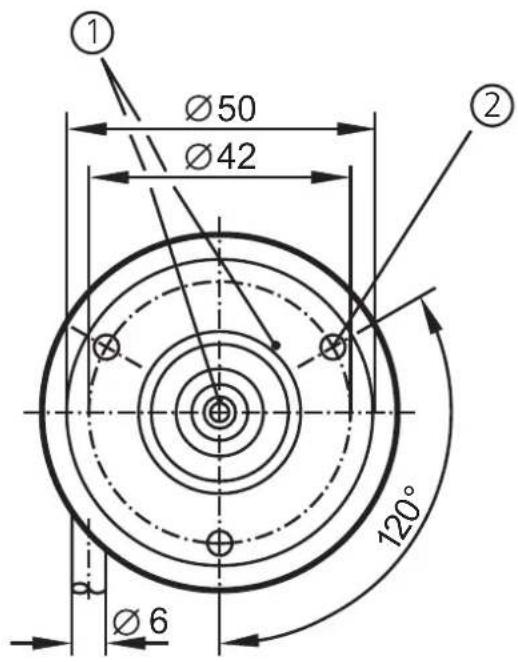

angle bracket E60033

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production 20196

Facility(ies):

Certification Mark:

Electronic measuring equipment (encoders)

Product: Electronic measuring equipment (encoders)

Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA

Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.

Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.: 028-71370093-000

Date, 2010-08-18

Page 1 of 1
