Product type	Incremental encoder
Brand	IFM
Model	RU6016
Supply voltage	5 V TTL or 10...30 V HTL (depending on version)
Short-circuit protection	Protected outputs (5 V TTL to 0 V; HTL to 0 V and L+ max 1 min)
Output signals	A, B, index 0 (phase-shifted 90°)
Electrical connection	Male connector ifm1000.xx 15-pole or cable ifm1013.xx (5/13 wires)
Max cable length	100 m (5 V TTL), 300 m (10...30 V HTL)
Min distance from interference sources	20 cm
Shielding	Braided, connected to housing
Application	Measurement of linear and angular displacements, position determination
Mounting option	Mounting flange E60033
Housing diameter	50 mm
Additional documents	Datasheet and accessories at www.ifm.com
Certificate	No. U8V 10 08 70596 006

Frequently Asked Questions - RU6016 IFM

What are the main types of output signals of the RU6016 encoder?

The encoder provides digital signals on outputs A, B and index 0. Outputs A and B are phase-shifted by 90° to determine the direction of rotation. The zero index is output once per mechanical revolution and serves as a reference.

What supply voltage is required for the RU6016?

Two versions are available: 5 V TTL and 10...30 V HTL. Short-circuit protection depends on the version.

How to electrically connect the encoder?

Disconnect the system from power before any connection. Use the male connector ifm1000.xx (15-pole) or the cable ifm1013.xx. The L+ and sensor 0 V wires are internally connected to the power supply. Unused wires must be insulated.

What is the maximum allowed cable length?

For the 5 V TTL version, the maximum length is 100 m. For the 10...30 V HTL version, it is 300 m.

Is the encoder protected against short circuits?

Yes. In the 5 V TTL version, outputs are protected against short circuits to 0 V. In the HTL version, they are protected against short circuits to 0 V and L+ (max. 1 minute).

How to mechanically mount the encoder?

Use the mounting flange E60033. Mounting on a spring base protects the encoder from excessive stress. Observe the mounting dimensions (Ø50, Ø42, etc.).

Can linear displacements be measured with this encoder?

Yes, by using a measuring wheel or a pinion and rack to convert linear displacement into rotation.

Where to find the datasheet and accessories?

Visit www.ifm.com for the datasheet and appropriate accessories.

How to use the zero index?

The zero index is output once per mechanical revolution. In case of a power outage, it can serve as a reference to find the position.

What safety precautions should be taken during connection?

Disconnect the system from power before connecting or disconnecting cables. Insulate unused wires to avoid short circuits.

USER MANUAL RU6016 IFM

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting bracket and motor (no text or symbols)

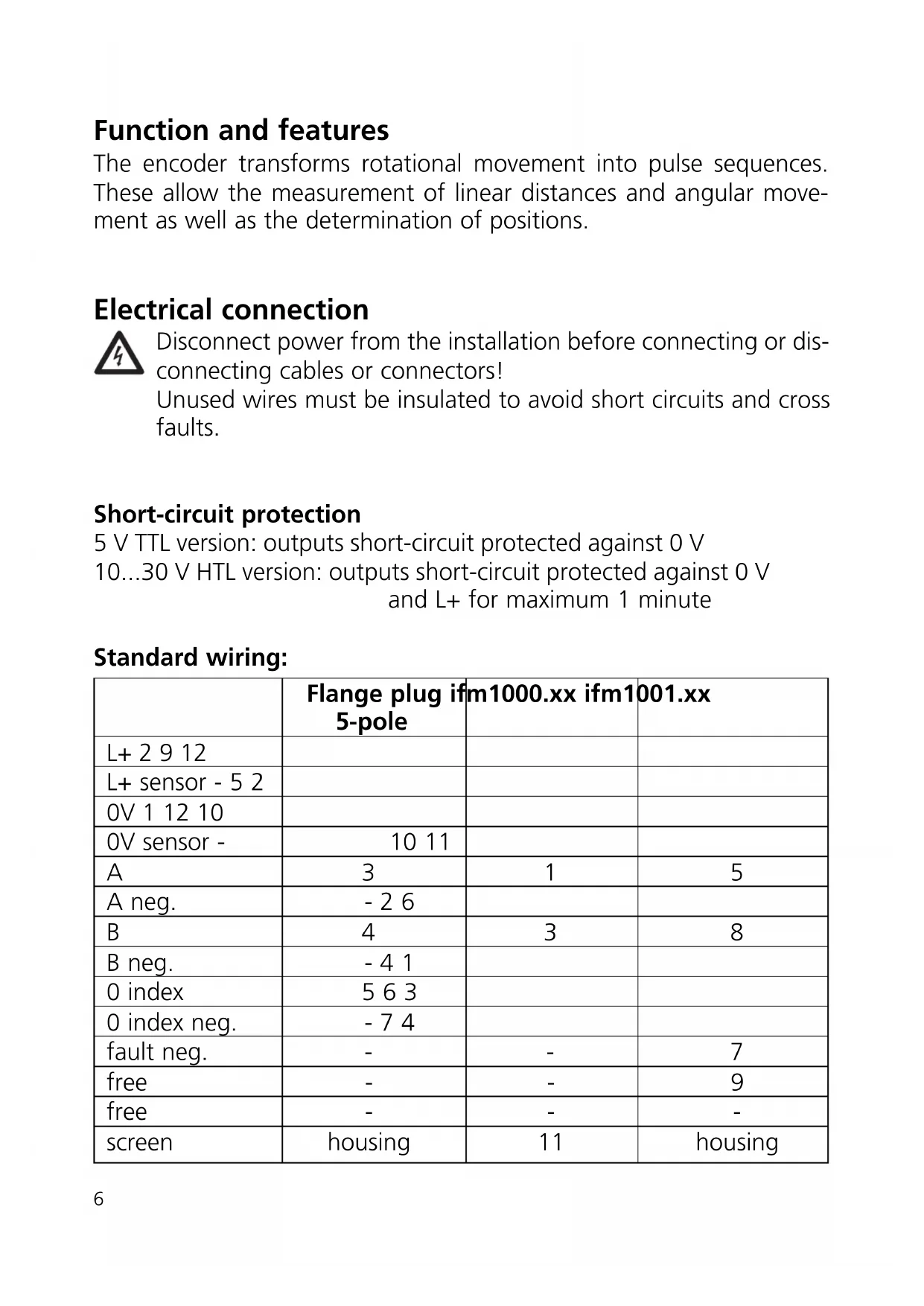

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V

and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green
L+ sensor - - blue
0V 6 grey white/green
0V sensor - - white
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20 cm.

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages.

The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

angle bracket E60033

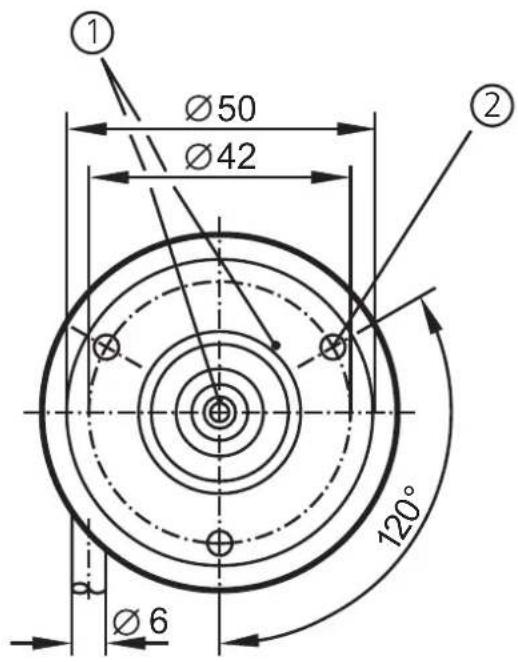

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production 20196

Facility(ies):

Certification Mark:

Electronic measuring equipment (encoders)

Product: Electronic measuring equipment (encoders)

Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA

Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.

Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.: 028-71370093-000

Date, 2010-08-18

Page 1 of 1

TÜV SÜD AMERICA INC. • 10 Centennial Drive • Peabody MA 01960 USA • www.TUVamerica.com

TÜV®
