Product type	Incremental encoder (Digital decoder)
Power supply	5 V TTL or 10...30 V HTL depending on version
Outputs	A, B, index 0 (with inverted signals available)
Short-circuit protection	TTL version: on 0 V; HTL version: on 0 V and L+ (max. 1 minute)
Maximum cable length	100 m for 5 V TTL version, 300 m for 10...30 V HTL version
Mounting	On mounting flange, shaft via flexible coupling
Electrical connection	Male base ifm1000.xx/ifm1001.xx (5-pole) or cable 5/13 wires
Shielding	Braided shielding connected to housing
Minimum distance from interference sources	20 cm
Function	Conversion of rotary movements into pulses for linear/angular measurement
Maintenance and cleaning	Avoid impacts on shaft, do not use abrasive tools
Safety	Disconnect power before connecting or disconnecting
Spare parts and repairability	Accessories available at www.ifm.com (e.g., mounting flange E60033)
General information	Brand IFM, model RU6087, manual available in FR, DE, EN

Frequently Asked Questions - RU6087 IFM

What is the supply voltage of the RU6087?

The RU6087 is available in two versions: 5 V TTL and 10...30 V HTL. Check the housing label for the exact version.

How to connect the RU6087 encoder?

Connection is made via a male base ifm1000.xx or ifm1001.xx (5-pole) or a 5 or 13-wire cable. Refer to the wiring diagram in the manual and insulate unused wires.

What is the meaning of outputs A, B and index 0?

Outputs A and B provide pulses phase-shifted by 90° to determine the direction of rotation. The index 0 emits one pulse per mechanical revolution, serving as a reference.

How to protect the encoder from mechanical damage?

Use a flexible bellows coupling or elastic washer coupling to compensate for shaft misalignment. Mount the fixing flange on a spring base to dampen stresses.

What is the maximum allowed cable length?

For the 5 V TTL version, the maximum length is 100 m. For the 10...30 V HTL version, it can be up to 300 m.

How to avoid electromagnetic interference?

Install the cable at least 20 cm away from interference sources. The braided shielding of the cable is connected to the encoder housing for better immunity.

What to do if the outputs are short-circuited?

The outputs are protected: TTL version only on 0 V, HTL version on 0 V and L+ (max. 1 minute). After a short circuit, check the power supply and installation.

How to mount the encoder on a shaft?

The encoder is screwed onto a mounting flange (ref. E60033). The shaft must be connected via a flexible coupling to avoid damage.

Can I use the RU6087 to measure linear displacements?

Yes, by adding a measuring wheel or rack and pinion, the encoder converts linear motion into rotation for measurement.

Where to find the datasheet and accessories?

Visit the website www.ifm.com for the datasheet, additional documents, and accessories such as the mounting flange.

USER MANUAL RU6087 IFM

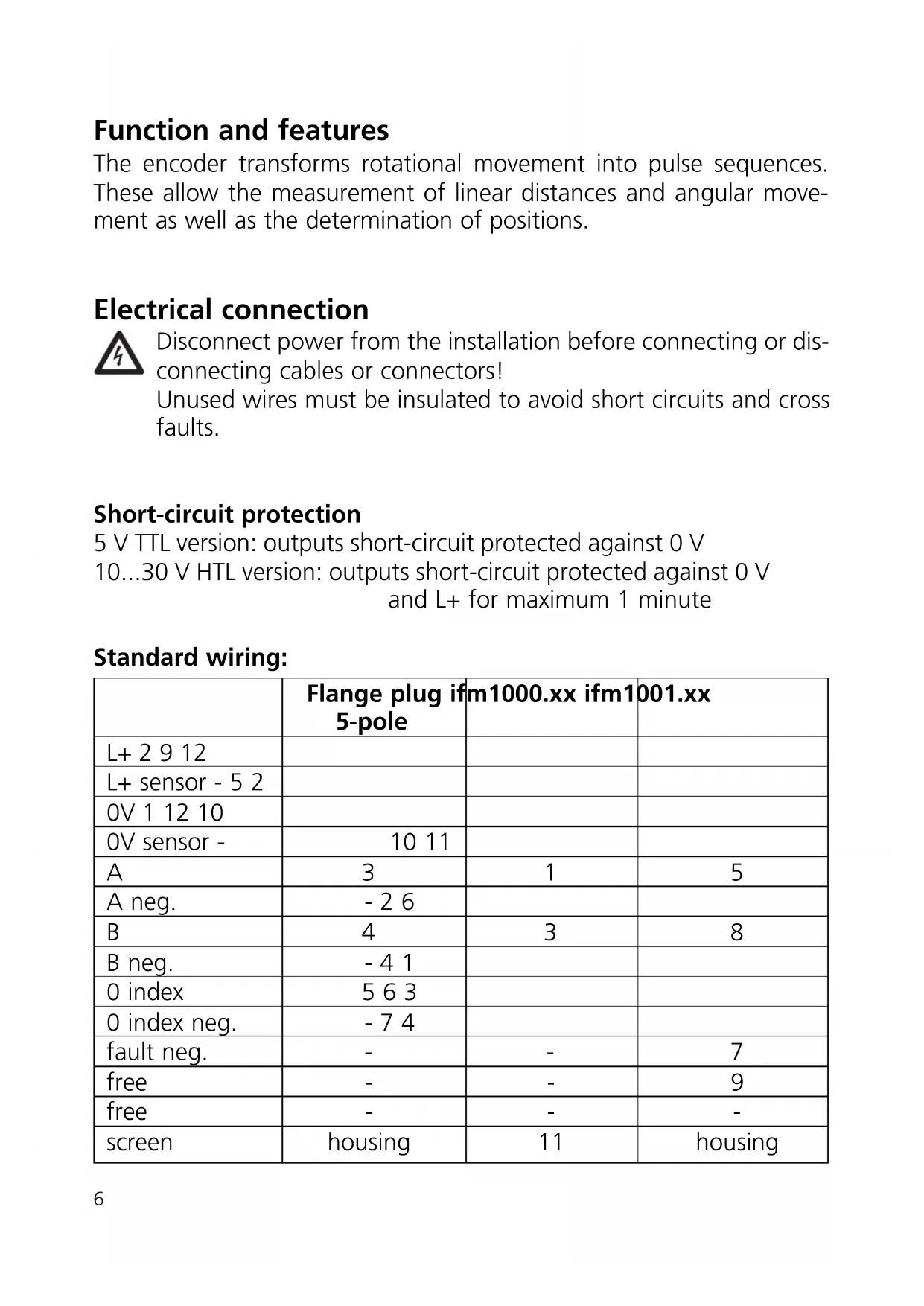

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V 10...30 V HTL version: outputs short-circuit protected against 0 V and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green	n/green
L+ sensor - - blue	green
0V 6 grey white/green	green
0V sensor - - white	green
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L + (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100m for the 5 V TTL version and 300m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20~cm .

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages. The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

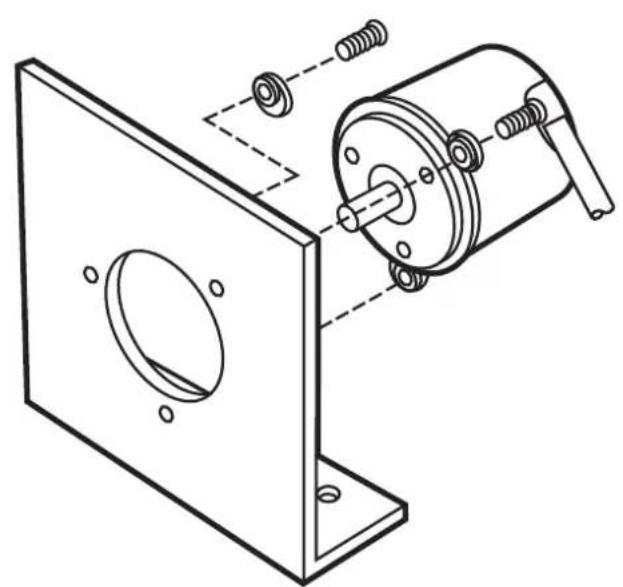

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

angle bracket E60033

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.
