RO6339 - Digital decoder IFM - Free user manual and instructions

Product type	Incremental encoder
Brand	IFM
Model	RO6339
Power supply	5 V TTL or 10...30 V HTL
Output signals	A, B, index (with inverted signals)
Protection	Outputs protected against short circuits (on 0 V for TTL, on 0 V and L+ for HTL)
Max cable length	100 m (5 V TTL) / 300 m (10...30 V HTL)
Shielding	Braid shielding connected to housing
Connection	12-pin male connector or 13-wire cable
Mounting	On shaft, fixing by clamping nut and stator coupling
Use	Measurement of linear displacements and angular movements
Operating principle	Conversion of rotational movements into digital pulse sequences
Maintenance	Avoid shocks on the shaft; do not use sharp tools
Cleaning	Clean with a dry, soft cloth
Safety	Cut off power before any connection or disconnection
Repairability	Repairs must be entrusted to the manufacturer
Accessories	Cables available separately

Frequently Asked Questions - RO6339 IFM

How to connect the RO6339 encoder?

Cut off power before any connection. Connect according to the diagram: L+ (brown/green), 0V (white/green), outputs A, B, index, etc. Unused wires must be insulated.

What is the supply voltage of the RO6339?

The encoder is available in 5 V TTL or 10...30 V HTL version depending on the model. Check the housing label.

What are the output signals?

The outputs are A, B and index (zero). Inverted signals (A neg., B neg., index neg.) are also available for differential transmission.

What is the maximum cable length?

The maximum length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version, with appropriate cables.

How to protect the encoder against short circuits?

The outputs are protected against short circuits: on 0V for the TTL version, on 0V and L+ for the HTL version (max. 1 minute).

How to mount the encoder on a shaft?

Put the clamping nut on the encoder, insert the shaft at least 10 mm, fix the stator coupling with four M3 screws, then tighten the nut.

What to do if the encoder is damaged?

Repairs must be carried out by the manufacturer. Do not open the housing.

How to interpret the A and B signals?

The A and B signals are phase shifted by 90° electrically. The direction of rotation is determined by the order of the pulses: A leading or lagging B.

What is the zero index?

The zero index is a single pulse per mechanical revolution. It serves as a position reference, for example after a power failure.

Where to find the datasheet of the RO6339?

You can download it from www.ifm.com. Other documents and accessories are available there.

USER MANUAL RO6339 IFM

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V and L+ for maximum 1 minute

Standard wiring:

	Flange plug 13-wire cable 12-pole
L+ M brown/green
L+ sensor B blue
0V K white/green
0V sensor L white
A E brown
A neg. F	green
B	H	grey
B neg. A	pink
0 index	C	red
0 index neg.	D	black
fault neg.	G lilac
free	-	-
free	-	yellow
screen	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L + (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100m for the 5 V TTL version and 300m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20~cm .

The braided screen in the cable is connected to the encoder housing.

Output signals

The encoder provides digital pulse sequences at the output stages. The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

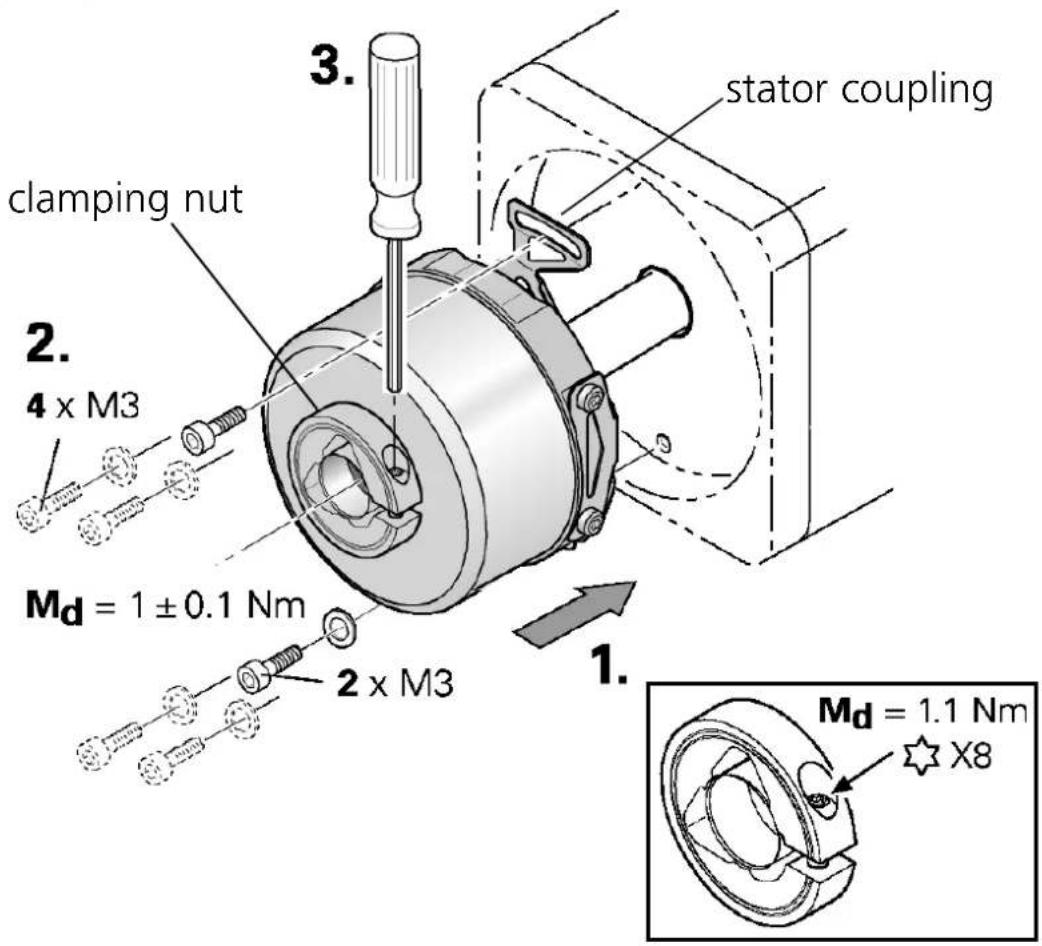

Continuous hollow shaft

1. Place the clamping nut on the encoder.
2. Slip the encoder onto the shaft (min. 10mm ) and fix the stator coupling by means of four M3 screws.
3. Tighten the screws of the clamping nut.

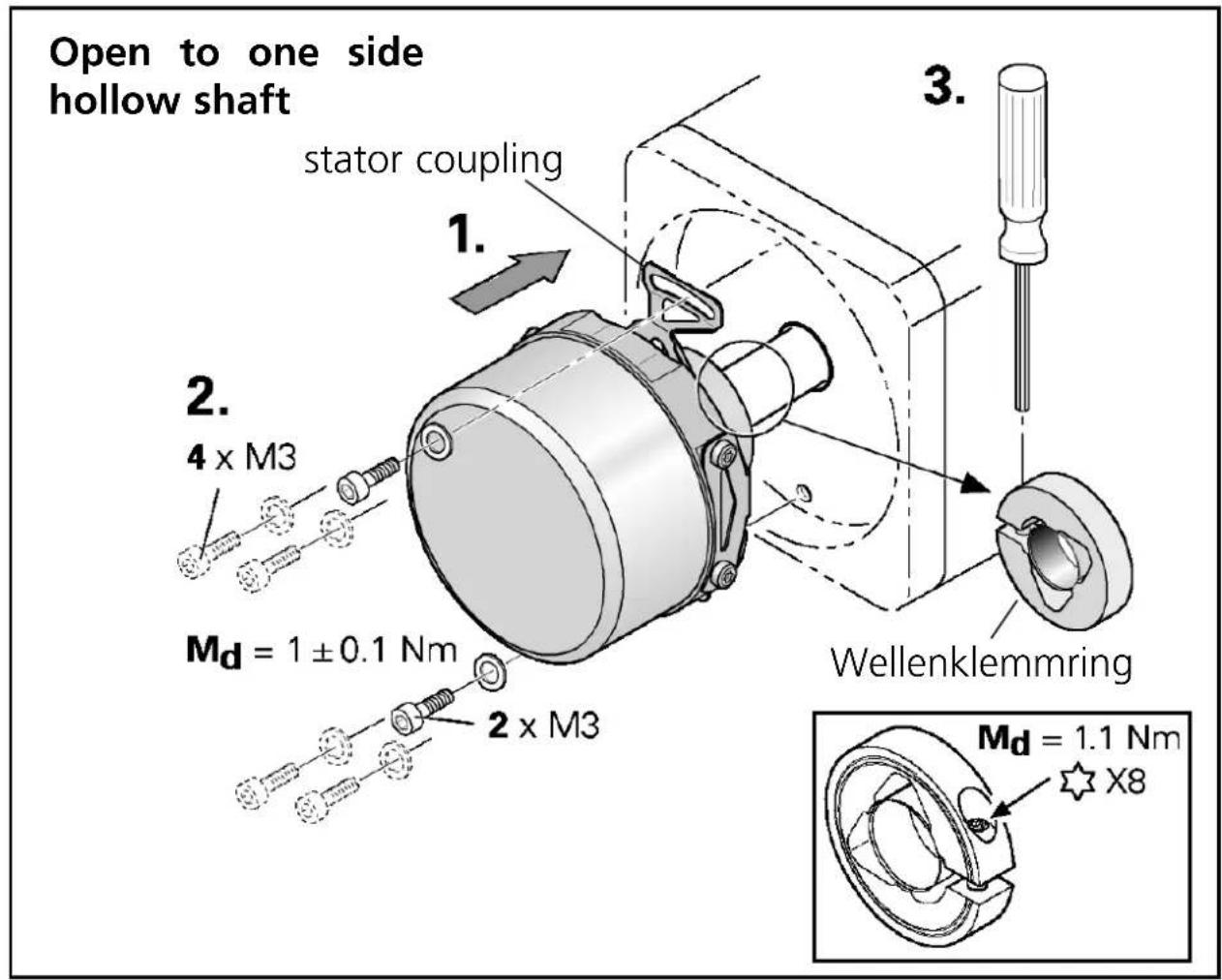

1. Place the clamping nut on the encoder.
2. Slip the encoder onto the shaft (min. 10mm ) and fix the stator coupling by means of four M3 screws.
3. Tighten the screws of the clamping nut.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production

20196

Facility(ies):

Certification Mark:

Product:

Electronic measuring equipment (encoders)

Model(s):

RAX, ROx, RPx, RBx, RCx, RUX, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters:

Rated Voltage: 5-30 Vdc

Rated Current: max. 370 mA

Remark:

When installing, requirements of mentioned Test

Standards and Installation Guide has to be fulfilled.

Supply shall fulfil requirements of limited energy

circuit or Class 2 power.

Tested

UL 61010-1:2004

according to:

CAN/CSA-C22.2 No.61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.:

028-71370093-000

Date, 2010-08-18

Page 1 of 1

TUV SUD AMERICA INC. 10 Centennial Drive Peabody MA 01960 USA www.TUVamerica.com
