Product type	Through-beam photoelectric sensor (Through-beam sensor)
Range	See label on device (maximum range set at factory)
Power supply	Galvanically isolated with overload protection (according to UL 508)
Electrical connection	Disconnect power before connection; wires: BN=brown, BU=blue, BK=black; diagnostic output 10 mA max
Mounting	Receiver (OGE-...) and emitter (OGS-...) with mounting bracket; precise alignment for optimal range
Main functions	Contactless detection of objects and materials; LED indication (green, yellow, red); diagnostic output; sensitivity adjustment (static and dynamic); lock/unlock
LED indication	Green flashing: device operational; Yellow flashing: output switched; Red flashing: detection error; Yellow+Red alternating: short circuit or internal error
Diagnostic output	Switches in case of detection error (4s), short circuit (immediate) or internal error; automatic reset or by power cycle
Maintenance and cleaning	Clean lenses with a soft cloth; do not use solvents or harsh chemicals
Safety	Disconnect power before any connection; use a galvanically isolated power supply
General information	Plug and play; set to maximum range; programming via push button on receiver

Frequently Asked Questions - OG5040 IFM

How to adjust sensor sensitivity for static objects?

Press the receiver button for about 2s until the red LED flashes. Then, with the object in the detection zone, press once. Then without object, press once. The sensitivity is then stored. If the red LED flashes after step 3, adjustment is not possible (signals too similar).

How to adjust sensitivity for moving objects?

Activate programming mode (long press 2s). Let at least two objects pass through the detection zone for about 1s, then press once. Repeat the operation without object. The sensitivity is set for moving objects.

What do the different LED colors mean?

Green LED flashing: device is operational. Yellow LED flashing: output is switched. Red LED flashing: detection error (incorrect adjustment, contamination, misalignment). Yellow and red LEDs flashing alternately: short circuit (2 Hz) or internal error (1 Hz).

How to electrically connect the sensor?

Disconnect the installation from power. Connect the wires: BN (brown) to positive supply, BU (blue) to negative, BK (black) to switching output. For programming the output function, refer to page 17 of the manual or the cell label.

What is the maximum range of the sensor?

The maximum range is indicated on the device label. At the factory, the sensor is set to its maximum range to operate with optimal reserve capacity.

What to do if the red LED is flashing?

The red LED flashing indicates a detection error. Check the sensitivity adjustment, alignment of the emitter and receiver, and cleanliness of the lenses. If the problem persists, perform a new adjustment or clean the optics.

How to lock or unlock the sensor?

Press the receiver button for 10s. The yellow and green LEDs flash alternately, then turn off: the sensor is locked. To unlock, perform a long press of 10s again. The unlock is canceled after this time.

How to clean the sensor lenses?

Use a soft, dry cloth. Never use solvents, chemicals, or abrasive materials that could damage the plastic lenses.

What is the function of the diagnostic output?

The diagnostic output (fc output, 10 mA max) switches in case of object detection error (poor detection, misalignment, contamination) after about 4s. It resets 4s after returning to correct detection. In case of short circuit, it switches immediately and resets after 2s.

What to do in case of short circuit on the switching output?

The yellow and red LEDs flash alternately at 2 Hz and the diagnostic output switches immediately. Eliminate the cause of the short circuit. After correction, the output resets automatically after about 2s.

USER MANUAL OG5040 IFM

Functions and features

The through-beam sensor detects objects and materials without contact and indicates their presence by a switched signal.

Range (r): see type label.

Electrical connection

The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met.

Isolate power, then connect the unit (see page 17 or type label). Core colours (for sensors with cable connection): BN = brown, BU = blue, BK = black.

Programming of the output function by wiring (see page 17 or type label). Load of the function check output (fc output): max. 10mA

Installation

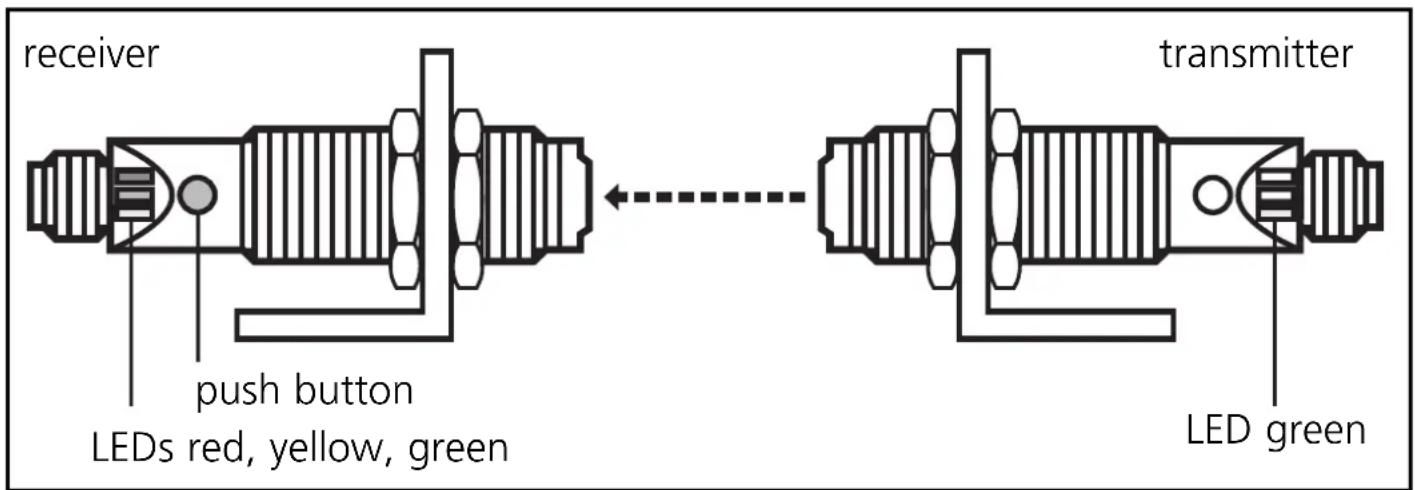

Fix the receiver (type OGE-...) in position.

Align the transmitter (type OGS-...) towards the receiver and tighten in the same way. Maximum range is only possible with precise alignment.

NB: Commissioning

The through-beam sensor is supplied ready to operate (plug and play) set at the max. sensing range. This is sufficient if the through-beam sensor can operate with maximum excess gain (highest contrast). The following setting procedures should only be necessary in less straightforward applications, for example if partly transparent objects must be detected.

Setting of the sensitivity with stationary objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

2	Set the sensitivity with object. receiver Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	Set the sensitivity without object. receiver transmitter Press once.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

You can also proceed in reverse order: first setting without the object, then with the object.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the sensitivity with moving objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

2	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3

During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.

The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the maximum sensitivity

• Go into the programming mode (step 1).
• Interrupt the light beam.
• Press the setting button twice (see steps 2 and 3).

Locking/Unlocking:

Press for 10s.	The red LED lights for a short time, then the yellow and green LEDs flash alternately; after 10s the LEDs go out, the unit is locked.
Press for 10s.	After 10s the LEDs go out, locking is annulled.

Operation

Check the safe functioning of the through-beam sensor. Display by LEDs and by the function-check output.

LED green is lit unit is ready for operation
LED yellow is lit output is switched
LED red is lit	error in object detection, e.g. maladjustment, soiling of the lenses
LEDs yellow + red	flashing alternately, 2 Hz: output short-circuited flashing alternately, 1 Hz: internal malfunction (output is not switched)

Function check output

(not for sensors with cable connection)

• Switches in the case of incorrect object detection (error in object detection, maladjustment, soiling of the lenses) after approx. 4 s, it switches back approx. 4 s after the object is again correctly detected.
• Immediately switches in the case of a short circuit of the switching output, it switches back approx. 2 s after the fault has been rectified.
• Immediately switches in the case of an internal fault, it is only switched back by turning off the operating voltage and then on again.

Maintenance

Keep the lens of the sensor free from soiling. For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses.
