USER MANUAL OL5036 IFM

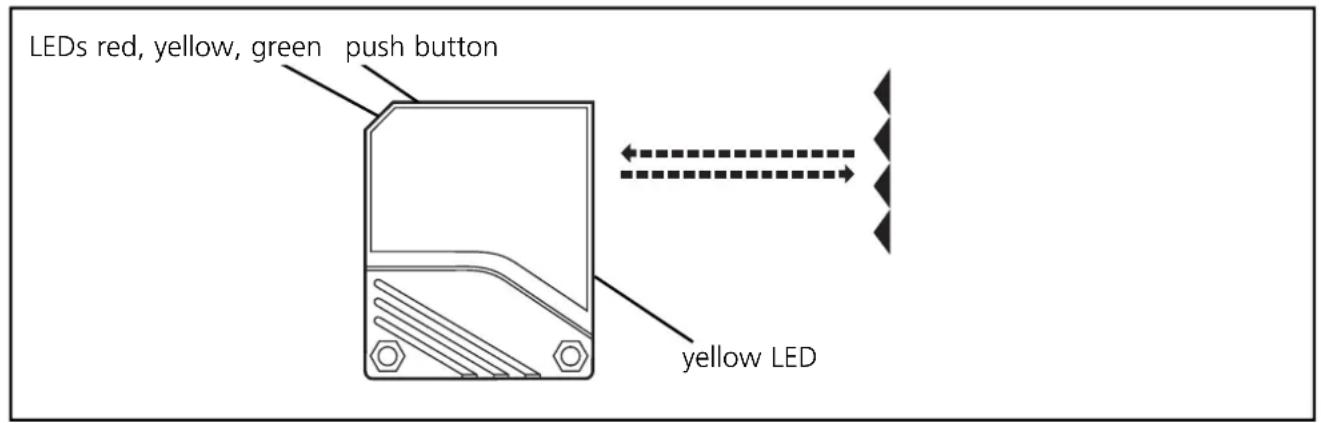

Functions and features
In conjunction with a prismatic reflector or reflective tape the retro-reflective sensor detects objects and materials without contact and indicates their presence by a switched signal.
Range (r): see type label (value referred to prismatic reflector with ∅ 80mm)
Electrical connection
Isolate power, then connect unit (see page 13 or type label).
Note: insert a miniature fuse according to the technical data sheet, if specified.
Recommendation: check the unit for reliable function after a short circuit.
Installation
Fix prismatic reflector / reflective tape in desired position. Align the photocell and fasten it to a mounting bracket.
Maximum range is only possible with precise alignment.
Setting the switching threshold (dynamic operation)
- Moving objects in the detection area
The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.
| 1 |  Press until the red LED flashes |  Yellow and green LED's flash alternately (= unit is in the programming mode). |
| 2 | Allow the objects to pass through the detection area. Press once. |  The yellow and green LED’s go out for approx. 1 s, then flash again alternately. |
| 3 |  Press once. |  The yellow and green LED’s go out for approx. 1s, | |
| [8STK]then the green LED is on (= unit is in operating mode). |
If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching signal being unchanged.
If the programming button is not activated for 15 minutes during the programming process, the unit passes automatically into the operating mode with the switching threshold being unchanged.
Setting of the maximum sensitivity:
- Go into the programming mode (step 1).
- Align the unit so that no light is reflected.
- Press the setting button twice (see steps 2 and 3).
Setting the switching threshold (stationary operation)
- Stationary objects
The unit detects input signals of various intensity in any sequence and calculates the optimum switching threshold.
| 1 |  Press until the red LED flashes. |  Yellow and green LED's flash alternately (= unit is in the programming mode). |
| 2 | Place the object into the detection area * Press once. |  The yellow and green LED's go out for approx. 1 s, then flash again alternately. |
| 3 | Remove the object * Press once. |  The yellow and green LED's go out for approx. 1s, | |
 then the green LED is on (= unit is in operating mode). |
*You can also proceed in reverse order: first setting without the object, then with the object.
If the setting of the switching threshold is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3. The unit then passes into the operating mode with the switching signal being unchanged.
If the programming button is not activated for 15 minutes during the programming process, the unit passes automatically into the operating mode with the switching threshold being unchanged.
Setting of the maximum sensitivity:
- Go into the programming mode (step 1).
- Align the unit so that no light is reflected.
- Press the setting button twice (see steps 2 and 3).
Programming the output function
| 1 |  Press for 10s. | [WBOZ] | The red LED starts to flash fast after 2 s.Then the yellow and green LED's flash alternately. After 8 s all LED's go off, the output function has changed from light-on mode to dark-on mode (or vice versa). |
Operation
Check the safe functioning of the diffuse reflection sensor. Display by LED's.
| LED green unit is ready for operation | |
| LED yellow output is switched | |
| LED red | error in object detection,e.g. maladjustment, soiling of the lenses |
| LED's yellow + red | flashing alternately, 2Hz: output short-circuitedflashing alternately, 1Hz: internal malfunction(output is not switched) |
Maintenance
Keep the plastic lenses of the sensor free from soiling.
For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses.
