Product type	Laser photoelectric barrier
Brand	IFM
Model	OG5058
Category	Lighting
Power supply	24 V DC, galvanically isolated power supply with overload protection
Connection	BN = brown, BU = blue, BK = black; diagnostic output max 10 mA
Main functions	Contactless detection, switching output, sensitivity programming (static/moving objects), adjustment aid, locking/unlocking, diagnostic output
LED indication	Green: device operational; Yellow: switched output; Red: detection error; Yellow+Red alternating: short circuit or internal error
Range	Variable according to label (maximum range by default)
Laser class	Laser class 2 - do not look into the beam
Mounting	Mount the receiver with mounting bracket; align the emitter toward the receiver; avoid vibrations
Adjustment aid	Adjustment button on the emitter: temporarily increases light intensity for 15 min
Sensitivity programming (static objects)	Press 2s on receiver to enter prog mode, then measure with and without object
Sensitivity programming (moving objects)	Let at least two objects pass during measurement
Locking/Unlocking	Press 10s on receiver to lock; unlock by pressing again 10s
Maintenance	Clean the lenses without solvents or aggressive products
Diagnostic output	Switches in case of detection error, short circuit or internal error; resets after elimination
Protection	Overload protection via power supply; short circuit detected
Operating temperature	Not specified (estimated: -25 to +60 °C)
Protection rating	Not specified (estimated: IP67)

Frequently Asked Questions - OG5058 IFM

How to connect the device?

Use the colored wires: BN (brown) for power supply, BU (blue) for ground and BK (black) for output. The diagnostic output (fc-output) supports max 10 mA. Refer to the connection diagram on page 17 of the manual.

How to adjust sensitivity for static objects?

Press the adjustment button on the receiver for about 2 seconds until the red LED flashes. Then, first measure with the object (press once), then without object (press once). The yellow and green LEDs flash alternately during programming.

How to adjust sensitivity for moving objects?

After activating programming mode (long press 2s), let at least two objects pass through the detection area during the first measurement (press once), then do the same without object (press once). The cell adjusts sensitivity to discriminate moving objects.

What do the device LEDs mean?

Green LED: device operational. Yellow LED: switching output is active. Red LED: detection error (misalignment, dirty lenses). Yellow+red flashing LED: short circuit (2 Hz) or internal error (1 Hz).

How to lock or unlock the cell?

To lock, press the adjustment button on the receiver for 10 seconds. The yellow and green LEDs flash then turn off: the cell is locked. To unlock, press again 10 seconds.

How to clean the lenses?

Use a soft, dry cloth. Never use solvents or chemicals that could damage the plastic lenses.

What is the laser class and what precautions to take?

The device uses a class 2 laser. Never look directly into the beam. Warning labels must be placed near the cell.

How to use the adjustment aid?

Press the adjustment button on the emitter: the red LED flashes, then the green and yellow LEDs flash alternately. The light intensity is increased to facilitate alignment. The function deactivates after 15 minutes or by pressing again.

What is the function of the diagnostic output?

The diagnostic output (fc-output) switches in case of detection error (misalignment, soiling), short circuit or internal error. It resets automatically after fault elimination (approx. 4s for detection error, 2s for short circuit).

What to do in case of detection fault?

Check the alignment of the emitter and receiver, clean the lenses. If the red LED stays on, perform a sensitivity adjustment. In case of short circuit, the output is cut off and the LEDs flash; remove the short circuit to restore operation.

USER MANUAL OG5058 IFM

Through-beam sensor OG laser

Function and features

The through-beam sensor detects objects and materials without contact and indicates their presence by a switched signal.

Range (r): see type label.

Laser radiation; laser protection class 2.

Do not look directly into the beam!

The enclosed labels (warning laser) must be applied in close proximity to the unit.

Electrical connection

The device shall be supplied from an isolating source and protected by an overcurrent device such that the limited voltage circuit requirements in accordance with UL 508 are met.

Isolate power, then connect the unit (see page 17 or type label). Core colours: BN = brown, BU = blue, BK = black.

Programming of the output function by wiring (see page 17 or type label).

Load of the function check output (fc output): max. 10mA.

Installation and alignment

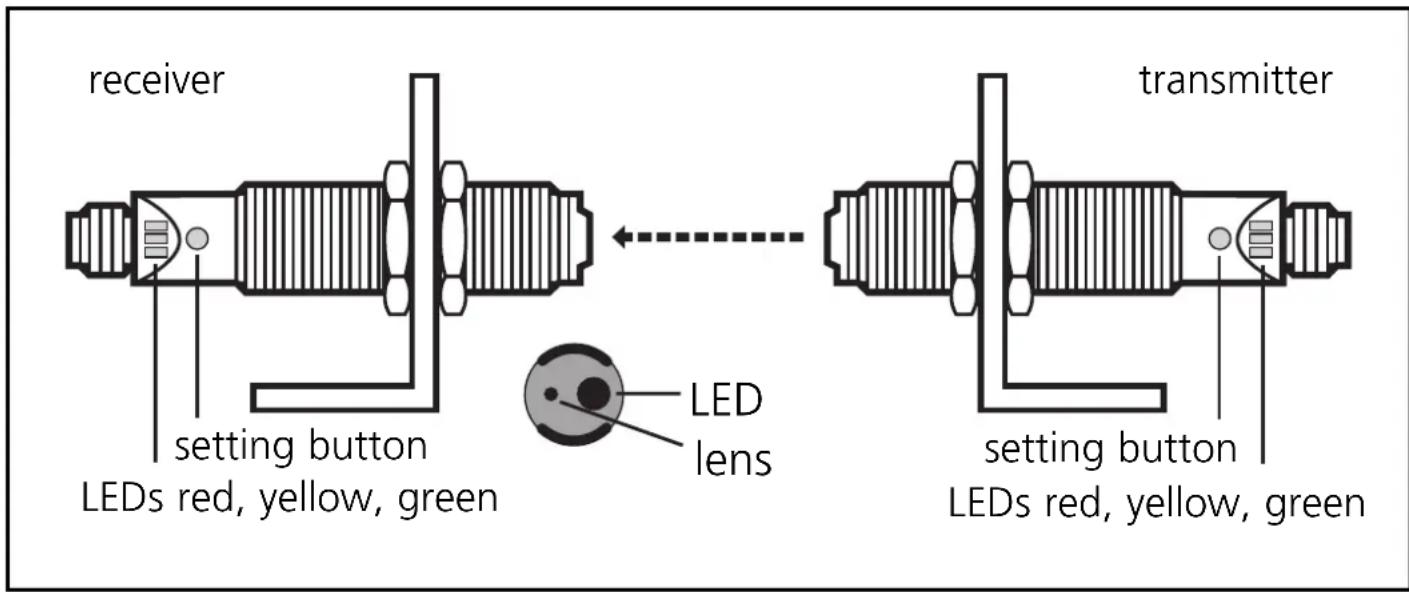

Fix the receiver (type OGEL...) in position.

Align the transmitter (type OGES...) towards the receiver; the light spot must hit the receiver lens (confirmation by LED).

Adjustment aid

For the alignment the transmitter incorporates an adjustment aid.

After pressing the setting button on the transmitter the red LED flashes, then the green LED and the yellow LED flash alternately. The intensity of the transmitted light is increased and the light spot is clearly visible. After pressing the button again the green LED is on again and the transmitted light is set again to normal intensity.

If the button is not pressed again, the transmitted light is set to normal intensity after about 15 min.

NB: Commissioning

The through-beam sensor is supplied ready to operate (plug and play) set at the max. sensing range. This is sufficient if the through-beam sensor can operate with maximum excess gain (highest contrast). The following setting procedures should only be necessary in less straightforward applications, for example if partly transparent objects must be detected.

Setting of the sensitivity with stationary objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.
2	Set the sensitivity with object. 接收 Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	Set the sensitivity without object. receiver transmitter Press once.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

You can also proceed in reverse order: first setting without the object, then with the object.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the sensitivity with moving objects

1	Activate the programming mode of the unit. 接收er transmitter Press for about 2s until the red LED flashes.
	The red LED goes out; the yellow and green LEDs flash alternately. The unit is in the programming mode.

2	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.
	The yellow and green LEDs go out for approx. 1s, then flash again alternately.

3	During the measurement (approx. 1s) allow at least two objects to move through the sensing area of the lens. Press once.
	The yellow and green LEDs go out for approx. 1s, then the green LED is on. The unit is in the operating mode.

If the setting of the sensitivity is not possible (e.g. object signal and background signal are about the same), the red LED flashes after step 3 for approx. 2s. The unit then passes into the operating mode with the sensitivity being unchanged.

Setting of the maximum sensitivity

• Go into the programming mode (step 1).
• Interrupt the light beam.
• Press the setting button twice (see steps 2 and 3).

Locking

receiver Press for 10s.

The red LED flashes for a short time, then the yellow and green LEDs flash alternately; after 10s the LEDs go out, the unit is locked.

Unlocking

receiver Press for 10s.

→

After 10s the LEDs go out, locking is cancelled.

Operation

Check the safe functioning of the diffuse reflection sensor. Display by LEDs and by the function check output.

LED green is lit Unit is ready for operation.
LED yellow is lit Output is switched.
LED red is lit	Error in object detection, e.g. maladjustment, soiling of the lenses.
LEDs yellow + red	Flash alternately, 2 Hz: output short-circuited. Flash alternately, 1 Hz: internal malfunction (output is not switched).

Function check output

(not for sensors with cable connection)

• Switches in the case of incorrect object detection (error in object detection, maladjustment, soiling of the lenses) after approx. 4 s, it switches back approx. 4 s after the object is again correctly detected.
• Immediately switches in the case of a short circuit of the switching output, it switches back approx. 2 s after the fault has been rectified.
• Immediately switches in the case of an internal fault, it is only switched back by turning off the operating voltage and then on again.

Maintenance

Keep the lens of the sensor free from soiling. For cleaning do not use any solvents or cleaning agents which could damage the plastic lenses.
