RDC 1008 - Alarm clock radio Explore Scientific - Free user manual and instructions

Product type	Radio alarm clock
Brand	Explore Scientific
Model	RDC 1008
Dimensions (L x W x H)	80 x 70 x 30 mm
Weight (without batteries)	85 g
Power	2 AAA (LR03) 1.5 V batteries
Recommended battery type	Alkaline (avoid rechargeable)
Temperature display range	-20°C to +50°C (-4°F to 122°F)
Number of alarms	2 (Alarm 1 and Alarm 2)
Snooze function	Yes, 5 minutes
Backlight	Yes, activated by SNZ/LIGHT button (5 seconds)
Radio-controlled signal reception	Yes, automatic or manual
Display	LCD: time, date, day, temperature, alarm and signal indicators
12/24 hour display	Yes, adjustable
°C/°F switching	Yes, via ▼ button
Package contents	Clock, instruction manual, 2 AAA batteries
Maintenance	Clean with a dry cloth; do not use liquid
Safety	Risk of electric shock, suffocation, chemical burn, fire – read the warnings
Spare parts and repairability	Do not disassemble; contact the dealer for any repair
Warranty	2 years, extendable by registration at www.bresser.de/warranty_terms
CE declaration	Complies with directive 2014/53/EU

Frequently Asked Questions - RDC 1008 Explore Scientific

How to install the batteries in the RDC 1008 radio alarm clock?

Remove the battery compartment cover on the back of the device. Insert 2 AAA (LR03) 1.5 V batteries, respecting polarity (+/-). Replace the cover. Preferably use alkaline batteries; avoid rechargeable batteries.

How to set the time manually?

Press and hold the [MODE] button to enter setting mode. The digits flash. Use [▲] to increase and [▼] to decrease. Press [MODE] to confirm and move to the next parameter. The sequence is: year (2004-2054) → month → date → day language → 12/24h → time zone → hour → minute. No action for 30 seconds or press [MODE] to exit.

How to set the alarm?

Press and hold the [ALARM] button to enter alarm setting mode. The digits flash. Set the hour and minutes for Alarm 1 then Alarm 2 with [▲] and [▼]. Press [▲] to confirm and exit. The alarm activates automatically after setting.

How to activate or deactivate an alarm?

Briefly press the [ALARM] button to check the alarm time. In check mode, press [▲] to activate/deactivate Alarm 1 or Alarm 2. The alarm icon is displayed when active.

How to use the snooze function?

When the alarm sounds, press the [SNZ/LIGHT] button. The alarm stops and triggers again after 5 minutes. To stop the alarm completely, press any other button (except SNZ/LIGHT).

How to activate the backlight?

Briefly press the [SNZ/LIGHT] button. The backlight turns on for 5 seconds.

How to switch between °C and °F?

In normal display mode, press the [▼] button to switch between Celsius (°C) and Fahrenheit (°F) and vice versa.

What to do if the radio alarm clock does not receive the radio-controlled signal?

Make sure the device is away from interference sources. Press and hold the [RCC] button to restart reception manually. If failure persists, set the time manually by pressing and holding the [MODE] button.

How to clean the device?

Remove the batteries before cleaning. Use only a dry cloth to wipe the exterior. Do not use cleaning liquid to avoid damage to electronic components.

What to do if the display is dim or the device does not work?

Replace the batteries with a full set of new alkaline batteries. Check polarity. If the problem persists, the device may be defective; contact your dealer for repair under warranty (2 years).

USER MANUAL RDC 1008 Explore Scientific

ABOUT THIS INSTRUCTION MANUAL

These operating instructions are to be considered a component of the device.

Please read the safety instructions and the operating instructions carefully before use.

Keep these instructions for renewed use at a later date. When the device is sold or given

to someone else, the instruction manual must be provided to the new owner/ user of the product.

The device is intended only for indoor use.

GENERALWARNINGS

• Risk of electric shock - This device contains electronic components. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.
• Choking hazard - Children should only use the device under adult supervision. Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.
• Risk of chemical burn - Keep batteries out of the reach of children! Make sure you insert the batteries correctly. Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.
• Risk of fire/explosion - Do not expose the device to high temperatures. Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trig

ger a short-circuit, a fire, or an explosion.

• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

SCOPE OF DELIVERY

Clock, Operating instructions, 2x AAA batteries.

BEFORE YOU BEGIN

• We recommend using alkaline batteries. If temperatures regularly fall below 0^ (32^) , we recommend using lithium batteries.
• Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power requirements.)
• Insert batteries before first use, matching the polarity in the battery compartment. 2x AAA Batteries are required for the Clock.

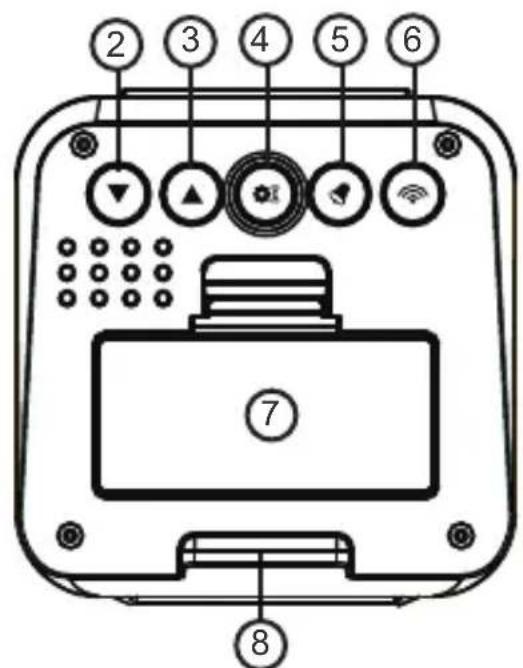

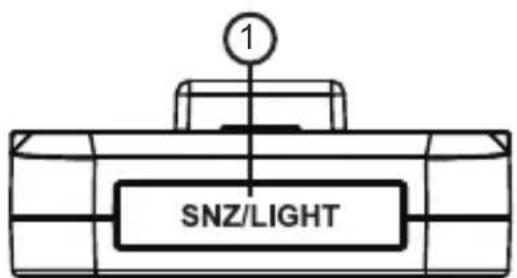

PRODUCT OVERVIEW

1. Press [SNZ / LIGHT] to activate the backlight or to activate the snooze function to delay the alarm for 5 minutes.
2. While in normal display mode, press [▼] to select °C or °F. While in setting mode, press [▼] to decrease one unit, press and hold to decrease rapidly.
3. While in time setting mode, press [▲] to increase one unit, press and hold to increase rapidly. While in alarm time checking mode, press [▲] to turn on/off the Alarm 1 or Alarm 2.
4. Press and hold [ ] to enter time and date setting mode.
5. Press [ ] to check the alarm time. Press and hold [ ] to enter alarm setting mode.
6. Press [ ] to initiate or stop RCC receiving.
7. Battery compartment.
8. Table stand.

BUTTON MODE		SNZ/LIGHT	▼	▲
Stand- ard mode	PRESS	Turn on backlight SNOOZE when alarm is ringing	Select °C or °F	——	——	Check alarm time	Initiate or stop RCC receiving
	HOLD	——	——	——	Enter into time and date setting	Enter into alarm setting	——
Time setting mode	PRESS	——	Decrease	Increase	Confirm setting	——	——
	HOLD	——	Quick Decrease	Quick Increase	——	——	——
Alarm setting mode	PRESS	——	Decrease	Turn Alarm 1 or Alarm 2 on/off	——	Confirm setting	——
	HOLD	——	Quick Decrease	——	——	——	——

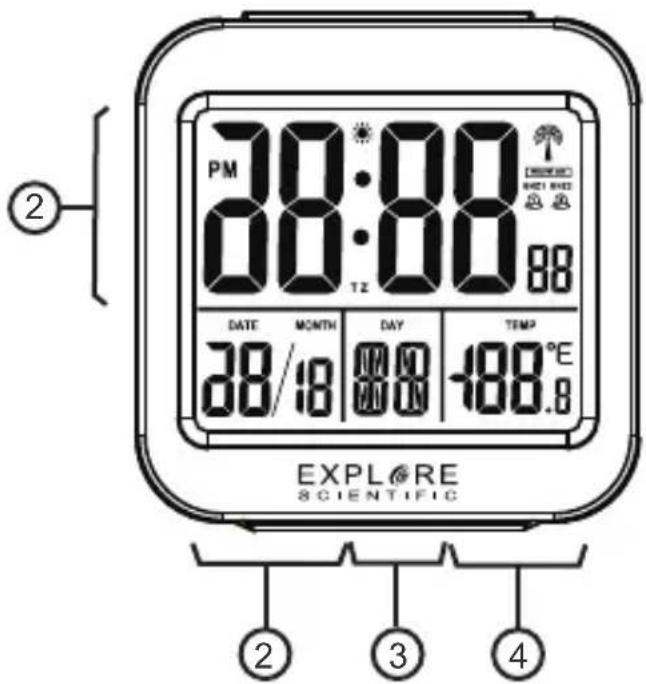

LCD DISPLAY

1. Time/Alarm display
2. Date and Month display
3. Day display
4. Indoor Temperature display

] RCC signal indicator

] Snooze indicator

] Alarm

GETTING STARTED

INSERT BATTERIES

1. Remove the battery door from the back.
2. Insert 2x AAA (LR03)/1.5V batteries. Please ensure the polarities (+/-) of the batteries match upon installation.
3. Reattach the battery door.

NOTE: Replace batteries when the display is dim.

CLOCK

CLOCK RECEPTION

1. When you insert or replace the batteries, RCC reception is initiated. To manually start RCC reception, press and hold the [ ] button.
2. If the RCC receiving process is successful, a completed RCC symbol [] will be shown in the display and the date and time will be set automatically. If it fails, press and hold the [ ] button to re-initiate RCC receiving.
3. If the device is still not receiving the signal, please proceed to set the time manually.

SET THE CLOCK MANUALLY

1. Press and hold [ ] button to enter into time and date setting.
2. The setting parameter will flash.
3. Press [▲] button once, the figure will increase 1 unit. Press and hold the [▲/CF] button, the figures will increase rapidly.

4. Press [▼] button once, the figure will decrease 1 unit. Press and hold the [▼/RCC] button, the figures will decrease rapidly.

5. Press [ ] button to confirm setting and enter to next parameter.

6. Sequence of setting: Year (2004-2054) → Month → Date → 7 Languages Week Display → 12/24HR → Time Zone → Hour → Minute → Exit
7. If there is no action in 30 seconds or If you press [ ] button, the setting will be saved and you will exit the setting mode.

^o C / ^o F SETTING

Press [▼] button to switch Celsius (°C) / Fahrenheit (°F).

ALARM

SETTING/ADJUSTING ALARM TIME

1. Press and hold [ ] button to enter alarm setting mode.
2. The setting parameter will flash.
3. Sequence of setting: Alarm 1 Hour Alarm 1 Minute Alarm 2 Hour Alarm 2 Minute Exit
4. Press [▲] or [▼] button to set the desired data.
5. Press [ ] button to confirm setting and exit.
6. Alarm will turn on automatically when alarm setting is finished.

TURN ON/OFF ALARM

Press [ ] to check the alarm time. Sequence of display: Alarm 1 → Alarm 2

While in alarm time checking mode, press the [▲] button to turn on/off the Alarm 1 or Alarm 2.

SNOOZE FUNCTION

1. At the set time, alarm signal rings.
2. During the alarm, press the [SNZ / LIGHT] button to delay the alarm by 5 minutes.
3. To stop the alarm, press [ ] or any other button, except for [SNZ / LIGHT].
4. The alarm will start again at the next alarm time, unless you switch off the alarm function by pressing the [ ] to choose Alarm 1 or Alarm 2 and then press [▲] button until the alarm is set to off.

TEMPERATURE

The indoor temperature is always displayed in the right bottom corner of the screen.

BACKLIGHT

Press [SNZ / LIGHT] to activate backlight for 5 seconds.

SPECIFICATIONS

MAIN UNIT:

Dimensions

80 × 70 × 30 ~mm(L × W × H)

Weight

85 g (Exclude batteries)

Power:

2x AAA (LR03) 1.5V batteries

TEMPERATURE:

Indoor temperature display range:

-20°C to +50°C (-4°F to 122°F)

EC DECLARATION OF CONFORMITY

Hereby, Explore Scientific GmbH declares that the equipment type with part number: RDC1008 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download

/RDC1008/CE/RDC1008_CE.pdf

NOTES ON CLEANING

• Remove the batteries before cleaning.
• Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.
• Protect the device from dust and moisture.

DISPOSAL

Dispos of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal. Do not dispose of electronic devices in the household garbage!

As per the Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the your used batteries as required by law - at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive. Batteries that contain toxins are marked with a sign and a chemical symbol.

1 battery contains cadmium
2 battery contains mercury
3 battery contains lead

WARRANTY & SERVICE

The regular guarantee period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required. You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms. Would you like detailed instructions for this product in a particular language? Then visit our website via the link below (QR code) for available versions. Alternatively you can also send an email to [e-mail] or leave a message on +49 (0) 28 72 - 80 74-220*. Please always state your name, precise address, a valid phone number and email address, as well as the article number and name.

*Number charged at local rates in Germany (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.

Errors and technical changes reserved.

MANUAL DOWNLOAD:

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

*Number charged at local rates in Germany (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.

MANUAL DOWNLOAD:

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

ZUDIESER ANLEITUNG

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

SERVICE AND WARRANTY:

www.bresser.de/warranty_terms

ALGEMENE WAARSCHUWINGEN

Errors and technical changes reserved.

Con riserva di errori e modifi che tecniche.
Irrtumer und technische Änderungen vorbehalten.
Conserver les erreurs et les modifications techniques.
Guardar erreros y candidos技术和icos.
Fouten en technische wizigingen voorbehonden.

ManualRDC1008EU20200511

EXPL@RE

SCIENTIFIC

Explore Scientific GmbH

Gutenbergstr. 2 - DE-46414 Rhede Germany

www.explorescientific.com
