ABP605 - Grill plate BESTRON - Free user manual and instructions

Product type	Electric grill plate
Brand	Bestron
Model	ABP605
Dimensions (W x H x D)	110 x 25 x 12 cm
Weight	Approximately 5 kg
Power supply	220-240 V~, 50/60 Hz, 2000 W
Protection class	I
Cord length	80 cm
Temperature setting	5 positions (180°C to 260°C)
Indicator light	Indicates power on and temperature maintenance
Coating	Non-stick
Drip tray and grease channel	Yes, to collect excess grease
Handles	Yes, for safe transport
Removable thermostat	Allows easy cleaning of the plate
Usage	Domestic and similar (staff kitchens, hotels, etc.)
Care and cleaning	Clean with a damp cloth and mild detergent; do not immerse
Safety	Do not touch hot surfaces; keep out of reach of children
Spare parts and repairability	Removable thermostat; contact Bestron customer service

Frequently Asked Questions - ABP605 BESTRON

What is the power of the Bestron ABP605 grill plate?

The power is 2000 W at 220-240 V~.

How to adjust the temperature on the ABP605 model?

Use the temperature control knob with 5 positions: from 1 (approx. 180°C) to 5 (approx. 260°C).

Is the non-stick coating safe for birds?

No, fumes from the non-stick coating can be harmful to birds. Keep them away during use.

How to clean the grill plate after use?

Unplug and let cool completely. Remove the thermostat. Clean the plate with a damp cloth and a little mild detergent. Never immerse the connector, thermostat or cord.

Can I use metal utensils on the plate?

No, do not use sharp or metal objects as they will damage the non-stick coating. Use wooden or silicone utensils.

How long should I preheat the plate?

Preheating is complete when the indicator light goes out. It may take a few minutes depending on the set temperature.

Is the grill plate suitable for professional use?

No, this appliance is designed for domestic use and similar (staff kitchens, hotels, etc.), not for intensive professional use.

What if the appliance does not heat up?

Check that the thermostat is fully inserted and the plug is connected. If the problem persists, contact Bestron customer service.

How to store the grill plate?

After cleaning and drying, store it in a dry place. You can coil the cord without excessive bending. The removable thermostat can be stored separately.

What are the exact dimensions of the appliance?

The dimensions are 110 cm length, 25 cm height and 12 cm depth.

USER MANUAL ABP605 BESTRON

Black rectangular electronic device with a small attached component, shown against a white background (no text or symbols visible)

INSTRUCTION MANUALPLANO

DE

HR

ZEN

RO

EBG

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

BESTRON®

SICHERHEITSHINWEISE

Labeled diagram of a rectangular appliance with numbered parts, likely a kitchen or appliance assembly.

Technical line drawing of a mechanical component with a knob and cable, no text or symbols present

Labeled diagram of a rectangular appliance with numbered parts, likely for assembly or maintenance reference.

Technical line drawing of a mechanical device with a knob and coiled cable, no text or symbols present

NETTOYAGE ET ENTRETIEN

Technical line drawing of a mechanical device with a knob and cable, showing no text or symbols

REINIGING EN ONDERHOUD

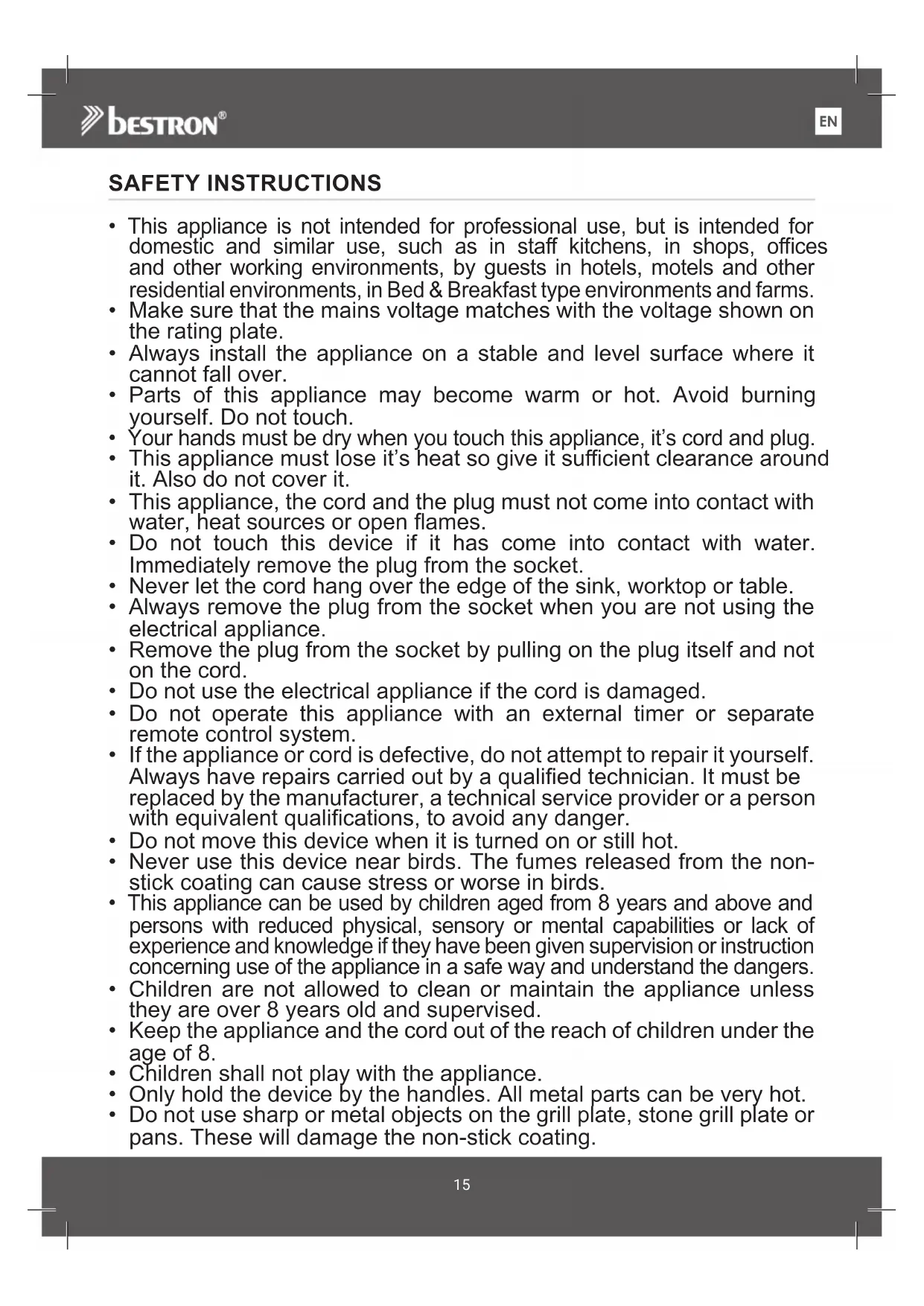

- This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

- Make sure that the mains voltage matches with the voltage shown on the rating plate.

• Always install the appliance on a stable and level surface where it cannot fall over.

- Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.

- Your hands must be dry when you touch this appliance, it's cord and plug.

- This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.

- This appliance, the cord and the plug must not come into contact with water, heat sources or open flames.

- Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.

- Never let the cord hang over the edge of the sink, worktop or table.

• Always remove the plug from the socket when you are not using the electrical appliance.

- Remove the plug from the socket by pulling on the plug itself and not on the cord.

- Do not use the electrical appliance if the cord is damaged.

- Do not operate this appliance with an external timer or separate remote control system.

- If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualified technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualifications, to avoid any danger.

- Do not move this device when it is turned on or still hot.

- Never use this device near birds. The fumes released from the non-stick coating can cause stress or worse in birds.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.

- Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.

- Keep the appliance and the cord out of the reach of children under the age of 8.

• Children shall not play with the appliance.

- Only hold the device by the handles. All metal parts can be very hot.

- Do not use sharp or metal objects on the grill plate, stone grill plate or pans. These will damage the non-stick coating.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.
• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

Technical Specifications
Model ABP605
Mains (V) 220-240V~
Frequency (Hz) 50-60
Safety Class I
Power (Watt) 2000
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB) -
Dimensions (L x W x H) (cm)	110x25x12
Cable length (cm)	80

OPERATION - General

1

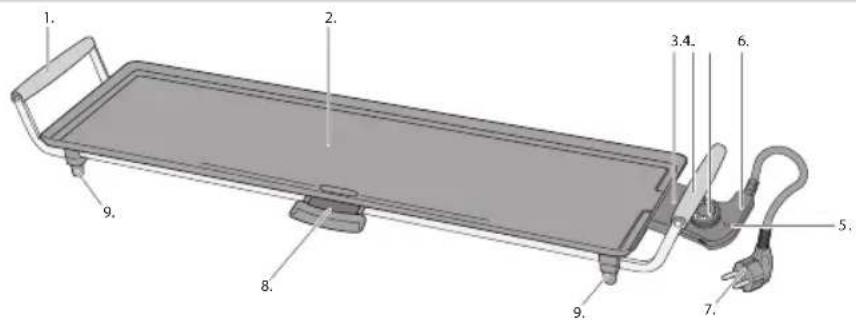

Labeled diagram of a rectangular electronic device with numbered components and electrical connections

1. Handle
2. Grill plate
3. Socket
4. Thermostat dial

5. Indicator light, temperature

6. Removable thermostat

7. Power cord with plug
8. Collecting groove and drip tray
9. Non-slip feet

OPERATION - Before first use

1. Remove the grill from the packaging, and remove all packaging materials.
2. Clean the grill plate before using the appliance for the first time (see 'Cleaning and maintenance').

WARNING:

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure the appliance has sufficient ventilation.
• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds.

OPERATION - Preheating

1. Put the appliance on a level and heat-resistant surface.
2. Insert the thermostat completely into the connection socket of the grill plate. Only the supplied cord with thermostat may be used.
3. Put the plug in the wall socket.

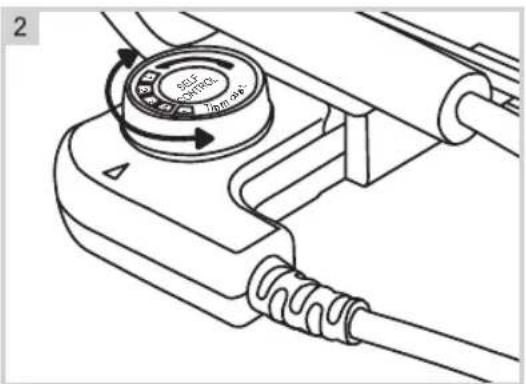

4. Adjust the thermostat dial to the required temperature (position 1 through 5). The indicator light on the thermostat will illuminate to show that the heating element has been switched on.

Position Temperature (°C)

1 approx. 180°C
2 approx. 200°C
3 approx. 220°C
4 approx. 240°C
5 approx. 260°C

2 0.55 0.55 70min 40s

1. After waiting a few minutes check whether the indicator light is extinguished.
2. Once the indicator light has extinguished the appliance has reached the required temperature, and is ready for use. During use the heating element will switch on and off to keep the temperature of the grill plate constant. Consequently the indicator light will also occasionally be illuminated.

OPERATION - Grilling

1. Allow the grill plate to preheat (see 'Preheating').
2. If so required, grease the grill plate with a little oil.
3. Place the food you wish to grill on the grill plate.
4. Grill the food until it is cooked. Turn the food over occasionally whilst it is being grilled to ensure that both sides are evenly cooked.
5. Remove the food from the grill plate and place on a plate. Take care! The food is hot.

OPERATION - After use

1. Turn the thermostat dial to the "0" position.
2. Remove the plug from the wall socket.
3. Let the appliance cool down fully.

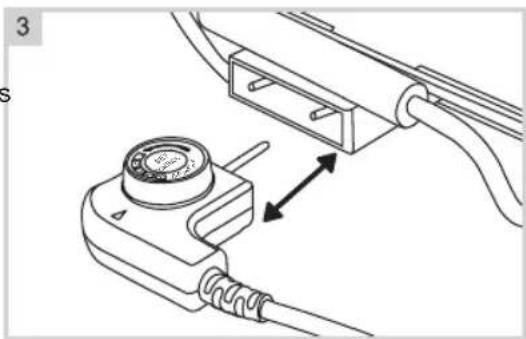

4. Remove the thermostat by holding the appliance's handle with one hand and pulling the thermostat out of the socket with the other hand. Make sure you do not touch the appliance's metal socket; it may still be hot. Always hold the thermostat by the plastic section.

Technical diagram showing a mechanical component with a knob and coiled cable, no text or symbols present

WARNING:

• The metal pin fitted to the thermostat can be very hot.

CLEANING AND MAINTENANCE

Clean the grill plate after each use.

1. Remove the plug from the wall socket, allow the appliance to cool down completely, and pull the thermostat out of the socket.
2. Clean the grill plate and the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
3. Dry the grill plate and the base thoroughly.

WARNING:

• Verify that the appliance is not connected to the power supply before you start to clean it.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the socket, thermostat, plug or power cord in water or other liquid.

2 SET CONTROL DEMOUKE

Technical line drawing of a mechanical device with a knob and cable, no text or symbols present

Labeled diagram of a rectangular appliance with numbered parts, likely for assembly or maintenance reference.

y2 3.5mm x 3.5mm x 3.5mm x

Technical line drawing showing a mechanical component with a knob and cable, no text or symbols present

LIMPIEZA Y MANTENIMIENTO

Technical diagram showing a mechanical component with a knob and coiled cable, no text or symbols present

CZYSZCZENIE I KONSERWACJA

Technical line drawing of a mechanical component with a knob and coiled cable, no text or symbols present

ČIŠĆENJE I ODRŽAVANJE

Očistite ploču za roštilj nakon svake upotrebe.

1. Izvucite utikač iz zidne utičnice, ostavite uređaj da se potpuno ohladi i izvucite termostat iz utičnice.
2. Očistite ploču roštilja i podlogu vlažnom krpom, po potrebi navlaženom s nekoliko kapi sredstva za pranje posuđa.
3. Temeljito osušite ploču za roštilj i podlogu.

UPOZORENJE:

• Provjerite da uređaj nije priključen na napajanje prije nego što ga počnete čistiti.
• Nikada ne koristite korozivna sredstva za čišćenje ili sredstva za ribanje ili oštre predmete (kao što su noževi ili tvrde četke) za čišćenje uređaja.
• Nikada ne uranjajte útičnicu, termostat, útikač ili kabel za napajanje u vodu ili drugu tekućinu.

BEZPEČNOSTNÍ INSTRUKCE

Technical line drawing of a mechanical component with a circular knob and coiled cable, no text or symbols present

ČIŠTĚNÍ A ÚDRŽBA

Technical diagram showing a connector with a circular knob and cable, no text or symbols present

ČISTENIE A ÚDRŽBA

Technical diagram showing a mechanical component with a knob and coiled cable, no text or symbols present

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

RENGÖRING OCH UNDERHÅLL

ALL YOU WANT TO KNOW ABOUT YOUR UNIQUE 5 YEAR WARRANTY

ALLES, WAS SIE ÜBER IHRE EINZIGARTIGE 5-JAHRES-GARANTIE WISSEN MÖCHTEN TOUT CE QUE VOUS VOULEZ SAVOIR SUR VOTRE GARANTIE UNIQUE DE 5 ANS ALLES WAT U WILT WETEN OVER UW UNIEKE GARANTIE VAN 5 JAAR TUTTO QUE LLO CHE VUOI SAPERE SULLA TUA GARANZIA UNICA DI 5 ANNI TODO LO QUE QUIERES SABER SOBRE TU ÚNICA GARANTÍA DE 5 AÑOS

BESTRON.COM/GUARANTEE

QR code image containing encoded data, no visible human-readable text

NEED HELP?

CHECK OUT OUR SERVICE PAGE

BRAUCHEN SIE HILFE? SCHAUEN SIE SICH UNSERE SERVICESEITE AN BESOIN D'AIDE? DISCUTE AVEC NOUS! CONSULTEZ NOTRE PAGE DE SERVICE HULP NODIG? CHAT MET ONS! BEKIIJK ONZE SERVICEPAGINA HO BISOGNO DI AIUTO? CHATTA CON NOI! GUARDA LA NOSTRA PAGINA SERVIZI ¿NECESITAS AYUDA? CONSULTE NUESTRA PÁGINA DE SERVICIO

BESTRON.COM/SERVICE

Generic user profile icon with headset and uniform (no text or symbols)

EASTERN EUROPE

CUSTOMER SERVICE

POLSKA [e-mail] HRVATSKA [e-mail] CZECHIA [e-mail] SLOVENSKO [e-mail] ROMÂNIA [e-mail] BULGARIA [e-mail]

SERVICE HOTLINE: [phone]

241202-01

Hersteller / Fournisseur/ Výrobce / Proizvođač / Produčator / Výrobca / ПроизводителBestron Nederland BV, Moeskampweg 20, 5222 AW, 's-HertogenboschNiederlande, Pays-Bas, Nizozemí, Hollandia, Holandia, Olandia, Holandsko, Холандия
DCZHRPLRO/MIDSKBG
Ursprungs-landChina	Pays d'origineChine Čína	Země původuChina Chiny	Zemlja podrijetlaChina Čína Kitář	Wyprodu kowano w	Tara de origine	Krajina pôvodu	Страна на производ
