ARC650 - Grill plate BESTRON - Free user manual and instructions

Brand	Bestron
Model	ARC650
Product type	Grill plate with raclette function
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W (estimated)
Dimensions (approx.)	40 x 30 x 10 cm
Weight (approx.)	2 kg
Plate material	Steel with non-stick coating
Functions	Grilling and raclette
Raclette pans included	Yes
Stand included	Yes
Base plate included	Yes
On/off switch	Yes
Power cord	Yes, with plug
Cleaning plate and pans	Dishwasher or hand wash with hot water and mild detergent
Cleaning stand	Damp cloth and mild detergent
Non-stick coating	Yes
Safety	Insulated handles, do not immerse, do not touch hot surfaces
Warranty	60 months
Use	Domestic use only
Repairability	Do not repair yourself, contact a qualified technician
Bird precautions	Keep birds away during use (harmful fumes)

Frequently Asked Questions - ARC650 BESTRON

How to use the Bestron ARC650 grill plate?

Place the plate on a flat, heat-resistant surface. Plug in the appliance, turn it on with the on/off switch and preheat until the element glows slightly. Lightly oil or butter the plate, then place the food. Turn it from time to time for even cooking.

Can I use the raclette function with this appliance?

Yes. Fill a pan with cheese, meat, fish or vegetables. Place it under the grill plate on the base plate. Once the food is cooked or the cheese melted, carefully remove the pan.

How to clean the plate and pans?

Unplug the appliance and let it cool. The grill plate and pans are dishwasher safe. You can also hand wash them with hot water and a little mild detergent using a plastic brush. Never use sharp objects or abrasive cleaners.

Why is there smoke and smell during first use?

This is normal. The appliance may emit a little smoke and a characteristic smell due to initial heating. Ensure good ventilation; it disappears after a few minutes.

What types of food can I cook on the grill plate?

You can grill meat, fish, vegetables, skewers, etc. The non-stick plate is suitable for many foods. Lightly oil to prevent sticking.

Can I move the appliance when hot?

No. Always turn off the appliance and wait until it has completely cooled down before moving it. Use the handles to carry it.

What to do in case of malfunction?

Never attempt to repair the appliance yourself. Contact Bestron aftersales service via www.bestron.com/service or the seller. Keep the proof of purchase for the 60-month warranty.

Are the plate and pans dishwasher safe?

Yes, the grill plate and pans are dishwasher safe. The stand must be cleaned by hand with a damp cloth.

Does the appliance have auto shut-off?

No, the appliance does not have auto shut-off. It must be turned off manually with the switch and unplugged after use.

Is it safe to leave the appliance unattended?

No. Never leave the appliance on unattended, especially near children. Keep the appliance out of reach of children under 8 years old.

USER MANUAL ARC650 BESTRON

Black and white photo of a BESTRON® electric grill with shrimp, meat, and grilled dish (no text or symbols visible)

ARC650 INSTRUCTION MANUAL

DE

Bedienungsanleitung

FR

Mode d'emploi

NL

Handleiding

EN

Instruction manual

IT

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Quality control

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Contrôle qualité

WAT U MOET WETEN OVER DIT APPARAAT

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Quality control

WERKING - Algemeen

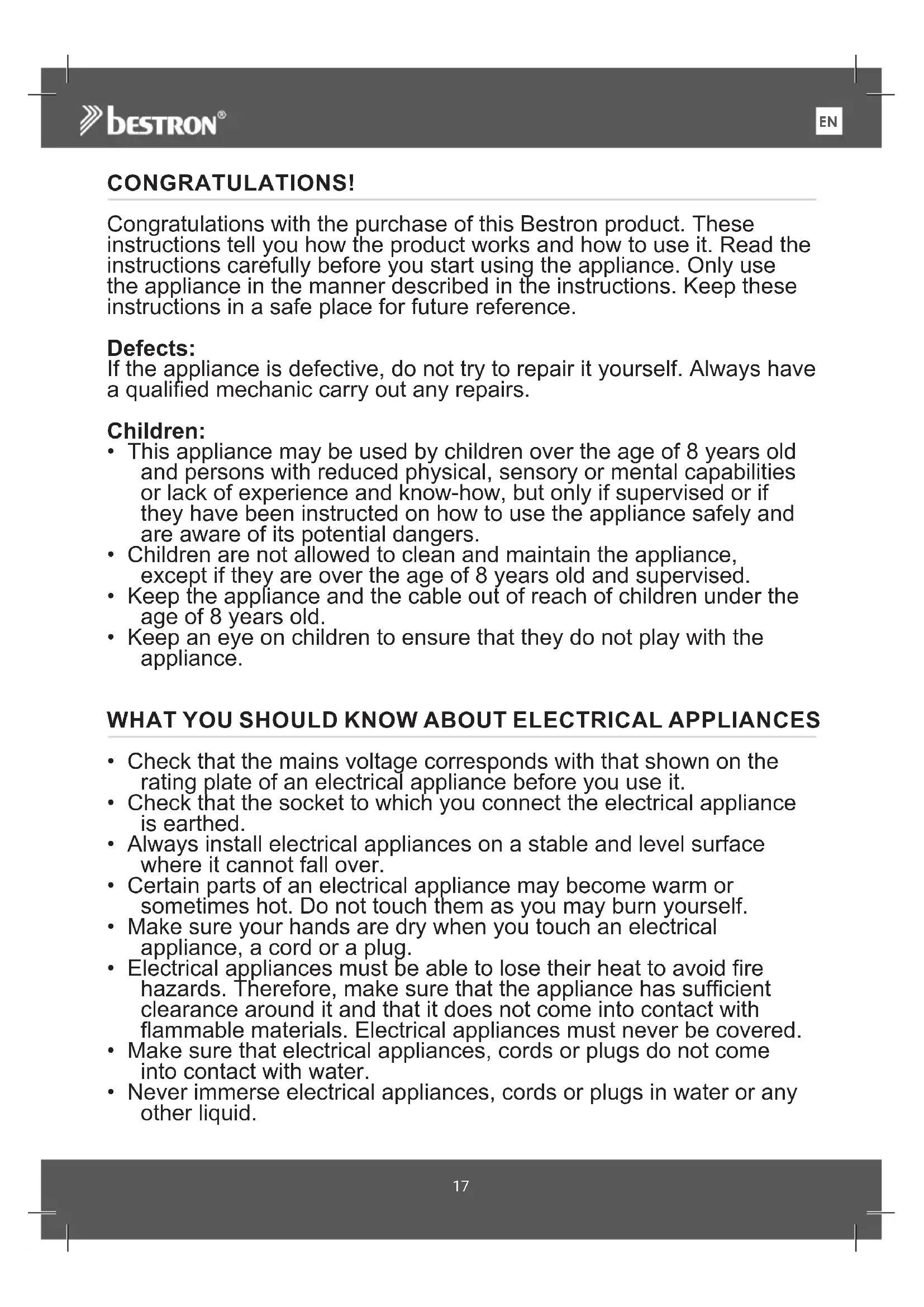

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  • Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
  • Always install electrical appliances on a stable and level surface where it cannot fall over.
  • Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
  • Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.
  • Make sure that electrical appliances, cords or plugs do not come into contact with water.

• Never immerse electrical appliances, cords or plugs in water or any other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
  • Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.

• Never let cords hang over the edge of the sink, a worktop or a table.
  • Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Never move the appliance when it is switched on or is still hot. Switch off the appliance before moving it.
  • Always pick up the appliance by the handles. All metal parts can be very hot.
  • Always use implements with a suitable insulating handle when grilling food on the grill plate.
• Do not use sharp or metal implements on the grill plate or pans. These will damage the non-stick coating.

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product conforms to the requirements of the following European Directives on safety:

• EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
• RoHS Directive 2011/65/EU

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Quality control

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

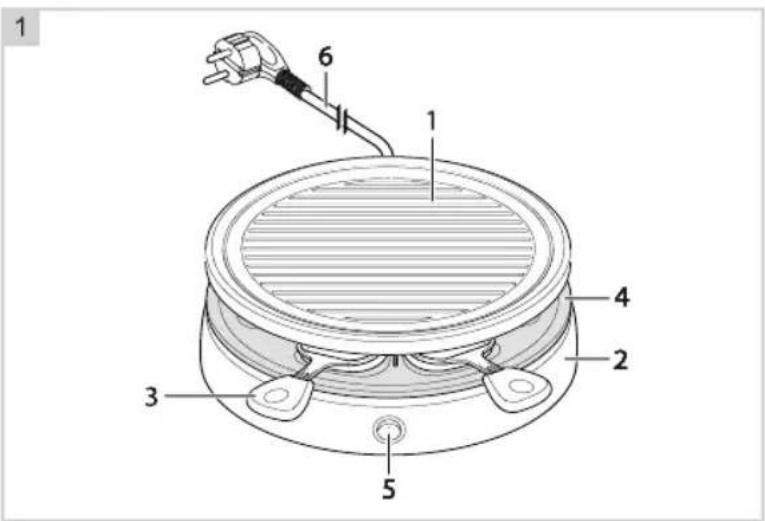

1 6 1 4 2 3 5

1. Grill plate
2. Base
3. Raclette tray
4. Bottom plate
5. On/Off switch
6. Power cord and plug

OPERATION - Before first use

1. Remove the appliance from the packaging, and remove all packaging materials.
2. Clean the baking plate before using the appliance for the first time (see 'Cleaning and maintenance').

WARNING:

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure the appliance has sufficient ventilation.
• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds.

OPERATION - Preheating

1. Put the appliance on a level and heat-resistant surface.
2. Put the plug into the wall socket.
3. Switch on the appliance by pressing the On/Off switch.
4. Wait until the heating element becomes cherry-red. The appliance is now ready for use.

OPERATION - Baking

1. Allow the appliance to preheat (see Preheating).
2. Grease the grill plate with a little oil.
3. Place the food you wish to grill on the grill plate.
4. Grill the food until it is done. Turn the food over occasionally whilst it is being grilled to ensure that both sides are evenly cooked.
5. Remove the food from the grill plate and place on a plate.

OPERATION - Raclette grilling

1. Allow the appliance to preheat (see Preheating).
2. Fill a tray with, for example, pieces of cheese, meat, fish or vegetables.
3. Put the filled tray on the bottom plate under the grill plate.
4. Remove the tray from the appliance once the food is done, or the cheese has melted.

WARNING:

- Leave the baking plate on the base when racletting and grilling food.

CLEANING AND MAINTENANCE

Clean the baking plate, trays and the base after each use.

1. Remove the plug from the wall socket, and allow the appliance to cool down completely.
2. Clean the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
3. The grill plate and the trays can be cleaned in hot water with washing-up liquid; use a soft cloth or a plastic washing-up brush. The grill plate and trays may also be cleaned in a dishwasher.
4. Dry the base, grill plate and the trays thoroughly.

WARNING:

• Verify that the appliance is not connected to the power supply before you clean it.
• Clean the raclette grill after each use.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear

- Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
  • Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

• Cords

• Lamps

- Glass parts

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department: www.bestron.com/service

COMPLIMENTI!

Handwritten signature or scribble on a line, possibly a signature or autograph

Handwritten signature or scribble on a line, possibly a signature or autograph

QR code image containing encoded data, no visible human-readable text

NEED HELP? CHAT WITH US! WHATSAPP CUSTOMER SERVICE

BESTRON.COM/WHATSAPP
