USER MANUAL ARG150BW BESTRON

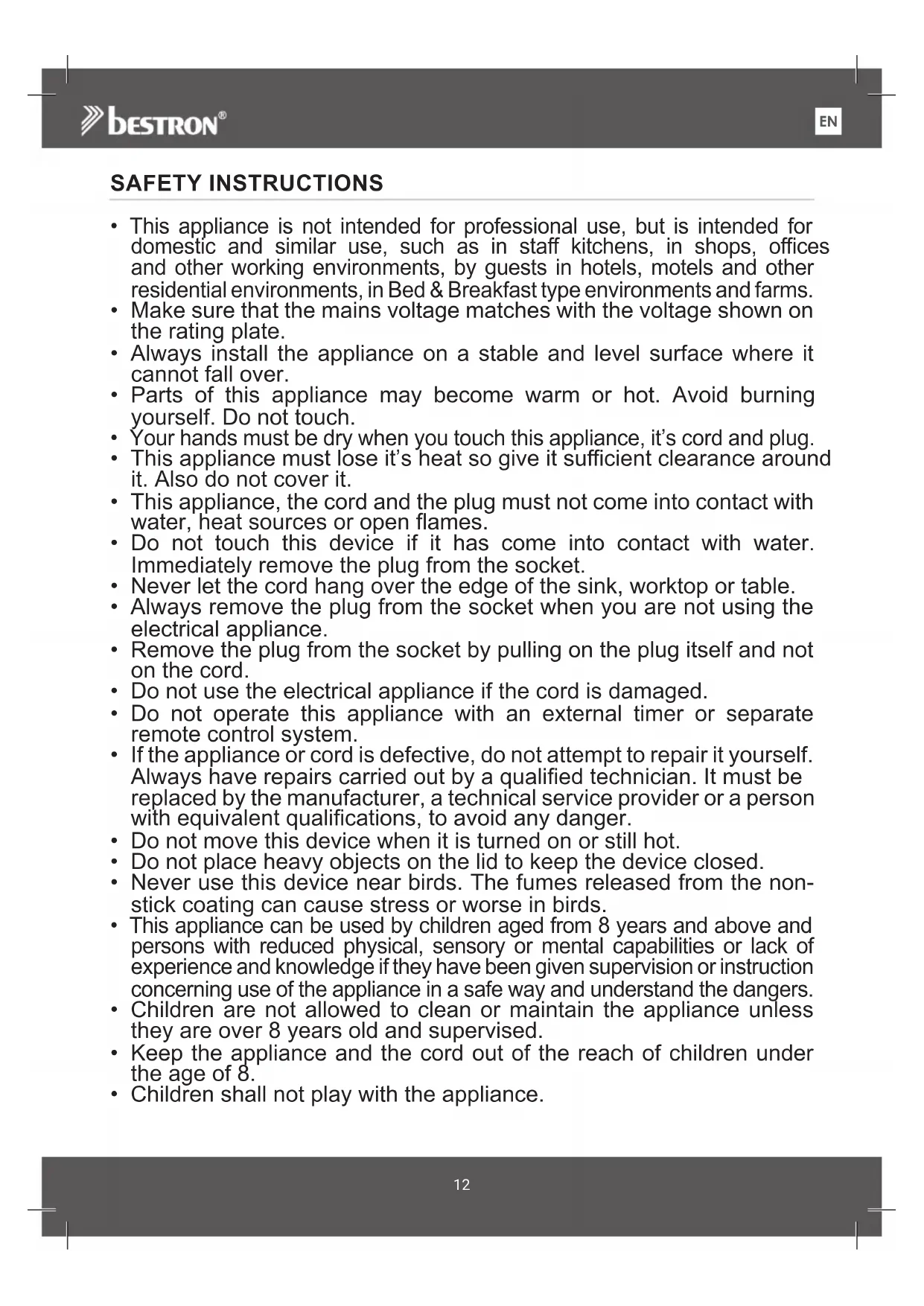

• This appliance is not intended for professional use, but is intended for domestic and similar use, such as in sta󰀨 kitchens, in shops, o󰀩ces and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

• Make sure that the mains voltage matches with the voltage shown on the rating plate.

• Always install the appliance on a stable and level surface where it cannot fall over.

• Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.

• Your hands must be dry when you touch this appliance, it’s cord and plug.

• This appliance must lose it’s heat so give it su󰀩cient clearance around it. Also do not cover it.

• This appliance, the cord and the plug must not come into contact with water, heat sources or open ames.

• Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.

• Never let the cord hang over the edge of the sink, worktop or table.

• Always remove the plug from the socket when you are not using the electrical appliance.

• Remove the plug from the socket by pulling on the plug itself and not on the cord.

• Do not use the electrical appliance if the cord is damaged.

• Do not operate this appliance with an external timer or separate remote control system.

• If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualied technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualications, to avoid any danger.

• Do not move this device when it is turned on or still hot.

• Do not place heavy objects on the lid to keep the device closed.

• Never use this device near birds. The fumes released from the non- stick coating can cause stress or worse in birds.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.

• Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.

• Keep the appliance and the cord out of the reach of children under the age of 8.

• Children shall not play with the appliance.13

• Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

• Your municipality can tell you where to nd the designated waste collection point in your neighbourhood. SERVICE In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service Technical Specifications Model ARG150BW Mains (V) 220-240V~ Frequency (Hz) 50/60 Safety Class 1 Power (Watt) 350 Noise (dB(A)) - Max. Capacity - Maximum continuous operating time (KB) - Dimensions (L x W x H) (cm) 31,5x10,5x10,8 Cable length (cm) 82 CERTAIN PARTS OF THE APPLIANCE MAY GET HOT. DO NOT TOUCH THESE PARTS TO PREVENT BURNING YOURSELF.14

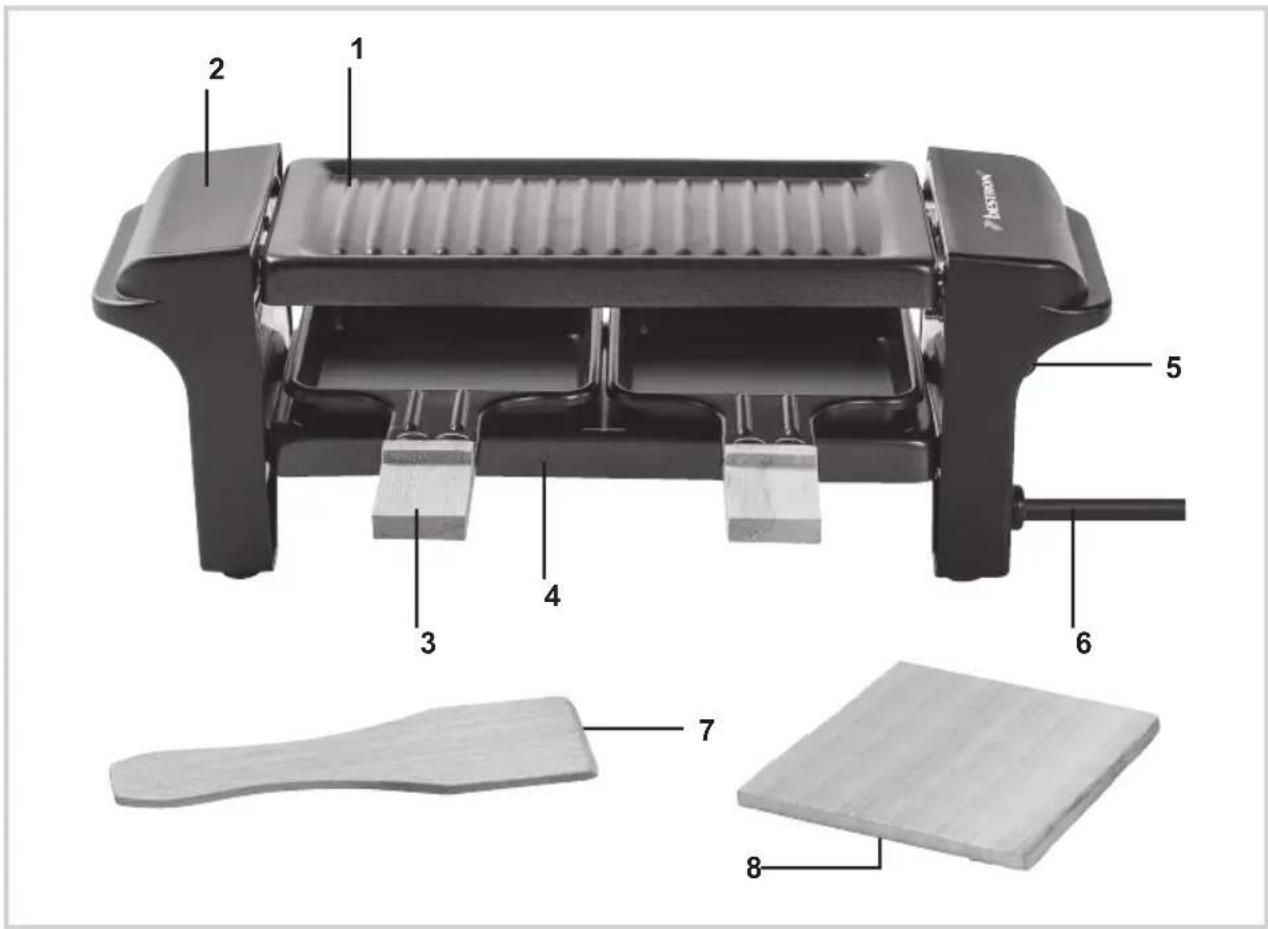

OPERATION - General information The below description goes with the image on page 2.

6. Power cord and plug

1. Remove the appliance from the packaging, and remove all packaging materials.

2. Clean the baking plate before using the appliance for the rst time (see ‘Cleaning and maintenance’).

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the rst time. This is normal and will stop on its own. Make sure the appliance has su󰀩cient ventilation.

• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds. OPERATION - Preheating

1. Put the appliance on a level and heat-resistant surface.

2. Put the plug into the wall socket.

3. Switch on the appliance by pressing the On/O󰀨 switch.

4. Wait until the heating element becomes cherry-red. The appliance is now ready for use.

1. Allow the appliance to preheat (see Preheating).

2. Grease the baking plate with a little oil.

3. Place the food you wish to grill on the baking plate.

4. Grill the food until it is done. Turn the food over occasionally whilst it is being grilled to ensure that both

sides are evenly cooked.

5. Remove the food from the baking plate and place on a plate.

OPERATION - Recletting/grilling

1. Allow the appliance to preheat (see Preheating).

2. Fill a tray with, for example, pieces of cheese, meat, sh or vegetables.

3. Put the lled tray on the bottom plate under the baking plate.

4. Remove the tray from the appliance once the food is done, or the cheese has melted.

• Leave the baking plate on the base when racletting and grilling food.

CLEANING AND MAINTENANCE

Clean the baking plate, trays and the base after each use.

1. Remove the plug from the wall socket, and allow the appliance to cool down completely.

2. Clean the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.

3. The baking plate and the trays can be cleaned in hot water with washing-up liquid; use a soft cloth or a

plastic washing-up brush. The baking plate and trays may also be cleaned in a dishwasher.

4. Dry the base, baking plate and the trays thoroughly.

• Verify that the appliance is not connected to the power supply before you clean it.

• Clean the raclette grill after each use.

• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.15

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the rst time. This is normal and will stop on its own. Make sure the appliance has su󰀩cient ventilation.

• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds. DRIFT - Förvärmning
