USER MANUAL BrematicPRO RM868 01 BRENNENSTUHL
Wireless Smoke and Heat Alarm Instructions for use
www.brematic.com/de/service.
Tel.: 0080048720743 (kostenlos)
Hersteller
EN Wireless Smoke and Heat Alarm 868.3 MHz
List of pictograms used
Safety instructions
Special safety instructions for handling batteries.. 14
Escape plan in case of fire
Intended use
Information about Wireless Operation
Duty Cycle.. 15
Included in delivery
Technical data
Device overview
Device front . 16
Underside of device.. Page 16
Underside of device with opened housing cover / installation plate..
Function 16
Preparation Page 16
Inserting / Replacing the battery.
Installation location
Rooms with partially sloping roofs
Unsuitable installation locations
Installation 18
Standard mode
Function test
Alarm tones.. 19
Pairing the smoke and heat alarm with the BrematicPRO Gateway
Cleaning the device
Restore factory settings.. 20
Troubleshooting
Disposal
Service.. 20
Manufacturer
Declaration of conformity
List of pictograms used
| i | Please read the instructions for use! Caution! Danger of electricity shock! | |
| Caution! Danger of explosion! | Improper disposal of batteries can harm the environment! | |
| Observe the warnings and safety instructions! | Dispose of the packaging and device in an environmentally friendly manner! |
Safety instructions
The instructions for use are a part of this pro
They contain important information about safety, use and disposal. Before using the device, please familiarise yourself with all the safety information and instructions for use. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
AWARNING! DANGER TO LIFE AND RISK OF
ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacity or lacking experience and/or knowledge, provided they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the device. Never allow children to clean or maintain this product unsupervised.
- Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
Do not expose the device to adverse conditions, such as
moisture,
- continuous sunlight,
heat radiation,
cold,
vibrations.
CAUTION! RISK OF INJURY!
Do not open the housing. This device has no parts which require maintenance.
Do not use the device if it is visibly damaged.
We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!
Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.
The device must be replaced every 10 years.
The device may not be covered or coated.
The device does not respond to flames or gas.
The device only detects smoke in the room in which it is installed.
ATTENTION:POSSIBLE DAMAGE TO HEARING! The smoke alarm emits a very loud and shrill alarm tone which can damage hearing. When carrying out a function test, remain at least 50 cm away from the device.
Special safety instructions for handling batteries
WARNING! DANGER TO LIFE!
Batteries are not intended for children. Seek immediate medical attention if swallowed!
CAUTION! DANGER OF EXPLOSION! Never
recharge disposable batteries, do not short-circuit and / or open batteries!
Never throw batteries into fire or water!
Do not exert mechanical loads on batteries!
Risk of battery leakage
In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the skin, eyes and mucous membranes! In the event of contact with battery acid, promptly flush the affected areas with clean water and seek immediate medical attention!
- Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may affect batteries, e.g. radiators/direct sunlight.
- Remove the batteries from the device if they have not been used for a long period!
Risk of damage to the device
Only use the specified battery type!
- Please note the correct polarity when inserting the battery! This is shown in the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!
Remove drained batteries from the device immediately!
Escape plan in case of fire
It is recommended that all household residents draw up an escape plan together. Under no circumstances should the escape route become obstructed. Choose the quickest and safest route leading outdoors as the escape route.
Intended use
The wireless smoke alarm monitors the surrounding area for the development of smoke and heat, and if smoke is identified or the temperature threshold exceeds 54^ , an alarm signal is emitted and a notification sent to the Gateway.
Information about Wireless Operation
This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.
The range in buildings may vary greatly compared to open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.
The range can be significantly reduced in part due to:
- wood, gypsum, concrete, or reinforced concrete walls
- proximity to metal and conductive objects
- broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
- proximity to electric motors, transformers, mains adapters, computers
Duty Cycle
Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure the smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour. In standard mode the transmission time is usually not exceeded.
Included in delivery
1 x Wireless Smoke and Heat Alarm
2x Batteries LR6/AA/Mignon 1.5V
2x Screws / dowels
1 x Quick start guide
1 x Instructions for use (digital, available for download)
Technical data
Product designation: RM 868 01 4211
Item no.: 1294300
Radio frequency: 868.3 MHz
Frequency band: 868.1 - 868.5 MHz
Max. transmitting power: < 20mW
Duty cycle: < 1% per h
Supply voltage: 2 × LR6 / AA / Mignon
Ambient temperature: 0^ to 35^
Protection type: IP20
Audible alarm: approx. 85 dB (at a distance of 3m )
Open area range: approx. 100m
Dimensions average 120.1mm 36.7 mm deep
Weight: 120 g
Battery life span: approx. 1 year (typically)
Tested according to: DIN EN 14604:2005/AC:2008
Detected: Smoke and heat (heat range 54 - 70^)
Subject to technical changes without notice.

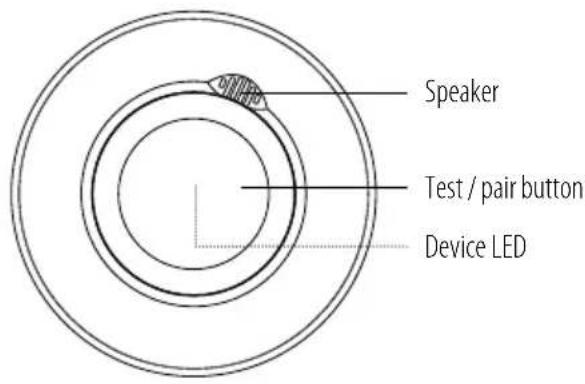

Device overview Device front

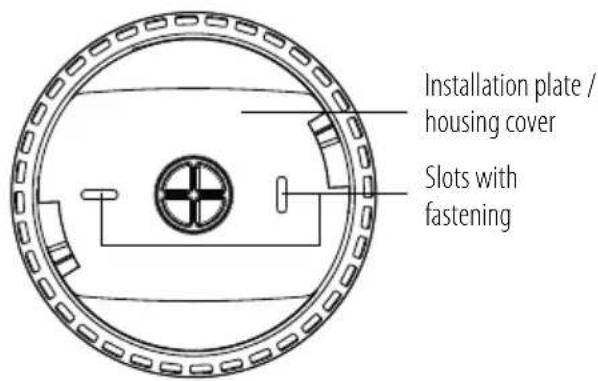

Underside of device

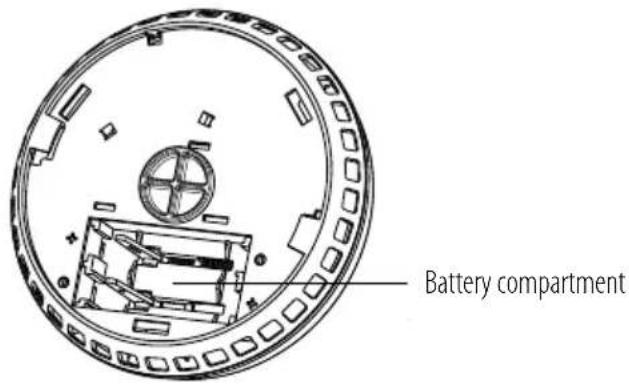

Underside of device with opened housing cover/installation plate
Function
The wireless smoke alarm is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or using the BrematicPRO PC software.
With the help of photoelectric technology, the wireless smoke alarm identifies the development of smoke and uses a temperature sensor to identify when the temperature threshold exceeds 54^ . It emits an alarm signal and sends a notification to the Gateway. After the wireless smoke alarm has been triggered, actions (tasks) can be triggered via the app/PC software. For example, a push notification or an email can be sent. This means that a fire in a separate location, e.g. on another floor, can be reacted to in good time.

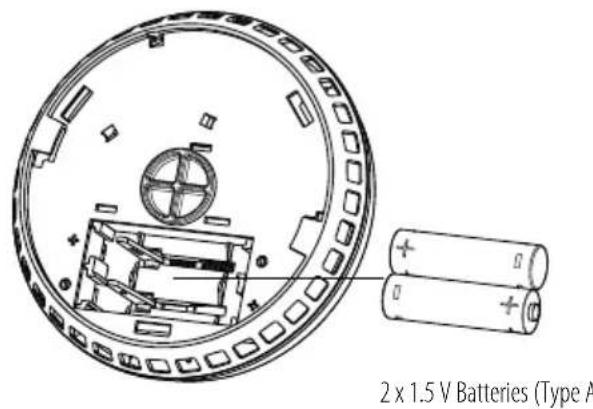

Preparation Inserting/Replacing the battery
Replace the batteries yearly to ensure reliable operation.
When battery power is low, the wireless smoke alarm emits an audible signal at 50-second intervals. Change the batteries when this signal sounds.
Remove the wireless smoke alarm from the installation plate by turning it anti-clockwise.
Remove the drained battery if required.
Insert the battery into the battery compartment with correct polarity. Please note the marking inside the battery compartment.
- Place the wireless smoke alarm on the installation plate and turn it clockwise until it is firmly locked in place.
Note:Without batteries the wireless smoke alarm cannot be installed on the installation plate.
The wireless smoke alarm is now ready for use.
Carry out a function test (see "Function test").
Installation location
The installation locations for smoke alarms are subject to mandatory regulation according to the application standard DIN EN 14676 which is valid in Germany.

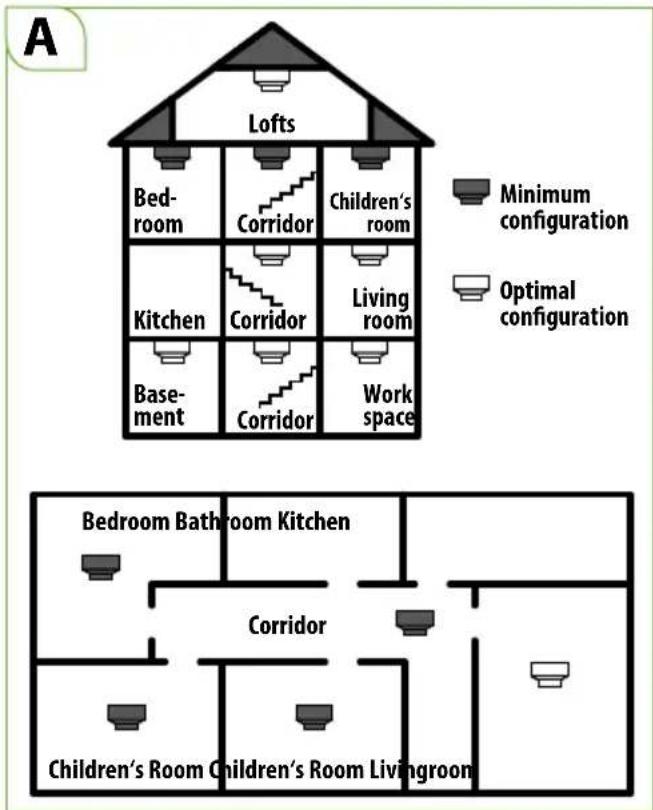

Note: For comprehensive protection smoke alarms should be installed in all rooms, corridors, warehouse areas, cellars and storage spaces. In rooms larger than 60m^2 or hallways longer than 10m , it is recommended that multiple smoke alarms be used.

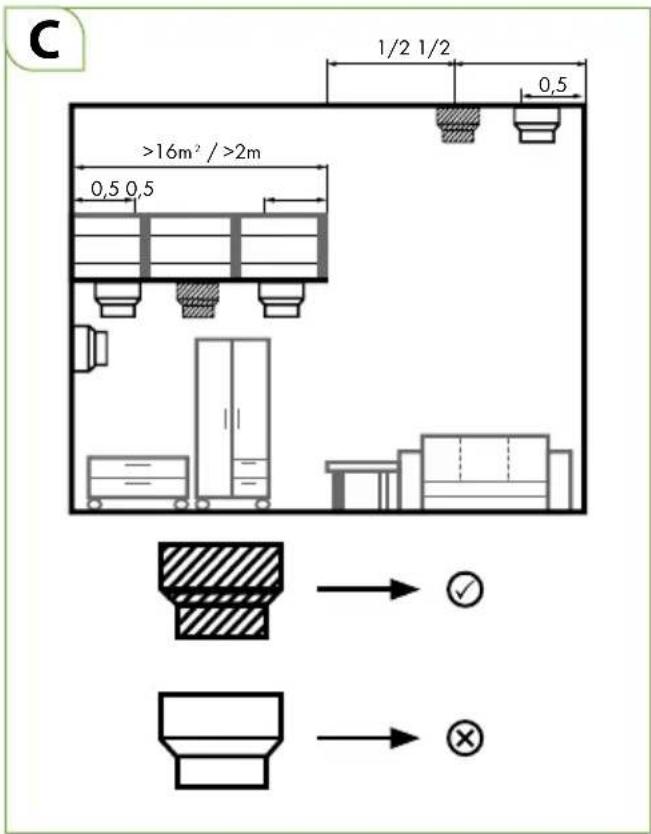

At least the minimum level of protection should be fulfilled and every bedroom or child's room, as well as hallways that serve as an escape route, should be equipped with a smoke alarm.
For optimal protection, install at least one smoke alarm in all rooms and hallways (Fig. A).

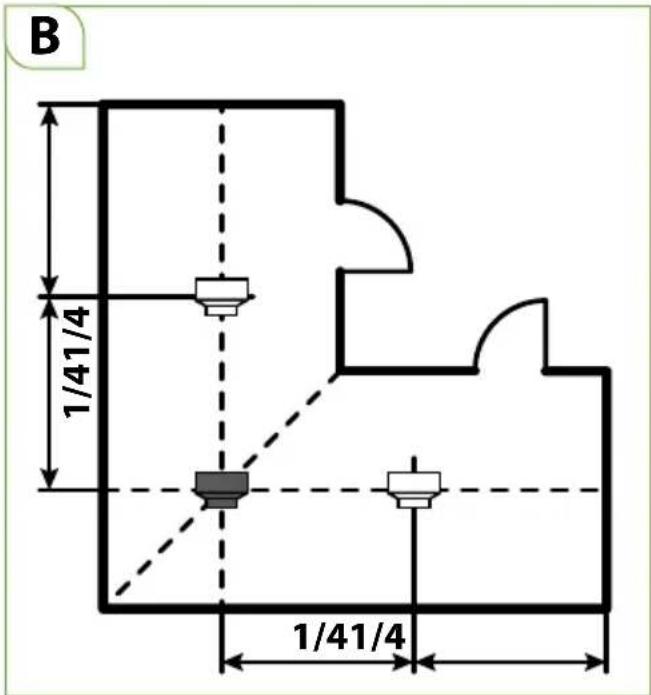

In hallways and corridors with a max. width of 3m a maximum distance of 15m is permissible between two smoke alarms. The distance between the alarm and the end face of the hallway or corridor may not exceed 7.5m . At points where corridors and hallways cross over, merge, or corner (mitre line) an alarm is always installed (Fig. B):
If the length and width of a gallery amounts to more than 2m and the gallery has a total surface area of more than 16m^2 , an additional alarm is required under the gallery (Fig. C).

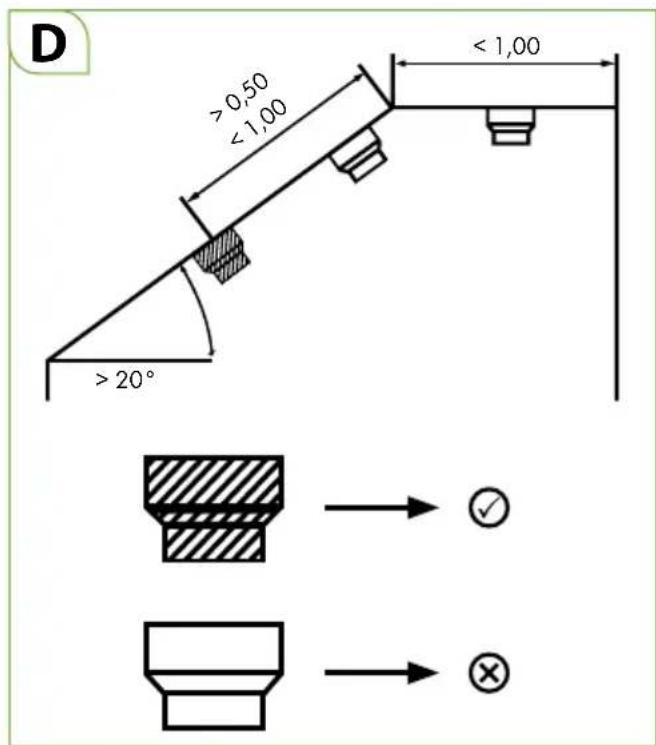

Rooms with partially sloping roofs
If the horizontal ceiling is less than 1 m wide, install the alarm as illustrated in Fig. D.
If the horizontal ceiling is wider than 1m , install the alarm in the middle of the horizontal ceiling.
If the room is more than 6m in height, use an additional smoke alarm.
In rooms with a ceiling incline of >20^ , install the smoke alarm as illustrated in Fig. E.

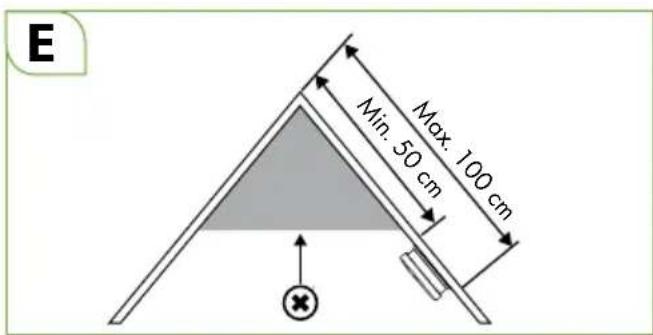

In rooms with a sloped ceiling, the alarm must be installed between 50-100 cm from the highest point (Fig. E).
Because smoke rises, the smoke alarm must always be installed on the ceiling, ideally in the middle of the room in a horizontal position. In accordance with DIN EN14676 a minimum distance of 0.5m should be maintained to all ceiling furnishings and to the walls.
Do not install in the apex of the roof (at least 30 to 50 cm underneath), close to air ducts or in the path of strong draughts.

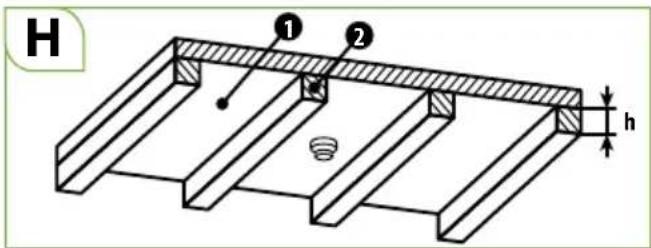

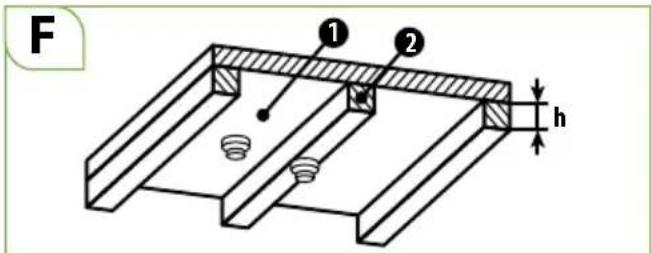

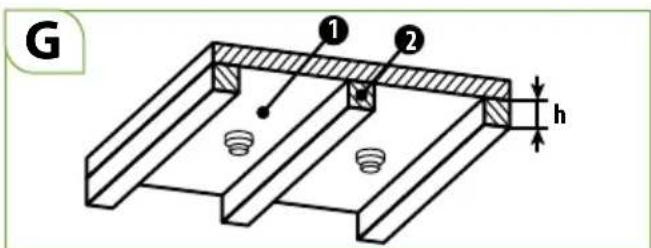

If there are ceiling beams with a height of over 20~cm and if the individual ceiling panels between the beams have an area of more than 36~m^2 , additional smoke alarms must be installed in the ceiling panels. If the ceiling beams are less than 20~cm in height, install a smoke alarm in the middle of the ceiling and not on a beam (Fig. F-H).
Example for a partition with a height ≤ 0.2m
Example for partitions with a height >0.2m and ceiling panel >36m^2
Example for partitions with a height >0.2m und ceiling panel ≤ 36m^2
1 = Ceiling panel / 2 = Partition / h = H
Unsuitable installation locations
- Do not install the smoke alarm in areas susceptible to draughts, e.g. close to air-conditioning and ventilation channels.
- In bathrooms, shower rooms or rooms in which the temperature exceeds 45^ C or falls below 5^ C .
- In the apex of the roof, because smoke-free air could gather there in the event of fire.
- In kitchens, garages, laundry rooms or boiler rooms, a false alarm can be triggered by cooking fumes, vehicle exhaust emissions, dust and moisture.
- In very dusty or dirty areas. Dirt and dust can collect in the smoke alarm and compromise the functional reliability.
- At a distance of less than 1.50 m from fluorescent lamps.
Installation
WARNING! To avoid accidents, the smoke alarm should be correctly installed onto the ceiling as outlined in the assembly instructions.
CAUTION! DANGER OF ELECTRIC SHOCK! Make sure that you do not damage electrical cables in the wall during installation.

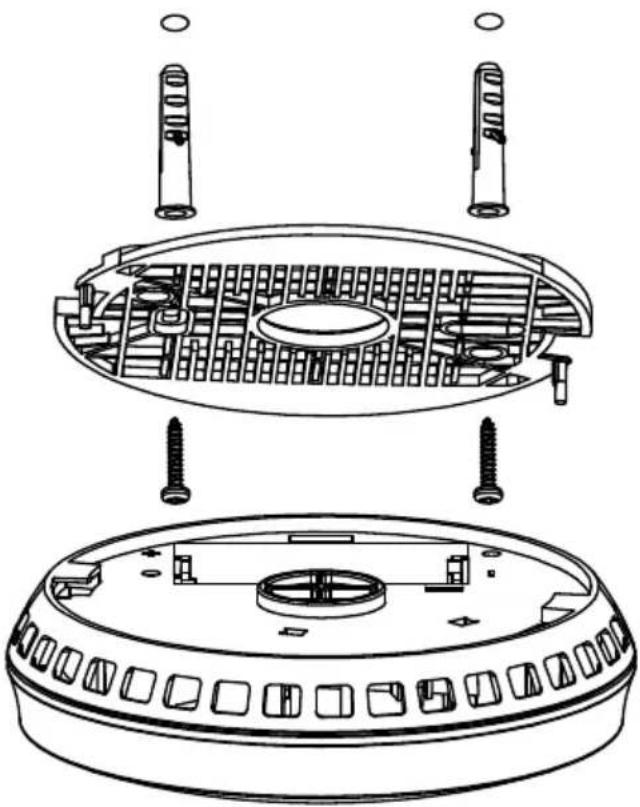

The device is equipped with an installation plate which allows it to be installed on a wall or ceiling. The enclosed fastening materials are suitable for concrete surfaces. For other substrates, appropriate fastening materials must be obtained from specialist retailers.
- Select a suitable installation position for the device in the room to be monitored.
Remove the device from the installation plate.
With the help of the installation plate, draw the four drill holes on the wall using a pen.
Drill the marked holes (5.5 mm drill, approx. 25-30 mm deep for concrete surfaces / 2.5 mm drill approx. 20 mm deep for wood panelling or beams) and insert the dowels.
Tightly screw on the installation plate.
Insert the batteries into the device.
Place the device on the installation plate and turn clockwise to tighten.
Standard mode
In standard mode the device LED flashes once every 50 seconds.
Function test
ATTENTION: POSSIBLE DAMAGE TO HEARING! The smoke alarm emits a very loud and shrill alarm tone which can damage hearing. When carrying out a function test, remain at least 50 cm away from the device.
It is recommended that the device be tested weekly to ensure proper function.
Press and hold the test / learn button for at least 4 seconds, until the alarm sounds. The alarm tone sounds three times in quick succession. After a pause of 1.5 seconds the alarm pattern is repeated twice, until the test / learn button is released. If no signal or a different signal sounds, the device is defective or the battery is drained.
If the function test is unsuccessful, replace the device.
Alarm tones
| Smoke alarm Alarm tone sounds six times in succession, each time for 0.5 seconds with a 0.1 second pause. The device LED flashes red once every second. After a pause of 4.5 seconds, the alarm pattern is repeated. | |
| Heat alarm Alarm tone sounds for 8.5 seconds successively, each time for 0.2 seconds with a pause of 0.1 seconds. The device LED flashes red once every second. After a pause of 4.5 seconds, the alarm pattern is repeated. |
The alarm only ceases to sound when no more smoke particles are detected by the smoke alarm and the surrounding temperature falls to 54^
When the alarm tone sounds, check to see whether a fire has broken out. In the event of a fire, leave the building immediately and call the fire brigade.
Pairing the smoke and heat alarm with the BrematicPRO Gateway
The app or BrematicPro PC software is installed and open.
The BrematicPRO Gateway is ready for use.
Keep the device at least 50~cm from the Gateway.
Open the "Settings" menu.
Select submenu "Rooms," then select the room.
Tap the "Add Device" button.
Select the frequency band "868 MHz".
Under "New Device", select "Sensor / Alarm" and click "Continue" to confirm your selection.
Follow the on-screen instructions.
Press the test / learn button on the device three times in succession within 2 seconds.
A tone will sound to confirm a successful pairing. If pairing fails, the device LED continues to light up. Press the test / learn button on the device again in order to turn off the device LED. If necessary, repeat the pairing process again.
Enter a device name for the device, e.g. smoke alarm "living room".
Select "Add" to assign the device to the room.
- First tap "Back" to leave the room, then "Done" to complete the pairing process.
For more information about the app and how to use it, please visit our homepage at: www.brematic.com/en/service.
Cleaning the device
The smoke alarm must be cleaned at least once a month.
Remove the battery before cleaning.
Clean the device with a dry, lint-free cloth. For tough dirt, you may also dampen the cloth slightly.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
- Never immerse the device in water or other liquids. The device may otherwise be damaged.
After cleaning, reinsert the battery and proceed by carrying out a function test (see "Function test" section).
Restore factory settings
The device can be restored to the factory settings at any time.
Remove the batteries for 5 seconds.
Press and hold the test / learn button.
Insert the batteries.
Continue to hold down the test / learn button until the device LED goes out. Release the test / learn button. The device LED is switched on.
Press the test / learn button again. An alarm tone will sound to confirm that the device was reset.
Troubleshooting
| Display Meaning Solution | ||
| Persistent, pulsing tone. | Alarm or test function was triggered. | Immediately leave the danger zone or release the test button (in the case of a function test). |
| Audible signal sounds every 50 seconds. | Low battery. Replace the battery. | |
| The signal tone sounds three times every 0.5 seconds. | The device is undergoing a function test. | Release the test / learn button to end the function test. |
Disposal
The packaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.
Faulty or drained batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the device to the available recycling facilities.
Improper disposal of batteries can harm the environment!
Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations.
The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection facilities.
Service
For questions related to the product, please contact us at www.brematic.com/en/service.
Tel.: 0080048720743 (free of charge)
Manufacturer
Declaration of conformity
Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model RM868 01 4211 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/en/service/konformitaetserklaerung/ke_ 1294300.pdf
This device complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.
All rights reserved.
