| Product type | Personal blender with sports bottle |
| Brand | Fagor |
| Model | FG2241 |
| Bottle capacity | 570 ml |
| Functions | Blending, pulse, cooling function (freezing tube included) |
| Maximum ingredient temperature | 40 °C |
| Continuous operation time | 60 seconds maximum, then 1 minute rest |
| Overload protection | Automatic motor stop in case of overload; 30 minutes cooling time |
| Power supply | 220-240 V, 50/60 Hz (standard estimate) |
| Power | 300 W (estimate) |
| Materials | Plastic bottle, stainless steel blade, plastic motor base |
| Cleaning | Bottle and lid dishwasher safe; base and blade base hand wash with damp cloth |
| Safety | Bottle lock, automatic stop in case of overload, sharp blades (do not touch) |
| Intended use | Household and similar applications (staff kitchens, farms, hotels) |
| Spare parts and repairability | Contact after-sales service or manufacturer; repairs by qualified personnel only |
| Warranty | 2 years (excluding normal wear and misuse) |
| Dimensions (estimate) | Approximately 20 x 20 x 30 cm (height with bottle) |
| Weight (estimate) | Approximately 1 kg |
Frequently Asked Questions - FG2241 FAGOR
User questions about FG2241 FAGOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blender in PDF format for free! Find your manual FG2241 - FAGOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FG2241 by FAGOR.

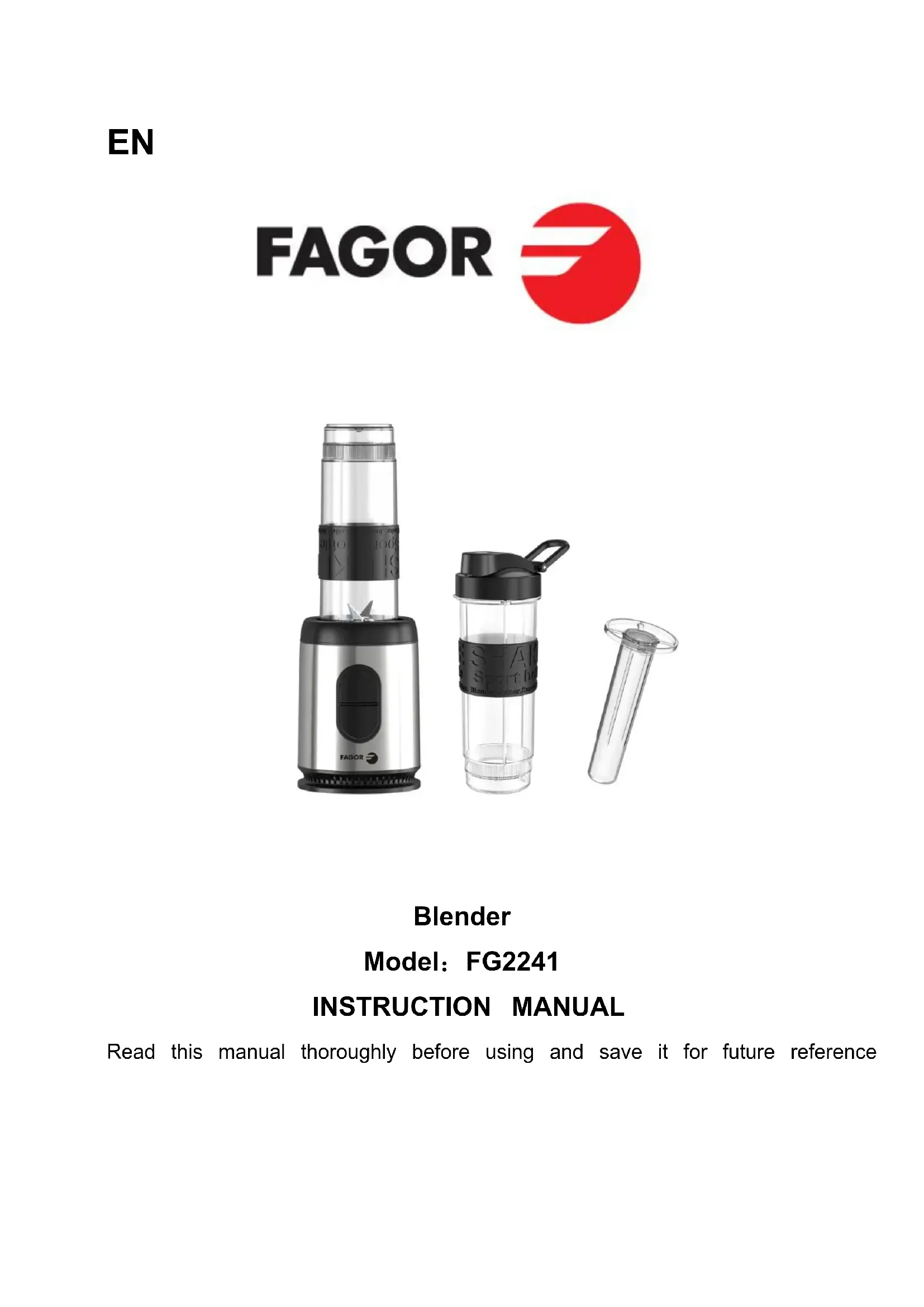

USER MANUAL FG2241 FAGOR
Read this manual thoroughly before using and save it for future reference
Important
Read these instructions for use carefully before using the appliance and save them for future reference.
Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
Do not use the appliance if the mains cord, the plug or other parts are damaged.
Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.
Keep the appliance out of the reach of children.
Do not exceed the quantities and processing times indicated in the table.
Let hot ingredients cool down before chopping them (max. temperature 40^ ).
Cut large ingredients into pieces of approx.2 cm before processing them.
If the blade unit gets stuck, remove the motor unit and the lid and remove the ingredients that are blocking the blade unit with a spatula.
Avoid touching the cutting edges of the blade unit when handling it.
The cutting edges are very sharp and you could easily cut your fingers on them.
Wait until the blade unit has stopped rotating before you remove the lid.
Do not operate the appliance when it is empty.
This appliance is intended for household use only. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
Warning: Potential injury from misuse.
Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
Regarding the instructions for operation time and speed settings, thanks to refer to the below paragraphs
Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the below paragraph of the manual.
This appliance is intended to be used in household and similar applications such as:
-
staff kitchen areas in shops, offices and other working environments;
-
farm houses;
-
by clients in hotels, motels and other residential type environments;
-
bed and breakfast type environments.
Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.

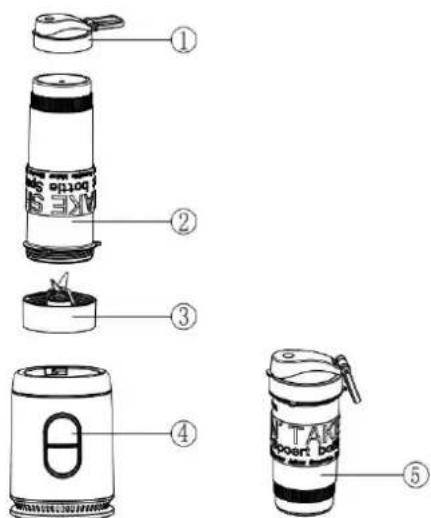

- Bottle lid
- 570ml sport bottle
- Blade base
- Power base
- 570ml sport bottle
Blender Function
- Place the sport bottle(2) on a flat surface , open the bottle
- Fill the bottle with your favorite ingredients, all the ingredient must be filled below the bottle max level mark, when using 570ml bottle for blending, please always fill with liquid like water, milk etc, and liquid must fill over the blade.
- Fasten the blade base(3) on the open end of the bottle
- Turn the bottle upside down, put the bottle and blade base together on the power base(4), ensure the three micro switch block in right position
- Press the middle "ON/OFF" button to start the machine, press the on/off again to stop, or press P for pulse function, press and hold the P button the machine will start work, release your finger the machine will stop
- Unlock the bottle from the power base
- Turn the bottle over and place on a flat surface, take out the blade base, put the bottle lid(1) on.
Notes
- The appliance is recommend to use 60's continuously maximum. Before it's used again, please rest the machine for 1 minute.
- Bottle and lid are dishwasher safe, blender unit and blade base are not dishwasher safe.
-
Do not use for only ice crushing, should with water together
-
Do not use 570ml for grinding function, not matter using what kinds of ingredient in 570ml bottle, must come with liquid, dry grind is not allow.
When overload, motor will automatically stop, please unplug, empty cup, wait for 30 minutes to cool down motor, depends on environment temperature, after cool down can use again.
Cooler Function
- Fill the inside of the cooler stick up to the maximum level indicator
- Keep the cooler stick apparatus in the freezer until the water in the apparatus is frozen.
- Once the water in the apparatus has become ice, place it into the bottle and close the lid.
Cleaning
Do not use abrasives, scourers, alcohol, etc to clean the appliance.
Never immerse the motor unit in water and never clean it in the dishwasher.
- Unplug the appliance and disassemble it.
For extra thorough cleaning, you can also remove the sealing ring and non-slip ring.
-
Clean the bowl, the lid, the blade unit, the sealing ring and the non-slip ring in the warm water with some washing-up liquid.
-
Clean the motor unit with a moist cloth.
Environment
Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.
PLEASE NOTE
-
DO NOT SWITCH ON THE APPLANCE WITH THE ACCESSORIES STORED IN THE BOWL
-
NEVER SOTRE THE TWO CUTTING AND SLICING BLADES INSIDE THE BOWL : AN INCORRECT OPERATION COULD SERIOUSLY DAMAGE THE PRODUCT.
What to do if your appliance does not work?
Check :
- the connection
- that the bowl cover are properly locked on to the motor unit.
- That the lockers are locked properly.
Your appliance still does not work?
Contact a service center or manufacturer.
REMOVAL OF APPLIANCES USED
Directive 2012/19/EU on waste electrical and electronic Equipment (WEEE) requires that the appliance uses are not disposed of using the normal municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on
human health and the environment.
The symbol of the dustbin is used on all products to remind the obligations for separate collection. Consumers should contact their local authorities or dealer regarding the steps to follow for the removal of their old appliance. If you proceed with the scrapping of old equipment, be sure to render useless what could be dangerous: disconnect the power cable flush with the device.
Danger:
Never attempt to use your appliance, if it shows signs of damage or the power cord or plug is damaged. If the power cord is defective it is important to have it replaced with the after sales service to eliminate any danger.
Only qualified and authorized persons are authorized to carry out repairs to your appliance. Any repairs not in accordance with standards could significantly increase the level of risk for the user!
Defect resulting from improper handling, degradation or attempted repairs by third parties voids the warranty on the product. This also applies in case of normal wear and accessories from the appliance.
Important!
We recommend that you keep the packaging of your device at least for the duration of the warranty. The guarantee does not apply without the original packaging.
Warranty:
Your device has two years warranty. The warranty does not cover wear and breakage following a wrong use of the product. The customer is responsible for all returns. You remain responsible for the costs and risks associated with the product shipment; it is therefore recommended to ship the product with an acknowledgement of receipt and transport insurance in case of significant value of the product.
KEEP OUT OF REACH OF CHILDREN
Children should be supervised to ensure that they do not play with the appliance.
Service E-mail: relations.client@euromenage.com
FAGOR
EUROMENAGE
