USER MANUAL TOAS28 H.KOENIG

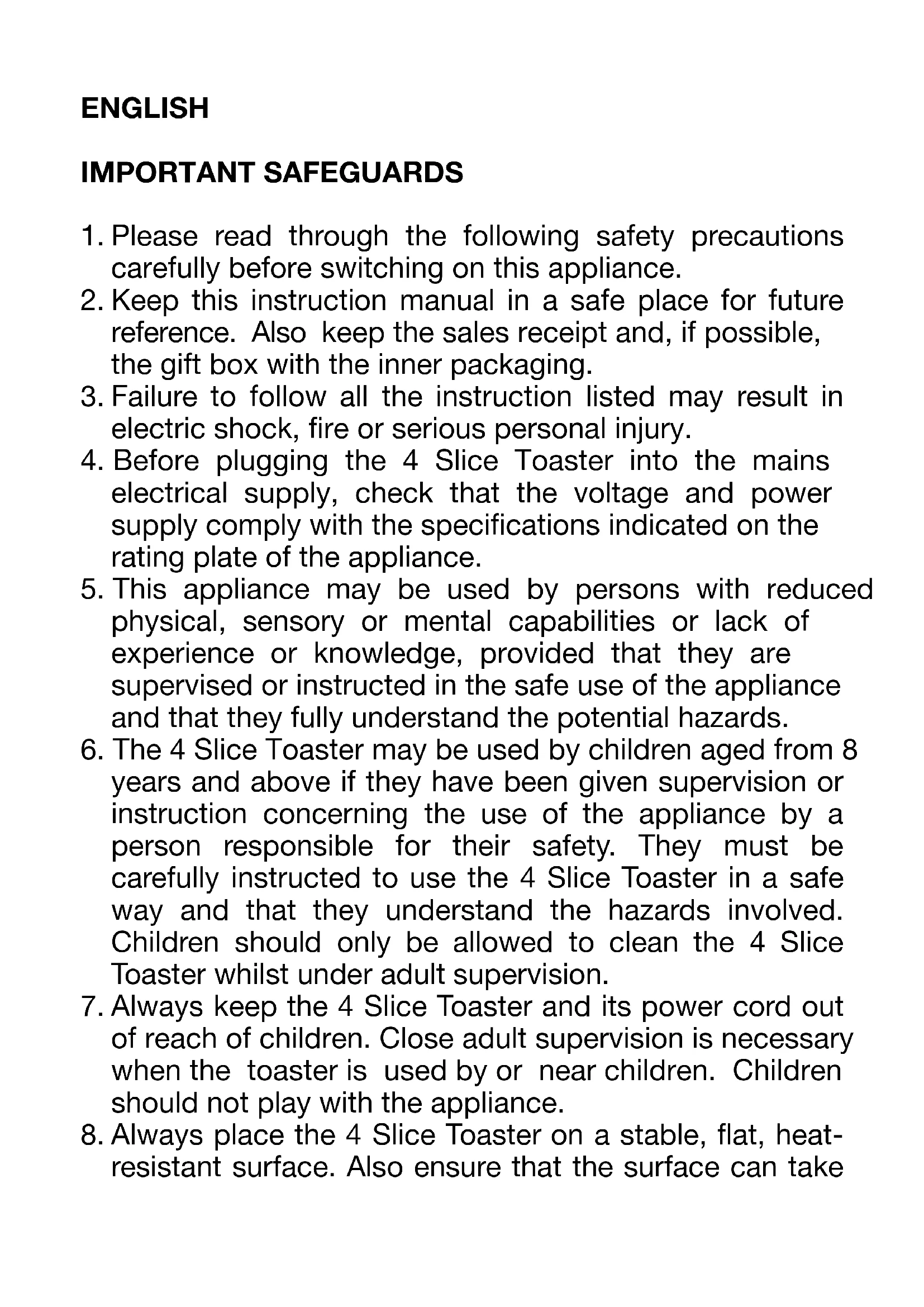

1. Please read through the following safety precautions

carefully before switching on this appliance.

2. Keep this instruction manual in a safe place for future

reference. Also keep the sales receipt and, if possible, the gift box with the inner packaging.

3. Failure to follow all the instruction listed may result in

electric shock, fire or serious personal injury.

4. Before plugging the 4 Slice Toaster into the mains

electrical supply, check that the voltage and power supply comply with the specifications indicated on the rating plate of the appliance.

5. This appliance may be used by persons with reduced

physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

6. The 4 Slice Toaster may be used by children aged from 8

years and above if they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. They must be carefully instructed to use the 4 Slice Toaster in a safe way and that they understand the hazards involved. Children should only be allowed to clean the 4 Slice Toaster whilst under adult supervision.

7. Always keep the 4 Slice Toaster and its power cord out

of reach of children. Close adult supervision is necessary when the toaster is used by or near children. Children should not play with the appliance.

8. Always place the 4 Slice Toaster on a stable, flat, heat-

resistant surface. Also ensure that the surface can takethe weight of the unit during use.

9. This appliance is intended for Household USE and for

similar domestic applications such as staff kitchen areas in shops, offices and other working environments; by guests in hotels, motels and other residential type environments including guest houses and bed and breakfast type establishments.

10. The 4 Slice Toaster should not be used for commercial

purposes. The toaster should only be used for its intended purpose.

11. Do not leave the 4 Slice Toaster unattended when in

12. Do not move or lilt the 4 Slice Toaster while it is

operating or while it is connected to an electrical socket.

13. This appliance is not intended to be operated by

means of an external timer or separate remote control system.

14. The use of attachments, not specifically

recommended by the manufacturer, must not be used as they may cause personal injury or damage to the 4 Slice Toaster.

15. Take care when using the 4 Slice Toaster as it reaches

very high temperatures and the outside surfaces are liable to get hot during use. DO NOT touch the outside surfaces during use, particularly in the area of the toasting slots.

16. Bread may burn; therefore the 4 Slice Toaster must not

be used near or below curtains and other combustible materials.

17. Do not place the cable or any other object over the

toasting slots whilst the 4 Slice Toaster is in operation.

18. Do not attempt to dislodge food while the 4 Slice

Toaster is in operation.

19. The Pop-up lever must be in the 'UP' position beforeconnecting or disconnecting the plug from the mains

Slice Toaster as this will cause an electric shock or cause a fire.

21. Do not operate the 4 Slice Toaster if the plug or power

cord has been damaged, is not working properly, has been dropped or has been exposed to water or other liquid.

22. Regularly check the 4 Slice Toaster's power cord

carefully for damage. If the power cord is damaged in any way, the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid an electrical hazard.

23. Do not allow the power cord to hang over sharp table

edges or come into contact with hot surfaces.

24. Make sure that the 4 Slice Toaster is switched off and

remove the plug from the mains electrical supply when it is not in use, before it is cleaned and while it is being repaired.

25. To prevent the risk of electrical shock. do not immerse

the power cord, plug, or any non-removable parts of this 4 Slice Toaster in water or any other liquid.

26. The 4 Slice Toaster must not be submerged in water,

as any contact with the electrical parts would create the risk of malfunction and electric shock. Do not use the appliance with wet hands.

27. Do not use the 4 Slice Toaster outdoors.

28. To unplug the appliance, grasp the plug firmly and

remove it from the mains electrical supply. DO NOT PULL ON THE CORD.

29. Never use the 4 Slice Toaster if it is damaged in any

30. A qualified electrician should do all repairs. Improperrepairs may place the user at risk.

31. When handing this product over to a third party, ensure

that this instruction manual is supplied with the appliance.

32. Must not immerse in water for cleaning.

33. Keep the appliance and its cord out of reach of

children less than 8 years.

34. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

35. The bread may burn, therefore do not use the toaster

near or below combustible material, such as curtains.

36. The temperature of accessible surfaces may be high

when the appliance is operating.

37. The appliance is not intended for use by persons

(include children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been give supervision or instruction concerning use of the appliance by person responsible for their safety.

38. This device is not intended for use by persons with

reduced capacity on the physical, mental or sensory or lack of experience and knowledge (including children less than 8 years), unless they have had instructions to use the appliance by a person responsible for their safety use of the appliance and understand the hazards involved. Children should be supervised to ensure they do not play with the device.

39. Cleaning and user maintenance shall not be made by

children without supervision.

40. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

41. Cleaning and maintenance should not be carried outby children unless they are at least 8 years of age and are

supervised by an adult.

42. Keep the appliance and its power cord out of reach of

children under 8 years of age.

43. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

44. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

45. Your appliance has been designed for domestic use

only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residential environments, - in bed and breakfast type environments.HOW TO USE YOUR 4 SLICE TOASTER

1. Make sure that the 2 crumb trays are always in place in the base of the toaster as they also

protect the surface it is standing on from the heat of the elements in the toasting slots.

2. Insert the plug into the mains electrical supply and switch on at the socket.

3. Place the bread to be toasted in the wide toasting slots.

4. Turn the browning control to the required setting. The browning control sets the time that the

toaster will operate. '1' is for light toasting and '7' is for the darkest toast.

5. Push the pop-up lever down until it clicks into position.

6. The bread will be lowered and centred as the lever moves down. The 'Stop' button will

illuminate red while the toaster is in use.

7. Once the selected toasting cycle is complete the pap-up lever will release, automatically lifting

the toast. The ‘Stop’ button light will go out.

8. To lift the toast further out of the slot, lift the pop-up lever to the highest position.

• Since the toast will be hot, use caution when removing it from the toaster.

• The toaster surface will get hot during use, especially near the toasting slots, so always allow the appliance to cool down before touching it.

• The two crumb trays have a 'press-to-release' system. Press to release and slide out the crumb trays; empty and slide the crumb trays back into the toaster.

• Always disconnect the appliance from the mains electrical supply when not in use. High-Lift Function

1. Alter toasting you may find small toast/bread particles in the toaster and it may be difficult to

remove them from the slots. lift the toaster lever upwards to make it easier to remove the toast/bread particles from the toaster.

2. Do not use a knife, fork or other utensil to remove the bread from the toaster or to dean the

toaster. If the toast/bread becomes lodged in the toaster, unplug the toaster from the mains electrical supply before attempting to remove it. Toasting Bread From Frozen: Defrost button

1. Frozen bread can be used to make toast with the 'Defrost' button (top button).

2. Place the frozen bread in the toasting slots and select the desired browning setting as though

toasting thawed bread.

3. Push down the pop-up lever until it clicks into place and then press the 'Defrost' button. Both

the 'Stop' and the 'Defrost' buttons will illuminate red.

4. When toasted, the pop-up lever will lilt the toast automatically and both lights will go out.

Re-Heating Toast: Reheat button

1. Reheat toast without additional toasting on this setting.

2. Place toast into toasting slots.

3. Push down the pop-up lever until it clicks into place and press the 'Reheat' button. lt will

illuminate red along with the 'Stop' button.

4. When the toast is reheated, the pop-up lever will lift the toast automatically and both lights will

1. This button is always illuminated red when the toaster is in use.

2. The toasting operation can be halted at any time by pressing the red illuminated 'Stop' button.

3. The pop-up lever will lilt the toast automatically and the light will go out.

• Never use utensils to try to release trapped toast from the slots as it is highly dangerous to do so and it can damage the appliance.

• Turn off at the mains electrical supply and unplug the appliance.

• Allow the toaster to cool down, then turn it upside down and gently shake it to release trapped toast/bread particles.

CLEANING AND MAINTENANCE

1. Always turn off the mains electrical supply at the socket

and unplug the 4 Slice Toaster.

2. Never immerse the 4 Slice Toaster or power cord in water,

or allow moisture to contact these parts.

3. To remove the crumbs, simply 'press to release' the

crumb trays from their slats at the bottom of the back of the 4 Slice Toaster and then slide them out.

4. Empty the crumbs into a suitable container.

5. Wash the crumb trays in warm soapy water. Rinse with

clean water and dry thoroughly with a soft cloth.

6. Ensure that the raised sides of the crumb trays are lacing

upwards before sliding back into slots.

7. All other parts should be cleaned with a damp cloth and

dried thoroughly using a soft cloth before re-use.

8. Children should only be allowed to clean the 4 Slice

Toaster if they do so in the presence of the person responsible for their safety.

9. NOTE: DO NOT use abrasives or chemical cleaners on

any part of this appliance.STORAGE

1. Never wrap the cord around the outside of the Toaster.

2. Wrap the cord neatly around the 'cord storage' provided on the underside of the toaster.

3. When not in use, remove the power plug from the mains electrical supply and store the toaster in a dry, safe

place, out of reach of children WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]FRANÇAIS
