Product type	Multi-function robot with slow cooker function
Brand	Livoo
Model	DOP219W
Power supply	220-240 V ~ 50/60 Hz
Heating power	1000 W
Mixing power	600 W
Maximum bowl capacity	2.0 L
Maximum scale capacity	5 kg
Bowl material	Stainless steel
Main functions	Blend, chop, grind, knead, steam, slow cook, grate, slice, weigh
Included accessories	Chopping blade, whisk, mixing paddle, reversible grating/slicing disc, steam basket, steam tray, lids, measuring cup, spatula
Care and cleaning	Bowl and lids dishwasher safe; clean exterior with a damp cloth
Safety	Automatic shut-off, motor overload protection, safety lid lock, anti-splash lid
Error codes	E1: motor overload; E2: scale sensor; E3: bowl not locked properly
Usage	Household only, indoors

Frequently Asked Questions - DOP219W LIVOO

How to use the steam function?

Place the bowl, add water up to the MAX mark, place food in the steam basket, close the lid and press the Steam button. Do not exceed the maximum water quantity.

Is the bowl dishwasher safe?

Yes, the stainless steel bowl, lids and most accessories are dishwasher safe. It is recommended to remove the rubber seals before washing and clean them by hand.

What to do if error code E1 appears?

Error E1 indicates a motor overload. Unplug the appliance and let it cool down for about an hour before using it again.

Can I chop ice with this robot?

Yes, use the chopping blade at speed 8-12 for 10 to 20 seconds. Do not exceed 600 g of ice cubes.

What is the maximum bowl capacity for soups?

For soups or liquid preparations, do not fill beyond the MAX mark, i.e. approximately 2.0 L.

How to properly lock the bowl?

Place the bowl on the base and turn it clockwise until you hear a click. If the lock symbol is not displayed on the screen, the bowl is not properly installed.

Can I use the whisk with the Pulse function?

No, do not use the Pulse function with the whisk. Use the whisk only at speeds 1 to 4.

Can this robot slow cook dishes for a long time?

Yes, it has a slow cook function. Set the desired temperature and time (up to 90 minutes). The mixing paddle can be used at low speed during cooking.

How to clean the lid after use?

Wash the lid with hot soapy water or in the dishwasher. Remove the rubber seal and clean it separately before putting it back.

Does the appliance have a timer function?

Yes, you can set the cooking or mixing duration using the Time button. The maximum time depends on the mode used. Once the time is up, the screen displays 'End'.

USER MANUAL DOP219W LIVOO

Congratulations on the purchase of your new product.

You have selected a high-quality product from LIVOO. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal.

Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application.

If you pass the product on to a third party, always pass on all the documentation as well.

We wish you lots of fun with your new Super Cooker food processor.

Intended use

This Super Cooker food processor is used for blending, whisking, beating, stirring, chopping, pulverising, puréeing, emulsifying, steaming, braising and cooking foods and food products.

These user instructions describe basic functions such as blending, chopping and steaming. You can find details on preparing specific recipes in the recipe book supplied.

This appliance may be used only in dry rooms. It may not be used out of doors or in wet rooms.

This appliance is intended for private use and is not suitable for commercial purposes.

Contents

Safety information 19
Special information about this appliance. 20
Contents package and technical data 23
Disposal 23
Parts and features 24
Parts 24
Control pannel 24
Accessories 25
Cooking modes 26
Cooking modes 26
Preparing 26
Preparing the Super Cooker for use 26
Before using 27
Start up and controp setup 27
Control pannel 27
Using Super Cooker 28
Using Super Cooker with inner steamer basket 30
Using Super Cooker with steamer attachment 31
Operating 32
Care and cleaning 34
Troubleshooting 35

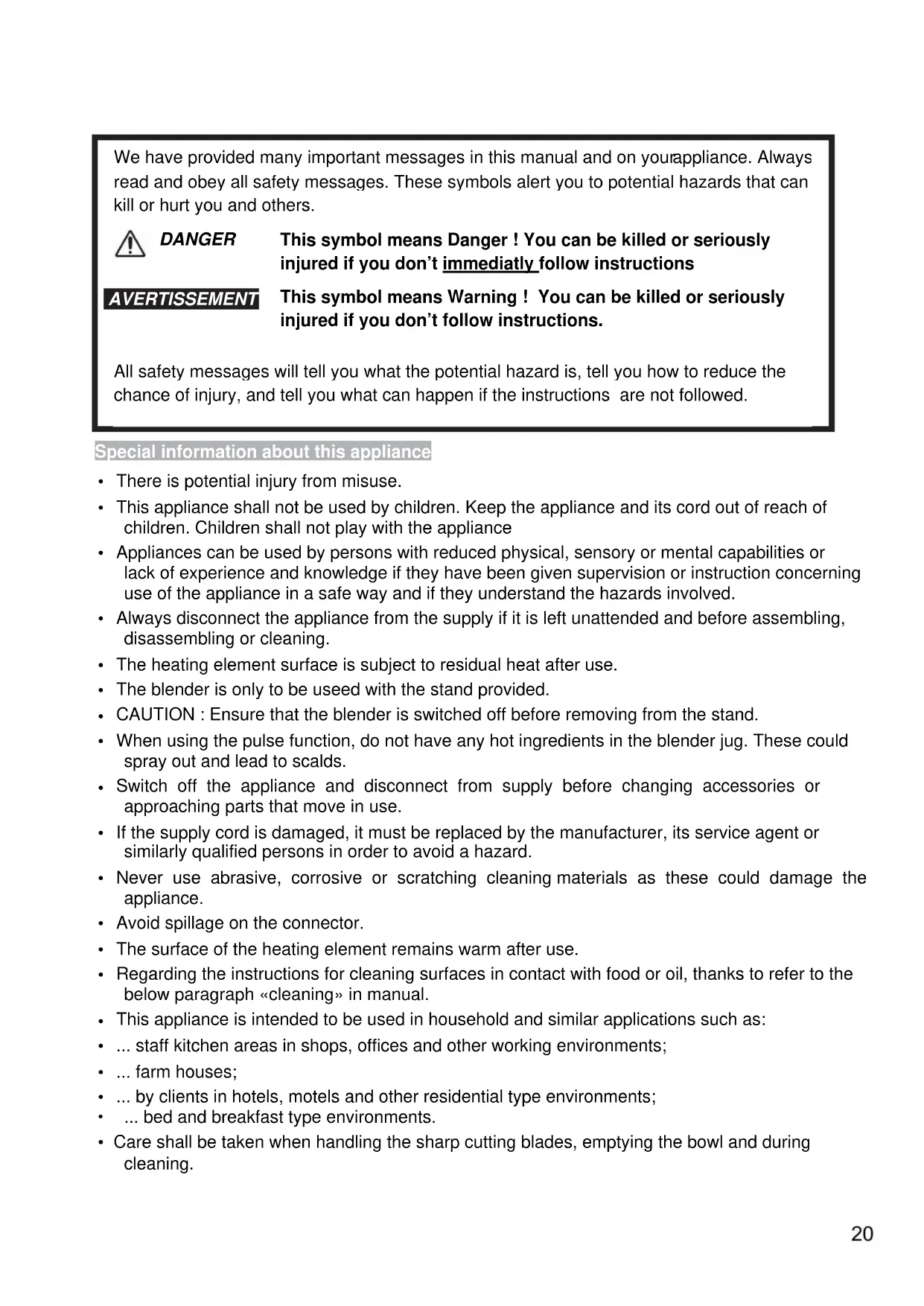

We have provided many important messages in this manual and on your appliance. Always read and obey all safety messages. These symbols alert you to potential hazards that can kill or hurt you and others.

DANGER

This symbol means Danger! You can be killed or seriously injured if you don't immediately follow instructions

AVERTISSEMENT

This symbol means Warning! You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Special information about this appliance

• There is potential injury from misuse.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Children shall not play with the appliance
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• The heating element surface is subject to residual heat after use.
• The blender is only to be used with the stand provided.
• CAUTION : Ensure that the blender is switched off before removing from the stand.
• When using the pulse function, do not have any hot ingredients in the blender jug. These could spray out and lead to scalds.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never use abrasive, corrosive or scratching cleaning materials as these could damage the appliance.
• Avoid spillage on the connector.
• The surface of the heating element remains warm after use.
• Regarding the instructions for cleaning surfaces in contact with food or oil, thanks to refer to the below paragraph «cleaning» in manual.
• This appliance is intended to be used in household and similar applications such as:
  ... staff kitchen areas in shops, offices and other working environments;
  ... farm houses;
  ... by clients in hotels, motels and other residential type environments;
  ... bed and breakfast type environments.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

DANGER Child safety

Children often injure themselves because they are unable to correctly assess hazards. Therefore, please note:

• Make sure the packaging film does not become a deathtrap for children. Packaging film is not a toy.

DANGER! Preventing electric shocks

• The following safety regulations are intended to protect you against electric shocks.
• Connect the appliance only to an earthed mains socket as this provides protection against electric shocks.
• Make sure that your mains power supply corresponds to the technical data for the appliance.
• Under no circumstances should water or other liquids be allowed to get into the base unit. Therefore:
• never use it outdoors
• never immerse the base unit in water
• never place containers filled with liquid, such as drinking glasses, vases etc. on the appliance
• never use in very humid environments
• never use in the immediate vicinity of a kitchen sink, bath, shower or a swimming pool, as water may splash into the appliance.
• Never touch the appliance, the power cable or the mains plug with wet hands. To disconnect the power cable, always take hold of the plug. Never pull on the cable.
• Make sure that the power cable is never kinked or compressed.
• Keep the mains power cable away from hot surfaces (e.g. cooker hob).
• If you are not using the machine for a prolonged period of time, remove the plug from the wall socket.

• Avoid using extension cables. They may be used only under very specific conditions:

• The extension cable must be able to handle the amount of current drawn by the device.

• The extension cable may not hang loose: keep children away from it and ensure that it is not possible for anybody to trip over it.
• Under no circumstances use a damaged extension cable.
• Do not connect any appliances other than this product to the same mains socket, since it could cause an overload (do not use multi-way splitters of any kind).
• Do not make any modification on the appliance.

DANGER! Preventing injuries

• To avoid injury, please observe the following information.
• Make sure that the mains cable never becomes a trip hazard, that no-one can get tangled in it or tread on it.
• During operation, avoid contact with the moving parts of the appliance such as the blade assembly or mixer attachment. Your hands or hair could be drawn into the appliance, leading to injuries.
• Be aware that the surfaces of the appliance can become hot in operation:
• When the appliance is in operation, never touch the drip tray, steamer baskets or their lids without using an oven cloth or gloves.
• Allow the appliance to cool down before moving it to a different location.
• The appliance operates using hot steam. To prevent scalds:
• if possible, avoid lifting the lids of steamer baskets during the cooking process because hot steam will escape;
• be aware that hot steam also escapes from the vents in the steamer lids. Never cover these openings, otherwise steam might build up in the appliance and escape violently when it is opened:
• When you do need to lift the lid of a steamer basket, first raise it slightly at the back, so that the escaping rush of steam is directed away from you

DANGER! Preventing the risk of fire

Since the appliance operates at high temperatures, always comply with the following safety instructions to prevent it causing a fire.

• To prevent overheating, never cover the appliance, Always ensure that air can get in and out freely, otherwise heat may build up in the appliance.

WARNING

Material damage

• Follow the instructions given below to prevent material damage.
• Always place the appliance on a level, dry, non-slip surface to prevent it tipping over or sliding off.
• Do not place the appliance on top of a hot hotplate.
• Never use the egg beater and blender jug while empty. This might cause the motor to overheat.
• The egg beater may be used only at speeds 1 to 4.
• The pulse button may not be used together with the mixer attachment.
• Never use the blender jug without the lid in place, as liquid might otherwise be thrown out.
• Do not move the appliance while food or dough is still inside.
• When steaming, make sure there is never too much or too little water in the appliance.
• Do not place the appliance immediately underneath a suspended cupboard, as steam escapes upwards and might damage your furniture.
• Use only clean drinking water to generate steam.
• The manufacturer and importer accept no liability for damage caused by an inadequate power supply or improper electrical installation in your building.
• Only use accessories provided with the item.

• The device is equipped with non-slip plastic suction feet. If necessary, place a non-slip support under the appliance.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.

1 food processor Super Cooker
1 blender jug with :

-blade assembly
- lid for blender jug
- measuring cup

1 reversible disc to shred and to slice

1 inner steamer basket
1 egg beater
1 stir paddle
1 steamer attachment, including:

inner steamer basket, 1 lower steamer,

1 upper steamer and steamer lid
1 spatula
1 copy of the user instructions
1 recipe book

Model DOP 219W
Power supply 220-240V~ 50-60Hz
Power	heater: 1000W mixing: 600W
Maximum capacity of blender jug	2,0 L
Maximum capacity of scale	5 kg

Disposal

The symbol with the crossed- out rubbish bin on wheels means that within the European Union, the product must be disposed of to a sorted rubbish collection.

This applies to the product and all accessories which are marked with this symbol. Marked products must not be disposed of via the regular domestic waste but must be handed in to a recycling centre for electrical or electronic devices. Recycling helps to reduce the use of raw materials and to relieve the environment. It is therefore imperative that you follow the disposal regulations applicable in your country.

If you wish to discard the packaging, please observe the applicable environmental regulations in your country.

Warning:

Caution hot surface!

DO NOT OPERATE this product near water sources or flammable liquids.

DO NOT CLEAN OR TOUCH this product when it is still hot

DO NOT USE SHARP OBJECTS

Parts

On/Offbutton

Control pannel

Stainless steel cooking bowl

Control pannel

Steamer lid Upper steamer

Inner steamer basket

Seal

Stir paddle

Blade assembly

Egg beater

Blender lid Blender lid with pusher

Slicer/shred disc

Driving shaft

Cooking modes

Function	Food	Operation Time	Number of Cycles
Blender	920g carrot, 1380g water	3 min ON/ 1 min OFF 10
Food processor 600g meat 1+1 min ON	2 min OFF	3
Food processor	500g flour + 250g water + 20 g oil	2+1 min ON/ 2min OFF 3
Heater + motor / 60 min /

Mode	Accessory	Speed	Time	Max cooking ingredients
Meat mixing Blade assembly		8 - 12 30s	- 60s 600g of	meat
Crushed ice Blade assembly	8 - 12 10s - 20s 600g	of ice
Mixing Blade assembly	12 60s 2,3L
Chopping	Blade assembly	5	15s - 30s	500g of ingredient
Kneading	Blade assembly	1 120s		500g floor + 250g water + 20g oil
Slices, shred	Slices disc	5 - 6	30 s	500g of ingredient
Soup	Stir paddle	1	30 - 90 min	2,0L (see bowl limit)

PREPARING

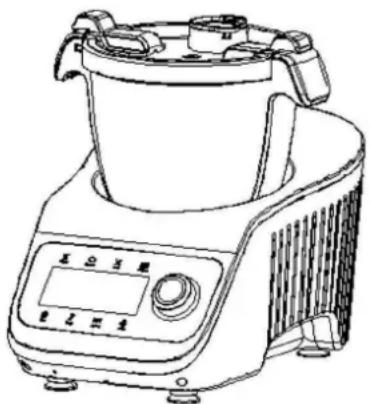

Preparing the Super Cooker for use

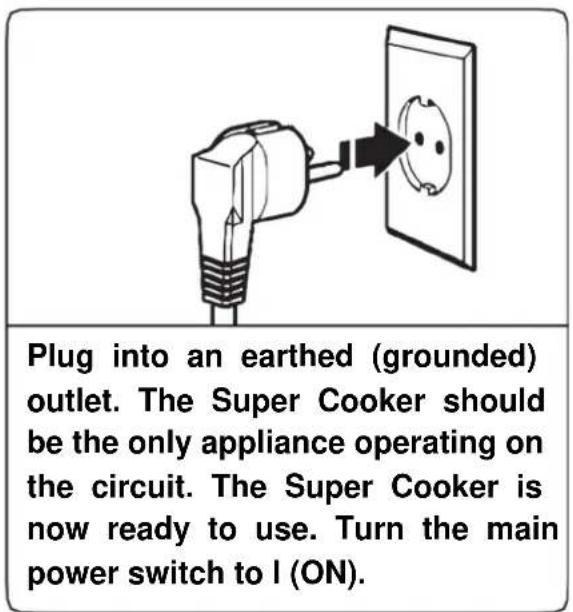

1. Place the Super Cooker on a dry, flat, level surface such as a countertop or table.
2. Be sure to provide enough room above the Super Cooker to open lid and remove bowl.
3. Remove all packaging materials, if present.
4. Wash lid and attachments in hot, sudsy water and rinse thoroughly. Wipe out inside of bowl with a damp cloth. Do not immerse bowl. Dry thoroughly.

START UP AND CONTROL SETUP

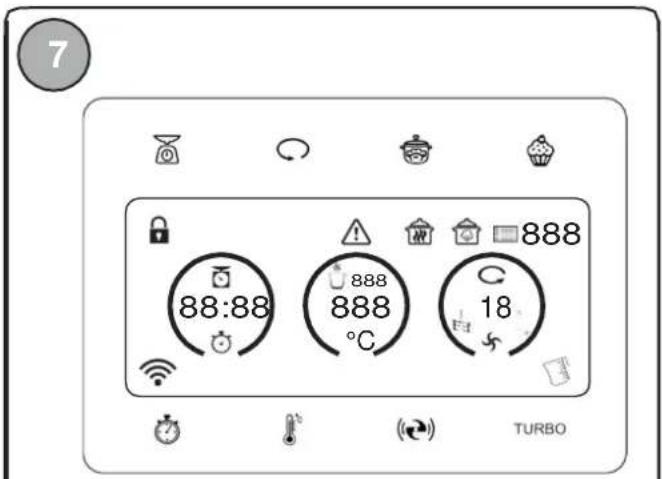

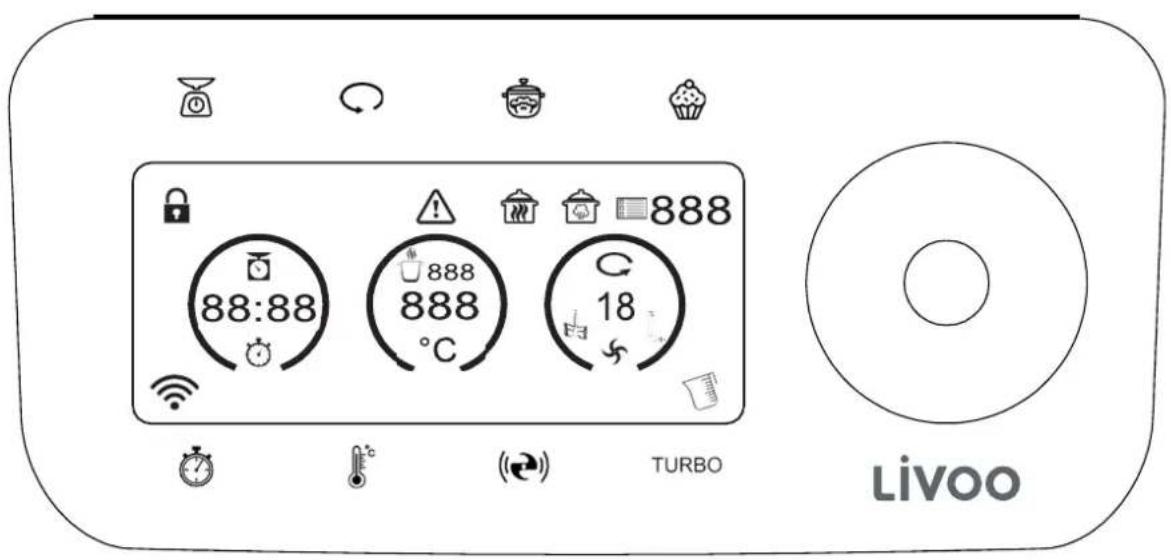

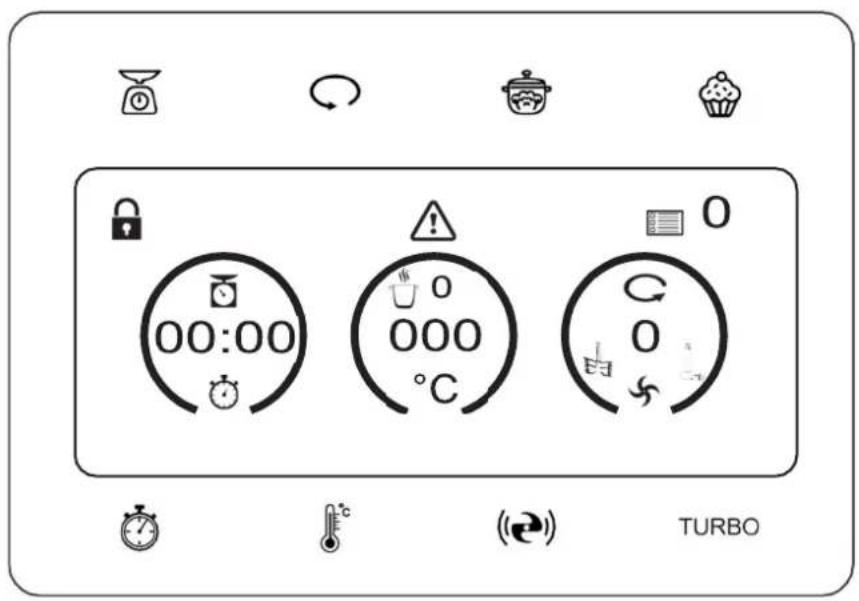

Control pannel

1. The display appears as soon as you turn on the Super Cooker after plugging it into an electrical outlet.
2. Press any key on the control panel to continue.

IMPORTANT : Refer to the provided cookbook for directions on selecting attachments, time, speeds and temperature.

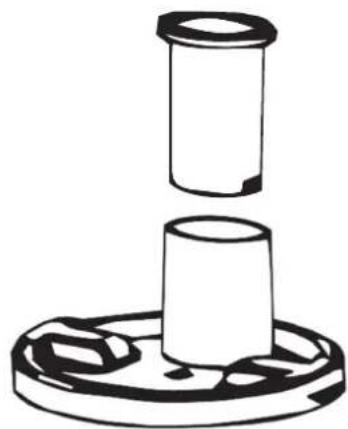

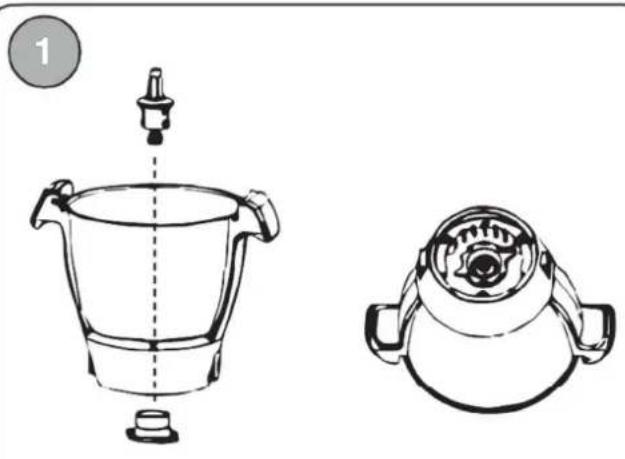

Insert the drive shaft into the bowl.

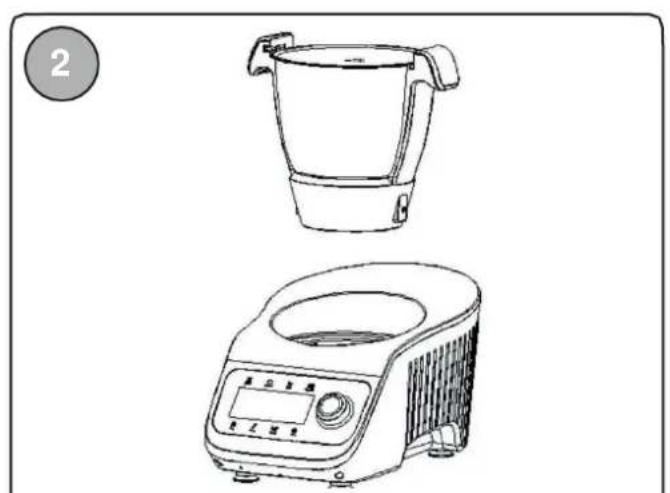

Place the bowl on the base, making sure it locks into place. If the bowl is not locked in place, E3 will show in the display.

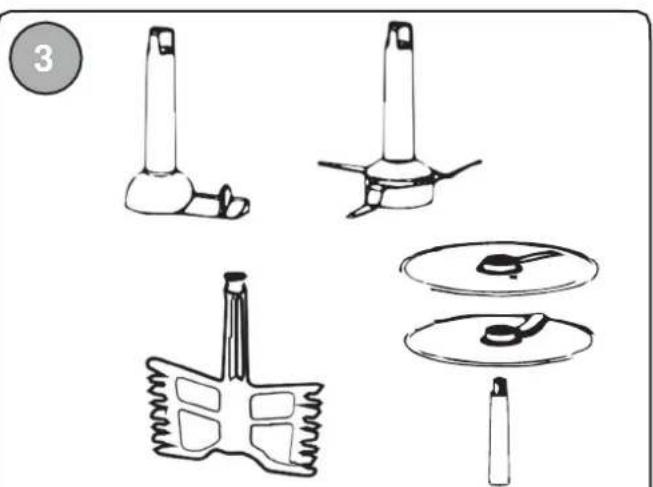

Insert the accessory indicated by the recipe into the bowl, sliding it onto the drive shaft.

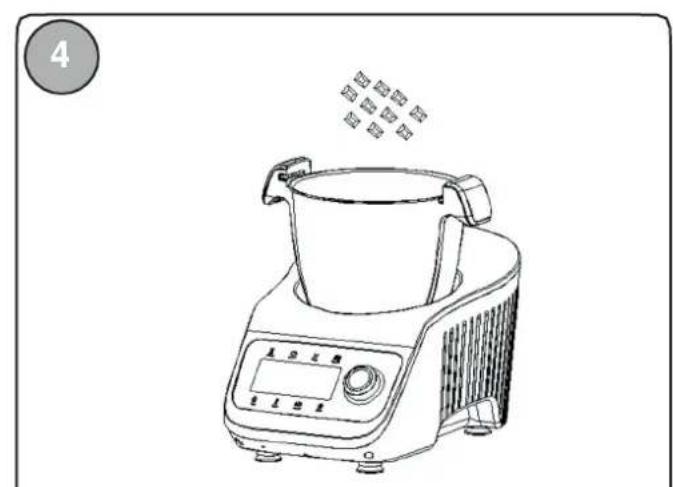

Add the ingredients for the first step of cooking. Do not exceed the MAX FILL line.

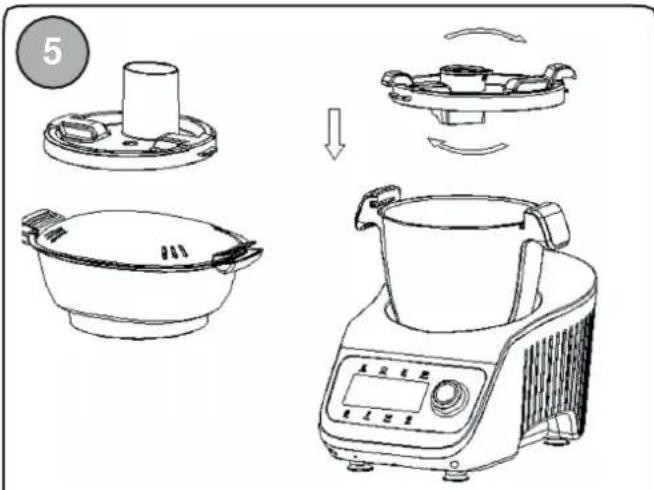

Select the needed lid. Close and latch the lid.

The display will light on.

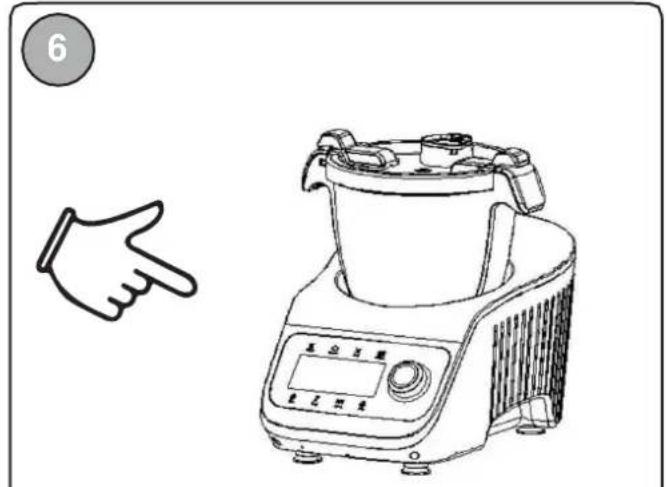

Press the rotary knob to start using the Super Cooker.

The Super Cooker is ready to use, select time, speed and temperature to start. See next chapter to be familiar with the control panel functions.

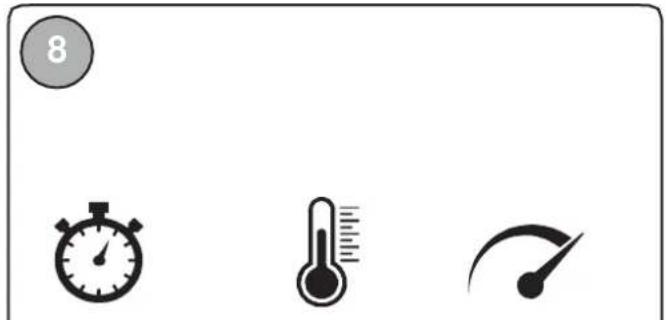

Press buttons Time / Temperature / Speed, to change the settings, turn the rotary knob to adjust the settings. Press the rotary knob to valid. Once you finished to change the settings, press the rotary knob to begin the cooking.

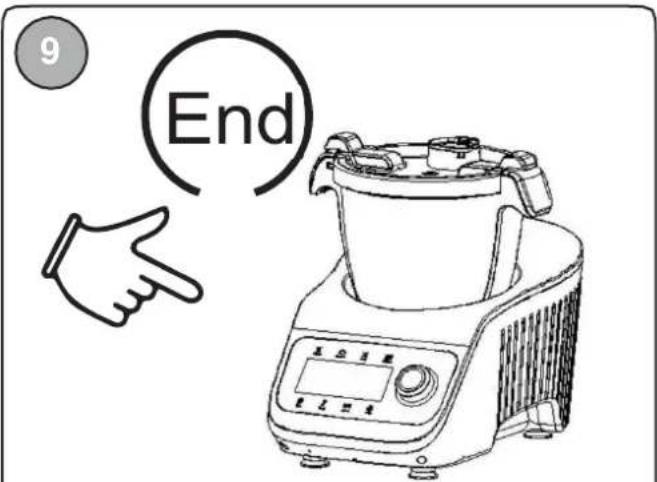

The display show «End» when the cooking is over. Press the rotary knob to turn off the device.

If you want to interrupt cooking or preparation while the program is running, press the rotary knob, press again to restart. Push several seconds to cancel definitely cooking or preparation.

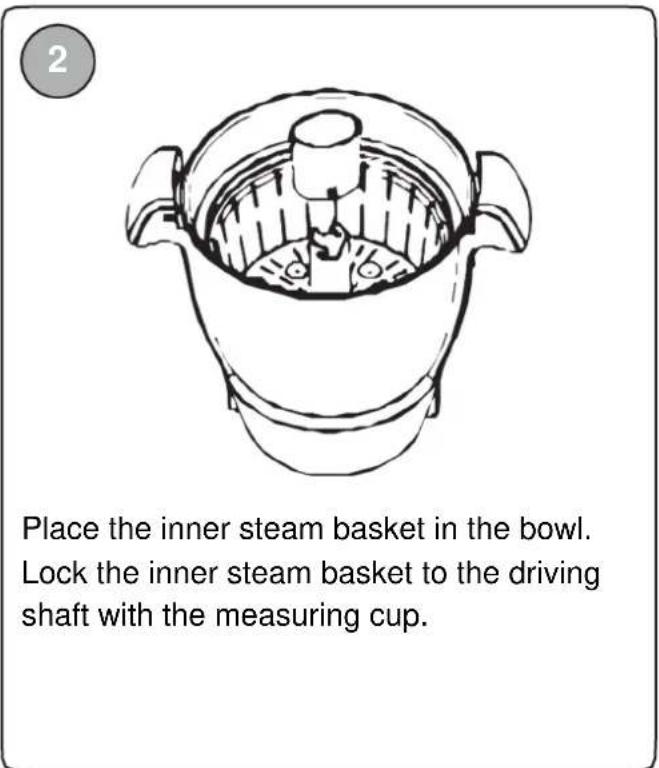

Using Super Cooker with inner steamer basket

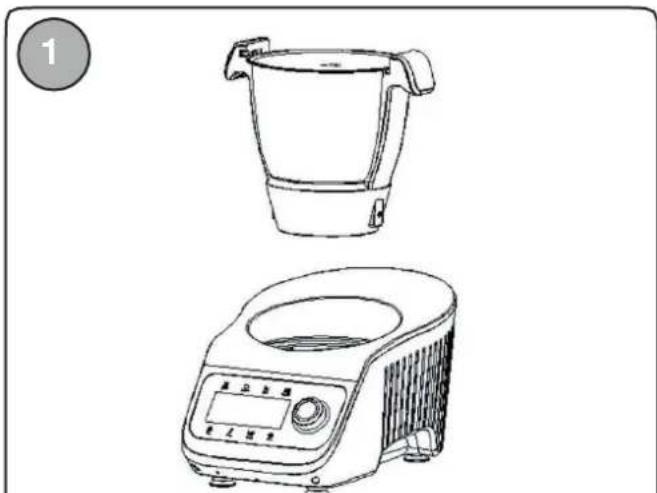

Place the bowl on the base, making sure it locks into place. If the bowl is not locked in place, E3 will show in the display.

3

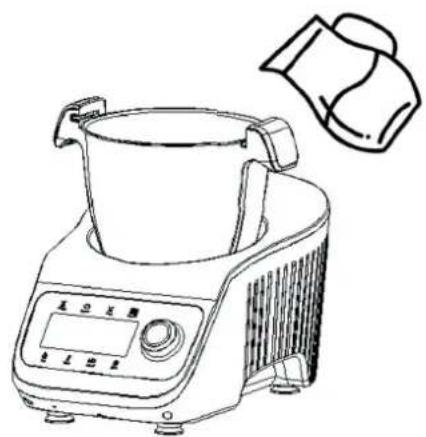

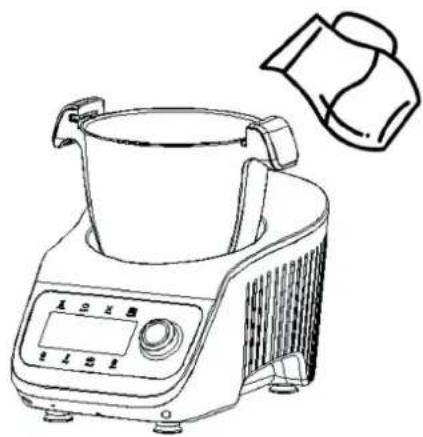

Add water in the bowl.

Do not exceed the fill mark. «MAX».

4

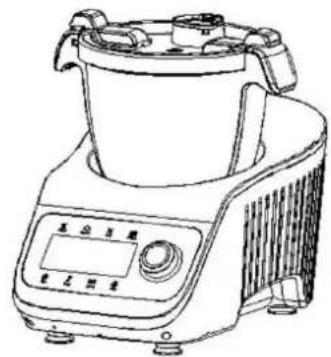

Close and latch the lid.

Press the rotary knob to start using the Super Cooker.

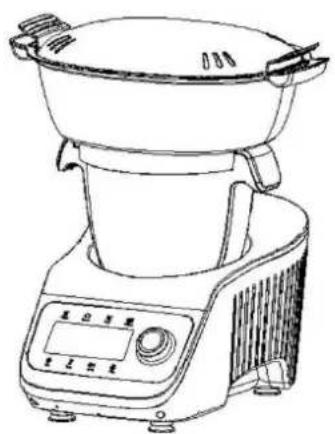

Using Super Cooker with steamer attachment

1

Place the bowl on the base, making sure locks into place. If the bowl is not locked in place, E3 will show in the display.

2

Add water in the bowl.

Do not exceed the fill mark. «MAX».

Add foods and ingredients in the steamer attachment.

Close and latch the lid.

Press Programms button to select steam cooking.

Operating

Button	Symbol Function description
Rotary knob		1. Can be used to setting temperature ,time, speed. 2. Press the knob and the cooker will suspend when cooking .It will continue cooking if your press again. 3. Long push the knob and the cooker you will stop cooking. 4. Press the knob after finish all setting and the cooking will start cooking . 5. It will automatically cancel if you long push the knob during setting . 6. When finish cooking ,the IMD panel will shows “end” ,Press the knob and the cooker will into standby mode . 7. When finish weight , Long push the button ,will exit the weight program.
Button	Symbol	Function description
Scale		1. Press the Scale button once to select scale function. 2. Long press Scale button to exit scale function.
Reverse		1. Press the Reverse button once to reverse the motor direction. The speed range is 1-3. 2. Long press the button to return to the normal direction of motor.
Steam		1. Press the button Steam to enter the Steam programm. Time: 20 minutes default time, can be adjusted from 1 to 60 minutes. Temperature: 120°C default time can be adjusted to 100°C and 110°C. Speed: no speed for this function. Countdown will start when the temperature rises 95°C. 2. Press the rotary knob to start the Steam program.
Dough		1. Press the Muffin button once to enter the Dough function. Time: 3 minutes, can be adjusted from 2 to 4 minutes. Speed: 1, can be adjusted from 1 to 2. Temperature: can be adjusted from 0 to 37°C The appliance mixes 29 seconds, stops 1 second, starts again in reverse way and stops 1 second. 2 cycles will run. 2. Press the rotary knob to start the Dough program.
Time		1. Press the Time button once to set the time required, adjustable from 0 to 90 minutes. 2. Set the seconds then press the Time button once to go to the minute setting. 3. Turn the rotary control to confirm the time.
Temperature		1. Press the Temperature button once to set the required temperature, adjustable from 37 °C to 120 °C. 2. Adjust the temperature with by turning the rotary control button then press the Temperature button once to confirm the temperature.
Speed	((2))	1. Press the Speed button once to set the required speed, adjustable from 0 to 12. 2. Adjust the speed with by turning the rotary control button then press the Speed button once to confirm the speed. 3. During the heating phase, the speed is limited to 3.
Turbo	TURBO	1. Long press the Turbo button to activate the turbo function 2. If the temperature inside the mixing bowl is higher than 60 °C, the pulse function cannot be activated and the control panel will display the symbol
Egg beater		1. The whisk symbol lights up when the speed is adequate to snow egg, make an emulsion ... 2. Can be used with a speed set from 1 to 4.
Stir paddle		1. The stir paddle symbol lights up when the speed is adequate during the heating stages. 2. Can be used with a speed set from 1 to 3.
Blade assembly		1. The chopping knife symbol lights up by default. 2. Can be used with a speed set from 1 to 12.
Lock		·When the closed lock symbol is lit, it means that the cover is correctly in «Standby» mode and is ready to be used. ·When the open lock symbol is lit, it means that the lid is not properly locked and the Super Cooker cannot be used.

CARE AND CLEANING

Cleaning your Super Cooker

All accessories and blades are top rack dishwasher-safe. Thoroughly dry all parts after washing. Use gentle dishwashing cycles such as

normal. Avoid high temperature cycles. Also we recommend hand washing.

Unplug your Super Cooker from the wall socket before cleaning.

Let the Super Cooker and its accessories cool completely before you start cleaning them.

Exterior surfaces

• Do not abrasive cleaners or metal scouring pads. They could scratch the surface.

• Wipe the outside of the Cook Processor with a clean, damp cloth and dry thoroughly

Bowl:

Clean the inside of the bowl with a non-abrasive cloth dampened with soap and water, then wipe with a clean, slightly damp cloth. To remove residue from cooked food, fill the bowl with hot, soapy water and wash it after allowing it to soak. You can also wash the bowl in the dishwasher.

Once cleaned, dry the bowl thoroughly with a clean cloth.

Inner lid seals

The covers have rubber seals.

When washing the covers in the dishwasher or by hand, remove the seals by pulling them off.

Wash the seals in hot soapy water, then dry them before reinstalling them.

TROUBLESHOOTING

If your Super Cooker malfunctions or fails to operate

• Is the Super Cooker plugged into a grounded outlet?

Plug the Super Cooker into a grounded outlet.

• Is the fuse in the circuit to the Super Cooker in working order?

If you have a circuit breaker box, make sure the circuit is closed. Try unplugging the Cook Processor, then plug it back in.

• Unable to close the lid

Check the seal position

• Error messages:

E1: Motor overload - Unplug the Super Cooker and allow it to cool for one hour. Then it is ready to be used again.
E2: No weight is detected or the scale sensor is damaged. Contact the service center.
E3: The mixer bowl is not correctly positioned or a motor drive part is damaged. Correctly reposition the mixer bowl on the base.
E5: Lack of water in the tank. Add water.

If you cannot resolve the problem:

Contact your usual reseller for the return or exchange conditions.

You have a warranty on this product which is valid for 2 years from the date of purchase

Imported by:

DELTA

BP61071

67452 Mundolsheim

France

MANUEL DO USUÁRIO
