Product Type	Active 2-way powered speaker
Brand	Yorkville
Model	NX10C
Woofer	10 inches (254 mm) with ceramic magnet
Tweeter	1-inch (25 mm) driver for high frequencies
Amplification	600 W (peak) bi-amplified: class A/B for tweeter, class H for woofer
Audio Inputs	Combo XLR/1/4" (balanced) for line or mic with +24V phantom power; stereo 1/8" line input
Audio Output	XLR Link for daisy-chaining; parallel 1/4" line output
Controls	Line level, mic level, EQ (Hi-Fi contour / high boost), power switch
Indicators	Green LED (power), red LED (clip)
Mounting	Through-hole for pole (speaker stand); multiple swivel mounting, use as floor monitor
Tilt Angle	Rear handle serves as tilt bar for monitor use
Materials	ABS plastic, aluminum, wood; rugged metal grille
Power Supply	100-240V~, 12-5A, 50/60Hz; max consumption 1200W daisy-chained
Warranty	2 years (electronics), 10 years (cabinet), transferable
Usage	Indoor use only
Cleaning	Dry cloth only
Included Accessories	No accessories mentioned (pole not included)

Frequently Asked Questions - NX10C YORKVILLE

How to connect a microphone to the NX10C?

Use the Combo XLR/1/4" input in mic mode. Connect your microphone to the XLR part. The +24V phantom power is activated automatically. Adjust the mic level with the dedicated control.

Can I connect a line source (MP3 player) to the mic input?

It is better to use the stereo 1/8" line input or the 1/4" part of the Combo jack. The mic input is optimized for microphones and may saturate with a strong line source.

How to daisy-chain multiple NX10C speakers?

Use the XLR Link output of one speaker to the line input of the next. Set the Line Level control to 0 dB on the slave speakers. Power on the last speaker first and power off last.

What is the function of the EQ control?

Turned to the left, it boosts bass and treble (Hi-Fi contour). To the right, it boosts treble. At 12 o'clock, the response is flat. Adjust individually on each speaker in the chain.

How to mount the NX10C on a pole?

Insert the pole into the through-hole located under the speaker. You can also rotate the speaker around the pole for 360° coverage while maintaining phase.

Can I use the NX10C as a stage monitor?

Yes, use the rear handle as a tilt bar to angle the speaker upward. It can also be placed on its side using the mounting holes.

What to do if the red Clip LED lights up?

Reduce the input level (source or Line Level/Mic Level control) until the red LED turns off. This prevents clipping and protects the speaker.

What type of power cable to use for daisy-chaining?

Use a cable of at least 16 AWG (for USA/Canada) and rated for the total power consumed by the cascaded speakers (max 1200W). The mains plug must remain accessible.

How to clean the NX10C speaker?

Use only a dry cloth. Do not use liquid or abrasive products. Unplug the speaker before cleaning.

What to do if there is a problem or the speaker does not work?

Check the power cord, fuse, and connections. If the problem persists, contact a qualified technician. Never open the speaker yourself.

USER MANUAL NX10C YORKVILLE

TYPE: YS1107

OWNER'S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient to constitute a risk of electric shock to persons.

Caution: hot surface Attention: surface chaude

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Instructions pertaining to a risk of fire, electric shock, or injury to a person

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS DEVICE IS FOR INDOOR USE ONLY!

Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and heed all warnings.

Clean only with dry cloth.

Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!

Warning: When using electric products, basic precautions should always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing ground. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/accessories specified by the manufacturer

Note: Prolonged use of headphones at a high volume may cause health damage on your ears.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Service

The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

NSTRUCTIONS

The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prongs are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING:

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
• To completely disconnect this apparatus from the ac mains, disconnect the power supply cord plug from the ac receptacle.
• The mains plug of the power supply cord or appliance coupler shall remain readily accessible.

CAUTION

TO PREVENT ELECTRIC SHOCK HAZARD, DO NOT CONNECT TO MAINS POWER SUPPLY WHILE GRILLE IS REMOVED.

POUR PRÉVENIR LES RISQUES D'ÉLECTROCUTION,

NE PAS RACCORDER A L'ALIMENTATION ÉLEC- TRIQUE ALORS QUE LA GRILLE EST RETIRÉE.

NX10C · Active Speaker · 600w, 10-inch / 1-inch

When designing the NX10C sound reinforcement loudspeakers, Yorkville Sound wanted to build lightweight enclosure with a small footprint that performs exceptionally well. With the NX10C, we have confidently delivered what we feel is one of the most usable and versatile sound reinforcement loudspeakers on the market. We're proud to introduce the NX10C!

The NX10C offers a great value for a 10-inch and horn active loudspeaker enclosure. The biamped 600-watt (peak) power module has a minimum of controls yet provides maximum versatility making the NX10C the ideal solution for many applications.

It all starts with the NX10C's inputs for mic and line level sources, virtually any audio source can be connected. The innovative single EQ control is extremely flexible to help you tailor the sound for the environment. The size of the NX10C is also an advantage, as the 12-inch footprint along with the innovative pole mount design make the NX10C one of the most versatile professional PA cabinets ever!

The horn/tweeter amplifier uses class A/B technology, allowing the horn to produce clean transients to keep up with the high output of the woofer. The woofer (low frequency) amplifier uses class-H 2-tier amplifier technology. This achieves a lighter weight and more efficient audio amplifier with higher headroom and lower operating temperature. Each amplifier has it own limiter to prevent distortion caused by clipping.

The incredible "through-hole" pole mount allows multiple NX10C cabinets to be mounted on a single speaker stand. As an example, when wider horizontal coverage is needed, the NX10C cabinets can be rotated about the axis of the pole while maintaining full phase coherency. This would allow overage for up to 360 degrees is possible! You can also use the rotated cabinets as side-wash stage monitors as well. Another option would be to use the same stands you use for your stage lighting system. NX10C's can be mounted under the light bars, saving valuable space on stage.

The versatility doesn't stop there. Yorkville design engineers made sure that even the rear-mounted handle also has more than one use. It has been designed to operate as a tilt bar, allowing the NX10C to be used as a wide-coverage floor monitor or center fill cabinet. Now that's versatility!

Features

- Ultra-durable aluminum, wood, and ABS plastic construction

- Multi-purpose full range and wedge monitor format enclosure

- Ultra-clear reproduction throughout bandwidth

• Lightweight, high efficiency, high tech, 600-watt (peak) biamped power module

• Balanced Combi-jack (XLR/1/4-inch TRS) input

- An XLR output for easy connection for linking and looping

- Direct microphone input with level control

- Innovative single overall EQ control

• 10-inch Ceramic Magnet co-axial driver

• High quality 1-inch High Frequency driver built into woofer

- Innovative through the cabinet pole mounting for multiple uses

- Tough metal grille

- Flush mounted controls

Power Switch and LED

The Power Switch turns the power on and off for the NX10C enclosure and the green LED will illuminate when the power is on also indicating a properly functioning fuse.

AC Inlet and Outlet

The NX10C supports cascaded power installation via the AC Outlet connection. It is important to note that the maximum power that can be drawn through the first unit's AC inlet is 100-240V, 12-5A, 1200W. The user must take into consideration the sum of all power consumed by the units in the chain. Choose an appropriate rated power cord (min 16AWG for USA and Canada) acceptable in the country where the product is used when setting up a cascaded installation.

Mic In / Line In Combi-Jack

The balanced XLR microphone input part of the Combi-jack can be used for either dynamic or condenser microphones (it is phantom power enabled).

The 1/4-inch part of the Combi-jack is connected in parallel with the Line level Combi-jack and can be used as a Link out for parallel connection of multiple NX10Cs when individual control on the enclosures is needed with an individual input signal.

Line In

The balanced Combi-jack (XLR/1/4-inch TRS) input can be used with any non-microphone line source such as an MP3 player, a CD player or an electronic instrument with a line output. It's always recommended to use balanced sources when possible, this helps prevent the risk of hum or buzz associated with unbalanced connections (especially if the cable is long or the source is operated from a separate AC power connection). Since the Mic In and the Line In each have their own input and level controls, they can be used at the same time.

Link Out

The Link line output enables multiple NX10C enclosures to be chained together using a single audio input source, the Link. It should be connected to the Line In of the next NX10C in the chain. The Line In level control on the subsequent unit in the chain should be set to 0 dB in order to provide the same output level as the master enclosure. When connecting multiple NX10C enclosures, the last NX10C in the chain should be powered off first (and powered on last). Each NX10C should be powered on or off before the previous NX10C in the chain. This will eliminate unwanted on/off noises.

Line Level Control

The Line Level control adjusts ALL the line level inputs, including the 1/4-inch part of the XLR Mic Combi-Jack.

Mic Level Control

The microphone level control adjusts the mic level of the loudspeaker. It also adjusts the mic level on all NX10C enclosures in the chain (if multiple NX10C enclosures are used).

EQ Control

This control affects all the sound coming out of a particular NX10C enclosure. Turning the control counterclockwise will increase the level of the bass and the treble together in order to provide a hi-fi contour for playback sources. Turning the control clockwise increases the high frequency content. This ca come in handy when multiple NX10C's are arrayed together. Setting the control to the 12:00 position will provide flat response. This control does not affect the sound at the Mix Out. In a system with multiple cabinets it will be necessary to adjust the EQ control on all individual enclosures.

Clip LED

This LED illuminates red when the signal is too strong and adjustment is needed to either the input's signal or the input level control.

1/8-inch Line In

The 1/8-inch Line input jack is a typical 'stereo' audio input which properly sums the left and right signals from stereo sources such as MP3 players.

nx10 ^c

300 WATT POWERED LOUDSPEAKER ENCLOSURE

Specifications

System Type 2-Way

Active or Passive Active

Peak Power (watts) 300 Watts (600 Watts Peak)

Biampable Self Powered

Max SPL (dB) 125dB Peak (122dB Continuous)

Frequency Response (Hz +/- 3db) 80Hz - 20kHz

Crossover Frequency (Hz) 2500

Driver Configuration Coaxial 10-inch / 1-inch

HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film

HF Dispersion (°H x °V) 60 x 60

LF Driver(s) 10-inch Ceramic Magnet with a 2.5" voice coil

HF Amplifier Type Class A/B

LF Amplifier Type Two Tier Class-H

Power Cable Yes

Power Switch Yes

Power Consumption (typ/max) 120 / 310 Va

Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4-inch

Input Sensitivity (Vrms Sine) 1.23 Vrms, +4dBu

Mixer Controls EQ (Playback/Bright)

Level Controls Line/Mic

Limiter Yes

LED Indicators Power, Clip

Foot Yes

Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum / 13 ply birch

Grille Perforated Metal

Dimensions (DWH xbackW, inches) 13 X 13.5 X 12

Dimensions (DWH xbackW, cm) 33 x 34.3 x 30.5

Weight (lbs/kg) 25/11.3

Combi-Jack Mic In / Line In

Active or Passive Active

Peak Power (watts) 300 Walls (600 Watts Peak)

Biampable Self Powered

Max SPL (dB) 125dB Peak (122dB Continuous)

Frequency Response (Hz +/- 3db) 80Hz - 20kHz

Crossover Frequency (Hz) 2500

Driver Configuration Coaxial 10-inch / 1-inch

HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film

HF Dispersion (°H x °V) 60 x 60

LF Driver(s) 10-inch Ceramic Magnet with a 2.5" voice coil

HF Amplifier Type Class A/B

LF Amplifier Type Two Tier Class-H

Power Cable Yes

Power Switch Yes

Power Consumption (typ/max) 120 / 310 Va

Inputs 3 (Combl-jack Mic Input / Combl-jack Line Input / 1/8-inch TRS Line Input) 1/4-Inch

Input Sensitivity (Vrms Sine) 1.23 Vrms, +4dBu

Mixer Controls EQ (Playback/Bright)

Level Controls Line/Mic

Limiter Yes

LED Indicators Power, Clip

Feet Yes

Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum / 13 ply birch

Grille Perforated Metal

Dimensions (DWH xbackW, inches) 13 X 13.5 X 12

Dimensions (DWH xbackW, cm) 33 x 34.3 x 30.5

Weight (lbs/kg) 25/11.3

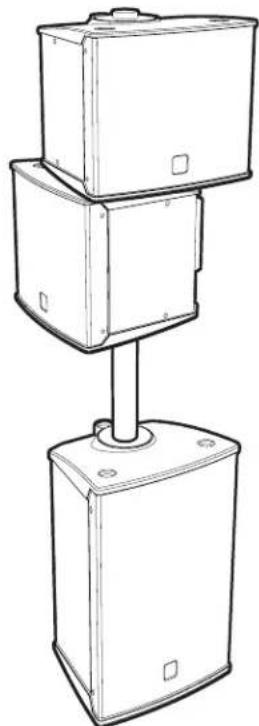

MULTIPLE NX10Cs ON SINGLE POLE
(parallel operation)

MULTIPLE NX10Cs ON SINGLE POLE
(LINKED operation)

Sub Hook Up WITH Crossover

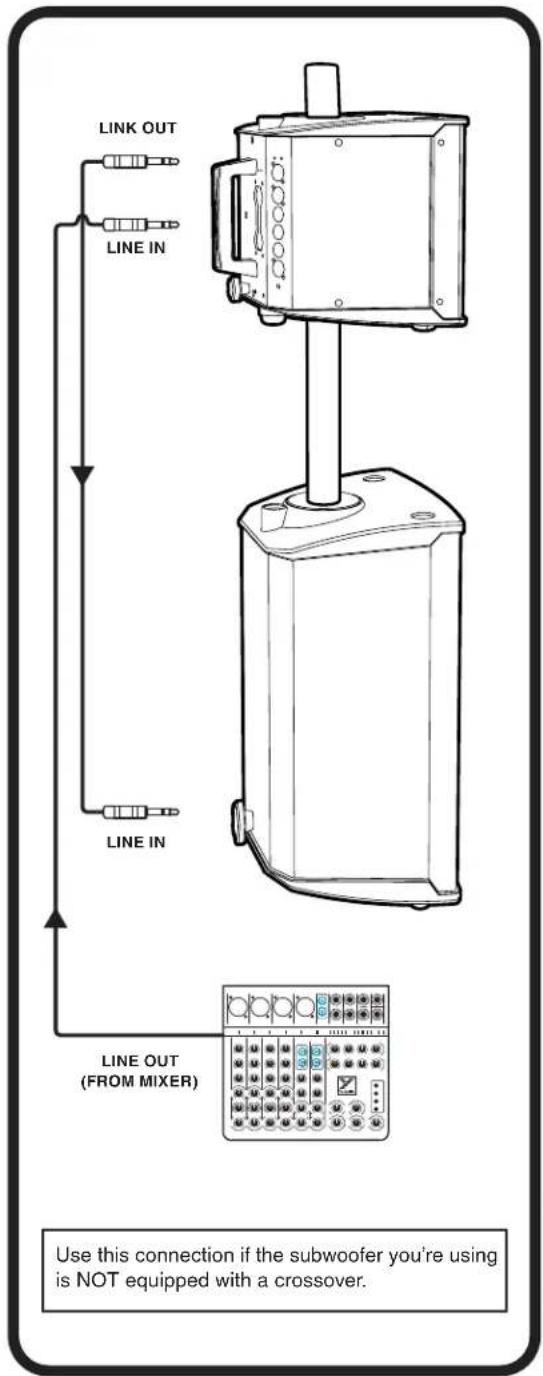

Sub Hook Up WITHOUT Crossover
connection NX100-REAR-00-1v0

Highly Versatile

The NX10C is an extremely versatile speaker enclosure.

It can be configured many ways.

The only obstacle is your imagination!

Rear View

Monitor orientation uses the integrated handle for stability

Front View

Making it louder by stacking

Efficient Use of Pole Mounts

Highly Versatile Speaker Configurations

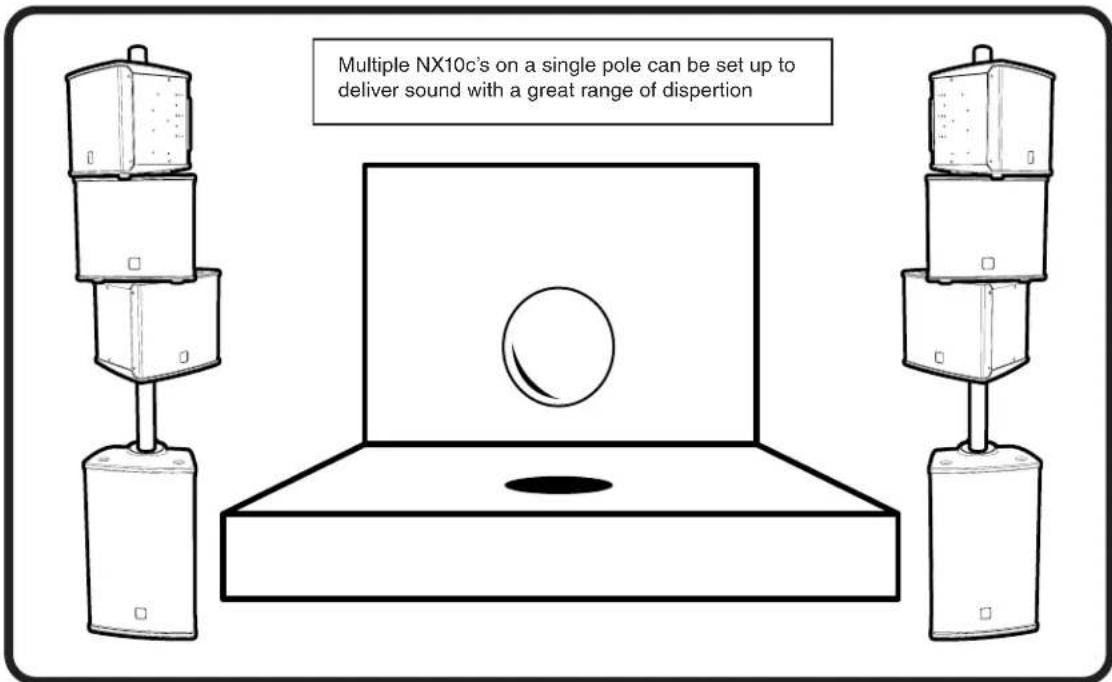

NX10C WIDE DISPERTION APPLICATION

NX10Cs USED FOR SIDEWASH

Two & Ten Year Warranty

Unlimited Warranty

Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. This includes all Yorkville products, except for the YSM Series studio monitors, Coliseum Mini Series and TX Series Loudspeakers.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes or par bulbs. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.

Garantie Illimitée

Voice: [phone] Voice: [phone]

Fax: [phone] Fax: [phone]

www.yorkvvilllee.occomm

Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York 1W-3Y8 CANADA 14305 USA

WEB: www.yorkville.com

Niagara Falls, New York

14305 USA

Voice: [phone]

Fax: [phone]

Quality and Innovation Since 1963

Printed in Canada

Manual-Owners-nx10c-00-1v3 • January 20, 2020
