Product type	2-way bi-amplified active speaker
Brand	HK Audio
Model	Linear 5 L5 115 FA
Frequency response (±3 dB)	57 Hz - 18 kHz
Frequency response (-10 dB)	48 Hz - 20 kHz
Max SPL (10% THD)	128 dB (half space)
Peak SPL (10% THD)	137 dB (half space)
Amplifier	Class D, 1000 W (650 W woofer + 350 W tweeter)
Woofer	1x 15" with 3" voice coil (4 ohms)
Tweeter driver	1" compression driver with 1.75" voice coil (16 ohms)
Horn	CD 60°-90° (asymmetric) x 55°, rotatable
Crossover frequency	1.65 kHz, 24 dB/oct. active
Audio connections	2x XLR combo input, 2x XLR thru, 1x XLR mix out
Power supply	230 V~, 3 A, with V-Lock locking
Standby consumption	~0.25 W/h
Dimensions (W x H x D)	44.9 x 70.8 x 45 cm
Weight	30.7 kg
Cabinet material	Composite (multiplex / MDF)
Grille	2 mm metal with black acoustic foam
Finish	Black acrylic lacquer
Protection	Undervoltage, thermal, short circuit, overvoltage, subsonic, peak limiter
Pole mount	DuoTilt™ 3/7°
Suspension points	3x M8
Optional accessories	Protective cover, TB-1, AP-8, TiltUnit
Maintenance	Clean with dry cloth only

Frequently Asked Questions - Linear 5 L5 115 FA HK AUDIO

How to adjust the input gain on the L5 115 FA?

Use the Gain A and Gain B potentiometers to adjust the level. For use with a mixing console, set them to center position (0 dB / center click). For direct connection (CD player, keyboard), you can turn them fully clockwise for maximum volume.

What is the role of the Mic/Line switch on input A?

The Mic/Line switch adjusts the sensitivity of input A. In Mic position, sensitivity is increased by 30 dB for a microphone. In Line position (default), it is suitable for line signals.

How to use the EQ selector (High Power / Small Venue)?

The EQ selector offers two modes: High Power for maximum power and reach (ideal for large spaces) and Small Room for better depth and transparency in small to medium rooms.

What does the bicolor status LED mean?

The green LED indicates the speaker is powered on. Flashing red signals the limiter activating during peaks. If it stays steady red during operation, reduce the signal level to avoid overload. If it stays red with no signal, there is a malfunction.

How to use the DuoTilt™ 3/7° system?

The DuoTilt™ allows tilting the speaker on a pole. The front opening gives 3° tilt, the rear 7°. Use 7° for a close audience, 3° for a distant audience.

What is the recommended power-up order?

Always power on the active speaker last after all sources (mixing console, keyboards, etc.) and power it off first before other devices. Ensure the volume is at minimum before powering on.

How to clean the L5 115 FA?

Clean the speaker exclusively with a dry cloth. Never use liquid or abrasive products. Do not let any liquid enter the device.

Can I replace the fuse myself?

Fuse replacement must be done by qualified personnel. Use only IEC127 (5x20 mm) fuses of the same rating. Never bypass the fuse holder.

What is the function of the Mix Out output?

The Mix Out output (balanced XLR) delivers the total signal from inputs A and B, including gain settings and the Mic/Line switch. It allows chaining multiple speakers or sending the signal to a subwoofer.

How can I extend the warranty on the L5 115 FA?

Register your speaker on the website www.hkaudio.com within 30 days of purchase to benefit from an extended warranty up to 5 years. You can also return the completed warranty card by mail.

USER MANUAL Linear 5 L5 115 FA HK AUDIO

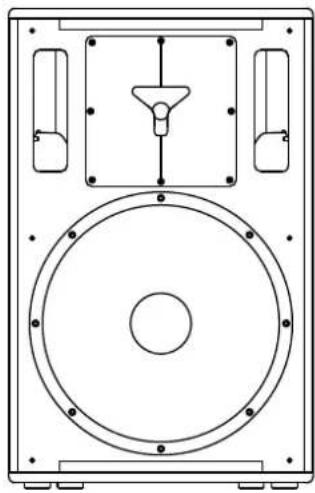

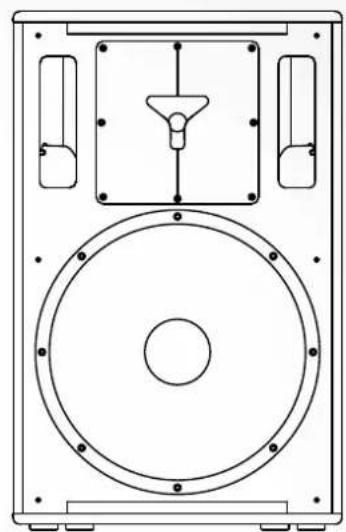

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

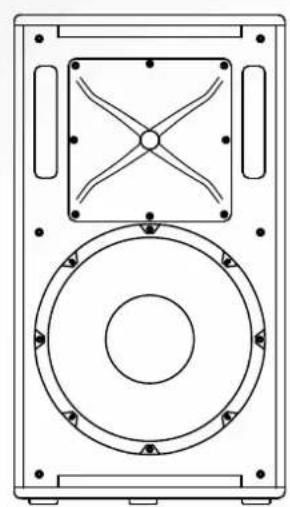

Technical line drawing of a speaker or audio device with a central square component and concentric circles (no text or symbols)

Technical line drawing of a speaker or audio device with central circular component and mounting brackets (no text or symbols)

LINEAR 5

L5 112 FA • L5 112 XA • L5 115 FA

Manual 2.0

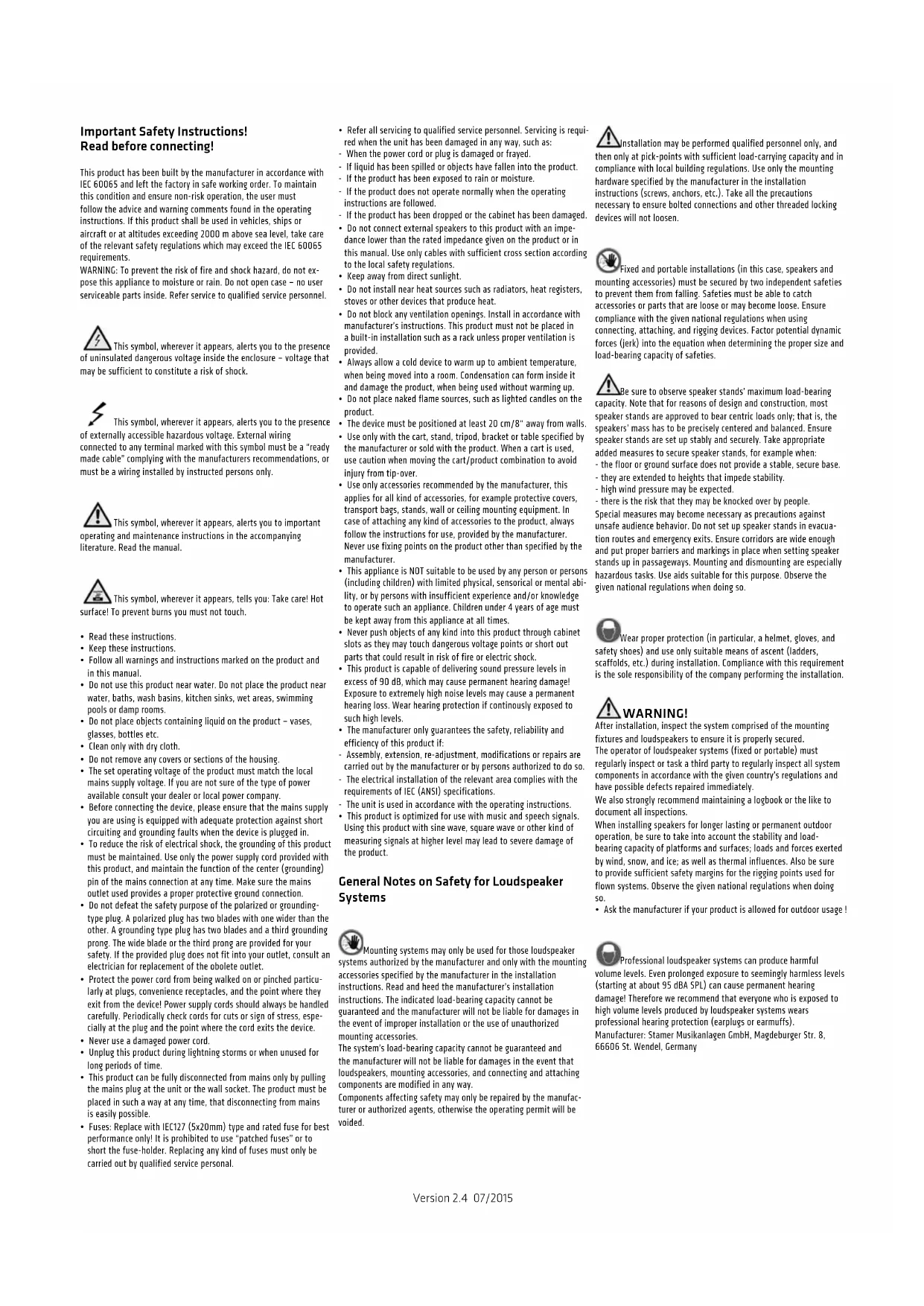

Important Safety Instructions! Read before connecting!

This product has been built by the manufacturer in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at altitudes exceeding 2000m above sea level, take care of the relevant safety regulations which may exceed the IEC 60065 requirements.

WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open case – no user serviceable parts inside. Refer service to qualified service personnel.

This symbol, wherever it appears, alerts you to the presence of regulated dangerous voltage inside the enclosure – voltage that sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to the presence normally accessible hazardous voltage. External wiring led to any terminal marked with this symbol must be a "readyable" complying with the manufacturers recommendations, or a wiring installed by instructed persons only.

This symbol, wherever it appears, alerts you to important and maintenance instructions in the accompanying e. Read the manual.

This symbol, wherever it appears, tells you: Take care! Hot To prevent burns you must not touch.

• Read these instructions.
• Keep these instructions.
• Follow all warnings and instructions marked on the product and in this manual.
• Do not use this product near water. Do not place the product near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms.
• Do not place objects containing liquid on the product – vases, glasses, bottles etc.
• Clean only with dry cloth.
• Do not remove any covers or sections of the housing.
• The set operating voltage of the product must match the local mains supply voltage. If you are not sure of the type of power available consult your dealer or local power company.
• Before connecting the device, please ensure that the mains supply you are using is equipped with adequate protection against short circuiting and grounding faults when the device is plugged in.
• To reduce the risk of electrical shock, the grounding of this product must be maintained. Use only the power supply cord provided with this product, and maintain the function of the center (grounding) pin of the mains connection at any time. Make sure the mains outlet used provides a proper protective ground connection.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device! Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the device.
• Never use a damaged power cord.
• Unplug this product during lightning storms or when unused for long periods of time.
• This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.

• Fuses: Replace with IEC127 (5x20mm) type and rated fuse for best performance only! It is prohibited to use "patched fuses" or to short the fuse-holder. Replacing any kind of fuses must only be carried out by qualified service personal.

• Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as:

• When the power cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into the product.
• If the product has been exposed to rain or moisture.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.
• Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.
• Keep away from direct sunlight.
• Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.
  • Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.
• Do not place naked flame sources, such as lighted candles on the product.
• The device must be positioned at least 20 cm/8" away from walls.
• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
• Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.
• This appliance is NOT suitable to be used by any person or persons (including children) with limited physical, sensorical or mental ability, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
• This product is capable of delivering sound pressure levels in excess of 90 dB, which may cause permanent hearing damage! Exposure to extremely high noise levels may cause a permanent hearing loss. Wear hearing protection if continuously exposed to such high levels.
• The manufacturer only guarantees the safety, reliability and efficiency of this product if:
• Assembly, extension, re-adjustment, modifications or repairs are carried out by the manufacturer or by persons authorized to do so.
• The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.
• The unit is used in accordance with the operating instructions.
• This product is optimized for use with music and speech signals. Using this product with sine wave, square wave or other kind of measuring signals at higher level may lead to severe damage of the product.

General Notes on Safety for Loudspeaker Systems

Mounting systems may only be used for those loudspeaker systems authorized by the manufacturer and only with the mounting accessories specified by the manufacturer in the installation instructions. Read and heed the manufacturer's installation instructions. The indicated load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event of improper installation or the use of unauthorized mounting accessories.

The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in any way.

Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.

Installation may be performed qualified personnel only, and then only at pick-points with sufficient load-carrying capacity and in compliance with local building regulations. Use only the mounting hardware specified by the manufacturer in the installation instructions (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking devices will not loosen.

Fixed and portable installations (in this case, speakers and using accessories) must be secured by two independent safeties vent them from falling. Safeties must be able to catch or parts that are loose or may become loose. Ensure stance with the given national regulations when using ctting, attaching, and rigging devices. Factor potential dynamic (jerk) into the equation when determining the proper size and bearing capacity of safeties.

Be sure to observe speaker stands' maximum load-bearing duty. Note that for reasons of design and construction, most other stands are approved to bear centric loads only; that is, the others' mass has to be precisely centered and balanced. Ensure other stands are set up stably and securely. Take appropriate measures to secure speaker stands, for example when:

- the floor or ground surface does not provide a stable, secure base.

- they are extended to heights that impede stability.

- high wind pressure may be expected.

- there is the risk that they may be knocked over by people. Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and dismounting are especially hazardous tasks. Use aids suitable for this purpose. Observe the given national regulations when doing so.

Wear proper protection (in particular, a helmet, gloves, and shoes) and use only suitable means of ascent (ladders, ids, etc.) during installation. Compliance with this requirement sole responsibility of the company performing the installation.

WARNING!

After installation, inspect the system comprised of the mounting fixtures and loudspeakers to ensure it is properly secured. The operator of loudspeaker systems (fixed or portable) must regularly inspect or task a third party to regularly inspect all syste components in accordance with the given country's regulations are have possible defects repaired immediately.

We also strongly recommend maintaining a logbook or the like to document all inspections.

When installing speakers for longer lasting or permanent outdoor operation, be sure to take into account the stability and load-bearing capacity of platforms and surfaces; loads and forces exerted by wind, snow, and ice; as well as thermal influences. Also be sure to provide sufficient safety margins for the rigging points used for flown systems. Observe the given national regulations when doing so.

- Ask the manufacturer if your product is allowed for outdoor usage!

Professional loudspeaker systems can produce harmful levels. Even prolonged exposure to seemingly harmless levels being at about 95 dBA SPL) can cause permanent hearing eye! Therefore we recommend that everyone who is exposed to volume levels produced by loudspeaker systems wears aisional hearing protection (earplugs or earmuffs).

Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8, 66606 St. Wendel, Germany

LINEAR 5

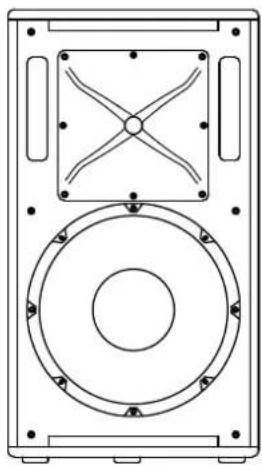

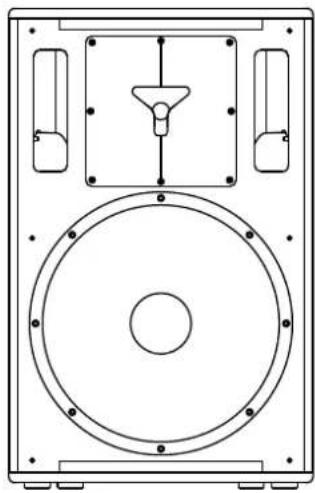

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

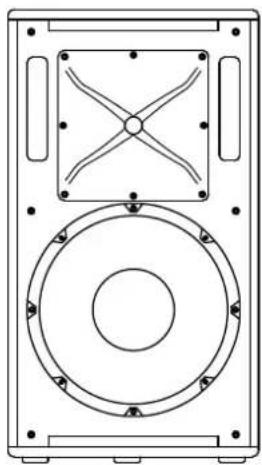

Technical line drawing of a speaker or audio device with circular components and a central square component (no text or symbols)

Technical line drawing of a speaker or audio unit with circular head and side brackets (no text or symbols)

L5 112 FA L5 112 XA L5 115 FA

Welcome to the HK Audio family!

Thank you for choosing a brand-name product made by our company. Rest assured, we engineered and built it with the greatest care so it will serve you well for many tomorrows to come.

Even if your experience with sound systems runs deep, some things about this product are sure to be new to you. This is why we ask that you do not set this manual aside without reading it first. Be sure to keep it in a safe place for later reference.

Here's wishing you the best sound at every occasion!

Your HK Audio team

Warranty

Register each powered LINEAR 5 speaker separately to extend your warranty to five years free of charge! Use the convenient online registration option at www.hkaudio.com.

If you are unable to register online, please fill out the enclosed warranty card, ensuring all information is legible and complete, and mail or fax it to us.

The registration is only valid if the warranty registration card is filled out and returned to HK Audio or the device is registered via Internet within 30 days of the date of purchase.

We are also interested in learning where and by whom our devices are used. This information will help us design future products. Your data are of course protected by German privacy laws.

Thank you!

HK AUDIO

Technischer Service

Postfach 1509

66959 St. Wendel, Germany

Fax: [phone]

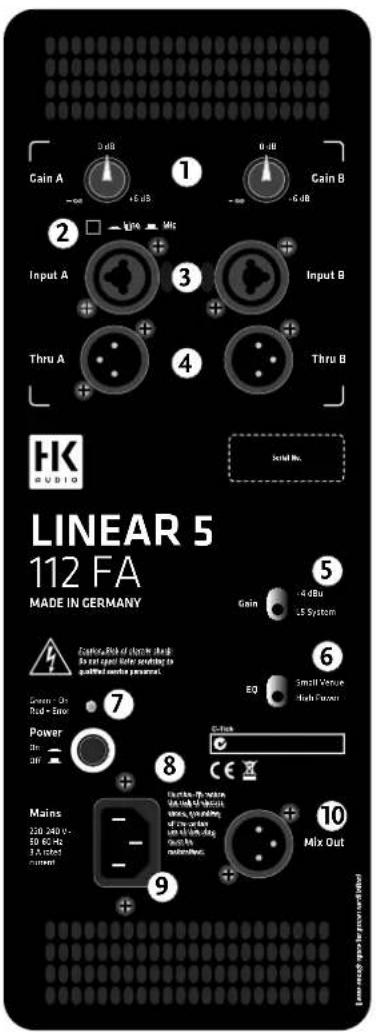

1 Control Features

LINEAR 5 112 FA MADE IN GERMANY Gain A Dab +6 dB Gain B -6 dB Input A Line Mix Input B Thru A 4 Thru B JKEL No. Gain +4 dBu LS System Elevation Risk of charge to shift As cut input after switching to qualified switch powerout. Screen - On Rust - Ener EQ Small Venue High Power Power On Off Extruck Mains 200-240 V~ 50-60 Hz 3.5 GHz Number 8 CE 9 Extruck - My main Vit is high of a low- ion, operating of the main set at low deg. Switch back nonlinear. Mix Out 10

1 Gain A/B

This knob adjusts the level of Input A / B.

2 Mic/Line (Input A only)

If you wish to connect a microphone, set the Line/Mic button to Mic. This boosts Input A's sensitivity by 30 dB to optimize its gain structure for mic signals.

3 Input A/B

These electronically balanced, combination XLR/ 6.3 mm (1/4") ports accept audio signals.

4 Through A/B

This parallel output routes Input A/B's incoming signal back out.

5 Gain

This switch adapts the inputs' gain levels to match the signal source. You have two options, +4 dBu and L5 System. Select L5 System and set the Gain A and B knobs to the 12 o'clock position (0 dB/ center-notched) to get a perfect match with other LINEAR series components.

6 EQ

• L5 112 FA / L5 115 FA

The switchable EQ (High Power/Small Venue) lets you voice this unit for different applications. The High Power filter setting voices it for applications demanding maximum performance, range and SPL. Designed for smaller to midsized rooms, the Small Room EQ setting lends the cab great depth and transparency to rival that of big studio monitors.

• L5 112 XA

This switch optimizes the frequency response of the active LS 112 XA for use as a mid/ high unit or as a monitor (placed on its side). Flat/Top is the linear setting for use as a mid/ high unit with an added subwoofer or as a standalone speaker. When the switch is set to Monitor, the high-frequency driver's dampening factor is reduced to ensure the speaker cuts through on loud stages.

7 Status LED

This dual-color LED serves as a status indicator for the LINEAR 5 active speaker (green = power on, red = limit/error). The LED briefly flashes red to tell you the limiter is responding to signal peaks.

Caution! If the Status LED stays red during operation, it is being overloaded. Turn down the signal level! If you are not routing a signal in and the Status LED stays red, the system has detected a fault.

8 Power

This is the on/off button for the LINEAR 5 active speaker. Its status LED lights up green when it is engaged.

Caution! A LINEAR 5 active speaker is automatically on standby as soon as its cord is connected to a mains outlet. These speakers consume about 0.25 watts per hour in standby mode.

9 Mains Input

Use the factory-included mains cord to connect this socket to a wall outlet. Note: All LINEAR 5 active speakers are equipped with V-Lock mains sockets. If you use a VOLEX locking mains cord or another optionally available brand with the same design, you can fix the mains cord in place to prevent accidental disconnection.

10 Mix Out

This balanced XLR output routes Inputs A/B's composite signal out. Use the Gain A knob and the Mic/Line switch to adjust Input A's signal level and the Gain B knob to adjust Input B's signal level.

2 Connecting Cords

Use a microphone cord equipped with XLR connectors or 6.3 mm (1/4") jack plugs to send the signal from the audio source (monitor, line, or a similar output) to the balanced A/B Inputs. If you wish to connect a microphone directly without going into a mixer first, plug it into the balanced Input A. Use a balanced XLR/6.3 mm (1/4") microphone cord to do this.

3 Operating the Speaker

• Ensure the LINEAR 5 active speaker's Power button is set to off. Caution! Always make sure the local mains voltage matches the voltage specified on the LINEAR 5 active speaker. You may destroy its electronic components if you connect it to the wrong mains voltage.
• Turn the two Gain A and B knobs all the way down, rotating them counterclockwise as far as they will go.
• Ensure all connected line sources are switched on before powering up. First, switch on the connected mixer and all signal sources connected to it, for example, keyboards, amps, effects, and so forth. Now make sure the LINEAR 5 active speaker's Mic/Line switch is set correctly (standard = Line). Always switch the LINEAR 5 active speaker on last, that is, after you switch on all connected devices, and always switch it off first, that is, before you switch off all connected devices.
• When you press the Power button, the fan will briefly start up (system check) and stop after about five seconds. The fan is temperature-controlled. It kicks on only at very high volume levels and runs according to the given temperature. The Status LED lights up red during the system check. It will light up green if there is no error and the system is getting mains power.
• Turn the Gain knobs to the 12 o'clock position (0 dB /center-notched). This is the preferred setting if you are using a mixing console to address the LINEAR 5 active speaker. If you connect a CD player or a keyboard directly, twist the Gain knob clockwise. Depending on the input signal level, you may want to turn it all the way to the far right to achieve maximum volume.

4 Settings

- Adjusting Volume Levels with the Gain Knobs

Turn these knobs and press the Mic/Line button (Input A only) to adjust the level of incoming line and microphone signals. If you hear distortion or the signal sounds saturated, first check the signal sources and, if possible, reduce the output signal level there.

5 Alignment

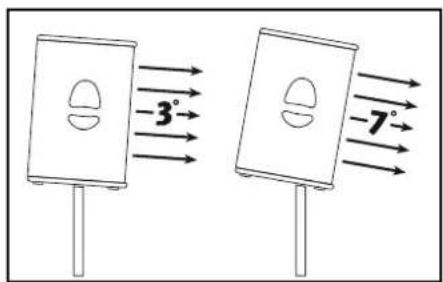

Using the HK Audio DuoTilt™ 3/7 on the L5 112 FA/ L5 115 FA / L5 112 XA

The HK Audio DuoTilt™ 3/7 aligns LINEAR 5 active speakers horizontally to prevent or minimize troublesome ceiling reflections. The front opening of the HK Audio DuoTilt™ inclines the cabinet 3^ , and the rear opening 7^ .

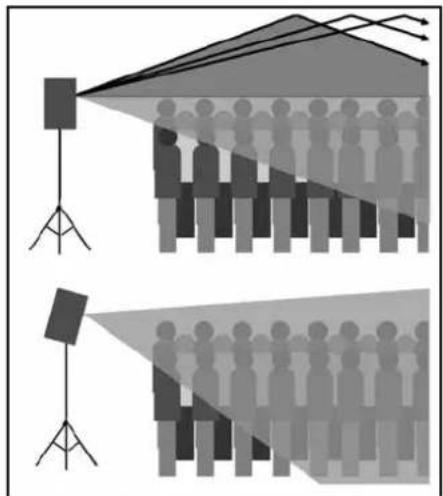

Two-panel illustration showing a person casting a shadow on a stage and another group of people, with no visible text or symbols.

Without DuoTilt™ (top) and with DuoTilt™.

Select the 7° option when setting LINEAR 5 active speakers on fully extended tripods or mounting poles. This angle gets the job done when you want to address fewer listeners standing very near the speakers. If you want to address an audience where more listeners are further away from the speakers, opt for the 3° angle on the DuoTilt™.

-3° -7°

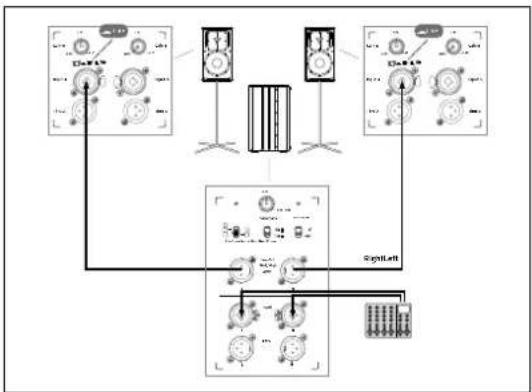

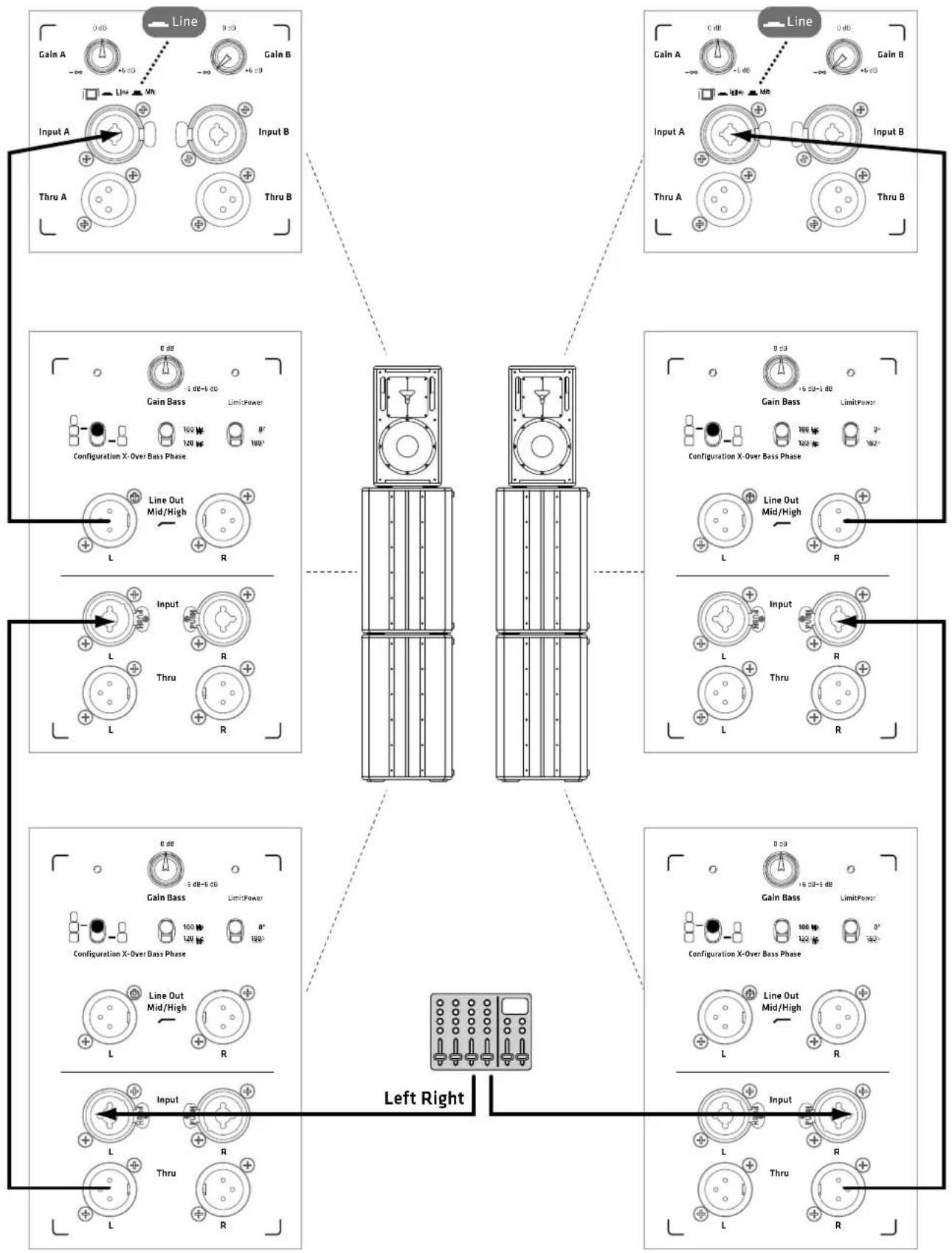

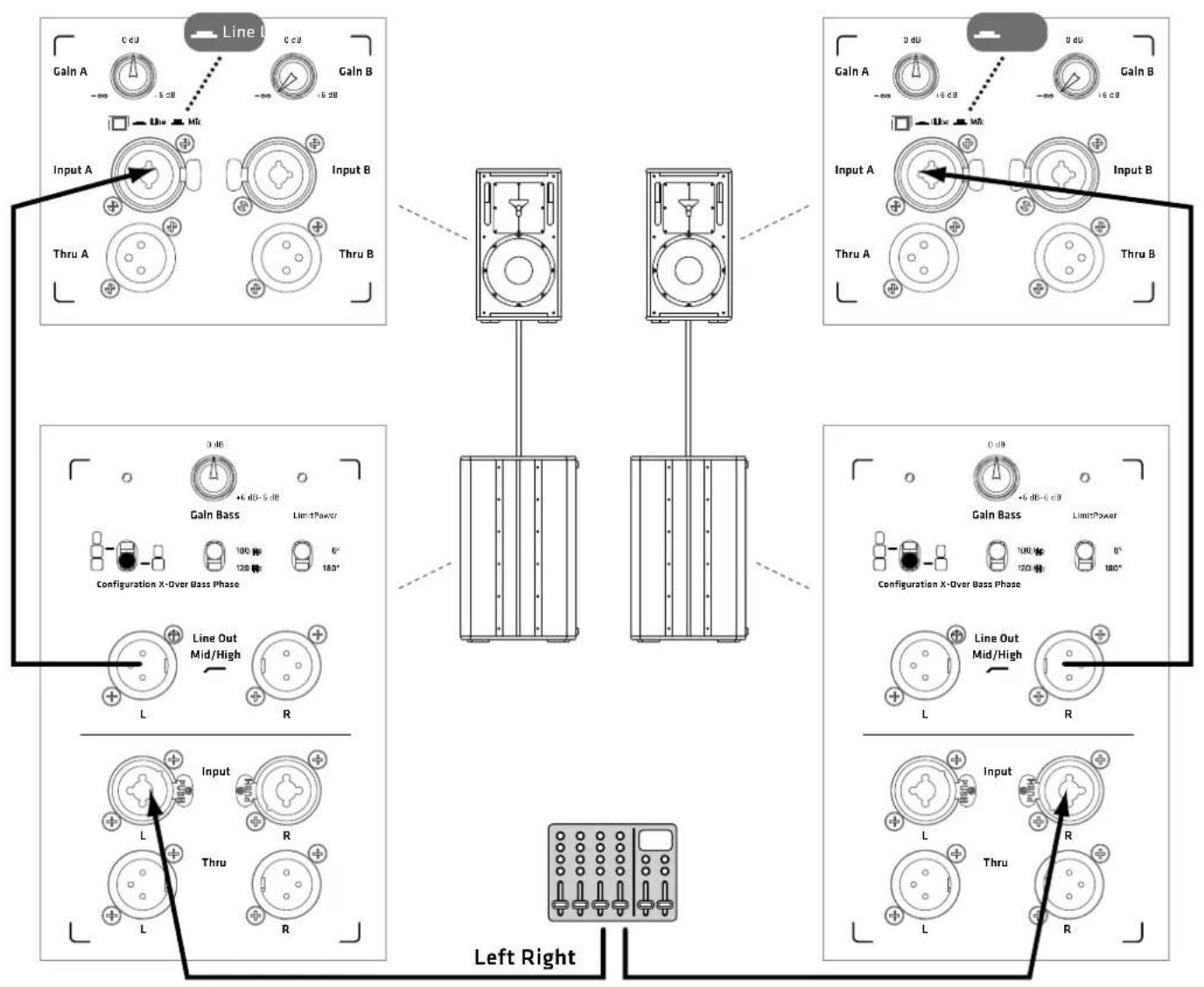

6 Applications

See the appendix starting on page 32.

7 Technical Specifications

MODEL L5 112 FA L5 112 XA L5 115 FA
Frequency response +/- 3 dB 64 Hz - 18 kHz 100 Hz - 18 kHz 57 Hz - 18 kHz
Frequency response -10 dB 57 Hz - 20 kHz 72 Hz - 20 kHz 48 Hz - 20 kHz
Axial sensitivity HF, 1W/1m 110 dB full-space, 116 dB half-space	110 dB full-space, 116 dB half-space	110 dB full-space, 116 dB half-space
Axial sensitivity LF, 1W/1m 98 dB full-space, 104 dB half-space	98 dB full-space, 104 dB half-space	100 dB full-space, 106 dB half-space
Max. SPL@10% THD 127dB half-space 128 dB half-space
Max. SPL Peak@10% THD	135 dB half-space	136 dB half-space	137 dB half-space
Max. SPL Calc.	137 dB half-space	137 dB half-space	138 dB half-space
Amp/type	Class D bi-amped	Class D bi-amped	Class D bi-amped
Power output	1,000 W	1,000 W 1,000 W
Amp to driver	350 W @ 4 Ohms	350 W @ 4 Ohms	350 W @ 4 Ohms
Amp to woofer	650 W @ 4 Ohms	650 W @ 4 Ohms 650 W @ 4 Ohms
Protective circuits, amp	Under-voltage, thermal, short circuit, and over-current protection	Under-voltage, thermal, short circuit, and over-current protection	Under-voltage, thermal, short circuit, and over-current protection
Protective circuits, speakers	Subsonic 24 dB/oct. peak limiter	Subsonic 24 dB/oct. peak limiter	Subsonic 24 dB/oct. peak limiter
Power consumption	3 A/230 V nominal pursuant to EN600056	3 A/230 V nominal pursuant to EN600056	3 A/230 V nominal pursuant to EN600056
Input sensitivity	+4 dBu @ Gain center-notched/ L5 System Level	+4 dBu @ Gain center-notched/ L5 System Level	+4 dBu @ Gain center-notched/ L5 System Level
Audio ports	2x XLR In, 2x XLR-Thru, 1x XLR Mix Out	2x XLR In, 2x XLR-Thru, 1x XLR Mix Out	2x XLR In, 2x XLR-Thru, 1x XLR Mix Out
Mains connector	1x IEC socket with V-Lock cord retainer	1x IEC socket with V-Lock cord retainer	1x IEC socket with V-Lock cord retainer
Bass woofer	1x 12" with 2.5" voice coil (4 Ohms)	1x 12" with 2.5" voice coil (4 Ohms)	1x 15" with 3" voice coil (4 Ohms)
HF driver	1" with 1.75" voice coil (16 Ohms)	1" with 1.75" voice coil (16 Ohms)	1" with 1.75" voice coil (16 Ohms)
Horn directivity	60°-90° (asy.) x 55° CD horn, rotatable	60° x 40° CD horn, rotatable	60°-90° (asy.) x 55° CD horn, rotatable
X-over frequency	1.65 kHz, 24 dB/oct. active	1.65 kHz, 24 dB/oct. active	1.65 kHz, 24 dB/oct. active
Pole mount	DuoTiltTM 3/7 DuoTiltTM 3/7	DuoTiltTM 3/7
Rigging/ pick points	3x M8	3x M8	3x M8
Grips	2, integrated 2, integrated	2, integrated
Optional accessories	Protective cover, TB-1, AP-8, TiltUnit	Protective cover, AP-8, TiltUnit	Protective cover, TB-1, AP-8, TiltUnit
Housing	Hybrid (birch multiplex / MDF)	Hybrid (birch multiplex / MDF)	Hybrid (birch multiplex / MDF)
Front grille	2 mm metal grille backed with black acoustic foam	2 mm metal grille backed with black acoustic foam	2 mm metal grille backed with black acoustic foam
Finish	Acrylic enamel, black	Acrylic enamel, black	Acrylic enamel, black
Dimensions (WxHxD)	37 x 66.8 x 36.5 cm	37 x 66.8 x 30 cm	44.9 x 70.8 x 45 cm
	14-9/16 x 26-19/64 x 14-3/8"	14-9/16 x 26-19/64 x 11-13/16"	17-43/64 x 27-7/8 x 17-23/32"
Weight	23.9 kg / 52.7 lbs.	21.1 kg / 46.5 lbs.	30.7 kg / 67.7 lbs.

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

Technical line drawing of a speaker or audio device with circular components and a central square component (no text or symbols)

Technical line drawing of a speaker or audio unit with circular head and side brackets (no text or symbols)

L5 112 FA L5 112 XA L5 115 FA

LINEAR 5 112 FA MADE IN GERMANY Gain A Dab +6 dB Gain B -6 dB Input A Line Mix Input B Thru A 4 Thru B JKEL No. Gain +4 dBu LS System Elevation Risk of charge to shift As cut input after switching to qualified switch power; Screen - On Rust - Ener EQ Small Venue High Power Power On Off Extrub CE Mains 200.240 V~ 50.64 Hz 3.3 GHz Number 9 Extrub - My main Vit high of chocois, low, upwelling of low and low- set all dark dog switching mixed/und. Mix Out

1 Gain A/B

Two grayscale diagrams showing a person casting a shadow on a stage, with no text or symbols present.

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

Technical line drawing of a CD or DVD drive with circular and square components (no text or symbols)

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

L5 112 FA L5 112 XA L5 115 FA

LINEAR 5 112 FA MADE IN GERMANY Gain A -0 dB +6 dB Gain B -0 dB -6 dB Input A Thru A Input B Thru B JKEL No. Gain +4 dBu LS System Eccution Risk of charge is shall be cut target lower according to qualified audio power. ECO Small Venture High Power Power On Off 8 CE Mains 220-240 V~ 50 KΩ/Hz 3 A-rated instrument 9 Mix Out 10 Mix Out non-mixed type for power or other

Two grayscale diagrams showing a person casting a shadow on a tent, with no text or symbols present.

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

Technical line drawing of a CD or DVD drive with front panel and circular base (no text or symbols)

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

L5 112 FA L5 112 XA L5 115 FA

LINEAR 5 112 FA MADE IN GERMANY Gain A -0 dB +6 dB Gain B -0 dB -6 dB Input A Thru A Input B Thru B JKM No. Gain +4 dBu LS System Eckington Risk of charge in shall be cut target after starting to qualified much more power. ECO Small Venture High Power Power On Off 8 CE Mains 220-240 V~ 50 KΩ/Hz 3 A-rated instrument 9 Mix Out 10 Mines 220-240 V~ 50 KΩ/Hz 3 A-rated instrument

1 Gain A/B

Two grayscale diagrams showing a person casting a shadow on a tent, with no text or symbols present.

Senza DuoTilt™ (sopra) e con DuoTilt™.

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

Technical line drawing of a speaker or audio device with circular components and a central square component (no text or symbols)

Technical line drawing of a speaker or audio device with concentric circles and mounting brackets (no text or symbols)

L5 112 FA L5 112 XA L5 115 FA

LINEAR 5 112 FA MADE IN GERMANY Gain A -0 dB +6 dB Gain B -0 dB -6 dB Input A Thru A Input B Thru B JKEL No. Gain +4 dBu LS System Eccution Risk of charge is shall be cut target lower according to qualified audio power. ECO Small Venture High Power Power On Off 8 CE Mains 220-240 V~ 50 KΩ/Hz 3 A-rated instrument 9 Mix Out 10 Mix Out 1

1 Gain A/B

Two grayscale diagrams showing a group of people under different lighting or projection setups, with no visible text or symbols.

+ 2x L SUB 1200/2000/4000 A

Line L Gain A C dU 0 cU -∞ -5 dB Gain B 15 dB Input A Input B Thru A Thru B 3 dB Gain Bass LimitPower Configuration X-Over Bass Phase 100 Hz 0° 120 Hz 180° Line Out Mid/High L R Input L Thru R L R Left Right Gain A U dU 0 dU -∞ -5 dB 15 dB Gain B Input A Input B Thru A Thru B 0 dB Gain Bass LimitPower Configuration X-Over Bass Phase Line Out Mid/High L R Input L Thru R L R

Fullstack System: 2x L5 112 XA / L5 112 FA / L5 115 FA

+ 4x L SUB 1200/2000/4000 A

LINEAR 5

HK Audio® • Postfach 1509 • 66595 St. Wendel • Germany • [e-mail] • www.hkaudio.com

International Inquiries: fax [phone] • [e-mail]
