LCU2S - Effect machine Antari - Free user manual and instructions

Brand	Antari
Model	LCU2S
Product type	Fluid supply unit for effect machine (fog/snow)
Control unit dimensions	179 x 167 x 84 mm
Tank unit dimensions	158 x 103 x 248 mm
Control unit weight	1.95 kg
Tank unit weight	1.8 kg
Power supply	220-240 V ~ 50 Hz (3-pin grounded plug)
Max vertical distance pump-tank	12 m
Max horizontal distance	35 m
Max extension hose length	3 m
Data connection	XLR 3-pin
Power connection	IEC connector
Delivery contents	Control unit, tank unit, power cable, data cable (3-pin), 6 mm hose, 4 mm hose, adapters, liquid filter, instruction manual
Functions	Liquid supply, automatic control, overheat protection
Safety	Use only Antari water-based liquid; min. distance 50 cm from flammable materials; do not mix flammable liquids
Maintenance	Clean with dry cloth; replace fuse with identical model; recommended use once a month
Intended use	Indoor, enclosed rooms protected from moisture
Repairability	No user-serviceable parts inside; contact Antari dealer

Frequently Asked Questions - LCU2S Antari

How to install the LCU2S?

Install the control unit near the fog machine. Connect the external tank to the control unit using the supplied 6 mm hose, attaching the liquid filter to the tank connection. Use adapters for extensions. Connect the data cable between the two units (XLR 3-pin). Plug the power into a grounded outlet.

What fluid to use with the LCU2S?

Use only high-quality water-based fog liquids from Antari or those recommended by your dealer. Never mix flammable, gaseous, or oily liquids with the fog liquid.

What is the maximum distance between pump and tank?

The maximum vertical distance is 12 meters and the maximum horizontal distance is 35 meters. The extension hose length must not exceed 3 meters.

How to clean and maintain the LCU2S?

Always disconnect the device before maintenance. Clean the exterior with a dry cloth. It is recommended to use the machine once a month to prevent blockages. To replace the fuse, unplug the machine, unscrew the fuse holder, install an identical fuse, and screw it back on.

What to do in case of overheating?

The device is equipped with overheat protection. If the thermal limit is exceeded, the machine automatically shuts off until it cools to a safe temperature. If the problem persists, contact your Antari dealer.

Can I use the LCU2S outdoors?

No, the device is designed for indoor use, in enclosed rooms. Protect it from moisture. In case of liquid spill, immediately disconnect and clean with a dry cloth.

How to connect the LCU2S to a fog machine?

The data connection is made via an XLR 3-pin cable between the control unit output and the tank unit input. For liquid supply, use the supplied hoses respecting the maximum distances.

What to do if liquid does not flow?

Check that the liquid filter is not clogged, the hoses are not kinked, and the pump is properly primed. Ensure data connections are secure and the device is powered on.

Is the LCU2S compatible with all fog machine models?

The LCU2S is designed to work with compatible Antari fog machines. For other brands, contact your dealer to check compatibility. Always use Antari liquid.

How to transport or store the LCU2S?

Before transport, ensure the tank is completely emptied. Store the device in a dry place, protected from moisture. Disconnect all cables and protect the connectors.

USER MANUAL LCU2S Antari

Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.

• Keep this device dry.
  Always connect to a grounded circuit to avoid risk of electrocution.
• Before connecting the machine to power, always check the voltage indicated on the machine matches to your local AC voltage. Do not use the machine if AC power voltage does not match.
• Disconnect the machine from AC power before servicing and when not in use.
  This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
• No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may cause damage or malfunction to the machine.
  For adult use only. Never leave the machine running unattended.
• Never add flammable liquid of any kind to the machine.
  Make sure there are no flammable materials close to the machine while operating.
• Only use Antari fluid. Other fluid may lead to machine malfunction.
  If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advice.
  Before transporting the machine, make sure the fluid tank is completely drained.
• Fog/Snow fluid may present health risks if swallowed. Do not drink fog fluid. Store it

securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retain the packing material for inspection.

What is included:

1 x LCU-2S Liquid Supply Unit
1 x LCU-2S Liquid Tank Unit
1 x Power Cord
1 x 3 Pin Data Connection Cable
1 x 6mm Fluid Tube
1 x 4mm Fluid Tube
3 × 4 to 4mm adaptor
3 × 6 to 4mm adaptor
1 x Fluid Filter
1 x User Manual

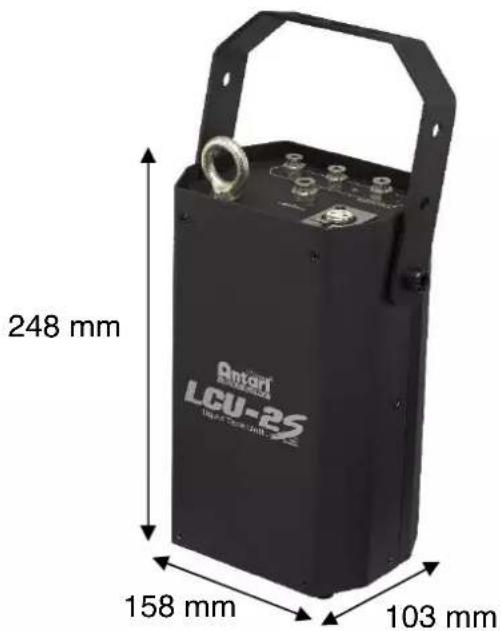

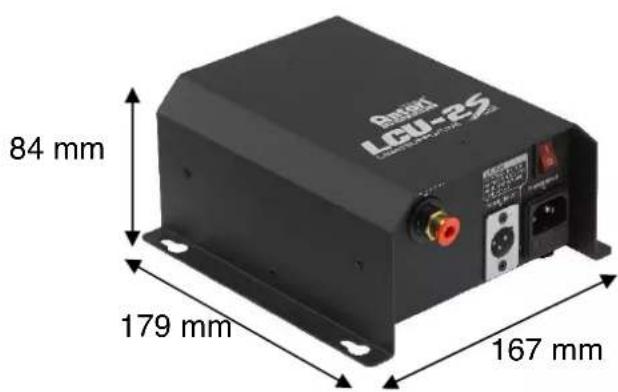

Product Dimensions

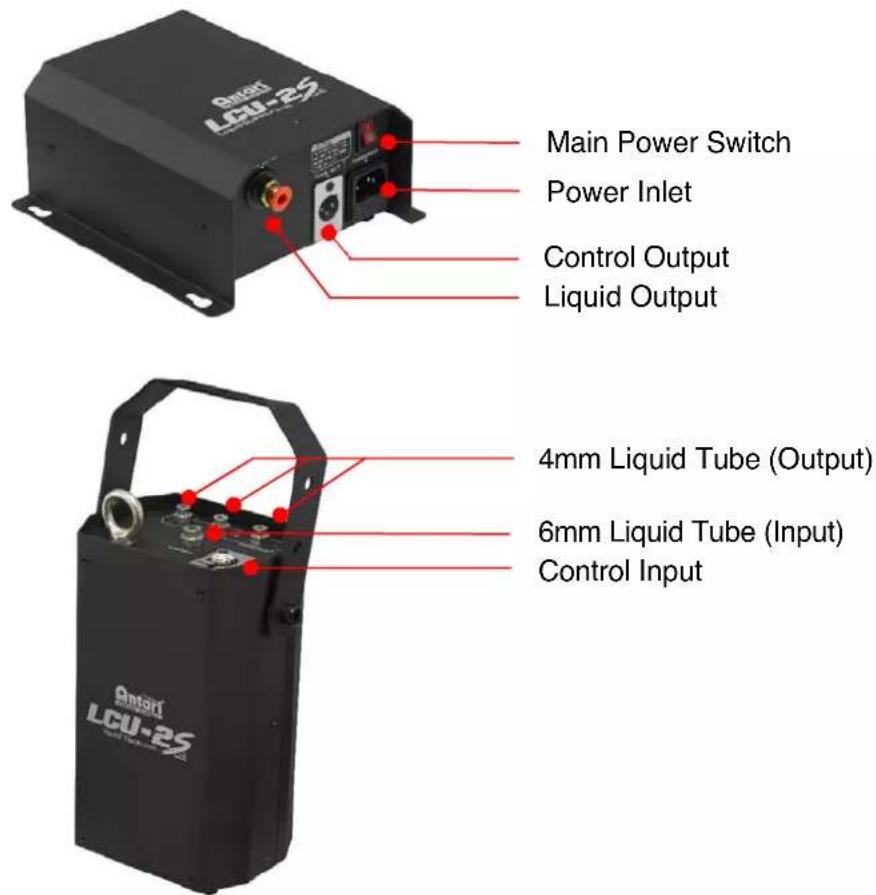

Product Overview

Setup and Installation

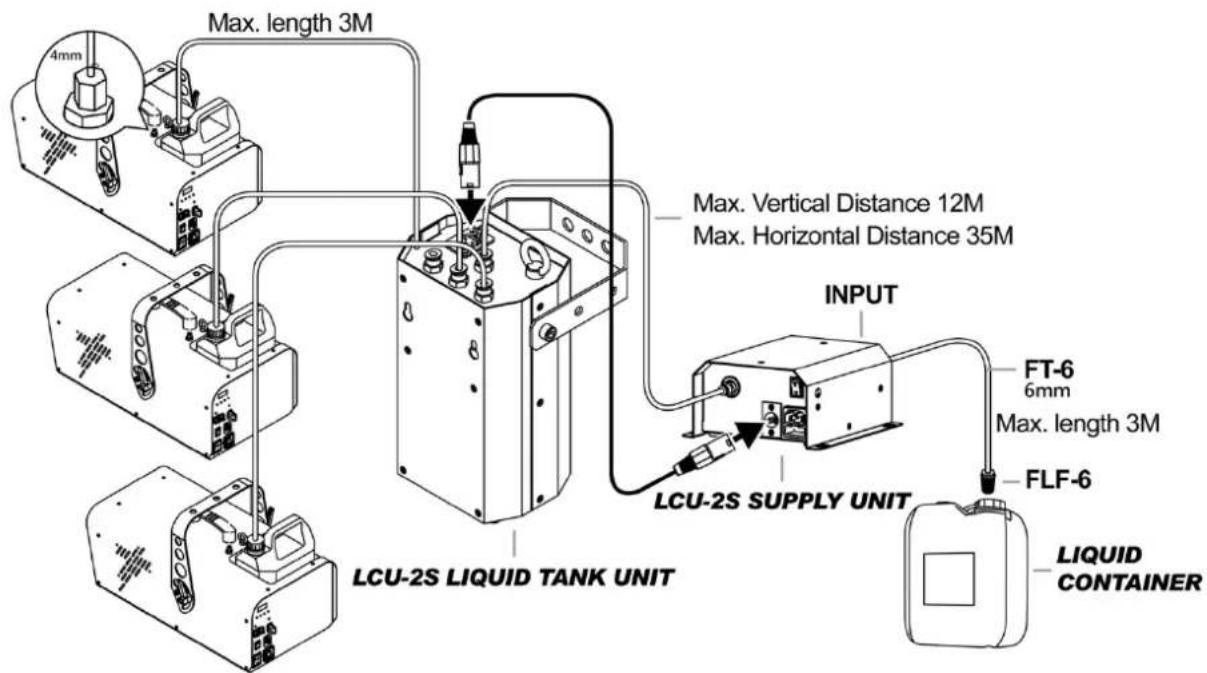

Fluid Connection

Use supplied 6mm tube for external tank and connection between supply unit and tank unit. Fit supplied fluid filter to the tube place in external tank to prevent obstacle entering the fluid line. From tank to machine use supplied 4mm tube and adaptor if extension is required.

Important

• Machine is equipped with over temperature protection, when machine exceeds its temperature limit it will be automatically shut down until it reaches safe operating temperature.

• The max vertical distance between the LCU-2S supply unit (pump) and LCU-2S liquid tank unit can be up to 12 meters while the max horizontal distance can reach 35 meters

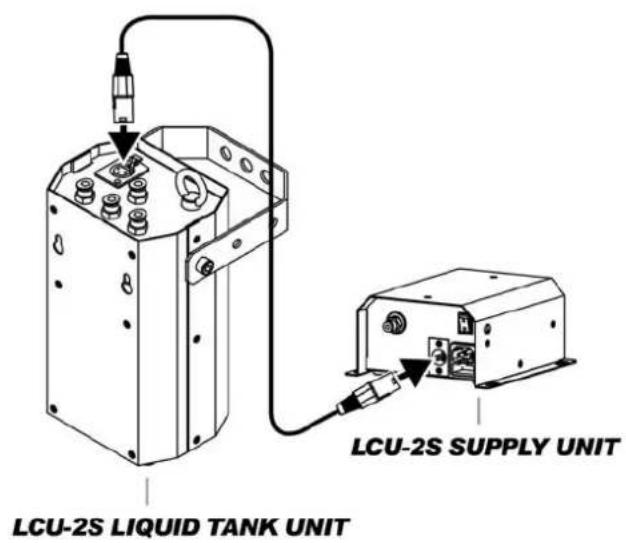

Data Connection

For data connection 3-pin connector is used. Connect the output of control unit with input of tank unit.

Service and Maintenance

• Do not allow the machine to become contaminated.
  Only use a damp cloth to clean the casing.
• It is recommended to run the machine on a monthly basis in order to achieve best performance and output condition.

Disconnect AC power before replacing fuse. Only replace fuse with same type and rating.

Step 1: Disconnect power cord from supply.

Step 2: Use a flat-head screwdriver to release fuse holder.

Step 3: Replace fuse with exact same type and rating as indicated below.

Step 4: Reinsert fuse holder.

Fuse

$$ 1 2 0 V = T 0. 8 A 2 5 0 V $$

$$ 2 3 0 V = T 0. 8 A 2 5 0 V $$

Technical Specifications

• Input voltage

US model : AC 100-120V, 50 / 60Hz 0.35A

EU model : AC 220-240V, 50 / 60Hz 0.18A

• Rated power

48W

• Compatible fluid

Antari Fluid

• Ambient temp. range

5°C - 40°C (41°F-104°F)

• Control

Auto

• Connection

IEC (Power)

• Dimension

XLR 3-pin (Data)

Supply unit L179 W167 H84 mm

(L7.05 W6.57 H3.31 inch)

Tank unit L158 W103 H248 mm

(L6.22 W4.06 H9.76 inch)

• Weight

Supply unit 1.95kg (4.30 lbs)

Tank unit 1.8 kg (3.97 lbs)

Notices de sécurité

$$ \begin{array}{l} 1 2 0 V = T 2 A 2 5 0 V \ 2 3 0 V = T 1 A 2 5 0 V \ \end{array} $$

\section*{Caracteristiques Techniques}

Alimentation US model : AC120V, 50/60Hz

EU model : AC240V, 50/60Hz

Fusible 120V = T2A250V

240V = T1A250V

$$ 1 2 0 V = T 2 A 2 5 0 V $$

$$ 2 3 0 V = T 1 A 2 5 0 V $$

Technische Daten

$$ 2 4 0 V = T 1 A 2 5 0 V $$

For current product information visit Antari at:www.antari.com For information requests please contact us at:[e-mail]
