Product Type	Remote control for garage door opener and barrier
Brand	LIFT-MASTER
Model	53LM
Frequency	390 MHz
Number of buttons	1, 2 or 3 depending on version
Power supply	12V battery type 10A14
Battery life	Approximately 1 year
Dimensions (approx.)	6 × 3 × 1.5 cm
Weight (with battery)	Approximately 50 g
Main functions	Activation of one or multiple devices (door opener, lighting, etc.); coding via Dip switches; programming via smart button
Compatibility	LiftMaster fixed code 390 MHz products, 423LM receivers, etc.
Programming	By copying Dip switches or via learn button
Maintenance	Battery replacement; no user-serviceable parts
Cleaning	Wipe with a soft, dry cloth
Safety	Keep out of reach of children; never operate without visibility; follow the instructions in the manual
Spare parts	Battery 10A14 (ref. 10A14), sun shield clip (ref. 29C128)
Repairability	No user-serviceable parts; code modification or battery replacement only
Technical support	1-800-528-9131 (toll-free) or www.liftmaster.com

Frequently Asked Questions - 53LM LIFT-MASTER

How to program the 53LM remote control with an opener?

Two methods: by Dip switches (if the opener has them): align the remote's switches with those on the motor. By smart button: press the opener's learn button, then within 30 seconds, press and hold the desired button on the remote.

What battery to use and how to change it?

Use a 12V battery type 10A14. To change it, slide the battery compartment cover (or remove the screw on the back depending on the model) and replace the old battery, respecting polarity.

Is the 53LM remote compatible with all LiftMaster openers?

No, it is only compatible with LiftMaster products using a fixed code at 390 MHz (older models). Check your opener's frequency.

How to program a button for a second device (e.g., lighting)?

If your remote has multiple buttons, repeat the programming procedure (smart button) for each button. Make sure Dip switch #1 is set correctly (see manual) to assign the correct button.

What to do if the remote stops working?

First check the battery. If it is new, verify that the Dip switches match those of the receiver. If the receiver has a learn button, reprogram the remote. If the problem persists, contact support.

Are there important safety precautions?

Yes, keep remotes out of reach of children. Only operate the door when it is visible and clear. Never let a child use the remote.

Can I use this remote with a commercial barrier?

Yes, with a compatible receiver like the 423LM. Follow the specific procedure for OPEN, CLOSE, and STOP modes using the red, yellow, and green buttons.

How to set the Dip switches?

Open the battery compartment. Use a pen or screwdriver to set the switches to +, 0, or -. They must exactly match those of the motor or existing remote.

Where can I find spare parts?

The replacement battery is the 10A14 (12V). The sun shield clip has reference 29C128. Contact customer service or visit www.liftmaster.com.

Is the 53LM remote compatible with recent rolling code openers?

No, it uses a fixed code. For recent rolling code models (Security+), you must use a compatible remote, such as the 97LM or 893LM series.

USER MANUAL 53LM LIFT-MASTER

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

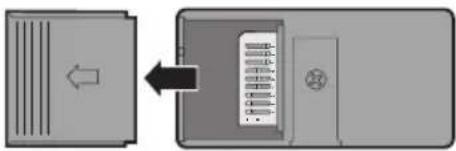

Slide the battery cover open to access the dip switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

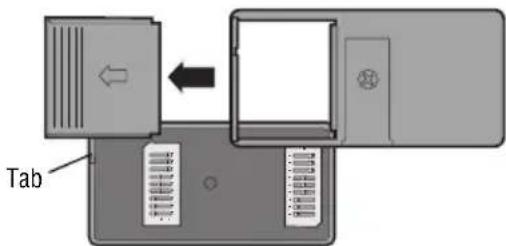

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Mini Remote Controls

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

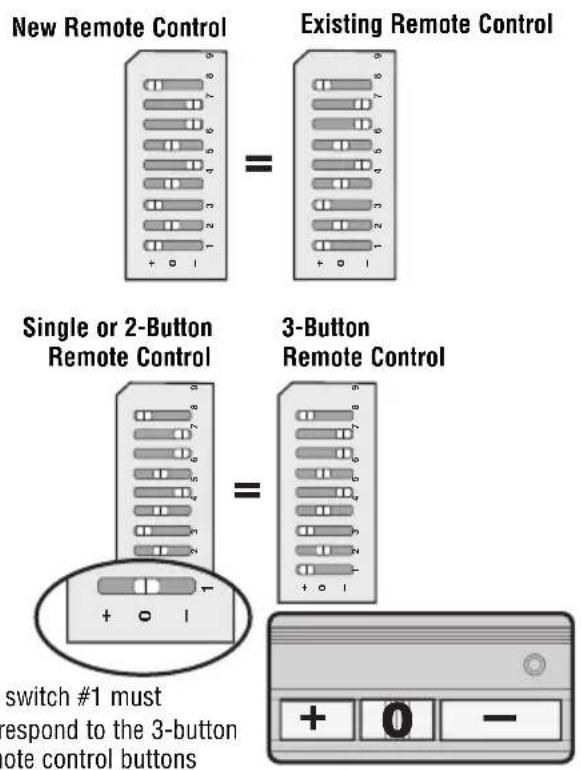

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-) .

Programming a 3-button remote control

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-) .

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.

2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

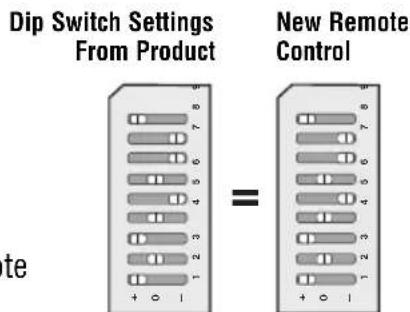

Programming with dip switches

1 Check the dip switch settings on the back of your product.
2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

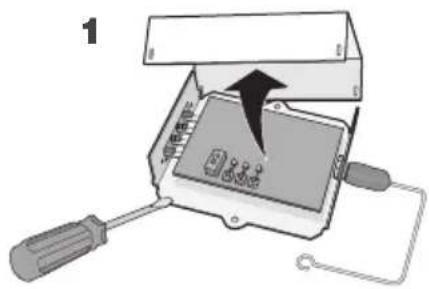

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

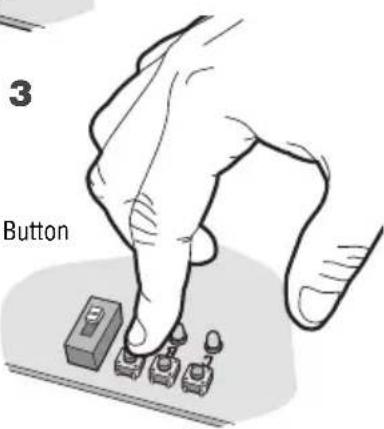

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

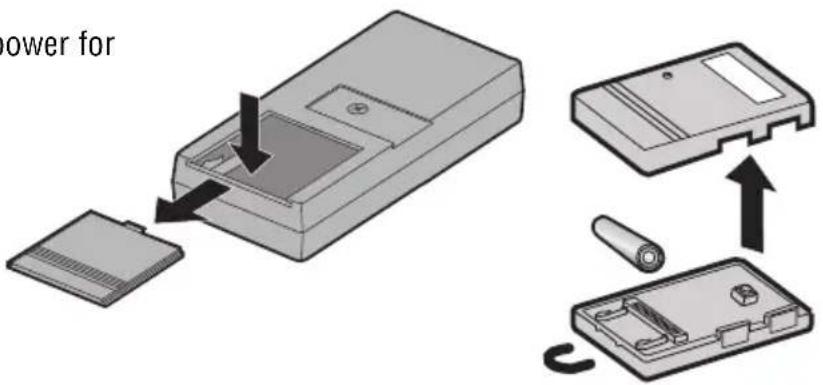

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER: 1-800-528-9131

www.liftmaster.com
