041DB0022 - Remote control LIFT-MASTER - Free user manual and instructions

Brand	LIFT-MASTER
Model	041DB0022 (associated models: 61LM, 62LM, 33LM, etc.)
Product Type	Remote control for doors and gates
Frequency	390 MHz
Code Type	Fixed code
Number of Buttons	1, 2 or 3 buttons depending on model
Power Supply	12V battery, type 10A14
Battery Life	Approximately 1 year
Programming	By Dip switches or intelligent/learn button
Compatibility	LiftMaster® fixed code 390 MHz products, residential and commercial garage door openers
Main Functions	Activation of a garage door opener, lighting control, open/close/stop modes
Safety	Keep out of reach of children; operate only if door is visible and clear
Maintenance	Replace battery if necessary; do not modify transmitter; clean with dry cloth
Spare Parts	Sun visor clip (29C128), 12V battery (10A14)
Technical Support	1-800-528-9131 (toll-free number)
Website	www.liftmaster.com
Compliance	FCC and Industry Canada
Warning	This product can expose you to lead (California)

Frequently Asked Questions - 041DB0022 LIFT-MASTER

How to program the remote control with an existing remote?

Place both remotes side by side. Use a pen or screwdriver to set the Dip switches of the new remote exactly to the same positions (+, 0, -) as those of the old remote. Then press a button to test operation.

How to program the remote control without an existing remote?

Set the Dip switches to any position (+, 0, -), then use the intelligent/learn button method: press and release this button on the receiver, then within 30 seconds, press and hold the desired button on the remote. The LED turns off when programming is successful.

What to do if the remote does not work after programming?

Check that the battery is inserted correctly and charged. Ensure the Dip switches exactly match those of the receiver. If using the learn button, repeat the procedure within 30 seconds. Contact technical support if the issue persists.

How to replace the remote control battery?

Slide the battery compartment cover to open it. Remove the old 12V type 10A14 battery and insert a new one respecting polarity. Close the cover. Dispose of used batteries according to local regulations.

Is the remote control compatible with my garage door opener?

This remote is compatible with all LiftMaster® products using fixed code at 390 MHz, including residential and some commercial door openers. Check the frequency and code type of your receiver.

Can I program multiple remotes on the same receiver?

Yes, you can program an unlimited number of remotes. Repeat the programming procedure (learn button or Dip switches) for each remote and each button.

How to clean the remote control?

Use a soft, dry cloth to clean the exterior. Do not use chemicals or liquids. Avoid introducing moisture into the battery compartment.

What do the lights on the remote control mean?

The remote does not have a built-in light. The light is on the receiver: it flashes during programming and stays solid after successful programming. If the light does not come on, check the battery.

Where to find the serial number of my remote control?

The serial number is not explicitly mentioned on the remote. Refer to the original packaging or invoice. For support, provide the model (041DB0022) and brand (LIFT-MASTER).

Can the remote be used with commercial doors?

Yes, 3-button models (33LM) can be used with a three-channel receiver 423LM to control commercial door closing devices in open, close, and stop modes. Ensure the receiver slide switch is set to N.C.

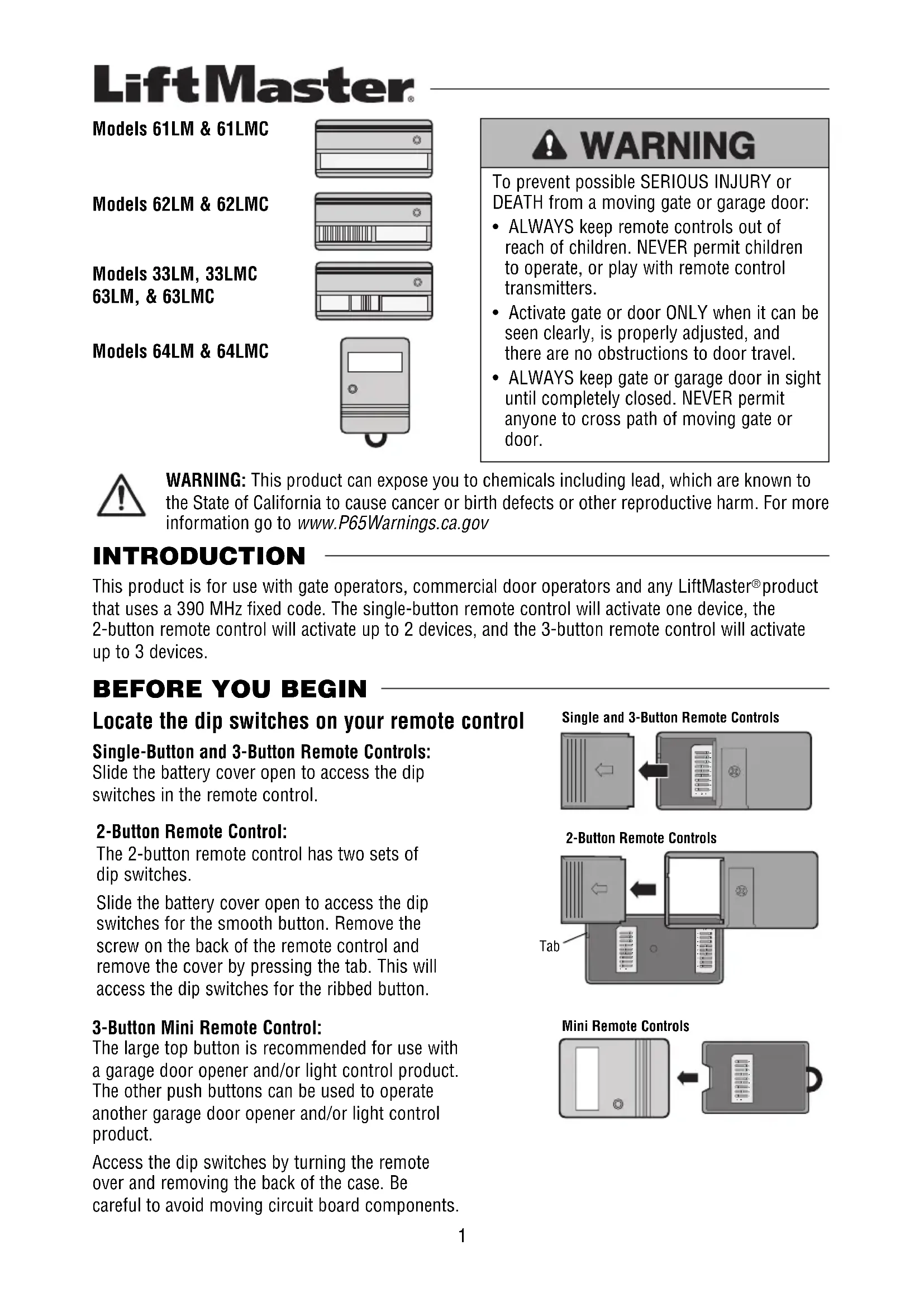

USER MANUAL 041DB0022 LIFT-MASTER

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product that uses a 390 MHz fixed code. The single-button remote control will activate one device, the 2-button remote control will activate up to 2 devices, and the 3-button remote control will activate up to 3 devices.

BEFORE YOU BEGIN

Locate the dip switches on your remote control

Single-Button and 3-Button Remote Controls:

Slide the battery cover open to access the dip switches in the remote control.

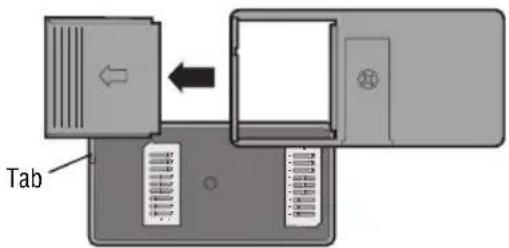

2-Button Remote Control:

The 2-button remote control has two sets of dip switches.

Slide the battery cover open to access the dip switches for the smooth button. Remove the screw on the back of the remote control and remove the cover by pressing the tab. This will access the dip switches for the ribbed button.

3-Button Mini Remote Control:

The large top button is recommended for use with a garage door opener and/or light control product. The other push buttons can be used to operate another garage door opener and/or light control product.

Access the dip switches by turning the remote over and removing the back of the case. Be careful to avoid moving circuit board components.

Single and 3-Button Remote Controls

2-Button Remote Controls

Tab

Mini Remote Controls

Diagram showing a device with a left-side arrow pointing to a labeled card or folder icon.

Use a pen or screwdriver to slide the dip switches.

Programming the remote control to an existing remote control

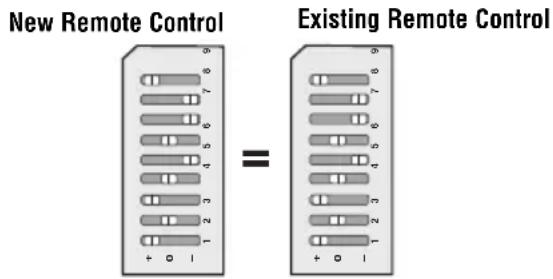

Locate the dip switches in the new and old remote controls. Place remote controls side by side and set the dip switches in the remote controls to matching positions (+,0,-).

Programming a 3-button remote control

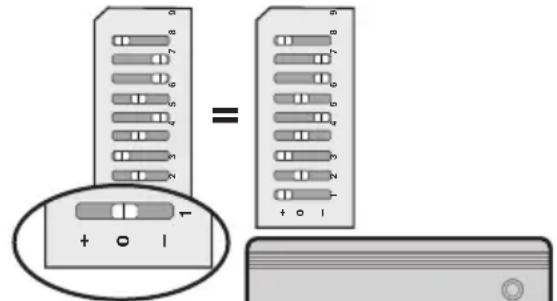

When programming a single or 2-button remote control to a 3-button remote control it is very important to set dip switch #1 to the correct position. The dip switch in the single or 2-button remote control MUST correspond to the buttons on the 3-button remote control as shown.

Example: If you are programming a single-button remote control to the middle button on the 3-button remote control, dip switch #1 in the single-button remote control MUST be set to "0" in order for both buttons to work.

Programming the remote control without an existing remote control

Set the dip switches in the remote controls to any position you want (+,0,-).

Programming with Smart/Learn button

1 Press and release the Smart/Learn button on your product. The LED will light.
2 Within 30 seconds press and hold the button on the remote control that you wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or remote control you would like to program.

Programming with dip switches

1 Check the dip switch settings on the back of your product.
2 Use a pen or screwdriver to slide the dip switches in the remote control to match the dip switches on the back of the product.

When the dip switches have been set press the remote control button to activate your product.

New Remote Control = Existing Remote Control

Single or 2-Button 3-Button Remote Control Remote Control

Diagram showing equivalence between two electronic device panels with labeled buttons and indicators

Dip switch #1 must correspond to the 3-button remote control buttons

New Remote Control

1 Smart/Learn Button

Hand inserting a button into an electrical outlet (no text or symbols visible)

2

Line drawing of a hand holding a credit card (no text or symbols visible)

Dip Switch Settings From Product

Diagram showing two identical electrical or electronic component layouts with labeled pins and a equality symbol indicating equivalence.

WARNING

Install the control station and receiver where the door is visible, but away from the door and its hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST be installed on the bottom of the door. Failure to install a reversing edge under these circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 33LM 3-button remote controls can also be used with a 423LM 3-channel receiver and a 3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

1 Use a screwdriver to pry open the receiver cover.
2 Verify that the slide switch on receiver is set to the N.C. position (other wise the commercial door operator will not operate).

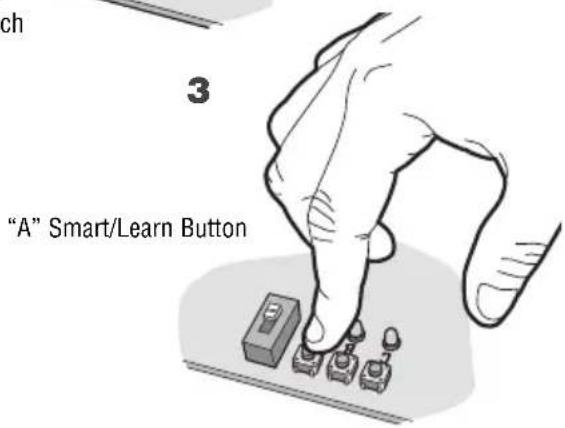

3 Press and release the Smart/Learn button labeled "A" on the receiver. The adjacent LED will flash.
4 Within 30 seconds press and release the red button on the remote control. The red button is now programmed for CLOSE mode.

NOTE: If the remote control button is not pressed within 30 seconds, the LED next to the selected Smart/Learn button will turn OFF. In that case, press the Smart/Learn button again to repeat programming.

1

2 N.C. Slide Switch

"A" Smart/Learn Button 3

Hand holding a card with a finger, no visible text or symbols

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver Smart/Learn button "B" to program the CLOSE mode; and again with the green button on the remote control and the receiver Smart/Learn button "C" to program the OPEN mode.

5 Replace the receiver cover.

5 6

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

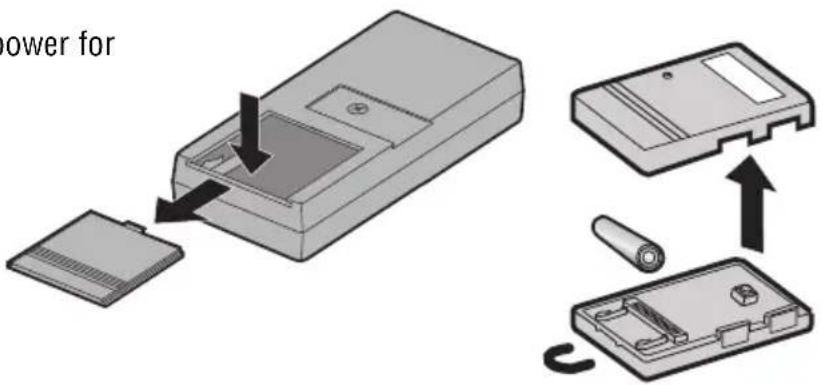

The 12 volt battery should produce power for 1 year.

Dispose of old batteries properly.

power for

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

REPLACEMENT PARTS

Visor clip 29C128

12V battery 10A14

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com
