405i - Anemometer Testo - Free user manual and instructions

Product type	Anemometer
Brand	Testo
Model	405i
Dimensions (L x W x H)	200 x 30 x 41 mm (telescope extendable up to 400 mm)
Probe tube diameter	12 mm (tip: 9 mm)
Power supply	3 AAA batteries
Battery life	15 hours
Measurement range - air velocity	0 to 30 m/s (0 to 5900 fpm)
Measurement range - temperature	-20 to 60 °C (-4 to 140 °F)
Accuracy - air velocity	±(0.1 m/s + 5% of reading) from 0 to 2 m/s; ±(0.3 m/s + 5% of reading) from 2 to 15 m/s; ±(0.5 m/s + 5% of reading) from 15 to 30 m/s
Accuracy - temperature	±0.5 °C
Resolution	0.01 m/s (velocity); 0.1 °C (temperature)
Adjustable measurement units	°C, °F, m/s, fpm, m³/h, cfm, l/s
Measurement rate	1 measurement per second
Connection	Bluetooth 4.2, range up to 15 m (free field)
System compatibility	iOS 12.0+ and Android 6.0+
Operating temperature	-20 to +50 °C
Storage temperature	-20 to +60 °C
Maintenance	Clean with a damp cloth; avoid solvents and caustic products
Safety	Follow safety instructions; do not use on uninsulated conductors
Accessories and spare parts	Smart Case available (ref. 0516 0250); Testo after-sales service

Frequently Asked Questions - 405i Testo

What does a red flashing LED mean?

A red flashing indicates that the batteries are almost exhausted. Replace the batteries with new ones.

What to do if the device shuts off automatically?

Automatic shutdown occurs when the remaining battery capacity is too low. Replace the batteries.

Why does the screen display '---' instead of the measurement?

The '---' display means that the measurement range has been exceeded (over or under) or the sensor is defective. Check the measurement and, if necessary, contact Testo after-sales service.

The Testo SMART app is not found in the store, what to do?

Make sure to use the correct search term: "testo Smart Probes". Also check that your device meets the requirements: iOS 12.0+ or Android 6.0+ with Bluetooth 4.2.

How to establish Bluetooth connection with the smartphone?

Install the Testo SMART App, turn on the probe (press the button), then open the App. The LED flashes yellow and then turns green once the connection is established.

How to clean the Testo 405i?

Clean the housing with a damp cloth and soapy water or a mild household cleaner. Do not use solvents or caustic products.

Do I need to calibrate the device regularly?

Yes, it is recommended to calibrate the device once a year to ensure measurement accuracy. Contact Testo after-sales service.

How to export measurements as PDF?

In the App, go to Memory > select a measurement > press the export button > choose Report > enable the PDF option and create the report. You can send it via email or Bluetooth.

What is the Bluetooth range of the probe?

The Bluetooth range is about 15 meters in free field. It may vary depending on the mobile device used.

Can I use the probe continuously in a humid environment?

For prolonged use in humid environments (>80% RH at ≤30°C or >60% RH at >30°C), please contact Testo. The sensor must not be exposed to volatile chemicals.

USER MANUAL 405i Testo

Product display of various electric shakers and tools including thermometers, fans, and a power tool (no visible text or labels)

1 Sommaire

1 Sommaire....3

10 Homologations.... 31

Diagram of various electric shakers with labeled parts, including power meters and a clamp tool.

testo 549i/552i

5.1.1. Démarrage

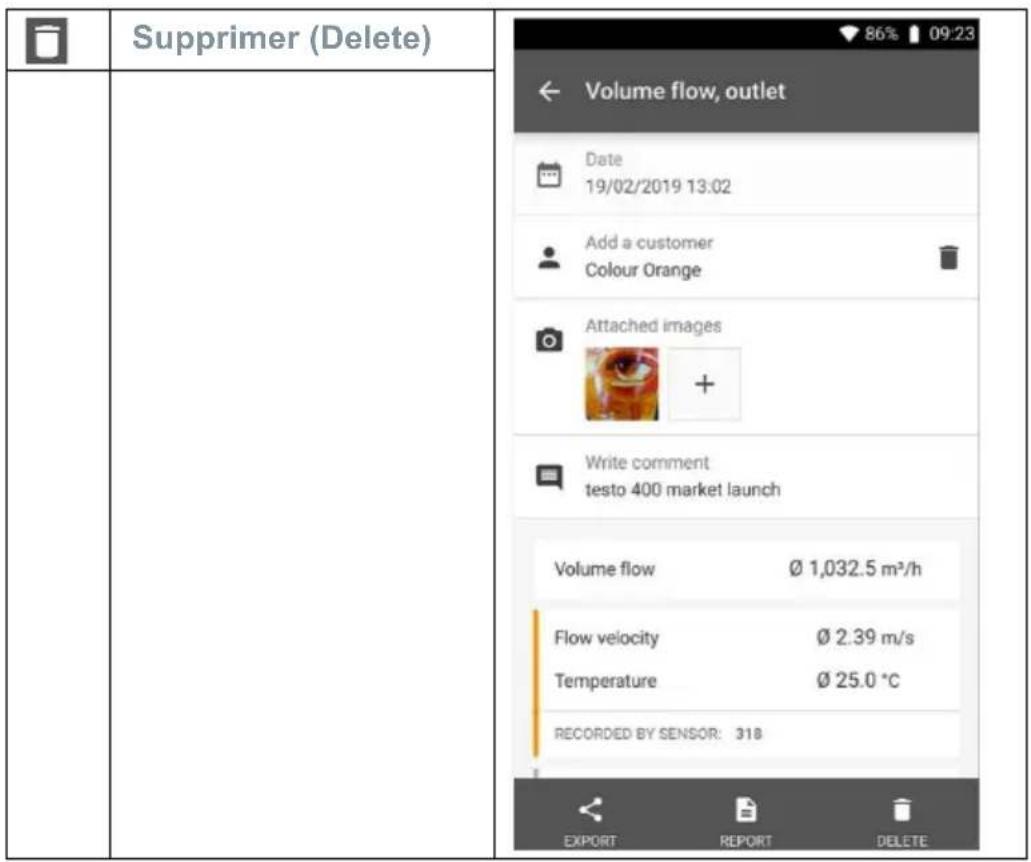

	Exportation (Export)
	Rapport (Report)

Supprimer (Delete) Volume flow, outlet Date 19/02/2019 13:02 Add a customer Colour Orange Attached images + Write comment testo 400 market launch Volume flow Ø 1,032.5 m³/h Flow velocity Ø 2.39 m/s Temperature Ø 25.0 °C RECORDED BY SENSOR: 318 EXPORT REPORT DELETE

6.8.1. Exportation Excel (CSV)

This instrument complies with Part 15C of the FCC Rules and

Industry Canada RSS-210 (revision 8). Commissioning is subject to

the following two conditions:

(1) This instrument must not cause any harmful interference and
(2) this instrument must be able to cope with interference, even if
this has undesirable effects on operation.

Information from the FCC (Federal Communications Commission)

For your own safety

Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.

FCC warning statement

This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.

Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.

KCC Warning

Product	testo 115i, testo 549i, testo 605i
Mat.-No.	0560 2115, 0560 2549, 0560 2605
Date	23.04.2021
i The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.
Country Comments
Australia		E 1561
Brazil	testo 605i: testo 549i: testo 115i Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados
Canada	Product IC ID:testo 115i: IC: 6127B-05602115testo 549i: IC: 6127B-05602549testo 605i: IC: 6127B-05602605see IC Warnings
China	testo 115i: CMIIT ID: 2020DJ5843
	testo 549i: CMIIT ID: 2020DJ5838testo 605i: CMIIT ID: 2020DJ5782
Europa + EFTA	The EU Declaration of Conformity can be found on the testohomepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, SwitzerlandWEEE Reg. no.: DE 75334352
India	Authorized
Malaysia Type Approval Code:testo 115i: RGJP/21A/0321/S(21-1021)testo 549i: RGJP/19A/0321/S(21-1022)testo 605i: RGNH/02A/0321/S(21-1024)
South Africa	testo 115i: TA-2019/546testo 549i: TA-2019/548testo 605i: TA-2019/547
Turkey	Authorized
UAE	testo 605i: ER78468/20
USA	testo 115i: WAF-05602115testo 549i: WAF-05602549testo 605i: WAF-05602605see FCCWarnings
Bluetooth®Information	Feature Values
	Bluetooth® range	Open air: typical 100 m
	radio type	Bluetooth® Low Energy (BLE) 4.2
	Bluetooth® radio class	1
	Bluetooth® company	LSD Science & Technology Co., LtdLierda LSD4BT_S37
	RF Band	BT LE: 2402 – 2480MHz
	power output	BT LE: 16.94dBm
Bluetooth® SIGList	Feature Values
	Declaration ID	D043363
	member company Testo SE & Co.	KGaA

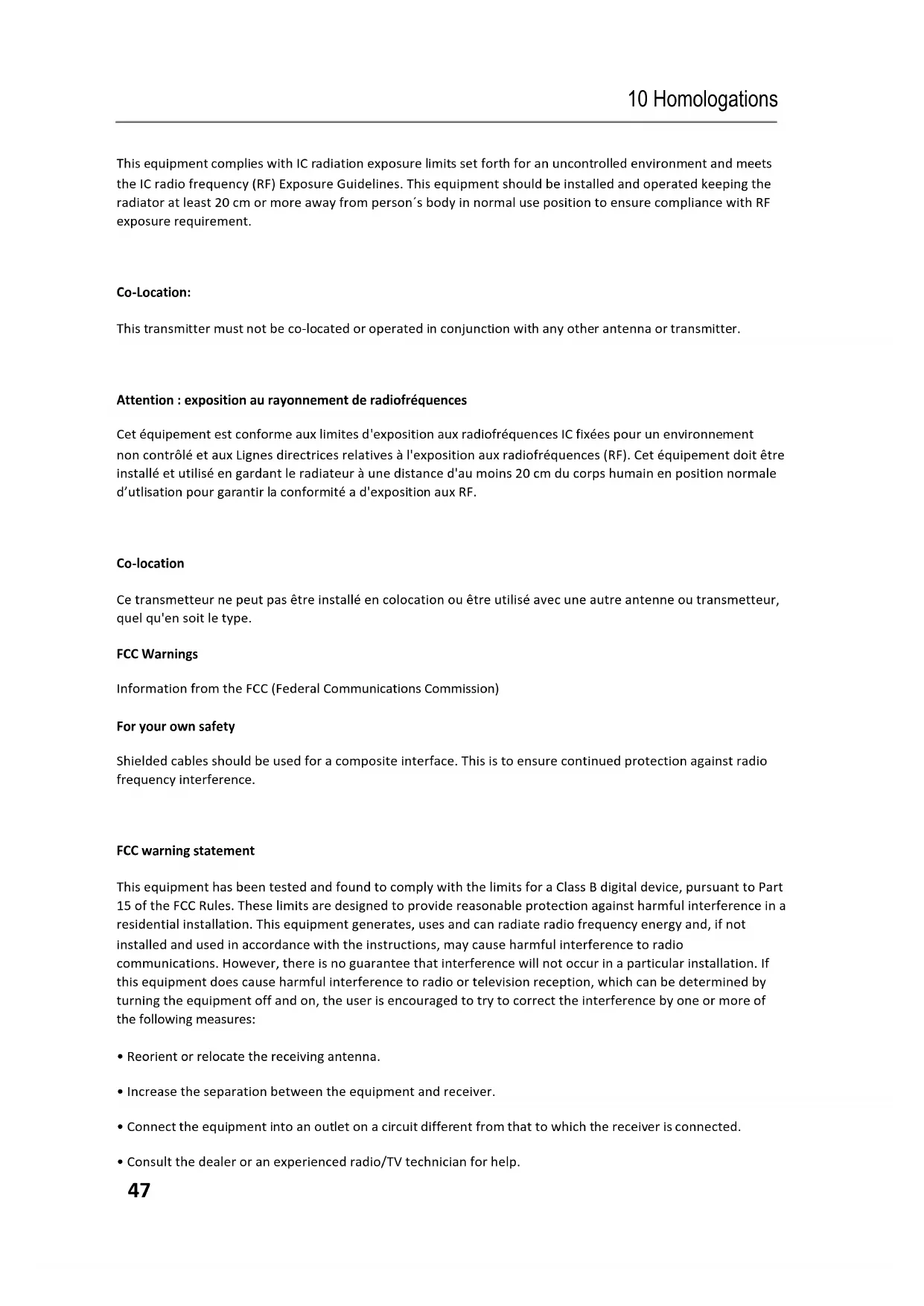

IC Warnings

RSS-Gen & RSS-247 statement:

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Caution: Radio Frequency Radiation Exposure

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Information from the FCC (Federal Communications Commission)

For your own safety

Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.

FCC warning statement

This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.

Warning

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,

including interference that may cause undesired operation.

Caution: Radio Frequency Radiation Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Mat.-No.型号	0560 2115 550560 2549 550560 2605 55
Country Comments
Japan	Contains Lierda S37 BLE moduleR201-200983see Japan Information
South Korea	testo 115i: R-R-TTT-testo115itesto 549i: R-R-TTT-testo549itesto 605i: R-R-TTT-testo605isee KCC Warning
Bluetooth®Information	Feature Values特征与参数 数值
	Bluetooth® range / 范围	up to100m (328feet) (free field /无障碍场地)
	power output输出功率	9.37dBm

KCC Warning

The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.

Country	Comment
Australia		E 1561
Brazil		ANATELAgência Nacional de Telecomunicações05188-21-04701See Brazil Information
Canada	IC ID: 6127B-05641552See IC Warnings
China	CMIIT ID: 2021DJ5269
Europa + EFTA		The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT),
	Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, Switzerland WEEE Reg. no.: DE 75334352
Hongkong	Authorized
Malaysia	Type Approval Code:RGQU/01A/0321/S(21-1019)
South Africa	TA-2020/8013
Turkey	Authorized
USA	FCC ID: WAF-05641552See FCC Warnings
Bluetooth®Information	Feature Values特征与参数数值
	Bluetooth® range / 范围	up to150m (490feet) (free field /无障碍场地)
	radio type型号	Bluetooth® LowEnergy (BLE) 4.2
	company制造商	LSD Science &Technology Co., LtdLierda LSD4BT_S37
	RF Band射频频段	2402 – 2480MHz
	power output输出功率	15.22dBm
Bluetooth®SIG Listing	Feature Values特征与参数数值
	Declaration ID	D043363
	member company Testo SE & Co. KGaA

IC Warnings

CAN ICES-003(B)/NMB-003(B):

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Caution: Radio Frequency Radiation Exposure

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Information from the FCC (Federal Communications Commission)

For your own safety

Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.

FCC warning statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.

Warning

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.

Caution: Radio Frequency Radiation Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person's body in normal use position to ensure compliance with RF exposure requirement.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Brazil Information

The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.

Country	Comments
Australia	E 1561
Brazil	ANATELAgência Nacional de Telecomunicações14309-21-04701See Brazil Information
Canada	IC ID: 6127B-05601915See ISED Warnings
China	CMIIT ID: 2021DJ5252
Europa + EFTA	The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads.EU countries:Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).EFTA countries:Iceland, Liechtenstein, Norway, Switzerland
	WEEE Reg. no.: DE 75334352
Hongkong	Authorized
Malaysia	Type Approval Code:RGOF/05A/0321/S(21-1025)
Turkey	Authorized
USA	FCC ID: WAF-05601915See FCCWarnings
Bluetooth®Information	Feature Values特征与参数数值
	Bluetooth® range / 范围	up to150m (490feet) (free field /无障碍场地)
	radio type型号	Bluetooth® LowEnergy (BLE) 4.2
	company制造商	LSD Science &Technology Co., LtdLierda LSD4BT_S37
	RF Band射频频段	2402 – 2480MHz
	power output输出功率	13.70dBm

Bluetooth®SIG Listing		Feature	Values
		特征与参数	数值
		Declaration ID D043363
		member company	Testo SE & Co. KGaA

EU SAR Information

The SAR limit of Europe is 2.0 W/kg. The highest SAR value reported for 0560 1915 under testing standard for use in hand is 0.275W/kg.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

ISED Warnings

CAN ICES-003(B)/NMB-003(B):

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The highest SAR value reported under this standard during product certification for use in the hand is 0.450W/kg.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Information from the FCC (Federal Communications Commission)

For your own safety

Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.

FCC warning statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.

Warning

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC SAR warning:

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification of 0560 1915 (FCC ID:WAF-05601915) for use when properly worn in the hand is 0.450 W/kg.

Co-Location:

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Brazil Information
