Product type	Curling iron
Brand	Grundig
Model	HS 3020
Power supply	220-240 V~, 50/60 Hz, 400 W
Power	400 W
Temperature and airflow settings	3 levels: off (0), gentle/warm air (1), strong/hot air (2)
Cold air function	Yes, to set the hairstyle
Included accessories	2 removable round brushes
Brush diameter	16 mm (small curls) and 20 mm (medium curls)
Power cord	Swivel with hanging loop
Overheat protection	Yes, built-in device
Electrical insulation class	II (double insulation)
Use in the bathroom	Not recommended near water; unplug after use
Cleaning	Soft dry cloth; brush the air intake grille
Storage	In a cool, dry place, out of reach of children
Environmental compliance	WEEE (2012/19/EU) and RoHS (2011/65/EU)
Child safety	Do not leave unattended, keep out of reach of children under 8 years old
Repairability	Do not disassemble; damaged cord must be replaced by the manufacturer or a professional

Frequently Asked Questions - HS 3020 GRUNDIG

How to change the round brush?

Turn the tip of the brush clockwise, then pull the unlock button down to release it. To insert a new brush, turn the tip counterclockwise.

How to use the cold air function?

Turn the dial to the ✉ (cold air) position to stop the hot air and set your hairstyle with cool air.

What is the power of the device?

The Grundig HS 3020 curling iron has a power of 400 W at a voltage of 220-240 V~.

How to clean the curling iron?

Unplug the device and clean it with a soft dry cloth. Regularly clean the air intake grille with a soft brush to remove hair and dust.

Can I use the device in the bathroom?

Avoid using it near a bathtub, shower, or sink filled with water. Unplug it after use in the bathroom and never immerse it.

Is the device safe for children?

The device can be used by children over 8 years old under supervision. Never leave the device unattended and keep it out of reach of children.

What to do if the power cord is damaged?

Do not use the device. The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard.

How to store the device after use?

Turn off and unplug the device, make sure it is dry, then store it in a cool, dry place, out of reach of children. Do not wrap the cord around the device.

What are the available temperature settings?

The device has 3 levels: 0 (off), 1 (gentle air and moderate temperature), 2 (strong air and high temperature), plus a cold air position to set the hairstyle.

Which brush to use for small curls?

The 16 mm diameter brush creates small curls and is particularly suitable for short hair.

USER MANUAL HS 3020 GRUNDIG

Curls & Volume Hair Styler

User Manual

Silhouette of a human head with curved lines, resembling a stylized face or profile (no text or symbols)

HS 3020

Illustration of a gift box with an open box, two cylindrical objects, and a pen-like tool (no text or symbols)

2 OR 1 2 1

3 Ø16 mm Ø20 mm

Illustration of a woman with long hair holding her chest, accompanied by a red prohibition symbol (no text or labels)

Illustration of a hairpin with a magnified inset showing a wall socket (no text or symbols)

Safety warning sign showing no smoking allowed by a hand holding a cigarette, with an electrical outlet diagram nearby.

6

Illustration of a woman with long hair holding a brush (no text or symbols)

Illustration of a person using a tool to apply or prepare a medical procedure (no text or symbols visible)

9 2 1

Illustration of a soldering iron with a magnified inset showing a socket connection (no text or symbols)

Illustration of a hair styling tool with a magnified inset showing a red arrow pointing to a socket (no text or symbols present)

2

Illustration of a hand holding a hair curler (no text or symbols present)

DE BETrieb REINIGUNG UND PFLEGE
EN OPERATION CLEANING AND CARE
TR KULLANIM TEMÍZLEME VE BAKIM
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
HR RAD ČIŠĆENJE I ODRŽAVANJE
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA

Prohibition sign showing a showerhead spraying water, indicating no pollution or leakage

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

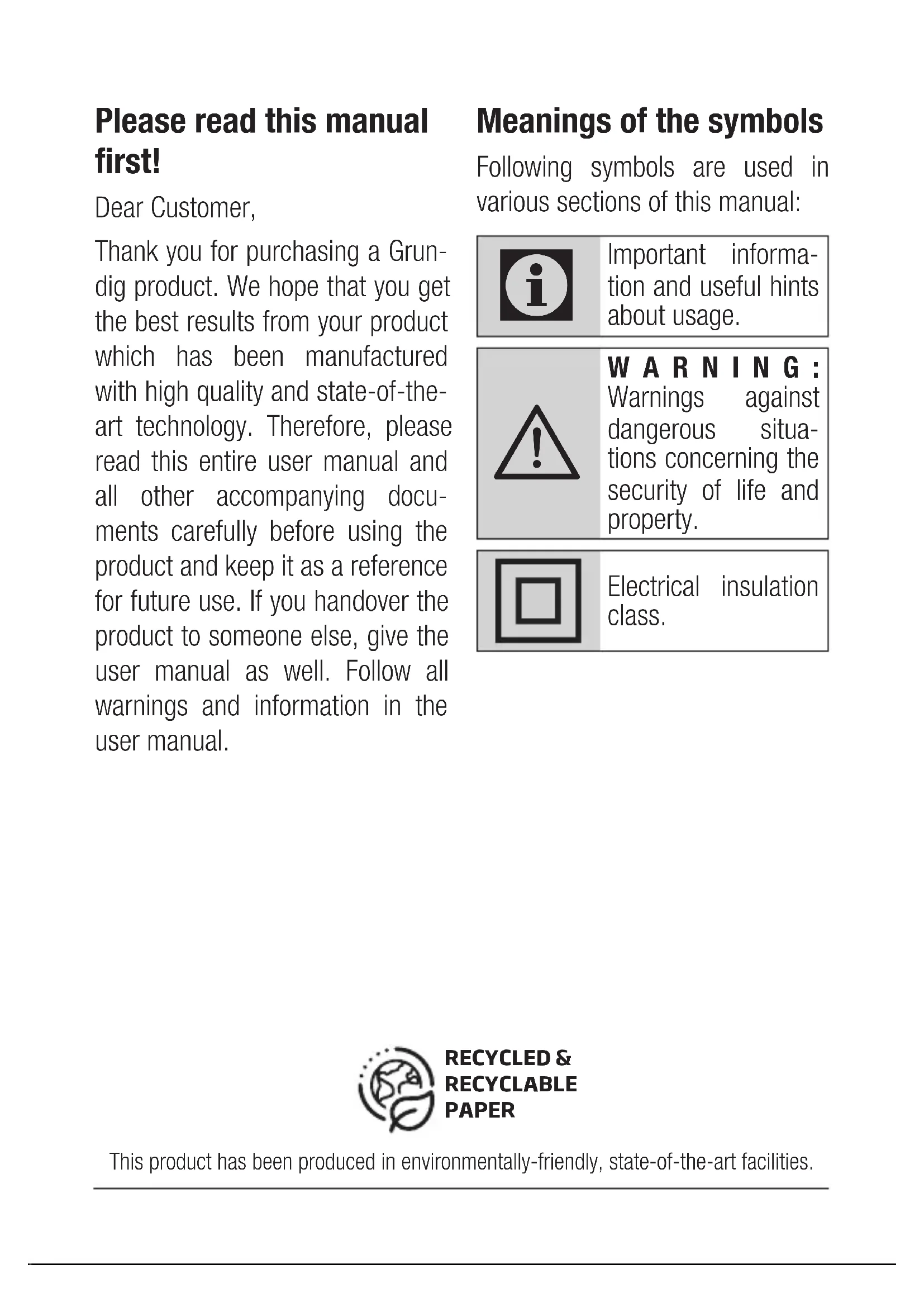

Please read this manual first!

Dear Customer,

Thank you for purchasing a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

1 Important safety and environmental instructions

Before using the appliance for the first time, please consider the following:

Keep the user manual for future use. If you give the appliance to someone else, please make sure that you give the user manual as well.

• This appliance is designed for household use only.
• Never use it in a bathtub, in the shower, on a sink filled with water, or with wet hands.

Prohibition sign showing a showerhead spraying water, no text present

• Do not immerse the appliance in water, and prevent contact with water even when cleaning it.

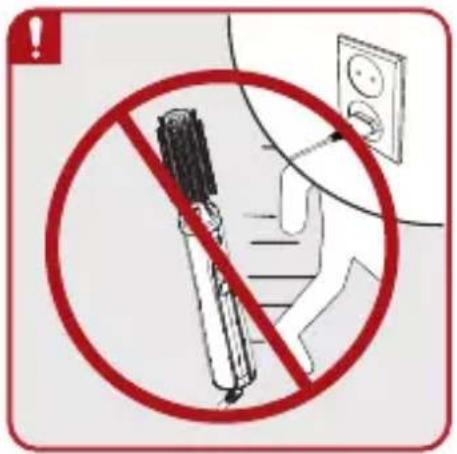

• Warning: Do not use this appliance in or near bathtubs, shower trays or other containers filled with water.

1 Important safety and environmental instructions

- When using the appliance in the bathroom, make sure you unplug it after use since it is dangerous that there is water around even when the appliance is off.

- For extra protection, it is recommended to equip the electrical circuit supplying power with a residual current device (RCD) that has a nominal operating current of 30 mA maximum. For recommendations, please contact the installer.

- Never leave the appliance running on a soft cushion or cover.

- When the appliance is running, do not cover its air outlet or suction holes.

- This appliance is equipped with a protective device against overheating.

- Do not pull the plug from the socket by holding the cable.

1 Important safety and environmental instructions

• Never use the appliance if there is visible damage on the appliance or on the power cable.
• To avoid possible dangers, damaged power cords must be replaced by the manufacturer, customer services or similarly qualified persons.
• Keep children away from the appliance.
• This appliance can be used by children at age 8 and above and by people who have reduced physical, sensory or mental capabilities or by people who lack experience and information, on the condition that they are supervised and informed about safe use of the appliance and the risks involved. Children should not tamper with the appliance. Cleaning and user maintenance should be performed by the children if they are not attended.

- Do not dismantle the appliance. Manufacturer's warranty will be void in case of damages caused by improper intervention.

1 Important safety and environmental instructions

- For perfect results, a very hot air stream is needed. After using the appliance for a long time and extensively, be careful of the metal coated brush as it can get too hot. To prevent injuries, please set the length of operation time accordingly with the accessory being used.

- Make sure to unplug the appliance before cleaning and user maintenance.

- Never wind the power cable around the appliance. Otherwise, the cable might get damaged. Check the power cable and the appliance regularly for visual damage.

- Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.

- If you keep the packaging materials, store them out of the reach of children.

1 Important safety and environmental instructions

• Do not leave the appliance unattended while it is running.
  • Always keep the appliance out of the reach of children.
• Make sure that the mains voltage on the rating plate (on the handle) matches the local mains voltage.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Warning symbol for a trash bin with crossed lines indicating no waste, and a solid black bar below.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

20verview

2.1 Control elements

1. Detachable round brush ∅ 20 mm, medium (styling attachment)
2. Accessory Release Button
3. On/Off switch and setting button (speed and temperature)
4. Air inlet grille
5. Swivel cord with hanging loop
6. Round brush ∅ 16 mm, small

2.2 Technical data

Power supply:

220–240V\~, 50/60Hz

Power: 400 W

Electrical insulation class: ||

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

30operation

3.1 Setting

Your appliance has the following setting options:

2.1.1 Temperature level/ blower level

-0:off
- 1: gentle air flow and moderate temperature for gentle drying and styling
- 2: stronger airflow and high temperature for faster drying and styling

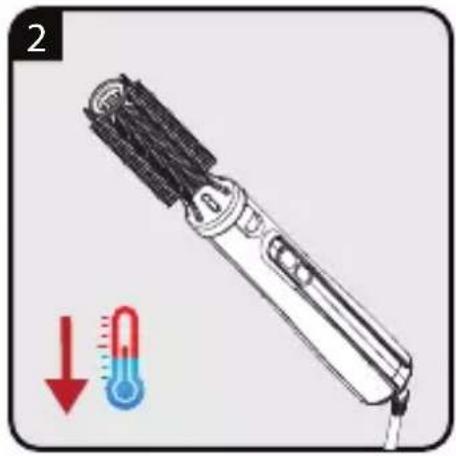

3.1.2 Cold air setting

—※: interrupts the hot air supply and provides cold air for fixing a hairstyle

3.2 Changing the styling attachments

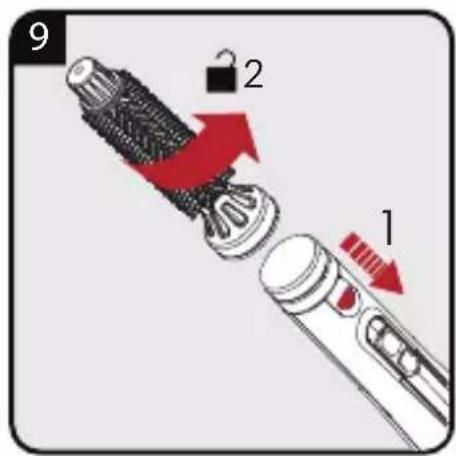

You can release the round brush by rotating its tip part to clockwise, then pulling the accessory release button downward.

When you want to change the round brush type or at your first usage, you can put by rotating its tip part to counterclockwise.

1. Remove the styling accessory by pulling out the accessory release button (2).
2. Place a different styling attachment and allow it to latch in place.

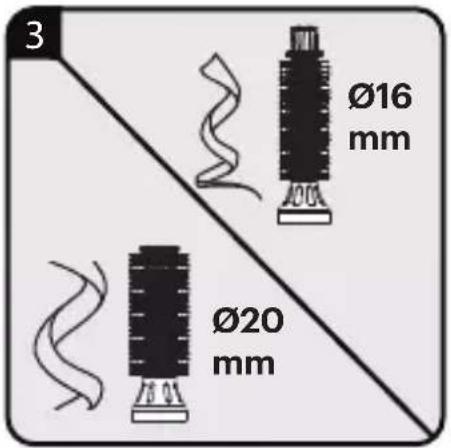

The size of curls depends on the diameter of the styling attachment.

The styling attachment with a diameter of 16 mm creates small curls and is especially suitable for short hair.

The styling attachment with a diameter of 20 mm can be used to attain greater volume and medium sized curls with longer hair.

30operation

3.3 Operation

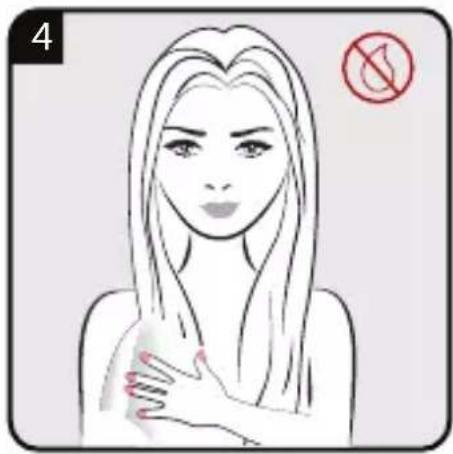

1. Towel dry your hair thoroughly after washing and let it dry for a little while.

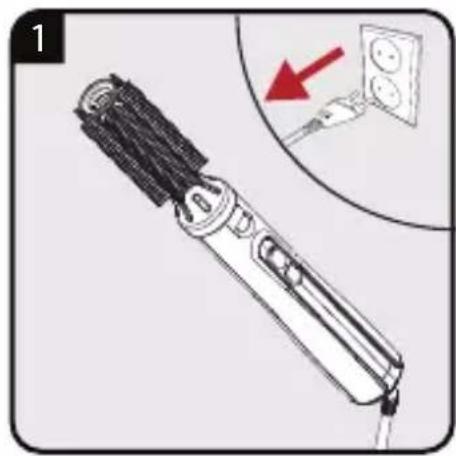

2. Plug the power cord (5) into the wall socket.
3. Adjust the temperature and fan level of (3) the device.
4. If required you can interrupt the hot air supply when drying by turning the switch (3) to »«« (cold air setting).

The cold air setting interrupts the hot air operation and provides a cool air flow. This allows you to fix your hairstyle better and more lastingly.

1. After rolling in the hair section allow the heat to set for few seconds.

2. Release the rolled hair and apply to the other parts similarly.

- You can change the accessories using the accessory release button (2).

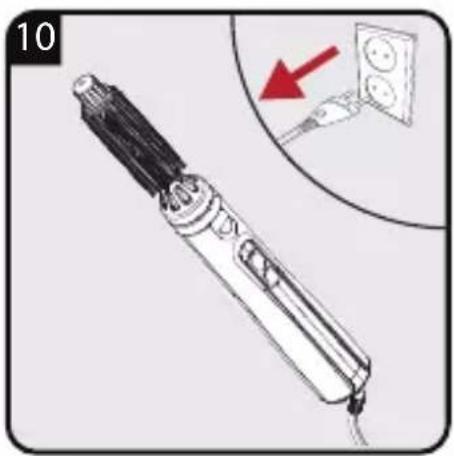

1. After use, switch off the appliance with the (3) button and pull out the power cord (5) from the wall socket.

CAUTION! Never wind the ower cord around the appli-ance, as this can result in damage. Check the power cord and the appli-ance regularly for visible damage.

4.1 Cleaning and care

Pull the plug out before cleaning.

CAUTION! Never submerge the appliance in water.

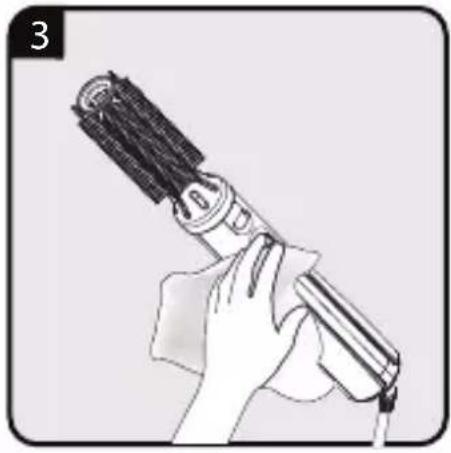

CAUTION! Use a soft and dry cloth for cleaning the product.

Remember to clean the air inlet grille (4) regularly with a soft brush to remove any hair and dust.

4.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure the appliance is unplugged and completely dry.
• Store the appliance in a cool, dry place.
• Make sure the appliance is kept out of the reach of children.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
