USER MANUAL HS 5430 GRUNDIG

Read the operating instructions carefully befo- re using the device! Follow all safety instructions in order to avoid damage caused by incorrect use. Keep the operating instructions for later con- sultation. If the device is passed on to a third party, these operating instructions must likewi- se be handed over.

This device is only intended for domestic use.

This device may not be used in bathtubs, showers, over a washbasin full of water, or with wet hands.

The device may not be immersed in water and also may never come in contact with water during cleaning.

The device may not be used near water in bathtubs, washbasins or other containers.loading-circle-117ENGLISH SAFETY

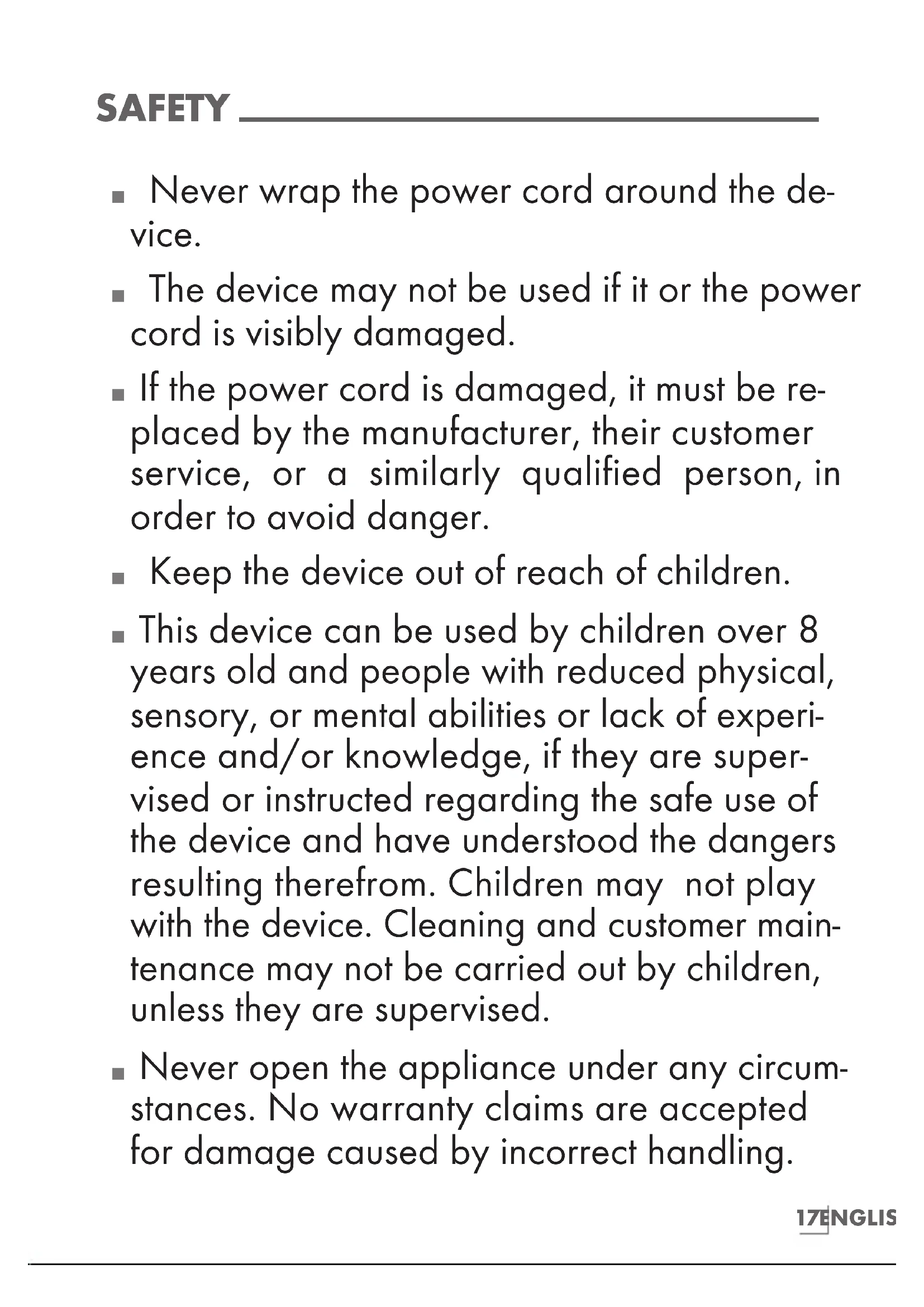

Never wrap the power cord around the de- vice.

The device may not be used if it or the power cord is visibly damaged.

If the power cord is damaged, it must be re- placed by the manufacturer, their customer service, or a similarly qualified person, in order to avoid danger.

Keep the device out of reach of children.

This device can be used by children over 8 years old and people with reduced physical, sensory, or mental abilities or lack of experi- ence and/or knowledge, if they are super- vised or instructed regarding the safe use of the device and have understood the dangers resulting therefrom. Children may not play with the device. Cleaning and customer main- tenance may not be carried out by children, unless they are supervised.

Never open the appliance under any circum- stances. No warranty claims are accepted for damage caused by incorrect handling.18 ENGLISH SAFETY

For cleaning the device, do not use cleansing agents which include chemical additives as such additives damage the surface, and with that the labeling, of the device. In such cases, the warranty is void.19ENGLISH

AT A GLANCE _______________________

Dear customer, Congratulations on your purchase of GRUNDIG Ionic Curling Tong HS 5430. Please read through the following ins- tructions carefully to be sure that you can use your high-quality product from GRUNDIG for many years. A responsible approach! GRUNDIG focusses on contractually ag- reed social working conditions with fair wages for both inter- nal employees and suppliers, as well as on the efficient use of raw materi- als with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories. For a future worth living. For a good reason. Grundig. Controls See the illustration on page 3.

Curling tong with clip

Power cord20 ENGLISH OPERATION ___________________________ Styling of curls With this device you can style glamo- rous curls with intense brightness and a gleaming shine. Attention.

The heating element and clip gets very hot. Do not touch it with bare hands.

The heating element must not come in contact with your skin, face, neck or head. Ion function The ionizer generates negative ions, which neutralize the static charge of your hair. 1 To turn on the ionizer press the ion button

When you use the device for the first time, adjust the temperature to the lowest level. You can find the appropriate temperature level for your hair by gradually raising the temperature. 1 Lay the device on a steady, level, and heat-resistant surface. Use the device stand for this

2 Plug the power cord

into the electrical outlet. 3 Press the on button

– for about 2 seconds to turn the device on. – The LCD display

– The display will blink until the set temperature is reached. – If the temperature is changed du- ring operation, the display blinks blue until the new temperature (higher or lower) is reached. Instructions – Within 5 seconds, the temperature lock function will automatically acti- vate after turning on the device and reaching the selected temperature, if the settings are not changed. – LCD display color changes from blue to red. – To unfreeze the buttons » - «

press twice within 2 seconds. 5 Section off a strand of your hair of about 3 cm. width with a comb or brush. 6 Hold the lever

down. Fasten the end of the hair on the curling tong with the clip

, place the hair under the clip and release the lever

.21ENGLISH OPERATION ___________________________ 7 Wrap the hair around the curling tong towards your head. 8 Press the lever after 5 to 10 seconds

to open the clip and release the hair from the curling tong. Instructions

Repeat this procedure for every strand. 9 Turn off the device by pressing the power button

for 2 seconds. – The LCD display

turns off. 10 Disconnect the power cord

from the electrical outlet. You now have defined curls with spectacular elasticity. Instructions

The device reaches a temperature from 120 °C to 210 °C. It reaches 100 °C in about 30 seconds.

If the device is not used for a long time after heating up, it automati- cally turns off after 30 minutes.

Do not leave the device unatten- ded if plugged in.

Allow the device to cool in a se- cure place.22 ENGLISH INFORMATION ________________________ Cleaning and care 1 Turn off the device and disconnect the power cord

from the electri- cal outlet. 2 Allow the device to cool completely before cleaning. The device can get very hot, so cooling can take up to 45 minutes. 3 Only a moist, soft cloth should be used to clean the casing and the heating element. Attention

Do not lay the device’s power cord in water or any other liquid. Do not use an aggressive cleaning agent. Instructions

Before you use the device after cleaning, dry all parts of it with a dry, soft cloth. Storage

When not in use over longer peri- ods, store carefully.

Be sure that the device is not con- nected to the power outlet and that it is completely cooled and dry.

Do not wrap the power cord around the device.

Store the device in a cool, dry place.

Keep the device out of the reach of children.23ENGLISH INFORMATION ________________________ Environmental note This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the opera- ting manual and on the packaging. Please consult your local authorities to find out the location of the nearest collection point. Help protect the environment by recy- cling used products. Technical data Power supply: 120 – 240 V

, 50/60 Hz Power consumption: 46 W Technical and Design alterations reser- ved24 TÜRKÇE GÜVENLIK
