USER MANUAL CM272N TEFAL

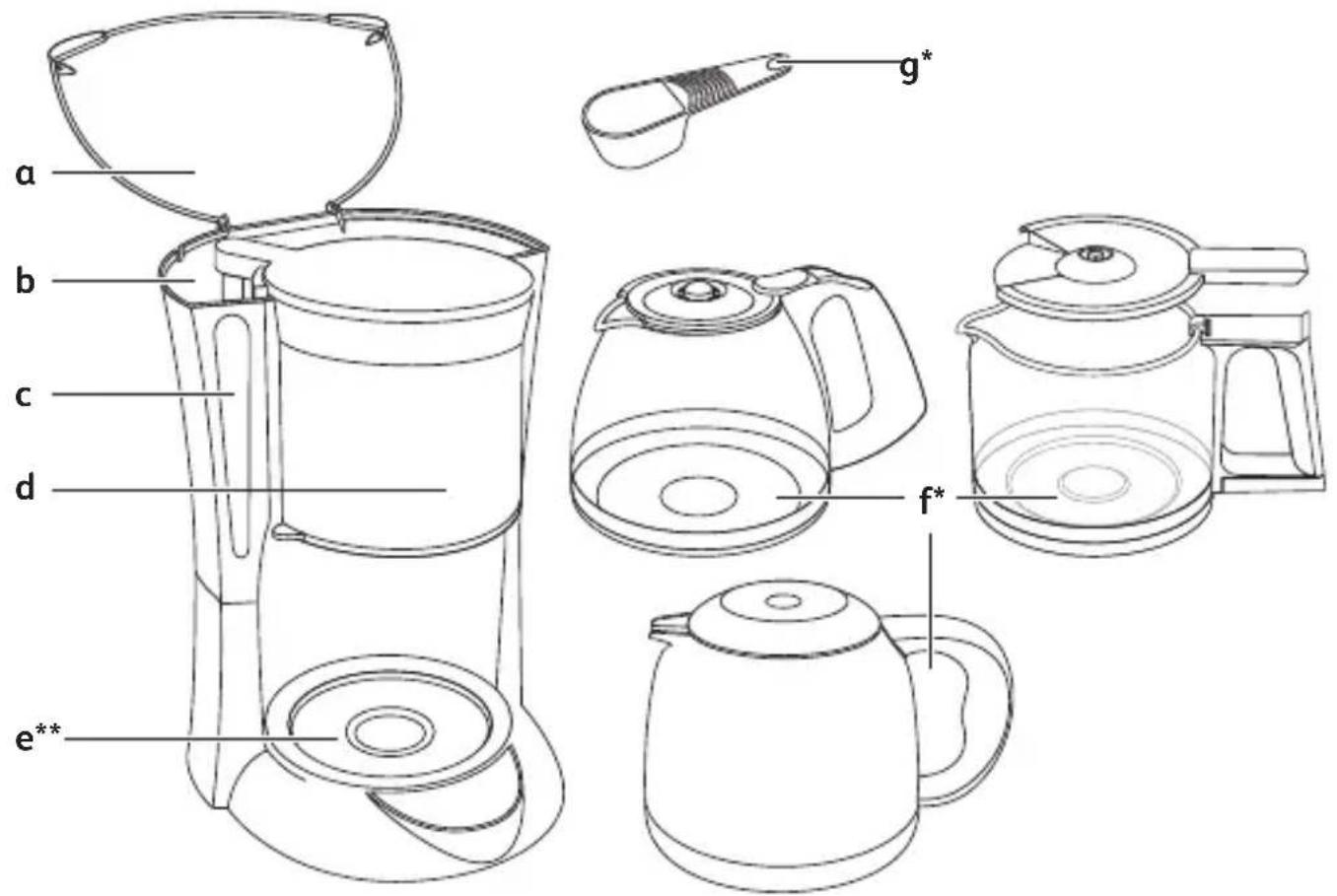

Line drawing of a coffee maker with handle and side panel (no text or symbols)

a b c d e** g* f*

a Lid - Deksel - Kapak - Tapa - Couvercle - Deckel - Coperchio - Kapak - Poklopac - Poklop - Fedő - Capac - Vrchnák - Pokrov - Poklopac - Poklopac - Kaas - Pärsegs - Dangtelis - Pokrywka.

b Tank - Reservoir - Hazne - Depósito - Réservoir - Wassertank - Serbatoio dell'acqua - Pezervoar - Spremnik za vodu - Nádržka na vodu - Víztartály - Rezervor - Nádržka - Posoda za vodo - Rezervoar - Spremnik - Veepaak - Tvertne - Rezervuaras - Zbiornik

c Water level - Waterpeil - Su seviyesi - Nivel de agua - Niveau d'eau - Wasserstandanzeige - Livello dell'acqua - Ниво на водата - Indikator nivoa vode - Hladina vody - Vízszintjelző - Nivelul apei - Hladina vody - Kontrolno okence za nivo vode - Indikator nivoa vode - Pokazivač razine vode - Veetaseme näidik - Ūdens limenis - Vandens lygis - Poziom wody.

d Filter holder - Filterhouder - Filtre desteği - Portafiltros - Porte-filtre - Filterträger - Alloggio del filtro - Отделение за филтъра - Nosač filtera - Držák filtru - Filterartó - Suport pentru filtru - Držiak na filter - Držalo filtra - Nosač filtera - Nosač filtra - Filtrihoidik - Filtra turētājs - Filtro déklas - Pojemnik na filtr.

e Warming plate** - Opwarmplaat** - Isinan levha** - Placa calefactora** - Plaque-chauffante - Heizplatte** - Piastra riscaldante - Нагряваща плоча** - Grijaća ploča** - Ohřivací ploténka** - Melegítő lap** - Suprafață de încălzire** - Výhrevná platňa** - Grelna plošča** - Grejna ploča** - Grijača ploča** - Kuumutusplaat** - Sildvirsma** - Kaitvietė** - Płyta grzewcza**

f Jug* - Koffiekan* - Sürahi* - Jarra* - Verseuse - Kanne* - Caraffa - Kana* - Posuda* - Konvice* - Kiöntő* - Cană* - Kanvica na kávu* - Vrč za kavo* - Posuda* - Posuda* - Kann* - Krüze* - Piltuvélis* - Dzbanek*

g Dosing spoon - Maatlepel - Ölçme kaşığı - Cuchara dosificadora - Cuillère doseuse - Dosierlöffel - Cucchiaio dosatore - Лъжица за дозиране - Kašikica za doziranje - Dávkovací Ižička - Adagolókanál - Linguriţă de dozare - Dávkovacia lyžica - Merilna žlička - Žlica za doziranje - Žlica za doziranje - Doseerimislusikas - Dozēšanas kausinš - Dozavimo šaukštelis - Łyżka dozująca

* Depending on model - Afhankelijk van de model - Modeline göre - Según modelo - Selon modèle - Je nach Modell - seconda del modelo - В зависимости от модела - Ovisno o modelu - Podle modelu - Modell szerint - în funcție de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribă no modela - Pagal modelj - W zależności od modelu.

** For the glass jug model - Voor de glazen koffiekan - Cam sūrahi modeli için - Para el modelo con jarra de cristal - Pour le modèle verseuse verre - Beim Modell mit Glaskanne - Per il modello con caraffa in vetro - 3a modeled cys ctsklena kana - Za modele sa staklenom posudom - Pro model se skleněnou konvicí - Az üveg kávékiöntővel rendelkező modellnél - Pentru modelul cu cană de sticlă - Pre sklenený model kanvice na kávu - Za model s steklenim vrčem - Za modele sa staklenom posudom - Za modele sa staklenom posudom - Klaaskannuga mudeli korral - Modelim ar stikla krūzi - Modeliui su stikliniu piltuvėliu - Dla modelu z e szklanym dzbankiem

1

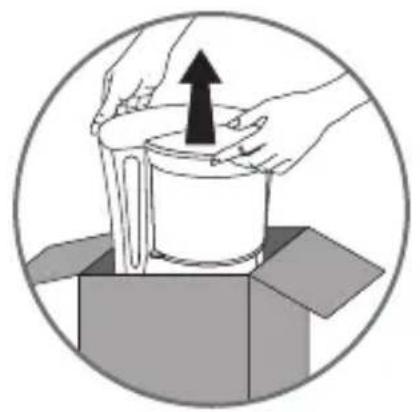

Illustration of hands holding a cup with an upward arrow inside, above an open box (no text or symbols)

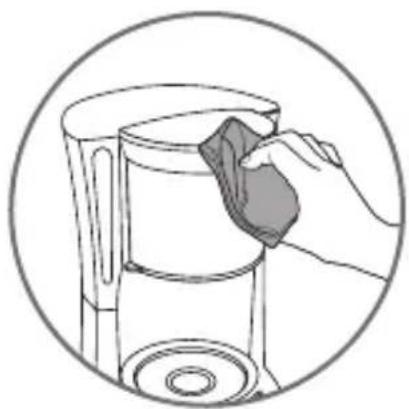

Illustration of a hand cleaning a cylindrical container with a cloth (no text or symbols)

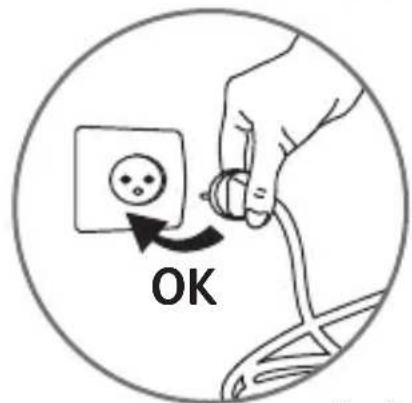

OK

fig.1
2

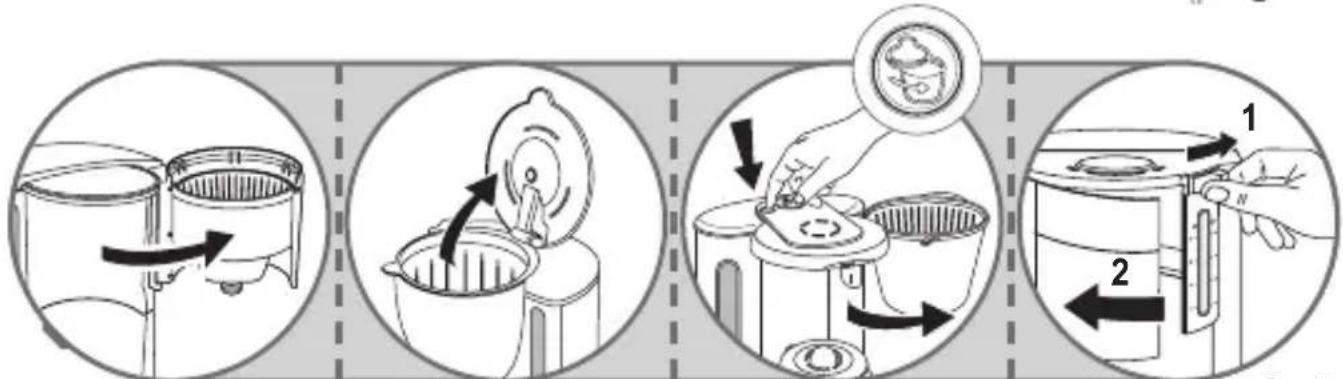

Diagram showing two stages of a kitchen appliance: one with a lid and arrow indicating rotation, the other with a lid and upward arrow indicating movement (no text or symbols present)

3

fig.2

Diagram illustrating four steps of cooking a pot, showing step 1 with rotating container and step 2 with hand holding lid.

fig.3
* Depending on model - Afhankelijk van de model - Modeline göre - Según modelo - Selon modèle - Je nach Modell - seconda del modello - В зависимост от модела - Ovisno o modelu - Podle modelu - Modell szerint - În functie de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribă no modela - Pagal modeli - W zależności od modelu.

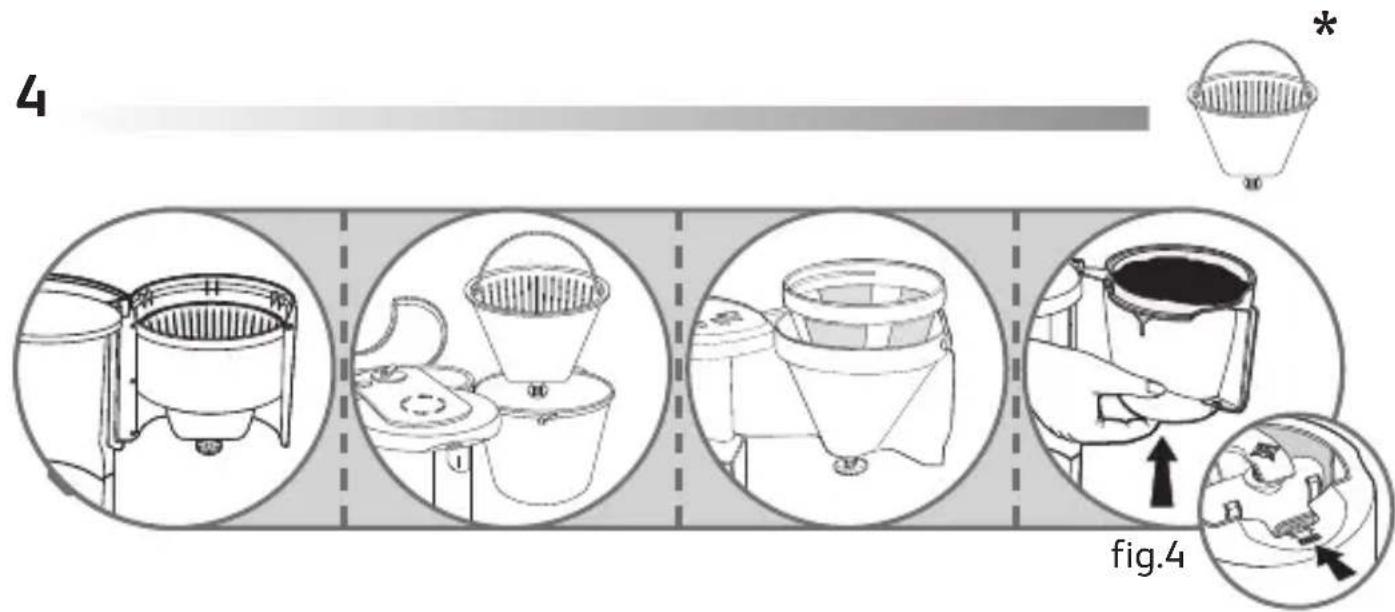

4 fig.4

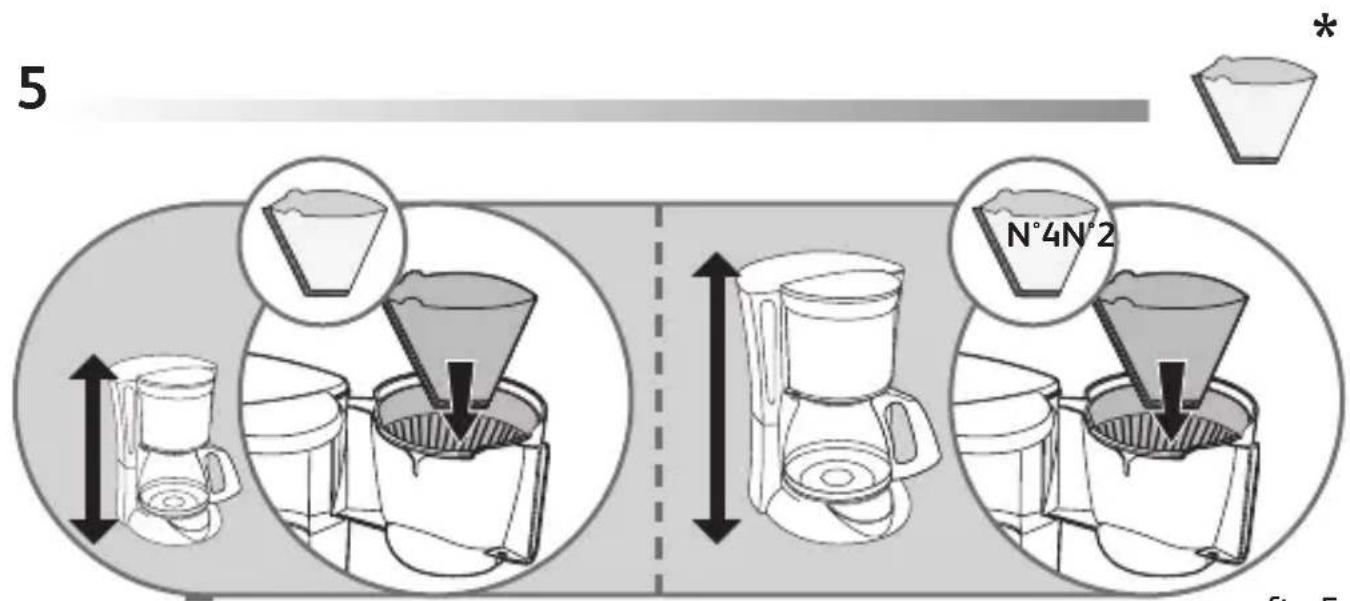

5 N°4N°2 *

fig.5

6 7

fig.6

Circular diagram with concentric arcs and directional arrows, no text or symbols present

fig.7
* Depending on model - Afhankelijk van de model - Modeline göre - Según modelo - Selon modèle - Je nach Modell - seconda del modello - В зависимост от модела - Ovisno o modelu - Podle modelu - Modell szerint - În functie de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribā no modela - Pagal modelj - W zależności od modelu.

8
*

Three-step diagram showing hand positioning and adjustment of a button (no text or symbols)

fig.8
9

Illustration of a hand pouring liquid into a cup (no text or symbols)

Illustration of a person using a mechanical device to lift a black cylindrical component, shown in two views (no text or symbols present)

fig.9
* Depending on model - Afhankelijk van de model - Modeline göre - Según modelo - Selon modèle - Je nach Modell - seconda del modello - В зависимост от модела - Ovisno o modelu - Podle modelu - Modell szerint - În functie de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribā no modela - Pagal modelj - W zależności od modelu.

* Depending on model - Afhankelijk van de model - Modeline göre - Según modelo - Selon modèle - Je nach Modell - seconda del modello - В зависимост от модела - Ovisno o modelu - Podle modelu - Modell szerint - În functie de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribă no modela - Pagal modelj - W zależności od modelu.

EN

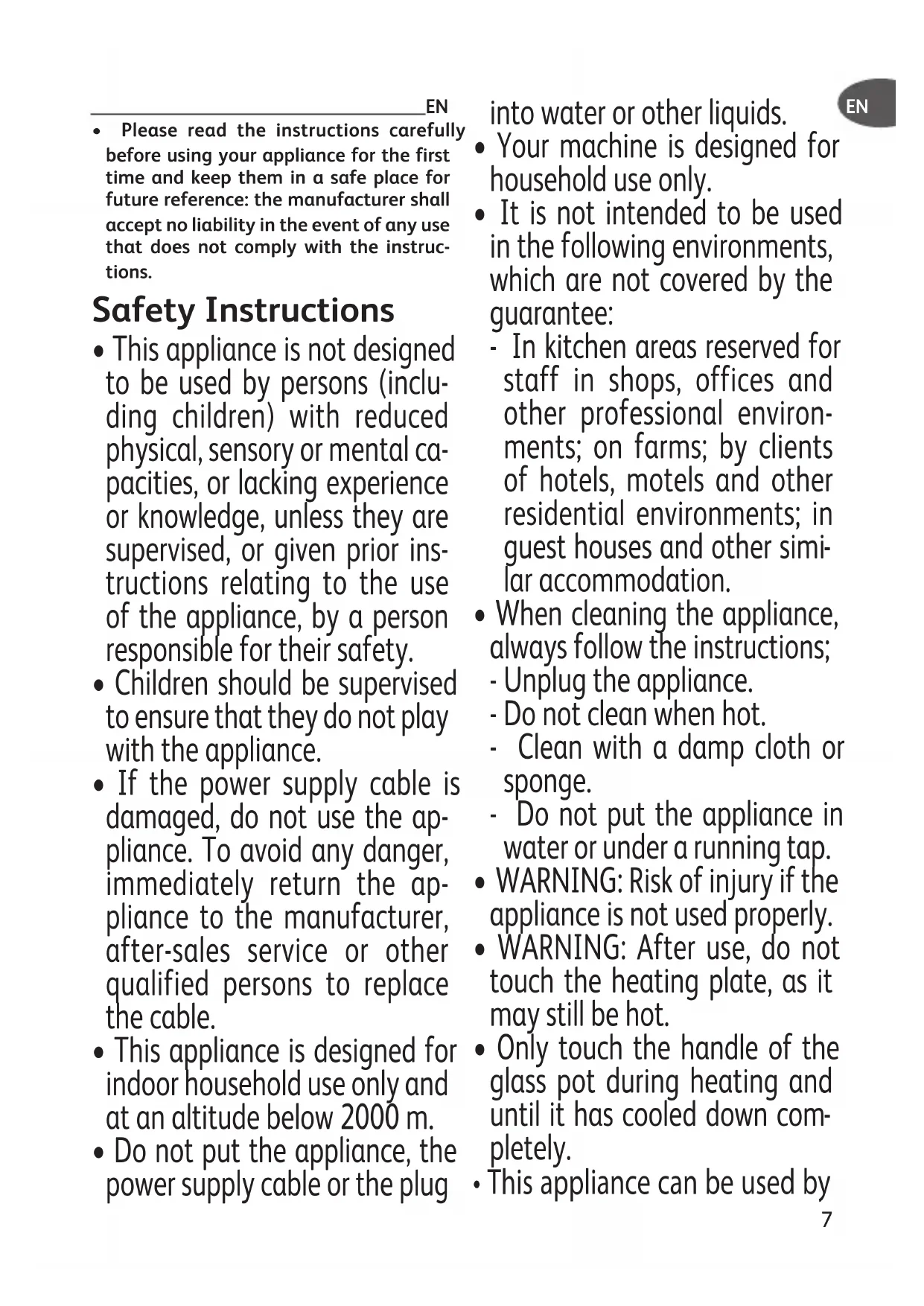

- Please read the instructions carefully before using your appliance for the first time and keep them in a safe place for future reference: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions.

Safety Instructions

• This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities, or lacking experience or knowledge, unless they are supervised, or given prior instructions relating to the use of the appliance, by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• If the power supply cable is damaged, do not use the appliance. To avoid any danger, immediately return the appliance to the manufacturer, after-sales service or other qualified persons to replace the cable.
• This appliance is designed for indoor household use only and at an altitude below 2000 m.
• Do not put the appliance, the power supply cable or the plug

into water or other liquids.

• Your machine is designed for household use only.
• It is not intended to be used in the following environments, which are not covered by the guarantee:

- In kitchen areas reserved for staff in shops, offices and other professional environments; on farms; by clients of hotels, motels and other residential environments; in guest houses and other similar accommodation.

- When cleaning the appliance, always follow the instructions; - Unplug the appliance.

• Do not clean when hot.
• Clean with a damp cloth or sponge.

• Do not put the appliance in water or under a running tap.

• WARNING: Risk of injury if the appliance is not used properly.

• WARNING: After use, do not touch the heating plate, as it may still be hot.
• Only touch the handle of the glass pot during heating and until it has cooled down completely.
  • This appliance can be used by

children over 8 years old, provided that they are properly supervised or as long as they have been given instructions on how to use the appliance safely and are full aware of the dangers involved. The appliance should not be cleaned and maintained by children, unless they are over 8 years of age and supervised by an adult.

• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instructions to use the appliance safely and understand the dangers.
  • Children must not use the appliance as a toy.
  • *The temperature of the accessible surfaces may be high when the appliance is in operation. Do not touch the hot surfaces of the appliance.
  • The coffee-maker shall not be

placed in a cabinet when in use.

• Before plugging in the appliance, ensure that the power supply corresponds to that of the appliance. Also check that the current includes an earthed socket.
• The guarantee will not apply in the event of faulty connection to a power supply.
• When using the appliance, always place it on a flat, stable, heat resistant work surface away from water splashes and any sources of heat.
• Unplug the appliance if you do not intend to use it for a prolonged period and during cleaning.
• Do not use the appliance if it is not working correctly or if it is damaged. In this case, contact an approved service centre.
• Do not leave the appliance unattended whilst in operation.
• Cleaning and standard maintenance may be carried out by the customer; any other servicing must be carried out by an approved service centre.
• The power cable must never be in proximity to or in close contact with the heated elements of your appliance, close to a source of heat or a sharp edge.
• For your safety, only use accessories and spare parts designed for your appliance.
• Do not remove the plug from the socket by pulling on the cord.
• Do not use the pot in a microwave oven, on a flame or on electric cooking plates.
• Do not fill the appliance with water if it is still hot.
• All appliances are subject to strict quality controls. Practical performance tests are conducted on appliances picked out by chance, which explains any possible signs of use.
• When the coffee machine is in use, always close the lid.
• Do not use the coffee pot without the lid.
• Do not pour hot water into the tank.

Using the machine for the first time

Before making coffee you should use the coffee maker once with water only (without coffee).

Preparing the coffee

(Follow figures 1 to 9)

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.
• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.
• Ground Coffee: Use one measuring spoon of ground coffee per large cup.
• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot\*

• Do not use the thermal pot without its lid.
• The lid of the isothermal pot must be closed properly when preparing coffee and to keep it warm.
• To serve coffee, press the lever on the lid of the isothermal pot downwards or unscrew the lid half way*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better and do not put it back inside the coffee maker after you have prepared the coffee.
• The thermal pot keeps your coffee warm for a maximum of four hours.

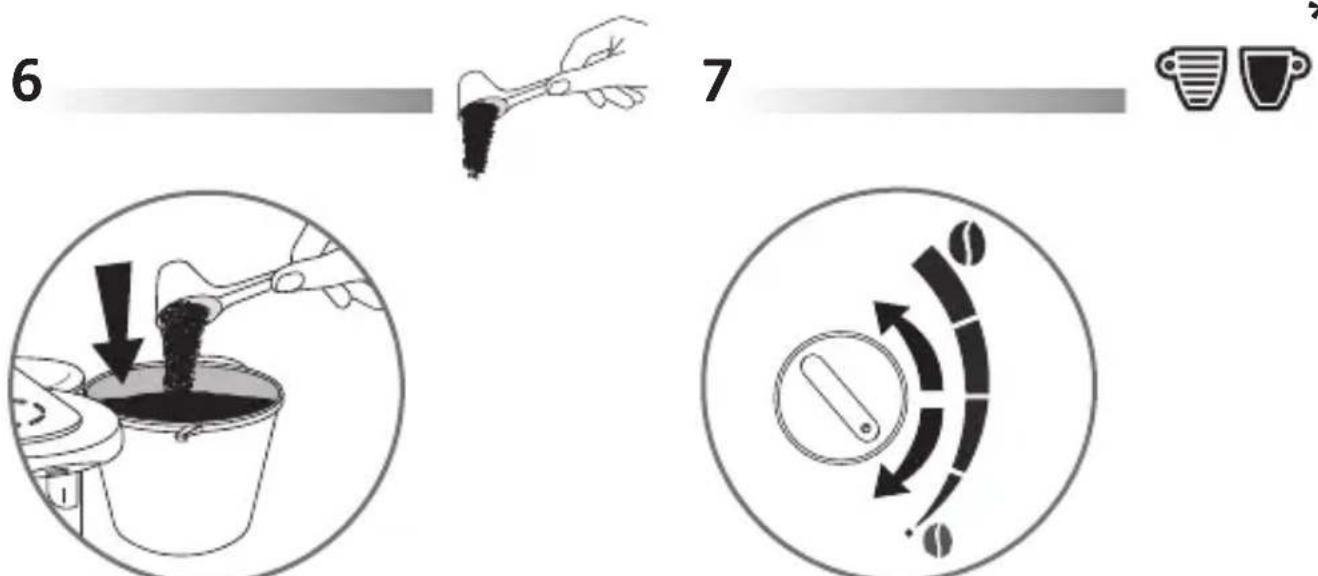

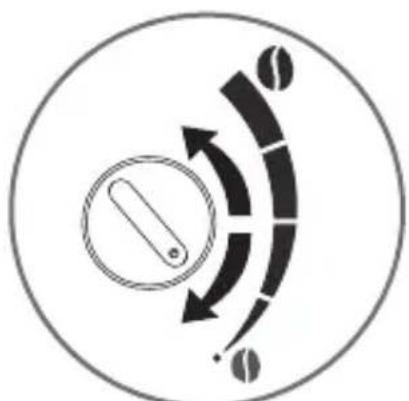

Aroma selector\* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger cup of coffee, turn the aroma setting either towards the black cup or the large coffee grain*.

Automatic stop

• In order to save energy, your coffee machine will turn off automatically.
• Models with glass pot:

About 30 minutes after the end of the coffee brewing cycle (i.e. about 30 minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

During these 30 minutes, your coffee will be kept warm at a suitable temperature.

- Models with thermo pot:

A few minutes after the end of the brewing cycle (i.e. a few minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

EN

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug the appliance from the wall socket outlet, and allow the coffee maker to completely cool down.
• Clean with a cloth or damp sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug\*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.
• In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses. You can use:

- a sachet of descaling agent diluted in two large cups of water; - or two large cups of commercially available white vinegar.

• Pour into the tank (b) and turn on the coffee maker (without coffee).
• Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop your coffee maker (you will have to turn off the

coffee maker on some automatic models).

• Allow to act for one hour.
• Restart the coffee maker to stop the flow.
• Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

N.B.: as soon as the coffee brewing cycle takes longer or becomes noisier, de-scale your machine.

Accessories\*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.

- European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), stipulates that used household appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately to optimise the sorting and recycling of their parts and to reduce the impact on human health and the environment.
