USER MANUAL IPCA72515 ABUS

These user manual contains important information for installation and operation. This should be also noted when this product is passed on to a third party. Therefore look after these operating instructions for future reference! A list of contents with the corresponding page number can be found in the index on page 66.

English translation of the original German instruction manual. Retain for future reference.63 Introduction

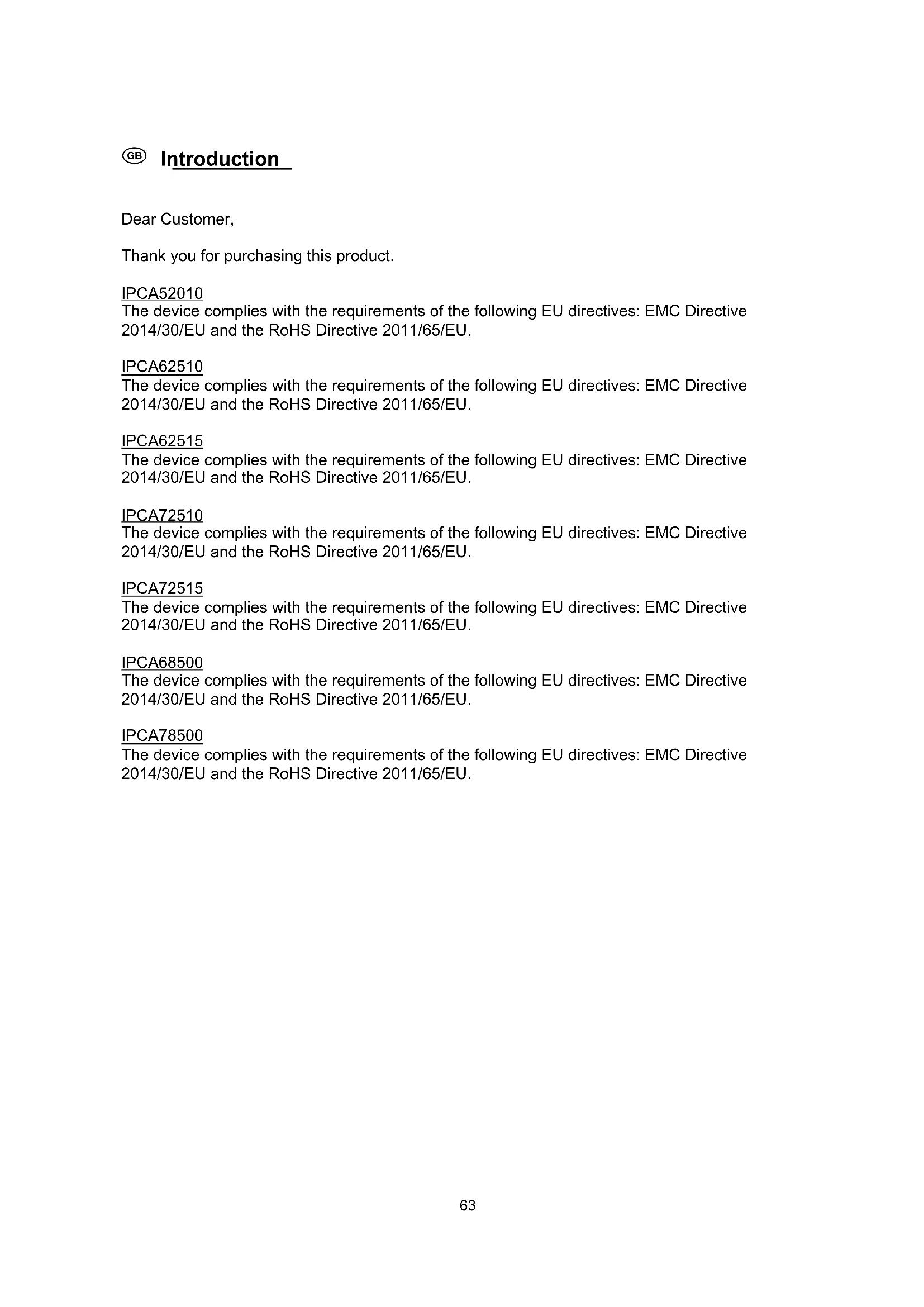

Dear Customer, Thank you for purchasing this product. IPCA52010 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA62510 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA62515 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA72510 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA72515 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA68500 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. IPCA78500 The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.64 To ensure this remains the case, and to guarantee safe operation, you the user must observe the instructions in this user guide. Read the entire user guide carefully before starting operation of the product, and pay attention to all operating instructions and safety information. All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Disclaimer This user guide has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please let us know about them. ABUS Security-Center GmbH & Co. KG does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for any direct or indirect damage resulting from the installation, performance and use of this product. No guarantee is made for the contents of this document.65 Important safety information

All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.

We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

Dear Customer, The following safety information and hazard notes are not only intended to protect your health but also to protect the device from damage. Please read the following points carefully: There are no components inside the product that require maintenance by the operator. Opening or dismantling the product invalidates the CE certification and guarantee claims/warranty. The product may be damaged if it is dropped, even from a low height. Avoid the following adverse conditions during operation: Moisture or excess humidity Extreme heat or cold Direct sunlight Dust or flammable gases, vapours or solvents Strong vibrations Strong magnetic fields (e.g. next to machines or loudspeakers) The camera must not be installed on unstable surfaces. General safety information: Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with. The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons. Do not insert any objects into the device through the openings. Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products. Please pay attention to the safety information and user manuals for the other connected devices. Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage. Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit. If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk. Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.66 Contents 1. INTENDED USE ............................................................................................................... 68

This camera is used for indoor and outdoor video surveillance (depending on the model) in conjunction with a recording device or appropriate display unit (e.g. PC). Use of this product for any other purpose than that described may lead to damage to the product and other hazards. All other uses are not as intended and will result in the invalidation of the product guarantee and warranty. No liability can be accepted as a result. This also applies to any alterations or modifications made to the product. Read the user guide carefully and in full before putting the product into operation. The user guide contains important information on installation and operation.

2. Explanation of symbols

The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock). The triangular warning symbol indicates important notes in this user guide which must be observed. This symbol indicates special tips and notes on the operation of the unit.

This user manual describes the software functions in the camera browser interface. For information about how to install the hardware for the respective camera, please read the quick start manual or the hardware installation manual, if you have it. You can download a PDF version of the user manuals in your language at www.abus.com via the product search.69

3. Features and functions

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Furthermore, reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disrupt the ima

4.1 Using the ABUS IP Installer for camera search

Install and start up the ABUS IP Installer (which is available for each respective product from the ABUS website www.abus.com). The IP camera should now appear in the selection list without the relevant IP address for the target network, where appropriate. The camera must first be enabled, i.e. a correspondingly secure password must be assigned for the main user “installer”. A secure password must meet the following minimum requirements: - 8–16 characters - Valid characters: numbers, lower-case letters, capital letters, special characters ( ! $ % & / ( ) = ? + - ) - You must use at least two different types of character The password can also be initially assigned via the web browser. The IP settings for the camera can be changed using the IP installer. The language preference for the camera can also be changed using the ABUS IP installer.

Please be aware, that the language preference for the camera homepage is set automatically depending on the operating system language preference. If this language is not available in the camera, the homepage will be shown in English. Using the "Browser" button, a previously selected camera can be opened directly in the internet browser (the default browser for Windows will be used).71

4.2 Accessing the network camera via a web browser

Enter the camera IP address into the address bar in the browser (if a different HTTP Port is used in Internet Explorer you must also enter "http://“ before the IP address.)

4.3 Initial password assignment

For IT security reasons, use of a secure password with the appropriate usage of lower-case letters, capital letters, numbers and special characters is recommended. Passwords are not factory set and must be assigned when the camera is used for the first time. This can be done via the ABUS IP installer (‘Enable’ button), or via the website. A secure password must meet the following minimum requirements: - 8–16 characters - Valid characters: numbers, lower-case letters, capital letters, special characters: ! Q#$%^&* - You must use at least two different types of character72

4.4 General instructions for using the settings pages

Functional element Description Save settings that have been made on the page. Please note that the new settings will only apply after the save button has been pressed. Function activated Function deactivated List selection Input field Slide control

The video stream is decoded and displayed in the browser without an additional video plug-in. You do not need to install an ActiveX plug-in. The following technology is required by the browser to display the video: MSE – Media Source Extension The following browsers currently support this technology: - Google Chrome Windows / MAC OS X / Android - Mozilla Firefox 42 Windows / Firefox 38 MAC OS X - Mircosoft Internet Explorer 11 from Windows 8.1 - Mircosoft Edge - Opera from 2015 - Safari 8 MAC OS X Videos displays have a short time delay of under one second and are technology-dependent. Other end devices could display videos through e.g. an RTSP stream, and thus be less delayed.73

4.6 Home page (login page)

After entering the IP address in the browser's address bar and opening up the page, the home page will appear in the language set in the Internet Explorer options (Windows setting). Each respective user account (installer, master or user) can set their language individually. For example, the settings pages can be set to English for the "installer" account and German for the "master" account. The following languages are supported: German, English, French, Dutch, Danish. If a language is not supported, the website will be displayed in English.74

4.7 User accounts and passwords

Overview of the types of user with the user name descriptions, the default passwords and corresponding privileges: User type User name Default password Privileges INSTALLER

(for access via web browser, mobile app or recording device) Installer <assigned and modified by installer> Video display on web browser Instant image Local video recording on PC Control microphone/Speaker (optional) Full screen mode in browser Zoom/Focus setting (if available) Complete configuration Playback of recordings from the internal memory MASTER <assigned and modified by installer> <assigned and modified by installer> Video display on web browser Instant image Local video recording on PC Control microphone/Speaker (optional) Full screen mode in browser Playback of recordings from the internal memory USER <assigned and modified by installer> <assigned and modified by installer> Video display on web browser Instant image Local video recording on PC Control microphone/Speaker (optional) Full screen mode in browser75

4.8 Connecting the camera to ABUS NVR

The following information is required to connect the camera to ABUS NVR: IP address/domain name HTTP Port (standard 8000) User name: installer Password: <Password> (assigned and modified by INSTALLER)

4.9 Connecting the camera to IPCam Plus

The following information is required to link up the camera with IPCam: IP address/domain name http port (default 80) rtsp port (default 554) https Port (standard 443) as required User name: installer Password: <Password> (assigned and modified by INSTALLER)76

Button/display on screen Function

Switching between 1, 2 and 3 video streams Instant image function This function saves an instant image from the current video stream in JPEG format. The picture is stored in the following folder:

This function saves a video from the current video stream in AVI format. The video is stored in the following folder:

(Save location, see local configuration) Muting the speaker (if available) This button can be used to deactivate the speaker in the optional audio output. Muting the microphone (if available) This button can be used to deactivate the microphone in the camera or the microphone in the optional audio input. Full screen mode Switching the video picture on the monitor to full screen mode (you can also do this by double clicking within the video frame). You can exit full screen mode by double clicking within the video frame again or pressing the ESC button. Start automatic focussing Manual alarm (programming via Event Manager) Log out as user. Afterwards the login page is displayed again.77

6. View and configuration menu user "master"

Button/display on screen Function Instant image function This function saves an instant image from the current video stream in JPEG format

uration for save location

This function saves a video from the current video stream in AVI format (see Local Confi

uration for save location

This button can be used to deactivate the speaker in the optional audio output. Full screen mode Switching the video picture on the monitor to full screen mode (you can also do this by double clicking within the video frame). You can exit full screen mode by double clickin

within the video frame a

the ESC button. Zoom + (reduce image section) Zoom - (increase image section)78 Focus + Focus - Start automatic focussing Manual alarm (programming via Event Manager) Log out as user. Afterwards the login page is displayed again.

6.2 Displaying/downloading a recording from the internal memory

Detector events are marked with an individual colour during continuous recording. Continuous recording must be enabled for this purpose. The following colours represent certain recording modes: Blue: Continuous recording Green: Motion detection Red: Alarm input Yellow: Tripwire detection Cyan: Human detection Purple: Intrusion detection79

Selection for the playback date

1) Use the left mouse button to move the playhead to the desired start time

3) Now move the playhead for the desired time range. This range is marked

in a different colour under the playback.

The video file is downloaded as a compressed ZIP package.80

7. View and configuration menus user "installer"

The live view display for the installer user is similar to that of the master user. However, the installer user has setting options for the entire camera configuration.

Pressing this button in the top right corner displays information on the individual settings on many of the settings pages.81

The dashboard displays general information about the camera, e.g. installed firmware version or serial number of the camera.

In the area to the upper right, the general status of the system is represented by a symbol.82 System is running correctly All parameters such as system temperature and processor usage are fine. All functions in use are working correctly. System is faulty Errors have occurred in the system. But these are not critical to the basic functionality of the camera. However, they could cause limitations or malfunctions within certain functions. The system may need to be tested by the installer. System condition is critical Certain parameters such as system temperature or processor usage are critical for the system. The system must be tested by the installer immediately.

Current date and time: current date and time set in the camera PC time: current date and time set in the client PC Time zone: here, select the time zone in which the camera is located. Summer time: tick the box if there is generally a summer time/winter time changeover at the camera location. Start/End time: the exact switching times can be entered here. Daylight saving time difference: set the time difference NTP time server: tick the box to synchronise the date and time of the camera with an NTP time server. Server address: enter the server address or the IP address for the NTP server here. A standard server is already set up and can be adjusted if required. NTP port: enter the NTP port here. The standard port for NTP is 123. Interval: select an update interval. Date format: select a display format for the date. Time format: select a display format (24-hour or 12-hour) for the time.

IPv4 Mode: choose between automatic (DHCP) or manual IP address allocation. Static IP: manual setting of the network parameter for IPv4. DHCP: the IP address, subnet mask, gateway (default router) and address for the DNS server are obtained automatically from a DHCP server. An activated DHCP server must be present in the network in this case. The fields on this page are deactivated in this mode and serve as informational fields for the data obtained. If DHCP is not enabled, then a static IP address is used (see below). IP address: manual setting of the camera's IP address (e.g. 192.168.0.30) Subnet mask: manual setting of the camera's subnet mask Gateway: manual setting of the camera's gateway IP address (also known as default router) Primary DNS server: manual setting of the DNS server's IP address Secondary DNS server: alternative IP address of a DNS server85

IPv6 Enable: The IPv6 network interface can be enabled as required. Mode: choose between automatic (DHCP) or manual IP address allocation. Static IP: manual setting of the network parameter for IPv6. DHCP: automatic allocation of the address by the DHCP IP address: IPv6 network address Prefix length: identifies the size of the subnet area Gateway: IPv6 Default Gateway Primary DNS server manual setting of the DNS server's IP address Secondary DNS server: alternative IP address of a DNS server86

The PPPoE protocol makes it possible to connect the camera to a provider modem directly. An additional router is not required.

Enable: enable the PPPoE function User name: input of the user name from the provider (ISP) Password: input of the password from the provider (ISP) Status: display of the connection status

HTTP port: the default port for HTTP transmission is 80. If several IP cameras are located on one subnet, each camera should have its own unique HTTP port.87 RTSP port: the default port for RTSP transmission is 554. If several IP cameras are located on one subnet, each camera should have its own unique RTSP port. HTTPS port: The default port for HTTPS transmission is 443. If several IP cameras are located on one subnet, each camera should have its own unique HTTPS port.

Enable: ticking the checkbox activates the DDNS function. Service provider: select a service provider for the DDNS service: ABUS Server, DynDNS, No-IP User name: user account identification with the DDNS service provider Password: account password with the DDNS service provider Status: Display of the update status88

Enable: activates the HTTPS function. This enables a secure connection using a connection certificate. Please note that further steps are required to configure the HTTPS function. Certificate information: information about the currently installed certificate Select certificate: install a HTTPS certificate from an external provider. When accessing the camera at a later point, the connection is automatically accepted as secure (address bar shows green). Generate self-signed certificate: enter all of the details required for the certificate. When accessing the camera at a later point, the connection must also be confirmed in the browser.89

Enable: activation of the RTSP protocol. This protocol is enabled by default as the majority of network recorders, video management software programs and apps use this protocol. Via http: tunnel of the RTSP protocol via the HTTP port if the RTSP port cannot be contacted. Authentication: a user name and password are required to establish a connection (enabled by default). Activate TLS: this network camera has the option to encrypt the video stream via TLS protocol (similar to e-mail encryption). The end device must encrypt the video stream. This is currently only possible in high- performance video management software programs (e.g. Axxon Next). TLS port: secure encrypted transmission of the video data is performed via a separate port (RTSP -> port 554, RTSP/TLS -> port 555 by default) Maximum number of users: maximum number of simultaneous client accesses (theoretical number if not aware of the network bandwidth of the camera LAN connection).90

RTP port range: in this network port range, the camera negotiates the connection with the client. RTSP streams: in this menu item, the URLs can be added or adjusted for the RTSP requirement.

QoS determines the data flow between two network components on the basis of quality parameters. DSCP - Differentiated Service Code Point91 Audio: DSCP value for audio data Video: DSCP value for video data Alarm: DSCP value for alarm data

Host name: definition of the host name in the network Domain name: configuration of a domain name if the camera belongs to a network domain. Enable UPnP protocol: enables or disables the UPnP function. When the UPnP function is enabled, the network camera can be found on Windows networks. UPnP name: assigning a UPnP name, which the camera uses to appear on the network via UPnP.92

Enable: activates the IP address filter function for IPv4 addresses. Only IP addresses are allowed when inputting the addresses (no domain names). Filter type: choice between forbidden and allowed addresses. You can only set either forbidden or allowed addresses. Protocol: definition of the access protocol. IP area: definition of the start and end IP address of the area.93

7.6.3 Updating & resetting

Restart: press the “Reboot” button to complete the restart manually. Reset to factory settings: resets the camera to factory settings Retain network settings: limitation for the network settings Retain user settings: limitation for the user settings Firmware / language file: This function can be used to update the camera's firmware or language file. First, download the current file from the ABUS website. The "Search" button can be used to select this file for updating. Press the "Upload" button to start the update. Export/import configuration Export settings: exports the entire camera configuration into a file. Import settings: imports a previously exported configuration of the same camera type.94

This page is used to assign an email address to a name. This makes it easier to program event rules later in the Event Manager. Contacts can be added, edited and deleted.

Enable/disable ONVIF: here you can disable the camera’s ONVIF interface as required. This interface is enabled by default. The access data for this interface are the same as the data for the user “installer”. Enable/disable USB: The camera includes a micro USB interface. A WiFi dongle can be connected to this interface (supported chipset: RTL8192CU). If there is a WiFi connection from the smartphone to the camera (access point name: IPCAxxxxx_MAC-Adresse), then a mobile website for the camera can be accessed via the IP address 192.168.1.1.95 It is not possible to use a permanent LAN and micro USB dongle connection (only for service purposes).96

Mirroring: Horizontal: Horizontal mirroring (left/right) Vertical: Vertical mirroring (up/down) Horizontal & vertical: Horizontal and vertical mirroring Vertical display: This setting rotates the image to increase the vertical angle of view. It is necessary to rotate the camera module by 90° when doing this. NOTE: this function is only available in the TRUE WDR mode OFF and 2X.

Network frequency: Here you can set the mains frequency of the power supply network. TRUE WDR (digital overlap): wide dynamic function for improved display of high contrasts. Selection: Off: deactivated 2X: 2x exposure, 2 images with different exposure times are overlapped. 3X (only 2MPx models): 3x exposure, 3 images with different exposure times are overlapped. NOTE: the more images are overlapped, the more trailing effects come into play in moving scenes. The WDR function should only be enabled if the scene requires it. Scenario: These two indoor/outdoor options are used to configure certain pre-settings for the two scenarios in the camera. In the "outdoor" mode, additional filters are enabled for video detectors to prevent the detection of flying leaves, for example, as movement.

For many options, the possibility exists to apply different values for day and night modes. Switch over accordingly during the configuration.97

Brightness, saturation, hue, contrast, sharpness: Adjust these values to suit the ambient conditions.

In the TRUE WDR mode 2X and 3X, the exposure settings are configured automatically. If this mode is deactivated, you can either set the values for the shortest and longest exposure, or fix the exposure time and amplification to a value. Anti-flicker: enable this function if flickering occurs in the video image. Flickering can be caused by an unstable network frequency, fluorescent light or gas lamps.98 Smart IR: function to prevent cross fading from the reflections of objects which are too close (function only when TRUE WDR is off, cross fading is compensated through multiple exposure in TRUE WDR mode)

The BLC function (back light compensation) attempts to improve the appearance of objects in front of a bright background. Identification of the object can be improved here in addition to the WDR function particularly when it comes to close objects.

Note: if the BLC function is enabled, the digital WDR level is fixed (see later) and can no longer be changed.

Enable: activates the BLC function. The digital WDR level is then blocked. Level: the selection of the level -2, -1, 0, 1, 2, 3 depends on the starting scene. Make this selection during the installation.

Mode: Select between different variants of white balance. Automatic, manual, fixed, indoor, outdoor, fluorescent light99

Noise reduction: Function for reducing noise in the image. The higher the value, the more noise is removed and the more static the image appears. Levels: off, low, medium, high

WDR level: wide dynamic function for improved display of high contrasts. The WDR level should be reduced if the image displayed is too bright. Levels: off, low, medium, high100

7.7.2.7 IR LEDs (night mode only)

IR LEDs: If required, IR LEDs can be deactivated in night mode (e.g. for an installation behind a glass pane, or when using external IR spot lights)

7.7.3 Day/night switching

Mode: Select a method for switching between day and night mode. Auto: Automatic switching according to light conditions Day: the camera stays in day mode. Night: the camera stays in night mode. Schedule: switching at fixed times. An individual schedule for the switch can be configured under Configuration/schedules.

Delay time: delay in seconds until switching to day or night mode. Day -> night level / night -> day level: Define the threshold values of the lighting level here. The currently measured value for the lighting level can be seen above the slider. Retain colour in night mode: When enabled, colour information can also be displayed in night mode. Please note that colours are displayed incorrectly, especially when using101 infrared lighting. However, differences in colour can be detected.

Text: superimposes the configurable camera name on the live image. Enable: activate the text display in the live image Text: input the text. Max. 16 characters. Size: text size can be set at three different levels Position: text position top left, top right, bottom left or bottom right. Standard: top left Transparency: determines the transparency value for the background colour. 0 = background is displayed solidly in the set colour. 1 = background colour is not displayed. Text colour: selection of the colour value for the text Background colour: selection of the colour value for the background

Time stamp: superimposes the configurable date and time stamp on the live image. Enable: activates the date/time overlay on the live image Time stamp date & time, date, time Position: text position top left, top right, bottom left or bottom right. Standard: top right Transparency: determines the transparency value for the background colour. 0 = background is displayed solidly in the set colour. 1 = background colour is not displayed. Text colour: selection of the colour value for the text Background colour: selection of the colour value for the background102

7.7.5 Privacy masking

A private zone can cover an area in the video image in order to protect privacy. Private zones appear black.

Add: Up to 8 private zones can be configured using the green “+” button. Change/move an area in the video image: The size and position of a private zone can be changed with the mouse via the marked corner points.

Video stream: Selection of the 1st, 2nd or 3rd video stream for configuration Codec: Select the codec that should be used for compressing the data. H.265 is not supported by all video clients. Check which codecs the video client supports. Codec profile: Here you can select the profile type for the video codec. A profile is standardised and determines the parameters that should be used for encoding. Resolution: Choose the resolution for the video stream. Frame rate: Select the number of images/second for transmission. Bit rate mode: Select the streaming method: Constant bitrate: keeps the bitrate constant at the set value, regardless of the quality.103 Variable bitrate: uses the bandwidth variable without limitations according to the desired video quality. Maximum bit rate: uses the bandwidth variable but with a limit value according to the desired video quality. Bit rate: Select the maximum average bandwidth to be used. This bitrate can be exceeded for a short time in the event of corresponding image changes. DynGOP: enables the dynamic configuration of the Group of Pictures value. Bandwidth can thus be saved in static scenes. The video client must support this technology. GOP value: manual configuration of the Group of Pictures value. Example: 1x means that if the frame rate is set to 25 images/sec, then one I-frame (full image) is sent every second. Max. GOP value: maximum value when the DynGOP option is enabled. The camera automatically displays the value according to the scene changes. The MJPEG option does not use the values codec profile, bit rate mode, bit rate, DynGOP, GOP values and max. GOP value. These values are exclusively used by image differencing procedures such as H.264 or H.265.

input Enable: activates the audio input. Standard: deactivated Audio codec: Options: G711 µLaw, G711 aLaw G726 AAC Gain: Set a gain value according to the height of the input signal. An excessive value can overload the sound. output Enable: activates the audio output. Standard: deactivated Gain: adjust the output signal strength to the next processing audio level.104

Server name: To add an NAS storage location, first press the green “+” button. Assign a name to the storage location. Server address: This can be an IP address on the local network or a domain name. Server path: Created folder on server (Synology example: “Recording” under System controls/Common folder) User name: User with associated rights on the server. Password: server password. Check connection: Once all data has been entered and the save button pressed, the cameras check the connection to the NAS storage location. If the storage location has been connected successfully, the available storage capacity will be displayed, along with the status “OK”.105

Name: To add an FTP storage location, first press the green “+” button. Assign a name to the storage location. Address: This can be an IP address on the local network or a domain name. Port: FTP server port Path: additional sub-folder on the FTP server User name: User with associated rights on the server. Password: user password Encryption: The camera supports SFTP and TLS encryption. If encryption is deactivated, the FTP protocol is used. Test: You can use this button to test the connection to the storage location.106

Note: In the top area of this page, you can configure a long recording on a microSD card. These recordings can be viewed or exported in the PLAYBACK page.

Enable: activate the microSD card function Schedule: use the 24-hour schedule or configure a schedule under Configuration/schedules. Video: select the video stream for the microSD recording Audio: select if sound should be recorded. The audio input and audio source must be configured for this purpose. S.M.A.R.T status: display of S.M.A.R.T information if the microSD card supports this. Status: general status of the microSD card Format: format the microSD card

Note: If continuous recording on microSD card is not enabled, event-triggered recordings can still be configured and recorded via the Event Manager on the microSD card.

The files recorded via the Event Manager then appear on the configuration page of the microSD card in the bottom area.107

The time period and medium can be limited via the filter function.

The marked files are downloaded from the microSD card onto the PC as a ZIP package.108 Playback/export of video data via the "PLAYBACK" page Detector events are marked with an individual colour during continuous recording. Continuous recording must be enabled for this purpose. The following colours represent certain recording modes: Blue: Continuous recording Green: Motion detection Red: Alarm input Yellow: Tripwire detection Cyan: Human detection Purple: Intrusion detection

Selection for the playback date

1) Use the left mouse button to move the playhead to the desired start time

3) Now move the playhead for the desired time range. This range is marked

in a different colour under the playback.

The video file is downloaded as a compressed ZIP package.110

A schedule (24hrs) is pre-programmed into the system. Up to four additional schedules can be added using the green “+” button. These can be used for event programming or for day/night switching. Configure schedule: Assign a name and mark the desired active time periods (30-minute slots). Then press “Save”.

Add areas: Up to three areas can be selected for motion detection using the green “+” button. The size and position of the areas can be changed in the video preview.111

Threshold value/sensitivity: Sensitivity: determines the required intensity of the pixel change. The higher the value, the fewer pixel changes are required for the camera to register movement.

The human detector can recognise the shape of the human body and trigger an action. This detector is activated at all times; recognition is carried out over the entire video image. The yellow marking in the preview image shows the minimum size an object must be in order to be detectable.

NOTE: Body structure must be fully within the image. Person size min. 15% of the image height (~ yellow square).

Note: Body structure must be fully within the image. Person size min. 15% of the image height (~ yellow square).112

Add virtual line: Up to four virtual lines can be added for detection purposes using the green “+” button. The size and position of the lines can be changed in the video preview. The yellow marking in the preview image shows the minimum size an object must be in order to be detectable. Direction: Choose which direction/directions the object must be moving in to trigger an event. Threshold value: The minimum object size which will trigger an alarm. The higher the value, the bigger the object crossing the line has to be.

Add intrusion detection zone: Up to four zones can be added for detection purposes using the green “+” button. The sizes and positions of the zones (polygons) can be configured in the video preview. Move the four corners of each polygon as required.113

Threshold value: The minimum object size which will trigger an alarm. The higher the value, the bigger the object crossing the line has to be. Time before event signal: The number of seconds before an intruding object triggers an event.

Enable alarm input: The alarm input must be activated before use. Trigger condition: Configure the input either as a closer or as an opener (bridge between DI/IN and GND).114

SD card error: An SD card error can be used to trigger an event in the Event Manager. Network error: Disruptions to the network connection can be detected by the system. In order to use this detector the camera must be equipped with a separate power supply (not PoE). Restart: An event can be triggered after the camera is restarted. Over-exposure: If the camera is over-exposed due to a sudden increase in brightness, this can be detected by the system. Under-exposure: If the camera is under-exposed due to sudden darkness, this can be detected by the system. Colour level: If the camera’s colours begin to drift, this can be detected by the system. Loss of focus: A sudden loss of camera focus can also be detected by the system. Turned: Any turning of the camera can be detected by the system. Covered: If the lens is covered, this can be detected by the system. Time before event signal: An event state must last for this set minimum period of time before a detector is triggered.

Enable audio detection: Exceeding a set noise threshold can trigger an event. For this to work, an audio input must be activated and connected to a signal source (line level).

7.11.6 Count statistics

On this page you can view the daily count statistics for the intrusion detection and tripwire detection detectors. Select the date, detector time and detector number. The exact count appears when you move the cursor over the bars displayed. The count can also be sent at intervals to an FTP server or email recipient. The file is downloaded in the *.csv format.116

Enable alarm output: Before it can be used the alarm output must first be activated. Trigger condition: In an alarm state the alarm output is either closed or open, depending on how it is used. The duration of the alarm condition can be pre-set.

User types: There are three user types: installer, master and user. The “installer” is hard-wired into the system – you can only change the password and language settings for this user. Add user: Assign a unique user name. The password must meet the following minimum requirements: Permitted characters: capital letters, lower-case letters, numbers, special characters (!@#$%^&*) Expiry date: if required, you can set a time limit on this user’s access. Language: The language used on the login page will be the same as that set on the PC. Once users are registered their language settings can be changed individually.117

Note: To test the settings a contact with an email address must first be created under “System”/“Contacts”.

You can set up an email account for sending emails (SMTP).118 Name: Assign a name for the account. This information will appear later when selected in the Event Manager. Server address: Enter the SMTP outgoing mail server associated with the email account. Authentication: To ensure proper authentication an encryption type (usually TLS), user name (usually the email address associated with the account sending the messages) and a password for the email account are required. User name: user name for the e-mail account Password: password for the account Sender: Enter the email address for the sending account. Port: The SMTP port is normally 587 (TLS) or 465 (SSL). Subject: The subject appears in the subject lines of emails to the recipient. This subject will appear in all event emails. For instance, you might choose to give the camera location or designation here to help identify it. Test: To test the settings a contact with an email address must first be created under “System”/“Contacts”.

Create event rule: Up to five event rules can be created using the green “+” button. Name: event rule name Schedule: Schedule 1 is already pre-programmed as the default. This is set up to apply the event rules 24 hours a day. New schedules for individual activities can be created under “Configuration”/“Schedules”. Trigger: All detectors associated with the camera (e.g. motion detection) are displayed in the menu, provided the detector is activated/set up. If a detector has several zones attached to it, the zone must also be selected. One zone can trigger one rule. The manual trigger can be switched on and off using a button on the live video page. The periodic trigger can activate a given event rule at a pre-set interval (1 ~ 1440 mins).119 Action: Actions may include: NAS: Network drive (e.g. Synology NAS). A previously configured NAS must be selected. FTP server: A local FTP server or an FTP server on the internet. A previously configured FTP server must be selected. MicroSD card: A microSD card slot can be found in or on the camera itself. Alarm output: The camera's switch output E-mail: An email recipient. A previously configured contact must be selected. Medium: Select individual pictures, video clips or count statistics (FTP/email only). Pre-alarm/post-alarm: Individual pictures: Pictures are generated at 1-second intervals. Max. three seconds prior to the alarm. Max. five seconds following the alarm. If the 0/0 setting is used, only one event picture is transmitted. Video clip: A video clip can be created with a running time of up to three seconds before the event and five seconds following the event. Rest period after event: this amount of time must pass before an event can trigger the same event rule again. Count statistics: The count statistics for tripwire and intrusion detection can only be sent to an FTP server or email address.120

8. Maintenance and cleaning

Regularly check the technical safety of the product, e.g. check the housing for damage. If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use. It is likely that safe operation is no longer possible in the event that: the device shows signs of visible damage the device no longer works correctly the device has been stored in adverse conditions for a long period of time the device has been exposed to stresses during transportation. Please note: You do not need to perform any maintenance on the product. There are no components requiring servicing or checking inside the product. Never open it.

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt. Make sure that no liquids enter the inside of the device, as this will destroy it. Do not use any chemical cleaning agents, as these could damage the surface of the housing.

Devices displaying this symbol may not be disposed of with domestic waste. At the end of its service life, dispose of the product according to the applicable legal requirements. Please contact your dealer or dispose of the products at the local collection point for electronic waste.IPCA52010 / IPCA62510 / IPCA62515 IPCA72510 / IPCA72515 / IPCA68500 / IPCA78500
