CORET5 - Tablet CROSSCALL - Free user manual and instructions

Product Type	Rugged Tablet
Brand	Crosscall
Model	CORET5
Dimensions (approx.)	Approximately 240 x 150 x 12 mm
Weight (approx.)	Approximately 550 g
Power	Built-in lithium-ion battery, charging via USB-C or X-LINK™
Processor	Qualcomm Snapdragon 665 Octocore
RAM	3 GB
Operating System	Android 11 (Android Enterprise Recommended certified)
Display	Touchscreen, multi-touch, glove mode, touch lock
Rear Camera	13 MP with flash
Front Camera	5 MP
Water and Dust Resistance	IP68
Military Standard	MIL-STD-810H
Warranty	5 years
Connectivity	4G, Wi-Fi, Bluetooth 5.0, NFC, GPS
SIM Cards	Dual nano-SIM + micro SD (up to 512 GB)
Speaker	Powerful 100 dB
Programmable Buttons	2 buttons (no. 1 and no. 2) with customizable actions
Exclusive Apps	X-SAFE, X-TALK, X-STORY, X-CAMP, X-SENSORS
Maintenance and Cleaning	Clean with a soft, dry cloth. After immersion in seawater or chlorinated water, rinse with fresh water and dry the covers and connectors thoroughly.
Safety	Follow safety instructions (do not expose to temperatures >60°C, do not short-circuit, use approved charger).
Spare Parts and Repairability	Have any repairs done by qualified personnel. Use original accessories. The battery is not removable.

Frequently Asked Questions - CORET5 CROSSCALL

Is the Crosscall CORET5 tablet waterproof?

Yes, it is certified IP68, meaning it can withstand immersion up to 1.5 meters for 30 minutes. Make sure all covers and the SIM tray are properly closed.

Can I use two SIM cards at the same time?

Yes, the CORET5 accepts two nano-SIM cards simultaneously. You can manage them in Settings > Network & Internet.

How to charge the battery optimally?

It is recommended to charge the battery when it reaches 20% and unplug it around 80% to extend its lifespan. Use the provided charger and USB-C cable.

What to do if the screen does not respond properly with gloves?

Activate Glove Mode in the quick settings panel or via a programmable button. This increases touch sensitivity.

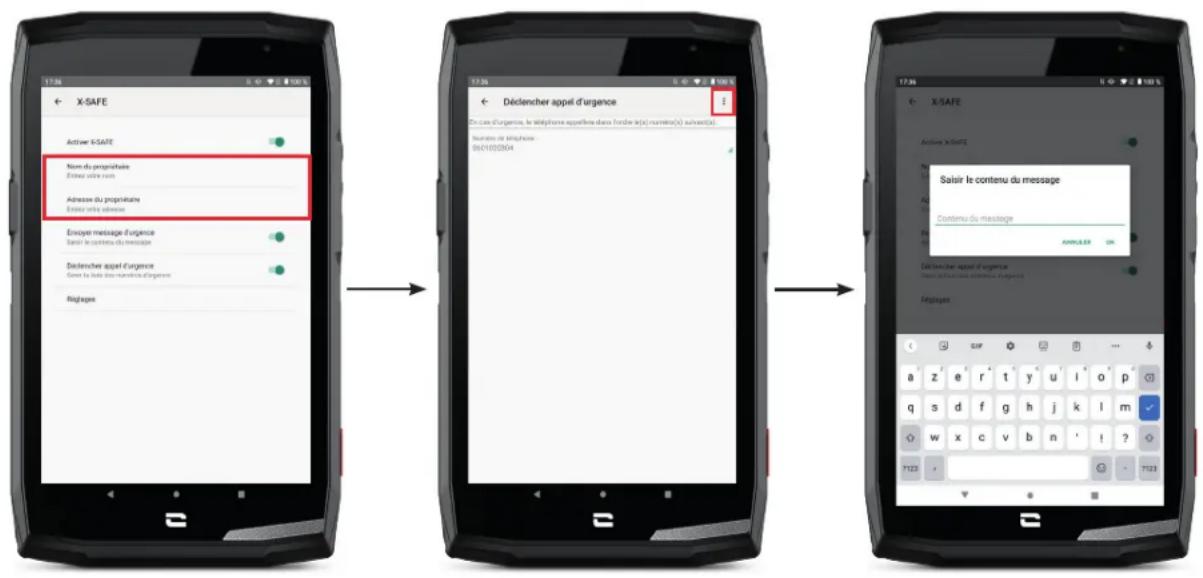

How to use the X-SAFE emergency app?

Open X-SAFE, set your name, address, emergency number(s) and message. Assign it to a programmable button (default button no. 2 with triple press). In an emergency, press according to the configuration to trigger the alert.

Can I take photos underwater?

Yes, activate the Touch-lock function in the camera to lock the touchscreen, then use the volume buttons or programmable buttons to take photos or videos.

How to transfer my data from my old phone?

During the initial setup, you will be guided to copy data from an old Android device, a cloud backup (Google), or an iPhone. Follow the on-screen steps.

Does the tablet support battery sharing?

Yes, Battery Share allows charging another device via the USB-C port. Enable it in the quick settings panel.

What is the warranty for the Crosscall CORET5?

The warranty is 5 years, which is exceptional for a tablet. The detailed conditions are in the manual.

How to reset the tablet to factory settings?

Go to Settings > System > Reset options > Erase all data. Warning: this deletes all internal data. Back up beforehand.

USER MANUAL CORET5 CROSSCALL

Line drawing of a tablet device with blank screen and side buttons (no text or symbols)

CORE-T5

INTERNATIONAL VERSIONS AVAILABLE

VERSIONS INTERNATIONALES DISPONIBLES

FR PT

EN NL

ES SL

DE HR

IT

TABLE DES MATIÈRES

PRÉSENTATION GÉNÉRALE DE LA TABLETTE

Appareil photo....19

Galerie....20

Protection auditive....49

Communication technique

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

PRÉSENTATION GÉNÉRALE DE LA TABLETTE

Technical line drawing of a device with a connector and internal components, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

Hand icon pointing at a circular button (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand interacting with a finger pointing at a circular button labeled 'i' (no text or symbols beyond the icon)

Illustration of two fingers interacting with a circular button and an arrow (no text or symbols)

Hand making a peace sign with two arrows indicating rotation (no text or symbols)

Illustration of a hand reaching toward two arrows, symbolizing motion or urgency (no text or symbols present)

Accueil / Assistant vocal

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a tablet device with labeled parts (no text or symbols on the body)

Line drawing of a rectangular electronic device with a blank screen and small buttons at the top (no text or symbols)

Line drawing of a blank tablet device with a small screen top (no text or symbols)

Two smartphones connected to a desktop computer monitor displaying time, with no visible text or symbols on the devices themselves.

Black electronic device with a red button labeled 'S' and a small circular button, no visible text or symbols beyond the button design.

Three line drawings of a foot and ankle joint, showing different anatomical or mechanical configurations (no text or symbols present)

Calculatrice

Two people watching a beach at sunset, one holding a smartphone and the other displaying a video editing interface (no readable text or symbols on the main subjects)

APPLICATIONS INSTALLEES

1. Notifications de son

ACTIVATING YOUR CORE-T5

Installing the nano SIM/micro SD card 61

Switching the tablet on and off....62

Tips and precautions for charging your battery 62

THE CORE-T5'S TOUCH SCREEN, NAVIGATION SYSTEM AND BUTTONS

Using the touch screen....64

System navigation....66

Tablet buttons 67

USING YOUR TABLET

Phone calls....69

Contacts 70

Messages 71

Camera 71

Gallery....72

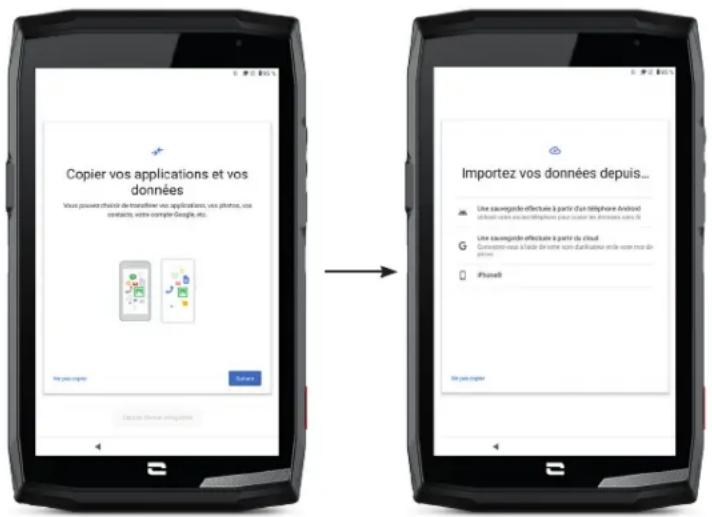

Transferring data to your new CROSSCALL tablet....73

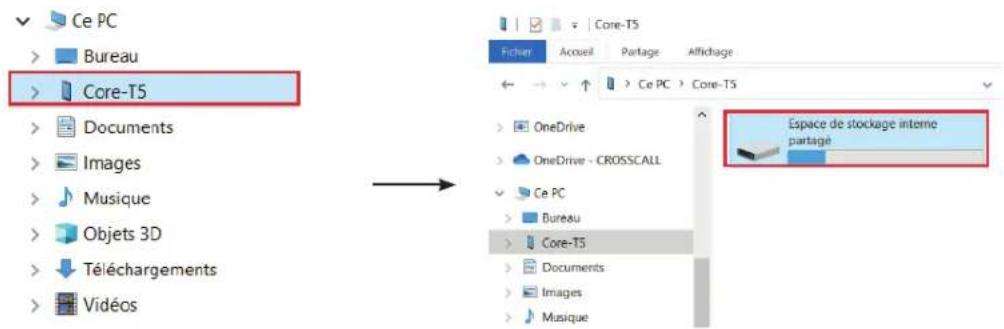

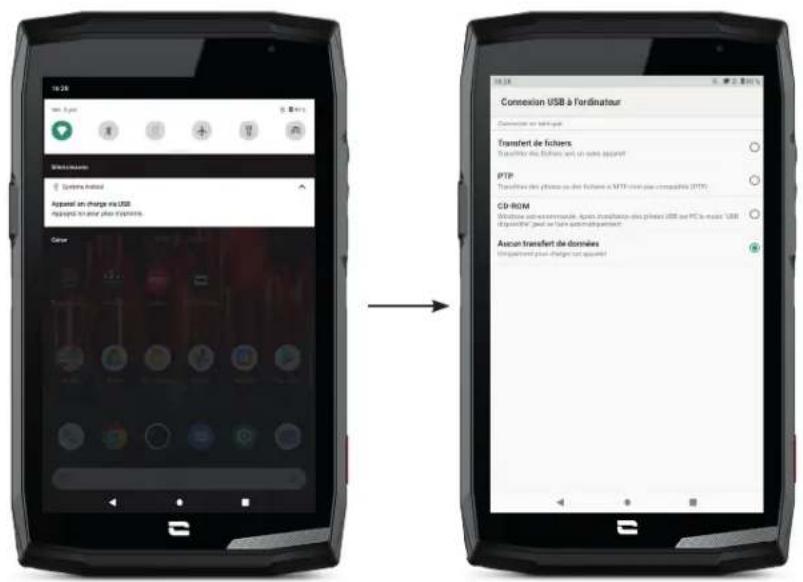

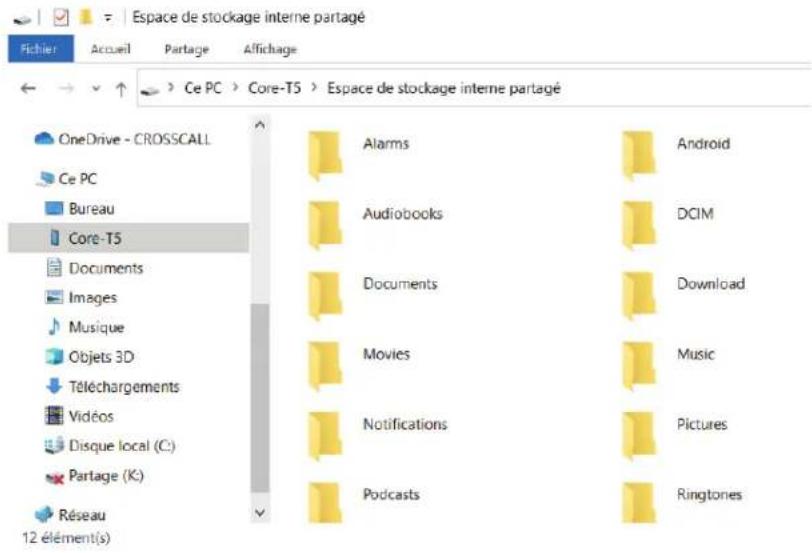

Transferring data between your CROSSCALL tablet and your PC 76

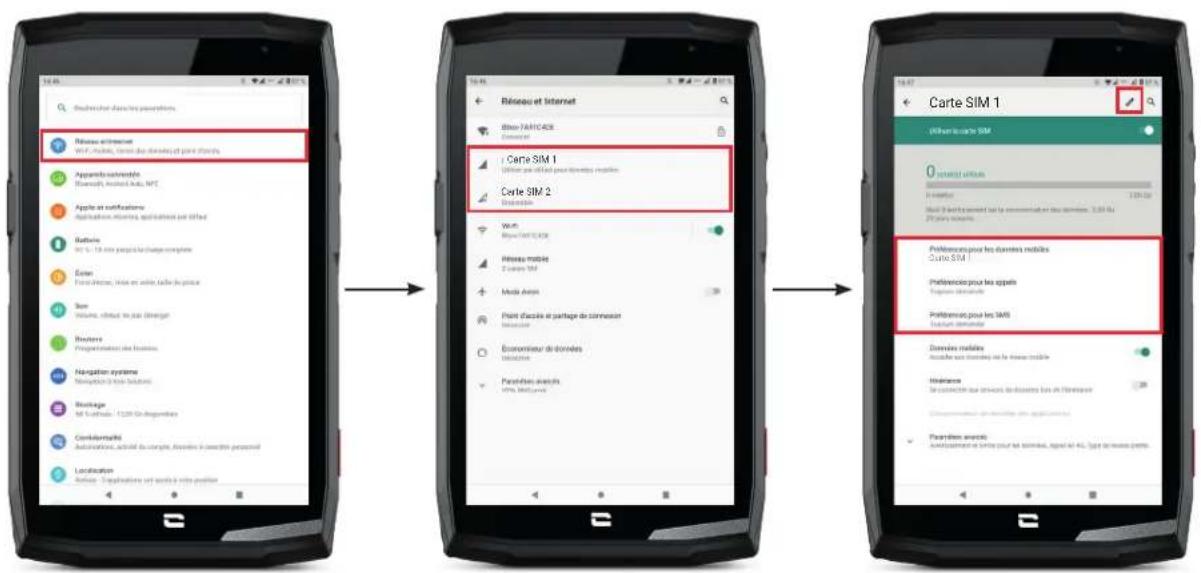

SIM card management....77

Mobile data....78

Browser 78

Email....78

Battery saver 78

Resetting your tablet 79

System updates 79

CUSTOMISING YOUR TABLET

Home screen....80

Sound 81

Notifications 81

Date and time 81

Languages 81

TIPS AND SHORTCUTS

Split screen mode 82

Screenshot 82

Automatic screen rotation....82

Screen wake-up 82

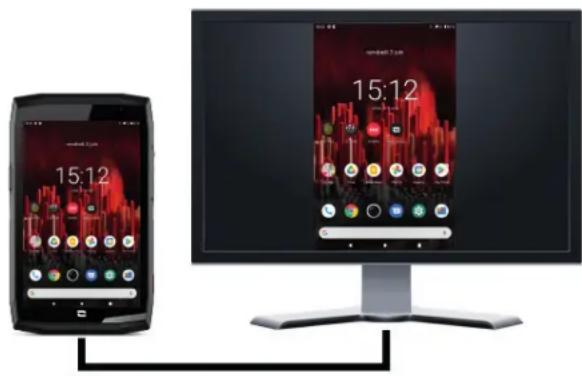

Secondary display on another screen 83

Glove mode 83

Touch-lock mode....83

NFC 84

Battery sharing 84

Charging animation 84

Attaching the leash ^* 84

Calculator....85

CROSSCALL APPS

X-SENSORS 85

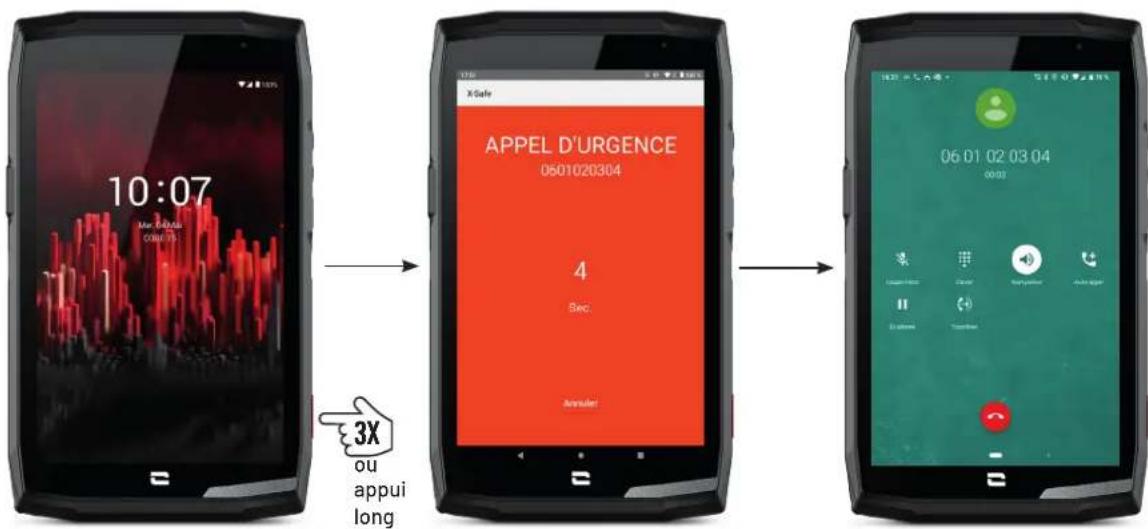

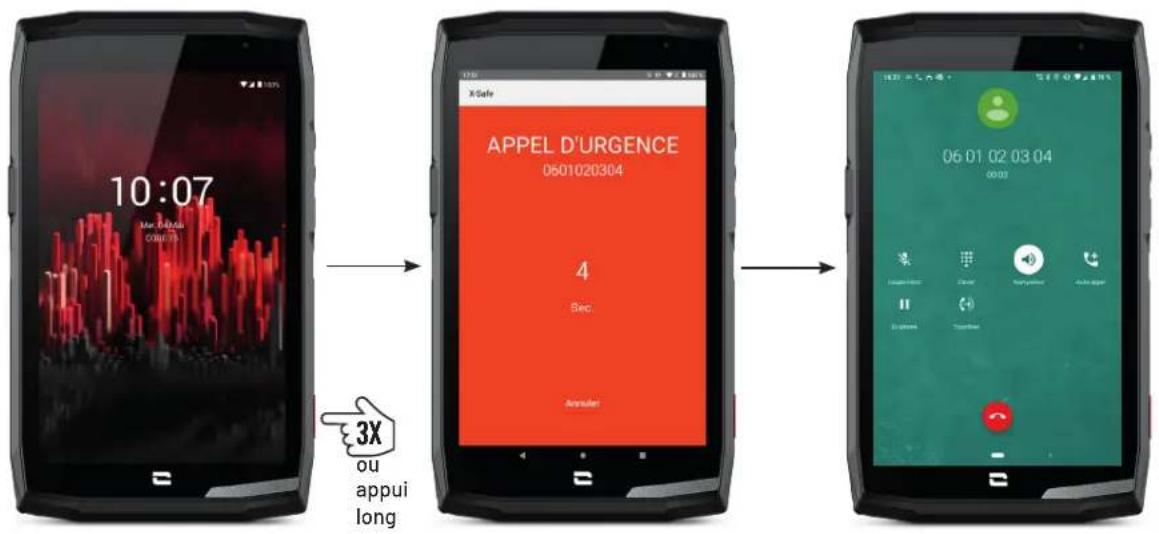

X-SAFE 86

X-TALK 89

X-STORY....90

X-CAMP: The CROSSCALL community app 91

TROUBLESHOOTING

Device 92

Calls 93

Battery status 93

Multimedia 94

Storage 94

Miscellaneous 95

SAFETY MEASURES

General safety information....96

Information on water resistance 97

Medical devices 98

Road safety 99

Power and charging....99

Protecting your hearing....100

Environmental protection....100

Cleaning and maintenance 101

Emergency calls....101

Recommendations to reduce the user's exposure to radiation 102

ADDITIONAL INFORMATION

Compliance 102

Frequency bands and power 103

Information about accessories and software 104

Specific absorption rate (SAR) 104

Copyright 105

APPENDIX

Important information....105

Warranty conditions....105

Thank you for choosing CROSSCALL and for purchasing this tablet.

The user guide will help you get to know your new device.

THE ADVANTAGES OF THE CORE-T5

Durable

The CORE-T5 is guaranteed for five years, an outstanding warranty period in the world of telephony. Furthermore, the CORE-T5 has been designed with CROSSCALL's durability values, and therefore complies with the military standard MIL-STD-810H, and also offers exceptional battery life in order to guarantee its perfect suiting to professionals' daily lives and uses.

High-performace

The CORE-T5 features a Qualcomm® Snapdragon 665 Octo-core processor and 3GB of RAM, so you can navigate around your smartphone quickly and easily, and switch from intensive use to more relaxed types of use. Delivered under Android 11, the CORE-T5 is certified Android Enterprise Recommended, so you are guaranteed an upgrade to the next Android OS, as well as regular security patches, for at least the next three years.

Technical Communication

The CORE-T5 has been especially designed for PMR (Professional Mobile Radio). It supports all mission-critical protocols integrated into the Qualcomm modem (support for Release 12 3GPP functions) allowing users to communicate even in the event of network saturation thanks to resource anticipation and flow prioritisation mechanisms. Boasting 2 programmable buttons and a powerful 100 dB speaker, you're guaranteed to be able to use it in the field: In nosy environments and/or with thick gloves.

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

GENERAL INTRODUCTION TO THE TABLET

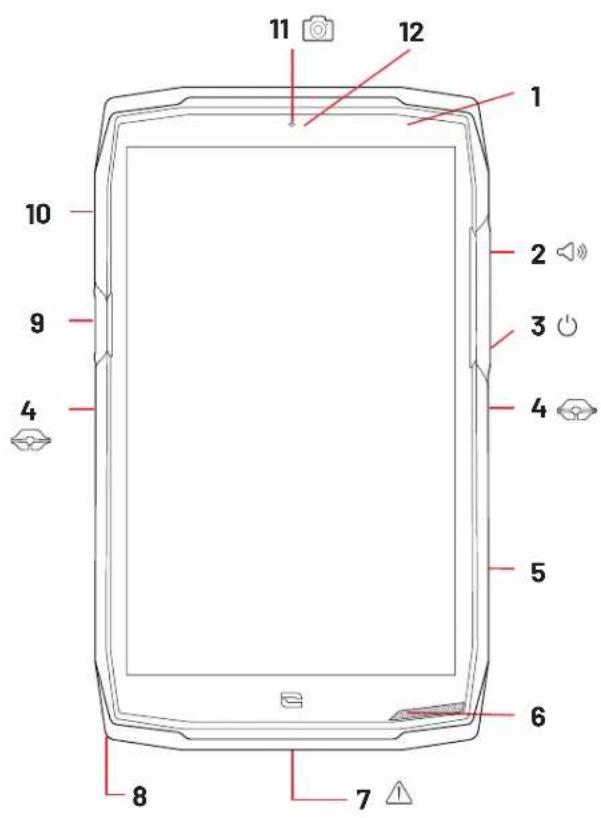

Device overview

1. Light sensor
2. Volume button +/-
3. On/Off button
4. X-BLOCKER notches
5. Programmable button No. 2
6. Loud speaker
7. USB Type-C port (waterproof cap - take care to close it properly!)
8. Hole for safety leash

9. Programmable button No. 1

10. SIM card or micro-SD card insertion tray

11. 5MP front-facing camera
12. Notification LED

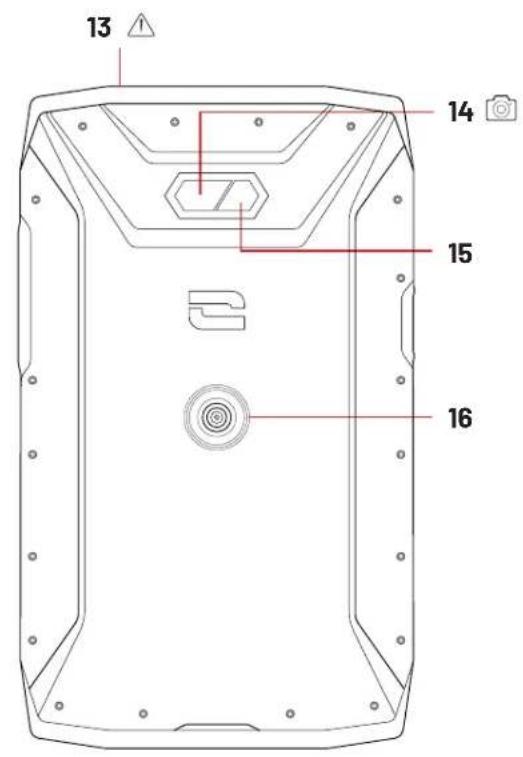

13. Port for headphones (waterproof cap - take care to close it properly!)
14. 13MP rear camera
15. Flash
16. X-LINK™* (mount/charge/data transfer)

X-LINK™\*

The smart magnetic attachment system

This magnetic connector located on the back of your tablet can be used to attach and connect it with ease to exclusive X-LINK™ accessories.

Depending on the accessories used, the X-LINK™* system also lets you charge your tablet and/or transfer data.

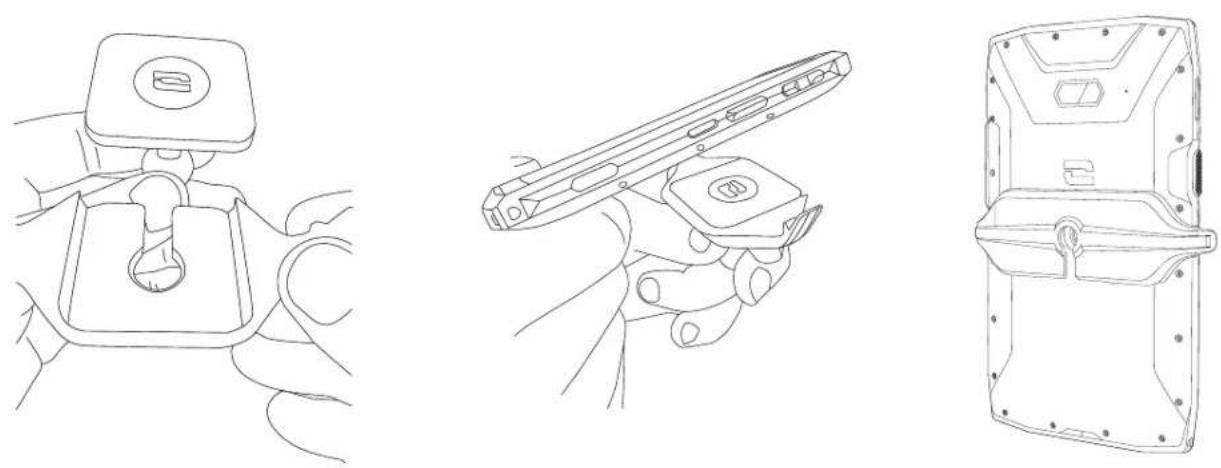

X-BLOCKER

The reinforced mechanical mounting system

In situations that require maximum hold, this exclusive accessory supplied with your tablet guarantees the secure attachment of your tablet to compatible accessories (20kg pull force). It is easy to attach to the notches on the side of your tablet. The silicone coating reduces vibrations caused by knocks.

Before starting an activity, check that your X-BLOCKER is properly inserted into the two slots on the tablet.

Three technical line drawings of a robotic device with labeled components, shown from different angles (no text or symbols present)

See the full range of accessories compatible with the X-LINKTM* and X-BLOCKER at www.crosscall.com

ACTIVATING YOUR CORE-T5

Installing the nano SIM/micro SD card

1. Make sure that your device is turned off. If not, switch it off by pressing the On/Off button.
2. Eject the nano SIM/micro SD card tray using the tool provided, inserting it into the hole designed for this purpose, as shown below.

Line drawing of a device with a tool inserted into a panel, showing front and side views (no text or symbols)

1. Remove the tray completely.

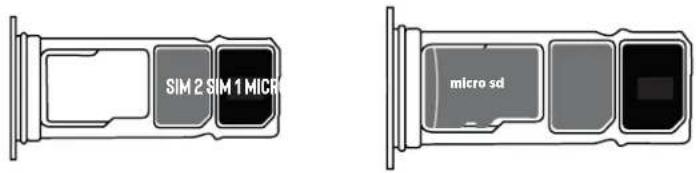

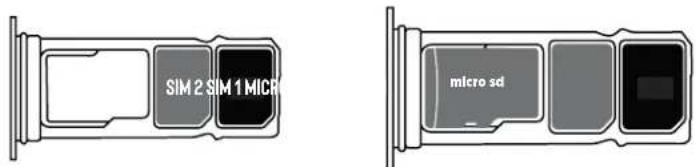

2. You can insert 2 nano SIM cards and a micro-SD card into your tablet.

a. To ensure optimal compatibility with operator services, insert your nano SIM card, metal side down, in the smallest compartment (SIM 1).

b. If required, you can insert a second nano SIM metal side down into the middle compartment (SIM 2) and/or a micro SD card into the left compartment.

1. Slide the tray back in the tablet.

a. Make sure the cards are properly aligned.
b. Check that the tray is properly aligned with the slot in the tablet when you slide it back in.
c. Insert the tray and push it in, as shown above.

Important: To ensure that your tablet is dust and waterproof, make sure that the tray is fully inserted and locked.

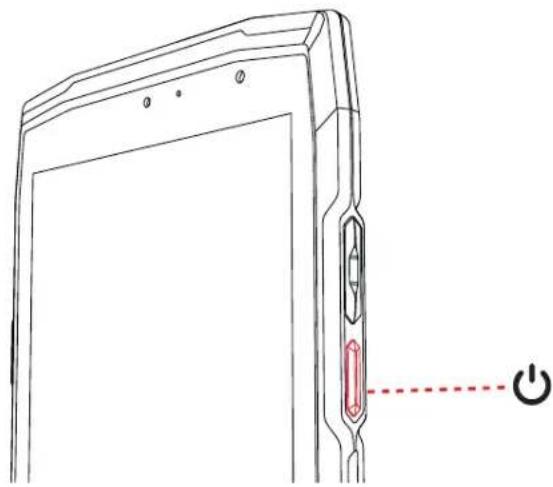

Switching the tablet on and off

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Press and hold the tablet's On/Off button and wait a few seconds until the display turns on.

When you switch on your tablet for the first time or after performing a data reset, follow the on-screen instructions to set up your device.

Once the tablet is on, this button can also be used to:

• Lock/Unlock your touch screen with a single short press
• Access emergency calls, switch off or restart your tablet with a long press.

Tips and precautions for charging your battery

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

1. Open the dust cap and connect the cable and AC adapter supplied in your pack using the USB-A port. Then plug the other end of the cable into the USB-C port on your tablet.
2. Plug the AC adapter into an electrical outlet.
3. When the battery is fully charged, unplug the tablet from the charger. First unplug the charger from the device, then unplug it from the electrical outlet.

Never charge your tablet using the X-LINK™ magnetic connection and the USB connection at the same time, as this could shorten the lifespan of your tablet's equipment.

The battery is built into the tablet and is not removable. Do not remove the battery yourself.

*Technologie Magconn

• To avoid prematurely draining the device battery, we recommend that you follow the battery charging instructions for each charging cycle. To do this, it is better to top up the battery when it reaches 20% and avoid charging it beyond 80%, rather than topping it all the way up to 100% from zero.
• Only use approved chargers and cables that are compatible with your tablet. Using unapproved chargers or cables may cause the battery to explode or damage the tablet.
• Avoid using your tablet while it is charging. Do not cover your tablet or the AC adapter.
• Connecting the charger incorrectly could seriously damage your tablet. Any damage caused by misuse is not covered by the warranty.
• Remove the charger from the electrical outlet when the tablet is not charging.
• The tablet may not switch on straight away if you are charging a drained battery. Once it has been charging for a while, the tablet will start normally.
• If the AC power is lower, your tablet may take longer to charge.
• If you use unconventional chargers such as computers, the charging time may be longer.
• The charging time may vary depending on the ambient temperature and the remaining battery level.
• The tablet can be safely charged at a temperature between 0^ and 40^ . Charging at temperatures below 0^ or above 40^ may compromise battery performance and shorten battery life. Prolonged charging at extreme temperatures will damage the battery.
• During charging, the tablet and charger may become hot. This is completely normal and should not reduce the life or performance of the tablet. If the battery seems hotter than usual, stop charging it. Put your tablet in a cool place and leave it to cool. Avoid prolonged contact with the surface of your tablet when it is hot.

The device's features may vary depending on your location, language, operator and model. This device is OTG compatible. Please use a standard OTG cable.

THE CORE-T5'S TOUCH SCREEN, NAVIGATION SYSTEM AND BUTTONS

Get to grips with your tablet and its apps in a few simple steps.

Using the touch screen

Tap

Hand pressing a circular button with concentric rings (no text or symbols)

To open an app, select a menu item, press a key on the touch screen, or enter a character using the keypad on the screen, and tap the item with your finger.

Long press

Place your finger on an item or on the screen and hold it for 2 seconds to access the available options.

Swipe

Illustration of two fingers pressing a button with an arrow (no text or symbols)

Swipe left or right on the home screen or apps screen to view other pages.

Illustration of a hand pressing a button with a downward arrow (no text or symbols)

Swipe up and down to scroll through a web page or list of items.

Drag

Illustration of two fingers interacting with a circular button and an arrow (no text or symbols)

To move an item, press and hold with your finger, then drag it to the desired location.

Two-finger actions

Hand making a peace sign with two arrows indicating rotation (no text or symbols)

With two fingers together, spread them apart to zoom in on part of a web page, map or image.

Illustration of a hand reaching toward two arrows, symbolizing motion or movement (no text or symbols present)

Pinch closed to zoom out.

System navigation

Your tablet offers two options for system navigation:

• Three-button navigation
• Gesture navigation

Below you will find a detailed explanation of the three-button navigation system, which is the tablet's default setting. To turn on gesture navigation, go to Settings > System navigation

Home/Voice assistant

From any page on your tablet, tap the circle in the middle of your screen to return to the home screen

A long press on this button will activate the Google voice assistant.

Back

From any page on your tablet, tap the triangle at the bottom left of the screen to return to the previous page.

Open apps

From any page on your tablet, tap the square at the bottom right of your screen to access the location where all open apps are saved.

Tablet apps menu

All the apps installed on your tablet are available in your device menu. To access it from your home screen:

1. Swipe your screen from bottom to top.
2. Scroll through the available apps by swiping from bottom to top on your screen and click on the app you want to open.
3. Swipe down or tap the Home button(circle at the bottom of the screen) to close the menu.

Notification panel

From any screen on your tablet, you can access the notifications you have received.

1. To open the notifications window, swipe your screen from top to bottom. The list of your notifications is displayed.
2. Scroll down the list to view all your notifications, and click on the notifications received to read them in full. Once read, the notification will automatically disappear.
3. You can also delete notifications without viewing them. To do this, swipe right on the notification. To delete all your notifications at once, click Delete all.
4. Swipe up or tap the Home button(circle at the bottom of the screen) to close the notification panel.

Quick Settings window

From any screen on your tablet, you can access a Quick Settings window, which lets you see and change your tablet's key settings with ease.

1. To open the Quick Settings window, swipe your screen from top to bottom. This will display the first settings available on the Quick Settings window on your tablet.
2. Swipe your screen again from top to bottom to expand the white box and see all the settings available in this Quick Settings menu.
3. Tap a setting to enable/disable it. The greyed-out settings are disabled. If you want to show more options for a setting, long press on the corresponding icon.
4. Swipe your screen from bottom to top or press the Home button (the circle the circle at the bottom middle of the screen) to close the Quick Settings window.

You can also add, remove or move your settings by clicking on the small pencil at the bottom left of the Quick Settings window.

• To move a setting, long press on it and drag it to the desired location.
• To add a setting, drag it up from the Select and drag icons to add them section.
• To remove a setting, drag it down to the Drag icons here to remove them section.

Tablet buttons

On/off button and screen lock/unlock

Line drawing of a rectangular electronic device with a small circular button on the side (no text or symbols)

This button is mainly used to:

• switch on/off/restart your tablet with a long press
• lock/unlock your tablet.

- Press the on/off button to manually lock the screen.

- Press the on/off button to turn the screen back on and swipe in any direction on the screen to unlock it.

Your screen will automatically lock and switch to standby mode after a certain period of inactivity, to reduce energy consumption and prevent unintentional actions.

To set the time for automatic standby, go to:

Settings > Screen > Advanced settings > Screen timeout and select the desired duration.

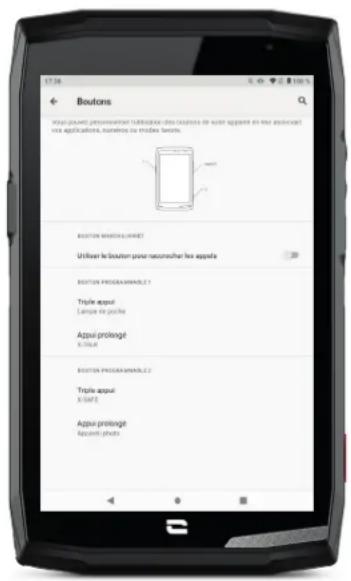

Programmable Buttons

Line drawing of a tablet device with labeled parts (1 and 2), no text or symbols present.

Your CORE-T5 has two programmable buttons (no. 1, no. 2) which can be used in two different ways:

• with a LONG press
• or with three SHORT presses in quick succession.

This feature allows you to configure two functions of your choice for each button, so 4 in total. The buttons have a default setting but you can tailor them to your needs.

To do this:

- GotoSettings > Buttons > and select the action for the button you want to configure (triple tap or long press).

- For each action, you can:

• Call a specific phone number
• Launch an app on your tablet (X-TALK, X-SAFE, Camera, torch, etc.)
• Enable/Disable a mode (glove mode, "Do not disturb", touch-lock mode)

+/- volume buttons

Line drawing of a tablet device with no text or symbols

This button, made up of a + key and a - key, lets you set the volume of your calls and notifications by quickly and easily switching between 3 modes:

• Ring mode
• Vibrate mode
• Silent mode

It also allows you to easily adjust the volume:

• of calls
  • of ringtones/notifications
  • of multimedia content
• of alarms

LED notification light

Line drawing of a rectangular electronic device with a top-mounted antenna (no text or symbols)

Your CORE-T5 has an LED light for notifications. This can light up when:

• your tablet's battery is low (<20%)
• your tablet is charging
• photo/video content is being captured/recorded
• Bluetooth pairing is in progress
• you have received a notification for one of your apps.

To configure the notification LED for the functions described above, go to:

Settings > Apps and notifications > LED notifications.

This menu lets you:

• Enable/Disable the events for which you want to be notified.
• Add/Remove the apps for which you want to know when a notification is received. For each app, you have a choice of 9 colours and a number of flashes between 1 and 3

Several apps are configured by default, but you have the option of adding or removing them as needed:

• To add an app, click on Add an app and select the desired app from your tablet's menu.
• To delete an app, click on the app in question, then on Delete.

You can also choose to only use LED notifications, without your screen lighting up when the notification is received. To do this, go to Settings > Apps & Notifications > Notifications and disable the option Turn on screen for notifications.

USING YOUR TABLET

Phone calls

Dialling a number

1. Tap on the home screen or in your tablet menu.
2. Tap 📋 to open the keypad and enter a phone number.
3. Tap to make a call.

From the call log or contact list

1. Tap on the home screen or in your tablet menu.
2. Tap 🔒 to access your call log and tap the number you want to call.
3. Tap to access your contacts list and tap the contact you want to call.

Making an international call

1. Tap on the home screen or in your tablet menu.

1. Click on 📋 to open the keypad.
2. Press and hold the 0 key until the + sign appears.
3. Enter the country code, area code and phone number.
4. Tap to call the number dialled.

4G calls (VoLTE) / WIFI calls (VoWIFI)

To configure your calls in 4G and WIFI:

1. Go to: Settings > Network and Internet

1. Click on the SIM card you want to set up.
2. You can enable/disable the 4G calland WiFi call function.

Receiving calls

When a call comes in, swipe up on the screen to answer the call.

When a call comes in, swipe down on the screen to reject the call.

Contacts

Manually creating a contact

1. Click on the Contacts app in your tablet menu.
2. Tap + to create a new contact.
3. Enter the contact details.
4. Click on Save to save the new contact

Creating/editing a contact using the keypad

1. Tap to open your tablet keypad
2. Enter the number and click on:

a. + Create contact, to save this number as a new contact.
b. + Add to contact, to add this number to an existing contact.

Creating/Editing a contact from a received call

1. Tap to view your call log

2. Click on the number you want to save and click on:

a. + Create contact, to save this number as a new contact.
b. + Add to contact, to add this number to an existing contact.

Messages

Sending a message

1. Open the Messages app on your home screen or in your tablet menu.
2. Click on Démarrer une discussion
3. Select the contact(s) to whom you want to send your message.
4. Write the message using the touchscreen keypad.
5. Send the message by clicking on SMS

Displaying messages

1. Open the Messages app on your home screen or in your tablet menu.
2. Select a contact in the message list.
3. View your conversation.

Camera

Taking photos/videos

The camera on your CORE-T5 lets you take photos and record videos. To do this:

1. Open the Camera app on the home screen or in your tablet menu.
2. Click on the button at the bottom right of the app to switch from photo to video mode
3. Frame your subject on the screen and press the central key to take the photo for start the video.
4. Your photo/video will be automatically saved in the Gallery app.

QR code reader

Your camera also acts as a QR Code reader. It identifies and deciphers the main types of QR Code (website, business card, WiFi hotspot, sending SMS, calling).

1. Open the Camera app on the home screen or in your tablet menu.
2. Frame the QR code to be scanned in the centre of your camera.
3. Click on the notification that appears at the bottom of your screen to perform the action related to the QR Code.

"Touch-lock" function: to take pictures/videos underwater

To take pictures and videos underwater, you will need to activate the "Touch-lock" function, located on the top right-hand corner of your screen, to lock your touch screen (in photo or video mode). You can then press the volume button or one of the two programmable buttons to take photos or start/stop a video.

To disable this function, simply click twice on the tablet's power button.

This feature can also be used in other specific situations, when you're concerned that certain elements may come into contact with your screen.

Example: use with harness, on a bike rack, etc.

After immersion in sea water, rinse your tablet with fresh water. Thoroughly dry the caps and connectors. The speaker and microphone holes may be blocked with water. Wait a few minutes before making a call to get back to optimal functionality.

Gallery

Viewing images/videos

1. Open the Gallery app on the home screen or in your tablet menu.
2. Select an image or video to view it and access other options.

Deleting images/videos

1. In the Gallery app, press and hold on the image or video you want to delete. You can now simply tap to select any other photos and/or videos you want to delete.
2. Once you have made your selection, click 📄 and confirm the deletion by clicking on OK.

Sharing images/videos

1. In the Gallery app, press and hold on the image or video you want to share. You can now simply tap to select any other photos and/or videos you want to share.
2. Once you have made your selection, click and select a method for sharing.

Google Lens

Your camera comes with Google Lens, which lets you find out more about your photos, to learn about the objects around you with the results of an image search, and to perform operations on these results. To do this:

1. OpentheGallery app on your tablet.

2. Select a photo.

3. Click on 📄ns.

4. For each the photo, you can view the available details, perform an action (a translation for example) or find similar products.

Transferring data to your new CROSSCALL tablet

You can now transfer data to your new CROSSCALL Android device from any other type of device, Android or iPhone, including apps, photos, contacts, your Google account, and more.

When starting up your new tablet, the data transfer stage will automatically be suggested during the initial configuration steps.

1. Turn on your new device, select the desired language and click on Start to begin setting up your new tablet.
2. During this set-up, connect your new tablet to a mobile or WiFi network. It is essential that your old device and your new tablet are both connected to the internet in order to start the data transfer
3. When the "Copy apps and data" window is displayed, click on Next and choose how you want to import your data to your new tablet.

OPTION 1: From a backup on an Android device

ON YOUR NEW TABLET:

1. Select "A backup from an Android phone".
2. Follow the configuration steps described on your tablet.
3. Click on Next at the end of each step.

ON YOUR OLD DEVICE (PHONE OR TABLET):

1. Open the Google app and enter "Configure my device" in the search bar.
2. The "First step" window will be displayed, click on Next.
3. Your old device then detects your new tablet. Check that the shapes displayed on your old and new devices match and click on Next.
4. The "Copy to new device?" window will appear. Click on Copy to start the transfer.

ON YOUR NEW TABLET:

1. If you had a Google account on your old device, you will be asked to enter the password for that account. If a cloud backup was made with this Google account, you can choose to restore it to the new tablet.

2. Select the items to restore, from:

3. Your apps

4. Your contacts
5. Your text messages
6. Your device settings
7. Your call history

8. Google Agenda, Google Contacts, Google Photos and Gmail will be automatically synced.

9. Click on Restore. The transfer will begin.

OPTION 2: From a cloud backup

ON YOUR OLD DEVICE (PHONE OR TABLET) : :

1. Back up the data from your old tablet.

2. Google backup: Go to Settings > System > Backup > Backup Now.

3. WhatsApp backup: Open WhatsApp and go to Settings > Chats > Chat backup > Back up

ON YOUR NEW TABLET:

1. Select "A Cloud backup"
2. Follow the configuration steps described on your tablet and enter your Google account information (email and password).

3. Click on Next at the end of each step.

4. If multiple Cloud backups have been performed using this Google account, you will be able to choose which one to restore on the new tablet.

5. Select the items to restore, from:

6. Your apps

7. Your contacts
8. Your text messages
9. Your device settings
10. Your call history

11. Google Agenda, Google Contacts, Google Photos and Gmail will be automatically synced.

12. Click on Restoreto start the transfer.

OPTION 3: From a backup on an iPhone

ON YOUR OLD DEVICE:

1. Download the "Google Drive" app, then sign in to this app using your Google account. If you don't have a Google account, you can download one once Drive is downloaded.

2. Photos will be backed up to Google Photos.

3. Your contacts will be saved in Google Contacts.

4. The calendar will be saved in Google Calendar.
   To back up files, you will have to import them manually.

5. Start backing up your data. To do this:

6. Open the Google Drive.

7. At the top left of the screen, tap the three lines for the Menu.
8. At the top of the screen, tap Settings > Backup. You can back up all of your data or select part of it. It's totally up to you.
9. Clickon Start backup.

Consider disabling iMessages and FaceTime in your iPhone settings so that all new text messages/calls received go to your new CROSSCALL tablet.

ON YOUR NEW TABLET:

1. Select "iPhone"
2. Follow the instructions given on your tablet and enter your Google account information (email and password) used when backing up your data.
3. Click on Next at the end of each step. The data will automatically be available in all your Google apps (Contacts, Calendar and Photos)

Transferring data between your CROSSCALL tablet and your PC

1. When you connect your tablet to your computer using your USB-C or X-LINK™* cable, a notification will automatically appear in the notification panel.
2. Click on this notification and select File transfer to access the files and folders on your tablet from your computer.

Your device should now appear on your PC/computer. To access the files it contains:

1. Open the file explorer and click on your CORE-T5
2. Click on device storage or SD card.
3. You now have access to the files on your tablet. You can copy these files to your computer or copy files from your computer to the tablet.

*Technologie Magconn

Do not disconnect the USB-C or X-LINK™* cable from the device during data transfer. This could result in loss of data and/or damage to the device.

Specific case for Apple Mac computers

The "Android File Transfer" app must be installed on your Mac to allow Android devices to transfer files.

SIM card management

Your tablet allows you to use two different SIM cards at the same time. You can configure each of these SIM cards.

1. On the home screen or in your tablet menu, click on Settings > Network and Internet
2. Click on the SIM card you want to set up.

*Technologie Magconn

3. Here you can:

• Change the name of the card
• Set the card to be used for mobile data
• Choose the SIM card to be prioritised for calls
• Choose the SIM card to be prioritised for SMS

Mobile data

two methods for enabling/disabling your mobile data:

OPTION 1:

On the Home screen, open the Quick Settings window by swiping down from the top of the screen and click on the Mobile Data icon to enable/disable this function.

OPTION 2:

In Settings > Network and Internet > Mobile networks, click on the switch to activate/deactivate it.

Browser

Connect to the internet to search for information and bookmark web pages for quick access.

1. Click on the Google Chrome app on your home screen or in your tablet menu.
2. Enter the address in the search bar and press the → key on your keypad. This lets you access web pages. Favourites, switching between multiple windows, and other features are also supported.

Email

Configuring your email account

Set up an email account when opening the email app for the first time.

1. Click on the Gmail app in your tablet menu.
2. Click on + Add email address and select your email provider.
3. Follow the instructions on the screen to complete the configuration.

Battery saver

Your CORE-T5 has a battery saver mode. When you activate this mode, your tablet:

• Switches to dark theme
- Disables or restricts background activities, certain visual effects, and other features like "Ok Google".

There are two ways to activate Battery Saver mode.

OPTION 1:

1. Open the tablet's Quick Settings window by swiping down from the top of the screen.
2. In the white banner at the top of the screen, click on the icon.
3. Click on this same icon to deactivate this mode.

If you press and hold the icon for a few seconds, it will take you directly to your tablet's battery menu to quickly view information on your battery status.

OPTION 2:

1. On your home screen, click on Settings > Battery > Battery saver.
2. Click on Activate now to activate this mode.
3. Click on Deactivate now to disable this mode.

From the battery menu, you can also configure this mode so that it is automatically activated when your tablet reaches a certain battery threshold, which you can define. To do this:

1. On your home screen, click on Settings > Battery > Battery saver.
2. Click on Define a programme and tick Based on battery percentage.
3. Choose the desired battery level.

Resetting your tablet

Before performing a reset, make sure you have backed up all important data stored on the device. The device will restart automatically.

To reset your device to factory settings, go to Settings > System > Advanced settings > Reset options and click on Erase all data (restore factory settings).

Important: this action will erase all data from your tablet's internal memory.

This menu also gives you the option to reset just your preferences or the WiFi, mobile data and Bluetooth.

System updates

Updates are changes made to the software version originally installed on your tablet to fix potential bugs, or to make improvements and add new features.

The device will automatically offer to perform the update when a new software version is available.

To check that your device is up to date, go to Settings >System >Advanced Settings >System Update. When your device offers you an update, do it as soon as possible.

CUSTOMISING YOUR TABLET

Home screen

The home screen is the starting point for accessing all the tablet's features. It displays widgets, shortcuts to apps, and much more.

The home screen may display differently depending on the region or operator.

Wallpaper

1. Long press an empty area on your home screen to access the home screen settings.
2. Select Wallpapers.
3. You can choose your wallpaper from a selection of CROSSCALL images or from your photos.

Widgets

Widgets are miniature stand-alone app views that launch specific app functions to make it easier to access and provide information on your Home screen.

To access the widgets offered by your tablet:

1. Long press an empty area on your home screen to access the home screen settings.
2. Select Widgets.
3. Press and hold the widget you want to add to your home screen and arrange it on your home screen, creating a new page if needed. Then release your finger to confirm its position on the screen.
4. On the Home screen, press and hold the widget you want to move or delete. Drag it into the X Delete zone at the top of the screen to remove it from your home screen.

App shortcuts

You have the option to customise which app shortcuts you want to display on your home screen.

1. Open the menu in which all of the tablet's apps are stored.
2. Press and hold on the app you want to add a shortcut for.
3. Keep pressing this app and drag it around slightly to bring up your home screen.
4. Place the app where you would like it to be displayed and release your finger to confirm its position on the screen.
5. On the Home screen, press and hold the app shortcut you want to move or delete. Drag it into the X Delete zone at the top of the screen to remove it from your home screen.

Sound

In Settings >Sound, you have the option to:

• Adjust your device's different volumes for multimedia, calls, ringtones, notifications and alarms.
• Choose your tablet's ringtone for each SIM card, the sound of your notifications, and your alarm sound.
• Manage vibrator mode, the keyboard sound, the keypad sound effect, etc.

Remember that some of these settings can be changed using your tablet's +/- volume keys. You can quickly and easily manage the volume of your ringtone and notifications and switch from ring mode to vibrate or silent mode (or vice versa).

Notifications

In Settings > Apps and notifications ,you can:

• Choose the display settings for your notifications.
• Enable/Disable notifications from the various apps installed on your tablet.
• Configure the notification LED.

Date and time

In Settings >System >Date and Time, you can:

• Enable/Disable the automatic synchronisation of your tablet, which automatically sets the time and date according to your network's time zone.
• Set the time and date manually if automatic synchronisation is disabled
• Enable/Disable use of your network's time zone or manually choose the time zone you prefer.
• Choose the time format (24 hours/12 hours)

Languages

To chat and send messages in more than one language, you can configure multiple languages so that your keyboard adapts and corrects the language currently in use.

In Settings >System >Languages and input >Languages > +Add language, you can choose the language(s) you want to add to your tablet.

When writing a message, just press the space bar and select the language of your choice.

TIPS AND SHORTCUTS

Split screen mode

This allows you to divide your screen into two so that you can view two different app windows at the same time on your screen.

1. Once your app is open, click on the square at the bottom right of the screen to open recently opened apps.
2. Click on the app icon located at the top of the page of each open app.
3. Tap Split Screen, then select the second app.

Not all apps are compatible with split screen mode.

1. To return to a single screen, drag the black bar that separates the two screens up or down depending on which screen you want to keep active.

Screenshot

To take a screenshot, simultaneously click the Power key and the - volume button on your tablet.

Automatic screen rotation

1. Open the tablet's Quick Settings window by swiping down from the top of the screen.
2. In the white banner at the top of the screen, click on the icon to enable/disable automatic rotation of the screen, which automatically rotates your device's screen when you switch your tablet between landscape and portrait mode.

Screen wake-up

You no longer need to press on your tablet's power button to wake up your screen; now all you have to do is to double tap your black screen repeatedly.

This function is particularly useful in situations where your power button is difficult to access: on an X-RIDE, an X-CAR PRO, etc.

To enable/disable this function, go to Settings > Screen > Advanced settings > Screen wake-up.

Secondary display on another screen

Two devices connected to a computer monitor displaying a red-tinted screen interface (no visible text or symbols on screens or background)

You now have the option to project your tablet screen on any other display via a USB-C/HDMI connection.

Everything is done automatically, a few seconds after plugging in.

Glove mode

Activating this mode will increase the screen's sensitivity so that you can use your tablet while still wearing your gloves.

1. Open the tablet's Quick Settings window by swiping down from the top of the screen.
2. In the white banner at the top of the screen, click on the icon to enable/disable glove mode, which lets you use your tablet and touch the screen even when wearing gloves.

You also have the option to allocate one of your programmable buttons to Glove Mode (see page 15). This shortcut will allow you to quickly and easily enable/disable this mode, recommended for regular use.

Touch-lock mode

This mode allows you to completely lock the touch screen on your tablet, regardless of the app you have open or the document being read. The feature is designed for specific situations, when you're concerned that certain elements may come into contact with your screen (underwater, in the rain, etc.).

1. Open the tablet's Quick Settings window by swiping down from the top of the screen.
2. In the white banner at the top of the screen, click the 📄 icon to enable/disable touch-lock mode.

You also have the option to allocate one of your programmable buttons to the Touch-lock mode (see page 15). This shortcut will allow you to quickly and easily enable/disable this mode, recommended for regular use.

NFC

Black handheld device with a red button highlighting a circular button (no visible text or symbols)

The red box on the back of the tablet in the image opposite shows you the location of the CORE-T5's NFC antenna.

Make sure to position this part of the tablet correctly on contactless readers (payment terminals, transport terminals, badge readers, etc.) for optimal operation.

Battery sharing

With the CORE-T5, you can now charge another device or accessory using your battery power.

The function is automatically activated when you connect the other device or accessory via a USB-C cable.

The Battery Share 📋 icon on your Quick Settings window lets you:

• check that charging is in progress
• reverse the charging direction if necessary (in the case of two tablets).

Charging animation

When your tablet is charging, the name of your device and its battery level are regularly displayed on the screen (every minute).

This feature is particularly useful in the case of a company that has a fleet of tablets and uses the POWER STATION to charge the tablets in its fleet.

To activate this function, go to Settings > Screen > Advanced settings, then Enable/Disable Information when charging.

To set the name of your device, go to Settings > Screen >Lock screen > Add text on screen, then enter the name you want to give it.

Attaching the leash\*

Three line drawings showing foot positioning and cable installation (no text or symbols)

Calculator

The Calculator app lets you to perform simple and complex calculations.

1. Tap in your tablet's menu.

2. Change the screen orientation to switch from the standard calculator to the scientific calculator.

CROSSCALL APPS

X-SENSORS

X-SENSORS is an app that provides you with information about the sensors built into your CROSSCALL tablet.

When you open the app for the first time and before using it, please read and agree to the terms and conditions of use by clicking "Agree".

The magnetometer

This tool acts as a compass, measuring the orientation of the tablet in relation to magnetic north. Calibrate your compass by following the on-screen instructions.

The accelerometer

The accelerometer measures and observes the tablet's acceleration in space along 3 axes. It uses mathematical integration to measure the device's speed of movement while tracking its position.

The GPS

This provides the position of the device and the accuracy of the GPS signal. You can find out the number of satellites in range as well as your altitude.

Light sensor

The light sensor measures the intensity of light projected on the tablet screen. It helps you to optimise your screen brightness based on the ambient light to save your battery or to optimise readability.

Bluetooth (5.0) and networks (2G, 3G, and 4G)

These provide information on the presence and strength of communication networks.

Battery status

This function provides an instant visual indication of the battery charging status.

X-SAFE is a CROSSCALL app that allows you to quickly and easily raise the alarm in the event of an emergency.

Step 1: Setting up X-SAFE

1. Open the X-SAFE app. It is enabled on your tablet by default.
2. Enter the relevant information: your name and address
3. Then enter the emergency number(s) you would like to contact when you are in need:

a. Click on Make an emergency call
b. Click on the 3 little dots at the top right of your screen.
c. Click on Select a contact if the number is already saved in your contacts, or on Enter a number if you want to add a number that is not already saved in your tablet.

If you decide to include several numbers in this app, in an emergency the tablet will call the numbers in the order in which you added them. To change this order, you will need to delete the numbers (by clicking on the green arrow) and save them again in the new desired order.

1. You can then choose between two different options to notify your loved ones in the event of an emergency. You can also combine and activate these two options simultaneously

a. If you want to send an emergency message: enable Send an emergency message and click on it to enter the content of the message you want to send.
b. If you want to make an emergency call: Enable Make an emergency call

1. You can also configure some of the app features by clicking on Settings:

a. Enable/Disable LED flashing
b. Enable/Disable the audible alarm
c. Enable/Disable the loudspeaker

Step 2: Connecting X-SAFE and the programmable button

By default, the X-SAFE app is linked to programmable button no. 2 (bottom right of the tablet) and the triple tap to trigger it.

But you can also choose to link the app to your other programmable button (no. 1, at the top left of your tablet) as well as change the activation mode:

• the triple tap
• the long press

If you want to change the default setting for this app:

1. Go to Settings > Buttons

1. Choose the button to which you want to link this app(1 or 2) as well as the means of triggering it, and click on it.
2. Then click on the settings icon next to the app field, and choose X-SAFE.

Step 3: Issuing an alert

We strongly recommend that you issue an alert to check that the configuration of your X-SAFE app is operational. A countdown begins. The user can stop the alert by pressing the "Cancel" button. At the end of the countdown, a call and/or SMS is automatically sent to the person previously selected.

WARNINGS

Any activity is potentially dangerous and can sometimes result in injury or death. App Users are entirely responsible for their activity and must know how to anticipate potential hazards. They must also be able to assess their physical capacity for a given activity. In particular, while images of sometimes extreme sports activities may be used to advertise and promote a device, to demonstrate the resistance and performance of your tablet, UNDER NO CIRCUMSTANCES should these images incite the User to engage in these or other similar activities.

LIMITATION OF LIABILITY

Access and use of the Apps are at the sole risk of the User. As a result, CROSSCALL shall not be held liable for any damage resulting from access and/or use of the App or the information it contains. The User is also informed that CROSSCALL could be forced to temporarily interrupt access to the App for technical reasons, in particular for maintenance purposes. The User accepts these interruptions and waives any claims in this regard.

The App and Services are provided "as is" and "as available" without any guarantees. CROSSCALL makes every effort to guarantee the reliability of the App and its content. However, if the User notices any errors or omissions, CROSSCALL would be grateful if they could notify their team at the following address: [e-mail].

The User declares that they are aware of and accept the characteristics and limitations of the mobile telephone network and the internet and, in particular, the functional characteristics and technical performance of these networks; problems related to connection and/or access to networks and/or websites; problems related to availability and congestion of the networks; problems related to the failure or saturation of networks; problems related to transit time,

access to online information, response times for displaying, consulting, querying or otherwise transferring data; risks of interruption; lack of protection of certain data against possible hijacking or hacking; risk of contamination by possible viruses present on the networks, etc. for which CROSSCALL may not be held liable. The User acknowledges that they have been informed of these provisions, and may not hold CROSSCALL liable in the event of death, accident, illness and/or any type of incident caused in particular by inappropriate practice or use.

X-TALK

X-TALK is a walkie-talkie app developed by CROSSCALL for communicating:

• As a group
  • Without a mobile phone number
  • Without making a call

• Without picking up

• To find out more about this app, go to:https://www.crosscall.com/fr_FR/x-talk.html

• You can also find an app tutorial on our YouTube channel at the following link:https://www.youtube.com/watch?v=V_vEC55Wg0M&t=1s

X-STORY

Two people watching a beach scene with a smartphone and a digital recording device displaying underwater scenes (no visible text or symbols)

The X-STORY app is a photo and video editing app developed by CROSSCALL. It lets you:

• Assemble/Rearrange your photos/videos
• Trim your videos
• Slow down/Speed up your videos

• Add music to your production

• To find out more about this app, go to:https://www.crosscall.com/fr_FR/x-story.html

• You can also find an app tutorial on our YouTube channel at the following link:https://www.youtube.com/watch?v=2IVsk7BHN7I

X-CAMP: The CROSSCALL community app

X-CAMP is an app that brings together the CROSSCALL community and lets you interact with other CROSSCALL users and experts.

It lets you:

• Share your experiences and get answers to your questions from CROSSCALL users and experts.
• Receive handy CROSSCALL tips to get the most out of your product and everything the brand has to offer.
  • Buy or sell your CROSSCALL devices.
  • Take part in surveys and contribute directly to the design of our products.
• Participate in exclusive competitions, receive dedicated X-CAMP promotions and even meet the ambassadors...

TROUBLESHOOTING GUIDE

If you encounter any issues or difficulties with your smartphone, below you can find a few simple solutions to try to resolve some of the issues you may come across.

Before getting in touch with the Crosscall After-Sales Service, you can also sign in to the Crosscall X-CAMP app to chat and exchange tips with Crosscall users and experts who may be able to help you.

Display

Example: The screen won't turn on and/or won't show any information.

Solutions available:

.Routine test: Press the lock button (on/off) to make sure that the device isn't in standby mode or switched off.
. Charge your smartphone: it only takes around 15 minutes to restart it.
.Forced restart: If the screen remains black, force a restart by pressing and holding the power button and the volume down button simultaneously for 10 seconds.
.Faulty screen detection: If the issue persists, test the screen by calling the smartphone to see whether it can make sounds but not display any visuals.

Screen sensitivity

Example: Touch screen reacting erratically.

Solutions available:

.Cleaning the screen: Clean your screen with a soft, dry cloth and make sure that the screen is clean and dry.
. Restart: Restart the device to see if the issue is persisting.
. Enable "Glove mode": For optimal use of the touch screen when wearing gloves, or if you have dirty hands, you can enable "Glove Mode", which will increase the screen's sensitivity.
. Screen protection: Some screen protectors may interfere with the touch screen's sensitivity. If you need to add a screen protector, we recommend using the X-GLASS screen protectors sold by Crosscall.
.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Connecting to the WiFi network

Example: The smartphone won't connect to the WiFi network or keeps losing the connection.

.Solutions available:

. Routine test: Enable then disable Flight mode to reset the connections.

- Network settings: Go into Settings > Network and Internet > Internet > WiFi, select the WiFi network, delete it and then start a new search and select it again. Reconnect your smartphone to the router by entering the new password.

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Battery and Battery Life

Example: The smartphone is quickly losing charge for no apparent reason.

Solutions available:

. Routine test: Identify any energy-intensive apps via Settings > Battery > Battery usage. Close any apps that you no longer need.

. Energy saving settings: Enable energy saving mode by going into Settings > Battery > Battery saver.

. Notification settings: Disable unnecessary notifications that may entail excessive battery used. (Settings > Notifications).

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Battery and Charging

Example: The smartphone won't charge anymore.

Solutions available:

Verification of the cable and adaptor: Use a different cable and a different charger that is compatible with your smartphone to check whether there's an issue with the charging equipment. Make sure that the charger is properly plugged in, or that the smartphone is correctly positioned over the X-LINK™ accessory for charging your device (X-CABLE, X-DOCK, etc.).

. Restart the device: Sometimes, simply restarting the phone can solve the charging issue.

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Start-up

Example: Your smartphone won't switch on.

Solutions available:

. Charge the smartphone: Charge the phone for at least 15 minutes, then try to switch it on by pressing the on/off button for a few seconds.

.Forced restart: Press and hold the power button and the volume down button for 10-20 seconds.

Verification of the charger and cable: Use a different cable or charger that is compatible with your smartphone to check whether there's an issue with the charging.

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Performance

Example: The smartphone is slow or experiencing slowdowns.

Solutions available:

. Routine test: Restart the device to clear temporary caches.
. Storage manager: Go to Settings > Storage. Enable the storage space manager.
. Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Example: The smartphone is crashing (freezes).

Solutions available:

. Close the apps: If your device crashes or freezes, first try closing any open apps by clicking on the square in the lower-right of your system navigation bar, then click on CLOSE ALL. Secondly, try to switch off or restart your device like you usually do.

. Forced restart: Simultaneously press the power button and the volume down button until the device restarts.

. Verification of recently used apps: Identify and uninstall any apps installed recently that may be causing the issue.

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Example: Critical error message.

Solution available:

.Forced restart: Simultaneously press the power button and the volume down button until the device restarts.
. Software update: Check whether there are any pending updates for the device in Settings > System > System update.

GPS connectivity

Example: Weak GPS signal or GPS not working.

Solutions available:

.Restarting the GPS: Disable then re-enable the GPS in Settings > Location services > Enable location services.
. Enhanced location precision mode: Switch to Enhanced location precision mode in the GPS settings to improve your signal acquisition. (Settings > Location > Location services > Location precision > Enhance location precision)
. Software update: Check whether there are any pending updates for the device in Settings > System > System update.

E.g.: Difficulties when making/taking calls.

Solutions available:

Verification of the network: Check that the phone is in an area with sufficient network coverage. If necessary, move a few metres away to try and connect with your operator's network.
. Verification of the SIM card: make sure that it hasn't been disabled. For this, go into Settings > Network and Internet > SIM & eSIM profiles.
.Call restrictions: If the call restriction function has been enabled for the phone number that you're dialling or for the caller's phone number, you'll need to disable it. To do this, go into Phone >Press the 3 dots in the upper-right of the interface >Settings>Blocked numbers.
. Flight mode: Enable and disable flight mode to reset connections.
.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Audio and Notifications

Example: I can't hear incoming calls or notifications.

Solutions available:

. Routine test: Make sure that the volume of notifications, the ringtone and calls is correctly set in Settings > Sound and vibrate.
. "Do not disturb" mode: Check whether Do Not Disturb mode has been enabled and, if necessary, disable it in Settings > Sound and vibrate > Do not disturb.

Software update: Check whether there are any pending updates for the device in Settings > System > System update.

.Example: No sound during calls or the person you're talking to can't hear you.

.Solutions available:

. Testing earphones and the speaker: Use the speaker, a USB-C headset or Bluetooth earphones to identify whether the issue is coming from the internal microphone.
. Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Multimedia files

Example: Can't open certain audio, photo or video files, etc.

Solutions available:

. Verification of the format: Check that the file format is supported by the smartphone.
. Verification of storage: Make sure that the files are not corrupt by transferring them to another device.

Sensor and Equipment Features

Example: The fingerprint sensor isn't working.

Solutions available:

. Cleaning the sensor: Make sure that the fingerprint sensor is clean and dry.
. Recalibrating fingerprints: Delete saved fingerprints and reconfigure them in Settings > Security and confidentiality > Unlocking the device > Digital fingerprint.
.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Example: The proximity sensor has stopped working (the screen stays on during calls).

Solutions available:

.Cleaning the sensor zone: Make sure that the sensor at the top of the screen is clean by cleaning it with a soft, dry cloth.

.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Example: The NFC isn't working.

Solutions available:

.Restart the NFC function: Go into Settings > Connected devices > Connection preferences > NFC, and disable then re-enable the feature.
. Test with another device: Try to connect another NFC device to check whether the issue is with the smartphone or the other device.
.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

Example: The camera isn't working.

Solutions available:

. Restart the Camera app: Close and restart the X-CAM app.
.Clear the app's cache: Press and hold the X-CAMM app icon > App info > Storage space and cache > Clear cache.
.Software update: Check whether there are any pending updates for the device in Settings > System > System update.

SAFETY MEASURES

General safety information

Failure to adhere to the following safety instructions could result in fire, electric shock, injury, or damage to your tablet or other property. Please read all the safety instructions below before using your tablet.

• Always switch off your tablet whenever it is forbidden to use it, or when it may cause interference or danger.
• Avoid exposure to magnetic fields.
• Please switch off your tablet in aeroplanes and airports when prompted.
• Switch off your tablet when you are in the vicinity of high-precision electronic equipment. The tablet could affect the performance of this type of device.
• Do not put your tablet or accessories in containers that produce a strong magnetic field.
• Do not leave magnetic data storage devices near your tablet. The radiation emitted by the tablet could erase the information stored on it.
• Keep the tablet away from direct sunlight. Do not expose your tablet to high temperatures, and do not use it in the presence of flammable gases (e.g. at a petrol station).
• Keep your tablet at least 15mm away from your body when you make calls.
  • Small parts may cause choking.
• Your tablet can emit a loud sound.
• Avoid impacts or damage to your tablet.
• Some parts of your tablet are made of glass. The glass is likely to break if your tablet falls on a hard surface or suffers an impact. If the glass breaks, do not touch the glass parts of the tablet and do not attempt to remove the broken glass from the tablet. Do not use your tablet until the glass has been replaced by an authorised operator.
• Do not attempt to take apart your tablet or its accessories. Tablets should only be serviced or repaired by qualified personnel.
• The power outlet should be located near the tablet and must be easy to access.
• Comply with all laws and regulations relating to the use of the tablet. Respect the privacy and rights of others when using your tablet.

• Follow the instructions in this manual for using the USB cable. Otherwise, your tablet or PC may become damaged.

• Clean your tablet with a soft, dry cloth. Unless you meet the conditions mentioned below in "Information on water resistance", do not use water, alcohol, soap, or chemicals.

• Be sure to back up your important data. A repair or other factors may lead to data loss.
• Do not disconnect the tablet when transferring files or formatting the memory. This could cause program failure or file damage.
• Keep the tablet and charger out of the reach of children. Do not let children use the tablet or charger unattended.
• This device is not intended to be used by people (including children) with reduced physical, sensory or mental capacities, or whose lack of experience or knowledge prevents them from safely using the device, if they are not supervised or have not been given instructions beforehand by the person responsible for their safety.
• Keep small tablet accessories out of reach of children in order to avoid choking.
• Do not let your children or pets chew or lick the device.
• Do not modify or recondition your tablet.
• Do not expose your tablet to flames, explosions, or other sources of danger.
• Switch off your tablet when in the vicinity of explosive materials or liquids.
• The tablet must only be connected to a USB 2.0 interface.
• The ideal operating temperature is between 0^ and 40^ . The ideal storage temperature is between 20^ and 50^ .
• Stop using your device if it overheats or if any of its parts are cracked or broken.
• Do not press your device against your eyes, ears or any other part of your body, and do not put it in your mouth.
• Do not use the flash close to the eyes of people or animals.
• Only use the original accessories for this tablet and do not install its battery in another tablet.

Information on water resistance

• You have just purchased an IP68 compliant tablet. To guarantee optimal use and water resistance, please ensure that all caps and guards covering slots or openings, and the case are correctly sealed.
• Do not open the caps or SIM card drawer if the device is in water or in a very humid environment.

• Make sure the caps are not damaged when you open or close them. Ensure that the seal is free from any debris, such as sand or dust, to avoid damaging the device.

• The caps covering the openings may come loose in the event of a fall or knock.

• Check that all the covers are properly aligned and completely closed.
• If the device has been submerged in water or the microphone or loud speaker is wet, the sound may not be clear during a call. It is recommended to wait a few minutes after immersing your device for it to return to its original audio quality. Make sure that the microphone or loud speaker is clean and dry by wiping it with a dry cloth.
• If the device gets wet with salt or chlorinated water, rinse it with tap water, then dry with a soft, clean cloth. Carefully wipe the caps and connectors.
• The water resistance of the device can lead to slight vibrations under certain circumstances. These vibrations, for example when the volume is turned up high, are entirely normal and do not affect the device's performance.
• Do not remove the waterproof membrane covering the microphone or speakers, and do not use any tool that could damage this (sharp, spiky, etc.).
• Do not expose the device to metal particles: these could build up on your tablet's loud speaker due to the magnet embedded in its component. Metal particles can be cleaned with a soft cloth. Alternatively, you can place the device in a transparent plastic bag.
• Changes in temperature can increase or decrease pressure on the device, which can affect the quality of the sound. If necessary, open the caps to evacuate the air.

Medical devices

• Please switch off your tablet in hospitals and other medical facilities where this is required.
• Your tablet has radio antennae that emit electromagnetic fields. These electromagnetic fields can interfere with pacemakers and other medical devices.
• If you wear a pacemaker, a minimum distance of at least 20 cm should be maintained between your pacemaker and your tablet.
• Keep the device on the opposite side to an implant.
• If you think your tablet is interfering with your pacemaker or other medical device, stop using it and consult your doctor for specific information about your medical device.
• When performing repetitive activities, such as text messaging or games on your tablet, you may experience occasional discomfort in your hands, arms, wrists, shoulders, neck, or other parts of your body. If you experience any discomfort, stop using your tablet and consult your doctor.

Road safety

• Comply with all safety standards and measures relating to the use of your device when driving.
• Obey all local laws. Always keep your hands free to operate the vehicle while driving. When driving, road safety should be your primary concern.
• Pull over and park before you make or receive a call, if traffic conditions require it.
• Radio frequency signals can interfere with certain electronic systems in your vehicle, such as the car radio or safety equipment.
• If your vehicle is equipped with an airbag, please do not obstruct its access by placing portable or fixed wireless equipment in front of it. Otherwise, you risk preventing the airbag from opening and could cause serious bodily injury. Hand-held tablet use while driving is prohibited.
• When listening to music, be sure to keep the volume at a reasonable level so that you can hear what is going on around you. This point is especially important when you are near a road.
• Using your tablet in certain circumstances may distract you and cause danger. Adhere to any rules that prohibit or restrict the use of a tablet or earphones (for example, not sending text messages while driving or using earphones while cycling).
• Hand-held tablet use while driving is prohibited.

Power and charging

• Do not throw your device into fire
• Donotshort-circuit
• Do not expose it to temperatures above 60^ / 140^
  • Recycle the battery according to standards in force.
• Charge your tablet using the USB cable and power adapter supplied. Using an incompatible adapter or cable could permanently damage your tablet.
• The adapter should be plugged in near the tablet and must be easily accessible.
• Using damaged cables or chargers, or charging in the presence of moisture, may cause an electric shock.
• The power adapter is intended for indoor use only.
• The electrical power must be easy to access. The plug must not be blocked during use.

• To completely disconnect the tablet from AC power, unplug the charger from the wall outlet.

• Power adapters can become hot during normal use, and prolonged contact may cause injury.
  • Always ensure adequate ventilation around the power adapters when in use.

• Ventilation should not be obstructed by covering air vents with objects (newspapers, tablecloths, curtains, etc.) to prevent overheating and malfunction. Maintain a free space of at least 10cm around the tablet.
• The tablet should be used in areas with a temperate climate.
• Do not insert or remove a USB port with wet hands as this could lead to a risk of electric shock.
• Because the tablet is equipped with an internal rechargeable battery, do not expose the product to excessive heat (sun, fire, etc.).
• Avoid using the connector to perform several actions at once, and make sure that the battery terminals are noting touch any conductive elements, such as metal or liquid.

Protecting your hearing

This tablet adheres to the regulations in force in terms of limiting the maximum output volume. Listening with earphones at high volume for extended periods can cause hearing loss!

• Stop using the product or lower the volume if you feel that your ears are ringing.
• Do not listen on full volume; medical professionals advise against exposure to high noise levels for an extended period of time.
• Use earphones wisely, as excessive sound pressure coming from earbuds or an audio headset can cause hearing loss.
• To prevent damage to your hearing, avoid listening at high volumes for long periods of time.
• Only use the earphones supplied with your tablet.

Environmental protection

• Please respect local regulations in terms of waste elimination when you are getting rid of packaging, the battery or the used tablet. Take them to a collection point so they can be properly recycled. Do not dispose of tablets or used batteries in ordinary rubbish bins.
• Please dispose of used lithium batteries that you do not want to keep in a designated place for this purpose. Do not dispose of them in rubbish bins.

- Do not dispose of tablets or used batteries in ordinary rubbish bins.

There is a risk that the battery will explode if you replace it with an unsuitable model. Dispose of used batteries according to the instructions.

Cleaning and maintenance

• Switch off your tablet before any cleaning or maintenance. The charger must be unplugged from the outlet. The tablet and charger must be disconnected to avoid electric shock or short circuit of the battery or charger. Close the caps.
• Do not clean the tablet or charger with chemicals (alcohol, benzene), chemical agents or abrasive cleaners so as not to damage the parts or cause a malfunction. The device can be cleaned with a soft, anti-static, slightly damp cloth, or with tap water following the instructions in the INFORMATION ON WATER RESISTANCE on page 46.
• Do not scratch or tamper with the tablet, as the substances in the paint may cause an allergic reaction. If such a reaction occurs, stop using the tablet immediately and consult a doctor.
• Remove dust from the power socket and keep it dry to prevent the risk of fire.
• If the tablet or any of its accessories do not work properly, contact your local service provider.
• Do not disassemble the tablet or its accessories yourself.

Emergency calls

In the event of an emergency, if the tablet is switched on and you are in the network coverage area, it can be used to make an emergency call. However, emergency numbers may not be accessible on all networks. You should never rely on your tablet to make emergency calls.

Recommendations to reduce the user's exposure to radiation

• Use your tablet in areas covered by your network to reduce the amount of radiation received (especially in underground car parks or when travelling by train and by car).
• Use your tablet when there is good reception (i.e. maximum number of bars is displayed for the network).
• Use a hands-free kit.
• During calls, keep the tablet away from the tummy of pregnant women and the lower abdomen of teenagers.
• Children and teenagers should make reasonable use of tablets by avoiding, for example, night-time calls and limiting the frequency and duration of calls.

ADDITIONAL INFORMATION

Compliance

CE UK CA

- CROSSCALL confirms that this device complies with the basic recommendations and other relevant measures set out in Directive 2014/53/EU. The latest applicable version of the Certificate of Conformity can be found on the website: https://docs.crosscall.com/public/CERTIFICAT/CORE-T5_CERTIFICATE-OF-CONFORMITY_INTERNATIONAL.pdf.

Represented by :Authorised Rep Compliance Ltd., ARC House, Thurnham, Lancaster, LA2 ODT, UK.

- Restrictions relating to the 2.4GHz band: Norway: this sub-paragraph does not apply to the geographical area located within a 20 km radius from the centre of Ny-Ålesund. Restrictions relating to the 5 GHz band: According to Article 10, paragraph 10 of Directive 2014/53/EU, the packaging indicates that this radio equipment is subject to certain restrictions when placed on the market in Belgium (BE), Bulgaria (BG), Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain, (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), the Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SL), Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK (NI)), Turkey (TR), Norway (NO), Switzerland (CH), Iceland (IS) and Liechtenstein (LI).

Frequency bands and power

• Frequency band used by radio equipment: certain bands may not be available in all countries or all regions. Please contact the local operator to get more detailed information.
• Maximum radio signal frequency emitted in the frequency band where the radio equipment operates: the maximum power for all the bands is less than the highest specified limit value under the associated harmonised standard. The nominal frequency band and power transmission limits (radiated and/or by conduction) applicable to this radio equipment are the following:

Bands Frequency maximum power

Information about accessories and software

We recommend that you use the following accessories:

ACCESSORY MODEL TECHNICAL DATA
	Ref. Crosscall:1902140199602	USB A / USB C1m

The product software version is L1893.X.XX.XX.XXXX (where X=0 to 9, A to Z, representing updates to the user experience, security patches, etc.). Software updates are published by the manufacturer to correct bugs or improve certain features after the product's launch. All the software versions published by the manufacturer have been verified and always comply with the applicable regulations.

Not all the radio frequency settings (for example, the frequency band and output power) are accessible by the user or can be modified by him/her. The latest information relating to accessories and software is available in the Certificate of Conformity, which can be viewed on the website: https://docs.crosscall.com/public/CERTIFICAT/CORE-T5_CERTIFICATE-OF-CONFORMITY_INTERNATIONAL.pdf

Specific absorption rate (SAR)

This device adheres to the directives relating to exposure to radio frequencies, when it is used near the head or at a minimal distance of 5mm from the body. According to ICNIRP(International Commission on Non-Ionising Radiation Protection) guidelines, the SAR limit is 2W/kg on average for the head and body, and 4W/kg for the limbs for 10g of cell tissue absorbing the majority of frequencies.

Maximum values for this model:

• Body SAR: 1.58 (W/kg) ==> authorised limit value: 2 (W/kg)
• Limb SAR: 2.90 (W/kg) ==> authorised limit value: 4 (W/kg)

Copyright

This equipment is reserved for private use. Copying CDs or downloading music, videos or photos for resale or for any other commercial purpose may constitute a violation of copyright law. Permission may be required to copy or save all or part of a document, book and/or presentation subject to copyright law. Please make sure you are familiar with all applicable laws regarding the saving and use of such content in your country and jurisdiction.

APPENDIX

Important information

To provide you with an optimal experience, the tablet connects regularly to internet and messaging servers. This automatically and inevitably generates data exchanges that may be billed in addition to your existing subscription, or deducted from your prepaid plan.

In order to avoid any billing problems related to services that use the internet, we strongly advise you to opt for a suitable package that includes unlimited internet and messaging access. Also, please avoid changing the pre-configured default settings. If you wish, you can connect to a WiFi network to improve speed and efficiency. We particularly recommend using a WiFi

network when streaming or downloading games, videos or movies.

Deleting data (factory reset)

To reset to default settings, in your phone's menu, click on Settings > System > Reset options > Delete all data (restore factory settings).

Before performing a reset, make sure you have backed up your important data stored on the device.

This action will erase all of the data from your phone's internal memory.

This menu also gives you the option of resetting just your preferences or the WiFi, mobile data and Bluetooth®

Accessibility Features

Accessibility features on smartphones are designed to assist users with specific needs, such as visual, hearing, or motor impairments. These features make the device easier and more efficient to use.

You can configure your device to enhance its accessibility. Open Settings, then tap Accessibility and choose which features to enable.

INSTALLED APPLICATIONS

1. Sound Notifications

Be alerted when important sounds are detected in your home, such as a smoke alarm or a doorbell. More information is available on the Android support page.

2. Live Transcribe

Live Transcribe displays spoken words as text on your screen to help you follow conversations more easily.

Once activated, you can start Live Transcribe using the floating Accessibility button via a shortcut or other customisable options such as:

• Quick settings
• Volume buttons
• Swiping up with two fingers on the screen

More information is available on the Android support page.

3. Voice Access

Allows you to control your device hands-free. Use voice commands to open apps, press buttons, scroll the screen, and enter text.

SCREEN READER

1. TalkBack

TalkBack is an accessibility feature that helps blind or visually impaired users interact with their device using spoken feedback and touch gestures.

More information is available on the Android support page.

DISPLAY

1. Select to Speak

Lets you select items on the screen to be read aloud or described.

To use Select to Speak:

• Tap an item on the screen, such as text or an image.
• To hear multiple items, drag your finger across the screen.
  • To hear a description of everything, tap Play.

More information is available on the Android support page.

2. Display Size and Text

Allows you to adjust font size, screen display size, enable bold text, or modify contrast.

More information is available on the Android support page.

3. COLOUR AND MOTION

a. Colour Correction

Helps distinguish colours more accurately or remove colours to improve focus.

b. Colour Inversion

Applies to the entire device, including multimedia content (e.g. black text on a white background becomes white text on a black background). This may affect the quality or readability of colours.

More information is available on the Android support page.

Dark Theme

Dark theme applies to the Android user interface and supported apps. It does not affect the colours of media content such as videos.

More information is available on the Android support page.

c. Remove Animations

Reduces screen motion to improve focus.

d. Large Cursor

Increases the size of the cursor to make it more visible.

4. Extra Dim

For greater reading comfort, you can reduce screen brightness below your phone's minimum setting.

5. Magnification

Allows you to zoom in or enlarge elements displayed on the screen.

More information is available on the Android support page.

INTERACTION CONTROLS

1. Switch Access

Switch Access allows you to use one or more external switches instead of the touchscreen to interact with your device.

More information is available on the Android support page.

2. Touch and Hold Delay

Allows you to set the delay for long presses, the display time for interactive messages, and auto-click.

3. SYSTEM CONTROLS

a. Navigation Mode

Allows you to enable gesture navigation or 3-button navigation.

More information is available on the Android support page.

CAPTIONS

1. Live Captions

Automatically captions spoken content on your phone with a simple gesture. You can use it with media content such as videos, podcasts, phone or video calls, and voice messages.

More information is available on the Android support page.

2. Caption Preferences

Allows you to customise caption size and style for easier reading

AUDIO

1. Audio Description

Lets you hear a description of what's happening on screen for supported videos.

2. Flash Notifications

Makes the screen or flash blink when receiving notifications or alarms.

IMPORTANT: If you are sensitive to light, use flash notifications with caution.

3. Hearing Aids

Allows you to use hearing aids with your phone.

4. Sound Settings

Allows you to enable mono audio and adjust left/right sound balance.

5. Text-to-Speech Output

Converts typed text into spoken output. You can choose the language, speed, and pitch of the voice.

EAL-TIME TEXT(depending on your carrier)

This feature enables real-time message exchange during a phone call. It helps people who are deaf or hard of hearing, have a speech impairment, or need a transcription in addition to voice.

Real-time text calls are saved as transcriptions.

More information is available on the Android support page.

Warranty conditions

Your tablet, along with the accessories in the box, are guaranteed against any defect or malfunction that may arise due to their design or manufacture, or an equipment failure, under normal conditions of use, for the duration of the warranty period (available to read with our after-sales T&Cs on www.crosscall.com > Assistance > Warranty) valid from the date of purchase of the tablet, as shown on your original invoice. The commercial warranty automatically terminates at the end of this period. The period of availability of spare parts required for the use of new products is ten (10) years from the end-of-sale date.

For more information on the warranty terms and conditions, go to www.crosscall.com > Assistance > Garantie.

Before contacting our After-Sales Service, we advise you to follow the following instructions:

• Fully charge the battery;
- Upgrade the software or restore factory settings to format the tablet.
- Carefully read the TROUBLESHOOTING section of this user guide (page 40-43) to see if there are any suggested solutions that may solve the problem with your device.

CAUTION: ALL the tablet's user data (contacts, photos, messages, files and downloaded applications) will be permanently lost. You are strongly advised to perform a full backup of your tablet data before formatting it.

-> To restore factory settings: in your tablet's Menu, click on Settings > System > Advanced settings > Reset options > Erase all data (factory reset).

In the event that your tablet has a defect that prevents normal use, you will need to take your device to our After-Sales Service. Your tablet will not be repaired or replaced if the trademarks or serial numbers (IMEI) have been removed or changed, or if your purchase receipt is missing or illegible.

If the lack of conformity or defect is confirmed, all or part of your tablet will be replaced or repaired. This warranty covers the cost of parts as well as labour.

Before sending your tablet to our After-Sales Service, we recommend:

• writing down and keep your IMEI somewhere safe (*);
• removing the SD card and the SIM card;
• saving all your personal data. Our repair centre might need to format your tablet.

(*) Your IMEI code is the serial number used to identify your device and monitor after-sales service. There are several ways to find your IMEI code:

• Tap *#06# on your tablet keypad;
• Check the packaging of your tablet;
• On the back of your tablet and depending on the model, the IMEI may be given on a label or engraved on your tablet's SIM tray.

Documents and information to enclose when sending your tablet to our After-Sales Service:

• A copy of the invoice or receipt, showing the date of purchase, the type of product, and the name of the distributor;
  • The tablet's IMEI number;
• A description of the fault with the tablet.

We recommend reading the terms and conditions of service available on the Crosscall website at the following address: www.crosscall.com

CORE-T5, designed in France and assembled in China

Created and imported by:

CROSSCALL - 245 RUE PAUL LANGEVIN 13290 AIX-EN-PROVENCE - France.

ÍNDICE

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

Three technical line drawings of a robotic device with labeled components, shown from different angles (top, front, side), no text or symbols present.

Technical line drawing of a device with a connector and internal components, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a tablet device with a red upward arrow pointing to the bottom (no text or symbols)

Hand pressing a circular button with concentric rings (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand pointing at a circular button with an arrow, no text or symbols present

Illustration of two fingers pressing a circular button with an arrow pointing right (no text or symbols)

Hand making a peace sign with two arrows indicating rotation (no text or symbols)

Illustration of a hand reaching toward two arrows, symbolizing motion or movement (no text or symbols present)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Front view line drawing of a tablet device with labeled parts (no text or symbols beyond labels)

Line drawing of a tablet device with no text or symbols

Line drawing of a blank tablet device with a crown on top (no text or symbols)

Black rectangular device with a red button labeled 'S' and a small circular symbol on the side (no readable text or symbols beyond branding)

Three line drawings of foot and ankle joint configurations (no text or symbols)

Calculadora

Two people watching a beach scene with a smartphone and a digital video editing device on the right (no visible text or symbols)

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

Three technical line drawings of a robotic device with no visible text or symbols

Line drawing of a device with a connector and internal components, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

Hand pressing a circular button with concentric rings (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand pointing at a circular button with an arrow, no text or symbols present

Illustration of two fingers interacting with a circular button and an arrow (no text or symbols)

Hand making a peace sign with two arrows indicating rotation or movement (no text or symbols)

Illustration of a hand reaching toward two arrows, symbolizing motion or urgency (no text or symbols present)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a tablet device with labeled parts (no text or symbols on the body)

Line drawing of a tablet device with no text or symbols

Line drawing of a tablet device with a crown on top (no text or symbols)

Black rectangular electronic device with a red button highlighting the front panel (no visible text or symbols)

Two people watching a beach scene with a smartphone and a digital recording device displaying underwater scenes (no visible text or symbols)

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

Three technical line drawings of a robotic device with labeled components, shown from different angles (top, front, side), no text or symbols present.

Line drawing of a device with a connector and internal components, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

Hand pressing a circular button with concentric rings (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand pressing a button with an arrow symbol (no text or labels)

Illustration of two fingers interacting with a circular button and an arrow (no text or symbols)

Hand making a peace sign with two arrows indicating rotation or movement (no text or symbols)

Illustration of a hand reaching toward two arrows, symbolizing action or movement (no text or symbols present)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a tablet device with labeled parts (no text or symbols on the body)

Line drawing of a tablet device with no text or symbols

Line drawing of a rectangular electronic device with a small crown on top (no text or symbols)

Black electronic device with a red button labeled 'S' and a small circular icon, no visible text or symbols beyond the button.

Three line drawings showing foot positioning and cable installation (no text or symbols)

Calcolatrice

Two people watching a beach at sunset, one holding a smartphone and the other displaying a video editing interface (no readable text or symbols on the main subjects)

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

Three technical line drawings of a robotic device with labeled components, shown from different angles (no text or symbols present)

Technical line drawing of a device with a connector and internal components, showing no text or symbols

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

Hand icon pointing at a circular button (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand pressing a button with an arrow symbol (no text or labels)

Illustration of two fingers pressing a circular button with an arrow pointing right (no text or symbols)

Hand making a peace sign with two curved arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding two arrows, indicating movement or rotation (no text or symbols)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a tablet device with labeled parts (no text or symbols on the body)

Line drawing of a tablet device with no text or symbols

Line drawing of a blank tablet device with a crown on top (no text or symbols)

Mostrar as mensagens

Two smartphones connected to a desktop computer monitor displaying a red-tinted app interface (no readable text or symbols on screens)

Black handheld electronic device with a red button highlighting the front panel (no visible text or symbols)

Two people watching a beach at sunset, one holding a smartphone and the other displaying a video editing interface (no readable text or symbols on the main subjects)

Person holding a black foldable device outdoors, no visible text or symbols on the device or background

ALGEMENE PRESENTATIE VAN DE TABLET

Three technical line drawings of a robotic device with labeled components, shown from different angles (no text or symbols present)

Line drawing of a device with a connector and internal components, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a red button and power button, no text or symbols present

Simple line drawing of a laptop with a red upward arrow pointing to the front panel (no text or symbols)

Hand pressing a circular button with concentric rings (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow (no text or symbols)

Illustration of a hand pointing at a circular button with an arrow, no text or symbols present

Illustration of two fingers pressing a circular button with an arrow pointing right (no text or symbols)

Hand making a peace sign with two arrows indicating rotation (no text or symbols)

Illustration of a hand reaching toward two arrows, symbolizing motion or urgency (no text or symbols present)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a tablet device with labeled parts (no text or symbols on the body)

Line drawing of a tablet device with no text or symbols

Line drawing of a rectangular electronic device with a crown on top (no text or symbols)

Black rectangular device with a red button labeled 'S' and a small circular symbol on the side (no readable text or symbols beyond the button)

Three line drawings showing different anatomical or mechanical configurations (no text or symbols present)

Rekenmachine

Two people watching a beach scene with a smartphone and a digital recording device displaying underwater scenes (no visible text or symbols)

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

SPLOŠNA PREDSTAVITEV TABLICE

Three technical line drawings of a robotic device with labeled components, shown from different angles (top, front, side), no text or symbols present.

Celoten izbor dodatne opreme, združljive z X-LINK™ in X-BLOCKER, najdete na www.crosscall.com

VKLOP DELOVANJA CORE-T5

Technical line drawing of a device with a tool inserted, showing front and side views (no text or symbols)

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a tablet device with a red upward arrow pointing to the bottom (no text or symbols)

Hand pressing a circular button with concentric rings (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Na začetnem zaslonu ali na zaslonu aplikacij povlecite v levo ali desno za prikaz drugih strani.

Illustration of a hand pressing a button with a downward arrow (no text or symbols)

Illustration of two hands interacting with a circular button and an arrow (no text or symbols)

Če želite premakniti element, postavite nanj prst, ga pridržite in povlecite na želeno mesto.

Dejanja z dvema prstoma

Hand making a peace sign with two curved arrows indicating rotation (no text or symbols)

Najprej stisnite dva prsta skupaj in ju nato razmaknite, da povečate del spletne strani, zemljevida ali slike.

Illustration of a hand holding two arrows, indicating movement or rotation (no text or symbols)

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Line drawing of a rectangular electronic device with labeled parts (no text or symbols on the body)

Line drawing of a tablet device with no text or symbols

Line drawing of a rectangular electronic device with a crown on top (no text or symbols)

Two smartphones connected to a desktop computer monitor displaying time, with no visible text or symbols on the devices themselves.

Zdaj imate možnost projicirati zaslon tablice na kateri koli drug zaslon prek povezave USB-C/HDMI.

Black handheld electronic device with a red button highlighting the front panel (no visible text or symbols)

Rdeče polje, materializirano na zadnji strani tablice na fotografiji, označuje lokacijo antene NFC CORE-T5.

Three line drawings showing foot positioning and movement of a mechanical component (no text or symbols)

Računalo

Aplikacija X-TALK je aplikacija za voki-toki, ki jo je razvil CROSSCALL za komuniciranje:

Two people watching a beach scene with a smartphone displaying a video editing interface; no visible text or symbols on the main subjects.

Aplikacija X-STORY je aplikacija za montažo, ki jo je razvil CROSSCALL za vaše fotografije in videoposnetke. Omogoča:

UPORABA VAŠEG TABLETA

Telefonski pozivi....434

Kontakti 435

Poruke 436

Fotoaparat 436

Galerija....437

Prijenos podataka na vaš novi CROSSCALL tablet 438

Prijenos podataka između vašeg CROSSCALL tableta i vašeg računala 441

Upravljanje SIM karticama 442

Mobilne podatke 443

Preglednik 443

E-mail 443

Ušteda baterije....443

Vraćanje tableta na zadane postavke 444

Person holding a black handheld device outdoors, no visible text or symbols on the device or background

OPĆA PREZENTACIJA TABLETA

Opis uređaja

Three technical line drawings of a robotic device with labeled components, shown from different angles (no text or symbols present)

Otkrijte cijelu liniju X-LINK kompatibilnog pribora X-LINK™ i X-BLOCKER na www.crosscall.com

POČETAK KORIŠĆENJA VAŠEG CORE-T5

Umetanje nano SIM/micro SD kartice

Line drawing of a device with a tool inserted into a panel, showing front and side views (no text or symbols)

1. Potpuno izvucite ladicu.

2. Imate mogućnost ugradnje 2 SIM kartice i jedne micro SD kartice u svoj pametni tablet. a. Kako biste osigurali optimalnu kompatibilnost s uslugama operatera, preporučujemo da umetnete svoju nano SIM karticu, metalnom stranom prema dolje, u desni odjeljak (SIM 1).

b. Po želji umetnite drugu nano SIM karticu, metalnom stranom prema dolje, u srednji odjeljak (SIM 2) i/ili micro SD karticu u lijevi odjeljak.

1. Vratite ladicu u telefon.

Line drawing of a smartphone rear panel with a highlighted button and power button, no text or symbols present

Simple line drawing of a tablet device with a red upward arrow pointing to the bottom (no text or symbols)

1. Otvorite poklopac za spriječavanje ulaska prašine i spojite kabel i adapter za napajanje isporučene u pakiranju putem USB-A priključka. Zatim drugi kraj kabela priključite u USB-C priključak na tabletu.
2. Uključite ispravljač u električnu utičnicu.
3. Kada je baterija potpuno napunjena, iskopčajte tablet iz punjača. Najprije odspojite punjač iz uređaja, a zatim ga odspojite iz zidne utičnice.

Nikada nemojte puniti tablet pomoću magnetske veze X-LINK™* i USB veze istovremeno, jer to može skratiti vijek trajanja opreme vašeg telefona.

Baterija je ugrađena u tablet i ne može se ukloniti. Nemojte sami vaditi bateriju.

- Kako ne biste prerano koristili bateriju vašeg uređaja, preporučuje se pridržavati se ispravnih pravila upotrebe za svaki ciklus punjenja. Zbog toga je bolje napuniti bateriju čim dosegne 20% i izbjegavati da je punite više od 80%, nego da obavljate kompletne cikluse punjenja (od 0 do 100%).

*Technologie Magconn

• Koristite samo odobreni punjač i kabel koji su kompatibilni s vašim tabletom. Uporaba neodobrenih punjača ili kabela može uzrokovati eksploziju baterije ili oštećenje tableta.
• Izbjegavajte uporabu tableta tijekom njegova punjenja. Nemojte prekrivati tablet ili adapter za napajanje.
• Neispravno priključivanje punjača moglo bi ozbiljno oštetiti vaš tablet. Jamstvo ne pokriva štetu uzrokovanu pogrešnom uporabom.
• Izvadite punjač iz električne utičnice kada se tablet ne puni.
• Tablet se možda neće odmah uključiti ako punite ispražnjenu bateriju. Nakon nekog vremena punjenja, tablet će se normalno upaliti.
• Ako je snaga izmjenične struje (AC) slabija, vrijeme punjenja može biti duže.
• Ako upotrebljavate nekonvencionalne punjače kao što su računala, vrijeme punjenja može biti dulje.
• Vrijeme punjenja može varirati ovisno o temperaturi okoline i preostalog kapaciteta baterije.
• Tablet se može sigurno puniti na temperaturama između 0°C i 40°C. Svako punjenje na temperaturama ispod 0°C ili iznad 40°C može nepovoljno utjecati na performanse baterije i smanjiti njezino trajanje. Dugotrajno punjenje pri ekstremnim temperaturama oštetit će bateriju.
• Tijekom punjenja tablet i punjač mogu se zagrijati. To je sasvim normalno i ne bi trebalo utjecati na vijek trajanja ili performanse tableta. Ako se baterija zagrijava više nego inače, prestanite s punjenjem. Postavite tablet na hladno mjesto i pustite ga da se ohladi. Izbjegavajte dulji kontakt s površinom tableta ako se on zagrijava.

Hand icon pointing at a circular button (no text or symbols)

Illustration of two hands pointing at a circular button with an arrow, no text or symbols present

Illustration of a hand pressing a button with a downward arrow (no text or symbols)

Povucite prema gore ili prema dolje da biste se pomicali na mrežnoj stranici ili popisu stavki.

Premještanje

Illustration of two fingers pressing a circular button with an arrow pointing right (no text or symbols)

Da biste pomaknuli element, postavite prst na njega, držite ga i povucite na željeno mjesto.

Radnje s pomoću dva prsta

Hand making a peace sign with two arrows indicating rotation (no text or symbols)

Prvo spojite dva prsta, a zatim ih razdvojite da biste povećali dio web stranice, karte ili slike.

Illustration of a hand reaching toward two arrows, symbolizing motion or urgency (no text or symbols present)

Približite ih da biste je smanjili.

Navigacija sustavom

Vaš tablet nudi vam dva načina navigacije sustavom:

• Navigacija s tri gumba
• Navigacija pokretima

U nastavku ćete detaljno pronaći navigaciju s tri gumba koja je zadana navigacija tableta. Za konfiguriranje navigacije pokretima idite na Postavke > Navigacija sustavom

Na bilo kojoj stranici vašeg tableta pritisnite krug u sredini ekrana za povratak na početni zaslon

Na bilo kojoj stranici na vašeg tableta, pritisnite trokut u sredini ekrana za povratak na prethodnu stranicu.

Otvorene aplikacije

Line drawing of a tablet device with a small battery icon on the screen (no text or symbols)

Ovaj gumb uglavnom omogućuje:

Front view of a tablet device with labeled parts (1 and 2), no text or symbols on the body itself.

Vaš CORE-T5 ima četiri programabilna gumba (br. 1, br. 2) koji se mogu koristiti na dva različita načina:

• bilo DUGIM pritiskom
• ili s 3 KRATKA brza pritiska.

Line drawing of a tablet device with a plus and minus signs on the screen (no text or symbols on the device itself)

Ovaj gumb, sastavljen od tipke + i tipke -, omogućit će vam da konfigurirate glasnoću svojih poziva i obavijesti jednostavnim prebacivanjem između 3 načina:

• Način rada zvonjenja
• Način rada vibracije
• Tihi način rada

Također će vam omogućiti jednostavno podešavanje glasnoće:

Line drawing of a rectangular electronic device with a top-mounted antenna (no text or symbols)

UPORABA VAŠEG TABLETA

Telefonski pozivi

Biranje broja

1. Pritisnite na 📞 na početnom zaslonu ili izborniku vašeg tableta.
2. Pritisnite za pristup tipkovnici i unošenje telefonskog broja.
3. Pritisnite za upućivanje poziva.

Iz dnevnika poziva ili popisa kontakata

1. Pritisnite na 📞 na početnom zaslonu ili izborniku vašeg tableta.
2. Pritisnite na ☐ za pristup dnevniku poziva i dodirnite broj koji želite nazvati.
3. Pritisnite na za pristup popisu kontakata i dodirnite broj koji želite nazvati.

Upućivanje međunarodnog poziva

1. Pritisnite na na početnom zaslonu ili izborniku vašeg tableta.

2. Pritisnite na za otvaranje tipkovnice.
   3.PRITISNITE TIPKU O I DRŽITE PRST DOK SE NE PRIKAŽE ZNAK +.

3. UNESITE OZNAKU DRŽAVE, OZNAKU ZONE I TELEFONSKI BROJ.
4. Pritisnite na da biste pozvali birani broj.

Pozivi 4G (VoLTE) / Pozivi WIFI (VoWIFI)

Za konfiguriranje poziva u 4G i WIFI :

1. Idite u: Postavke > Mreža i Internet

Two devices connected to a computer monitor displaying a red-tinted screen interface (no readable text or symbols on screens)

Sada imate mogućnost projiciranja zaslona tableta na bilo koji drugi zaslon putem USB-C/HDMI veze.

Sve se radi automatski, nekoliko sekundi nakon uključivanja.

Način rada s rukavicama

Black handheld device with a red button highlighting the front panel (no visible text or symbols)

Crveni okvir na stražnjoj strani tableta prikazan na fotografiji pokazuje vam mjesto NFC antene CORE-T5.

Ovaj dio tableta postavite ispravno na beskontaktne čitače (terminale za plaćanje, transportni terminal, pristupni čitač itd.) radi optimalnog rada.

Dijeljenje baterije

CORE-T5 vam sada daje mogućnost punjenja drugog uređaja ili dodatne opreme pomoću baterije.

Ova se značajka automatski aktivira uključivanjem drugog uređaja ili dodatne opreme putem USB-C kabela.

Ikona Dijeljenje baterije 📋 u prozoru s brzim postavkama omogućuje:

Three line drawings showing different anatomical or mechanical configurations (no text or symbols present)

Kalkulator

1. Idite u aplikaciju Postavke > Gumbi

1. Zatim odaberite gumb s kojim želite povezati ovu aplikaciju (1 ili 2), kao i način pokretanja te kliknite na nju.

2. Zatim kliknite ikonu postavki pored polja aplikacije i odaberiteX-SAFE.

Korak 3: Pokretanje upozorenja

Preporučujemo da pokrenete upozorenje kako biste provjerili je li konfiguracija vaše aplikacije X-SAFE operativna. Odbrojavanje je počelo. Korisnik može prekinuti upozorenje pritiskom na gumb «Poništi». Na kraju odbrojavanja, poziv i/ili SMS automatski se šalju prethodno odabranoj osobi

UPOZORENJA

Aplikacija X-TALK je aplikacija za voki-toki koju je razvio CROSSCALL za komunikaciju:

• Nekoliko sosba
• Bez 06
• Bez telefoniranja

• Bez podizanja

• Da biste pronašli sve informacije o ovoj aplikaciji, idite na: https://www.crosscall.com/fr_FR/x-talk.html

• Vodič zaaplikacije pronađite i na našem YouTube kanalu putem sljedeće veze https://www.youtube.com/watch?v=V_vEC55Wq0M&t=1s

Two people watching a beach at sunset, one using a smartphone and the other displaying a video editing interface (no readable text or symbols on the devices themselves)
