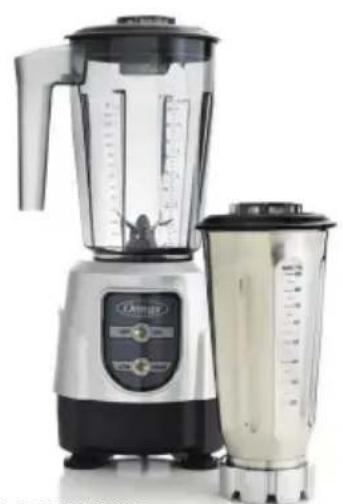

BL390 - Blender OMEGA - Free user manual and instructions

Product Type	High-end blender
Brand	Omega
Model	BL390
Motor Power	1 horsepower (746 W)
Power Supply	120 V, 60 Hz (US model) / 220-240 V, 50-60 Hz (International model)
Dimensions (W x H)	170 mm (6.7 in) width, 400 mm (15.75 in) height (International model)
Weight	4 kg (8.8 lb)
Container Material	BPA-free Eastman Tritan™ copolyester or stainless steel (depending on version)
Container Capacity	Approximately 1.5 L (not specified in the manual)
Controls	On/Off button, speed and duration dials
Main Functions	Blending, mixing, ice crushing, hot soup preparation (with precautions), smoothies, sorbets
Maintenance and Cleaning	Hand wash with warm water (<46°C) and non-foaming detergent; do not immerse the base; do not put in dishwasher
Safety	Grounding required; do not open the lid while operating; very sharp blade; safety device (automatic shutdown in case of overload?)
Spare Parts and Repairability	Container, lid, cap, blades, base; repair by authorized center; maintenance-free motor
Included Accessories	Container (depending on version), lid, feeding cap, motor base
Recommended Use	Household and light commercial use (restaurants, canteens)

Frequently Asked Questions - BL390 OMEGA

Can I blend hot liquids with the BL390 blender?

Yes, but with caution. It is essential to always place the lid and feeding cap before blending hot liquids. Do not fill the container beyond half to avoid splashes. Use the cap to add ingredients while operating.

How to clean the Omega BL390 blender?

After each use, separate the container parts from the base. Hand wash with a solution of warm water (below 46°C) and non-foaming detergent. Never put the container or base in the dishwasher. For a deep clean, run the blender with soapy water for 2 minutes at high speed, then rinse.

What to do if the blender does not start?

First, check that the container is properly placed on the base. Make sure the controls are clean and movable. Check that the power cord is plugged into a working outlet. If the problem persists, wait 5 minutes after unplugging it, then plug it back in and try again. Also check the circuit breaker or fuse.

Can I crush ice cubes with the BL390?

Yes, the blender is designed to crush ice cubes. First pour liquid, then add ice cubes. Place the lid and set to desired speed. Do not put large frozen pieces without liquid to avoid blocking the blades.

Are the blades removable and how to replace them?

The blade assembly (D) is removable and screws onto the container. To replace them, contact Omega after-sales service. Handle the blades carefully as they are very sharp. Regularly check that they rotate freely before use.

Can I use accessories not sold by Omega?

No, using accessories not recommended by the manufacturer may cause fire, electric shock, or injury. Use only original Omega spare parts to ensure safety and performance.

How to avoid leaks during blending?

Make sure the lid gasket is clean and properly seated. Tightly screw the lid onto the container. Do not exceed the maximum fill level (usually 3/4 of the container). If the container is cracked, stop use immediately and replace it.

Can I blend very hard foods like nuts or carrots?

Yes, but cut them into small pieces (max 2.5 cm) and add enough liquid to facilitate blending. Start at low speed then gradually increase. Avoid blending bones or extremely hard foods that could damage the blades.

How to maintain the blender motor base?

Never immerse the base in water. Unplug the appliance and wipe the exterior with a damp cloth. The motor is lubricated for life and requires no maintenance. If food gets into the base, clean immediately with a dry cloth.

What are the essential safety precautions?

Read the entire manual before use. Always plug into a grounded outlet. Do not remove the grounding pin. Never place hands or utensils in the container while operating. Always use the feeding cap and lid. Unplug before cleaning or removing parts.

USER MANUAL BL390 OMEGA

BL360BL330 BL390BL332

T

BL300 Blender Series

HIGH/LOW CONTROLS

eannnnnne

CONGRATULATIONS on the purchase of your new Omega product.

At Omega, we strive to develop technologically advanced machines that help deliver nutrition and flavor of the highest kind and closest to nature's purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years!

PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration

RECIPIES, VISIT: www.omegajuicers.com/recipes

CUSTOMER SERVICE: visit: www.omegajuicers.com/contact-omega-juicers

After using your Omega, we kindly ask you to rate the machine on

www.OmegaJuicers.com

TABLE OF CONTENTS

02-03 Blender Safety
04-05 Important Safeguards
06-07 Know Your Omega
08-09 Operating instructions & Professional Blender Tips
10-11 Cleaning Instructions &Caring Tips
12-13 Troubleshooting
14-19 Recipes & Notes
60-61 Product Specifications
20-39 French
40-59 Spanish

BLENDER SAFETY

DANGER Electricity GENERAL Caution

DANGER Risk of Electrical Shock

WARNING

ELECTRICAL SHOCK HAZARD

Plug into a grounded outlet.

Do not remove ground.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

WARNING

MOVING PARTS!

Always cover the lid on the container when blending.

Do not put hands, spoons or other utensils in container when blending.

Failure to follow these instructions can result in broken bones, cuts or other injuries.

FAILURE TO ADHERE TO THESE WARNINGS CAN RESULT IN FIRE, SERIOUS INJURY, ELECTRICAL SHOCK AND/OR DEATH

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS

When using electrical appliances basic safety precautions should always be followed including the following:

• Read all instructions.
• To protect against risk of electrical shock do not put the motor base in water or other liquid.
• Close supervision is necessary when any appliance is used near children.
• Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
• Avoid contact with moving parts. Never feed dough by hand. Always use food pusher.
• DO NOT operate any appliances with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge.
  DO NOT use outdoors.
  DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
  DO NOT place on or near a hot gas or electric burner or in a heated oven.
  DO NOT use appliance for other than intended use.
• Be sure to switch to off position after each use of your juicer.
• DO NOT put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in the opening, use the plunger or another piece of fruit to push it down. When this method is not possible, turn the motor off and disassemble juicer to remove the remaining food.
  DO NOT plug in until familiar with all the instructions and operating procedures.
• DO NOT unplug from electrical outlet by pulling on the cord. To unplug grasp the plug, not the cord, and pull.
• Turn off all controls before unplugging from or plugging into an electrical outlet.
• Check hopper for presence of foreign objects before using.
• Moving parts---Keep fingers out of discharge openings.
• Read instructions before using.
• Sharp blade—Always use food pusher.
• Blade are sharp. Handle carefully.
• Do not attempt to modify the plug in any way.
• These appliances are intended to be used for commercial applications, for example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

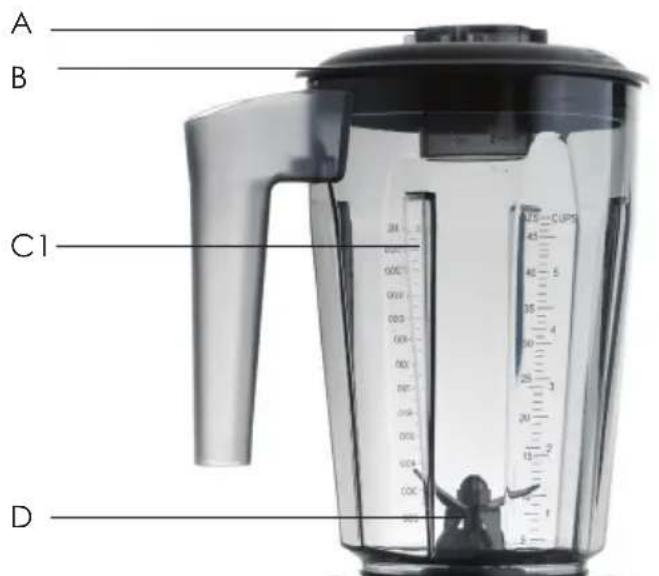

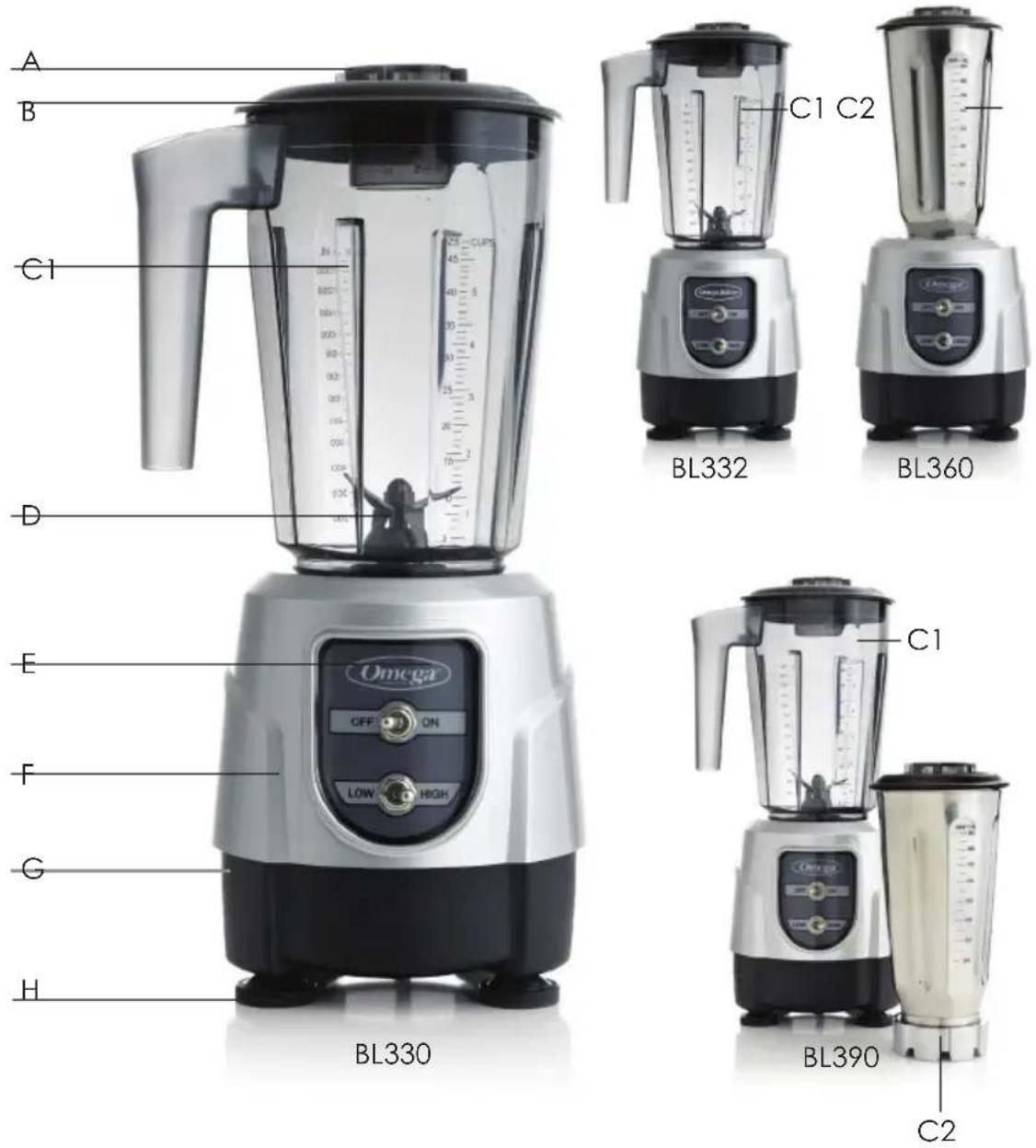

KNOW YOUR OMEGA

KNOW YOUR OMEGA

A Feeder Cap
B Lid

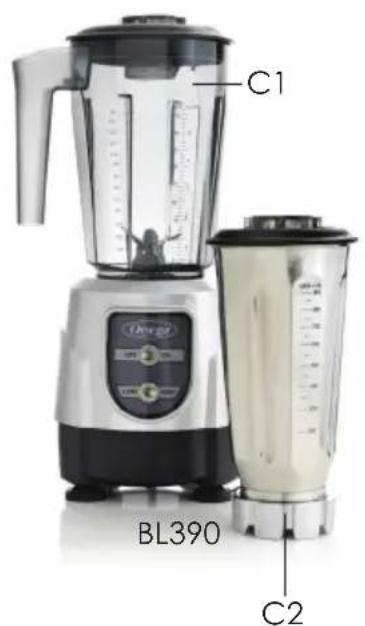

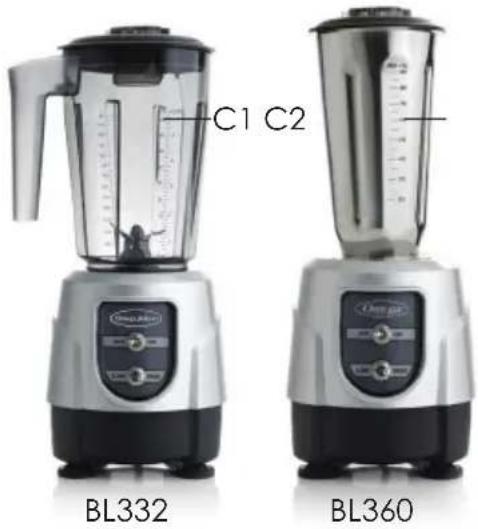

C1 Eastman Tritan™ Copolyester Container BPA-Free
C2 Stainless Steel Container
D Blade Assembly

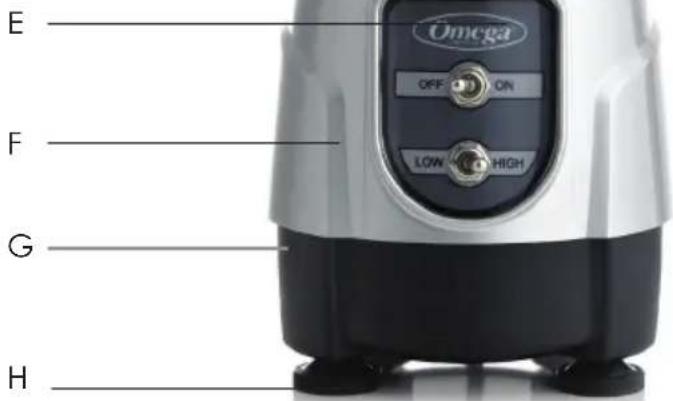

E Control Panel
F Blender Base
G High Performance Motor
H Sturdy Nonslip Feet

OPERATING INSTRUCTIONS

PROFESSIONAL BLENDER TIPS

TO OPERATE THE BLENDER, PROCEED AS FOLLOWS:

1. For the first time user, wash the container assembly, including the lid, before using it. (Refer to "Cleaning Instruction") Do not put the container assembly & blender base assembly in the dishwasher.

2. Place the blender on a dry, clean, level surface, and press OFF.

3. Place the container onto the motor base. Make sure it rests securely on the base.
4. Plug the blender into an electric outlet.
5. Place the ingredients into the container.
6. Place the lid and feeder cap tightly on the container.
7. Select desired speed and time by rotating dials.
8. Press ON.

PROFESSIONAL BLENDER TIPS

1. Processing hot liquid

• Always cover the lid and feeder cap before blending hot liquid or mixtures.
• Use the feeder cap to add liquids to the container while the unit is running.
• Never stand with your face directly over the container when you are putting ingredient through the feeder cap.

2. Blending Icy mixtures

Steps for blending ice:

• Pour in liquid, and then add ice.
• Place the lid.
• Set to desired speed
• Chunks of frozen fruit can be added to milk or fruit juice to produce a sherbet or slush.
• Use the feeder cap to add liquids or ingredients to the container while the unit is running.

CLEANING INSTRUCTIONS

CARING TIPS

CLEANING INSTRUCTIONS

Blender container parts are corrosion resistant, sanitary and easily cleaned. Do not put the container assembly & blender base assembly in the dishwash

1. Before first use and after every use, separate container parts from the base.
2. Add cleaning solution to the container. Use washing solution of tepid water (less than 115^ / 46^ ) and a non-sudsing detergent. Use the recommended amount of detergent.
3. Scrub and flush out the container interior lid and feeder cap to remove food residue. Empty container.
4. Fill container 1 /4 full with fresh washing solution and place it on the base.
5. Replace the lid on the container and run the blender on high speed for 2 minutes.
6. Repeat step 4 using clean rinse water (95^ / 35^)
7. Wipe down the container, feeder cap, and lid with a soft cloth or sponge, dampened with fresh washing solution.
8. Wipe the exterior of the base with a damp cloth or sponge. The base contains electrical components: do not immerse, use a high-pressure washer, or use a dishwasher to clean the base.

CARING TIPS

To care for your blender, please read the tips as follows:

1. Periodically check all parts before reassembly. As use of damaged or non-recommended parts could result in a severe personal injury and/or damage to the blender
2. BLADES: If the processing blades are stuck or difficult to turn, DO NOT USE BLENDER (Check by carefully turning the blades in a counterclockwise direction, where the opposite edges are sharp. Blades should turn freely.)
3. CONTAINER: If the Eastman Tritan container is cracked, DO NOT USE BLENDER, further use could result in the container breakage during use.
4. BLENDER BASE: Never immerse the blender base in water. Unplug unit. The housing can be cleaned with a damp cloth.
5. MOTOR: The motor is permanently lubricated and does not require any additional lubrication.

TROUBLESHOOTING

TROUBLESHOOTING

BLENDER FAILS TO START.

SOLUTION:

1. Place container properly on the base
2. Check to ensure controls are clean and moving freely.
3. Double-check to ensure power cord is securely plugged into the electric outlet.
4. Check to see if the circuit breaker has tripped or if the fuse for the electric outlet has blown.

BLENDER STOPPED

SOLUTION:

1. Unplug blender and wait 5 minutes.
2. Plug the blender back in and resume operation.

INGREDIENTS DO NOT MIX PROPERLY

SOLUTION:

1. Container is too full.
2. Cutter unit blades are not sharp enough or are damaged.
3. Solid pieces are bigger than 1" (25 mm) cubes.
4. Check the speed to create a fluid blend.
5. Check to see if enough liquid has been added to the ingredients. Mixture should be fluid and free-running at all times.

RECIPES & NOTES

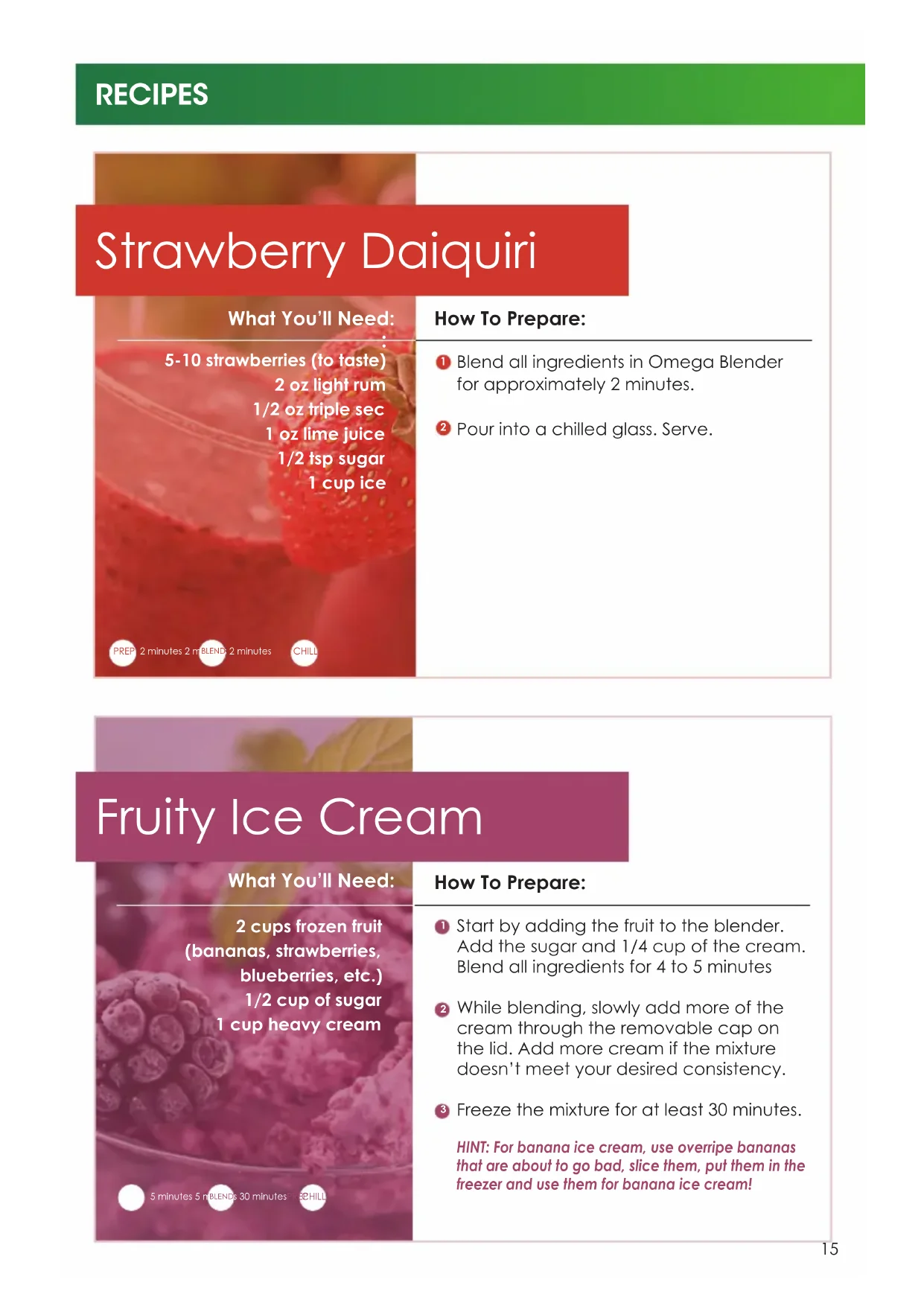

Strawberry Daiquiri

What You'll Need:

5-10 strawberries (to taste)

2 oz light rum

1/2 oz triple sec

1 oz lime juice

1/2 tsp sugar

1 cup ice

How To Prepare:

Blend all ingredients in Omega Blender for approximately 2 minutes.
Pour into a chilled glass. Serve.

2 minutes 2 m BLEND: 2 minutes

Fruity Ice Cream

What You'll Need:

2 cups frozen fruit (bananas, strawberries, blueberries, etc.) 1/2 cup of sugar 1 cup heavy cream

How To Prepare:

Start by adding the fruit to the blender. Add the sugar and 1/4 cup of the cream. Blend all ingredients for 4 to 5 minutes
While blending, slowly add more of the cream through the removable cap on the lid. Add more cream if the mixture doesn't meet your desired consistency.
3 Freeze the mixture for at least 30 minutes.

HINT: For banana ice cream, use overripe bananas that are about to go bad, slice them, put them in the freezer and use them for banana ice cream!

5 minutes 5 n BLENDs 30 minutes

Coco-Nilla Ice "Cream"

What You'll Need:

2 cups Coconut Milk (canned or fresh) 2 tbsp maple syrup, honey or agave 2 tsp vanilla extract Fruit (optional)

How To Prepare:

Blend all ingredients for 4 to 6 minutes.
Freeze the mixture for at least 2 hours, stirring every 20 to 30 minutes.

Dairy-free recipe!

Cinnamon Apple Sauce

What You'll Need:

6 apples, cored, peeled, quartered 2 tbsp lemon juice 2 tbsp cinnamon

How To Prepare:

Blend all ingredients in the Omega blender until it meets your desired consistency. Blend for approximately 3 minutes.

Pumpkin Spice Soup

What You'll Need:

4 tbsp olive oil

2 medium yellow onions,

(sliced in quarters)

2 tsp garlic

6 cups of sliced roasted pumpkin

5 cups chicken stock

2 cups milk

1/2 cup heavy (35%) cream

1/4 tsp cayenne pepper to taste

2 tsp curry powder

1/2 tsp ground coriander

salt (if desired)

brown sugar (if desired for sweetness)

20 minutes 8-BLENDutes 15 minute PREP

How To Prepare:

1 Add oil, onions, garlic and salt to the Omega blender. Blend for 2 to 3 minutes, until they are finely chopped. Transfer to stovetop and cook on low until onions are soft.
In the meantime, blend pumpkin and chicken stock. Pour into pot with oil, onions, garlic and salt. Bring to a low boil. Simmer for 10 minutes.
Pour the mixture into the blender while warm. Set the blender on speed 7 for 5 minutes. Add the remaining ingredients through the removable cap on the lid. The mixture should be close to a puree texture.
Pour the mixture into the stovetop pot. Heat and allow to simmer for 5 minutes as flavors mix. Serve hot or cold.

Chocolate Mousse

What You'll Need:

1/2 cup milk

1 cup heavy cream

2 tsp butter

1/2 tsp instant coffee

2 eggs

6 oz chocolate chips

2 tsp rum, cognac or brandy

1 tsp powdered sugar

How To Prepare:

Beat 1/2 cup milk and 1/2 cup cream on stove top until it bubbles. Do not let it burn.
In your Omega blender add butter, eggs, coffee, chocolate chips, and liquor. Blend until creamy. While blending, slowly add hot milk and cream.
3 Blend until smooth for 1 to 2 minutes. Pour into a pan. Chill for at least an hour.
Beat remaining cream and powdered sugar into smooth mixture and chill. Serve on top.

Chili Salsa

What You'll Need:

1 (14.5 oz can) whole canned tomatoes

4 tsp jalapenos (diced, not pickled)

2 chili peppers

1/4 cup yellow onions (diced)

1/2-3/4 tsp garlic salt

1/2 tsp cumin

1/4 tsp sugar

2 minutes 4 m BLEND: 60 minutes PRECHILL

How To Prepare:

In the Omega blender, place jalapenos, chili peppers and onions. Remember, the heat of chili peppers comes from the seeds, the veins where the seeds are attached, as well as, the parts nearest the veins. For milder dishes, the veins and seeds should be removed and discarded.
2 Blend for a few seconds. Add both cans of tomatoes, salt, sugar, and cumin.
3 Blend all ingredients for 1 to 2 minutes. Do not pure.
Place in covered container and chill for 1 hour and serve.

Honey Wheat Pancakes

What You'll Need:

1-1/3 cups buttermilk (low-fat)

2 eggs

2 tbsp honey

1-1/2 cups buttermilk baking mix

1/2 cup whole-wheat flour

1/4 cup honey-crunch wheat gem

1 tsp baking powder

butter and syrup for serving

How To Prepare:

Place the buttermilk, eggs and honey in the Omega blender. Then begin adding the remaining ingredients into the Omega blender in the order given through the removable cap on the container lid. Blend for approximately 6 minutes.
Once the mixture is blended to your desired consistency, shut off the blender.
3 For each pancake, pour about 1/4 cup batter onto a skillet.

NOTES

For Recipes, visit www.OmegaJuicers.com/recipes

Omega

Felicitations!

POUR DES RECETTES, RENDEZ-VOUS AU: www.omegajuicers.com/recipes

SERVICE à LA CLIENTÉLE :
visitez le : www.omegajuicers.com/contact-omega-juicers

www.OmegaJuicers.com

TABLE DES MATIÈRES

Daiquiri aux praises

PARASERVICIOALCLIENTE: ovisite:www.omegajuicers.com/contact-omega-juicers

www.OmegaJuicers.com

TABLA DE CONTENIDO

CONOCE TU PRODUCTO OMEGA

BL330

5 minutes
MEZCLA
5 minutes
ENFRIA
30 minutes

Cómo preparar:

PRODUCT SPECIFICATIONS

CARACTERISTIQUES DU PRODUIT

Product Name BL300 Series One Horsepower Blender

Model Names USA BL330, BL360, BL390

Rated Voltage Available 120V

Rated Frequency 60Hz

Motor 1 Horsepower

Weight (BL330/BL360) 7.7 lb. (3.5 kg)

Weight (BL390) 8.8 lb. (4 kg)

Dimensions 6.7" Width (170 mm)

15.75" Height (400 mm)

Also available International BL332 220-240V 50-60Hz

www.OmegaJuicers.com

The Legacy Companies, Weston, FL 33331 U.S.A.
